相位调制器

SLM Research Kit 2K (SRK2K)

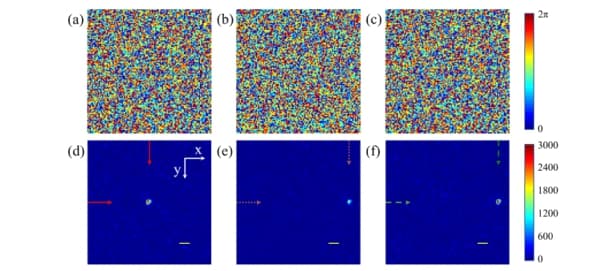

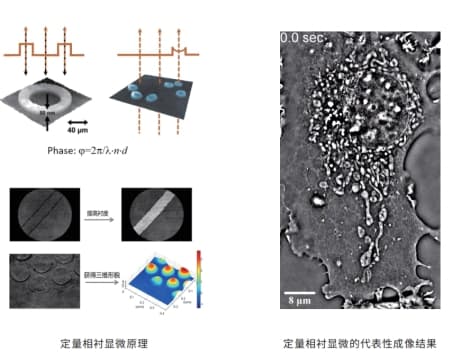

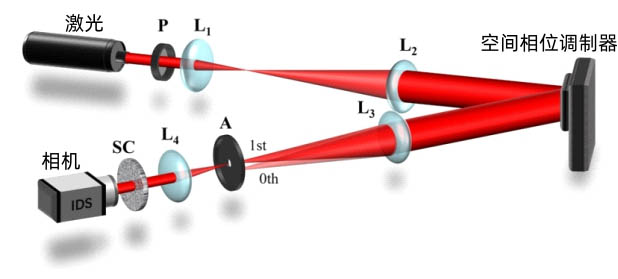

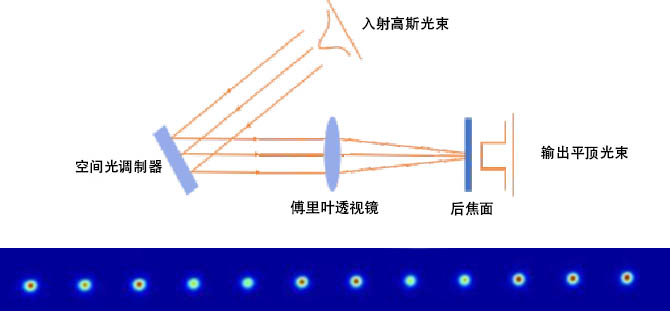

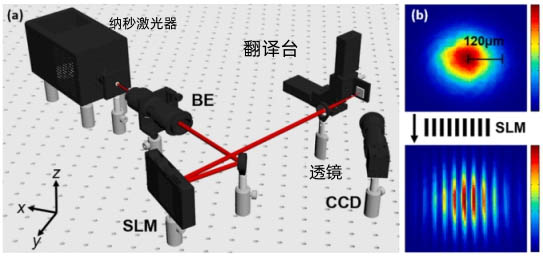

The SLM Research Kit (SRK) is built on the the 0.55″ JD5552 microdisplay series. It offers 2π phase retardation at different selectable wavelengths and a resolution of 1920 x 1080 pixels. The SRK is compact, and can aid in the development of a wide-variety of applications including DOE, HOE, laser processing, holography, WSS, and data storage(HDS) applications. SRK accessories include the wavelength configuration software and all required cabling.

Main Features


·         Phase Modulator

·         Input: 8-bit monochrome HDMI 1080p@ 60 Hz

·         Retardation: 2π @ 532 nm & 2π @ 633 nm

·         Easy Addressing Interface using HDMI 1.4

·         SLM and driver in a single compact package

·         Compact Size: 95 mm X 65 mm x 20mm

·         Dual optical bench mounting points aligned to optical centre

·         Software to configure the SLM to address different wavelengths

Standard Deliverables


·        Spatial Light Modulator (SLM)

·         HDMI Cable

·         Mini USB Cable

·         Cable for Vsync

·         Cable for output sync

·         DC 12V/2A Power Adaptor

·         Software and content disc (incl. Warranty card)

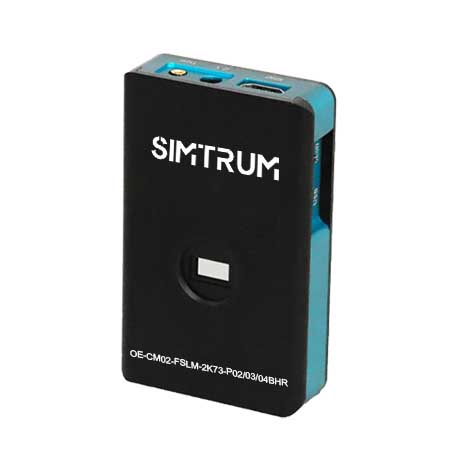

  Figure 1: SRK SLM Hardware


Software Panel

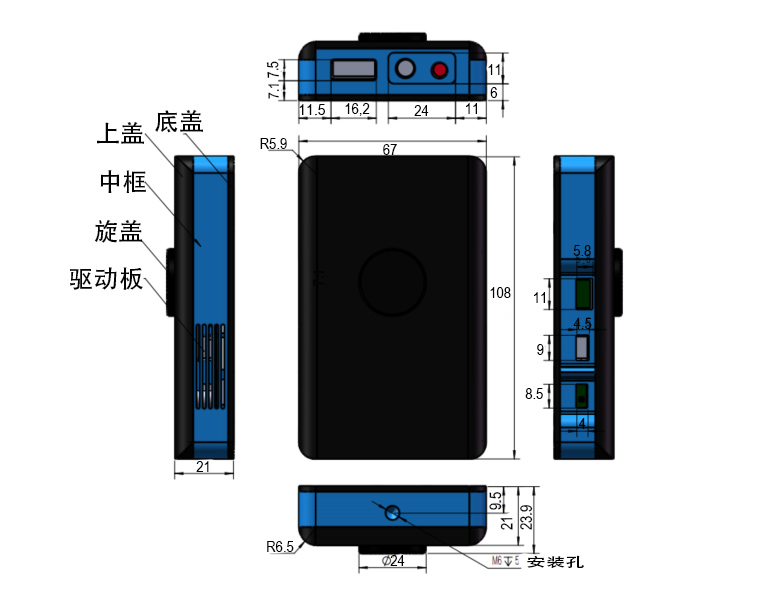

2K SRK outline dimensions



SLM Research Kit 4K (SRK4K)

The SLM Research Kit 4K (SRK4K) offers 2π phase retardation at different selectable wavelengths at resolutions of 4096 x 2400 pixels. The SRK4K is compact, and can aid in the development of a wide-variety of applications including DOE, HOE, laser processing, holography, WSS, and data storage (HDS) applications. SRK4K accessories include the wavelength configuration software and all required cabling.

Main Features


·         Phase Modulation

·         Input: 8-bit depth monochrome 4096 x 2400 @ 30Hz

·         Retardation: 2π @ 532nm, 2π @ 633 nm

·         Easy Addressing Interface using HDMI 1.4 protocols

·         SLM and driver in a single compact package

·         Compact size: 118 mm x 72 mm x 20 mm

·         Dual optical bench mounting points aligned to optical centre

·         Software to configure the SLM to address different wavelengths

Standard Deliverables


·         Spatial Light Modulator Hardware

·         USB drive loaded with Software & Documents

·         DC 12V/2A Power Adaptor

·         HDMI Cable

·         Mini USB to USB Cable

·         MCX to BNC Cable for HDMI Vsync Output

·         4-pin Cable for R/G/B Vsync Output

·         Product Packaging Carton

Figure1. SRK SLM Hardware






Software Panel

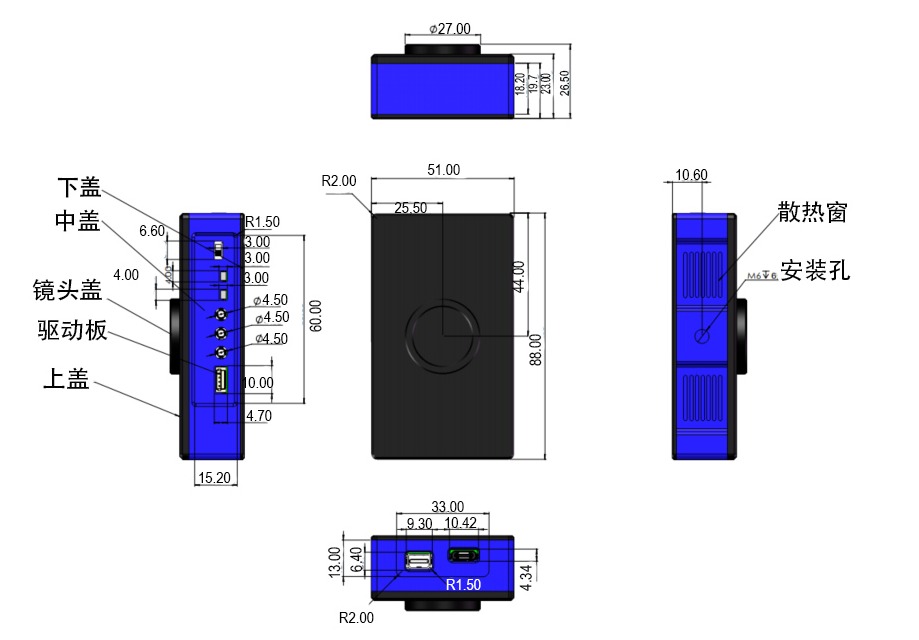

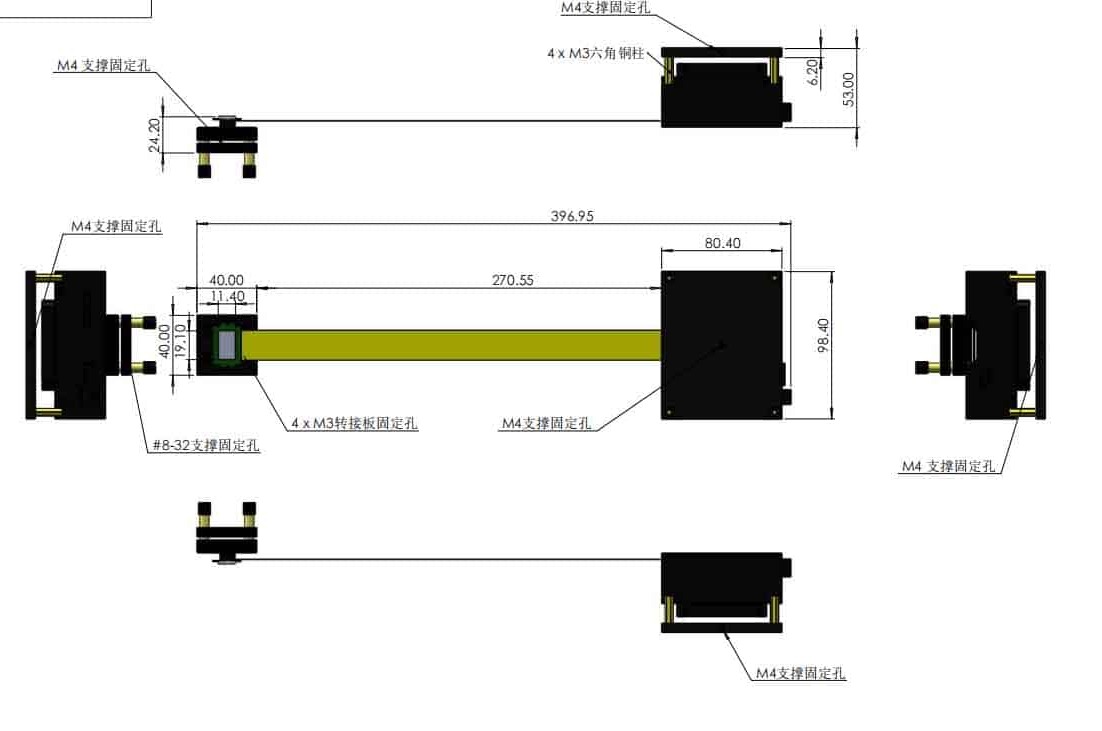

4K SRK outline dimensions




Product Brochure: Phase Modulator

2K SRK

Model#JD7554JD7554BJD7554NJDN554WJD7554VHJD7556VH
Wavelength430 –750 nm405 –490 nm1000 –1100nm1530 –1565nm430 –633nm532 nm
Retardation2π @ 532nm & 633nm≧ 2π @405nm≧ 2π @1064nm≧ 2π @1550nm2.6π @532nm & 2π@633nm2π@532nm
Resolution1920 x 10801920 x 10801920 x 10801920 x 10801920 x 10801920 x 1080
Active Area   Diagonal0.55″0.55″0.55″0.55″0.55″0.55″
Pixel Pitch6.4 μm6.4 μm6.4 μm6.4 μm6.4 μm6.4 μm
Input Frame Rate60 Hz60 Hz60 Hz60 Hz180 Hz360 Hz (monochrome)
Input Gray Levels8-bit (256)8-bit (256)8-bit (256)8-bit (256)8-bit (256)8-bit (256)
Display TypeReflective LCoSReflective LCoSReflective LCoSReflective LCoSReflective LCoSReflective LCoS
EnclosureKit, or No-box (optional)Kit, or No-box (optional)Kit, or No-box (optional)Kit, or No-box (optional)No-boxKit, or No-box (optional)






SRK2K KitSRK2K No-box0.55″ 2K LCoS Panel2K Driver Board

4K SRK

Model #JD7714JDN714WJDN714V03P2JDN124W
Wavelength430 – 750 nm1530 – 1565 nm430 – 750 nm1530 – 1565 nm
Retardation2π @ 532 nm & 633nm2π @ 1550 nm2π @ 532 nm & 633 nm2π @ 1550 nm
Resolution4094 x 24004094 x 24004094 x 24004094 x 2400
Active Area   Diagonal0.7″0.7″0.7″1.2″
Pixel Pitch3.74 μm3.74 μm3.74 μm6.4 μm
Input Frame Rate30 Hz30 Hz60 Hz30 Hz
Input Gray Levels8-bit (256)8-bit (256)8-bit (256)8-bit (256)
Display TypeReflective LCoSReflective LCoSReflective LCoSReflective LCoS
EnclosureKit, or OEM Version (optional)Kit, or OEM Version (optional)Kit, or OEM Version (optional)OEM Version













SRK4K KitSRK4K No-box0.7″ 4K LCoS Panel


1.2″ 4K LCoS Panel4K Driver Board
