声光Q开关 (AOQ)

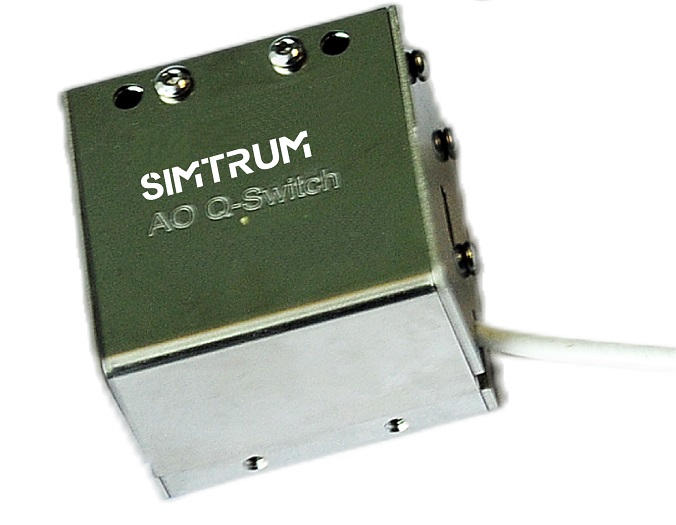

Acousto-optic Q-switch

High-peak-power short-pulse laser intracavity devices

Acousto-optic Q-switch (AOQS) works within the laser cavity to generate short-pulses, and high-peak-power lasers by actively controlling the Q-factor of the cavity. AOQS is usually used to modulate the loss of zero-order beams. When the RF drive of AOQS is turned on, the zero-order light cannot form an oscillation of laser in the cavity due to diffraction, and the cavity loss increases and prevents laser output. When the RF drive is turned off for a short time, the optical power accumulated in the laser cavity is emitted in the form of a pulse to generate a pulsed laser. The process can be repeated at rates in excess of 100KHz. AOQS can operate either in the Bragg state, like AOM (Acousto-optic modulator) with a single diffracting beam, or in the Raman-Nath state with multiple diffracting beams.


SIMTRUM offers a complete solution oriented to polarized (layout) or non-polarized lasers and can be adapted to include lamp-pumped lasers as well as LD-pumped lasers. Our AOQS product wavelength range from ultraviolet to far infrared, a diameter of up to 12 mm. AOQS selects AO materials with excellent quality (fused quartz, quartz crystal, Ge crystal, etc.), which can be designed into shear and longitudinal wave mode according to to needs. High-quality optical polishing, anti-reflective coatings with low reflection and high damage, reliable welding techniques, and novel acoustic management and optical-mechanical design techniques enable excellent thermal management, maintaining excellent beam quality and high transmittance.


SIMTRUM can provide AOQS-matched series of RF drivers, you can choose the corresponding RF driver according to the product specifications.

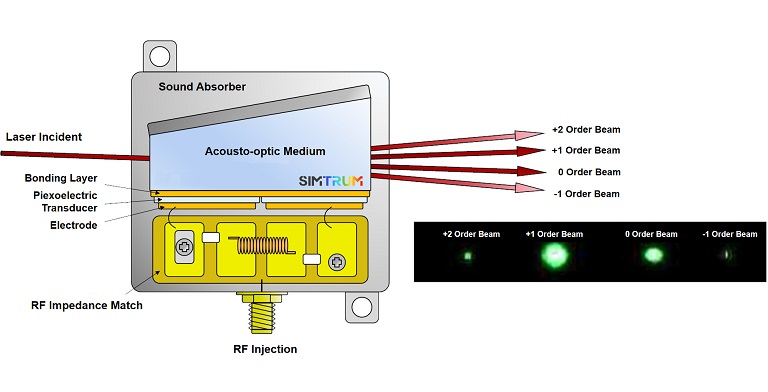

Principle of Operation


Applications

Lamp pump and end pump DPSS laser

Laser marking

Lithography




- Material processing

- Surgery

- Micromachining






Product specifications and Brochures

Product Brochure Link:


General Specifications
Interaction MaterialFused Silica / Crystalline Quartz / Germanium
Acoustic ModeLongitudinal
Operating Wavelength1064 nm ~10.6 um
PolarizationLinear, perpendicular to base
Transmission> 99.6%
Active Aperture1.0 ~ 11.6 mm
Center Frequency (Fc)27.12 ~ 80 MHz
Loss Modulation>70% ~ 85%
RF Power25 ~ 50 W (Max)
Input Impedance50Ω Nominal
VSWR @Fc< 1.2:1
RF ConnectorSMA-F / BNC-F
CoolingConduction-cooled / Water-cooled
Shell MaterialAluminum alloy 6063


Ordering Information

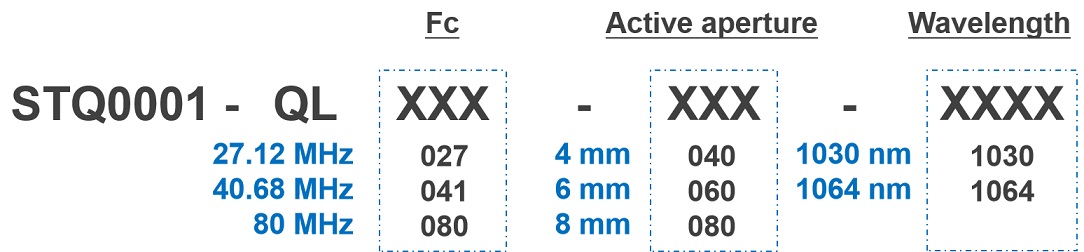

Product CodeWavelengthActive ApertureCenter FrequencyLoss ModulationOptical MaterialCooling
STQ0015-FL027-040-10641064 nm4.0 mm27.12 MHz> 85%Fused SilicaWater-cooling
STQ0003-FL027-060-10641064 nm6.0 mm27.12 MHz> 85%Fused SilicaWater-cooling
STQ0016-FL041-050-10641064 nm5.0 mm40.68 MHz> 85%Fused SilicaWater-cooling
STQ0005-QL041-015-10641064 nm1.5 mm40.68 MHz> 85%Crystal quartzConduction-cooled
STQ0007-QL068-030-10641064 nm3.0 mm68 MHz> 85%Crystal quartzConduction-cooled
STQ0008-QL080-010-10641064 nm1.0 mm80 MHz> 85%Crystal quartzConduction-cooled
STQ0001-QL080-015-10641064 nm1.5 mm80 MHz> 85%Crystal quartzConduction-cooled
STQ0009-QL080-020-10641064 nm2.0 mm80 MHz> 85%Crystal quartzConduction-cooled
STQ0010-QL080-010-13421342 nm1.0 mm80 MHz> 85%Crystal quartzConduction-cooled
STQ0006-QL041-015-15351532 nm1.5 mm40.68 MHz>80%Crystal quartzConduction-cooled
STQ0011-QL080-010-15501550 nm1.0 mm80 MHz> 85%Crystal quartzConduction-cooled
STQ0012-QL041-040-20001900- 2100 nm4.0 mm40.68 MHz> 70%Crystal quartzConduction-cooled
STQ0013-QL041-116-1060010.6 um11.6 mm40.68 MHz> 80%GermaniumWater-cooling
