25mm 线性位移台 | 瑆创光学电子商店

Products / 光机械件 /手动载物台 /25mm 线性位移台 /
25mm 线性位移台
Stainless Steel Stainless Steel 图绘 AL AL 图绘 相关产品 联系下单！







• 25mm 行程，由千分尺实现

• 交叉滚柱导轨可实现强大的负载能力和良好的耐磨性

• 平台根据平台尺寸和千分尺位置而有所不同

• 主要材料为不锈钢



选型指南



Simtrum 零件编号 驱动方向

最小读数

(µm)

平台尺寸

(mm)

驱动

(mm)

 轴承类型 最大负载  (N) 直线精度

(µm)

 材料
25SSCR8080

中间/右

 10 80 x 80 25 交叉滚子导轨 98 3 不锈钢
25SSCL8080

中间/左

 10 80 x 80 25 交叉滚子导轨 98 3 不锈钢
25SSR8080 右 10 80 x 80 25 交叉滚子导轨 98 3 不锈钢
25SSL8080 左 10 80 x 80 25 交叉滚子导轨 98 3 不锈钢
25SSR100100 右  10 100 x 100 25 交叉滚子导轨  68.6  3 不锈钢
25SSL100100 左 10 100 x 100 25 交叉滚子导轨  68.6  3 不锈钢



上图中的信息是为您的运动设置选择合适的 25 毫米交叉滚子轴承不锈钢平台的一般指南。

如需帮助，请随时致电 +65-6996 0391 联系 Simtrum Pte Ltd 或发送电子邮件至 info@simtrum.com。我们的产品团队将很乐意帮助您做出正确的产品选择。

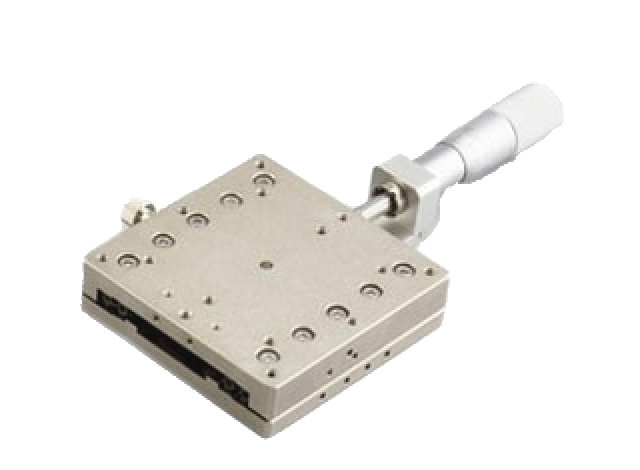

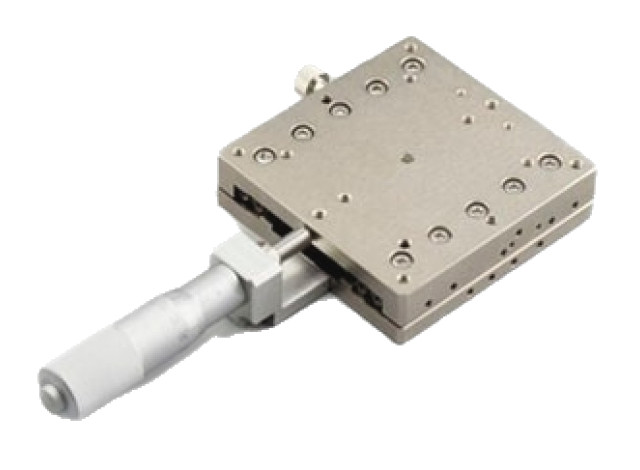

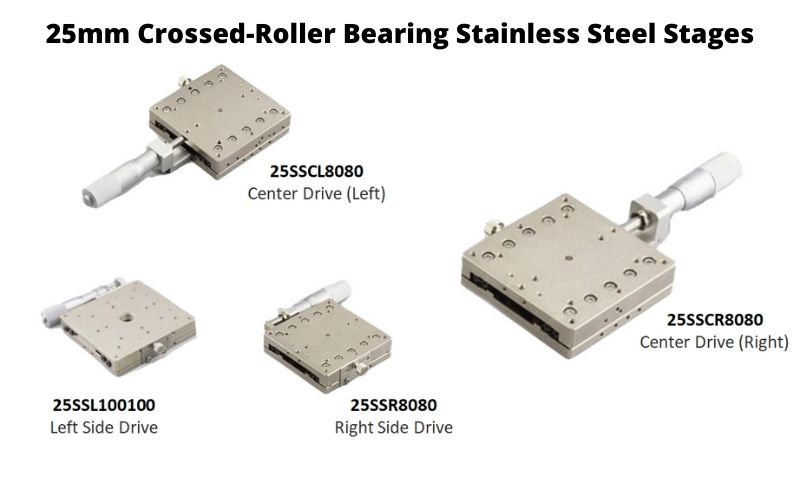

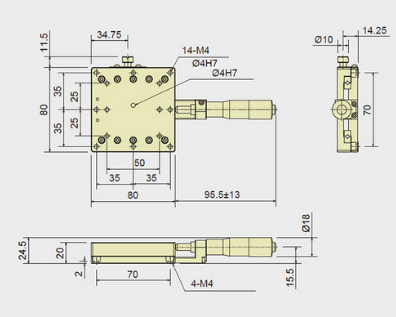

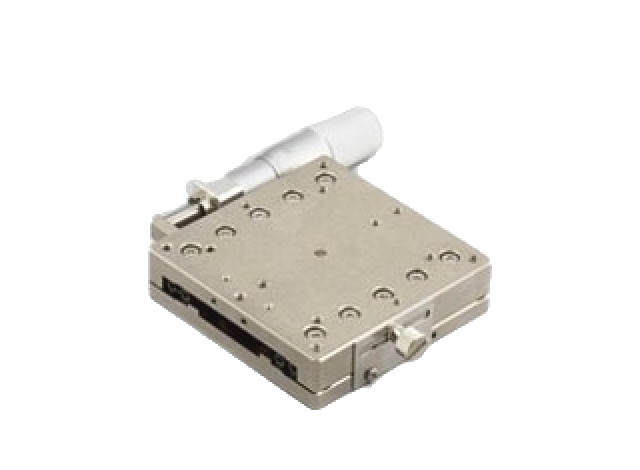

25SSCR8080

25SSCL8080

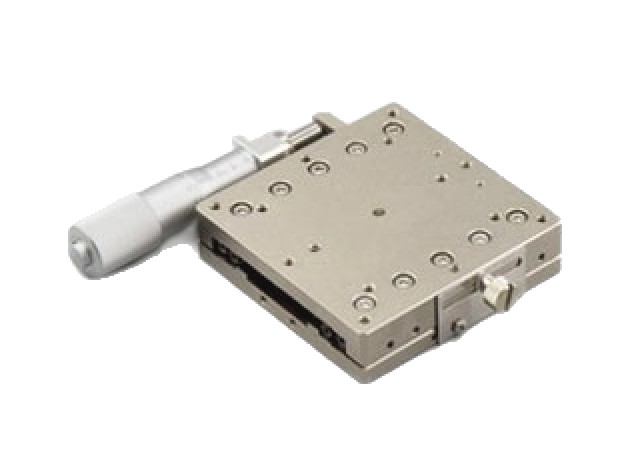

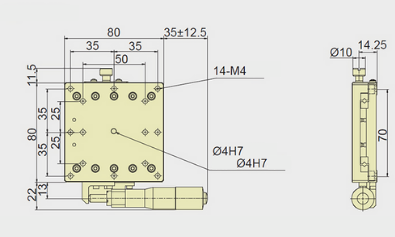

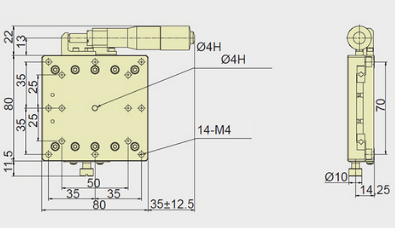

25SSR8080

25SSL8080





• 25毫米行程，由千分尺实现

• 交叉滚子导轨可实现强大的负载能力和良好的耐磨性

• 提供单轴和双轴版本

• 产品因平台尺寸和千分尺位置而异

• 主要材料是铝，这是一种不生锈的轻质材料，不易腐蚀



选型指南

Simtrum 零件编号 轴承类型 驱动方向 驱动(mm) 孔类型

平台尺寸

(mm)

最大负载

(N)

 直线精度(μm) 材料

最小读数

(μm)
25LSCR8080 交叉滚柱导轨

中间/右

 25

顶部：M4，M16

底：用于 M4 帽螺钉的沉孔

 80x80 49 3 铝 10
25LSR8080 交叉滚柱导轨 右 25

   顶部：M4，M16

底：用于 M4 帽螺钉的沉孔

 80x80 49 3 铝 10
25LSL8080 交叉滚柱导轨 左 25

   顶部：M4，M16

底：用于 M4 帽螺钉的沉孔

 80x80 49 3 铝 10
25LSCR100100 交叉滚柱导轨

中间/右

 25

   顶部：M4，M16

底：用于 M4 帽螺钉的沉孔

 100x100 68.6 3 铝 10
25LSR100100 交叉滚柱导轨 右 25

T顶部：M4，M16

底：用于 M4 帽螺钉的沉孔

 100x100 68.6 3 铝 10
25LSL100100 交叉滚柱导轨 左 25

   顶部：M4，M16

底：用于 M4 帽螺钉的沉孔

 100x100 68.6 3 铝 10
25LSR125125 交叉滚柱导轨 右 25

   顶部：M4，M16

底：用于 M4 帽螺钉的沉孔

 125x125 196 3 铝 10
25LSL125125 交叉滚柱导轨 左 25

   顶部：M4，M16

底：用于 M4 帽螺钉的沉孔

 125x125 196 3 铝 10



上图中的信息是为您的运动设置选择合适的 25 毫米交叉滚子轴承铝平台的一般指南。

如需帮助，请随时致电 +65-6996 0391 联系 Simtrum Pte Ltd 或发送电子邮件至 info@simtrum.com。我们的产品团队将很乐意帮助您做出正确的产品选择。

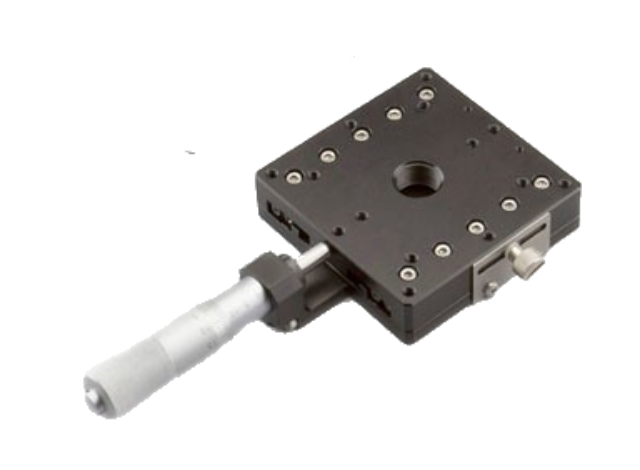

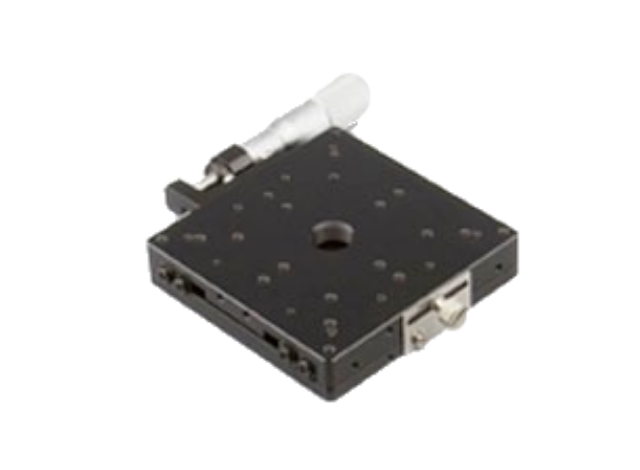

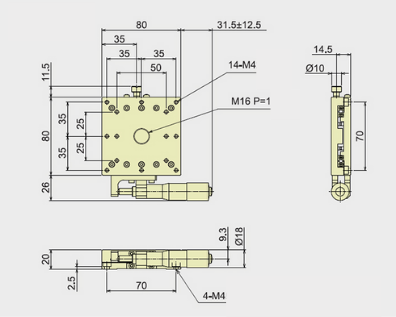

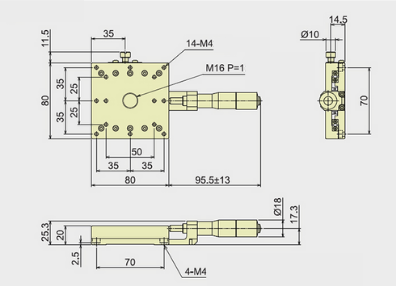

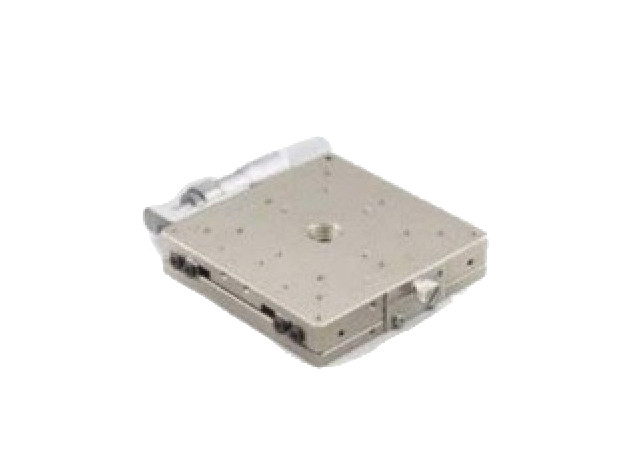

25LSCR8080

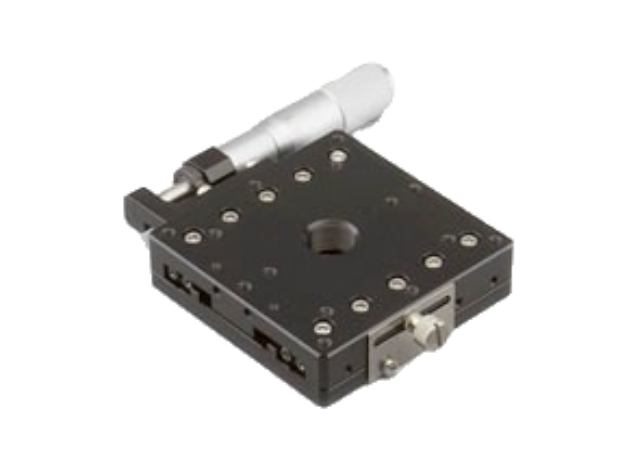

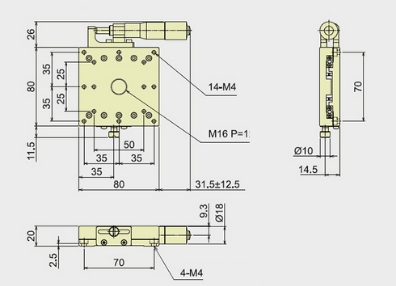

25LSR8080

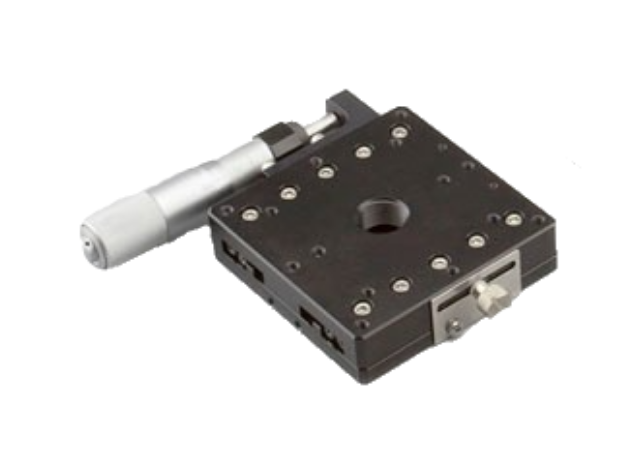

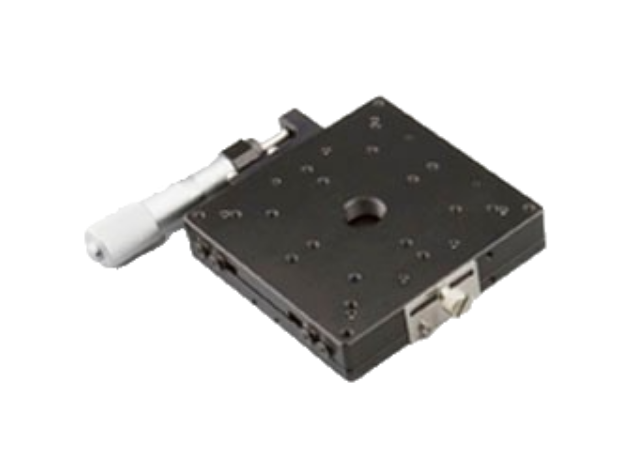

25LSL8080

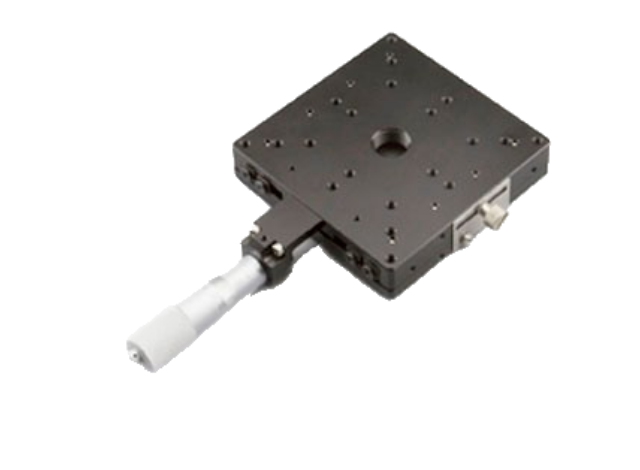

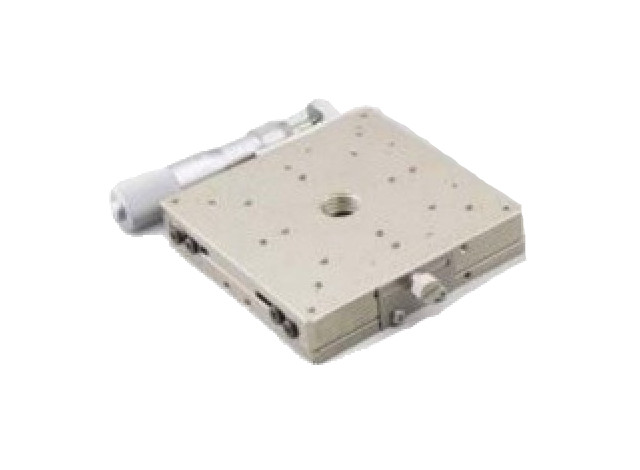

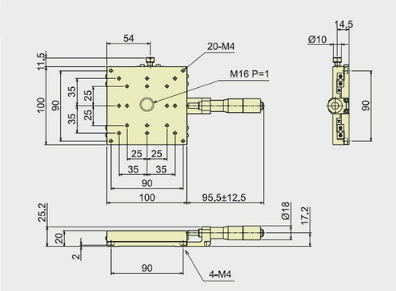

25LSCR100100

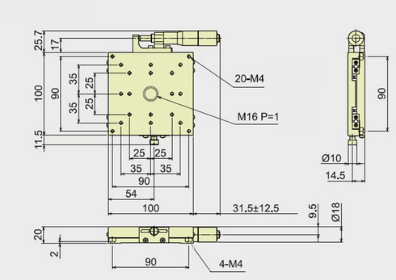

25LSR100100

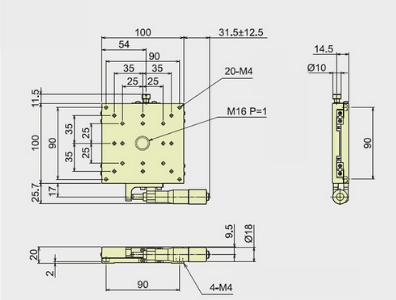

25LSL100100

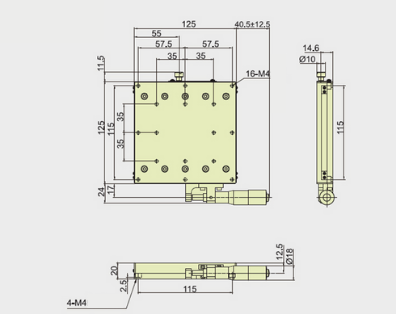

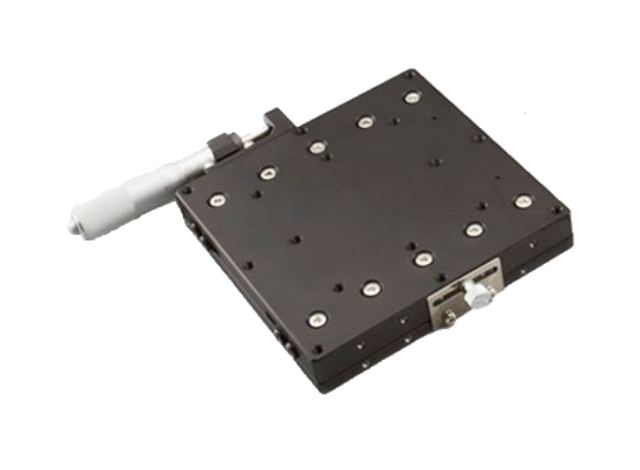

25LSL125125

WB 25LSL125125.png

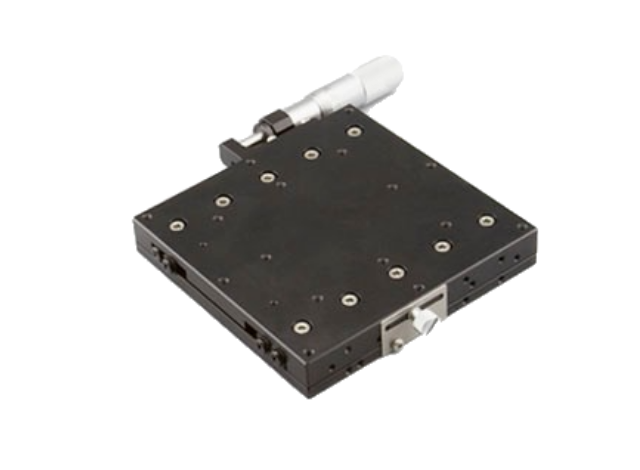

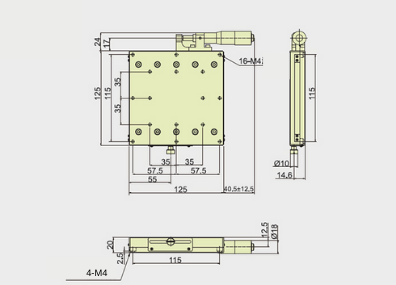

25LSR125125




13mm 线性平台

旋转和倾斜平台

Rotation and Tilt Stages.jpg

光机械学


垂直轴平台

Vertical Axis Stage.jpg




我们在这里为您服务！





给我们发电子邮件 info@simtrum.com 以获得今天最优惠的价格。   想要更多的技术信息?点击这里 获取专业定制系统/解决方案。




没有时间逐个搜索产品?不用担心。您可以下载全系列的瑆创产品线卡，现在点击它。



想要更接近市场动态和技术发展吗?只需花5秒钟作为会员登录，我们将为您带来最新的新闻。​(屏幕右上方的登录按钮)

Platform dimensions (mm)


Search Reset
Compare Model Drawings & Specs Travel (mm) Platform dimensions (mm) Drive Direction Maximum Load (N) Availability Reference Price
(USD)
25SSCR8080
25 mm Stainless Steel Translation Stage, Platform dimensions = 80 x 80 mm, Center Drive (Right) 		25100 x 100Left SideParallel: 147 N, Vertical: 68.6 N 4-6 Weeks $395.22
25SSCL8080
25 mm Stainless Steel Translation Stage, Platform dimensions = 80 x 80 mm, Center Drive (Left) 		25100 x 100Left SideParallel: 147 N, Vertical: 68.6 N 4-6 Weeks $395.22
25SSR8080
25 mm Stainless Steel Translation Stage, Platform dimensions = 80 x 80 mm, Right Side Drive 		25100 x 100Left SideParallel: 147 N, Vertical: 68.6 N 4-6 Weeks $395.22
25SSL8080
25 mm Stainless Steel Translation Stage, Platform dimensions = 80 x 80 mm, Left Side Drive 		25100 x 100Left SideParallel: 147 N, Vertical: 68.6 N 4-6 Weeks $395.22
25SSR100100
25 mm Stainless Steel Translation Stage, Platform dimension = 100 x 100 mm, Right Side Drive 		25100 x 100Left SideParallel: 147 N, Vertical: 68.6 N 4-6 Weeks $551.64
25SSL100100
25 mm Stainless Steel Translation Stage, Platform dimension = 100 x 100 mm, Left Side Drive 		25100 x 100Left SideParallel: 147 N, Vertical: 68.6 N 4-6 Weeks $551.64
25LSCR8080
25mm Linear Stage, Platform dimensions=80mmx80mm, Center Drive 		2580x8049 4-6 Weeks $208.10
25LSR8080
25mm Linear Stage, Platform dimensions=80mmx80mm, Right Side Drive 		2580x80Right49 4-6 Weeks $208.10
25LSL8080
25mm Linear Stage, Platform dimensions=80mmx80mm, Left Side Drive 		2580x80Left49 4-6 Weeks $208.10
25LSCR100100
25mm Linear Stage, Platform dimensions=100mmx100mm, Left Side Drive 		25100x10068.6 4-6 Weeks $257.14
25LSR100100
25mm Linear Stage, Platform dimensions=100mmx100mm, Left Side Drive 		25100x100Right68.6 4-6 Weeks $257.14
25LSL100100
25mm Linear Stage, Platform dimensions=100mmx100mm, Left Side Drive 		25100x100Left68.6 4-6 Weeks $257.14
25LSR125125
25mm Linear Stage, Platform dimensions=125mmx125mm, Right Side Drive 		25125x125Right196 4-6 Weeks $268.23
25LSL125125
25mm Linear Stage, Platform dimensions=100mmx100mm, Left Side Drive 		25125x125Left196 4-6 Weeks $268.23

25LSL125125 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
125x125

Hole Type
Top: M4 Bottom: Counterbore holes for M4 cap screws

Straight Line Accuracy (μm)
3

Drive Direction
Left

Minimum reading (µm)
10

Maximum Load (N)
196

25LSR125125 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
125x125

Hole Type
Top: M4 Bottom: Counterbore holes for M4 cap screws

Straight Line Accuracy (μm)
3

Drive Direction
Right

Minimum reading (µm)
10

Maximum Load (N)
196

25LSL100100 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
100x100

Hole Type
Top: M4, M16 Bottom: Counterbore holes for M4 cap screws

Straight Line Accuracy (μm)
3

Drive Direction
Left

Minimum reading (µm)
10

Maximum Load (N)
68.6

25LSR100100 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
100x100

Hole Type
Top: M4, M16 Bottom: Counterbore holes for M4 cap screws

Straight Line Accuracy (μm)
3

Drive Direction
Right

Minimum reading (µm)
10

Maximum Load (N)
68.6

25LSCR100100 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
100x100

Hole Type
Top: M4, M16 Bottom: Counterbore holes for M4 cap screws

Straight Line Accuracy (μm)
3

Drive Direction

Minimum reading (µm)
10

Maximum Load (N)
68.6

25LSL8080 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
80x80

Hole Type
Top: M4, M16 Bottom: Counterbore holes for M4 cap screws

Straight Line Accuracy (μm)
3

Drive Direction
Left

Minimum reading (µm)
10

Maximum Load (N)
49

25LSR8080 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
80x80

Hole Type
Top: M4, M16 Bottom: Counterbore holes for M4 cap screws

Straight Line Accuracy (μm)
3

Drive Direction
Right

Minimum reading (µm)
10

Maximum Load (N)
49

25LSCR8080 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
80x80

Hole Type
Top: M4, M16 Bottom: Counterbore holes for M4 cap screws

Straight Line Accuracy (μm)
3

Drive Direction

Minimum reading (µm)
10

Maximum Load (N)
49

25SSL100100 - Parameter

Material
Stainless Steel

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
100 x 100

Straight Line Accuracy (μm)
3

Drive Direction
Left Side

Minimum reading (µm)
10

Maximum Load (N)
Parallel: 147 N, Vertical: 68.6 N

25SSR100100 - Parameter

Material
Stainless Steel

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
100 x 100

Straight Line Accuracy (μm)
3

Drive Direction
Left Side

Minimum reading (µm)
10

Maximum Load (N)
Parallel: 147 N, Vertical: 68.6 N

25SSL8080 - Parameter

Material
Stainless Steel

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
100 x 100

Straight Line Accuracy (μm)
3

Drive Direction
Left Side

Minimum reading (µm)
10

Maximum Load (N)
Parallel: 147 N, Vertical: 68.6 N

25SSR8080 - Parameter

Material
Stainless Steel

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
100 x 100

Straight Line Accuracy (μm)
3

Drive Direction
Left Side

Minimum reading (µm)
10

Maximum Load (N)
Parallel: 147 N, Vertical: 68.6 N

25SSCL8080 - Parameter

Material
Stainless Steel

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
100 x 100

Straight Line Accuracy (μm)
3

Drive Direction
Left Side

Minimum reading (µm)
10

Maximum Load (N)
Parallel: 147 N, Vertical: 68.6 N

25SSCR8080 - Parameter

Material
Stainless Steel

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
100 x 100

Straight Line Accuracy (μm)
3

Drive Direction
Left Side

Minimum reading (µm)
10

Maximum Load (N)
Parallel: 147 N, Vertical: 68.6 N

25LSL125125 - Download

25LSR125125 - Download

25LSL100100 - Download

25LSR100100 - Download

25LSCR100100 - Download

25LSL8080 - Download

25LSR8080 - Download

25LSCR8080 - Download

25SSL100100 - Download

25SSR100100 - Download

25SSL8080 - Download

25SSR8080 - Download

25SSCL8080 - Download

25SSCR8080 - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
