声光频移 (AOFS)

AO-Frequency Shifters

An acousto-optic device that converts the frequency of input light to the frequency of an RF drive

After the laser beam passes through all the acousto-optic devices, the diffraction output beam will generate a frequency shift. Acousto-optic frequency shifters (AOFS) are compact devices specially designed for frequency shifts. Depending on the selected angle of incidence, the AOFS will shift the frequency up or down by the frequency of the applied RF signal, and two or more devices can be cascaded to achieve a sum or difference frequency combination. SIMTRUM offers AOFS products that adopt specially designed acoustic absorber angles to minimize sound reflection and improve the efficiency of AOFS.


In addition to the conventional TEO2-based products, SIMTRUM’s AOFS also offers a variety of products, including UVFS and Ge single crystals, which can be used individually or in a cascade to achieve a 15-250 MHz frequency shift as required.

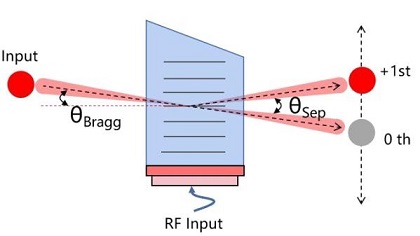

Principle of Operation


Applications

Laser heterodyne interference

Laser Doppler velocity measurement

Doppler vibration measurement (LDV)









Product specifications and Brochures

Product Brochure Link:



General Specifications
Interaction MaterialTellurium Dioxide
Acoustic ModeShear
Operating Wavelength633 / 1064 nm
PolarizationIncident Beam: Linear, horizontal to base
1st Order Beam: Linear, vertical to base
0 Order Beam: Linear, horizontal to base
Transmission> 95% ~ 97%
Active Aperture1.0 / 3.0 mm
Center Frequency (Fc)20 ~ 115 MHz
RF Bandwidth (RB)5 ~ 15 MHz
Diffraction Efficiency @RB> 80%
RF Power< 1 ~ 2 W (Max)
Input Impedance50Ω Nominal
VSWR @Fc< 2.5:1 / < 3:1
RF ConnectorSMA-F
CoolingConduction-cooled
Shell MaterialAluminum alloy 6063

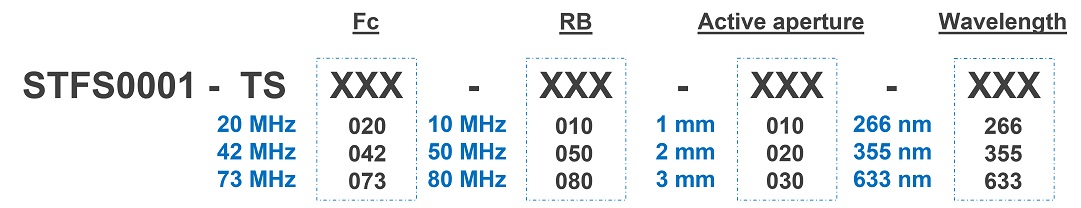

Ordering Information



Product CodeWavelengthActive ApertureCenter FrequencyDiffraction EfficiencyRF Power (Max)Optical MaterialCooling
STFS1001-TS020-030-633633 nm3.0 mm20 MHz/> 80 %Tellurium dioxideConduction-cooled
STFS1002-TS042-030-633633 nm3.0 mm42 MHz/> 80 %Tellurium dioxideConduction-cooled
STFS1003-TL100-030-633633 nm3.0 mm100 MHz/> 80 %Tellurium dioxideConduction-cooled
STFS1004-TL115-030-633633 nm3.0 mm115 MHz/> 80 %Tellurium dioxideConduction-cooled
STFS1005-TS042-030-633633 nm3.0 mm42 MHz/> 80 %Tellurium dioxideConduction-cooled
STFS1006-TS020-030-633633 nm3.0 mm20 MHz/> 80 %Tellurium dioxideConduction-cooled
STFS2001-TS042-020-030-633633 nm3.0 mm42 MHz &
    20 MHz
/> 80 %Tellurium dioxideConduction-cooled
STFS1008-TS070_5-010-10641064 nm1.0 mm73 MHz5 MHz> 80 %Tellurium dioxideConduction-cooled
STFS1007-TS073_15-010-10641064 nm1.0 mm73 MHz15 MHz> 80 %Tellurium dioxideConduction-cooled
