蜂窝式光学电路板

产品概述技术规格选型指南相关产品

• 宽频带减振顶部，可消除表面同步振动

• 蜂窝芯结构

• 高密度、高刚性

• 使用寿命长，不会因残余应力而产生表面偏转

• 安装方便，使用简单，无需长期维护

面包板厚度	80-250 ( 80, 100, 150, 200, 250) ( 面包板尺寸可定制)
面板	430不锈钢，厚度：5mm
阻尼类型	宽带
蜂窝芯密度	250kg/m³
安装孔类型	M6 螺纹孔 @ 25mmx25mm 网格
表面平整度	≤0.05mm/m²
表面粗糙度	≤0.8μm

高密度蜂窝芯光面包板的特点

光学试验板的目的是减少或消除来自环境背景的振动或设置在桌面上的实验移动部件的振动。虽然 tabetops 过去由混凝土、花岗岩和许多其他材料制成，试图提高整体性能，同时将重量保持在可接受的水平以确保良好的移动性，但最终决定通过具有由高电不锈钢（430）制成的顶部和底部蒙皮结构来实现最佳性能，带有复合金属蜂窝和夹在中间的密封杯。

高密度蜂窝芯光学面包板对于安装实验设备非常人性化。下面显示了面包板的每个功能如何有助于其整体性能，既方便用户使用，又能实现最小化振动的目的。

430 不锈钢

形成面包板顶部和底部表皮的不锈钢材料可防止面包板生锈。

密封杯

密封杯由拉伸铝制成，它们可以有效地消除面包板内的同步振动，这可能会对实验和测量结果产生不利影响。另一个优点是防止灰尘，如果灰尘滴入面包板的核心内部，这些液体可能会污染面包板。

蜂窝芯设计

蜂窝芯设计减轻了面包板的重量，同时最大限度地提高了刚性。

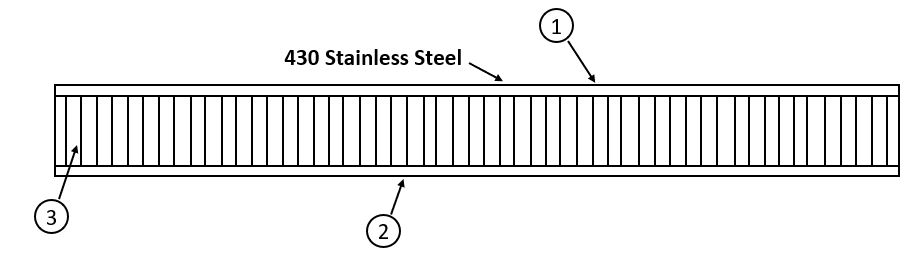

图 1：面包板横截面，显示（1）顶部蒙皮，（2）底部蒙皮，均由 430 不锈钢和（3）蜂窝芯组成

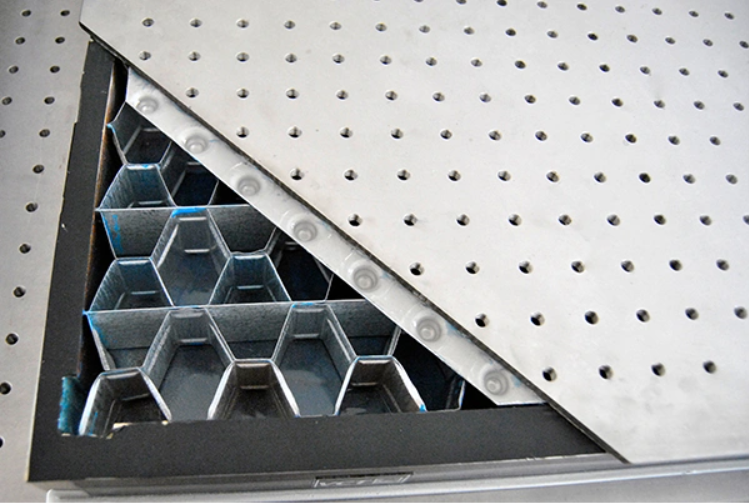

图 2：蜂窝芯设计

刚度分析

当尺寸为600mmx600mmx50mm的光学面包板放置在100kg负载下时的分析。

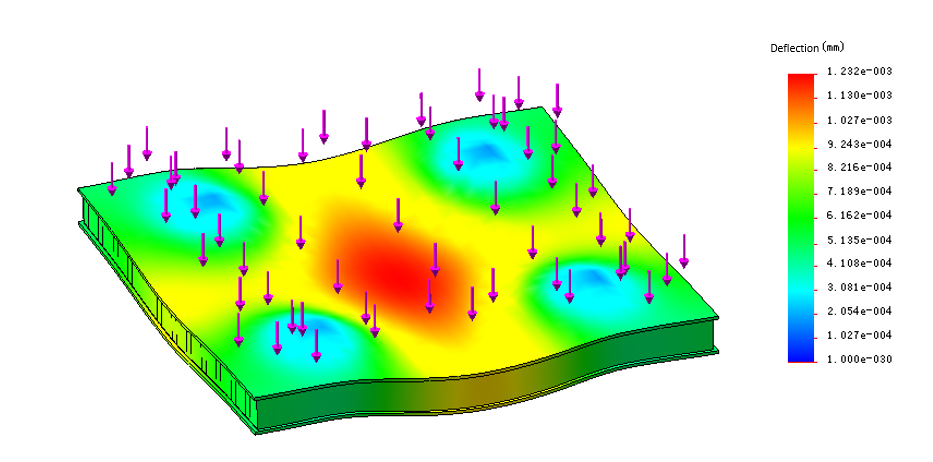

图 3：尺寸为 600mm x 600mm x 50mm 的光学面包板表面区域的偏转图。

Simtrum 零件编号	光学面包板尺寸 (mm)	孔类型	描述
HB06045	60045080	M6，带 25mm 孔栅	M6 螺纹孔，带 25mm 孔栅
HB0606	60060080	M6，带 25mm 孔栅	M6 螺纹孔，带 25mm 孔栅
HB0906	90060080	M6，带 25mm 孔栅	M6 螺纹孔，带 25mm 孔栅
HB075075	75075080	M6，带 25mm 孔栅	M6 螺纹孔，带 25mm 孔栅
HB1008	100080080	M6，带 25mm 孔栅	M6 螺纹孔，带 25mm 孔栅
HB1208	1200×800×100	M6，带 25mm 孔栅	M6 螺纹孔，带 25mm 孔栅
HB1509	1500×900×150	M6，带 25mm 孔栅	M6 螺纹孔，带 25mm 孔栅
HB1510	1500×1000×150	M6，带 25mm 孔栅	M6 螺纹孔，带 25mm 孔栅
HB1609	1600×900×150	M6，带 25mm 孔栅	M6 螺纹孔，带 25mm 孔栅
HB1812	1800×1200×200	M6，带 25mm 孔栅	M6 螺纹孔，带 25mm 孔栅
HB2010	2000×1000×200	M6，带 25mm 孔栅	M6 螺纹孔，带 25mm 孔栅
HB2012	2000×1200×200	M6，带 25mm 孔栅	M6 螺纹孔，带 25mm 孔栅
HB2412	2400×1200×200	M6，带 25mm 孔栅	M6 螺纹孔，带 25mm 孔栅
HB3012	3000×1200×250	M6，带 25mm 孔栅	M6 螺纹孔，带 25mm 孔栅
HB3015	3000×1500×250	M6，带 25mm 孔栅	M6 螺纹孔，带 25mm 孔栅
HB3512	3500×1200×250	M6，带 25mm 孔栅	M6 螺纹孔，带 25mm 孔栅
HB3515	3500×1500×250	M6，带 25mm 孔栅	M6 螺纹孔，带 25mm 孔栅
上图中的信息是为您的光机设置选择合适的光学试验板的一般指南。如需帮助，请随时致电 +65-6996 0391 联系 Simtrum Pte Ltd 或发送电子邮件至 info@simtrum.com。我们的产品团队将很乐意帮助您做出正确的产品选择。

光机械学

Optical Breadboard Dimension (mm)

Search Reset

	Hole Type	Availability	Reference Price (USD)
HB06045 600x450x80mm Optical Breadboard, M6 tapped holes with 25mm hole grid	M6, with 25mm hole grid	2-3 Weeks	$260.00
HB0606 600x600x80mm Optical Breadboard, M6 tapped holes with 25mm hole grid	M6, with 25mm hole grid	2-3 Weeks	$518.33
HB0906 900x600x80mm Optical Breadboard, M6 tapped holes with 25mm hole grid	M6, with 25mm hole grid	2-3 Weeks	$888.33
HB075075 750x750x80mm Optical Breadboard, M6 tapped holes with 25mm hole grid	M6, with 25mm hole grid	2-3 Weeks	$740.00
HB1008 1000x800x80mm Optical Breadboard, M6 tapped holes with 25mm hole grid	M6, with 25mm hole grid	2-3 Weeks	$1240.00
HB1208 1200x800x100mm Optical Breadboard, M6 tapped holes with 25mm hole grid	M6, with 25mm hole grid	2-3 Weeks	$1518.33
HB1509 1500x900x150mm Optical Breadboard, M6 tapped holes with 25mm hole grid	M6, with 25mm hole grid	2-3 Weeks	$2000.00
HB1510 1500x1000x150mm Optical Breadboard, M6 tapped holes with 25mm hole grid	M6, with 25mm hole grid	2-3 Weeks	$2221.67
HB1609 1600x900x150mm Optical Breadboard, M6 tapped holes with 25mm hole grid	M6, with 25mm hole grid	2-3 Weeks	$2130.00
HB1812 1800x1200x200mm Optical Breadboard, M6 tapped holes with 25mm hole grid	M6, with 25mm hole grid	2-3 Weeks	$3406.67
HB2010 2000x1000x200mm Optical Breadboard, M6 tapped holes with 25mm hole grid	M6, with 25mm hole grid	2-3 Weeks	$3148.33
HB2012 2000x1200x200mm Optical Breadboard, M6 tapped holes with 25mm hole grid	M6, with 25mm hole grid	2-3 Weeks	$3778.33
HB2412 2400x1200x200mm Optical Breadboard, M6 tapped holes with 25mm hole grid	M6, with 25mm hole grid	2-3 Weeks	$4260.00
HB3012 3000x1200x250mm Optical Breadboard, M6 tapped holes with 25mm hole grid	M6, with 25mm hole grid	2-3 Weeks	$5000.00
HB3015 3000x1500x250mm Optical Breadboard, M6 tapped holes with 25mm hole grid	M6, with 25mm hole grid	2-3 Weeks	$6260.00
HB3512 3500x1200x250mm Optical Breadboard, M6 tapped holes with 25mm hole grid	M6, with 25mm hole grid	2-3 Weeks	$5833.33
HB3515 3500x1500x250mm Optical Breadboard, M6 tapped holes with 25mm hole grid	M6, with 25mm hole grid	2-3 Weeks	$7296.67
