13mm交叉滚柱轴承不锈钢台 | 瑆创光学电子商店

Products / 光机械件 /手动载物台 /13mm 线性位移台 /

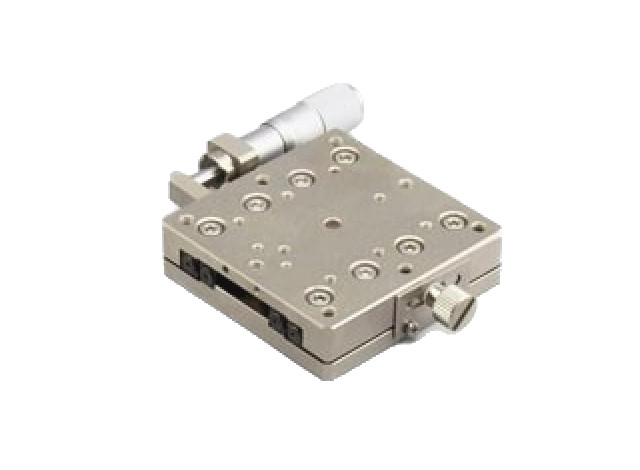

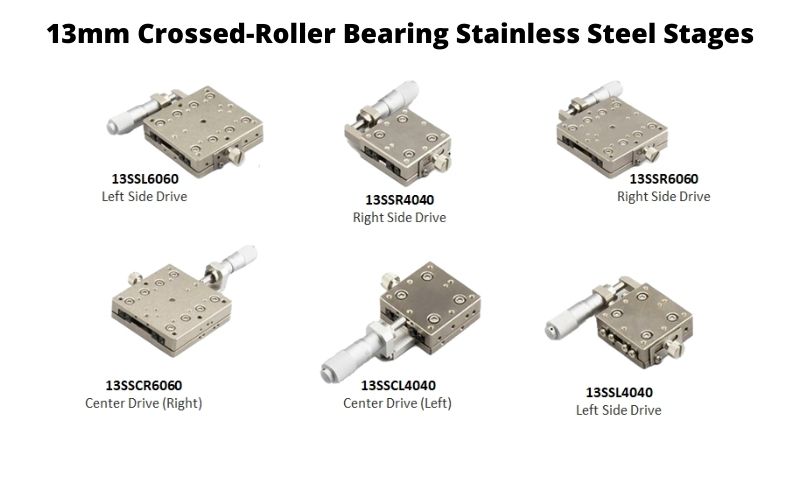

13mm 线性位移台

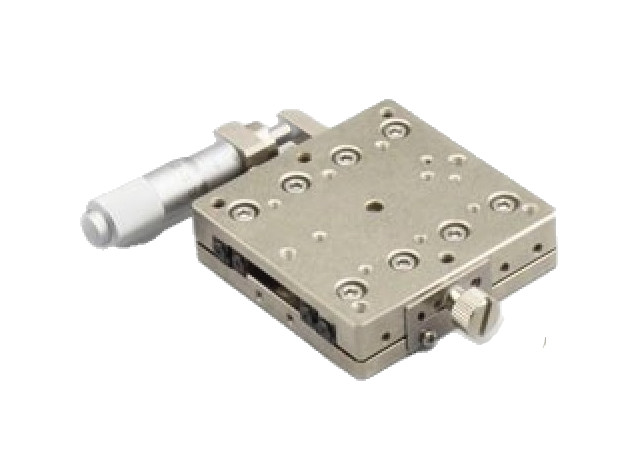

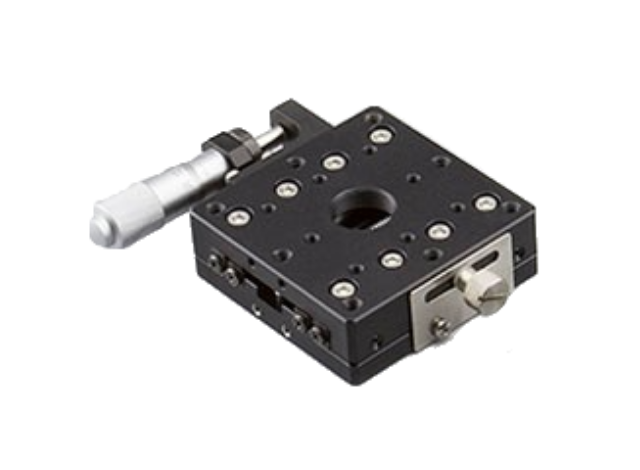

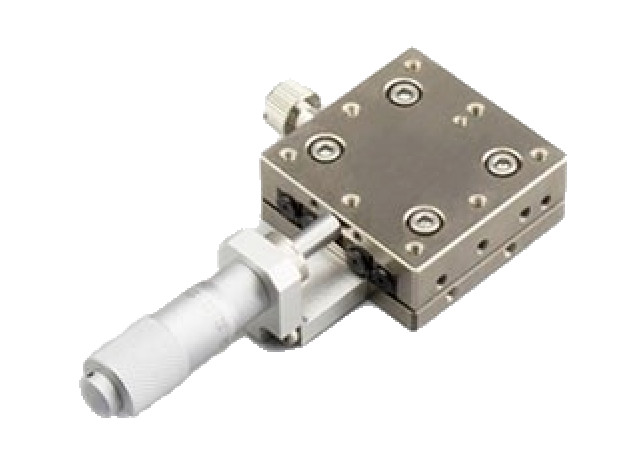

Stainless Steel Stainless Steel 图纸 AL AL 图绘 相关产品 联系下单！







• 3毫米行程，由千分尺实现

• 交叉滚柱导轨可实现强大的负载能力和良好的耐磨性

• 平台根据平台尺寸和千分尺位置而有所不同

• 主要材料为不锈钢





选型指南



Simtrum 零件编号 驱动方向

最小读数

(µm)

平台尺寸

(mm)

驱动

(mm)

 轴承类型

最大负载

(N)

直线精度

(µm)

 材料
13SSCR4040

中间/右

 10 40 x 40 13 交叉滚柱导轨 19.6 3 不锈钢
13SSCL4040

中间/左

 10 40 x 40 13 交叉滚柱导轨 19.6 3 不锈钢
13SSR4040 右 10 40 x 40 13 交叉滚柱导轨 19.6 3 不锈钢
13SSL4040 左 10 40 x 40 13 交叉滚柱导轨 19.6 3 不锈钢
13SSCR6060

中间/右

 10 60 x 60 13 交叉滚柱导轨 49 3 不锈钢
13SSCL6060

中间/左

 10 60 x 60 13 交叉滚柱导轨 49 3 不锈钢
13SSR6060 右 10 60 x 60 13 交叉滚柱导轨 49 3 不锈钢
13SSL6060 左 10 60 x 60 13 交叉滚柱导轨 49 3 不锈钢



上图中的信息是为您的运动设置选择合适的 13 毫米交叉滚子轴承不锈钢平台的一般指南。

如需帮助，请随时致电 +65-6996 0391 联系 Simtrum Pte Ltd 或发送电子邮件至 info@simtrum.com。我们的产品团队将很乐意帮助您做出正确的产品选择。

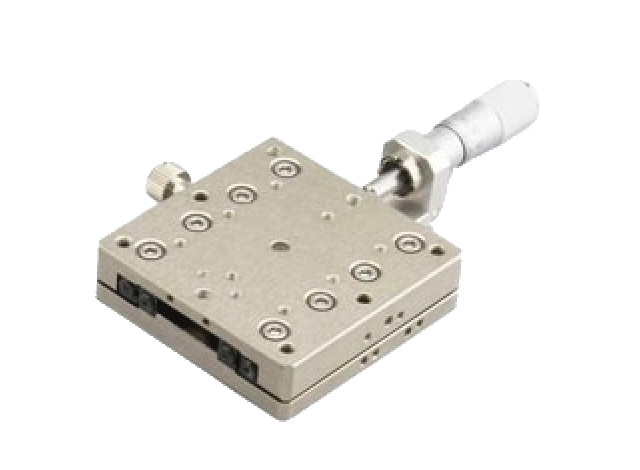

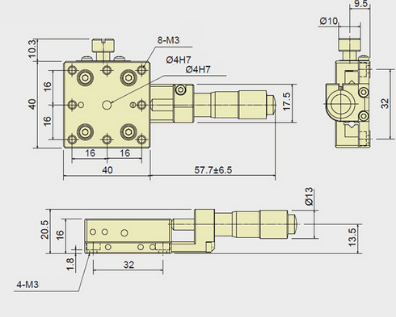

13SSCR4040

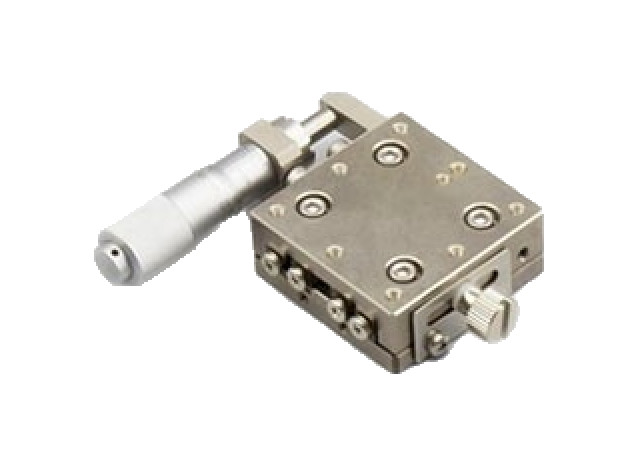

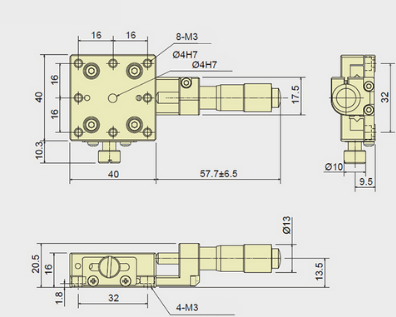

13SSCL4040

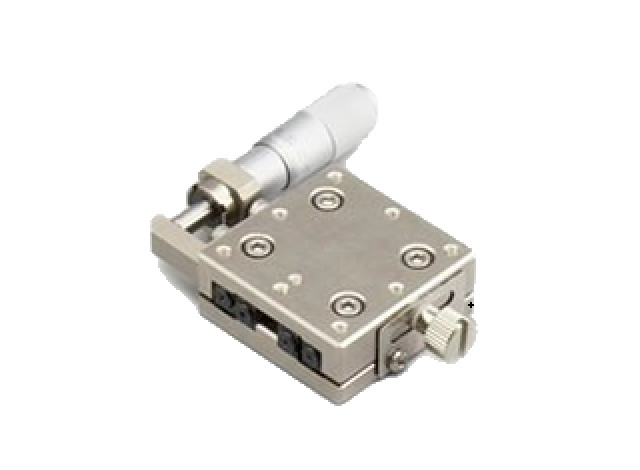

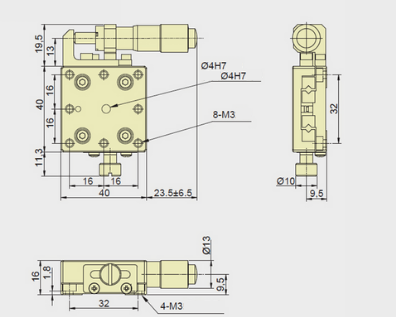

13SSR4040





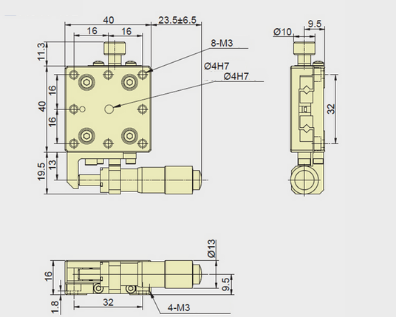

13SSL4040

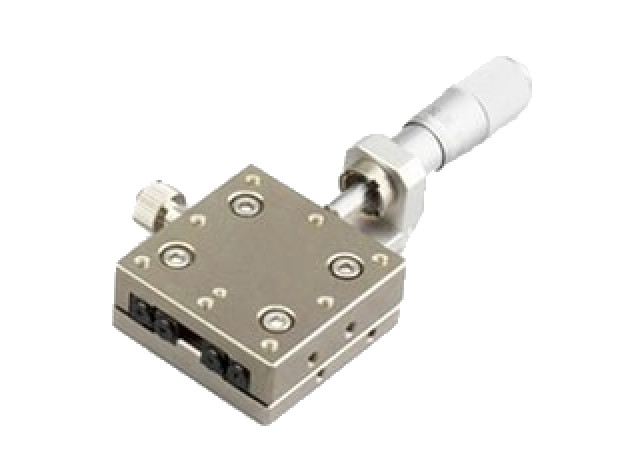

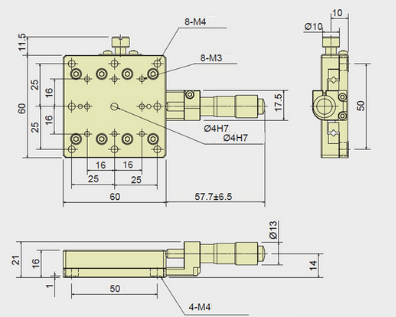

13SSCR6060





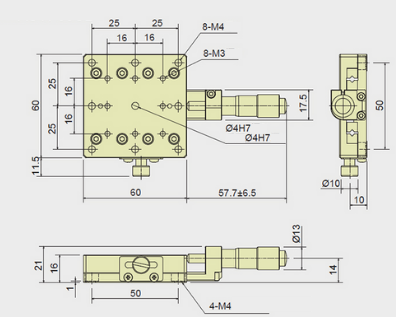

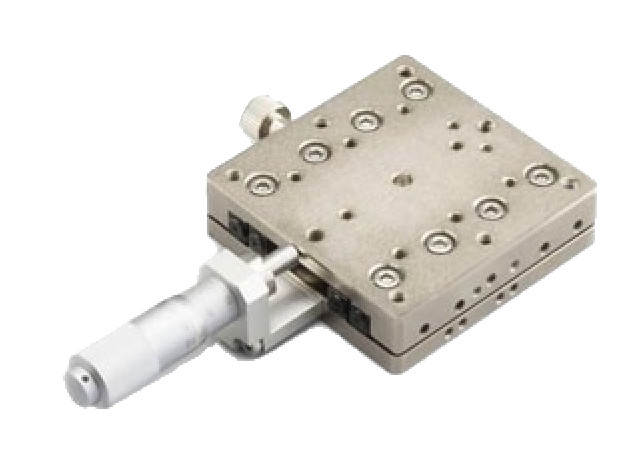

13SSCL6060





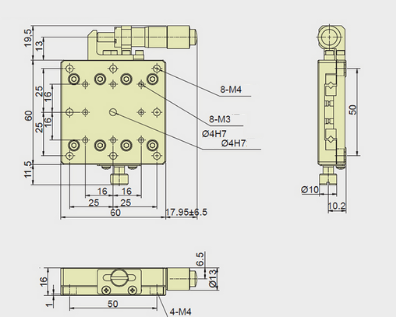

13SSR6060

13SSR6060 (1).jpg

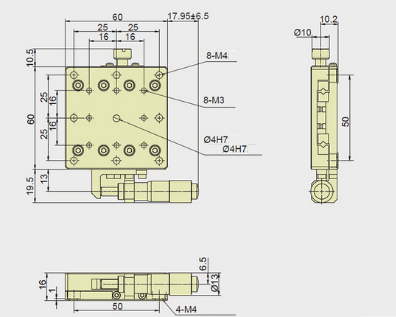

13SSL6060









• 13毫米行程，由千分尺实现

• 交叉滚柱导轨可实现强大的负载能力和良好的耐磨性

• 提供单轴和双轴版本

• 产品根据平台尺寸和千分尺位置的不同而有所不同

• 主要材料是铝，这是一种轻质材料，不会生锈，不易腐蚀



选型指南

Simtrum

      零件编号

驱动方向

孔类型

平台尺寸

(mm)

最大负载

(kg)

直线精度

(μm)

材料

最小读数

 (mm)
13LSCR4040 中间/右

顶部：M3，M6



底：用于 M3 帽螺钉的沉孔

 40x40
 9.8 3

铝合金，黑色阳极氧化

 0.01
13LSR4040 右

顶部：M3，M6



底：用于 M3 帽螺钉的沉孔

 40x40 9.8 3

铝合金，黑色阳极氧化

 0.01
13LSL4040 左

顶部：M3，M6



底：用于 M3 帽螺钉的沉孔

 40x40 9.8 3

铝合金，黑色阳极氧化

 0.01
13LSCR6060
 中间/右

顶部：M3、M4、M16



底：用于 M4 帽螺钉的沉孔

 60x60 19.6 3

铝合金，黑色阳极氧化

 0.01
13LSR6060 右

顶部：M3、M4、M16



底：用于 M4 帽螺钉的沉孔

 60x60 19.6 3 铝合金，黑色阳极氧化 0.01
13LSL6060 Left

顶部：M3、M4、M16



底：用于 M4 帽螺钉的沉孔

 60x60 19.6 3

铝合金，黑色阳极氧化

 0.01



上图中的信息是为您的光机设置选择合适的固定位置镜头卡口的一般指南。

如需帮助，请随时致电 +65-6996 0391 联系 Simtrum Pte Ltd 或发送电子邮件至 info@simtrum.com。我们的产品团队将很乐意帮助您做出正确的产品选择。

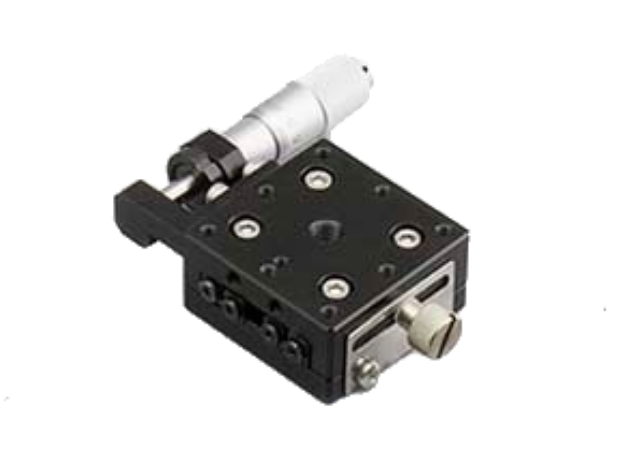

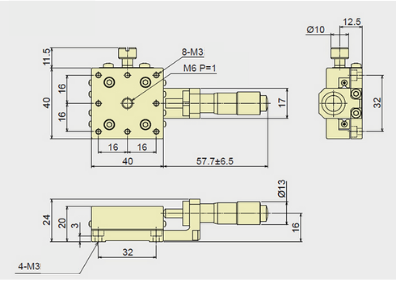

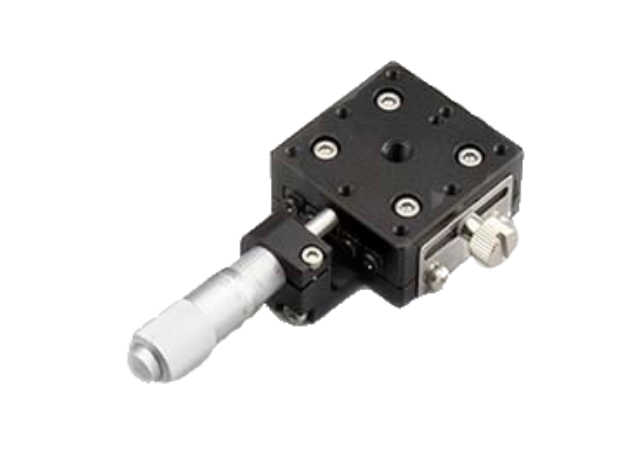

13LSCR4040

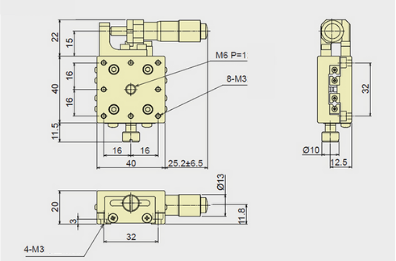

13LSR4040

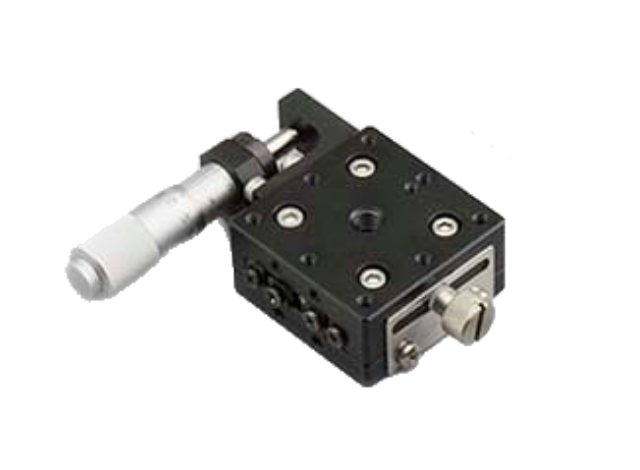

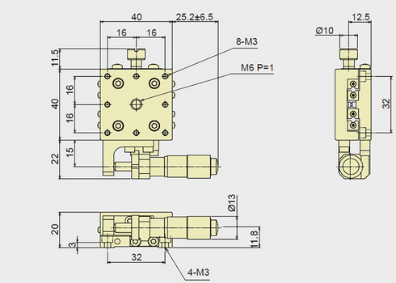

13LSL4040

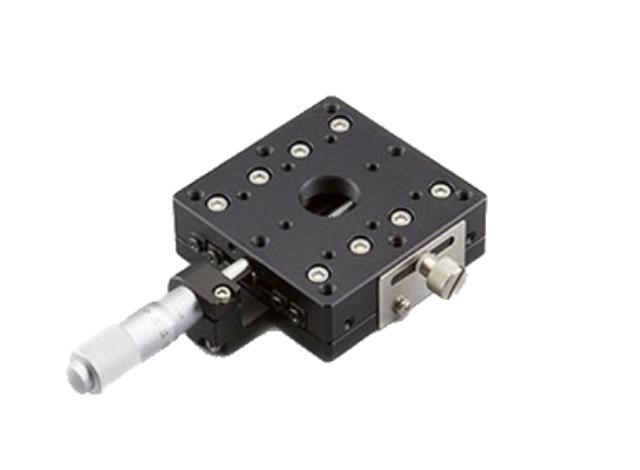

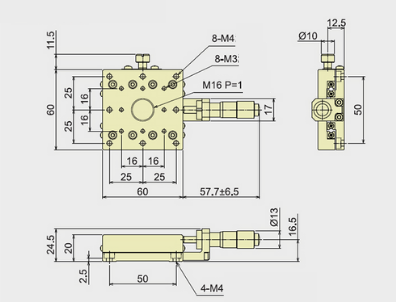

13LSCR6060

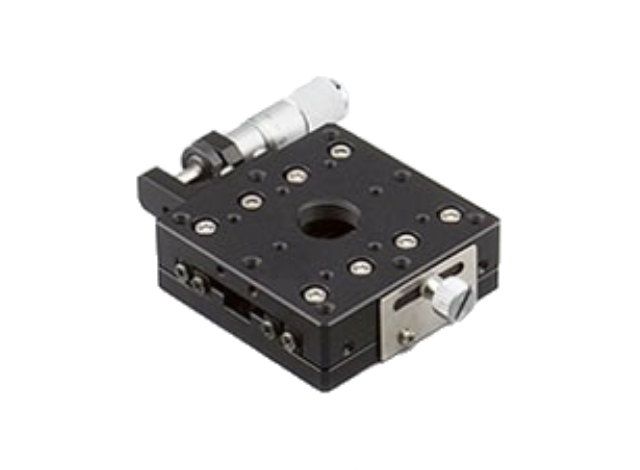

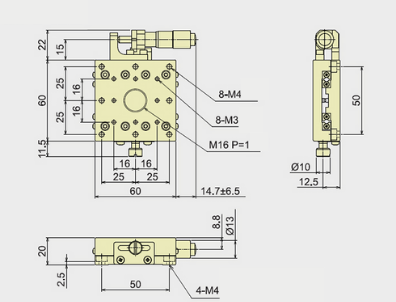

13LSR6060

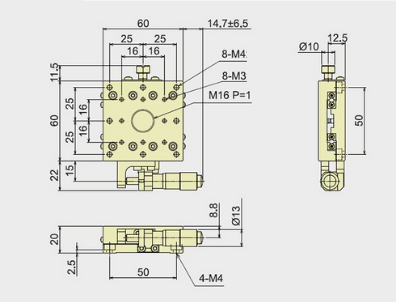

13LSL6060




25mm线性平台

旋转和倾斜平台

光机械学

垂直轴平台




我们在这里为您服务！





给我们发电子邮件 info@simtrum.com 以获得今天最优惠的价格。   想要更多的技术信息?点击这里 获取专业定制系统/解决方案。




没有时间逐个搜索产品?不用担心。您可以下载全系列的瑆创产品线卡，现在点击它。



想要更接近市场动态和技术发展吗?只需花5秒钟作为会员登录，我们将为您带来最新的新闻。​(屏幕右上方的登录按钮)

Platform dimensions (mm)


Search Reset
Compare Model Drawings & Specs Travel (mm) Platform dimensions (mm) Drive Direction Maximum Load (N) Availability Reference Price
(USD)
13SSCR4040
13 mm Stainless Steel Translation Stage, Platform dimensions = 40 x 40 mm, Center Drive (Right) 		1340 x 40Center19.6 4-6 Weeks $271.04
13SSCL4040
13 mm Stainless Steel Translation Stage, Platform dimensions = 40 x 40 mm, Center Drive (Left) 		1340 x 40Center19.6 4-6 Weeks $271.04
13SSR4040
13 mm Stainless Steel Translation Stage, Platform dimensions = 40 x 40 mm, Right Side Drive 		1340 x 4019.6 4-6 Weeks $271.04
13SSL4040
13 mm Stainless Steel Translation Stage, Platform dimensions = 40 x 40 mm, Left Side Drive 		1340 x 40Left Side19.6 4-6 Weeks $271.04
13SSCR6060
13 mm Stainless Steel Translation Stage, Platform dimensions = 60 x 60 mm, Center Drive (Right) 		1360 x 60Center49 4-6 Weeks $308.06
13SSCL6060
13 mm Stainless Steel Translation Stage, Platform dimensions = 60 x 60 mm, Center Drive (Left) 		1360 x 60Center49 4-6 Weeks $308.06
13SSR6060
13 mm Stainless Steel Translation Stage, Platform dimensions = 60 x 60 mm, Right Side Drive 		1360 x 6049 4-6 Weeks $308.06
13SSL6060
13 mm Stainless Steel Translation Stage, Platform dimensions = 60 x 60 mm, Left Side Drive 		1360 x 60Left Side49 4-6 Weeks $308.06
13LSCR4040
13mm Linear Stage, Platform dimensions=40mmx40mm, Center Drive (Right) 		1340x409.8 2-3 Weeks $136.46
13LSR4040
13mm Linear Stage, Platform dimensions=40mmx40mm, Right Side Drive 		1340x40Right9.8 2-3 Weeks $136.46
13LSL4040
13mm Linear Stage, Platform dimensions=40mmx40mm, Left Side Drive 		1340x40Left9.8 2-3 Weeks $136.46
13LSCR6060
13mm Linear Stage, Platform dimensions=60mmx60mm, Center Drive (Right) 		1360x6019.6 2-3 Weeks $144.99
13LSR6060
13mm Linear Stage, Platform dimensions=60mmx60mm, Right Side Drive 		1360x60Right19.6 2-3 Weeks $144.99
13LSL6060
13mm Linear Stage, Platform dimensions=60mmx60mm, Left Side Drive 		1360x60Left19.6 2-3 Weeks $144.99

13LSL6060 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
60x60

Hole Type
Top: M3, M4, M16 Bottom: Counterbore holes for M4 Cap Screws

Straight Line Accuracy (μm)
3

Drive Direction
Left

Minimum reading (µm)
10

Maximum Load (N)
19.6

13LSR6060 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
60x60

Hole Type
Top: M3, M4, M16 Bottom: Counterbore holes for M4 Cap Screws

Straight Line Accuracy (μm)
3

Drive Direction
Right

Minimum reading (µm)
10

Maximum Load (N)
19.6

13LSCR6060 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
60x60

Hole Type
Top: M3, M4, M16 Bottom: Counterbore holes for M4 Cap Screws

Straight Line Accuracy (μm)
3

Drive Direction

Minimum reading (µm)
10

Maximum Load (N)
19.6

13LSL4040 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
40x40

Hole Type
Top:M3,M6 Bottom: Counterbore holes for M3 Cap Screws

Straight Line Accuracy (μm)
3

Drive Direction
Left

Minimum reading (µm)
10

Maximum Load (N)
9.8

13LSR4040 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
40x40

Hole Type
Top:M3,M6 Bottom: Counterbore holes for M3 Cap Screws

Straight Line Accuracy (μm)
3

Drive Direction
Right

Minimum reading (µm)
10

Maximum Load (N)
9.8

13LSCR4040 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
40x40

Hole Type
Top:M3,M6 Bottom: Counterbore holes for M3 Cap Screws

Straight Line Accuracy (μm)
3

Drive Direction

Minimum reading (µm)
10

Maximum Load (N)
9.8

13SSL6060 - Parameter

Material
Stainless Steel

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
60 x 60

Straight Line Accuracy (μm)
3

Drive Direction
Left Side

Minimum reading (µm)
10

Maximum Load (N)
49

13SSR6060 - Parameter

Material
Stainless Steel

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
60 x 60

Straight Line Accuracy (μm)
3

Drive Direction

Minimum reading (µm)
10

Maximum Load (N)
49

13SSCL6060 - Parameter

Material
Stainless Steel

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
60 x 60

Straight Line Accuracy (μm)
3

Drive Direction
Center

Minimum reading (µm)
10

Maximum Load (N)
49

13SSCR6060 - Parameter

Material
Stainless Steel

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
60 x 60

Straight Line Accuracy (μm)
3

Drive Direction
Center

Minimum reading (µm)
10

Maximum Load (N)
49

13SSL4040 - Parameter

Material
Stainless Steel

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
40 x 40

Straight Line Accuracy (μm)
3

Drive Direction
Left Side

Minimum reading (µm)
10

Maximum Load (N)
19.6

13SSR4040 - Parameter

Material
Stainless Steel

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
40 x 40

Straight Line Accuracy (μm)
3

Drive Direction

Minimum reading (µm)
10

Maximum Load (N)
19.6

13SSCL4040 - Parameter

Material
Stainless Steel

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
40 x 40

Straight Line Accuracy (μm)
3

Drive Direction
Center

Minimum reading (µm)
10

Maximum Load (N)
19.6

13SSCR4040 - Parameter

Material
Stainless Steel

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
40 x 40

Straight Line Accuracy (μm)
3

Drive Direction
Center

Minimum reading (µm)
10

Maximum Load (N)
19.6

13LSL6060 - Download

13LSR6060 - Download

13LSCR6060 - Download

13LSL4040 - Download

13LSR4040 - Download

13LSCR4040 - Download

13SSL6060 - Download

13SSR6060 - Download

13SSCL6060 - Download

13SSCR6060 - Download

13SSL4040 - Download

13SSR4040 - Download

13SSCL4040 - Download

13SSCR4040 - Download
