793/808/915/976nm 连续高功率光纤激光器 | 瑆创光学电子商店

793/808/915/976nm 连续高功率光纤激光器
The 793/808/915/976nm CW High Power Multi Mode Fiber Laser STMHPL series integrates a high-performance semiconductor laser chip with 105/125um fiber coupling for powerful output. It includes constant current and temperature controls for laser stability and safety. Some models feature precise wavelength locking within ±3nm for enhanced spectral stability. This laser is suitable for medical research, fiber laser pumping, and production testing, offered in desktop or modular formats with PC monitoring software.
793/808/915/976nm_High_Power_Laser

Features

  • Hight output power
  • Wavelength locking
  • Excellent stability of power

Applications

  • Fiber laser pump
  • Fiber amplifier pump
  • Optics components testing

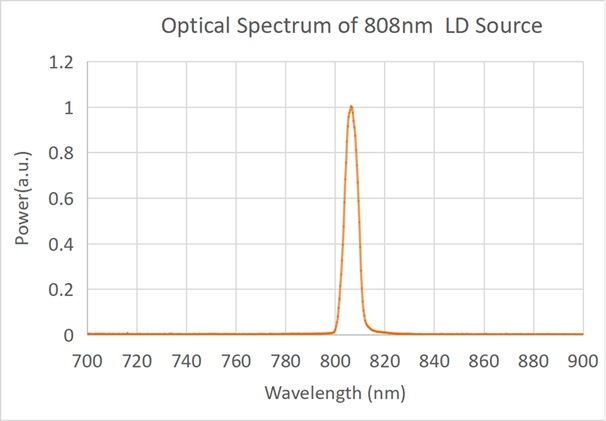

SIMTRUM_STMPHL_Optical_Spectrum



Product specifications and Brochures

Product Brochure Link: SIMTRUM_PDF



Optical Parameters Unit Typical Value Remarks
Wavelength nm 793/808/976 915
Wavelength Accuracy nm ±3 ±10
Spectral Linewidth nm 3 6
Laser Operation Mode - CW
Output Power W 5/10/25
Instability(15min.in) dB ≤ ±0.02 Equivalent to ≤±0.5%
Instability(8 hr) dB ≤ ±0.05 Equivalent to ≤±1.2%
Optical Fiber - 105/125μm,NA= 0.22 Multi-mode fiber
Fiber connector - Bare fiber Optional fiber optic collimator



General Parameters Desktop Module
Control Function Keystroke / RS232 serial Communication RS232 serial Communication
Remote control Port DB9 Female DB9 Female
Power Supply AC100~240V, <120W DC12V, <60W
Dimensions 260(W)×320(D)×120(H)mm 125(W)×150(D)×31.5(H)mm
Operation Temperature -5~+35°C
Operation Humidity 0~70%



Ordering Information/Product Code
Series Wavelength (nm) Output Power (W) Fiber Packaging
MHPL 793/808/915/976 5/10/25 MM = 105/125μm
Multi-mode
M - Module
B - Desktop






Type Wavelength Wavelength Accuracy Spectral Linewidth Output Power
405-940 CW Single Mode Fiber Laser 405-940 nm ±5 nm - 5/10/20/100mW
793/808/915/976nm CW Multi Mode High Power Fiber Laser 793/ 808/ 915/ 976 nm ±3 nm / ±10 nm 3nm / 6nm 5/10/25W
974/976 CW Single Mode Fiber Pump Laser 974/ 976 nm ±1 nm - 200 - 1000mW
1030/1064 CW Single Mode Fiber Laser 1064 nm ±2 nm < 0.1nm 100mW - 10W
1120nm CW Single Mode Fiber Laser 1120±1 nm ≤ 0.1nm 1/2/5W
1310 CW Single Mode Fiber Laser 1310 nm ±2 nm ≤ 3nm 10/20/30/40mW
1450/1480 CW Single Mode Fiber Laser 1425/ 1435/ 1455/ 1465/ 1480 nm ±3 nm / ±10 nm - 200 - 800mW
1550 CW Single Mode Fiber Laser 1550 nm ±0.5 nm ≤ 3nm 10mW - 20W
1570 CW Single Mode Fiber Laser 1570 nm ±1 ±0.5 nm < 0.1nm 10/20/50/100/200/400/500 mW
30/33/35/37/40 dBm
2000 High Power CW Fiber Laser 1900-2050 nm - < 1nm  > 30 W




We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
STMHPL-793-8-MM-B
793/808/915/976nm High Power Laser, ​Wavelength 793 nm, Wavelength Accuracy ±3 nm, Spectral Linewidth 3 nm, Output Power 8W
Contact Us $2116.00
STMHPL-793-12-MM-B
793/808/915/976nm High Power Laser, ​Wavelength 793 nm, Wavelength Accuracy ±3 nm, Spectral Linewidth 3 nm, Output Power 12W
Contact Us $2249.00
STMHPL-808-4-MM-B
793/808/915/976nm High Power Laser, Wavelength 808 nm, Wavelength Accuracy ±3 nm, Spectral Linewidth 3 nm, Output Power 4W
Contact Us $1190.00
STMHPL-808-8-MM-B
793/808/915/976nm High Power Laser, Wavelength 808 nm, Wavelength Accuracy ±3 nm, Spectral Linewidth 3 nm, Output Power 8W
Contact Us $1852.00
STMHPL-915-9-MM-B
793/808/915/976nm High Power Laser, Wavelength 915 nm, Wavelength Accuracy ±6 nm, Spectral Linewidth 6 nm, Output Power 9W
4-6 Weeks $1153.00
STMHPL-915-25-MM-B
793/808/915/976nm High Power Laser, Wavelength 915 nm, Wavelength Accuracy ±6 nm, Spectral Linewidth 6 nm, Output Power 25W
4-6 Weeks $1522.00
STMHPL-940-10-MM-B
793/808/915/976nm High Power Laser, Wavelength 940 nm, Wavelength Accuracy ±10 nm, Spectral Linewidth 6 nm, Output Power 10W
4-6 Weeks $1190.00
STMHPL-940-20-MM-B
793/808/915/976nm High Power Laser, Wavelength 940 nm, Wavelength Accuracy ±10 nm, Spectral Linewidth 6 nm, Output Power 20W
4-6 Weeks $1455.00
STMHPL-940-30-MM-B
793/808/915/976nm High Power Laser, Wavelength 940 nm, Wavelength Accuracy ±10 nm, Spectral Linewidth 6 nm, Output Power 30W
4-6 Weeks $1720.00
STMHPL-976-9-MM-B
793/808/915/976nm High Power Laser, Wavelength 976 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth 6 nm, Output Power 9W, Wavelength locking
4-6 Weeks $1323.00
STMHPL-976-25-MM-B
793/808/915/976nm High Power Laser, Wavelength 976 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth 6 nm, Output Power 25W, Wavelength locking
4-6 Weeks $2566.00

STMHPL-976-25-MM-B - Parameter

STMHPL-976-9-MM-B - Parameter

STMHPL-940-30-MM-B - Parameter

STMHPL-940-20-MM-B - Parameter

STMHPL-940-10-MM-B - Parameter

STMHPL-915-25-MM-B - Parameter

STMHPL-915-9-MM-B - Parameter

STMHPL-808-8-MM-B - Parameter

STMHPL-808-4-MM-B - Parameter

STMHPL-793-12-MM-B - Parameter

STMHPL-793-8-MM-B - Parameter

STMHPL-976-25-MM-B - Download

STMHPL-976-9-MM-B - Download

STMHPL-940-30-MM-B - Download

STMHPL-940-20-MM-B - Download

STMHPL-940-10-MM-B - Download

STMHPL-915-25-MM-B - Download

STMHPL-915-9-MM-B - Download

STMHPL-808-8-MM-B - Download

STMHPL-808-4-MM-B - Download

STMHPL-793-12-MM-B - Download

STMHPL-793-8-MM-B - Download
