生物计划物镜 | 瑆创光学电子商店

Products / 显微镜 /物镜 /生物计划物镜 /
生物计划物镜
平场复消色差物镜 平场萤石物镜 平场萤石相衬物镜 相关产品 联系下单！

平场复消色差物镜

Plan Apo(Plan Apochromatic Objective)是无限远共轭齐焦距60mm、具有宽波长范围复消色差校正的生物物镜。



特征

  • - 无限远共轭齐焦距离60mm生物物镜

  • - 宽波长范围的复消色差校正

  • - 在整个视场提供出色的图像平坦度

  • - 高数值孔径，可以获得样品的深层结构



产品规格和手册

产品手册链接：





名称 Plan Apo
2X 4X 10X 20X
光学系统特性 无限修正
观察方法 亮场/荧光
色差校正等级 复消色差
放大倍率 [X] 2 4 10 20
焦距 [mm] 100 50 20 10
物镜视场数 [mm] 25
数值孔径(NA) 0.1 0.2 0.45 0.75
工作距离(WD)[mm] 8.5 20 4 0.6
盖板玻璃厚度 [mm] - - 0.17 0.17
浸液 空气
弹簧保护 - - - √
齐焦距离 [mm] 60.06
线 M25X0.75
重量[g] 207 166 187 265

注：物镜的分辨率和焦深是根据参考波长（λ=550nm）计算得出的





透过率/波长

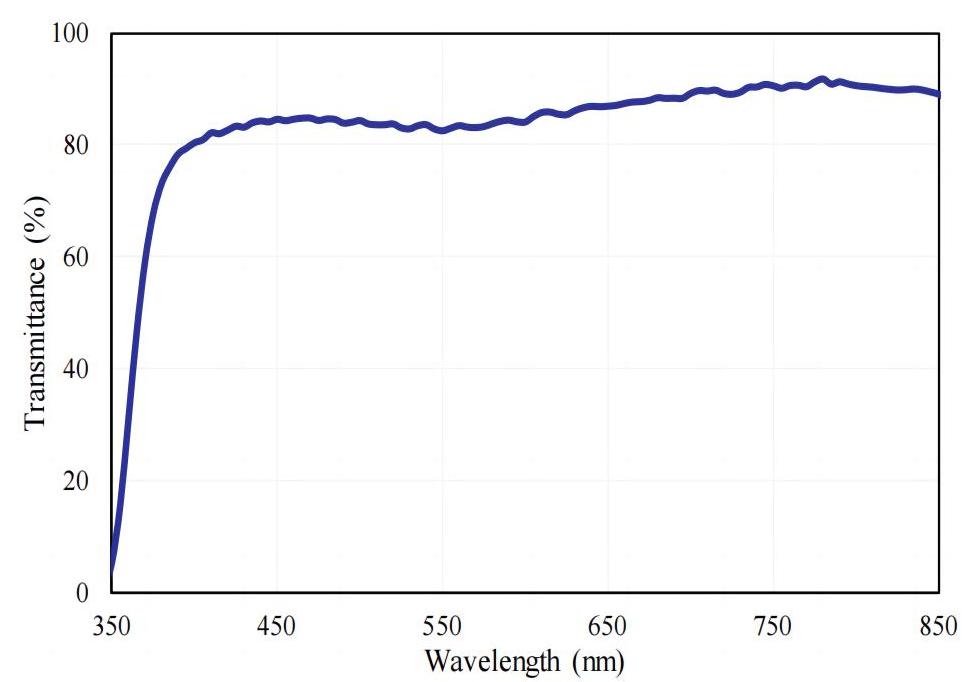

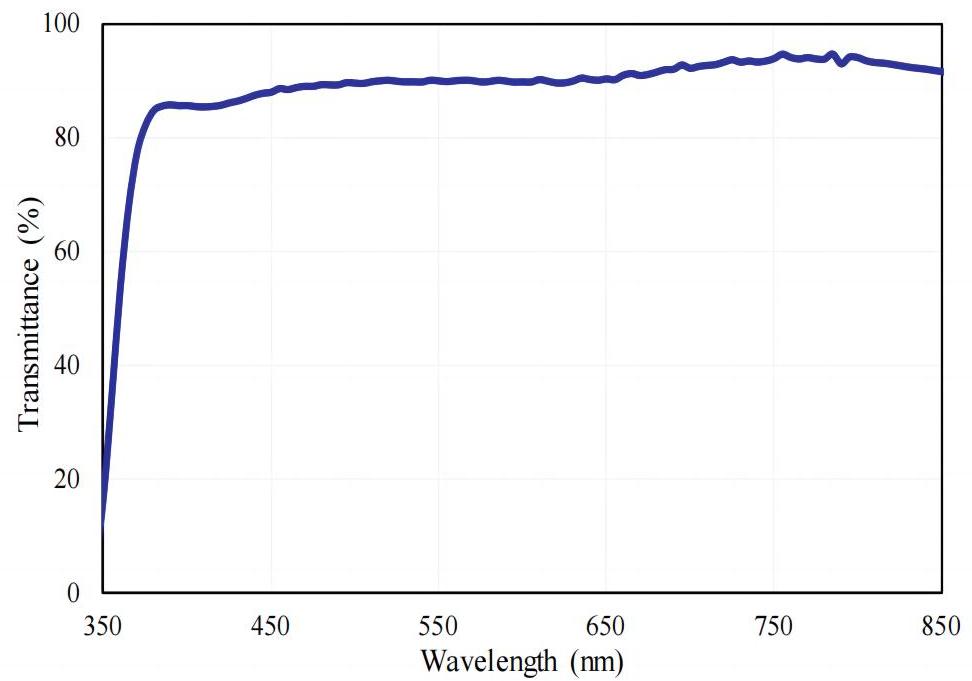

                                                                             Plan Apo 2X                                                                                                   Plan Apo 4X

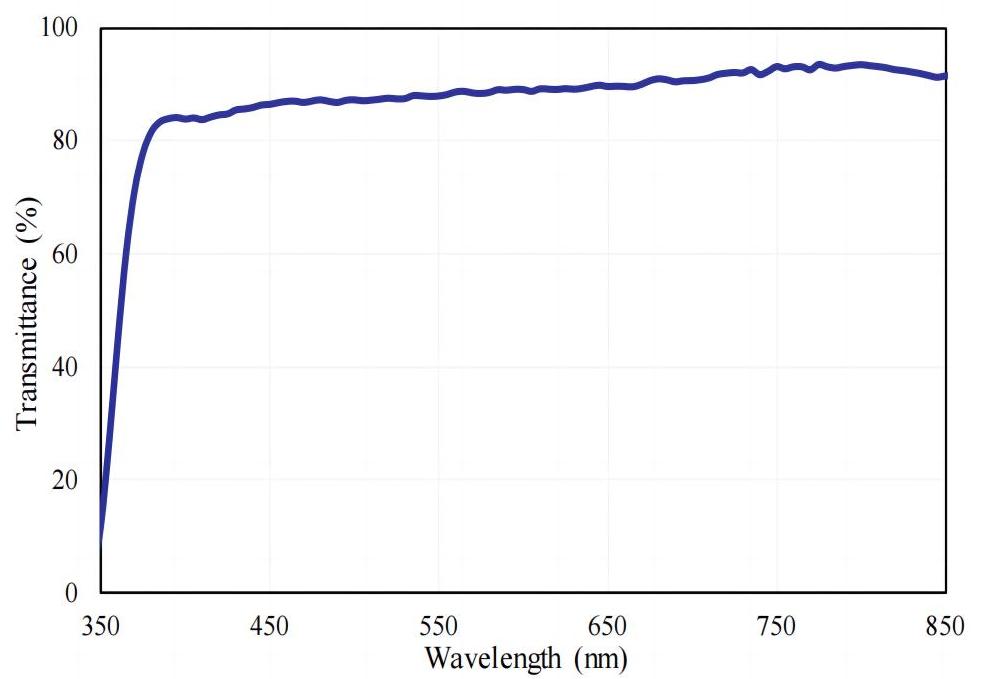

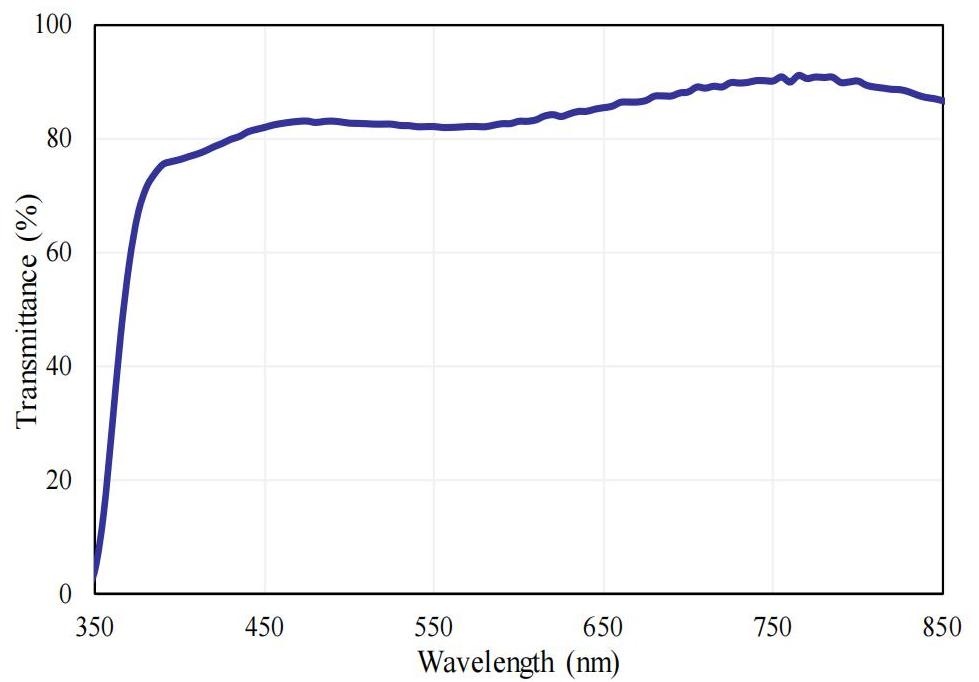

                                                                             Plan Apo 10X                                                                                                  Plan Apo 20X

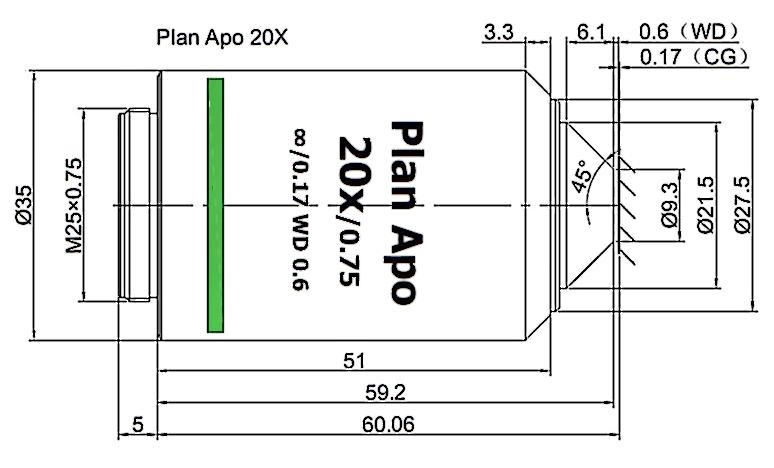

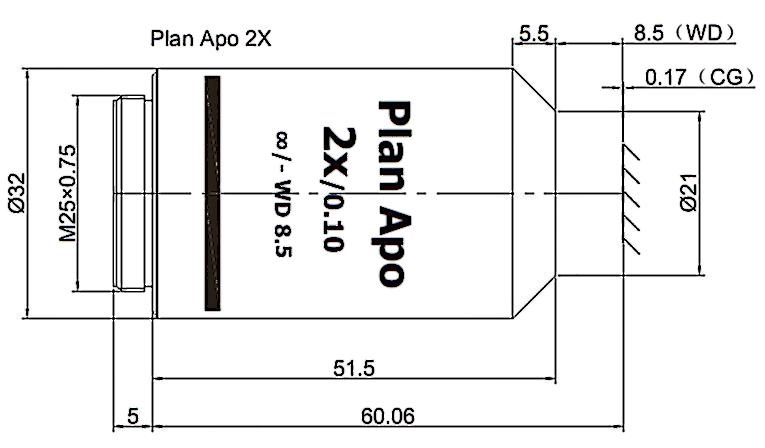

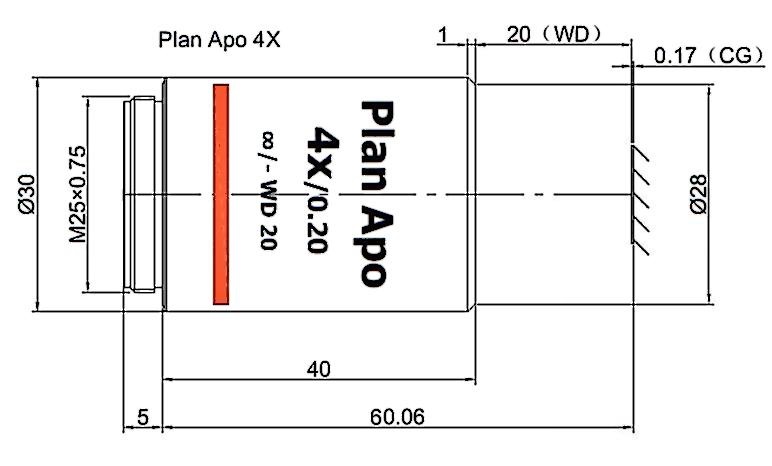

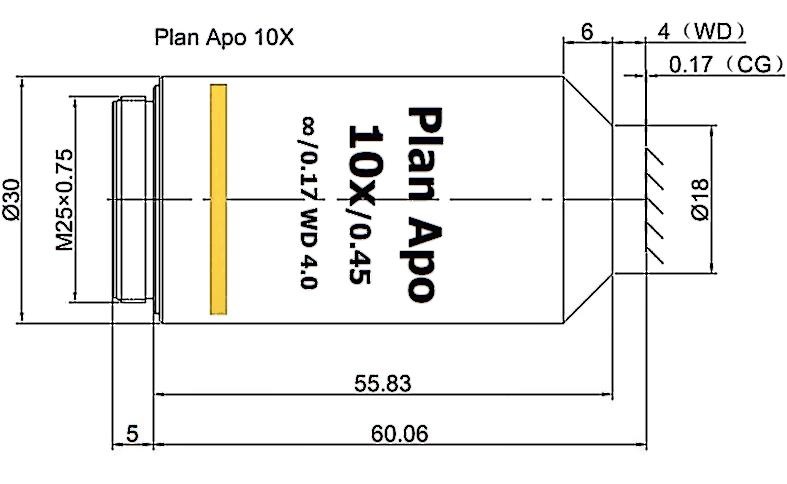

图纸

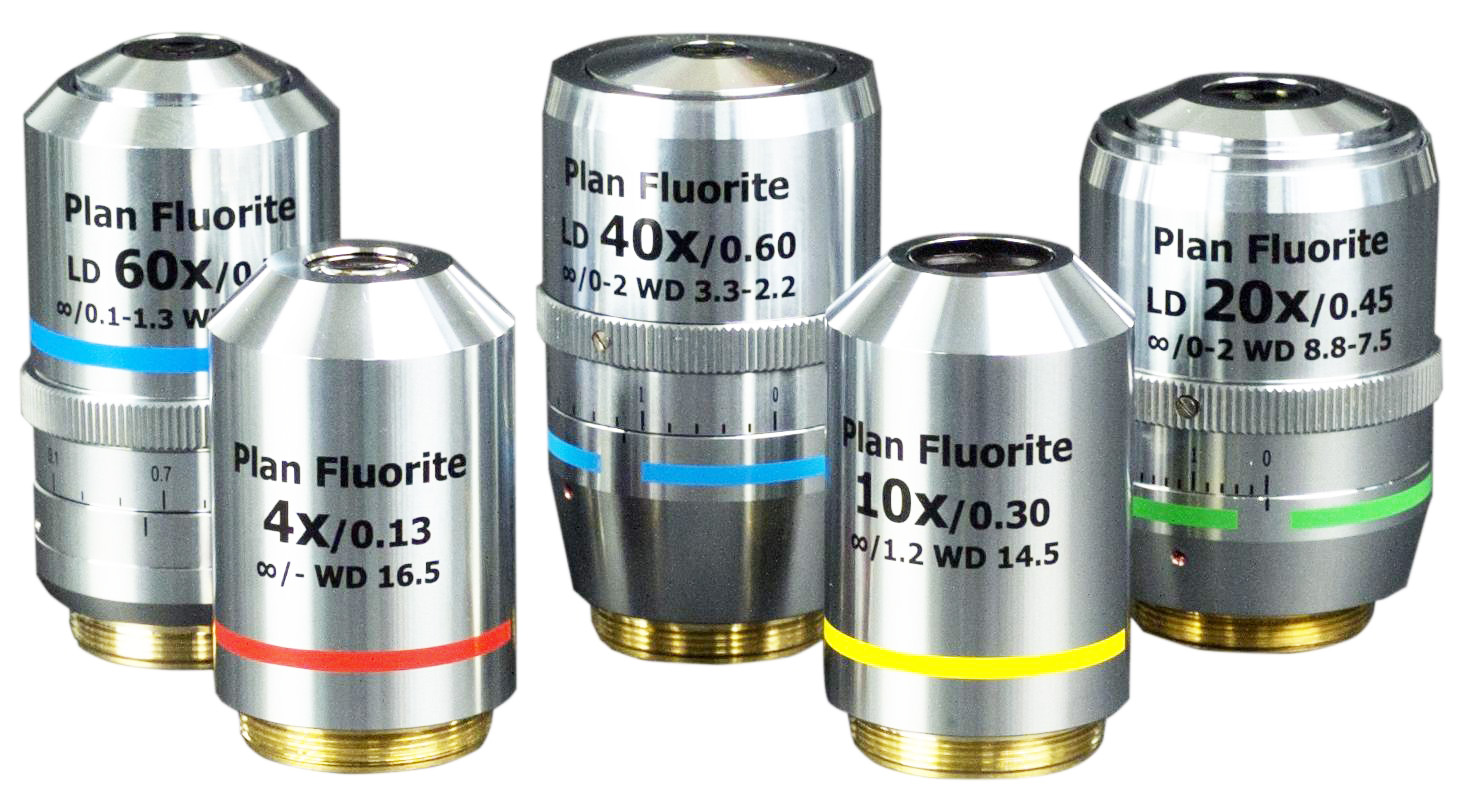

平场萤石物镜

Plan Fluor（平场萤石物镜）是无限远共轭齐焦距60mm的生物物镜，具有超长工作距离，通过校正环可用于不同厚度的样品和容器。



特征

- 无限共轭齐焦距离60mm的生物物镜

- 平面半复消色差设计



- 超长工作距离，可通过校正环用于不同厚度的样品和容器



产品规格和手册

产品手册链接：



名称 Plan Fluor
4X 10X 20X 40X 60X
光学系统特性 无限修正
观察方法 亮场/荧光
色差校正等级 半复消色差
放大倍率 [X] 4 10 20 40 60
焦距 [mm] 50 20 10 5 3.3
物镜视场数 [mm] /
数值孔径(NA) 0.13 0.3 0.45 0.6 0.7
工作距离(WD)[mm] 16.5 14.5 7.7-8.9 2.3-3.3 1.6-2.3
盖板玻璃厚度 [mm] - - 0-2 0-2 0-2
浸液 空气
弹簧保护 - - √ √ √
齐焦距离 [mm] 60.41
线 M25X0.75
重量[g] 142 158 321 303 259







透过率/波长

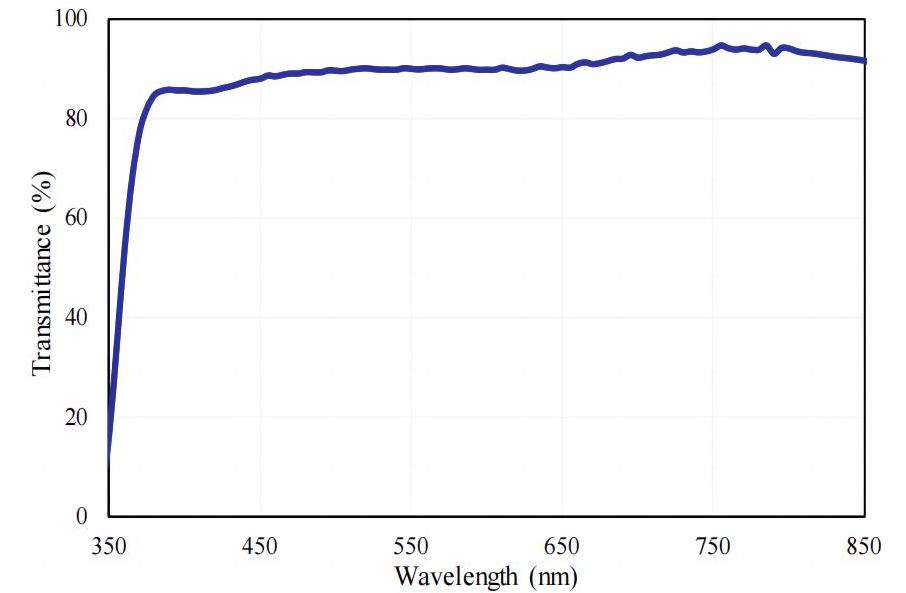

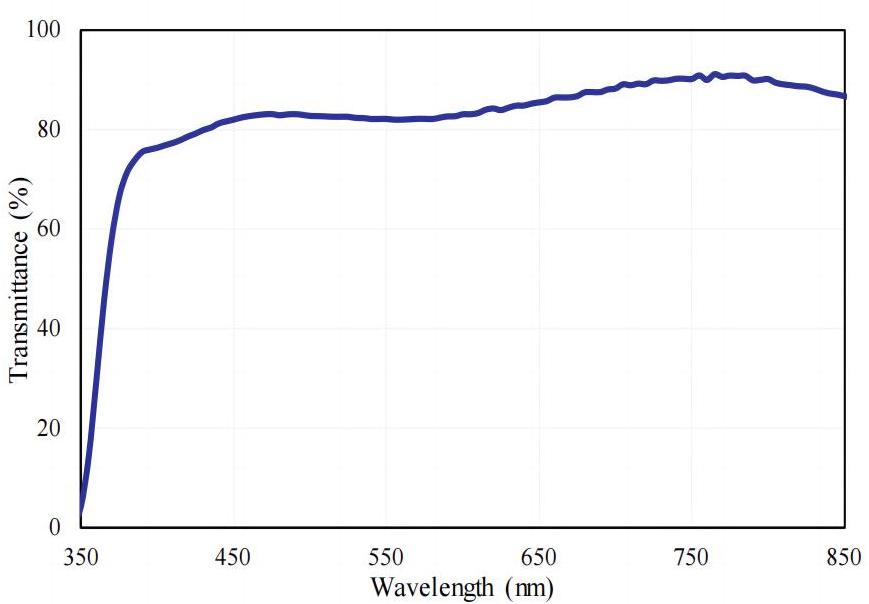

                                                Plan Fluor 4X                                                               Plan Fluor 10X                                                               Plan Fluor 20X

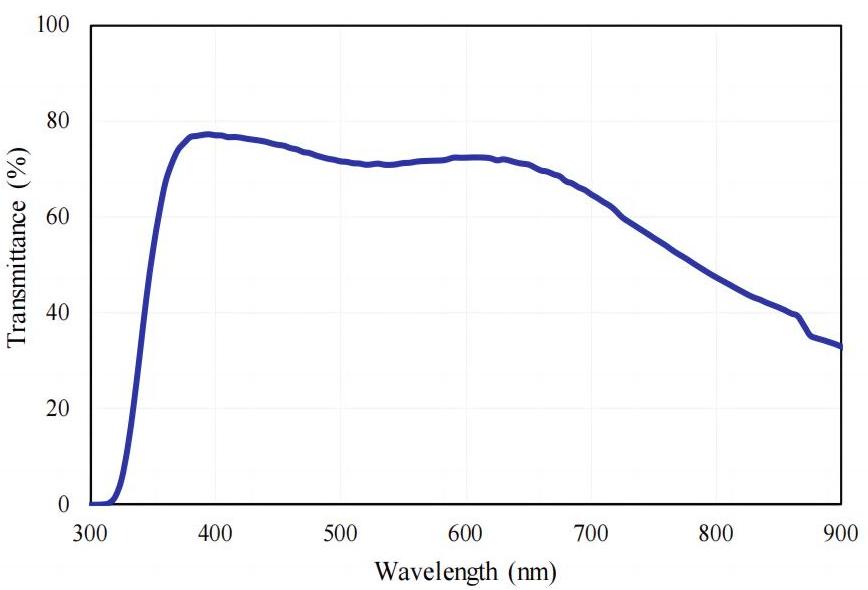

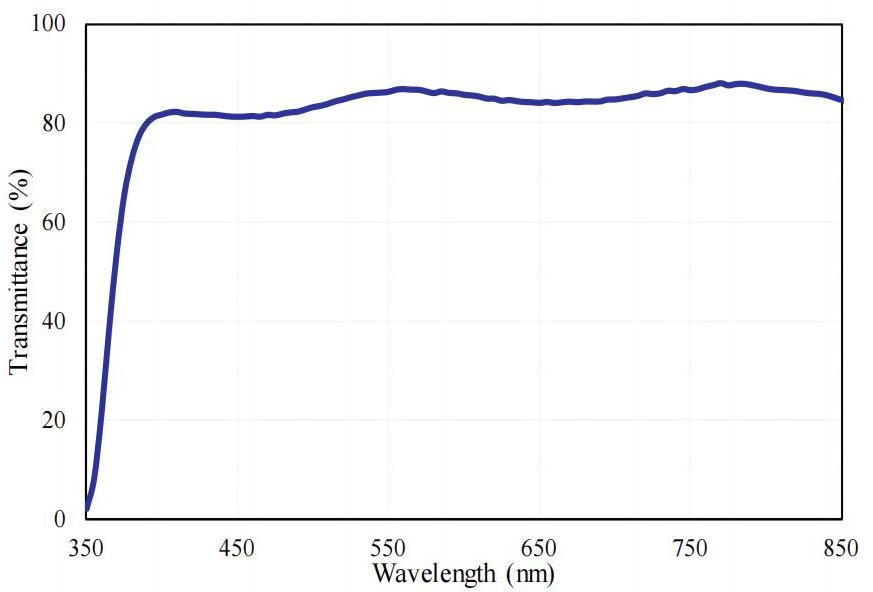

                                                                                              Plan Fluor 40X                                                                       Plan Fluor 60X









图纸

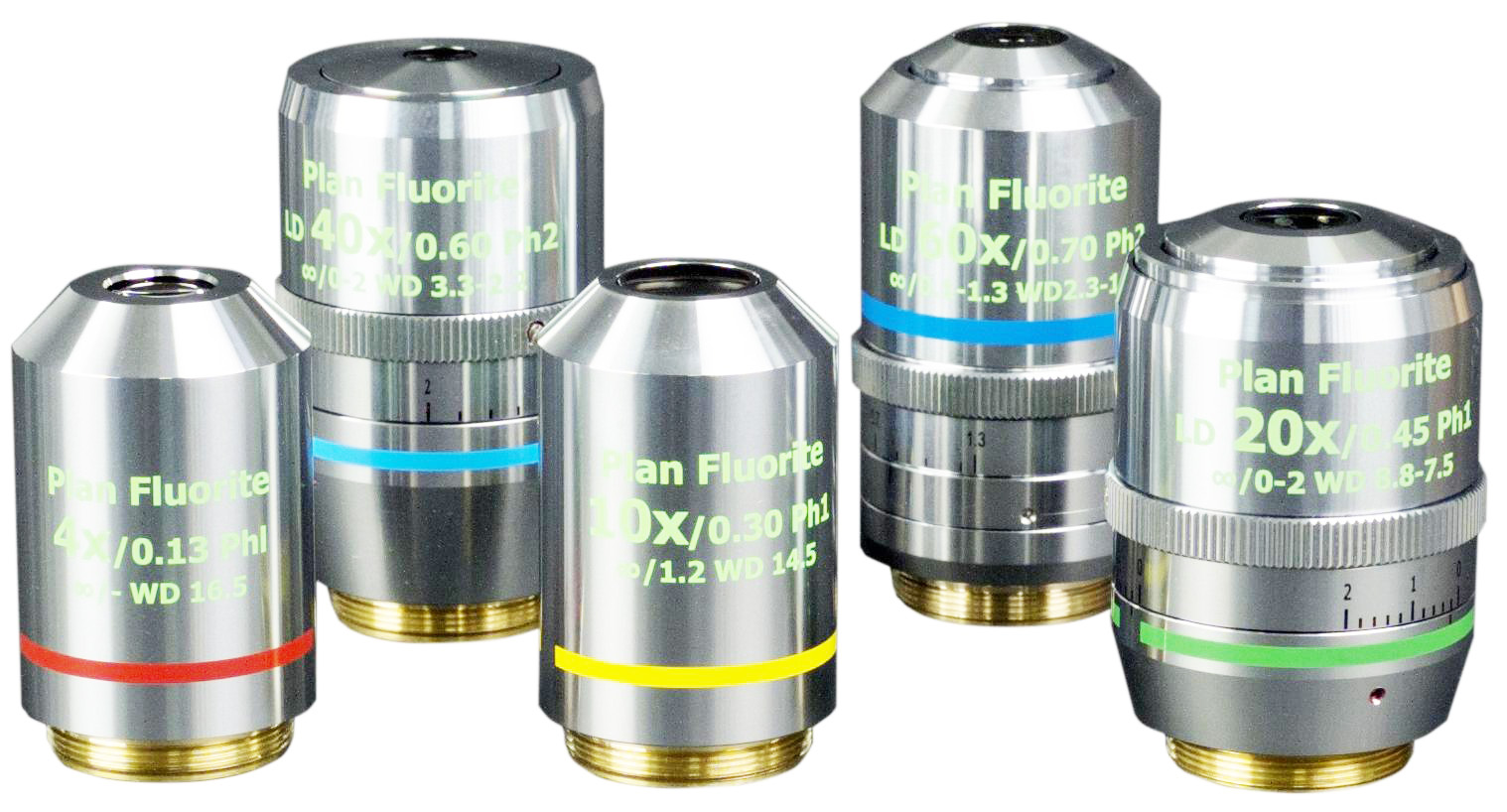

平场萤石相衬物镜

Plan Fluor Ph（Plan Fluorite Objective Phase-contrast）是无限远共轭齐焦距离为60mm的生物物镜，具有相衬装置，可为无色样品提供高对比度观察。



特征

- 无限共轭齐焦距离60mm的生物物镜

- 平面半复消色差设计

- 超长工作距离，可通过校正环用于不同厚度的样品和容器

- 相衬装置，为无色标本提供高对比度的观察



产品规格和手册

产品手册链接：



名称 Plan Fluor PHL Plan Fluor PH1 Plan Fluor PH2
4X 10X 20X 40X 60X
光学系统特性 无限修正
观察方法 明场/暗场/荧光
色差校正等级 半复消色差
放大倍率 [X] 4 10 20 40 60
焦距 [mm] 50 20 10 5 3.3
物镜视场数 [mm] -
数值孔径(NA) 0.13 0.3 0.45 0.6 0.7
工作距离(WD)[mm] 16.5 14.5 7.7-8.9 2.3-3.3 1.6-2.3
盖板玻璃厚度 [mm] - - 0-2 0-2 0-2
浸液 空气
弹簧保护 - - √ √ √
齐焦距离 [mm] 60.41
线 M25X0.75
重量[g] 142 158 321 303 263







透过率/波长

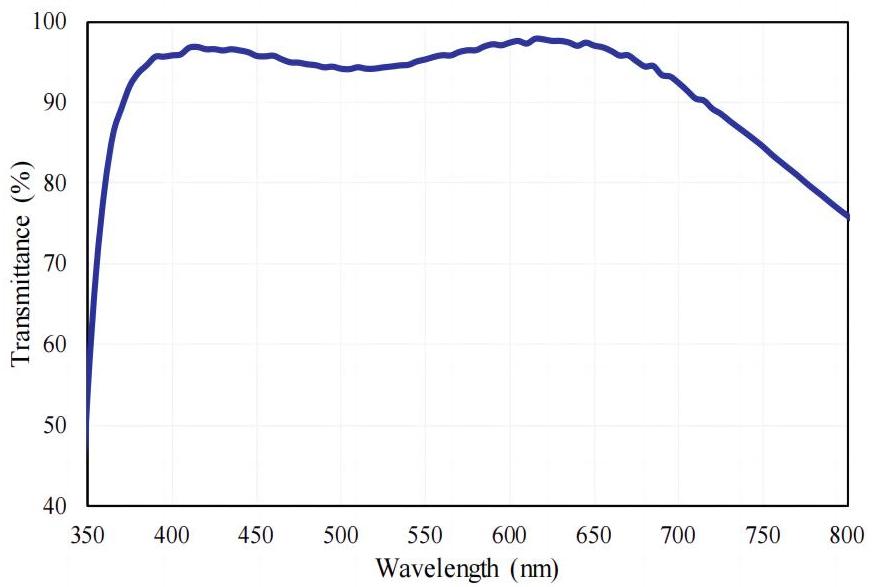

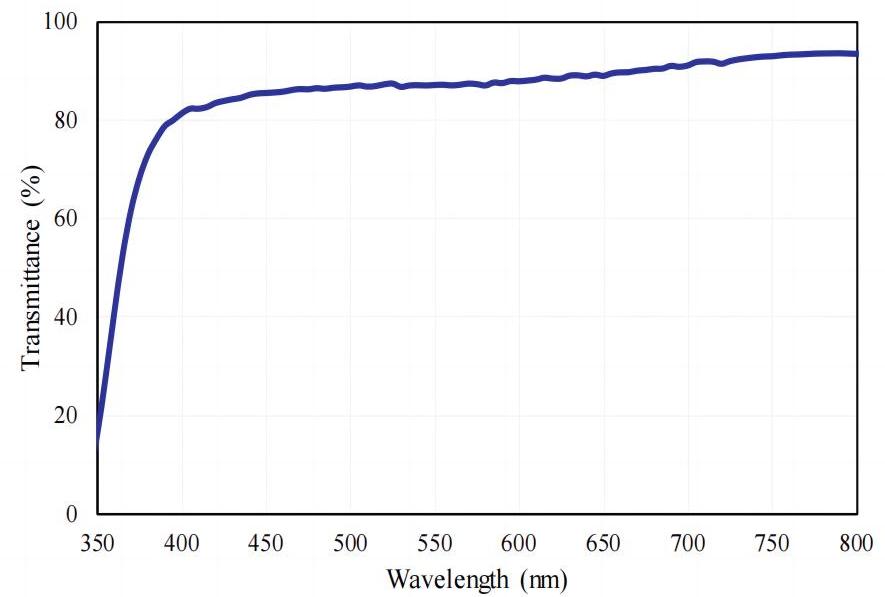

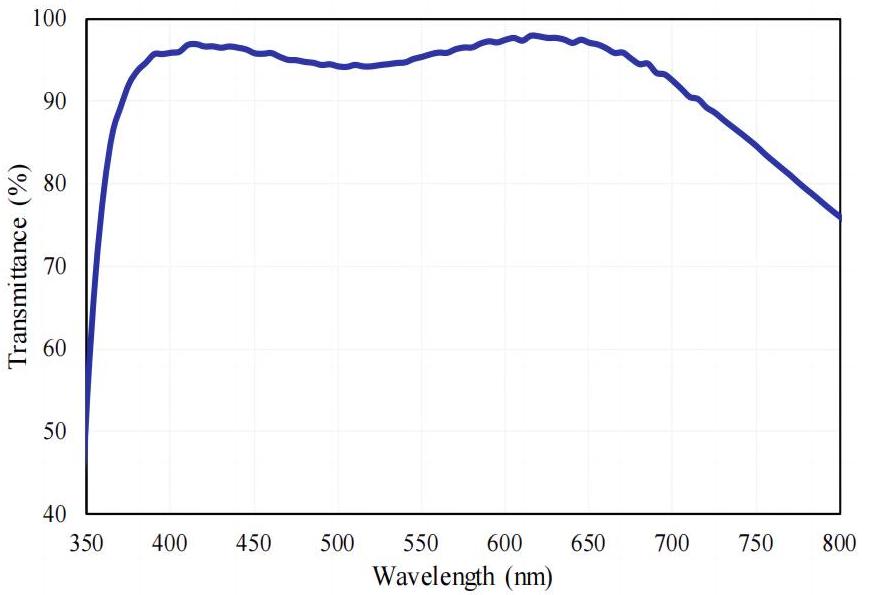

                                       Plan Fluor PHL 4X                                                          Plan Fluor PH1 10X                                                       Plan Fluor PH1 20X

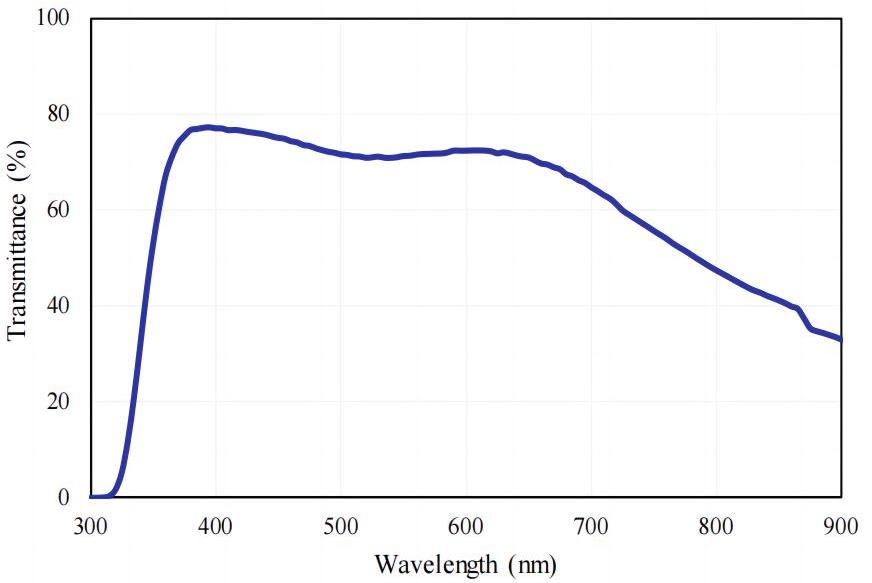

                                                                           Plan Fluor PH2 40X                                                           Plan Fluor PH2 60X

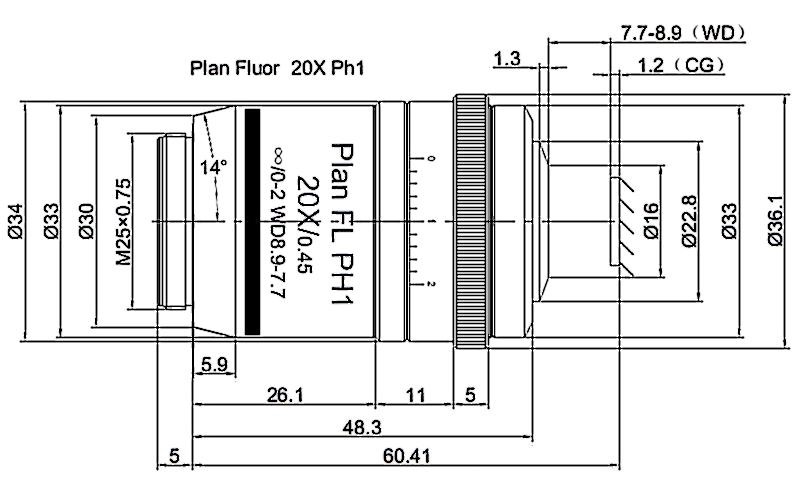

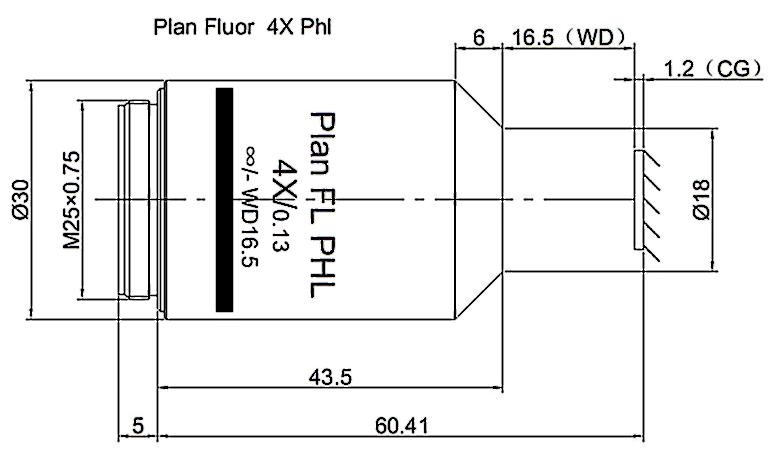

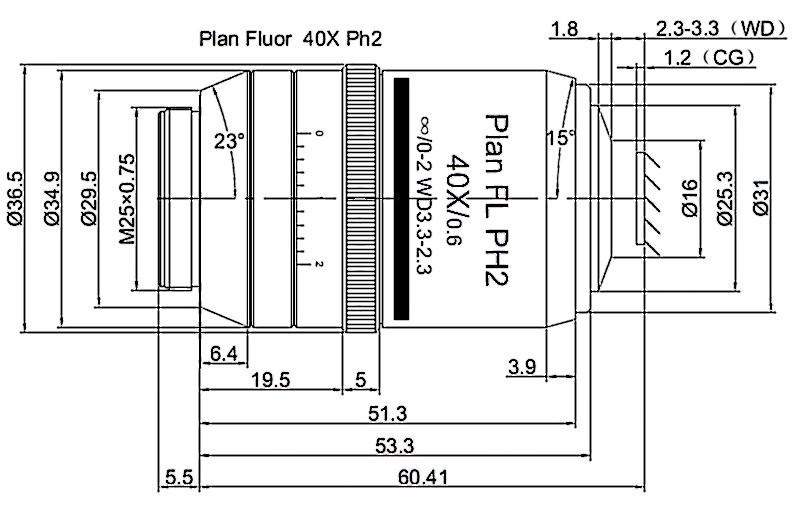

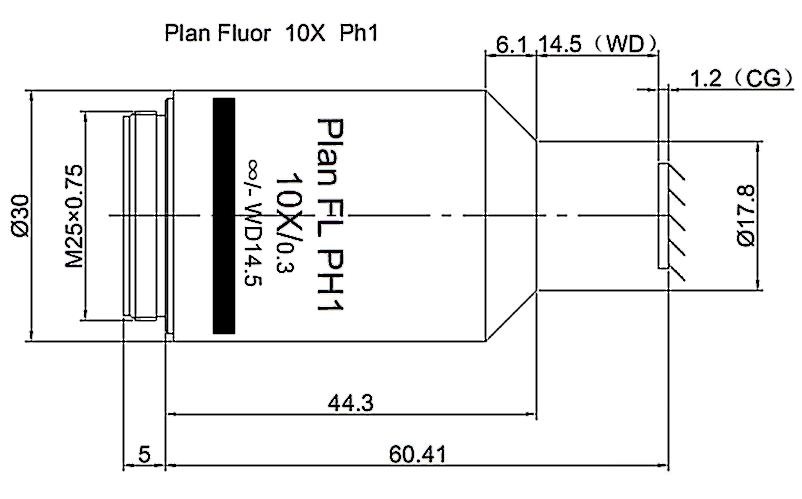

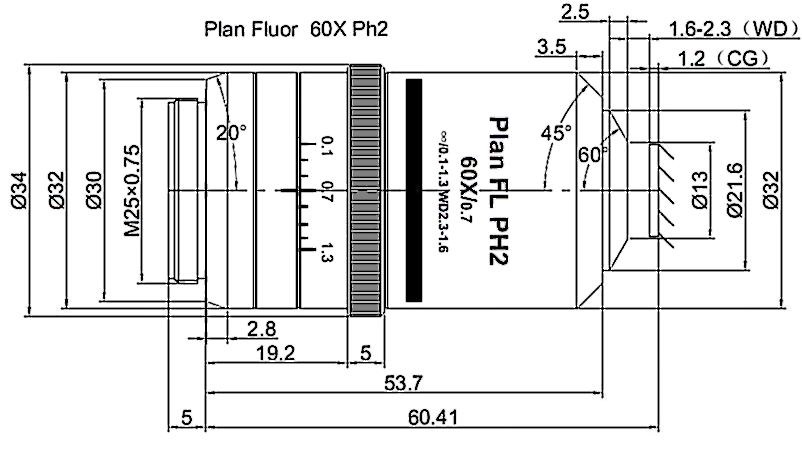

图纸














平场复消色差物镜

名称 波长 放大倍数 NA 工作距离(MM) F(MM) R(um)
平场复消色差物镜 (VIS) 可见光 1X ~ 50X 0.025 ~ 0.55 13 ~ 41 4 ~ 200 0.5 ~ 11
高分辨率平场复消色差物镜(VIS) 可见光 5X,10X,20X,100X 0.21, 0.42, 0.6, 0.9 9.5, 14, 15, 25 2, 10, 20, 40 0.3, 0.5, 0.7, 13
超长工作距离平场复消色差物镜(VIS) 可见光 20X,50X,100X 0.29, 0.42, 0.55 13, 20, 30 2, 4, 10 0.5, 0.7, 0.9
平场复消色差物镜(NIR) 近红外  20X,50X 0.42, 0.55 13, 20 4, 10 0.5, 0.65
高分辨率平场复消色差物镜(NIR) 近红外  20X,50X 0.6, 0.67, 0.75 0.4, 0.95, 10 4, 10 0.37, 0.41, 0.46
液晶显示平场复消色差物镜(NIR) 近红外  20X,50X 0.4, 0.45 15, 20 4, 10 0.6, 0.7
平场复消色差物镜(NUV) 近紫外光 20X 0.42 17 10 0.65
高分辨率平场复消色差物镜(NUV) 近紫外光 50X 0.65 10 4 0.42
液晶显示平面复消色差物镜(NUV) 近紫外光 20X,50X 0.4, 0.45 15, 20 4, 10 0.6, 0.7



工业平场物镜

名称 观察方法 放大倍数 NA 工作距离(MM) F(MM) R(um)
平场萤石物镜落射同轴照明明场  明场 5X,10X,20X,100X 0.15, 0.3, 0.45, 0.8, 0.9 1, 3, 11, 20 2, 4, 10 ,20, 40 0.31, 0.34, 0.6, 0.9, 1.8
长工作距离平场萤石物镜落射同轴照明明场  明场 20X,50X,100X 0.4, 0.5, 0.8 3.1, 10.4, 12 2, 4, 10 0.34, 0.55 ,0.7
平场物镜明场  明场 5X,10X,20X,100X 0.13, 0.3 ,0.4, 0.55, 0.8 2, 6.8, 8.2, 11.1, 11.5 2, 4, 10, 20, 40 0.34, 0.5, 0.7, 0.9, 2.1
平场萤石物镜落射同轴照明明暗场 明场和暗场  5X,10X,20X,100X 0.15, 0.3 ,0.45, 0.8, 0.9 1, 3, 11, 20 2, 4, 10, 20, 40 0.31, 0.34, 0.6, 0.9, 1.8
长工作距离平场萤石物镜落射同轴照明明暗场 明场和暗场  20X,50X,100X 0.4, 0.5, 0.8 3.1, 10.4, 12 2, 4, 10 0.34, 0.55, 0.7
平场物镜明暗场 明场和暗场  5X,10X,20X,100X 0.13, 0.3, 0.46, 0.75, 0.9 1.4, 1.8, 3.6, 6, 11 2, 4, 10, 20, 40 0.31, 0.37, 0.6, 0.9, 2.1



生物平场物镜

名称 观察方法 放大倍数 NA 工作距离(MM) F(MM) 色差校正水平
平场复消色差物镜 亮场/荧光 2X,4X,10X,20X 0.1, 0.2, 0.45, 0.75 0.6, 4, 8.5, 20 10, 20, 50, 100 复消色差
平场萤石物镜 亮场/荧光 4X,10X,20X,40X,60X 0.13, 0.3, 0.45. 0.6, 0.7 1.6-2.3 ,2.3-3.3, 7.7-8.9, 14.5, 16.5 3.3, 5, 10, 20, 50 半复消色差
平场萤石相衬物镜 明场/暗场/荧光 4X,10X,20X,40X,60X 0.13, 0.3, 0.45. 0.6, 0.7 1.6-2.3 ,2.3-3.3, 7.7-8.9, 14.5, 16.5 3.3, 5, 10, 20, 50 半复消色差




我们在这里为您服务！





给我们发电子邮件 info@simtrum.com 以获得今天最优惠的价格。   想要更多的技术信息?点击这里 获取专业定制系统/解决方案。




没有时间逐个搜索产品?不用担心。您可以下载全系列的瑆创产品线卡，现在点击它。



想要更接近市场动态和技术发展吗?只需花5秒钟作为会员登录，我们将为您带来最新的新闻。​(屏幕右上方的登录按钮)

Type


Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
Plan Apo 2X
Plan Apochromatic Objective 2X, Optical System Characteristics Infinite Correction, Observation Method Bright Filed / Fluorescence, Level of Chromatic Aberration Correction Apochromatism, Focal Length 100MM, Field Number of The Objective 25MM, Numerical Aperture 0.1, Working Distance 8.5MM 		6-8 weeks Request for quote
Plan Apo 4X
Plan Apochromatic Objective 4X, Optical System Characteristics Infinite Correction, Observation Method Bright Filed / Fluorescence, Level of Chromatic Aberration Correction Apochromatism, Focal Length 50MM, Field Number of The Objective 25MM, Numerical Aperture 0.2, Working Distance 20MM 		6-8 weeks Request for quote
Plan Apo 10X
Plan Apochromatic Objective 10X, Optical System Characteristics Infinite Correction, Observation Method Bright Filed / Fluorescence, Level of Chromatic Aberration Correction Apochromatism, Focal Length 20MM, Field Number of The Objective 25MM, Numerical Aperture 0.45, Working Distance 4MM, Cover Glass Thickness 0.17MM 		6-8 weeks Request for quote
Plan Apo 20X
Plan Apochromatic Objective 20X, Optical System Characteristics Infinite Correction, Observation Method Bright Filed / Fluorescence, Level of Chromatic Aberration Correction Apochromatism, Focal Length 10MM, Field Number of The Objective 25MM, Numerical Aperture 0.75, Working Distance 0.6MM, Cover Glass Thickness 0.17MM 		6-8 weeks Request for quote
Plan Fluor 4X
Plan Fluorite Objective 4X, Optical System Characteristics Infinite Correction, Observation Method Bright Filed / Fluorescence, Level of Chromatic Aberration Correction Semi-apochromatism, Focal Length 50MM, Numerical Aperture 0.13, Working Distance 16.5MM 		6-8 weeks Request for quote
Plan Fluor 10X
Plan Fluorite Objective 10X, Optical System Characteristics Infinite Correction, Observation Method Bright Filed / Fluorescence, Level of Chromatic Aberration Correction Semi-apochromatism, Focal Length 20MM, Numerical Aperture 0.3, Working Distance 14.5MM 		6-8 weeks Request for quote
Plan Fluor 20X
Plan Fluorite Objective 20X, Optical System Characteristics Infinite Correction, Observation Method Bright Filed / Fluorescence, Level of Chromatic Aberration Correction Semi-apochromatism, Focal Length 10MM, Numerical Aperture 0.45, Working Distance 7.7-8.9MM, Cover Glass Thickness 0-2MM 		6-8 weeks Request for quote
Plan Fluor 40X
Plan Fluorite Objective 40X, Optical System Characteristics Infinite Correction, Observation Method Bright Filed / Fluorescence, Level of Chromatic Aberration Correction Semi-apochromatism, Focal Length 5MM, Numerical Aperture 0.6, Working Distance2.3-3.3MM, Cover Glass Thickness 0-2MM 		6-8 weeks Request for quote
Plan Fluor 60X
Plan Fluorite Objective 60X, Optical System Characteristics Infinite Correction, Observation Method Bright Filed / Fluorescence, Level of Chromatic Aberration Correction Semi-apochromatism, Focal Length 3.3MM, Numerical Aperture 0.7, Working Distance1.6-2.3MM, Cover Glass Thickness 0-2MM 		6-8 weeks Request for quote
Plan Fluor PHL 4X
Plan Fluorite Objective Phase-contrast 4X, Optical System Characteristics Infinite Correction, Observation Method Bright Field / Dark Field / Fluorescence, Level of Chromatic Aberration Correction Semi-apochromatism, Focal Length 50MM, Numerical Aperture 0.13, Working Distance 16.5MM 		6-8 weeks Request for quote
Plan Fluor PH1 10X
Plan Fluorite Objective Phase-contrast 10X, Optical System Characteristics Infinite Correction, Observation Method Bright Field / Dark Field / Fluorescence, Level of Chromatic Aberration Correction Semi-apochromatism, Focal Length 20MM, Numerical Aperture 0.3, Working Distance 14.5MM 		6-8 weeks Request for quote
Plan Fluor PH1 20X
Plan Fluorite Objective Phase-contrast 20X, Optical System Characteristics Infinite Correction, Observation Method Bright Field / Dark Field / Fluorescence, Level of Chromatic Aberration Correction Semi-apochromatism, Focal Length 10MM, Numerical Aperture 0.45, Working Distance 7.7-8.9MM, Cover Glass Thickness 0-2JMM 		6-8 weeks Request for quote
Plan Fluor PH2 40X
Plan Fluorite Objective Phase-contrast 40X, Optical System Characteristics Infinite Correction, Observation Method Bright Field / Dark Field / Fluorescence, Level of Chromatic Aberration Correction Semi-apochromatism, Focal Length 5MM, Numerical Aperture 0.6, Working Distance 2.3-3.3MM, Cover Glass Thickness 0-2JMM 		6-8 weeks Request for quote
Plan Fluor PH2 60X
Plan Fluorite Objective Phase-contrast 60X, Optical System Characteristics Infinite Correction, Observation Method Bright Field / Dark Field / Fluorescence, Level of Chromatic Aberration Correction Semi-apochromatism, Focal Length 3.3MM, Numerical Aperture 0.7, Working Distance 1.6-2.3MM, Cover Glass Thickness 0-2JMM 		6-8 weeks Request for quote
