光功率计探测器 250-2500nm

产品概述自由光束探测器光纤基探测器电源传感器控制台联系下单！

产品手册:

OPM150_Console. PDF | Sensor Head Summary.PDF | Integrating-sphere_Polymer.PDF

根据波长选择功率传感器

SIMTRUM提供两种类型的传感器头自由光束和光纤耦合，与各种二极管材料允许测量从250nm到2500nm。硅传感器波长范围为250nm -110nm，锗传感器波长范围为800nm-1500nm, InGaAs传感器波长范围为400-2500nm。每个磁头的校准文件存储在其连接器中。因此，改变波长范围就像交换磁头一样简单。

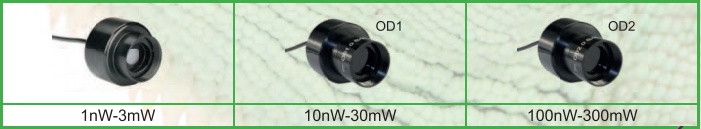

光密度滤波器的选择

我们提供经过校准的衰减滤波器，可将自由波束头的范围扩展至多三个数量级。功率范围从1nW到300mW。

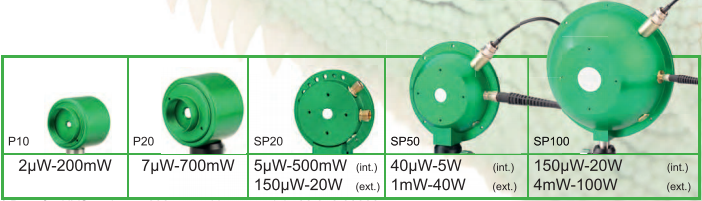

对于大功率传感，将传感器与积分球组合。点击这里

我们提供的积分球可以将您的高功率测量从2w扩展到100W。响应时间为100us，采样率高达600S/s，与热电堆传感器相比，有更多的东西要看。也不用担心热漂移!

匹配功率计控制台点击这里

输入	OPM 150	OPM 200	OPM 500
探测器头	自由光束/光纤头	纤维头
USB 端口	是	否	是
输出	数字 & 模拟	模拟	数字 & 模拟
功率范围	nW - kW	µW - mW	pW - mW
准确性	± 4	± 5
再现性	± 1	± 0.5
线性	± 0.2

产品手册:

OPM150_Console. PDF | Sensor Head Summary.PDF | Integrating-sphere_Polymer.PDF

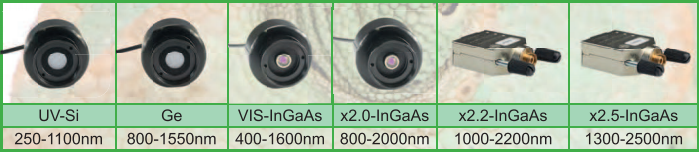

各种二极管材料允许从 250nm 到 2500nm 的测量。

探头的波长范围为 250-1100nm、800-1550nm、400-1600nm、800-2000nm、1000-2200nm 和 1300-2500nm。连接到基本单元的每个探测器都会被自动识别，其单独的校准数据被上传到系统。因此，更改波长范围就像更换磁头一样简单 - 只需一个基本单元即可完成。

自由梁头低功率类型

UVS = Si, UV enhanced | G = Germanium | VIGA = InGaAs, Vis enhanced | xIGA = IR, InGaAs enhanced; x = 2.0, 2.2, 2.5 max. Wavelength

功率在1W以上的请选用我们的积分球(点击这里)

订购代码	图片	波长范围	活动区域	最小功率	最大功率

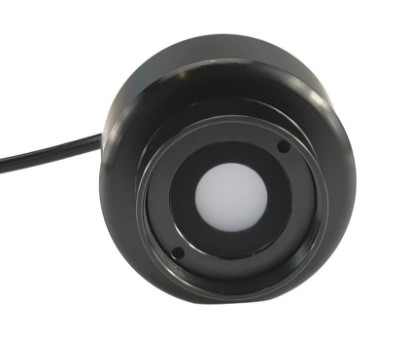

OPM150UVS		250-1100nm	Φ9mm Si (UV extended)	1nW (at 600nm)	3mW (at 600nm)

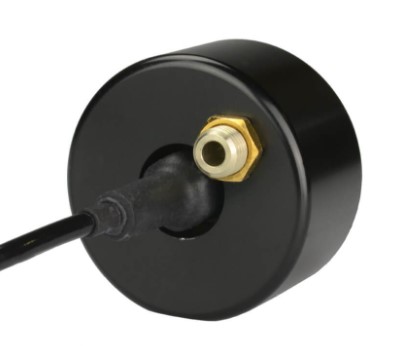

OPM150UVS-S¹		250-1100nm	Φ9mm Si (UV extended)	1nW (at 600nm)	3mW (at 600nm)

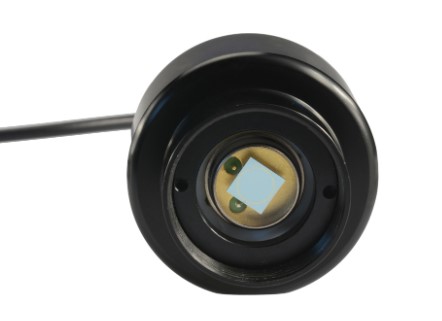

OPM150G5		800-1550nm	Φ5mm Ge	1μW (at 1550nm)	8mW²/4mW³ (at 1550nm)
OPM150G10		800-1550nm	Φ9mm Ge	1μW (at 1550nm)	8mW²/4mW³ (at 1550nm)

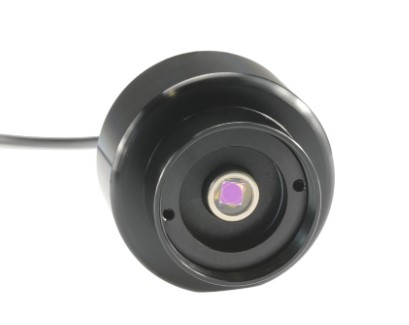

OPM150VIGA		400-1600nm	Φ3mm InGaAs (VIS extended)	1nW (at 1550nm)	7mW²/4mW³ (at 1550nm)
OPM150x2.0IGA		800-2000nm	Φ3mm InGaAs (IR extended)	1nW (at 1550nm)	3mW (at 1550nm)

1 使用 SMA 光纤分流器进行辅助测量，例如光谱测量。

2 带有基本模块 OPM 150功率表控制台12mA

3 带有基本模块 OPM 150功率表控制台 4mA

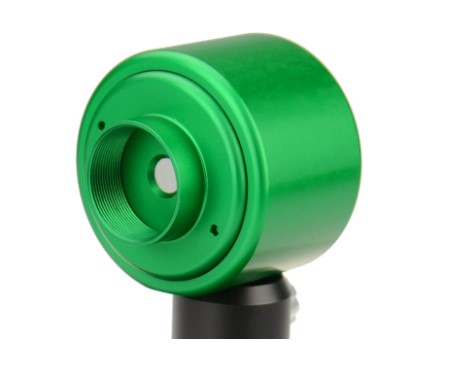

产品图像	订购代码	Φ输入	波长	功率
	OPM150P10UVS	3.5	800nm – 1550nm	up to 250mW
	OPM150P10G		250nm – 1100nm	up to 250mW
	OPM150P10VIGA		400nm – 1600nm	up to 250mW
	OPM150P10x2.0IGA		800nm – 2000nm	up to 250mW
	OPM150P10x2.2IGA		1000nm – 2200nm	up to 250mW
	OPM150P20G	7	800nm – 1550nm	up to 1W
	OPM150P20UVS		250nm – 1100nm	up to 1W
	OPM150P20VIGA		400nm – 1600nm	up to 1W
	OPM150P20x2.0IGA		800nm – 2000nm	up to 1W
	OPM150P20x2.2IGA		1000nm – 2200nm	up to 1W

产品手册：

OPM150_Console. PDF | Sensor Head Summary.PDF | Integrating-sphere_Polymer.PDF

产品	订购代码	波长范围	最大纤维核心@NA	最小功率	最大功率
	UVSFC UVSSMA	2500-1100nm	ϕ1500um at NA 0.39 ϕ2000um at NA 0.22	4nW (at 600nm)	4mW (at 600nm)
	G3FC G3SMA	800-1550nm	ϕ1000um at NA 0.39 ϕ1500um at NA 0.22	1uW (at 1550nm)	8¹/4²mW (at 1550nm)
	VIGAFC VIGASMA	400-1600nm	ϕ550um at NA 0.22	2nW (at 1550nm)	12¹/7²mW (at 1550nm)
	x2.0IGAFC x2.0IGASMA	800-2200nm	ϕ200um at NA 0.22	2nW (at 1550nm)	10¹/5²mW (at 1550nm)
	x2.2IGAFC x2.2IGASMA	1000-2200nm	ϕ200um at NA 0.22	2nW (at 1550nm)	10¹/5²mW (at 1550nm)

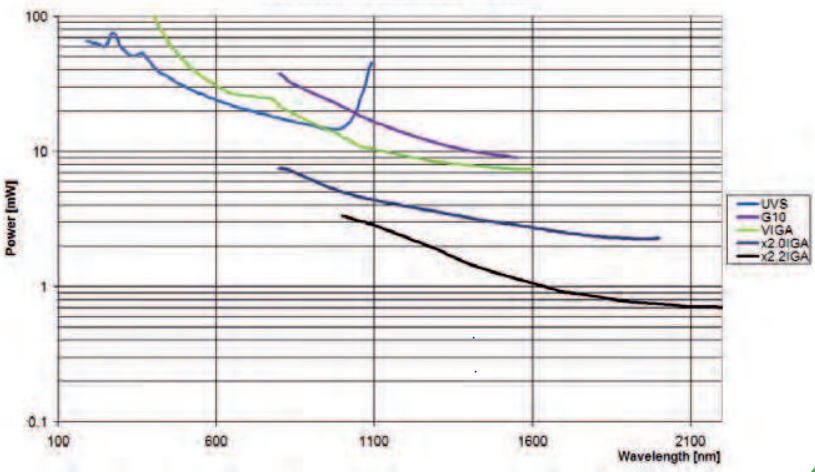

最大可测功率

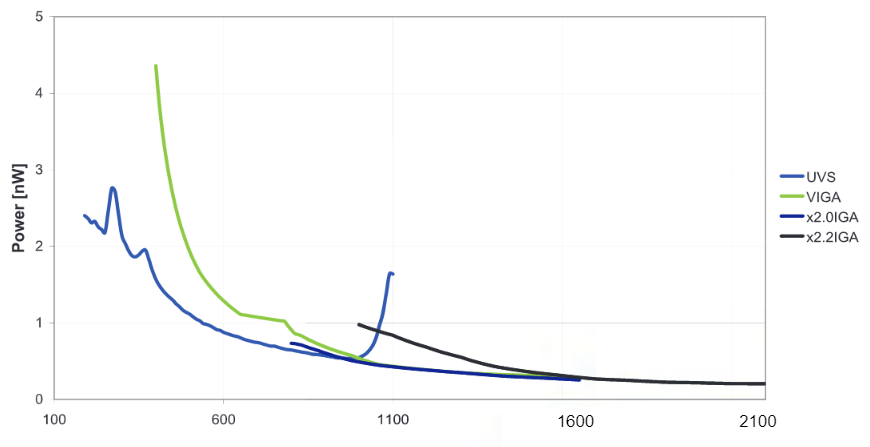

最小可测功率

产品手册:

OPM150_Console. PDF | Sensor Head Summary.PDF | Integrating-sphere_Polymer.PDF

功率表控制台比较

输入	OPM 150	OPM 200	OPM 500
探测器头	游离光束 /纤维头	纤维头
USB端口	是	否	是
输出	数字与模拟	模拟	数字与模拟
功率范围	nW - kW	µW - mW	pW - mW
准确性	± 4	± 5
可重复性	± 1	± 0.5
线性	± 0.2

OPM150有着低成本，多功能和小到可以放进你的口袋的特点，它是专为个人电脑使用，从而消除了需要一个显示器，这使得它非常经济。它还具有100µs的响应时间和高达600S/s的采样率，无需担心热漂移和可定制的波长范围。

特征

接口:USB测量速率:30ms ~ 999s
最小可测量功率:1nW(光电二极管)
最大测量功率:5kW(积分球)
增益控制:5个增益范围
功能:图形和数字显示模式，平均

应用

实验室
激光维修
原始设备制造商

输入
最大电流		12	4	mA
输出
连接		DB9(检测器头)和USB	DB9(检测器头)和USB
带宽		10	100	kHz
采样率	GUI 控制	30	30	S/s
采样率	直接采样	600	600	S/s
收益阶段		1, 10, 100, 1000, 10000	1, 10, 100, 1000, 10000	V/mA
准确性	探测器	± 4	± 4	%
准确性	基本单位	± 1	± 1	%
可重复性	探测器	± 1	± 1	%
线性	探测器	± 0.2	± 0.2	%
电源
类型		USB	USB
尺寸
	Base 模块	60 x 81 x 36 mm (W x L x H)	60 x 81 x 36 mm (W x L x H)	mm
	头	35 x 30 (Φ x L)	35 x 30 (Φ x L)	mm
