脉冲电压

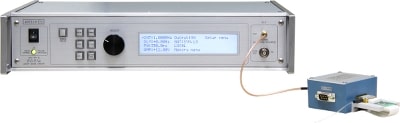

Laser Diode Drivers (Pulsed Voltage)


Pulsed voltage laser diode drivers require a resistance in series with the device under test (usually a diode) in order to limit the current. The output current is then defined by an equation similar to IOUT = (VPULSER - VDIODE) / (RSERIES + RDIODE). Although this introduces a small dependence on VDIODE, much faster rise times can be achieved with this approach than with true pulsed constant current instruments.


AV-1010-B

The AV-1010-B is a GPIB/RS-232-equipped general-purpose, 0 to +/- 100V pulser, offering 1 MHz operation, 10 ns rise and fall times, pulse widths from 20 ns to 10 ms, and a variable delay of up to +/- 1 second. When driving a 50 Ohm load, it can provide up to 2 Amps of current. This model is ideal for both general lab pulse/delay generator applications, as well as high-current laser diode pulsing applications. In many applications, the AV-1010-B is a suitable alternative or replacement for the discontinued HP and Agilent models 214A, 214B, and 8114A.


AVO-2 Series

The AVO-2 series of solid-state pulse generators is designed for pulsing laser diode and other low impedance loads with rectangular current pulses as high as 10A and pulse widths as high as 50 ns. The diode load is connected in series with a low-value current limiting resistor between two output solder terminals (OUT and GND). All AVO-2 models are voltage pulsers. A series resistance is required to limit the output current to the maximum rated level, and to provide proper termination of the output transmission lines and impedance matching transformers.


AVO-6 Series

The AVO-6 series of pulsed voltage pulse generators is designed for pulsing laser diodes and other low impedance loads with rectangular current pulses as high as 10 Amperes and pulse widths as high as 50 us. Each model consists of a mainframe voltage pulser (providing a voltage amplitude VOUT), and an output module with an internal series resistance (RSERIES = 50, 12.5, or 11 Ohms, ±10%, depending on the model). When a diode is connected to the output module, the current is given by: IDIODE = (VOUT/N – VDIODE) / RSERIES where N=1 for most models (N=2 for the AVO-6D-B due to the presence of a current-doubling transformer). VDIODE is the diode forward voltage drop.


AVO-9 Series

The AVO-9 series offers a range of easy-to-use, ultra-highspeed pulsed laser diode drivers. Each model in the AVO-9 series consists of an instrument mainframe and an output module connected to the mainframe by a short coaxial cable. The mainframe generates a voltage pulse that is supplied to the output module. The output module has a special highspeed socket designed specifically for the user's packaged laser diode, and a series resistance. This arrangement provides a user-friendly “plug-and-play” setup, without degrading performance. Different output modules can be used if the user needs to drive more than one type of diode.


AVOZ-A and AVOZ-B Series

The AVOZ-A and AVOZ-B series are voltage pulsers with very high maximum current ratings (ranging from 2 Amps to 100 Amps). These pulsers are designed for delivering pulses with very fast rise times to laser diodes and other low impedance loads. For applications requiring higher voltages (e.g., for driving series-connected laser diode arrays), please see the new AVOZ-D series, which offers 500V / 50A and 700V / 70A models.


AVOZ-DF SERIES

The AVOZ-DF models are high-voltage, high-current, high pulse repetition frequency (PRF) pulse generators. The high output voltages of the AVOZ-DF models permits the testing of laser diodes and laser diode arrays with relatively high forward voltage drops (VF). Models AVOZ-DF1-B, AVOZ-DF2-B, and AVOZ-DF3-B are voltage pulsers designed to drive 10Ω load impedances. An output module is included which provides a high-current low-inductance 10Ω series resistance internally, to allow low-impedance loads (such as laser diodes) to be driven directly. The output module is connected to the mainframe using five supplied coaxial cables (giving a matched characteristic impedance Z0 of 50Ω / 5 = 10Ω, in order to minimize transmission lines reflections).


AVOZ-E SERIES

The AVOZ-E models are high-voltage, high-current pulsers ideal for testing high-current laser diode arrays, as well as testing multiple identical lower-current devices (for instance, production testing of attenuators). All models offer pulse widths adjustable from 0.5 to 10 us, and average output powers of up to 100 Watts.


AVOZ-G SERIES

The AVOZ-G models are voltage pulsers with very high maximum current ratings (ranging from 20 Amps to 100 Amps). These pulsers are designed for delivering wide pulses to laser diodes, diode arrays, and other low impedance loads.


AVOZ-H SERIES

The AVOZ-H series is intended for high-voltage, high-current, high-duty-cycle applications. Model AVOZ-H1-B can provide voltage amplitudes of up to 60V, with load currents of up to 6 Amps. The pulse width can be adjusted from 200 ns to 200 ms. The pulse repetition frequency may be adjusted from 1 Hz to 50 kHz. In the pulse mode, the maximum duty cycle is 80%. A DC mode (100% duty cycle) is also provided.



Please check the table below for individual specifications tied to individual products.


ProductIout, maxPWtrMax. PRF (kHz)GPIB

High-Speed

 Socket for DUT

Brochures

AV-1010-B laser diode driver

(with accessory transformers)

2, 4, 8 A20ns-10ms10 ns1 MHzYES



AVO-2A-B laser diode driver0.2083333334-50 ns2.5 ns20 kHzYES
AVO-2L-B laser diode driver0.0833333332-20 ns0.5 ns100 kHzYES
AVO-2M-B laser diode driver4.5 A1-10 ns1 ns20 kHzYES
AVO-2W-B laser diode driver0.4166666674-50 ns2.5 ns20 kHzYES
AVO-6A1-B laser diode driver0.04166666750ns-5us1 ns10 kHzYES
AVO-6C-B laser diode driver0.20833333350ns-5us12 ns10 kHzYES
AVO-6D-B laser diode driver0.41666666750ns-5us15 ns10 kHzYES
AVO-6F1-B laser diode driver0.166666667100ns-5us3 ns10 kHzYES
AVO-6HF-B laser diode driver0.20833333350ns-50us12 ns100 kHzYES
AVO-6HZ-B laser diode driver0.41666666750ns-50us15 ns100 kHzYES
AVO-9A-B laser diode driver0.2 A0.4-4.0 ns0.2 ns1 MHzYESYES
AVO-9A3-B laser diode driver0.8 A0.4-2 ns0.2 ns1 MHzYESYES
AVO-9A4-B laser diode driver0.8 A1-10 ns0.5 ns150 kHzYESYES
AVO-9A5-B laser diode driver0.0416666671-10 ns0.5 ns1 MHzYESYES
AVO-9B-B laser diode driver0.2 A5-100 ns0.2 ns1 MHzYESYES
AVO-9B1-B laser diode driver0.2 A0.5-1000 ns0.25 ns1 MHzYESYES
AVO-9B2-B laser diode driver0.4 A0.6-1000 ns0.35 ns100 kHzYESYES
AVO-9E-B laser diode driver0.4 A20-200 ns0.3 or 3.0 ns10 MHzYESYES
AVO-9G-B-W1 laser diode driver0.0416666671-200 ns0.5 ns100 kHzYESYES
AVO-9H-B-W1 laser diode driver0.0833333331-200 ns0.7 ns50 kHzYESYES
AVO-9H1-B laser diode driver0.08333333310-500 ns1.2 ns200 kHzYESYES
AVO-9H2-B laser diode driver0.0833333338-30 ns2 ns2 MHzYESYES
AVO-9L-B laser diode driver0.0833333331-20 ns0.5 ns100 kHzYESYES
AVO-9M-B laser diode driver4.5 A1-10 ns1 ns20 kHzYESYES
AVO-9P-B laser diode driver0.2083333334-50 ns2.5 ns20 kHzYESYES
AVO-9W-B laser diode driver0.4166666674-50 ns2.5 ns20 kHzYESYES
AVO-9X-B laser diode driver0.3333333338-100 ns4ns (2ns opt)2 kHzYESYES
AVO-9Y-B laser diode driver14 A8-100 ns4 ns2 kHzYESYES
AVOZ-A1A-B laser diode driver20 A25-150 ns20 ns1 MHzYES
AVOZ-A1-B laser diode driver20 A40-1000 ns35 ns20 kHzYES
AVOZ-A1B-B laser diode driver0.08333333320ns-20us10 ns10 MHzYES
AVOZ-A2-B laser diode driver50 A40-1000 ns35 ns20 kHzYES
AVOZ-A3-B laser diode driver100 A50ns-2us35 ns20 kHzYES
AVOZ-A4-B laser diode driver100 A100ns-5us35 ns10 kHzYES
AVOZ-B3-B laser diode driver100 A100ns-2us35 ns10 kHzYES
AVOZ-B4-B laser diode driver100 A100ns-2us35 ns200 kHzYES
AVOZ-D1-B laser diode driver50 A200ns-10us60 ns5 kHzYES
AVOZ-D2-B laser diode driver70 A200ns-10us75 ns2.5 kHzYES
AVOZ-D3-B laser diode driver40 A200ns-10us50 ns5 kHzYES
AVOZ-D4-B laser diode driver20 A200ns-10us50 ns5 kHzYES
AVOZ-D5-B laser diode driver20 A200ns-10us50 ns5 kHzYES
AVOZ-D6-B laser diode driver200 A1us-10us120 ns500 HzYES
AVOZ-D7-B laser diode driver100 A200ns-10us80 ns1 kHzYES
AVOZ-DF1-B laser diode driver0.20833333320-200 ns3 ns100 kHzYES
AVOZ-DF2-B laser diode driver0.41666666720-200 ns5 ns100 kHzYES
AVOZ-DF3-B laser diode driver20 A20-200 ns5 ns25 kHzYES
AVOZ-DF5-B laser diode driver50 A50-200 ns15 ns2 kHzYES
AVOZ-E1-B laser diode driver50 A500ns-10us150 ns10 kHzYES
AVOZ-E2-B laser diode driver100 A500ns-10us150 ns10 kHzYES
AVOZ-E3-B laser diode driver250 A500ns-10us200 ns1 kHzYES
AVOZ-E4-B laser diode driver125 A500ns-10us100 ns3 kHzYES
AVOZ-E5-B laser diode driver250 A500ns-10us200 ns500 HzYES
AVOZ-G1-B laser diode driver20 A200ns-1ms50 ns10 kHzYES



AVOZ-G2-B laser diode driver50 A200ns-100us70 ns5 kHzYES
AVOZ-G3-B laser diode driver100 A200ns-100us100 ns1 kHzYES
AVOZ-H1-B laser diode driver0.25200ns-200ms100 ns50 kHzYES



AVOZ-H2-B laser diode driver0200ns-100ms100 ns100 kHzYES



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
AVOZ-A2-B
Laser Diode Driver, Output I (max)= 50 A, PW= 40 - 1000 ns, Max. PRF= 20 kHz
In Stock Request for quote
AVOZ-A3-B
Laser Diode Driver, Output I (max)= 100 A, PW= 50ns - 2us, Max. PRF= 20 kHz
In Stock Request for quote
AVOZ-A4-B
Laser Diode Driver, Output I (max)= 100 A, PW= 100ns - 5us, Max. PRF= 10 kHz
In Stock Request for quote
AVOZ-B3-B
Laser Diode Driver, Output I (max)= 100 A, PW= 100ns - 2us, Max. PRF= 10 kHz
In Stock Request for quote
AVOZ-B4-B
Laser Diode Driver, Output I (max)= 100 A, PW= 100ns - 2us, Max. PRF= 200 kHz
In Stock Request for quote
AVOZ-D1-B
Laser Diode Driver, Output I (max)= 50 A, PW= 200ns - 10us, Max. PRF= 5 kHz
In Stock Request for quote
AVOZ-D2-B
Laser Diode Driver, Output I (max)= 70 A, PW= 200ns - 10us, Max. PRF= 2.5 kHz
In Stock Request for quote
AVOZ-D3-B
Laser Diode Driver, Output I (max)= 40 A, PW= 200ns - 10us, Max. PRF= 5 kHz
In Stock Request for quote
AVOZ-D4-B
Laser Diode Driver, Output I (max)= 20 A, PW= 200ns - 10us, Max. PRF= 5 kHz
In Stock Request for quote
AVOZ-D5-B
Laser Diode Driver, Output I (max)= 20 A, PW= 200ns - 10us, Max. PRF= 5 kHz
In Stock Request for quote
AVOZ-D6-B
Laser Diode Driver, Output I (max)= 200 A, PW= 1us - 10us, Max. PRF= 500 Hz
In Stock Request for quote
AVOZ-D7-B
Laser Diode Driver, Output I (max)= 100 A, PW= 200ns - 10us, Max. PRF= 1 kHz
In Stock Request for quote
AVOZ-DF1-B
Laser Diode Driver, Output I (max)= 5 A, PW= 20 - 200 ns, Max. PRF= 100 kHz
In Stock Request for quote
AVOZ-DF2-B
Laser Diode Driver, Output I (max)= 10 A, PW= 20 - 200 ns, Max. PRF= 100 kHz
In Stock Request for quote
AVOZ-DF3-B
Laser Diode Driver, Output I (max)= 20 A, PW= 20 - 200 ns, Max. PRF= 25 kHz
In Stock Request for quote
AVOZ-DF5-B
Laser Diode Driver, Output I (max)= 50 A, PW= 50 - 200 ns, Max. PRF= 2 kHz
In Stock Request for quote
AVOZ-E1-B
Laser Diode Driver, Output I (max)= 50 A, PW= 500ns - 10us, Max. PRF= 10 kHz
In Stock Request for quote
AVOZ-E2-B
Laser Diode Driver, Output I (max)= 100 A, PW= 500ns - 10us, Max. PRF= 10 kHz
In Stock Request for quote
AVOZ-E3-B
Laser Diode Driver, Output I (max)= 250 A, PW= 500ns - 10us, Max. PRF= 1 kHz
In Stock Request for quote
AVOZ-E4-B
Laser Diode Driver, Output I (max)= 125 A, PW= 500ns - 10us, Max. PRF= 3 kHz
In Stock Request for quote
AVOZ-E5-B
Laser Diode Driver, Output I (max)= 250 A, PW= 500ns - 10us, Max. PRF= 500 Hz
In Stock Request for quote
AVOZ-G1-B
Laser Diode Driver, Output I (max)= 20 A, PW= 200ns - 1ms, Max. PRF= 10 kHz
In Stock Request for quote
AVOZ-G2-B
Laser Diode Driver, Output I (max)= 50 A, PW= 200ns - 100us, Max. PRF= 5 kHz
In Stock Request for quote
AVOZ-G3-B
Laser Diode Driver, Output I (max)= 100 A, PW= 200ns - 100us, Max. PRF= 1 kHz
In Stock Request for quote
AVOZ-H1-B
Laser Diode Driver, Output I (max)= 6 A, PW= 200ns - 200ms, Max. PRF= 50 kHz
In Stock Request for quote
AVOZ-H2-B
Laser Diode Driver, Output I (max)= 12 A, PW= 200ns - 100ms, Max. PRF= 100 kHz
In Stock Request for quote
AV-1010-B
Laser Diode Driver, Output I (max)= 8 A, PW= 20ns - 10ms, Max. PRF= 1 MHz
In Stock Request for quote
AVO-2A-B
Laser Diode Driver, Output I (max)= 5 A, PW= 4 - 50 ns, Max. PRF= 20 kHz
In Stock Request for quote
AVO-2L-B
Laser Diode Driver, Output I (max)= 2 A, PW= 2 - 20 ns, Max. PRF= 100 kHz
In Stock Request for quote
AVO-2M-B
Laser Diode Driver, Output I (max)= 4.5 A, PW= 1 - 10 ns, Max. PRF= 20 kHz
In Stock Request for quote
AVO-2W-B
Laser Diode Driver, Output I (max)= 10 A, PW= 4 - 50 ns, Max. PRF= 20 kHz
In Stock Request for quote
AVO-6A1-B
Laser Diode Driver, Output I (max)= 1 A, PW= 50ns - 5us, Max. PRF= 10 kHz
In Stock Request for quote
AVO-6C-B
Laser Diode Driver, Output I (max)= 5 A, PW= 50ns - 5us, Max. PRF= 10 kHz
In Stock Request for quote
AVO-6D-B
Laser Diode Driver, Output I (max)= 10 A, PW= 50ns - 5us, Max. PRF= 10 kHz
In Stock Request for quote
AVO-6F1-B
Laser Diode Driver, Output I (max)= 4 A, PW= 100ns - 5us, Max. PRF= 10 kHz
In Stock Request for quote
AVO-6HF-B
Laser Diode Driver, Output I (max)= 5 A, PW= 50ns - 50us, Max. PRF= 100 kHz
In Stock Request for quote
AVO-6HZ-B
Laser Diode Driver, Output I (max)= 10 A, PW= 50ns - 50us, Max. PRF= 100 kHz
In Stock Request for quote
AVO-9A3-B
Laser Diode Driver, Output I (max)= 0.8 A, PW= 0.4 - 2 ns, Max. PRF= 1 MHz
In Stock Request for quote
AVO-9A4-B
Laser Diode Driver, Output I (max)= 0.8 A, PW= 1 - 10 ns, Max. PRF= 150 kHz
4-6 Weeks Request for quote
AVO-9A5-B
Laser Diode Driver, Output I (max)= 1 A, PW= 1 - 10 ns, Max. PRF= 1 MHz
4-6 Weeks Request for quote
AVO-9A-B
Laser Diode Driver, Output I (max)= 0.2 A, PW= 0.4 - 4.0 ns, Max. PRF= 1 MHz
4-6 Weeks Request for quote
AVO-9B1-B
Laser Diode Driver, Output I (max)= 0.2 A, PW= 0.5 - 1000 ns, Max. PRF= 1 MHz
4-6 Weeks Request for quote
AVO-9B2-B
Laser Diode Driver, Output I (max)= 0.4 A, PW= 0.6 - 1000 ns, Max. PRF= 100 kHz
4-6 Weeks Request for quote
AVO-9B-B
Laser Diode Driver, Output I (max)= 0.2 A, PW= 5 - 100 ns, Max. PRF= 1 MHz
4-6 Weeks Request for quote
AVO-9E-B
Laser Diode Driver, Output I (max)= 0.4 A, PW= 20 - 200 ns, Max. PRF= 10 MHz
4-6 Weeks Request for quote
AVO-9G-B-W1
Laser Diode Driver, Output I (max)= 1 A, PW= 1 - 200 ns, Max. PRF= 100 kHz
4-6 Weeks Request for quote
AVO-9H1-B
Laser Diode Driver, Output I (max)= 2 A, PW= 10 - 500 ns, Max. PRF= 200 kHz
4-6 Weeks Request for quote
AVO-9H2-B
Laser Diode Driver, Output I (max)= 2 A, PW= 8 - 30 ns, Max. PRF= 2 MHz
4-6 Weeks Request for quote
AVO-9H-B-W1
Laser Diode Driver, Output I (max)= 2 A, PW= 1 - 200 ns, Max. PRF= 50 kHz
4-6 Weeks Request for quote
AVO-9L-B
Laser Diode Driver, Output I (max)= 2 A, PW= 1 - 20 ns, Max. PRF= 100 kHz
4-6 Weeks Request for quote
AVO-9M-B
Laser Diode Driver, Output I (max)= 4.5 A, PW= 1 - 10 ns, Max. PRF= 20 kHz
4-6 Weeks Request for quote
AVO-9P-B
Laser Diode Driver, Output I (max)= 5 A, PW= 4 - 50 ns, Max. PRF= 20 kHz
4-6 Weeks Request for quote
AVO-9W-B
Laser Diode Driver, Output I (max)= 10 A, PW= 4 - 50 ns, Max. PRF= 20 kHz
4-6 Weeks Request for quote
AVO-9X-B
Laser Diode Driver, Output I (max)= 8 A, PW= 8 - 100 ns, Max. PRF= 2 kHz
4-6 Weeks Request for quote
AVO-9Y-B
Laser Diode Driver, Output I (max)= 14 A, PW= 8 - 100 ns, Max. PRF= 2 kHz
4-6 Weeks Request for quote
AVOZ-A1A-B
Laser Diode Driver, Output I (max)= 20 A, PW= 25 - 150 ns, Max. PRF= 1 MHz
4-6 Weeks Request for quote
AVOZ-A1-B
Laser Diode Driver, Output I (max)= 20 A, PW= 40 - 1000 ns, Max. PRF= 20 kHz
4-6 Weeks Request for quote
AVOZ-A1B-B
Laser Diode Driver, Output I (max)= 2 A, PW= 20ns - 20us, Max. PRF= 10 MHz
4-6 Weeks Request for quote

AVOZ-A1B-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
10 MHz

PW

Output I (max)

AVOZ-A1-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
20 kHz

PW

Output I (max)
20 A

AVOZ-A1A-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
1 MHz

PW

Output I (max)
20 A

AVO-9Y-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
Yes

GPIB
Yes

Max. PRF
2 kHz

PW

Output I (max)

AVO-9X-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
Yes

GPIB
Yes

Max. PRF
2 kHz

PW

Output I (max)

AVO-9W-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
Yes

GPIB
Yes

Max. PRF
20 kHz

PW
4 - 50 ns

Output I (max)
10 A

AVO-9P-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
Yes

GPIB
Yes

Max. PRF
20 kHz

PW
4 - 50 ns

Output I (max)
5 A

AVO-9M-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
Yes

GPIB
Yes

Max. PRF
20 kHz

PW
1 - 10 ns

Output I (max)

AVO-9L-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
Yes

GPIB
Yes

Max. PRF
100 kHz

PW

Output I (max)

AVO-9H-B-W1 - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
Yes

GPIB
Yes

Max. PRF
50 kHz

PW

Output I (max)

AVO-9H2-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
Yes

GPIB
Yes

Max. PRF
2 MHz

PW

Output I (max)

AVO-9H1-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
Yes

GPIB
Yes

Max. PRF
200 kHz

PW

Output I (max)

AVO-9G-B-W1 - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
Yes

GPIB
Yes

Max. PRF
100 kHz

PW

Output I (max)
1 A

AVO-9E-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
Yes

GPIB
Yes

Max. PRF
10 MHz

PW
20 - 200 ns

Output I (max)

AVO-9B-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
Yes

GPIB
Yes

Max. PRF
1 MHz

PW

Output I (max)
0.2 A

AVO-9B2-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
Yes

GPIB
Yes

Max. PRF
100 kHz

PW

Output I (max)

AVO-9B1-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
Yes

GPIB
Yes

Max. PRF
1 MHz

PW

Output I (max)
0.2 A

AVO-9A-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
Yes

GPIB
Yes

Max. PRF
1 MHz

PW

Output I (max)
0.2 A

AVO-9A5-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
Yes

GPIB
Yes

Max. PRF
1 MHz

PW
1 - 10 ns

Output I (max)
1 A

AVO-9A4-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
Yes

GPIB
Yes

Max. PRF
150 kHz

PW
1 - 10 ns

Output I (max)

AVO-9A3-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
Yes

GPIB
Yes

Max. PRF
1 MHz

PW

Output I (max)

AVO-6HZ-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
100 kHz

PW

Output I (max)
10 A

AVO-6HF-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
100 kHz

PW

Output I (max)
5 A

AVO-6F1-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
10 kHz

PW

Output I (max)

AVO-6D-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
10 kHz

PW
50ns - 5us

Output I (max)
10 A

AVO-6C-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
10 kHz

PW
50ns - 5us

Output I (max)
5 A

AVO-6A1-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
10 kHz

PW
50ns - 5us

Output I (max)
1 A

AVO-2W-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
20 kHz

PW
4 - 50 ns

Output I (max)
10 A

AVO-2M-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
20 kHz

PW
1 - 10 ns

Output I (max)

AVO-2L-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
100 kHz

PW

Output I (max)

AVO-2A-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
20 kHz

PW
4 - 50 ns

Output I (max)
5 A

AV-1010-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
1 MHz

PW
20ns - 10ms

Output I (max)

AVOZ-H2-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
100 kHz

PW

Output I (max)

AVOZ-H1-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
50 kHz

PW

Output I (max)

AVOZ-G3-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
1 kHz

PW

Output I (max)
100 A

AVOZ-G2-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
5 kHz

PW

Output I (max)
50 A

AVOZ-G1-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
10 kHz

PW

Output I (max)
20 A

AVOZ-E5-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
500 Hz

PW
500ns - 10us

Output I (max)

AVOZ-E4-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
3 kHz

PW
500ns - 10us

Output I (max)

AVOZ-E3-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
1 kHz

PW
500ns - 10us

Output I (max)

AVOZ-E2-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
10 kHz

PW
500ns - 10us

Output I (max)
100 A

AVOZ-E1-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
10 kHz

PW
500ns - 10us

Output I (max)
50 A

AVOZ-DF5-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
2 kHz

PW

Output I (max)
50 A

AVOZ-DF3-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
25 kHz

PW
20 - 200 ns

Output I (max)
20 A

AVOZ-DF2-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
100 kHz

PW
20 - 200 ns

Output I (max)
10 A

AVOZ-DF1-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
100 kHz

PW
20 - 200 ns

Output I (max)
5 A

AVOZ-D7-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
1 kHz

PW
200ns - 10us

Output I (max)
100 A

AVOZ-D6-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
500 Hz

PW

Output I (max)

AVOZ-D5-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
5 kHz

PW
200ns - 10us

Output I (max)
20 A

AVOZ-D4-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
5 kHz

PW
200ns - 10us

Output I (max)
20 A

AVOZ-D3-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
5 kHz

PW
200ns - 10us

Output I (max)

AVOZ-D2-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
2.5 kHz

PW
200ns - 10us

Output I (max)

AVOZ-D1-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
5 kHz

PW
200ns - 10us

Output I (max)
50 A

AVOZ-B4-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
200 kHz

PW

Output I (max)
100 A

AVOZ-B3-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
10 kHz

PW

Output I (max)
100 A

AVOZ-A4-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
10 kHz

PW

Output I (max)
100 A

AVOZ-A3-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
20 kHz

PW

Output I (max)
100 A

AVOZ-A2-B - Parameter

Type
Laser Diode Driver

High Speed Socket for DUT
-

GPIB
Yes

Max. PRF
20 kHz

PW

Output I (max)
50 A

AVOZ-A1B-B - Download

AVOZ-A1-B - Download

AVOZ-A1A-B - Download

AVO-9Y-B - Download

AVO-9X-B - Download

AVO-9W-B - Download

AVO-9P-B - Download

AVO-9M-B - Download

AVO-9L-B - Download

AVO-9H-B-W1 - Download

AVO-9H2-B - Download

AVO-9H1-B - Download

AVO-9G-B-W1 - Download

AVO-9E-B - Download

AVO-9B-B - Download

AVO-9B2-B - Download

AVO-9B1-B - Download

AVO-9A-B - Download

AVO-9A5-B - Download

AVO-9A4-B - Download

AVO-9A3-B - Download

AVO-6HZ-B - Download

AVO-6HF-B - Download

AVO-6F1-B - Download

AVO-6D-B - Download

AVO-6C-B - Download

AVO-6A1-B - Download

AVO-2W-B - Download

AVO-2M-B - Download

AVO-2L-B - Download

AVO-2A-B - Download

AV-1010-B - Download

AVOZ-H2-B - Download

AVOZ-H1-B - Download

AVOZ-G3-B - Download

AVOZ-G2-B - Download

AVOZ-G1-B - Download

AVOZ-E5-B - Download

AVOZ-E4-B - Download

AVOZ-E3-B - Download

AVOZ-E2-B - Download

AVOZ-E1-B - Download

AVOZ-DF5-B - Download

AVOZ-DF3-B - Download

AVOZ-DF2-B - Download

AVOZ-DF1-B - Download

AVOZ-D7-B - Download

AVOZ-D6-B - Download

AVOZ-D5-B - Download

AVOZ-D4-B - Download

AVOZ-D3-B - Download

AVOZ-D2-B - Download

AVOZ-D1-B - Download

AVOZ-B4-B - Download

AVOZ-B3-B - Download

AVOZ-A4-B - Download

AVOZ-A3-B - Download

AVOZ-A2-B - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)
