1450nm/1480nm 连续波单模光纤激光器

SIMTRUM's STFL Series 1450nm CW Fiber Laser features a high-performance butterfly-shaped semiconductor chip, optimized with professionally designed drive and temperature control circuits for reliable and stable operation. This laser is perfect for applications requiring consistent output and is available in both benchtop and modular formats to accommodate diverse setup needs.



793/808/915/976nm_High_Power_Laser

Features

  • High output power
  • Power and spectral stability
  • Module or desktop package

Applications

  • Fiber laser
  • Optics components testing

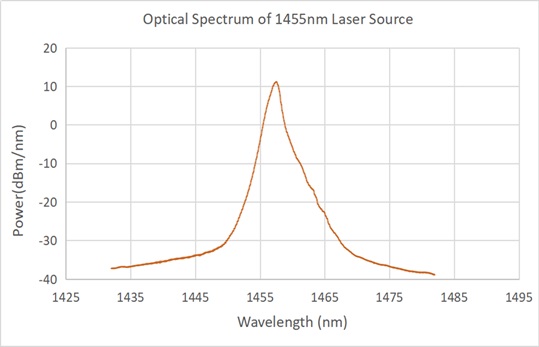

SIMTRUM_STFL1450_Optical_Spectrum



Product specifications and Brochures

Product Brochure Link: SIMTRUM_PDF



Optical Parameters Unit Typical Value Remarks
Wavelength nm 1455 1425/1435/1465 optional
Wavelength Accuracy nm ± 3 FBG wavelength loking
Laser Operation Mode - CW Continuous light
Output Power mW 200/350/500 Customizable
Accuracy Working - 10~100%
Instability(15min.in) dB ≤ ±0.02 Equivalent to ≤±0.5%
Instability(8 hr) dB ≤ ±0.05 Equivalent to ≤±1.2%
Polarization State - Random Linear polarization
Optical Fiber - SMF-28 PM1550
Fiber connector - FC/APC FC/APC
(slow axis alignment)






General Parameters Desktop Module
Control Function Keystroke / RS232 serial Communication RS232 serial Communication
Remote control Port DB9 Female DB9 Female
Power Supply AC100~240V, <30W DC5V, <15W
Dimensions 260(W)×280(D)×120(H)mm 125(W)×150(D)×20(H)mm
Operation Temperature -5~+35°C
Operation Humidity 0~70%



Ordering Information/Product Code
Series Wavelength (nm) Output Power (mW) Fiber Packaging
STFL 1425/1435/1455/1465 200/350/500 SM = SMF-28 M - Module
PM = PM1550 B - Desktop




SIMTRUM's STFL Series 1480nm CW Fiber Laser employs high-performance semiconductor laser chips and advanced drive and temperature control circuits for reliable operation and safety. Offering consistent output power and spectral stability, this laser is ideal as a pump source for fiber lasers or EDFA fiber amplifiers. Available in both desktop and modular configurations to suit various application needs.



793/808/915/976nm_High_Power_Laser

Features

  • High output power
  • Power and spectral stability
  • Module or desktop package

Applications

  •
  • Erbium-doped fiber pumping
  • Fiber laser
  • Optical components testing

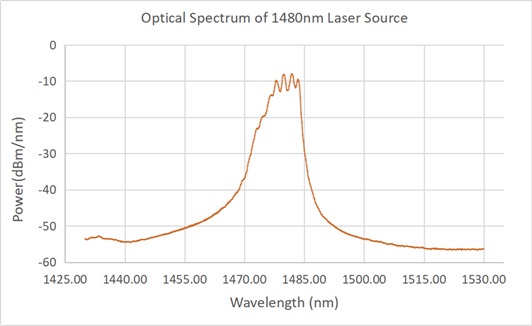

SIMTRUM_STFL1480_Optical_Spectrum



Product specifications and Brochures

Product Brochure Link: SIMTRUM_PDF



Optical Parameters Unit Typical Value Remarks
Wavelength nm 1480
Wavelength Accuracy nm ± 10 FBG wavelength loking
Laser Operation Mode - CW Continuous light
Output Power mW 200/400/500/800 Customizable
Accuracy Working - 10~100%
Instability(15min.in) dB ≤ ±0.02 Equivalent to ≤±0.5%
Instability(8 hr) dB ≤ ±0.05 Equivalent to ≤±1.2%
Polarization State - Random Linear polarization
Optical Fiber - SMF-28 PM1550
Fiber connector - FC/APC FC/APC
(slow axis alignment)






General Parameters Desktop Module
Control Function Keystroke / RS232 serial Communication RS232 serial Communication
Remote control Port DB9 Female DB9 Female
Power Supply AC100~240V, <30W DC5V, <15W
Dimensions 260(W)×280(D)×120(H)mm 125(W)×150(D)×20(H)mm
Operation Temperature -5~+35°C
Operation Humidity 0~70%



Ordering Information/Product Code
Series Wavelength (nm) Output Power (mW) Fiber Packaging
STFL 1480 200/400/500/800 SM = SMF-28 M - Module
PM = PM1550 B - Desktop






Type Wavelength Wavelength Accuracy Spectral Linewidth Output Power
405-940 CW Single Mode Fiber Laser 405-940 nm ±5 nm - 5/10/20/100mW
793/808/915/976nm CW Multi Mode High Power Fiber Laser 793/ 808/ 915/ 976 nm ±3 nm / ±10 nm 3nm / 6nm 5/10/25W
974/976 CW Single Mode Fiber Pump Laser 974/ 976 nm ±1 nm - 200 - 1000mW
1030/1064 CW Single Mode Fiber Laser 1064 nm ±2 nm < 0.1nm 100mW - 10W
1120nm CW Single Mode Fiber Laser 1120±1 nm ≤ 0.1nm 1/2/5W
1310 CW Single Mode Fiber Laser 1310 nm ±2 nm ≤ 3nm 10/20/30/40mW
1450/1480 CW Single Mode Fiber Laser 1425/ 1435/ 1455/ 1465/ 1480 nm ±3 nm / ±10 nm - 200 - 800mW
1550 CW Single Mode Fiber Laser 1550 nm ±0.5 nm ≤ 3nm 10mW - 20W
1570 CW Single Mode Fiber Laser 1570 nm ±1 ±0.5 nm < 0.1nm 10/20/50/100/200/400/500 mW
30/33/35/37/40 dBm
2000 High Power CW Fiber Laser 1900-2050 nm - < 1nm  > 30 W




We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
STFL-1455-200-SM-B
1450nm CW Single Mode Fiber Laser(200-500mW), Wavelength 1455 nm, Wavelength Accuracy ±3 nm, Output Power 200 mW, SMF-28
4-6 Weeks $2328.00
STFL-1455-350-SM-B
1450nm CW Single Mode Fiber Laser(200-500mW), Wavelength 1455 nm, Wavelength Accuracy ±3 nm, Output Power 350 mW, SMF-28
4-6 Weeks $2751.00
STFL-1455-500-SM-B
1450nm CW Single Mode Fiber Laser(200-500mW), Wavelength 1455 nm, Wavelength Accuracy ±3 nm, Output Power 500 mW, SMF-28
4-6 Weeks $2910.00
STFL-1480-200-SM-B
1480nm CW Single Mode Fiber Laser(200-800mW), Wavelength 1480 nm, Wavelength Accuracy ±10 nm, Output Power 200 mW, SMF-28
4-6 Weeks $1534.00
STFL-1480-400-SM-B
1480nm CW Single Mode Fiber Laser(200-800mW), Wavelength 1480 nm, Wavelength Accuracy ±10 nm, Output Power 400 mW, SMF-28
4-6 Weeks $2116.00
STFL-1480-500-SM-B
1480nm CW Single Mode Fiber Laser(200-800mW), Wavelength 1480 nm, Wavelength Accuracy ±10 nm, Output Power 500 mW, SMF-28
4-6 Weeks $2381.00
STFL-1480-600-SM-B
1480nm CW Single Mode Fiber Laser(200-800mW), Wavelength 1480 nm, Wavelength Accuracy ±10 nm, Output Power 600 mW, SMF-28
4-6 Weeks $3175.00
STFL-1480-800-SM-B
1480nm CW Single Mode Fiber Laser(200-800mW), Wavelength 1480 nm, Wavelength Accuracy ±10 nm, Output Power 800 mW, SMF-28
4-6 Weeks $4074.00

STFL-1480-800-SM-B - Parameter

STFL-1480-600-SM-B - Parameter

STFL-1480-500-SM-B - Parameter

STFL-1480-400-SM-B - Parameter

STFL-1480-200-SM-B - Parameter

STFL-1455-500-SM-B - Parameter

STFL-1455-350-SM-B - Parameter

STFL-1455-200-SM-B - Parameter

STFL-1480-800-SM-B - Download

STFL-1480-600-SM-B - Download

STFL-1480-500-SM-B - Download

STFL-1480-400-SM-B - Download

STFL-1480-200-SM-B - Download

STFL-1455-500-SM-B - Download

STFL-1455-350-SM-B - Download

STFL-1455-200-SM-B - Download
