大幅面真空CCD相机 | 瑆创光学电子商店

大幅面真空CCD相机



用于 VUV、EUV、X 射线成像和光谱学的真空 CCD 相机-科学真空CCD相机

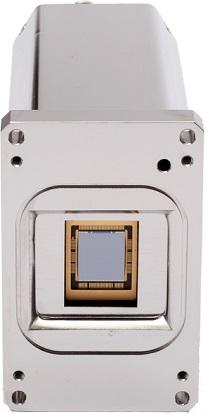

大幅面真空CCD相机





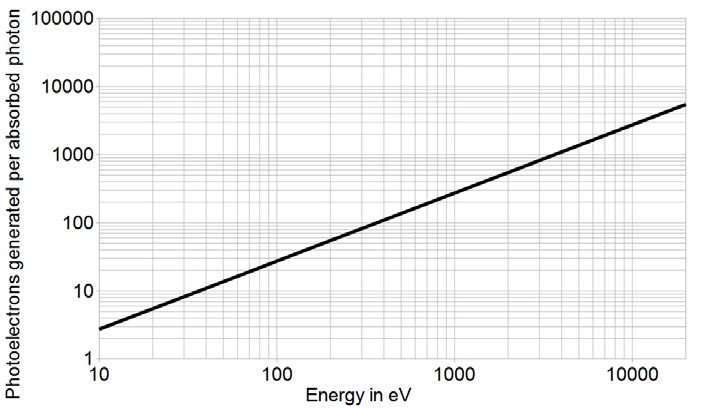

这些用于VUV,EUV,X射线成像和光谱的真空CCD相机是GE-VAC系列,包括科学真空CCD相机和大幅面真空CCD相机。它适用于光子能量范围 5 eV - 20 keV。



我们提供一系列用于VUV、EUV、软X射线和硬X射线范围的成像和光谱的科学真空相机。它们由不锈钢或铝制成,具有出色的真空兼容性。单个附加法兰集成了电冷和水冷贯穿件。入射光子由CCD传感器直接检测。无需外部控制器即可操作探测器。





相机通用功能



-紧凑的尺寸

-16 位数字化

-灵活的分箱和裁剪模式

-软件可调增益设置

-科学的低噪声CCD传感器

-用于馈通件的单法兰

-包括视觉软件

-针对特高压兼容性进行了优化

-温度监控

-包括面向开发人员的SDKs

-量子效率高达98%

-扩展触发,快门,同步信号

-EPICS、LabVIEW 或 Linux 集成



相机类型

科学真空CCD相机



-满井容量可达700 keˉ

-深度冷却至-80°C



大幅面真空CCD相机

-满井容量可达 150 keˉ

-深度冷却至-70°C



光谱范围

科学真空CCD相机

-真空紫外线(VUV)

-极紫外线 (EUV)

-软X射线

-硬X射线

-近红外、可见光、紫外

大幅面真空CCD相机

-真空紫外线(VUV)

-极紫外线 (EUV)

-软X射线

-硬X射线

-近红外(NIR)

-可见 (VIS)

-紫外线(UV)

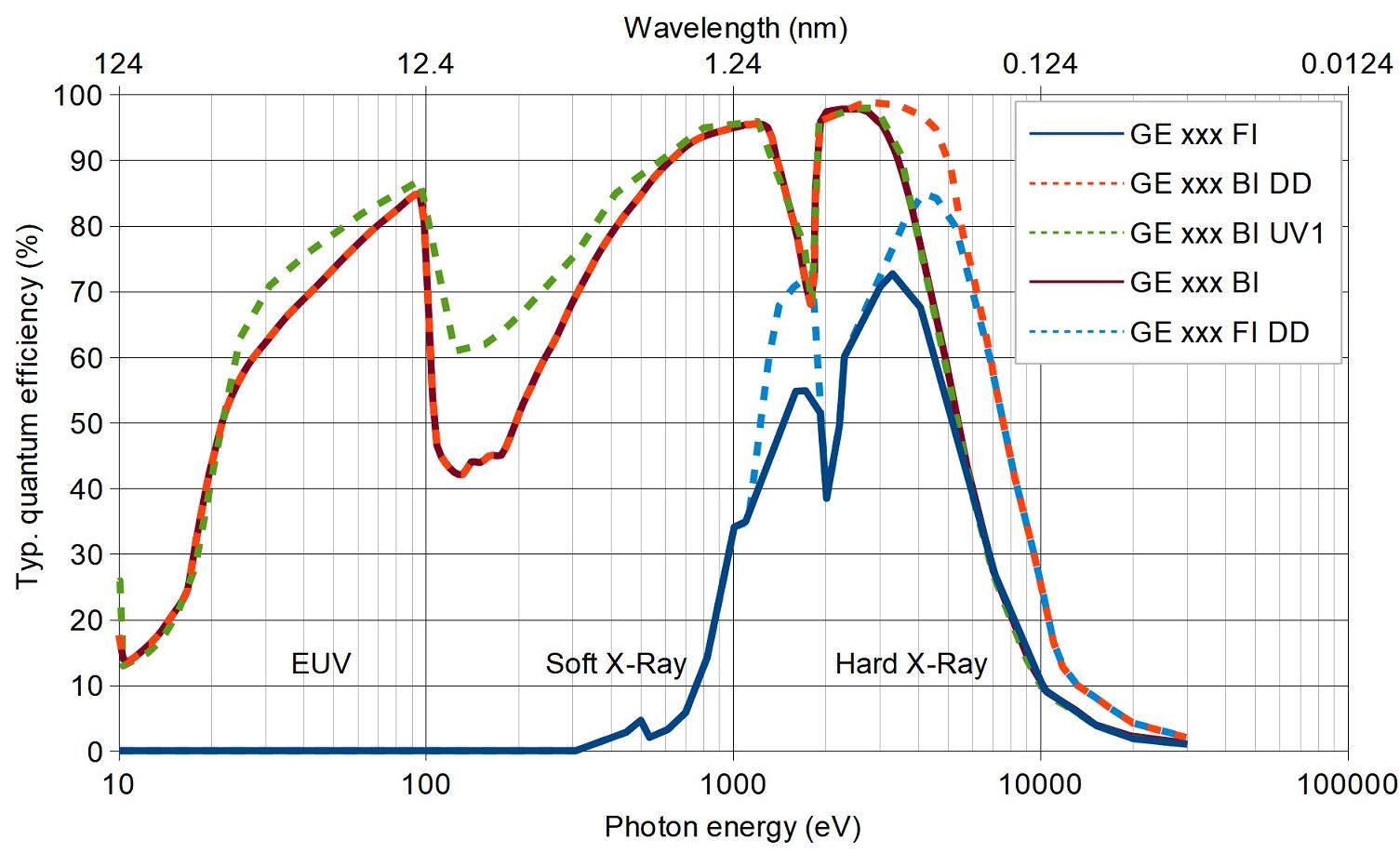

量子效率曲线



QE of the GE-VAC series





视觉软件

视觉软件套件提供对所有相机功能的访问。它包括全面的可视化、分析和存储选项,并支持波长和几何校准、裁剪和突发模式以及各种文件格式等重要功能。该软件在32/64位Windows系统上运行。为了集成到其他系统中,可以使用软件开发工具包和驱动程序。



软件功能





- 支持裁剪和突发读出模式,以获得更高的帧速率和精确的时间分辨率

- 各种文件格式:JPG,BMP,TXT,TIFF(16位),DAT原始数据

- 全面的可视化和图像处理程序

- 支持灵活的水平和垂直分档



- 许多驱动程序可用于集成到其他系统中

- 在 32/64 位 Windows 系统上运行

- 波长和几何校准

支持英语和德语






产品规格和手册

产品手册链接:

参数 科学真空CCD相机 大幅面真空CCD相机
像素读出频率 500 kHz,1MHz,3MHz
AD转换器分辨率 16 位、18 位(可选)
线性 优于 99%
CCD外延厚度 标准 15 μm,深度耗尽型号为 40 μm
馈通法兰 CF DN63 带集成电气贯穿件 sub-D 15 针和子 D 9 针(公/公)以及用于水冷的馈通管,
真空侧带有 VCR 1/4“ 母连接器
真空兼容性 从 1 x 10-3 mbar 到 1 x 10-8 mbar
烘烤温度 最高 +80°C
距离法兰 - 焦平面 10.0 毫米 9.0 毫米
CCD 传感器冷却 最低 -80°C 至 20°C,液体冷却 最低 -70°C 至 20°C,液体冷却
温度监测 CCD传感器及散热系统 温度监测
数据链路 USB 2.0 接口
软件 适用于视窗 7 / 10 的视觉软件
软件开发工具包和驱动程序 适用于视窗 7 / 10 的 DLL;LabVIEW, EPICS, Linux 驱动 程序 (可选)
TTL 接口信号 同步输出、快门输出、外部触发输入
电源 110-240 VAC,50-60 Hz,最大 1 A
认证 CE
尺寸 6.2 cm(2.44 )x 10.0 cm(3.94 )x 13.2 cm(5.20 )(W x H x L)
重量 2300g
瑕疵规格 传感器制造商指定的 0 级或 1 级(标准)



每台相机随附的物品
型号代码 描述 型号代码 描述
GE-InFl

CF DN63 法兰,带 D-15pin(male/male)+ 9pin(male/male)和用于水冷的馈通管,VCR 内螺纹 1/4“ 上真空侧

GE-CabSp

从 Sub-D 9pin(female)到 USB 和 BNC 触发输入 + 同步输出的空气侧电缆

从 Sub-D 15pin(female)到 Sub-D 15pin(male)的空气侧电缆,用于电源箱

GE-VacP 或
GE-VacP2

2 x 真空软管,形成波纹管 1/4“,VCR male/female

305 mm 或 1200 mm 长度

GE-VacCab

2 x 真空 PTFE 电缆 SubD 15pin和SubD 9 pin,male/female长度适用于真空软管

GE-POW01 相机电源 GE-ManCam 存储设备上的相机使用说明书

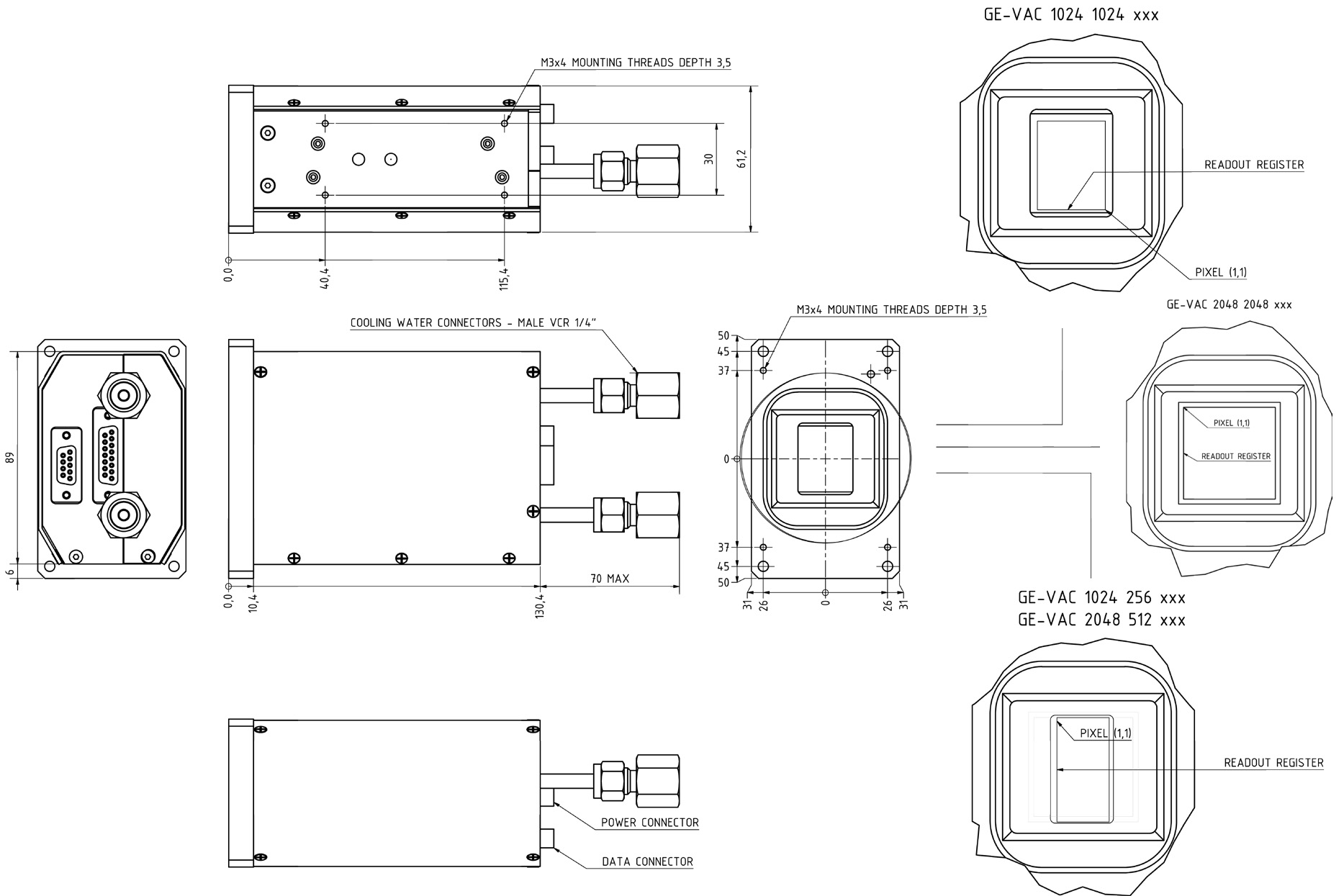

技术图纸










用于 VUV、EUV、X 射线成像和光谱学的真空 CCD 相机





选择您的相机型号

型号 成像面积(mm) 像素格式 像素尺寸(μm) 增益(counts/e-) CCD传感器类型 典型读取噪声 (e ̄) 满井容量( ke-) 登记井容量 暗电流 @ -80°C 量子效率 敏感范围

容量
模式

容量
模式
@ 500
kHz
@ 1
MHz
@ 3
MHz
Scientific in-vacuum CCD cameras

GE-VAC 1024 1024

series
GE-VAC 1024 1024 FI 13.3×3.3 1024×1024 13×13 0.4 1 FSI 5.2 6.6 9.7 100 k e- 400 keˉ 0.0003 eˉ/pixel/s Up to 72% X 射线 500 eV 至 10 keV
GE-VAC 1024 1024 BI 0.4 1 BSI 5.2 6.6 9.7 100 k e- 400 keˉ 0.0003 eˉ/pixel/s Up to 96% VUV转X射线
GE-VAC 1024 1024 BI UV1 0.4 1 BSI,强化工艺 5.2 6.6 9.7 100 k e- 400 keˉ 0.0003 eˉ/pixel/s Up to 96% VUV转X射线
GE-VAC 1024 1024 BI DD 0.4 1 BSI、深度耗尽、边缘抑制 5.2 6.6 9.7 120 k e- 400 keˉ 0.017 eˉ/pixel/s Up to 98% VUV 到 X 射线,高达 20 keV

GE-VAC 1024 256

series
GE-VAC 1024 256 FI 26.6×6.7 1024×256 26×26 0.2 1 FSI 7.5 10.7 17.3 500 k e- 1 000 keˉ 0.0005 eˉ/pixel/s Up to 72% X 射线 500 eV 至 10 keV
GE-VAC 1024 256 FI DD 0.2 1 FSI,深度耗尽 9.0  11.6 18 700 k e- 1 400 keˉ 0.08 eˉ/pixel/s Up to 85% X 射线 500 eV 至 20 keV
GE-VAC 1024 256 BI UV1 0.2 1 BSI,强化工艺 9.7 12.1 19.2 500 keˉ 1 000 keˉ 0.0005 eˉ/pixel/s Up to 96% VUV转X射线

GE-VAC 2048 512

series
GE-VAC 2048 512 FI 27.6×6.9 2048×512 13.5×13.5 0.4 1 FSI 5.7 6.9 10.3 100 k e- 400 keˉ 0.0003 eˉ/pixel/s Up to 72% X 射线:500 eV 至 10 keV
GE-VAC 2048 512 BI 0.4 1 BSI 5.7 6.9 10.3 100 k e- 400 keˉ 0.0003 eˉ/pixel/s Up to 96% VUV转X射线
GE-VAC 2048 512 BI UV1 0.4 1 BSI,强化工艺 5.7 6.9 10.3 100 k e- 400 keˉ 0.0003 eˉ/pixel/s Up to 96% VUV转X射线
Large format in-vacuum CCD cameras

GE-VAC 2048 2048 series

GE-VAC 2048 2048 FI 27.6×27.6 2048×2048 13.5 ×13.5 0.4 1 FSI 6.3 8.5 14.1 100 k e- 400 keˉ 0.0003 eˉ/pixel/s Up to 72% X 射线:500 eV 至 10 keV
GE-VAC 2048 2048 BI 0.4 1 BSI 6.3 8.5 14.1 100 k e- 400 keˉ 0.0003 eˉ/pixel/s Up to 96% VUV转X射线
GE-VAC 2048 2048 BI DD 0.4 1 深度耗尽条纹抑制 6.3 8.5 14.1 150 keˉ 600 keˉ 0.05 eˉ/pixel/s Up to 98% VUV转X射线
GE-VAC 2048 2048 BI UV1 0.4 1 BSI,强化工艺 6.3 8.5 14.1 150 keˉ 600 keˉ 0.05 eˉ/pixel/s Up to 96% VUV转X射线

注:BSI=背面照度,FSI=正面照度



选择您的配件和软件



订货号 描述
A) 亚像素分辨率增强
新款 GE-S xxx xxx 系列 提高空间分辨率
B) 冷却附件
GE-CR01 紧凑型再循环器,在室温下运行,用于深度冷却相机
GE-CR02 循环水冷却器,温度范围 -5°C 至 30°C,用于超深相机冷却
C) 软件开发套件 (SDK) 和驱动程序
GE-SDK01 兼容 Windows 的 SDK(基于 C/C++)
GE-LAB0 LabVIEW驱动程序
GE-EP系列 EPICS驱动程序
GE-LX01 Linux 驱动程序




我们在这里为您服务!





给我们发电子邮件 info@simtrum.com 以获得今天最优惠的价格。   想要更多的技术信息?点击这里 获取专业定制系统/解决方案。




没有时间逐个搜索产品?不用担心。您可以下载全系列的瑆创产品线卡现在点击它。



想要更接近市场动态和技术发展吗?只需花5秒钟作为会员登录,我们将为您带来最新的新闻。​(屏幕右上方的登录按钮)


Series


Search Reset
Compare Model Drawings & Specs Series Availability Reference Price
(USD)
GE-VAC-1024-256-FI
In-vacuum CCD Cameras for VUV, EUV, X-Ray Imaging and Spectroscopy, Image area 26.6 mm × 6.7 mm, Pixel Format 1024 × 256 Pixels, Pixel Size, 26 µm × 26 µm, Gain High 1.0 Counts/e-; Low 0.2 Counts/e-, CCD Sensor Type Front-illuminated, Full Well Capacity 500 k e-, Sensitive X-ray Range 500 eV up to 10 keV, Up to 72% Quantum Efficiency
Scientific in-vacuum 6-8 weeks Request for quote
GE-VAC-1024-256-FIDD
In-vacuum CCD Cameras for VUV, EUV, X-Ray Imaging and Spectroscopy, Image Area 26.6 mm × 6.7 mm, Pixel Format 1024 × 256 Pixels, Pixel Size 26 µm × 26 µm, Gain High: 1.0 counts/e-; Low: 0.2 counts/e-, CCD Sensor Type, Front-illuminated, Deep Depletion, Full Well Capacity 700 k e-, Sensitive X-ray Range: 500 eV up to 20 keV, Up to 85% Quantum Efficiency
Scientific in-vacuum 6-8 weeks Request for quote
GE-VAC-1024-256-BIUV1
In-vacuum CCD Cameras for VUV, EUV, X-Ray Imaging and Spectroscopy, Image Area 26.6 mm × 6.7 mm , Pixel Format 1024 × 256 Pixels, Pixel Size 26 µm × 26 µm, Gain High: 1.0 counts/e-; Low: 0.2 Counts/e-, CCD Sensor Type Back-illuminated, Enhanced Process, Full Well Capacity 500 k e-, Up to 96% Quantum Efficiency, VUV to X-ray Range
Scientific in-vacuum 6-8 weeks Request for quote
GE-VAC-2048-512-FI
In-vacuum CCD Cameras for VUV, EUV, X-Ray Imaging and Spectroscopy, Image Area 27.6 mm × 6.9 mm, Pixel Format 2048 × 512 pixels, Pixel Size 13.5 µm × 13.5 µm, Gain High: 1.0 Counts/e-; Low: 0.4 Counts/e-, CCD Sensor Type Front-illuminated, Full Well Capacity 100 k e-, Sensitive Range X-Ray: 500 eV Bis 10 keV, Up to 72% Quantum Efficiency
Scientific in-vacuum 6-8 weeks Request for quote
GE-VAC-2048-512-BI
In-vacuum CCD Cameras for VUV, EUV, X-Ray Imaging and Spectroscopy, Image Area 27.6 mm × 6.9 mm , Pixel Format 2048 × 512 Pixels, Pixel Size 13.5 µm × 13.5 µm, Gain High: 1.0 Counts/e-; Low: 0.4 Counts/e-, CCD Sensor Type Back-illuminated, Full Well Capacity 100 k e- , Up to 96% Quantum Efficiency, VUV to X-ray Range
Scientific in-vacuum 6-8 weeks Request for quote
GE-VAC-2048-512-BIUV1
In-vacuum CCD Cameras for VUV, EUV, X-Ray Imaging and Spectroscopy, Image Area 27.6 mm × 6.9 mm, Pixel Format 2048 × 512 Pixels, Pixel Size 13.5 µm × 13.5 µm, Gain High: 1.0 Counts/e-; Low: 0.4 Counts/e-, CCD Sensor Type Back-illuminated, Enhanced Process, Full Well Capacity 100 k e-
Scientific in-vacuum 6-8 weeks Request for quote
GE-VAC-1024-1024-FI
In-vacuum CCD Cameras for VUV, EUV, X-Ray Imaging and Spectroscopy, Image Area 13.3 mm × 13.3 mm, Pixel Format 1024 × 1024 Pixels, Pixel Size 13 µm × 13 µm, Gain High: 1.0 Counts/e-; Low: 0.4 Counts/e-, CCD Sensor Type Front-illuminated, Full Well Capacity 100 k e-, Sensitive X-ray Range: 500 eV to 10 keV, Up to 72% Quantum Efficiency
Scientific in-vacuum 6-8 weeks Request for quote
GE-VAC-1024-1024-BI
In-vacuum CCD Cameras for VUV, EUV, X-Ray Imaging and Spectroscopy, Image Area 13.3 mm × 13.3 mm, Pixel Format 1024 × 1024 Pixels, Pixel Size 13 µm × 13 µm, Gain High: 1.0 Counts/e-; Low: 0.4 Counts/e-, CCD Sensor Type Back-illuminated, Full Well Capacity 100 k e-, Up to 96% Quantum Efficiency, VUV to X-ray Range
Scientific in-vacuum 6-8 weeks Request for quote
GE-VAC-1024-1024-BIUV1
In-vacuum CCD Cameras for VUV, EUV, X-Ray Imaging and Spectroscopy, Image Area 13.3 mm × 13.3 mm, Pixel Format 1024 × 1024 Pixels, Pixel Size 13 µm × 13 µm, Gain High: 1.0 Counts/e-; Low: 0.4 Counts/e-, CCD Sensor Type Back-illuminated, Enhanced Process, Full Well Capacity 100 k e-, Up to 96% Quantum Efficiency, VUV to X-ray Range
Scientific in-vacuum 6-8 weeks Request for quote
GE-VAC-1024-1024-BIDD
In-vacuum CCD Cameras for VUV, EUV, X-Ray Imaging and Spectroscopy, Image Area 13.3 mm × 13.3 mm, Pixel Format 1024 × 1024 Pixels, Pixel Size 13 µm × 13 µm, Gain High: 1.0 Counts/e-; Low: 0.4 Counts/e-, CCD Sensor Type Back-illuminated, Deep Depletion, Fringe Suppression, Full Well Capacity 120 k e-, Sensitive Range: VUV to X-ray Range Up to 20 keV, Up to 98% Quantum Efficiency
Scientific in-vacuum 6-8 weeks Request for quote
GE-VAC-2048-2048-FI
In-vacuum CCD Cameras for VUV, EUV, X-Ray Imaging and Spectroscopy, Image Area 27.6 mm × 27.6mm,Pixel Format 2048 × 2048 Pixels,Pixel Size 13.5 µm × 13.5 µm,Gain High: 1.0 Counts/e-; Low: 0.4 Counts/e-,CCD Sensor Type Front-illuminated,Full Well Capacity 100 k e-, Sensitive Range X-Ray: 500 eV bis 10 keV, Up to 72% Quantum Efficiency
Large format in-vacuum 6-8 weeks Request for quote
GE-VAC-2048-2048-BI
In-vacuum CCD Cameras for VUV, EUV, X-Ray Imaging and Spectroscopy, Image Area 27.6 mm × 27.6mm,Pixel Format 2048 × 2048 Pixels,Pixel Size 13.5 µm × 13.5 µm,Gain High: 1.0 Counts/e-; Low: 0.4 Counts/e-,CCD Sensor Type Back-illuminated,Full Well Capacity 100 k e-, Up to 96% Quantum Efficiency, VUV to X-ray Range
Large format in-vacuum 6-8 weeks Request for quote
GE-VAC-2048-2048-BIDD
In-vacuum CCD Cameras for VUV, EUV, X-Ray Imaging and Spectroscopy, Image Area 27.6 mm × 27.6mm,Pixel Format 2048 × 2048 Pixels,Pixel Size 13.5 µm × 13.5 µm,Gain High: 1.0 Counts/e-; Low: 0.4 Counts/e-,CCD Sensor Type Deep Depletion Fringe Suppression,Full Well Capacity 150 k e-, Up to 98% Quantum Efficiency, VUV to X-ray Range
Large format in-vacuum 6-8 weeks Request for quote
GE-VAC-2048-2048-BIUV1
In-vacuum CCD Cameras for VUV, EUV, X-Ray Imaging and Spectroscopy, Image Area 27.6 mm × 27.6mm,Pixel Format 2048 × 2048 Pixels,Pixel Size 13.5 µm × 13.5 µm,Gain High: 1.0 Counts/e-; Low: 0.4 Counts/e-,CCD Sensor Type Back-illuminated, Enhanced Process,Full Well Capacity 150 k e-, Up to 96% Quantum Efficiency, VUV to X-ray Range
Large format in-vacuum 6-8 weeks Request for quote
