2000nm 高功率连续光纤激光器

Overview & Specifications Related Products Order Now!

High Power CW Fiber Laser – STPW 2000

STPW 2000 is a high-power 2000nm CW Fiber laser with an operating wavelength range of 1900nm – 2050nm, single mode output with CW output power of up to 30W. It has an excellent near-diffraction limit beam.

STPW 2000 is ideal for transparent plastic welding using materials such as PMMA and PC/ABS for biomedical applications. It can also be used as the pump source for MIR lasers in scientific research.

Features

- Customizable wavelength

- Single mode

- Diffraction limited beam

- Easy operation and maintenance-free

- Turn-key system

Applications

- Plastic welding and cutting

- Medical surgery

- Solid laser pump source

- Transparent material processing

- Spectroscopy

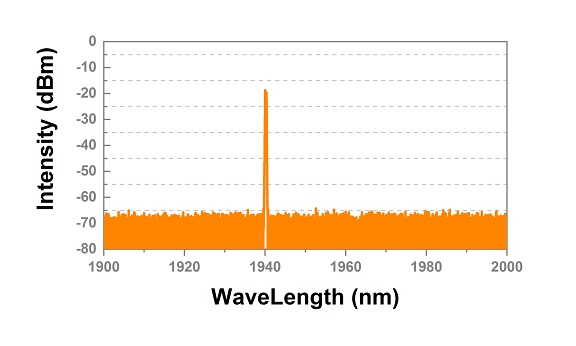

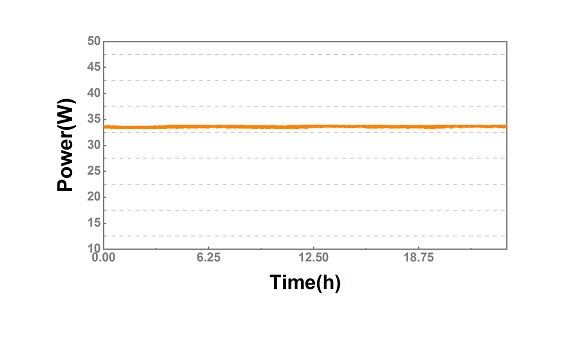

Output Spectrum	Power Stability

Product specifications and Brochures

Product Brochure Link:

Laser Parameters
Operating Wavelength	nm	1900-2000 nm
Spectral Bandwidth	nm	<1 nm
Average Power	W	30W, 70W
Beam Diameter	mm	5 mm
Average Power Stability	% RMS	<1 % RMS (24h@25°C)
Beam Quality		TEM00, m2<1.1
Output Polarization		Random/Linear Polarization
Output Type		Fiber collimator output
Electrical, Environmental and Mechanical Parameters
Supply Voltage	VAC	100-240
Operational Temperature Range	°C	15-35
Operational Humidity Range	%	20-80 ( Non-condensing )
Weight Laser Head	kg	20
Dimensions Laser Head	mm (LxW*H)	633 x 483 x 141
Cooling		Air-cooled, Water-cooled

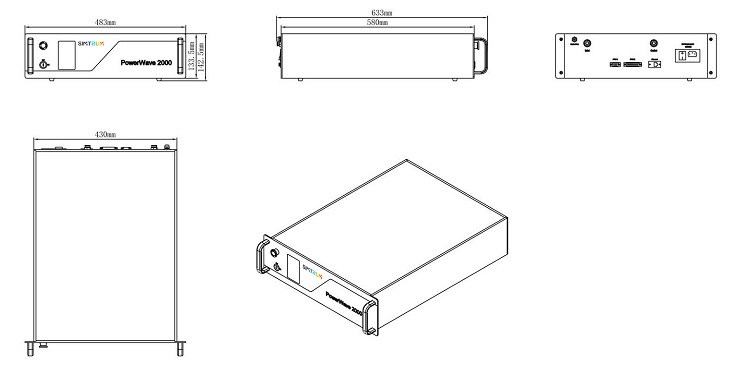

Machine Drawings

Type	Wavelength	Wavelength Accuracy	Spectral Linewidth	Output Power
405-940 CW Single Mode Fiber Laser	405-940 nm	±5 nm	-	5/10/20/100mW
793/808/915/976nm CW Multi Mode High Power Fiber Laser	793/ 808/ 915/ 976 nm	±3 nm / ±10 nm	3nm / 6nm	5/10/25W
974/976 CW Single Mode Fiber Pump Laser	974/ 976 nm	±1 nm	-	200 - 1000mW
1030/1064 CW Single Mode Fiber Laser	1064 nm	±2 nm	< 0.1nm	100mW - 10W
1120nm CW Single Mode Fiber Laser	1120±1 nm	-	≤ 0.1nm	1/2/5W
1310 CW Single Mode Fiber Laser	1310 nm	±2 nm	≤ 3nm	10/20/30/40mW
1450/1480 CW Single Mode Fiber Laser	1425/ 1435/ 1455/ 1465/ 1480 nm	±3 nm / ±10 nm	-	200 - 800mW
1550 CW Single Mode Fiber Laser	1550 nm	±0.5 nm	≤ 3nm	10mW - 20W
1570 CW Single Mode Fiber Laser	1570 nm ±1	±0.5 nm	< 0.1nm	10/20/50/100/200/400/500 mW 30/33/35/37/40 dBm
2000 High Power CW Fiber Laser	1900-2050 nm	-	< 1nm	> 30 W

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

Compare	Model		Drawings & Specs	Availability	Reference Price (USD)
		STPW2000 2000nm High Power CW Fiber Laser, operating wavelength 1900-2000nm, spectral bandwidth <1nm, average power 30W/70W, beam diameter 5mm		4-6 Weeks	Request for quote
