用于激光的增强型腔


Enhancement cavities for continuous-wave/pulsed laser light

Tailored to your setup, the enhancement cavity CALDERA can be built for continuous-wave as well

as for multi-kW-level average power pulsed operation, serving applications such as the generation

of coherent vacuum-/extreme-ultraviolet (XUV) radiation at repetition rates ofseveral 10s of MHz.


Key Product Features:

 State-of-the-art broadband cavity optics

 Ready for average powers on the 100-kW level

 Advanced designs tailored to specific applications

 Stable operation at repetition rates ≥10 MHz







Working principle:

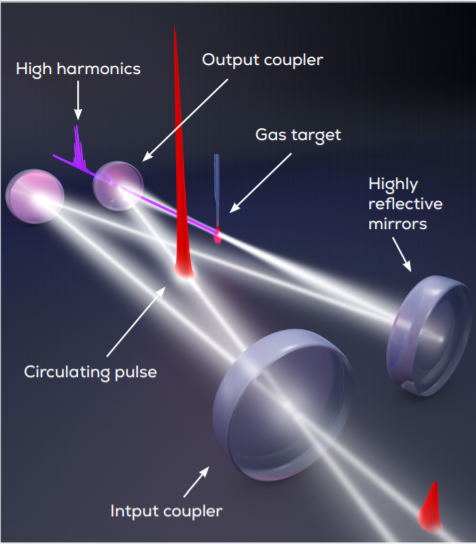

Femtosecond enhancement cavity: a MHz-repetition-rate pulsetrain is coherently coupled to a passive optical

resonator via a partially transmitting input coupler, giving rise to a circulating pulse with a power increased by

up to a few orders of magnitude. The intracavity pulse can be focused to a gas target to generate coherent

vacuum-/extreme-ultraviolet (XUV)radiation at repetition rates of several 10’s of MHz. Coherent XUV radiation

obtained by cavity-enhanced high-harmonic generation combines high pulse repetition rates with high photon

energies at high XUV photon flux, and serves a host of time-domain and frequency-domain precision

metrology applications.

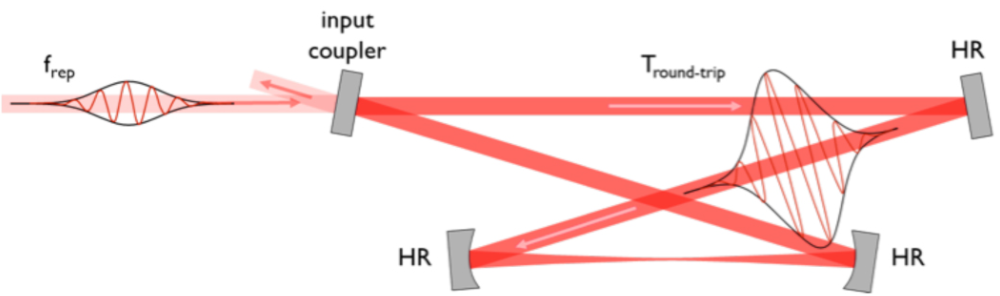

Working principle of an enhancement cavity: the pulses of a MHz-repetition-rate train are coherently added up in

time to a significantly more intense pulse circulating in the cavity. The cavity consists of an input coupler

(R < 100%) and several highly reflecting (HR) mirrors (R=100%).


Applications

 Vacuum- and extreme-ultraviolet frequency combs [1]

 Multi-MHz-repetition-rate photoemission spectroscopy [2]

 MW-level picosecond pulses for hard x-ray generation via inverse Compton scattering [3]
