2轴台| 瑆创光学电子商店

Products / 光机械件 /手动载物台 /2轴台 /

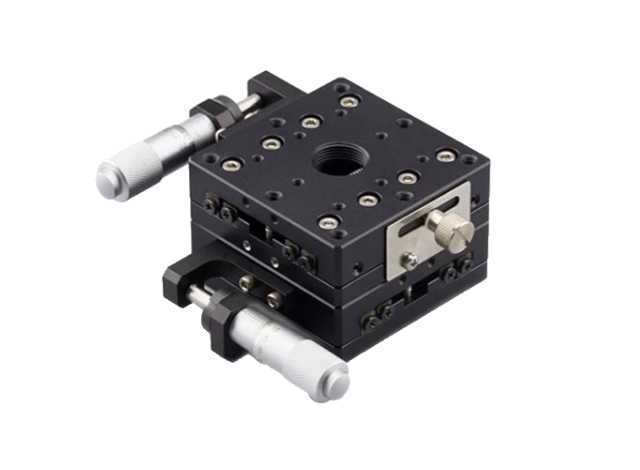

2轴台
13mm 13mm 图纸 25mm 25mm 图纸 相关产品 联系下单！



• X，Y 方向的 13mm 行程距离由千分尺实现

• 交叉滚子轴承可实现出色的角度偏差和负载能力

• 在13mm交叉滚子轴承铝制平台类别下找到的单轴线性平台组合



选型指南

Simtrum 零件编号 组合 轴承类型 驱动方向

行进轴线

 驱动(mm) 孔类型 平台尺寸(mm)

最大负载

(N)
13LXC4040

2x

13LSCR4040

 交叉滚柱导轨 中间 X,Y 13

T顶部：M3,M6

底部：钻有沉孔，适用于M3盖帽螺丝

 40x40 19.6
13LXR4040

2x

13LSR4040

 交叉滚柱导轨 右 X,Y 13

顶部：M3,M6

底部：钻有沉孔，适用于M3盖帽螺丝

 40x40 19.6
13LXL4040

2x

13LSL4040

 交叉滚柱导轨 左 X,Y 13

顶部：M3,M6

底部：钻有沉孔，适用于M3盖帽螺丝

 40x40 19.6
13LXC6060

2x

13LSCR6060

 交叉滚柱导轨 中间 X,Y 13

顶部：M3,M4,M16底部：钻有沉孔，适用于M4盖帽螺丝

 60x60 49
13LXR6060

2x

13LSR6060

 交叉滚柱导轨 右 X,Y 13

顶部：M3,M4,M16底部：钻有沉孔，适用于M4盖帽螺丝

 60x60 49
13LXL6060

2x

13LSL6060

 交叉滚柱导轨 左 X,Y 13

顶部：M3,M4,M16底部：钻有沉孔，适用于M4盖帽螺丝

 60x60 49





 上图中的信息是为您的运动设置选择合适的 13mm 交叉滚子轴承 XY 平移平台的一般指南。

如需帮助，请随时致电 +65-6996 0391 联系 Simtrum Pte Ltd 或发送电子邮件至 info@simtrum.com。我们的产品团队将很乐意帮助您做出正确的产品选择。







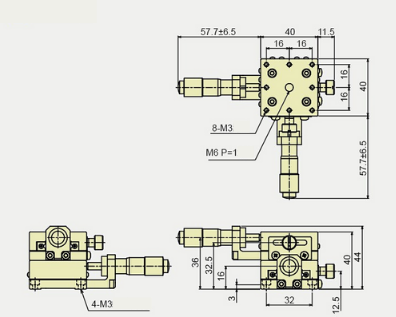

13LXC4040



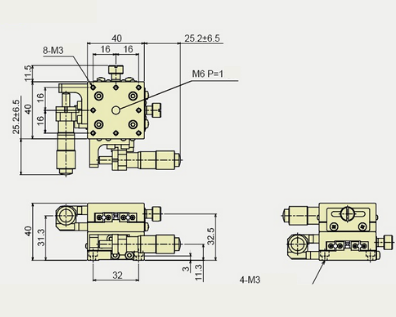

13LXR4040





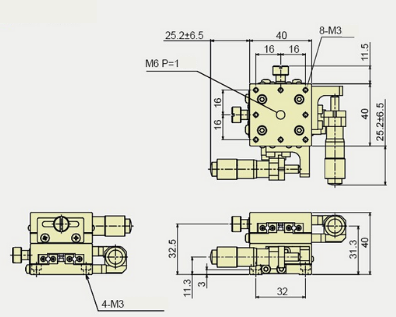

13LXL4040







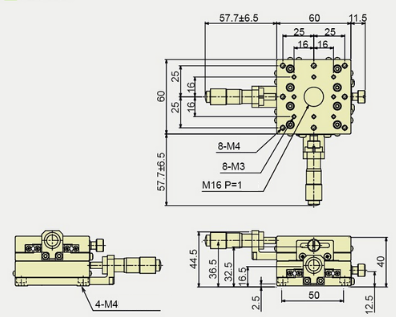

13LXC6060



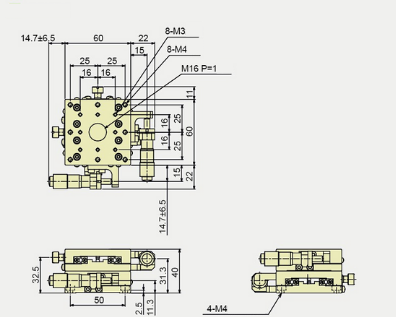

13LXR6060





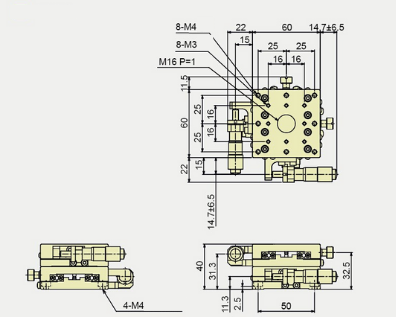

13LXL6060












• 在 X，Y 方向上的移动距离为 25 mm，由千分尺实现

• 交叉滚子轴承可实现出色的角度偏差和负载能力

• 在 25mm 交叉滚子轴承铝制平台类别下找到的单轴线性平台组合



选型指南

Simtrum

零件编号

 组合 轴承类型 驱动方向 行进轴线

驱动

(mm)

 孔类型

平台尺寸

(mm)

最大负载

(N)
25LXC8080

2x

25LSCR8080

 交叉滚柱导轨  中间 X,Y 25

顶部：M4,M16底部：钻有沉孔，适用于M4盖帽螺丝

 80x80 98
25LXR8080

2x

25LSR8080

 交叉滚柱导轨  右 X,Y 25

顶部：M4,M16底部：钻有沉孔，适用于M4盖帽螺丝

 80x80 98
25LXL8080

2x

25LSL8080

 交叉滚柱导轨 左 X,Y 25

顶部：M4,M16底部：钻有沉孔，适用于M4盖帽螺丝

 80x80 98
25LXC100100

2x

25LSCR100100

 交叉滚柱导轨 中间 X,Y 25

顶部：M4,M16底部：钻有沉孔，适用于M4盖帽螺丝

 100x100 147
25LXR100100

2x

25LSR100100

 交叉滚柱导轨 右 X,Y 25

顶部：M4,M16底部：钻有沉孔，适用于M4盖帽螺丝

 100x100 147
25LXL100100

2x

25LSL100100

 交叉滚柱导轨  左 X,Y 25

T顶部：M4,M16

底部：钻有沉孔，适用于M4盖帽螺丝

 100x100 147
25LXR125125

2x

25LSR100100

 交叉滚柱导轨 右 X,Y 25

顶部：M4

底部：钻有沉孔，适用于M4盖帽螺丝

 125x125 196
25LXL125125

2x

25LSL125125

 交叉滚柱导轨 左 X,Y 25

顶部：M4

底部：钻有沉孔，适用于M4盖帽螺丝

 125x125 196

上图中的信息是为您的运动设置选择合适的 25mm 交叉滚子轴承 XY 平移平台的一般指南。

如需帮助，请随时致电 +65-6996 0391 联系 Simtrum Pte Ltd 或发送电子邮件至 info@simtrum.com。我们的产品团队将很乐意帮助您做出正确的产品选择。








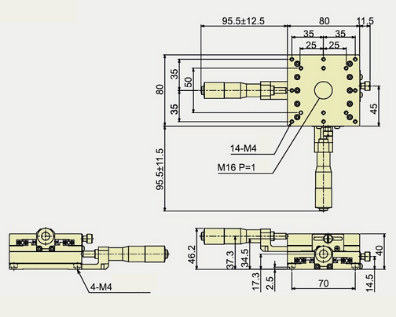

25LXC8080



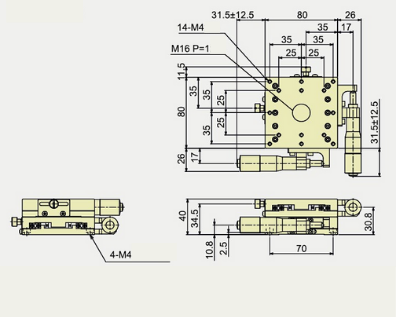

25LXR8080



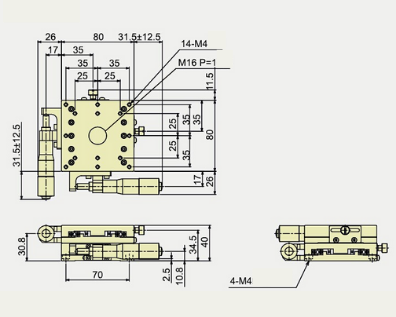

25LXL8080











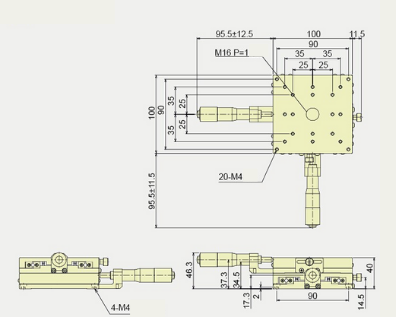

25LXC100100

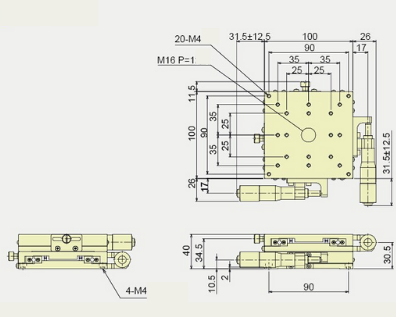

25LXR100100





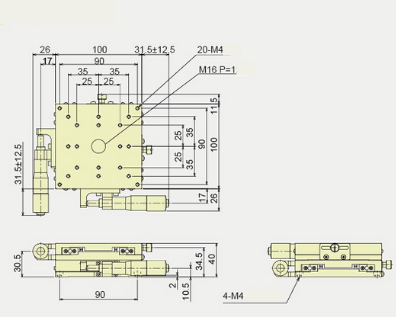

25LXL100100

WB 25LXL100100.png



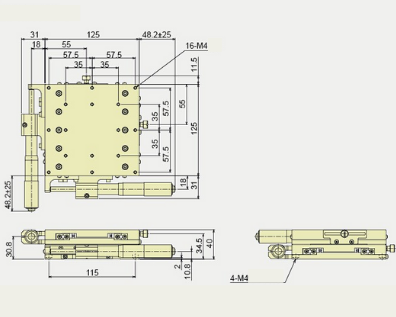

25LXL125125





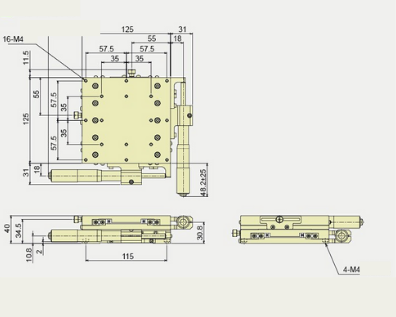

25LXR125125








13mm 线性平台

光机械学






我们在这里为您服务！





给我们发电子邮件 info@simtrum.com 以获得今天最优惠的价格。   想要更多的技术信息?点击这里 获取专业定制系统/解决方案。




没有时间逐个搜索产品?不用担心。您可以下载全系列的瑆创产品线卡，现在点击它。



想要更接近市场动态和技术发展吗?只需花5秒钟作为会员登录，我们将为您带来最新的新闻。​(屏幕右上方的登录按钮)

Drive Direction

Platform dimensions (mm)


Search Reset
Compare Model Drawings & Specs Platform dimensions (mm) Hole Type Drive Direction Maximum Load (N) Availability Reference Price
(USD)

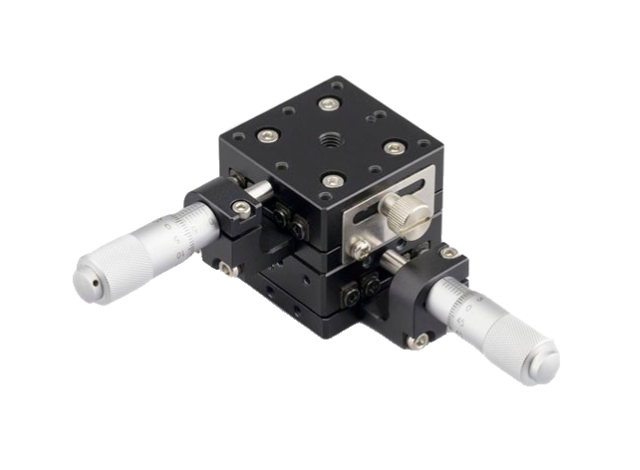

13LXC4040

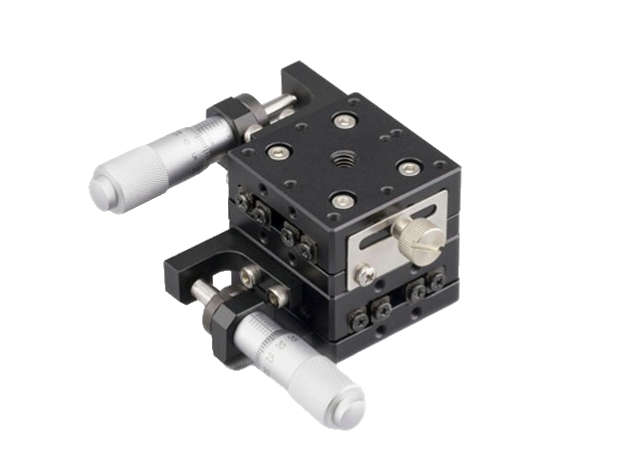

13mm Crossed Roller Bearing XY Translation Stage, Platform dimensions=40mmx40mm, Center Drive 		40x40Top:M3,M6 Bottom:Counterbore holes for M3 Cap ScrewsCenter19.6 4-6 Weeks $238.81

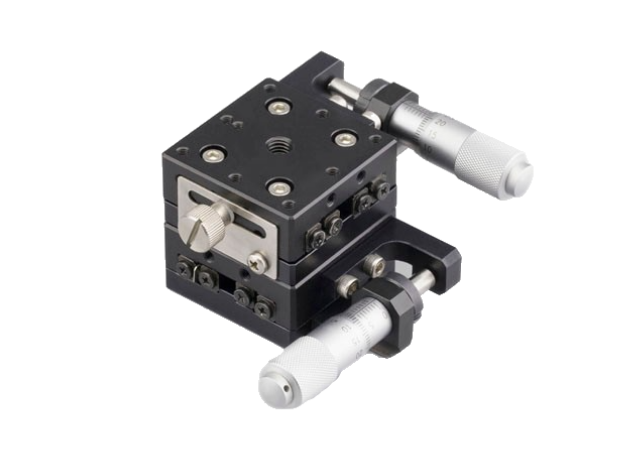

13LXR4040
13mm Crossed Roller Bearing XY Translation Stage, Platform dimensions=40mmx40mm, Right Side Drive 		40x40Top:M3,M6 Bottom:Counterbore holes for M3 Cap ScrewsRight19.6 4-6 Weeks $238.81
13LXL4040
13mm Crossed Roller Bearing XY Translation Stage, Platform dimensions=40mmx40mm, Left Side Drive 		40x40Top:M3,M6 Bottom:Counterbore holes for M3 Cap ScrewsLeft19.6 4-6 Weeks $238.81

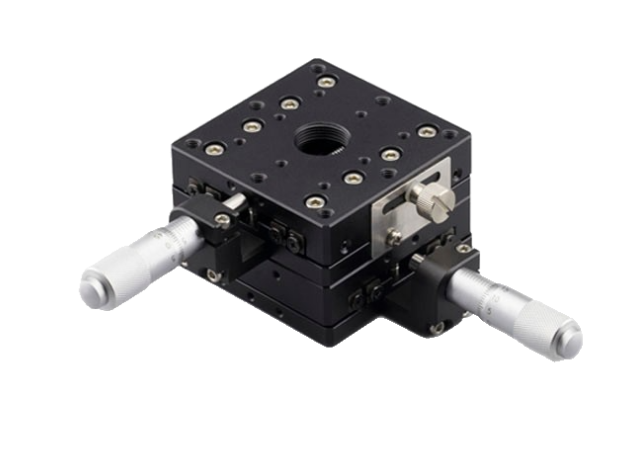

13LXC6060
13mm Crossed Roller Bearing XY Translation Stage, Platform dimensions=60mmx60mm, Center Drive 		60x60Top: M3, M4, M16 Bottom: Counterbore holes for M4 Cap ScrewsCenter49 4-6 Weeks $253.73

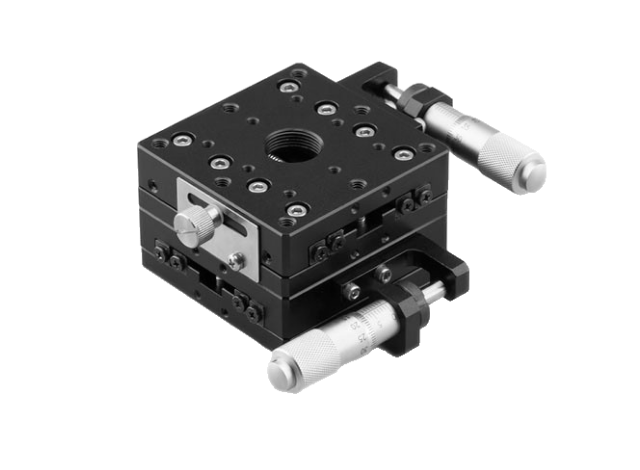

13LXR6060
13mm Crossed Roller Bearing XY Translation Stage, Platform dimensions=60mmx60mm, Right Side Drive 		60x60Top: M3, M4, M16 Bottom: Counterbore holes for M4 Cap ScrewsRight49 4-6 Weeks $253.73
13LXL6060
13mm Crossed Roller Bearing XY Translation Stage, Platform dimensions=60mmx60mm, Left Side Drive 		60x60Top: M3, M4, M16 Bottom: Counterbore holes for M4 Cap ScrewsLeft49 4-6 Weeks $253.73

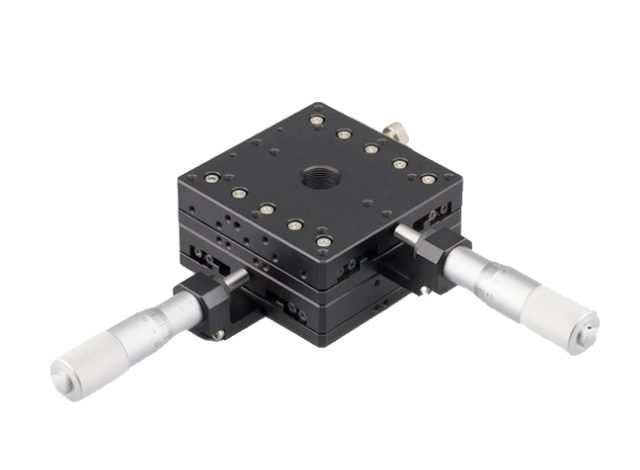

25LXC8080
25mm Crossed Roller Bearing XY Linear Stage, Platforms dimensions=80mmx80mm, Center Drive 		80x80Top: M4, M16 Bottom: Counterbore holes for M4 cap screwsCenter98 4-6 Weeks $364.18

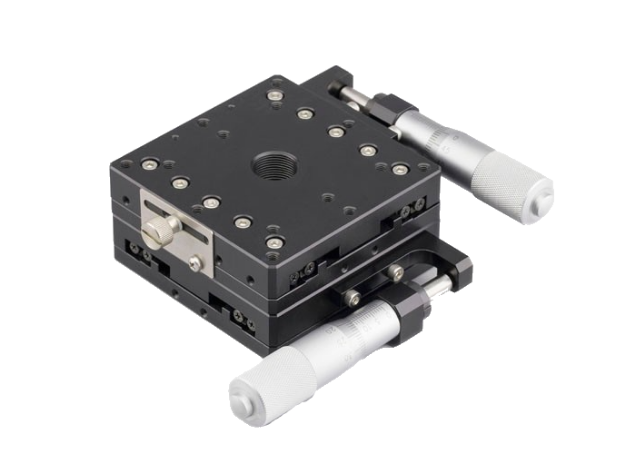

25LXR8080
25mm Crossed Roller Bearing XY Linear Stage, Platforms dimensions=80mmx80mm, Right Side Drive 		80x80Top: M4, M16 Bottom: Counterbore holes for M4 cap screwsRight98 4-6 Weeks $364.18

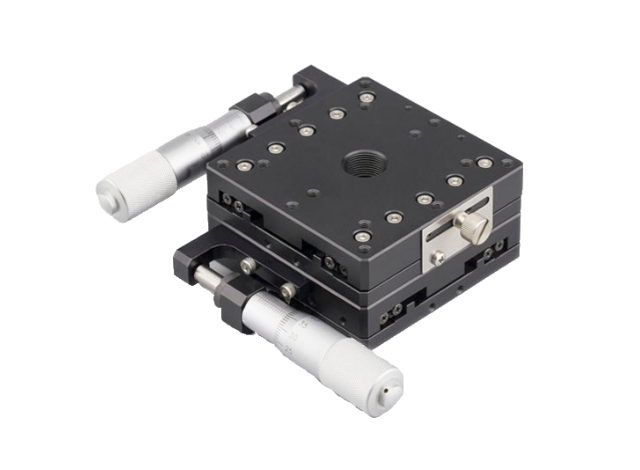

25LXL8080
25mm Crossed Roller Bearing XY Linear Stage, Platforms dimensions=80mmx80mm, Left Side Drive 		80x80Top: M4, M16 Bottom: Counterbore holes for M4 cap screwsLeft98 4-6 Weeks $364.18

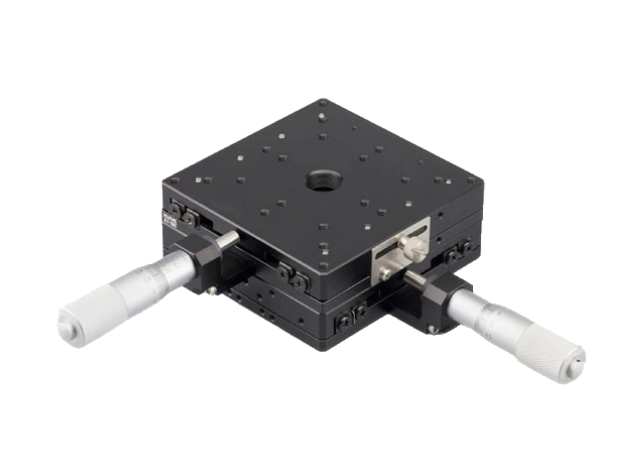

25LXC100100
25mm Crossed Roller Bearing XY Linear Stage, Platforms dimensions=100mmx100mm, Center Drive 		100x100Top: M4, M16 Bottom: Counterbore holes for M4 cap screwsCenter147 4-6 Weeks $450.00

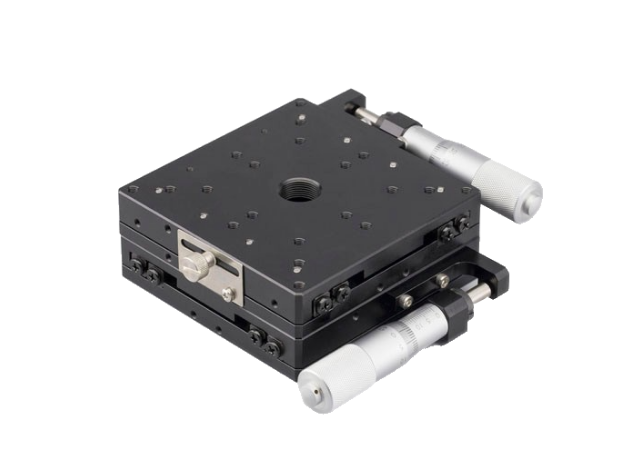

25LXR100100
25mm Crossed Roller Bearing XY Linear Stage, Platforms dimensions=80mmx80mm, Right Side Drive 		100x100Top: M4, M16 Bottom: Counterbore holes for M4 cap screwsRight147 4-6 Weeks $450.00

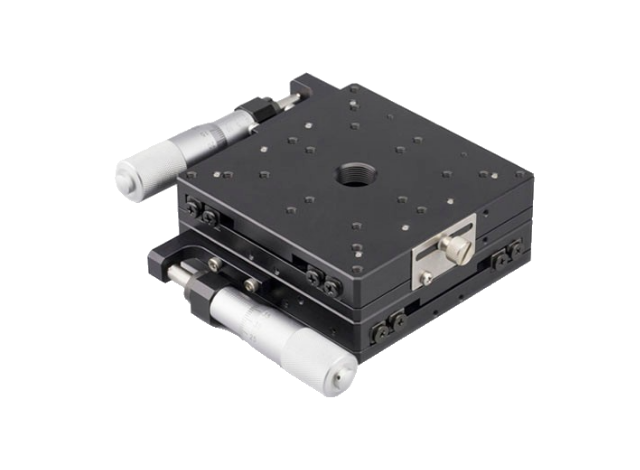

25LXL100100
25mm Crossed Roller Bearing XY Linear Stage, Platforms dimensions=100mmx100mm, Left Side Drive 		100x100Top: M4, M16 Bottom: Counterbore holes for M4 cap screwsLeft147 4-6 Weeks $450.00

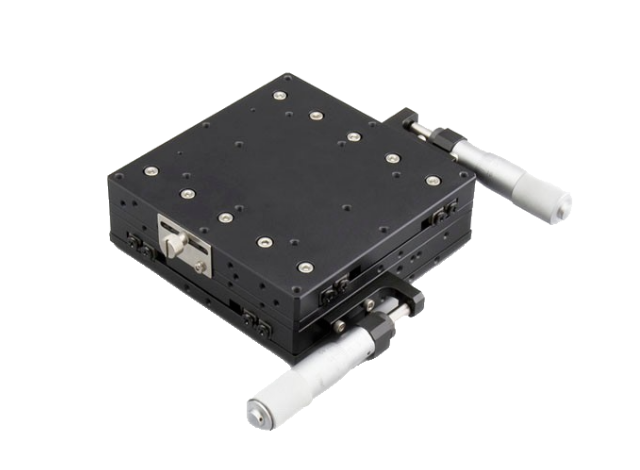

25LXR125125

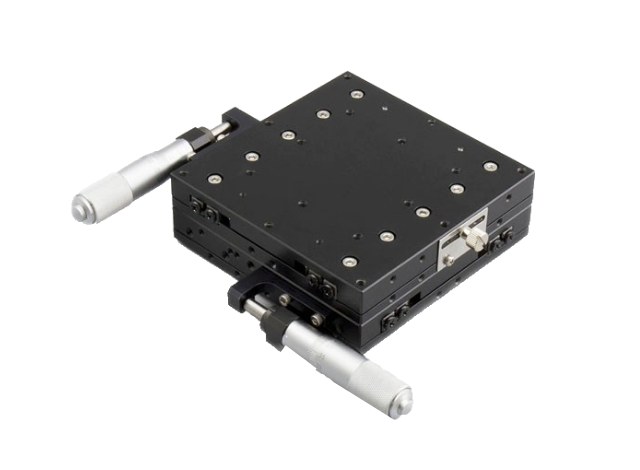

25mm Crossed Roller Bearing XY Linear Stage, Platforms dimensions=125mmx125mm, Right Side Drive 		125x125Top: M4 Bottom: Counterbore holes for M4 cap screwsRight196 4-6 Weeks $469.40
25LXL125125
25mm Crossed Roller Bearing XY Linear Stage, Platforms dimensions=125mmx125mm, Left Side Drive 		125x125Top: M4 Bottom: Counterbore holes for M4 cap screwsLeft196 4-6 Weeks $469.40

25LXL125125 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
125x125

Hole Type
Top: M4 Bottom: Counterbore holes for M4 cap screws

Drive Direction
Left

Maximum Load (N)
196

25LXR125125 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
125x125

Hole Type
Top: M4 Bottom: Counterbore holes for M4 cap screws

Drive Direction
Right

Maximum Load (N)
196

25LXL100100 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
100x100

Hole Type
Top: M4, M16 Bottom: Counterbore holes for M4 cap screws

Drive Direction
Left

Maximum Load (N)
147

25LXR100100 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
100x100

Hole Type
Top: M4, M16 Bottom: Counterbore holes for M4 cap screws

Drive Direction
Right

Maximum Load (N)
147

25LXC100100 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
100x100

Hole Type
Top: M4, M16 Bottom: Counterbore holes for M4 cap screws

Drive Direction
Center

Maximum Load (N)
147

25LXL8080 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
80x80

Hole Type
Top: M4, M16 Bottom: Counterbore holes for M4 cap screws

Drive Direction
Left

Maximum Load (N)
98

25LXR8080 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
80x80

Hole Type
Top: M4, M16 Bottom: Counterbore holes for M4 cap screws

Drive Direction
Right

Maximum Load (N)
98

25LXC8080 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
25

Platform dimensions (mm)
80x80

Hole Type
Top: M4, M16 Bottom: Counterbore holes for M4 cap screws

Drive Direction
Center

Maximum Load (N)
98

13LXL6060 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
60x60

Hole Type
Top: M3, M4, M16 Bottom: Counterbore holes for M4 Cap Screws

Drive Direction
Left

Maximum Load (N)
49

13LXR6060 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
60x60

Hole Type
Top: M3, M4, M16 Bottom: Counterbore holes for M4 Cap Screws

Drive Direction
Right

Maximum Load (N)
49

13LXC6060 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
60x60

Hole Type
Top: M3, M4, M16 Bottom: Counterbore holes for M4 Cap Screws

Drive Direction
Center

Maximum Load (N)
49

13LXL4040 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
40x40

Hole Type
Top:M3,M6 Bottom:Counterbore holes for M3 Cap Screws

Drive Direction
Left

Maximum Load (N)
19.6

13LXR4040 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
40x40

Hole Type
Top:M3,M6 Bottom:Counterbore holes for M3 Cap Screws

Drive Direction
Right

Maximum Load (N)
19.6

13LXC4040 - Parameter

Material
Aluminium, black anodized treatment

Bearing Type
Crossed Roller Guide

Travel (mm)
13

Platform dimensions (mm)
40x40

Hole Type
Top:M3,M6 Bottom:Counterbore holes for M3 Cap Screws

Drive Direction
Center

Maximum Load (N)
19.6

25LXL125125 - Download

25LXR125125 - Download

25LXL100100 - Download

25LXR100100 - Download

25LXC100100 - Download

25LXL8080 - Download

25LXR8080 - Download

25LXC8080 - Download

13LXL6060 - Download

13LXR6060 - Download

13LXC6060 - Download

13LXL4040 - Download

13LXR4040 - Download

13LXC4040 - Download
