微通道板组件(MCP)

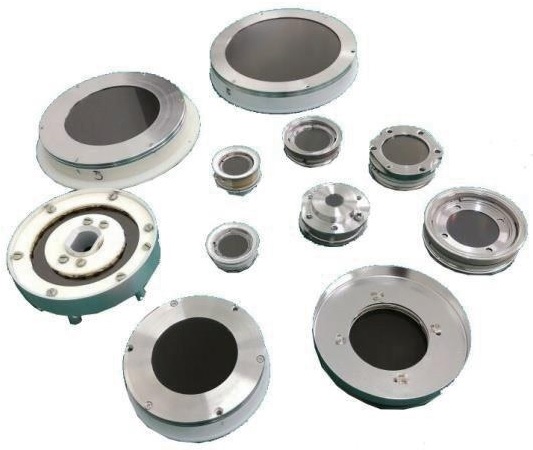

Micro-Channel Plate Assembly (MCP)

The micro-channel plate assembly is a detector, based on the micro-channel plate as the core component, equipped with different types of anode outputs, and with convenient mechanical and electrical interfaces, which can be used to detect a variety of particles and radiation signals such as electrons, ions, ultraviolet and X-ray, with high gain, low noise, fast time response, etc.





By customizing different types of anodes, TOF detection, signal strength detection, position detection and imaging detection can be achieved respectively.





Features

  • Versatile Detection
  • Convenient Interfaces
  • High Gain and Low Noise
  • Fast Time Response
  • Can be customized to user requirements

Application

  • Mass Spectrometry, Space Detection
  • High Energy Physics Detection
  • Medical Detection
  • Scientific Research
  • Testing Instruments

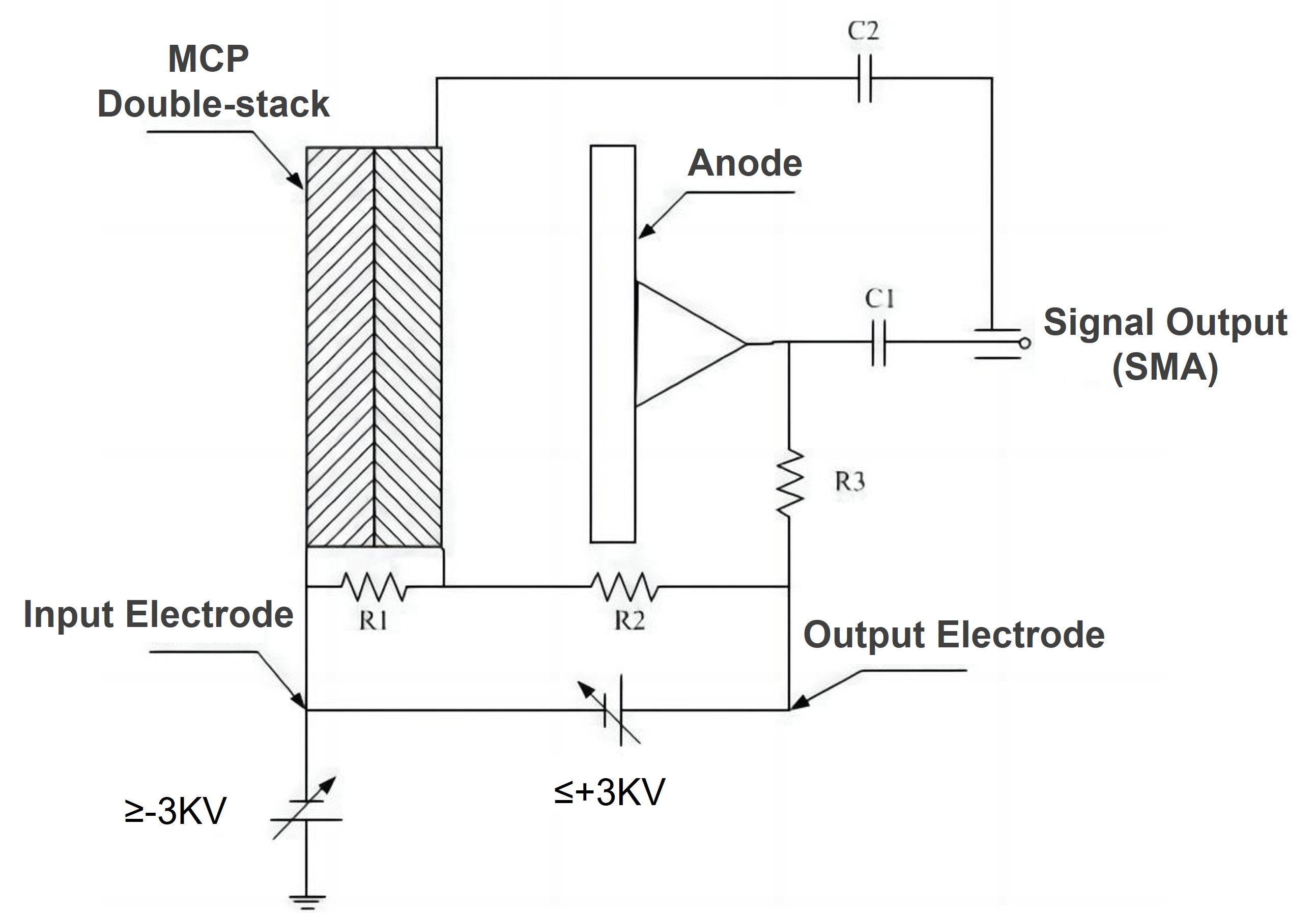

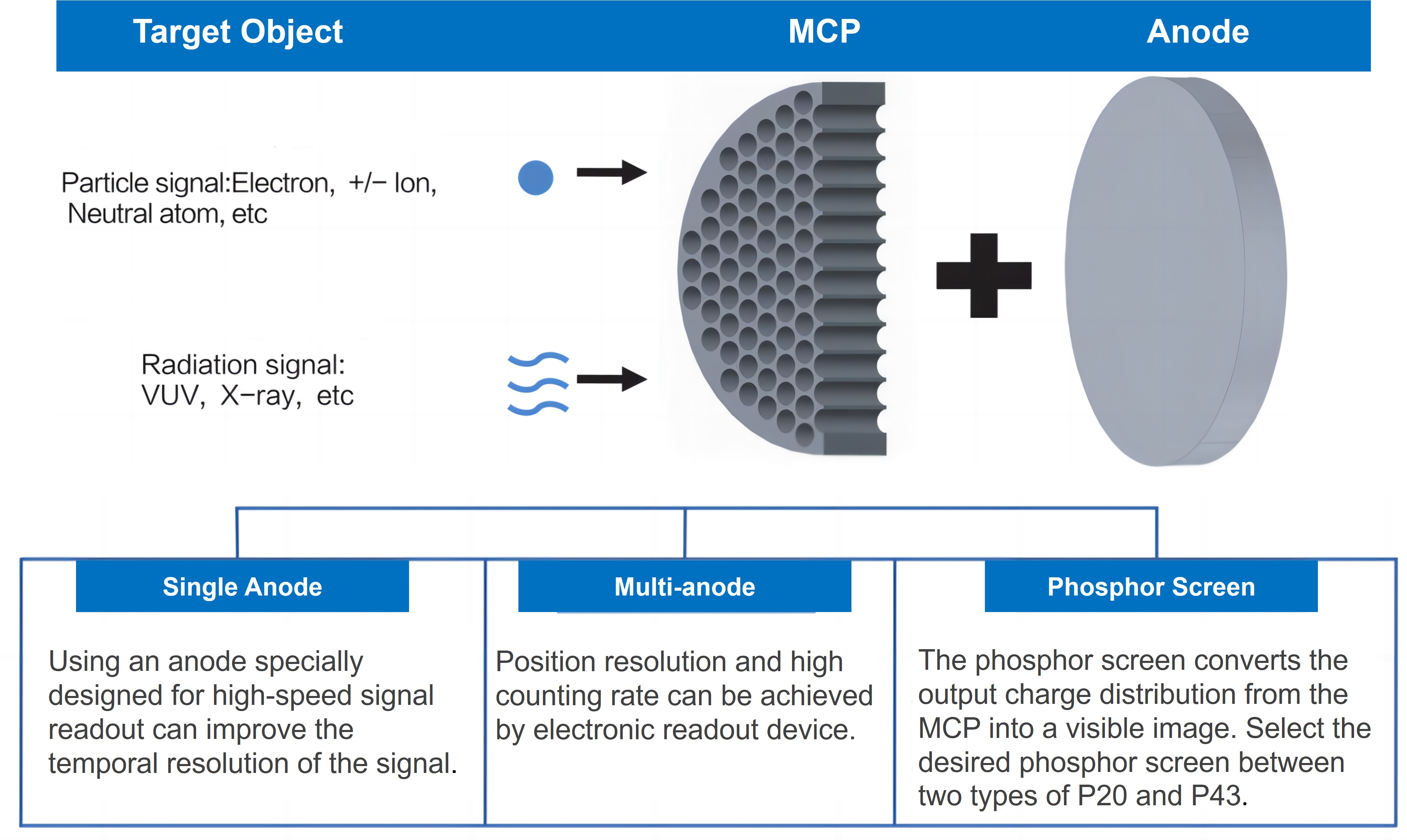

Product Principle

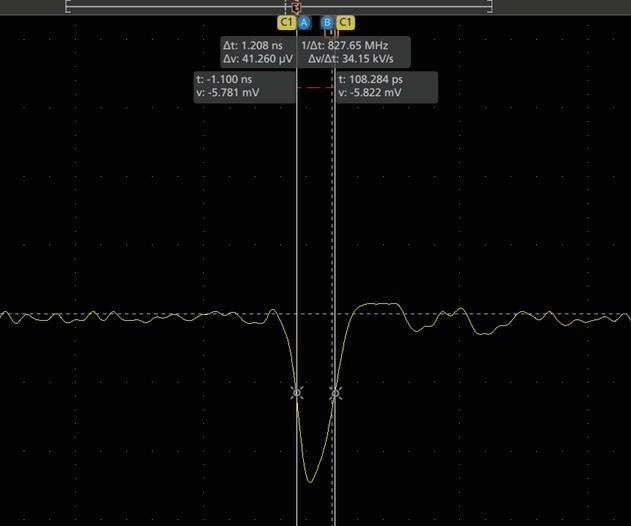

Output Waveform

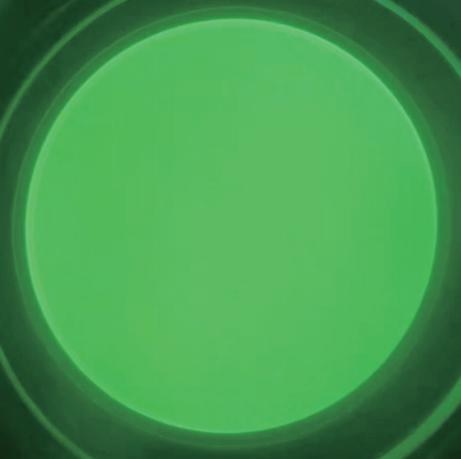

Output Image

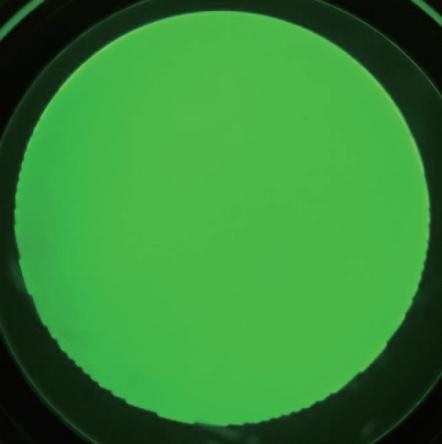

Output Image

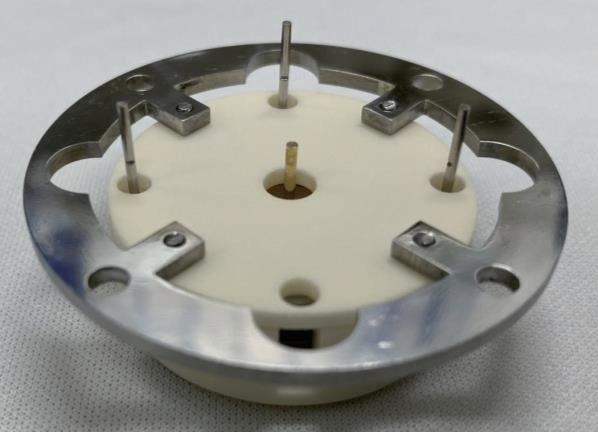

Φ33 MCP Assembly with Single Anode

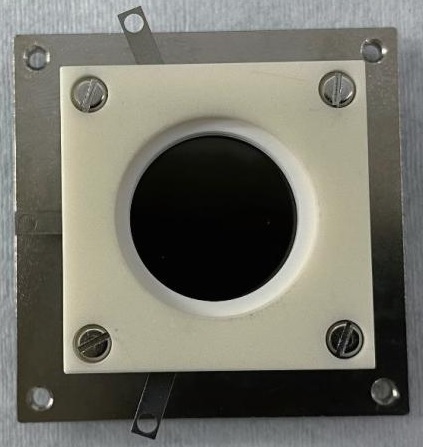

Φ25 MCP Assembly with Phosphor Screen

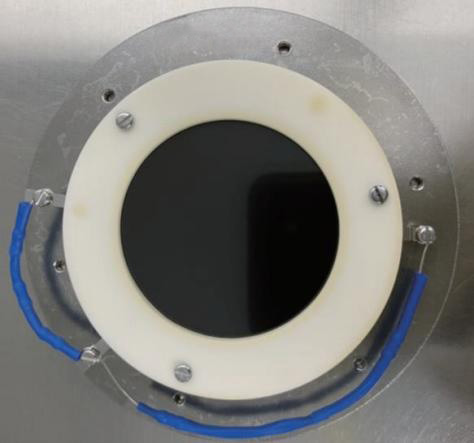

Φ50 MCP Assembly with Phosphor Screen




Selection Guide for Micro-Channel Plate Assembly (MCP)

Parameters Assembly with Single Anode Assembly with Phosphor Screen Unit
Φ25MCP Φ33MCP Φ50MCP Φ25MCP  Φ50MCP




/
MCP Parameter Diameter Φ25 Φ33 Φ50 Φ25 Φ50 mm
Channel Diameter 6 12 12 6 12 μm
Effective Area Φ18 Φ27 Φ44 Φ18 Φ40 mm
Resistance 100~240 20~80 100-300 100-300 10-100
Bias Angle 6 12 7 6 12 deg.
Number 2 2 2 2 2 /
Electrical Characteristics Gain ≥1x106 /
Dark Current 50@2200V / / / / pA
Dark Count Rate / ≤3 / / counts.s-1 .cm-2
FWHM / 1.2 / / / ns
Recommended Working Pararmeter Voltage 1.8~2.2 MCP—IN to MCP OUT: 1.6~2.0
MCP-OUT to Phosphor Screen: 4.5~6.5
KV
Vacuum Condition 1×10-4 Pa
Temperature 0~50
Structure / Compact Structure / / / /
Phosphor Screen Base / / / FOP Glass /






Drawings

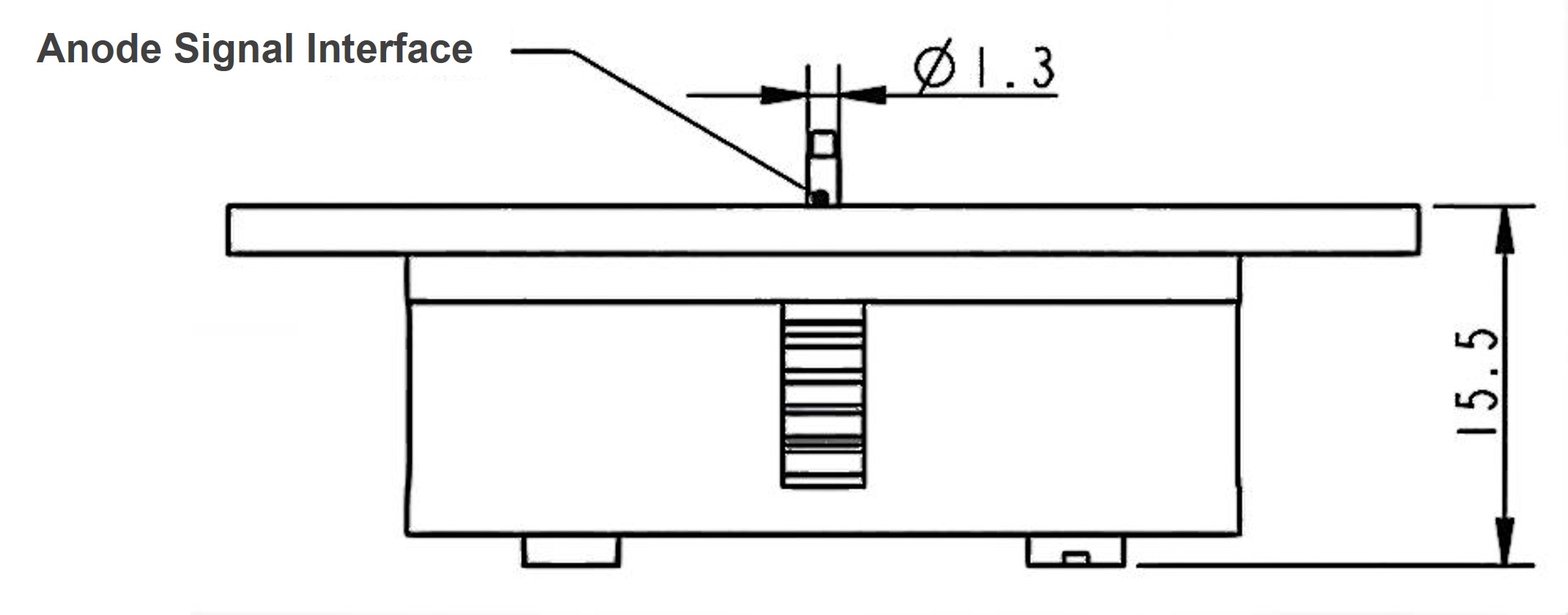

 Φ25 MCP Assembly with Single Anode

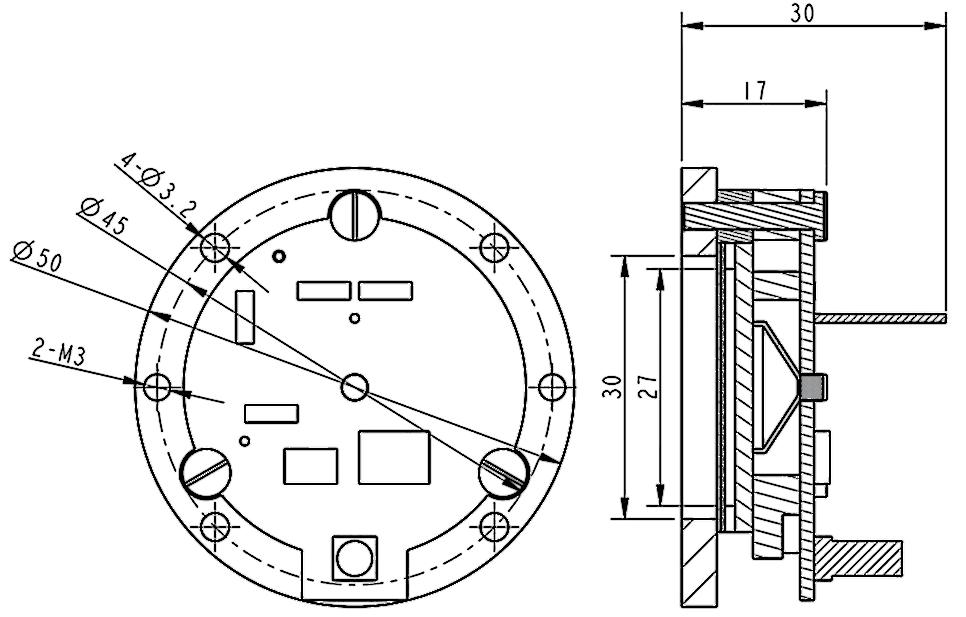

Φ33 MCP Assembly with Single Anode



Wiring Example

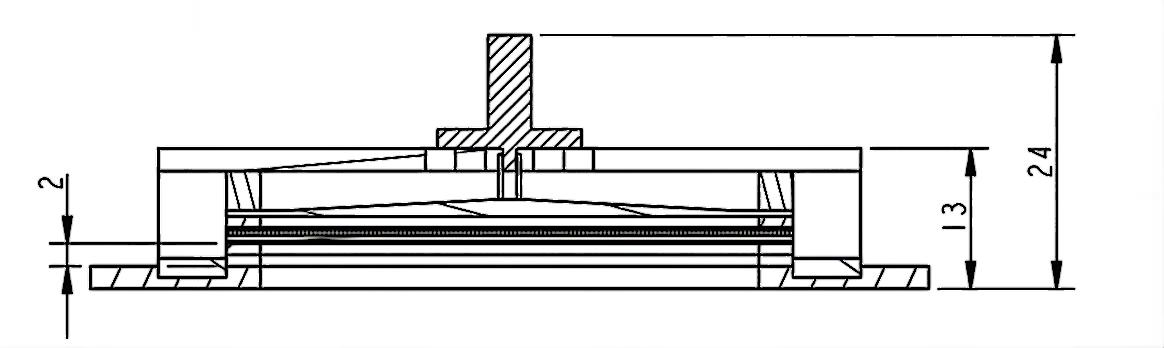

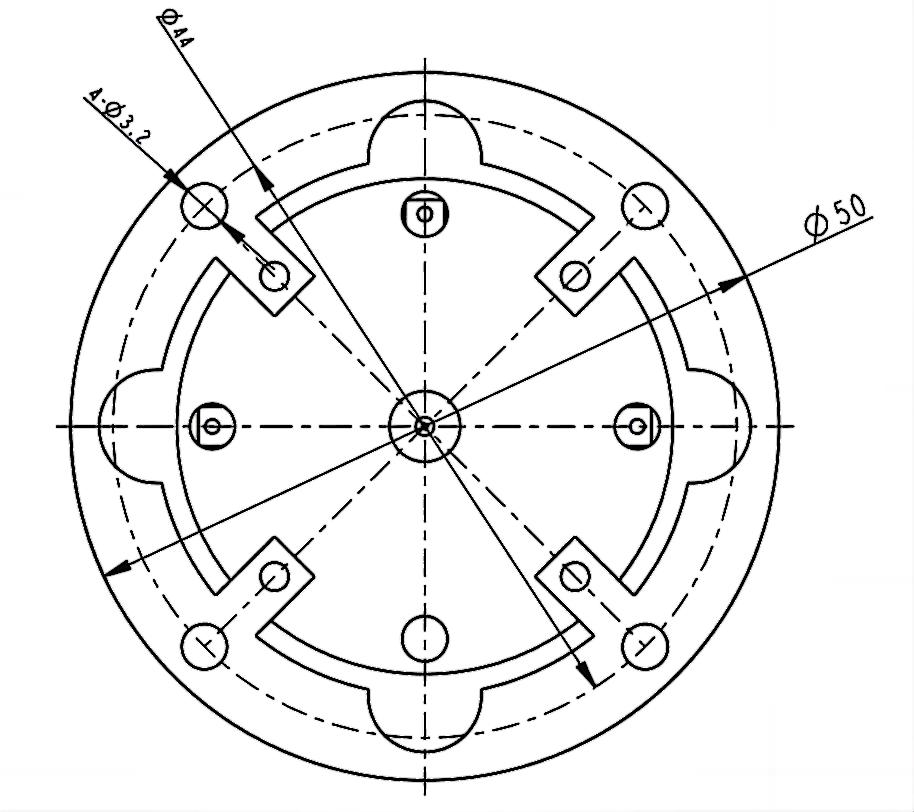

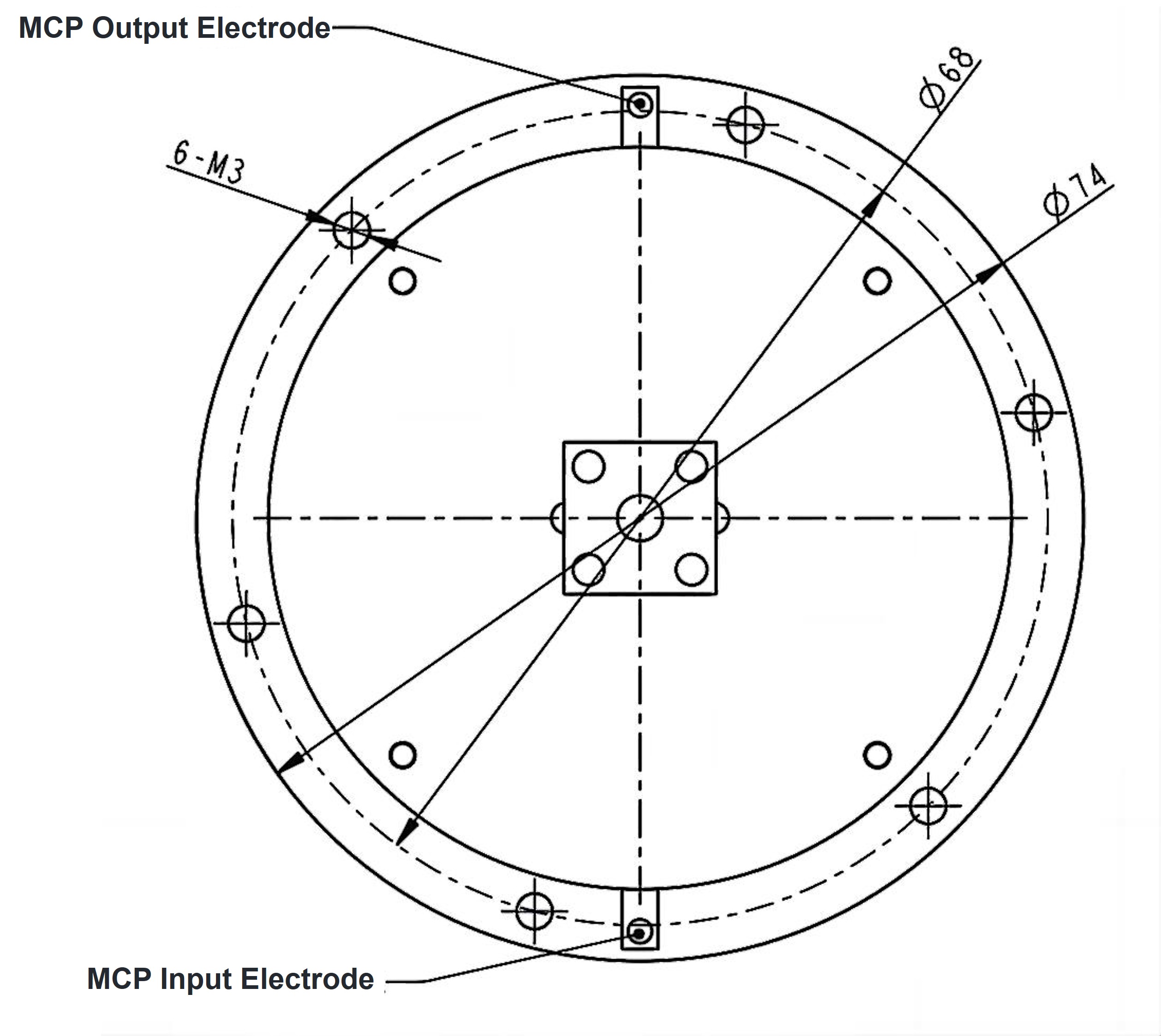

Φ50 MCP Assembly with Single Anode

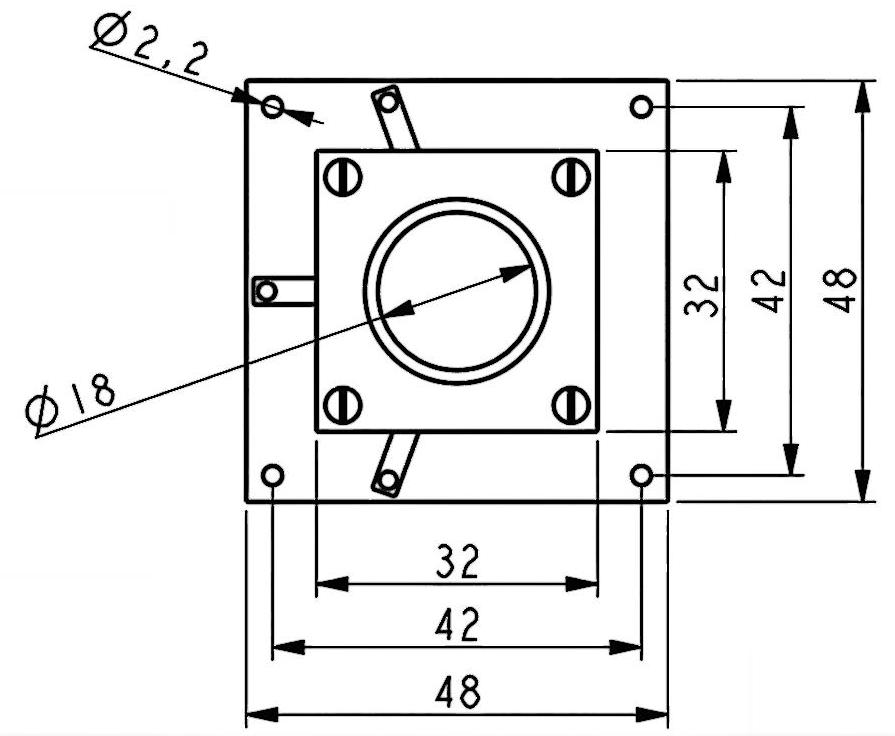

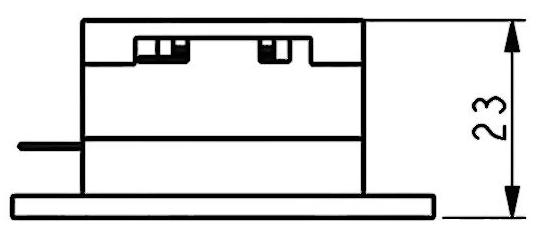

Φ25 MCP Assembly with Phosphor Screen

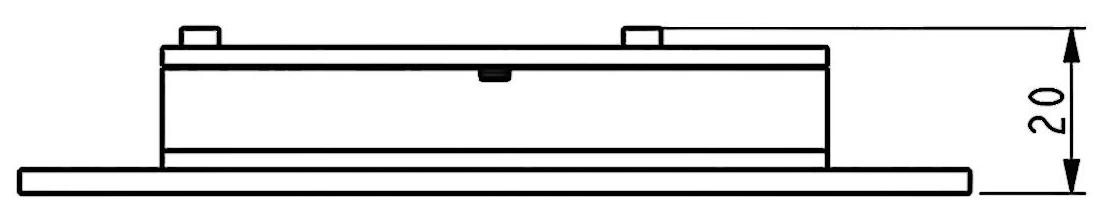

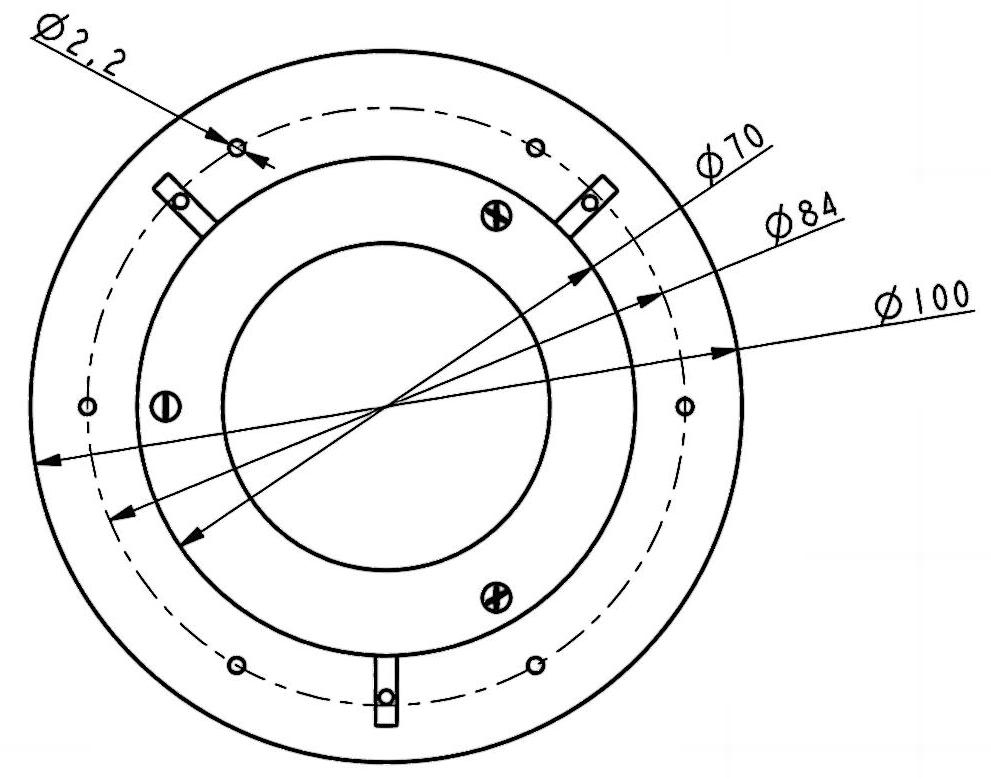

Φ50 MCP Assembly with Phosphor Screen







Micro-Channel Plate (MCP)

Product Parameter
 Micro-Channel Plate (MCP)  Effective Area: 10.5-100mm | 90-200° | ≥47mm×47mm;Channel Dia.:6-21μm; Thickness:0.325-1.2mm
 Micro-Channel Plate Assembly (MCP)  Diameter:25-50mm; Channel Dia.:6-12mm; Effective Area:18-44mm
 Fiber Optic Plates- FOP  Fiber Center Distance:≤4μm,4-100μm; Theoretical Numerical Aperture:≥1.0; Transmission Ration of Collimating Light:≥65%
 Micro Pore Optics  Aperture:10-100μm(Customizable); Boundary Dimension:≤50mm×50mm | Φ≤60mm; Thickness :1-3mm(Customizable)
 X-Ray Collimators  Aperture:10-100μm(Customizable); Thickness0.5-5mm(Customizable)





Photomultipliers Tube (PMT)

Model Spectral Response Range Peak Wavelength QE Typ. Effective Area(mm) Cathode Luminous Sensitivity Typ. Anode Sensitivity Typ.
 Photomultipliers Tube Head-On (Tube Only) 290 - 650nm 380 - 500nm 12% -,28% Φ10 - Φ58 40 - 100μA/lm 30 - 2000A/lm
 Photomultipliers Tube Side On(Tube Only) 160 - 900nm / / 8×24 40 - 250μA/lm 400 - 2500A/lm
 Photomultipliers Tube (Module) 160 - 900nm 400nm, 420nm / Φ22 - Φ25 | 8×24 60 - 250μA/lm /
 Microchannel Plate - Photomultiplier (MCP-PMT) 115 - 650nm 250nm, 380nm 30%@410nm, 15%@250nm / 70μA/lm 900A/lm
 Scintillator Probe / / / Φ25×25 - Φ75×75 / /
 β Detector / / / Φ10, Φ25 / /







Assemblies and Counting Unit



High Voltage Tube Socket High Voltage Tube Socket for Side Window Voltage Power Supply Counting Unit

We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
Φ25 Micro-Channel Plate Assembly with Single Anode
Φ25 Micro-Channel Plate Assembly with Single Anode, Diameter Φ25mm, Channel Diameter 6μm, Effective Area Φ18mm, Resistance 100~240MΩ, Bias Angle 6°, Number 2, Gain ≥1x10^6, Dark Current 50pA@2200V, Voltage 1.8~2.2KV, Vacuum Condition 1×10^-4
6-8 weeks Request for quote
Φ33 Micro-Channel Plate Assembly with Single Anode
Φ33 Micro-Channel Plate Assembly with Single Anode, Diameter Φ33mm, Channel Diameter 12μm, Effective Area Φ27mm, Resistance 20~80MΩ, Bias Angle 12°, Number 2, Gain ≥1x10^6, Dark Count Rate ≤3 Counts.s^-1 .cm^-2, FWHM 1.2ns, Voltage 1.8~2.2KV, Vacuum Condition 1×10^-4, Structure Compact Structure
6-8 weeks Request for quote
Φ50 Micro-Channel Plate Assembly with Single Anode
Φ50 Micro-Channel Plate Assembly with Single Anode, Diameter Φ50mm, Channel Diameter 12μm, Effective Area Φ44mm, Resistance 100~300MΩ, Bias Angle 7°, Number 2, Gain ≥1x10^6, Dark Count Rate ≤3 Counts.s^-1 .cm^-2, Voltage 1.8~2.2KV, Vacuum Condition 1×10^-4
6-8 weeks Request for quote
Φ25 Micro-Channel Plate Assembly with Phosphor Screen
Φ25 Micro-Channel Plate Assembly with Phosphor Screen, Diameter Φ25mm, Channel Diameter 6μm, Effective Area Φ18mm, Resistance 100~300MΩ, Bias Angle 6°, Number 2, Gain ≥1x10^6, Voltage MCP IN to MCP OUT 1.6~2.0KV, MCP OUT to Phosphor Screen 4.5~6.5KV, Vacuum Condition 1×10^-4, Phosphor Screen Base FOP
6-8 weeks Request for quote
Φ50 Micro-Channel Plate Assembly with Phosphor Screen
Φ50 Micro-Channel Plate Assembly with Phosphor Screen, Diameter Φ50mm, Channel Diameter 12μm, Effective Area Φ40mm, Resistance 10~100MΩ, Bias Angle 12°, Number 2, Gain ≥1x10^6, Voltage MCP IN to MCP OUT 1.6~2.0KV, MCP OUT to Phosphor Screen 4.5~6.5KV, Vacuum Condition 1×10^-4, Phosphor Screen Base Glass
6-8 weeks Request for quote

Φ50 Micro-Channel Plate Assembly with Phosphor Screen - Parameter

Φ25 Micro-Channel Plate Assembly with Phosphor Screen - Parameter

Φ50 Micro-Channel Plate Assembly with Single Anode - Parameter

Φ33 Micro-Channel Plate Assembly with Single Anode - Parameter

Φ25 Micro-Channel Plate Assembly with Single Anode - Parameter

Φ50 Micro-Channel Plate Assembly with Phosphor Screen - Download

Φ25 Micro-Channel Plate Assembly with Phosphor Screen - Download

Φ50 Micro-Channel Plate Assembly with Single Anode - Download

Φ33 Micro-Channel Plate Assembly with Single Anode - Download

Φ25 Micro-Channel Plate Assembly with Single Anode - Download
