太赫兹空心逆向反射器

概述和规格涂层图相关产品联系下单！

空心反光镜（也称为空心锥或向后反射器）是延迟线的一个基本组成部分，它平行且独立于入射角的精确垂直度返回激光束。

空心锥形反射镜对振动、位置和运动不敏感，是坚固的整体结构，由实心铝制成，非常适合用于激光跟踪系统、FTIR光谱仪和迈克尔逊型干涉仪。

玻璃胶合空心逆反射器和金属一体式中空反光器是两大品种。

• 能够将安装特征和基准集成到反光镜中，以便于对准，

提供额外的设计和成本效益

• 回波束精度低至2弧秒

• 工作温度：-40 至 60 °C

• 涂层：金，银，铝涂层（裸金属或带保护涂层）

Hollow Retro Reflector, Mirrors www.simtrum.com

一般规格
类型	空心反光板
安装材料	黑色阳极氧化铝
尺寸公差(mm)	±0.2
偏差角度（度）	180
入射角（度）	0
退出波前	<λ/3@633nm
槽	<0.5mmx45°

型号指南

材料	涂层	产品代码	透明光圈（mm）	反射精度（Arcseconds）
安装玻璃胶合	受保护的黄金	PAU-HRG-25.4-2	25.4	2
		PAU-HRG-25.4-5	25.4	5
		PAU-HRG-25.4-10	25.4	10
		PAU-HRG-63.5-2	63.5	2
		PAU-HRG-63.5-5	63.5	5
		PAU-HRG-63.5-15	63.5	15
	螺纹铝	PAL-HRG-6.35-5	6.35	5
		PAL-HRG-63.5-2	63.5	2
		PAL-HRG-63.5-5	63.5	5
		PAL-HRG-63.5-15	63.5	15

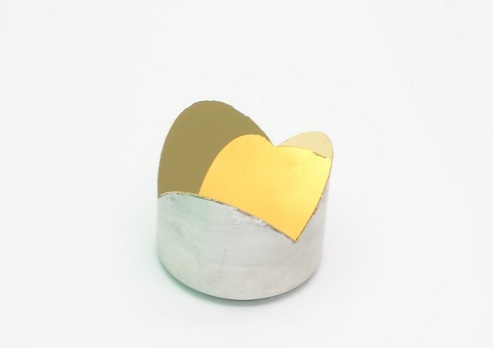

未安装铝制一体式	受保护的黄金	PAU-HRA-12.7	12.7	<10
		PAU-HRA-25.4	25.4
		PAU-HRA-38.1	38.1
		PAU-HRA-50.8	50.8
	受保护的银	PAG-HRA-12.7	12.7	<10
		PAG-HRA-25.4	25.4
		PAG-HRA-38.1	38.1
		PAG-HRA-50.8	50.8
	螺纹铝	PAL-HRA-12.7	12.7	<10
		PAL-HRA-25.4	25.4
		PAL-HRA-38.1	38.1
		PAL-HRA-50.8	50.8

铝涂层反射率曲线

镀金反射率曲线

银涂层反射率曲线

型号	产品
	太赫兹量子级联激光器
	用于太赫兹的780nm飞秒激光器
	用于太赫兹的1560nm飞秒激光器
	TPX / HDPE 太赫兹平凸透镜尺寸选择：1至2英寸（可定制）焦距：10毫米至240毫米（可定制）材料： TPX / HDPE
	离轴抛物面反射镜尺寸选择：1至2英寸（可定制）角度：90度和15/45/60度焦距：12.7毫米至254毫米（可定制）涂层：保护金，保护银，保护 AL ，紫外线增强 AL 通孔：是
	太赫兹空心逆向反射器尺寸选择：25.4毫米至63.5毫米（可定制）涂层：保护金，保护银，保护 AL ，紫外线增强 AL
	太赫兹金属反射镜尺寸选择：25.4毫米至76.2毫米（可定制）厚度：3至6毫米（可定制）涂层：保护金，保护银，保护 AL ，紫外线增强 AL
	太赫兹锌矿晶体尺寸选择：10毫米* 10毫米*（0.1至2毫米）（可定制）
	太赫兹扩束反射输出直径：40毫米涂层：保护金，保护银，保护 AL ，紫外线增强 AL
	太赫兹偏振片尺寸选择：25.4毫米和50.8毫米（可定制）
	太赫兹高电阻率硅分束器尺寸选择：1至3英寸（可定制）厚度 0.5 至 3毫米
	太赫兹波束轮廓仪（1-18 THz）

我们在这里为您服务！


给我们发电子邮件 info@simtrum.com 以获得今天最优惠的价格。		想要更多的技术信息?点击这里获取专业定制系统/解决方案。


没有时间逐个搜索产品?不用担心。您可以下载全系列的瑆创产品线卡，现在点击它。		想要更接近市场动态和技术发展吗?只需花5秒钟作为会员登录，我们将为您带来最新的新闻。(屏幕右上方的登录按钮)

Reflection Accuracy (arcseconds)

Clear Aperture

Coating

Search Reset

	Coating	Clear Aperture	Reflection Accuracy (arcseconds)	Availability	Reference Price (USD)
PAU-HRG-25.4-2 Hollow Retroreflector, mounted, protected Gold coating, clear aperture 25.4 mm, reflection accuracy 2"	Protected Gold@2000-12000nm	25.4mm	2"	2-3 Weeks	$492.06
PAU-HRG-25.4-5 Hollow Retroreflector, mounted, protected Gold coating, clear aperture 25.4 mm, reflection accuracy 5"	Protected Gold@2000-12000nm	25.4mm	5"	2-3 Weeks	$346.94
PAU-HRG-25.4-10 Hollow Retroreflector, mounted, protected Gold coating, clear aperture 25.4 mm, reflection accuracy 10"	Protected Gold@2000-12000nm	25.4mm	10"	2-3 Weeks	$299.32
PAU-HRG-63.5-2 Hollow Retroreflector, mounted, protected Gold coating, clear aperture 63.5 mm, reflection accuracy 2"	Protected Gold@2000-12000nm	63.5mm	2"	2-3 Weeks	$1573.70
PAU-HRG-63.5-5 Hollow Retroreflector, mounted, protected gold coating, clear aperture 63.5 mm, reflection accuracy 5"	Protected Gold@2000-12000nm	63.5mm	5"	2-3 Weeks	$1090.70
PAU-HRG-63.5-15 Hollow Retroreflector, mounted, protected Gold coating, clear aperture 63.5 mm, reflection accuracy 15"	Protected Gold@2000-12000nm	63.5mm	15"	2-3 Weeks	$770.98
PAL-HRG-6.35-5 Hollow Retroreflector, mounted, protected Aluminum coating, clear aperture 6.35 mm, reflection accuracy 5"	Protected Aluminum @400-1200nm	6.35mm	5"	2-3 Weeks	$836.73
PAL-HRG-63.5-2 Hollow Retroreflector, mounted, protected Aluminum coating, clear aperture 63.5 mm, reflection accuracy 2"	Protected Aluminum @400-1200nm	63.5mm	2"	2-3 Weeks	$897.96
PAL-HRG-63.5-5 Hollow Retroreflector, mounted, protected Aluminum coating, clear aperture 63.5 mm, reflection accuracy 5"	Protected Aluminum @400-1200nm	63.5mm	5"	2-3 Weeks	$707.48
PAL-HRG-63.5-15 Hollow Retroreflector, mounted, protected Aluminum coating, clear aperture 63.5 mm, reflection accuracy 15"	Protected Aluminum @400-1200nm	63.5mm	15"	2-3 Weeks	$578.23
PAU-HRA-12.7 Hollow Retroreflector, unmounted, protected gold coating, clear aperture 12.7 mm, reflection accuracy <10"	Protected Gold@2000-12000nm	12.7mm	<10"	2-3 Weeks	$333.33
PAU-HRA-25.4 Hollow Retroreflector, unmounted, protected gold coating, clear aperture 25.4 mm, reflection accuracy <10"	Protected Gold@2000-12000nm	25.4mm	<10"	2-3 Weeks	$419.50
PAU-HRA-38.1 Hollow Retroreflector, unmounted, protected gold coating, clear aperture 38.1 mm, reflection accuracy <10"	Protected Gold@2000-12000nm	38.1mm	<10"	2-3 Weeks	$904.76
PAU-HRA-50.8 Hollow Retroreflector, unmounted, protected Gold coating, clear aperture 50.8 mm, reflection accuracy <10"	Protected Gold@2000-12000nm	50.8mm	<10"	2-3 Weeks	$1129.25
PAG-HRA-12.7 Hollow Retro-reflector, unmounted, protected Silver coating, clear aperture 12.7 mm, reflection accuracy <10"	Protected Silver@400-12000nm	12.7mm	<10"	Contact Us	$315.19
PAG-HRA-25.4 Hollow Retro-reflector, unmounted, protected Silver coating, clear aperture 25.4 mm, reflection accuracy <10"	Protected Silver@400-12000nm	25.4mm	<10"	2-3 Weeks	$396.83
PAG-HRA-38.1 Hollow Retro-reflector, unmounted, protected Silver coating, clear aperture 38.1 mm, reflection accuracy <10"	Protected Silver@400-12000nm	38.1mm	<10"	2-3 Weeks	$866.21
PAG-HRA-50.8 Hollow Retro-reflector, unmounted, protected Silver coating, clear aperture 50.8 mm, reflection accuracy <10"	Protected Silver@400-12000nm	50.8mm	<10"	2-3 Weeks	$1081.63
PAL-HRA-12.7 Hollow Retroreflector, unmounted, protected Aluminum coating, clear aperture 12.7 mm, reflection accuracy <10"	Protected Aluminum @400-1200nm	12.7mm	<10"	2-3 Weeks	$312.93
PAL-HRA-25.4 Hollow Retroreflector, unmounted, protected Aluminum coating, clear aperture 25.4 mm, reflection accuracy <10"	Protected Aluminum @400-1200nm	25.4mm	<10"	2-3 Weeks	$394.56
PAL-HRA-38.1 Hollow Retroreflector, unmounted, protected Aluminum coating, clear aperture 38.1 mm, reflection accuracy <10"	Protected Aluminum @400-1200nm	38.1mm	<10"	2-3 Weeks	$863.95
PAL-HRA-50.8 Hollow Retroreflector, unmounted, protected Aluminum coating, clear aperture 50.8 mm, reflection accuracy <10"	Protected Aluminum @400-1200nm	50.8mm	<10"	2-3 Weeks	$1077.10

PAL-HRA-50.8 - Parameter

Coating

Protected Aluminum @400-1200nm

Clear Aperture

50.8mm

Reflection Accuracy (arcseconds)

<10"

PAL-HRA-38.1 - Parameter

Coating

Protected Aluminum @400-1200nm

Clear Aperture

38.1mm

Reflection Accuracy (arcseconds)

<10"

PAL-HRA-25.4 - Parameter

Coating

Protected Aluminum @400-1200nm

Clear Aperture

25.4mm

Reflection Accuracy (arcseconds)

<10"

PAL-HRA-12.7 - Parameter

Coating

Protected Aluminum @400-1200nm

Clear Aperture

12.7mm

Reflection Accuracy (arcseconds)

<10"

PAG-HRA-50.8 - Parameter

Coating

Protected Silver@400-12000nm

Clear Aperture

50.8mm

Reflection Accuracy (arcseconds)

<10"

PAG-HRA-38.1 - Parameter

Coating

Protected Silver@400-12000nm

Clear Aperture

38.1mm

Reflection Accuracy (arcseconds)

<10"

PAG-HRA-25.4 - Parameter

Coating

Protected Silver@400-12000nm

Clear Aperture

25.4mm

Reflection Accuracy (arcseconds)

<10"

PAG-HRA-12.7 - Parameter

Coating

Protected Silver@400-12000nm

Clear Aperture

12.7mm

Reflection Accuracy (arcseconds)

<10"

PAU-HRA-50.8 - Parameter

Coating

Protected Gold@2000-12000nm

Clear Aperture

50.8mm

Reflection Accuracy (arcseconds)

<10"

PAU-HRA-38.1 - Parameter

Coating

Protected Gold@2000-12000nm

Clear Aperture

38.1mm

Reflection Accuracy (arcseconds)

<10"

PAU-HRA-25.4 - Parameter

Coating

Protected Gold@2000-12000nm

Clear Aperture

25.4mm

Reflection Accuracy (arcseconds)

<10"

PAU-HRA-12.7 - Parameter

Coating

Protected Gold@2000-12000nm

Clear Aperture

12.7mm

Reflection Accuracy (arcseconds)

<10"

PAL-HRG-63.5-15 - Parameter

Coating

Protected Aluminum @400-1200nm

Clear Aperture

63.5mm

Reflection Accuracy (arcseconds)

15"

PAL-HRG-63.5-5 - Parameter

Coating

Protected Aluminum @400-1200nm

Clear Aperture

63.5mm

Reflection Accuracy (arcseconds)

PAL-HRG-63.5-2 - Parameter

Coating

Protected Aluminum @400-1200nm

Clear Aperture

63.5mm

Reflection Accuracy (arcseconds)

PAL-HRG-6.35-5 - Parameter

Coating

Protected Aluminum @400-1200nm

Clear Aperture

6.35mm

Reflection Accuracy (arcseconds)

PAU-HRG-63.5-15 - Parameter

Coating

Protected Gold@2000-12000nm

Clear Aperture

63.5mm

Reflection Accuracy (arcseconds)

15"

PAU-HRG-63.5-5 - Parameter

Coating

Protected Gold@2000-12000nm

Clear Aperture

63.5mm

Reflection Accuracy (arcseconds)

PAU-HRG-63.5-2 - Parameter

Coating

Protected Gold@2000-12000nm

Clear Aperture

63.5mm

Reflection Accuracy (arcseconds)

PAU-HRG-25.4-10 - Parameter

Coating

Protected Gold@2000-12000nm

Clear Aperture

25.4mm

Reflection Accuracy (arcseconds)

10"

PAU-HRG-25.4-5 - Parameter

Coating

Protected Gold@2000-12000nm

Clear Aperture

25.4mm

Reflection Accuracy (arcseconds)

PAU-HRG-25.4-2 - Parameter

Coating

Protected Gold@2000-12000nm

Clear Aperture

25.4mm

Reflection Accuracy (arcseconds)
