离轴抛物面反射镜 | 瑆创光学电子商店

Products / 光学元件 /太赫兹光学元件 /离轴抛物面反射镜 /

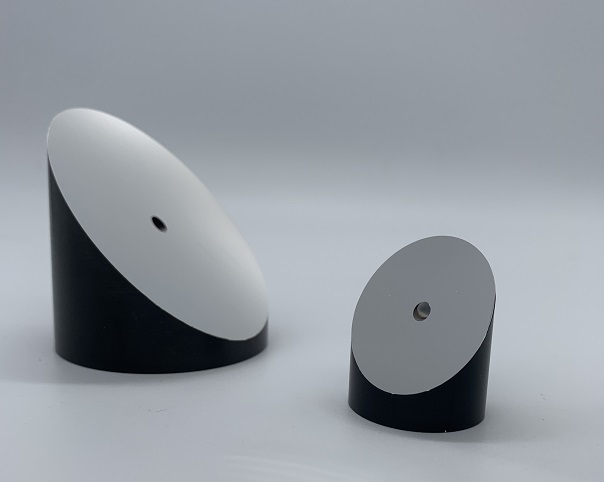

离轴抛物面反射镜
概述和规格 型号选项 涂层图 相关产品 联系下单！

抛物面镜(抛物面反射器)是通过光学表面的截面具有抛物线形状的镜子。它旨在聚焦或准直宽带光。居中抛物面反射镜的焦点位于入射光束的轴上，对于许多用户来说，这是不切实际的，因此离轴抛物面反射镜通常是最佳选择，因为焦点位于入射光束之外。



一般规格
材料 6061-T6
类型 离轴抛物面反射镜
焦距公差（mm） ±1
直径公差（mm） ±0.2
表面粗糙度（nm） 10
涂料

受保护的铝波长： 400-1200 nm

受保护的银波长：400-12000 nm

受保护的金波长：2000-12000 nm

紫外增强铝波长：250-450 nm

带通孔














无通孔
















没有通孔的尺寸更多，请与我们联系以获取详细信息。



光路图

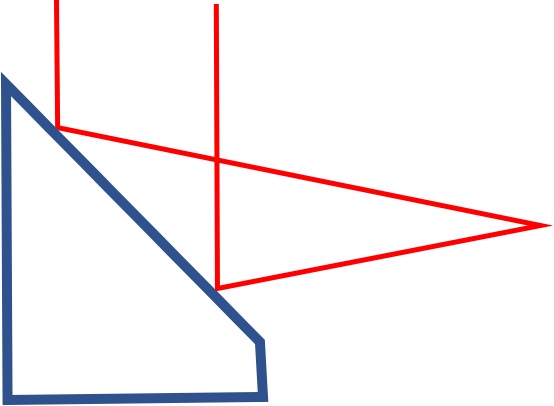

90°离轴

（默认情况下）

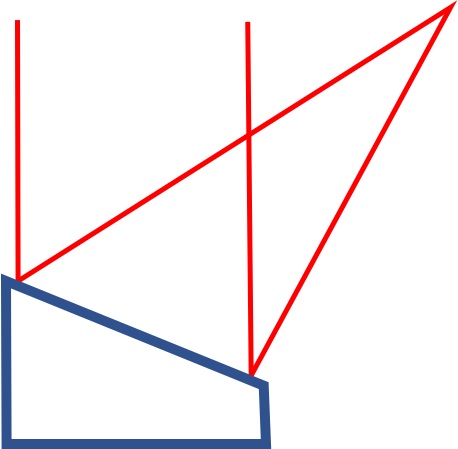

15 °、30 °、  45 ° 、60 ° 离轴

（定制）

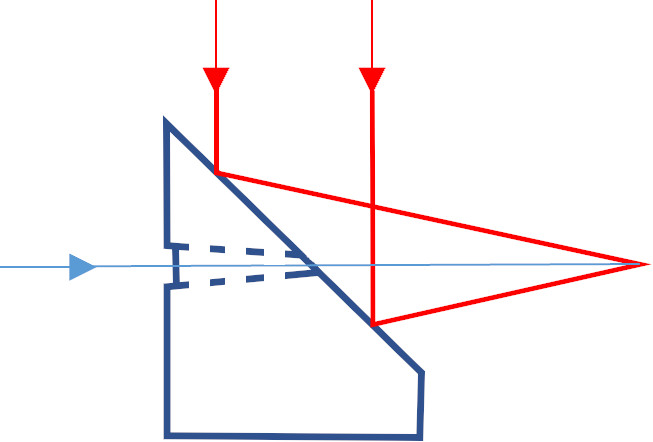

90 °，孔与聚焦光束平行

（默认情况下）

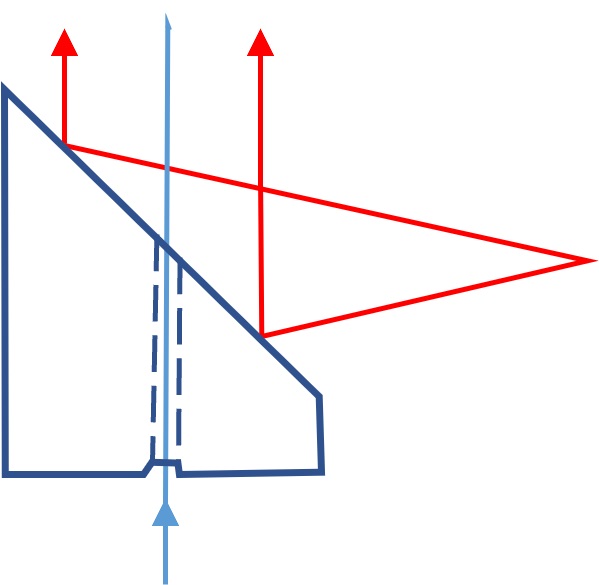

90 °，孔与准直光束平行

（定制）




离轴抛物面反射镜模型指南

涂层 产品代码 焦距(mm) 直径(mm) 标准角度 定制角度 中心孔

受保护的黄金

@2000-12000nm

 PAU-OAP-12.7-25.4 12.7 25.4 90 度 15/45/60 度 是或否
PAU-OAP-25.4-25.4 25.4 90 度 15/45/60 度 是或否
PAU-OAP-38.1-25.4 38.1 90 度 15/45/60 度 是或否
PAU-OAP-50.8-25.4 50.8 90 度 15/45/60 度 是或否
PAU-OAP-76.2-25.4 76.2 90 度 15/45/60 度 是或否
PAU-OAP-101.6-25.4 101.6 90 度 15/45/60 度 是或否
PAU-OAP-152.4-25.4 152.4 90 度 15/45/60 度 是或否
PAU-OAP-203.2-25.4 203.2 90 度 15/45/60 度 是或否
PAU-OAP-25.4-50.8 25.4 50.8 90 度 15/45/60 度 是或否
PAU-OAP-38.1-50.8 38.1 90 度 15/45/60 度 是或否
PAU-OAP-50.8-50.8 50.8 90 度 15/45/60 度 是或否
PAU-OAP-76.2-50.8 76.2 90 度 15/45/60 度 是或否
PAU-OAP-101.6-50.8 101.6 90 度 15/45/60 度 是或否
PAU-OAP-152.4-50.8 152.4 90 度 15/45/60 度 是或否
PAU-OAP-203.2-50.8 203.2 90 度 15/45/60 度 是或否
PAU-OAP-254-50.8 254 90 度 15/45/60 度 是或否

受保护的银

@400-12000 nm

 PAG-OAP-12.7-25.4 12.7 25.4 90 度 15/45/60 度 是或否
PAG-OAP-25.4-25.4 25.4 90 度 15/45/60 度 是或否
PAG-OAP-38.1-25.4 38.1 90 度 15/45/60 度 是或否
PAG-OAP-50.8-25.4 50.8 90 度 15/45/60 度 是或否
PAG-OAP-76.2-25.4 76.2 90 度 15/45/60 度 是或否
PAG-OAP-101.6-25.4 101.6 90 度 15/45/60 度 是或否
PAG-OAP-152.4-25.4 152.4 90 度 15/45/60 度 是或否
PAG-OAP-203.2-25.4 203.2 90 度 15/45/60 度 是或否
PAG-OAP-25.4-50.8 25.4 50.8 90 度 15/45/60 度 是或否
PAG-OAP-38.1-50.8 38.1 90 度 15/45/60 度 是或否
PAG-OAP-50.8-50.8 50.8 90 度 15/45/60 度 是或否
PAG-OAP-76.2-50.8 76.2 90 度 15/45/60 度 是或否
PAG-OAP-101.6-50.8 101.6 90 度 15/45/60 度 是或否
PAG-OAP-152.4-50.8 152.4 90 度 15/45/60 度 是或否
PAG-OAP-203.2-50.8 203.2 90 度 15/45/60 度 是或否
PAG-OAP-254-50.8 254 90 度 15/45/60 度 是或否

受保护的铝

@400-1200 nm

 PAL-OAP-12.7-25.4 12.7 25.4 90 度 15/45/60 度 是或否
PAL-OAP-25.4-25.4 25.4 90 度 15/45/60 度 是或否
PAL-OAP-38.1-25.4 38.1 90 度 15/45/60 度 是或否
PAL-OAP-50.8-25.4 50.8 90 度 15/45/60 度 是或否
PAL-OAP-76.2-25.4 76.2 90 度 15/45/60 度 是或否
PAL-OAP-101.6-25.4 101.6 90 度 15/45/60 度 是或否
PAL-OAP-152.4-25.4 152.4 90 度 15/45/60 度 是或否
PAL-OAP-203.2-25.4 203.2 90 度 15/45/60 度 是或否
PAL-OAP-25.4-50.8 25.4 50.8 90 度 15/45/60 度 是或否
PAL-OAP-38.1-50.8 38.1 90 度 15/45/60 度 是或否
PAL-OAP-50.8-50.8 50.8 90 度 15/45/60 度 是或否
PAL-OAP-76.2-50.8 76.2 90 度 15/45/60 度 是或否
PAL-OAP-101.6-50.8 101.6 90 度 15/45/60 度 是或否
PAL-OAP-152.4-50.8 152.4 90 度 15/45/60 度 是或否
PAL-OAP-152.4-50.8 203.2 90 度 15/45/60 度 是或否
PAL-OAP-152.4-50.8 254 90 度 15/45/60 度 是或否

紫外增强铝

@250-450 nm

 UVE-OAP-12.7-25.4 12.7 25.4 90 度 15/45/60 度 是或否
UVE-OAP-25.4-25.4 25.4 90 度 15/45/60 度 是或否
UVE-OAP-38.1-25.4 38.1 90 度 15/45/60 度 是或否
UVE-OAP-50.8-25.4 50.8 90 度 15/45/60 度 是或否
UVE-OAP-76.2-25.4 76.2 90 度 15/45/60 度 是或否
UVE-OAP-101.6-25.4 101.6 90 度 15/45/60 度 是或否
UVE-OAP-152.4-25.4 152.4 90 度 15/45/60 度 是或否
UVE-OAP-203.2-25.4 203.2 90 度 15/45/60 度 是或否
UVE-OAP-25.4-50.8 25.4 50.8 90 度 15/45/60 度 是或否
UVE-OAP-38.1-50.8

38.1

 90 度 15/45/60 度 是或否
UVE-OAP-50.8-50.8 50.8 90 度 15/45/60 度 是或否
UVE-OAP-76.2-50.8 76.2 90 度 15/45/60 度 是或否
UVE-OAP-101.6-50.8 101.6 90 度 15/45/60 度 是或否
UVE-OAP-152.4-50.8 152.4 90 度 15/45/60 度 是或否
UVE-OAP-152.4-50.8 203.2 90 度 15/45/60 度 是或否
UVE-OAP-152.4-50.8 254 90 度 15/45/60 度 是或否




铝涂层反射率曲线 image.png

镀金反射率曲线


银涂层反射率曲线


紫外增强涂层反射率曲线




型号
 产品

   太赫兹量子级联激光器

   用于太赫兹的780nm飞秒激光器



   用于太赫兹的1560nm飞秒激光器

   TPX / HDPE 太赫兹平凸透镜

尺寸选择：1至2英寸（可定制）

焦距：10毫米至240毫米（可定制）

材料： TPX / HDPE

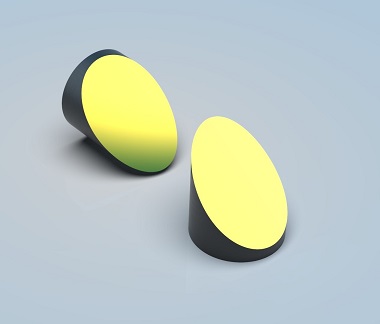

   离轴抛物面反射镜

尺寸选择：1至2英寸（可定制）

角度：90度和15/45/60度

焦距：12.7毫米至254毫米（可定制）

涂层： 保护金， 保护银， 保护 AL ， 紫外线增强 AL

通孔： 是

  太赫兹空心逆向反射器

 尺寸选择：25.4毫米至63.5毫米（可定制）

涂层： 保护金， 保护银， 保护 AL ， 紫外线增强 AL

   太赫兹金属反射镜

尺寸选择：25.4毫米至76.2毫米（可定制）

厚度：3至6毫米（可定制）

涂层： 保护金， 保护银， 保护 AL ， 紫外线增强 AL

  太赫兹锌矿晶体

 尺寸选择：10毫米* 10毫米*（0.1至2毫米）（可定制）

  太赫兹扩束反射

输出直径：40毫米

涂层： 保护金， 保护银， 保护 AL ， 紫外线增强 AL

  太赫兹偏振片

尺寸选择：25.4毫米和50.8毫米（可定制）

   太赫兹高电阻率硅分束器

尺寸选择：1至3英寸（可定制）

厚度 0.5 至 3毫米



   太赫兹波束轮廓仪（1-18 THz）






我们在这里为您服务！





给我们发电子邮件 info@simtrum.com 以获得今天最优惠的价格。   想要更多的技术信息?点击这里 获取专业定制系统/解决方案。




没有时间逐个搜索产品?不用担心。您可以下载全系列的瑆创产品线卡，现在点击它。



想要更接近市场动态和技术发展吗?只需花5秒钟作为会员登录，我们将为您带来最新的新闻。​(屏幕右上方的登录按钮)

Diameter (mm)

Focal Length (mm)

Coating


Search Reset
Compare Model Drawings & Specs Coating Focal Length (mm) Diameter (mm) Availability Reference Price
(USD)
PAG-OAP-12.7-25.4-Y
Off Axis Parabolic Mirror, Focal Length=12.7mm, Ø=25.4mm, HR Coating: Protected Silver@400-12000nm, with hole 		Protected Silver@400-12000nm12.725.4 In Stock $294.00
PAG-OAP-25.4-25.4-Y
Off Axis Parabolic Mirror, Focal Length=25.4mm, Ø=25.4mm, HR Coating: Protected Silver@400-12000nm, with hole 		Protected Silver@400-12000nm25.425.4 In Stock $171.00
PAG-OAP-38.1-25.4-Y
Off Axis Parabolic Mirror, Focal Length=38.1mm, Ø=25.4mm, HR Coating: Protected Silver@400-12000nm, with hole 		Protected Silver@400-12000nm38.125.4 In Stock $151.00
PAG-OAP-50.8-25.4-Y
Off Axis Parabolic Mirror, Focal Length=50.8mm, Ø=25.4mm, HR Coating: Protected Silver@400-12000nm, with hole 		Protected Silver@400-12000nm50.825.4 In Stock $132.00
PAG-OAP-76.2-25.4-Y
Off Axis Parabolic Mirror, Focal Length=76.2mm, Ø=25.4mm, HR Coating: Protected Silver@400-12000nm, with hole 		Protected Silver@400-12000nm76.225.4 In Stock $132.00
PAG-OAP-101.6-25.4-Y
Off Axis Parabolic Mirror, Focal Length=101.6mm, Ø=25.4mm, HR Coating: Protected Silver@400-12000nm, with hole 		Protected Silver@400-12000nm101.625.4 In Stock $132.00
PAG-OAP-152.4-25.4-Y
Off Axis Parabolic Mirror, Focal Length=152.4mm, Ø=25.4mm, HR Coating: Protected Silver@400-12000nm, with hole 		Protected Silver@400-12000nm152.425.4 In Stock $171.00
PAG-OAP-203.2-25.4-Y
Off Axis Parabolic Mirror, Focal Length=203.2mm, Ø=25.4mm, HR Coating: Protected Silver@400-12000nm, with hole 		Protected Silver@400-12000nm203.225.4 In Stock $171.00
PAG-OAP-25.4-50.8-Y
Off Axis Parabolic Mirror, Focal Length=25.4mm, Ø=50.8mm, HR Coating: Protected Silver@400-12000nm, with hole 		Protected Silver@400-12000nm25.450.8 In Stock $428.00
PAG-OAP-38.1-50.8-Y
Off Axis Parabolic Mirror, Focal Length=38.1mm, Ø=50.8mm, HR Coating: Protected Silver@400-12000nm, with hole 		Protected Silver@400-12000nm38.150.8 In Stock $306.00
PAG-OAP-50.8-50.8-Y
Off Axis Parabolic Mirror, Focal Length=50.8mm, Ø=50.8mm, HR Coating: Protected Silver@400-12000nm, with hole 		Protected Silver@400-12000nm50.850.8 In Stock $264.00
PAG-OAP-76.2-50.8-Y
Off Axis Parabolic Mirror, Focal Length=76.2mm, Ø=50.8mm, HR Coating: Protected Silver@400-12000nm, with hole 		Protected Silver@400-12000nm76.250.8 In Stock $243.00
PAG-OAP-101.6-50.8-Y
Off Axis Parabolic Mirror, Focal Length=101.6mm, Ø=50.8mm, HR Coating: Protected Silver@400-12000nm, with hole 		Protected Silver@400-12000nm101.650.8 In Stock $306.00
PAG-OAP-152.4-50.8-Y
Off Axis Parabolic Mirror, Focal Length=152.4mm, Ø=50.8mm, HR Coating: Protected Silver@400-12000nm, with hole 		Protected Silver@400-12000nm152.450.8 In Stock $324.00
PAG-OAP-203.2-50.8-Y
Off Axis Parabolic Mirror, Focal Length=203.2mm, Ø=50.8mm, HR Coating: Protected Silver@400-12000nm, with hole 		Protected Silver@400-12000nm203.250.8 In Stock $387.00
PAG-OAP-254-50.8-Y
Off Axis Parabolic Mirror, Focal Length=254mm, Ø=50.8mm, HR Coating: Protected Silver@400-12000nm, with hole 		Protected Silver@400-12000nm25450.8 In Stock $387.00
PAL-OAP-12.7-25.4-Y
Off Axis Parabolic Mirror, Focal Length=12.7mm, Ø=25.4mm, HR Coating: Protected Aluminum @400-1200nm, with hole 		Protected Aluminum @400-1200nm12.725.4 In Stock $292.00
PAL-OAP-25.4-25.4-Y
Off Axis Parabolic Mirror, Focal Length=25.4mm, Ø=25.4mm, HR Coating: Protected Aluminum @400-1200nm, with hole 		Protected Aluminum @400-1200nm25.425.4 In Stock $169.00
PAL-OAP-38.1-25.4-Y
Off Axis Parabolic Mirror, Focal Length=38.1mm, Ø=25.4mm, HR Coating: Protected Aluminum @400-1200nm, with hole 		Protected Aluminum @400-1200nm38.125.4 In Stock $148.00
PAL-OAP-50.8-25.4-Y
Off Axis Parabolic Mirror, Focal Length=50.8mm, Ø=25.4mm, HR Coating: Protected Aluminum @400-1200nm, with hole 		Protected Aluminum @400-1200nm50.825.4 In Stock $130.00
PAL-OAP-76.2-25.4-Y
Off Axis Parabolic Mirror, Focal Length=76.2mm, Ø=25.4mm, HR Coating: Protected Aluminum @400-1200nm, with hole 		Protected Aluminum @400-1200nm76.225.4 In Stock $130.00
PAL-OAP-101.6-25.4-Y
Off Axis Parabolic Mirror, Focal Length=101.6mm, Ø=25.4mm, HR Coating: Protected Aluminum @400-1200nm, with hole 		Protected Aluminum @400-1200nm101.625.4 In Stock $130.00
PAL-OAP-152.4-25.4-Y
Off Axis Parabolic Mirror, Focal Length=152.4mm, Ø=25.4mm, HR Coating: Protected Aluminum @400-1200nm, with hole 		Protected Aluminum @400-1200nm152.425.4 In Stock $169.00
PAL-OAP-203.2-25.4-Y
Off Axis Parabolic Mirror, Focal Length=203.2mm, Ø=25.4mm, HR Coating: Protected Aluminum @400-1200nm, with hole 		Protected Aluminum @400-1200nm203.225.4 In Stock $169.00
PAL-OAP-25.4-50.8-Y
Off Axis Parabolic Mirror, Focal Length=25.4mm, Ø=50.8mm, HR Coating: Protected Aluminum @400-1200nm, with hole 		Protected Aluminum @400-1200nm25.450.8 In Stock $424.00
PAL-OAP-38.1-50.8-Y
Off Axis Parabolic Mirror, Focal Length=38.1mm, Ø=50.8mm, HR Coating: Protected Aluminum @400-1200nm, with hole 		Protected Aluminum @400-1200nm38.150.8 In Stock $382.00
PAL-OAP-50.8-50.8-Y
Off Axis Parabolic Mirror, Focal Length=50.8mm, Ø=50.8mm, HR Coating: Protected Aluminum @400-1200nm, with hole 		Protected Aluminum @400-1200nm50.850.8 In Stock $301.00
PAL-OAP-76.2-50.8-Y
Off Axis Parabolic Mirror, Focal Length=76.2mm, Ø=50.8mm, HR Coating: Protected Aluminum @400-1200nm, with hole 		Protected Aluminum @400-1200nm76.250.8 In Stock $259.00
PAL-OAP-101.6-50.8-Y
Off Axis Parabolic Mirror, Focal Length=101.6mm, Ø=50.8mm, HR Coating: Protected Aluminum @400-1200nm, with hole 		Protected Aluminum @400-1200nm101.650.8 In Stock $241.00
PAL-OAP-152.4-50.8-Y
Off Axis Parabolic Mirror, Focal Length=152.4mm, Ø=50.8mm, HR Coating: Protected Aluminum @400-1200nm, with hole 		Protected Aluminum @400-1200nm152.450.8 In Stock $301.00
PAL-OAP-203.2-50.8-Y
Off Axis Parabolic Mirror, Focal Length=203.2mm, Ø=50.8mm, HR Coating: Protected Aluminum @400-1200nm, with hole 		Protected Aluminum @400-1200nm203.250.8 In Stock $322.00
PAL-OAP-254-50.8-Y
Off Axis Parabolic Mirror, Focal Length=254mm, Ø=50.8mm, HR Coating: Protected Aluminum @400-1200nm, with hole 		Protected Aluminum @400-1200nm25450.8 In Stock $382.00
PAU-OAP-12.7-25.4-Y
Off Axis Parabolic Mirror, Focal Length=12.7mm, Ø=25.4mm, HR Coating: Protected Gold@2000-12000nm, with hole 		Protected Gold@2000-12000nm12.725.4 2-3 Weeks $327.00
PAU-OAP-25.4-25.4-Y
Off Axis Parabolic Mirror, Focal Length=25.4mm, Ø=25.4mm, HR Coating: Protected Gold@2000-12000nm, with hole 		Protected Gold@2000-12000nm25.425.4 2-3 Weeks $204.00
PAU-OAP-38.1-25.4-Y
Off Axis Parabolic Mirror, Focal Length=38.1mm, Ø=25.4mm, HR Coating: Protected Gold@2000-12000nm, with hole 		Protected Gold@2000-12000nm38.125.4 2-3 Weeks $183.00
PAU-OAP-50.8-25.4-Y
Off Axis Parabolic Mirror, Focal Length=50.8mm, Ø=25.4mm, HR Coating: Protected Gold@2000-12000nm, with hole 		Protected Gold@2000-12000nm50.825.4 2-3 Weeks $162.00
PAU-OAP-76.2-25.4-Y
Off Axis Parabolic Mirror, Focal Length=76.2mm, Ø=25.4mm, HR Coating: Protected Gold@2000-12000Ym, with hole 		Protected Gold@2000-12000nm76.225.4 2-3 Weeks $162.00
PAU-OAP-101.6-25.4-Y
Off Axis Parabolic Mirror, Focal Length=101.6mm, Ø=25.4mm, HR Coating: Protected Gold@2000-12000nm, with hole 		Protected Gold@2000-12000nm101.625.4 2-3 Weeks $162.00
PAU-OAP-152.4-25.4-Y
Off Axis Parabolic Mirror, Focal Length=152.4mm, Ø=25.4mm, HR Coating: Protected Gold@2000-12000nm, with hole 		Protected Gold@2000-12000nm152.425.4 2-3 Weeks $204.00
PAU-OAP-203.2-25.4-Y
Off Axis Parabolic Mirror, Focal Length=203.2mm, Ø=25.4mm, HR Coating: Protected Gold@2000-12000nm, with hole 		Protected Gold@2000-12000nm203.225.4 2-3 Weeks $204.00
PAU-OAP-25.4-50.8-Y
Off Axis Parabolic Mirror, Focal Length=25.4mm, Ø=50.8mm, HR Coating: Protected Gold@2000-12000nm, with hole 		Protected Gold@2000-12000nm25.450.8 2-3 Weeks $468.00
PAU-OAP-38.1-50.8-Y
Off Axis Parabolic Mirror, Focal Length=38.1mm, Ø=50.8mm, HR Coating: Protected Gold@2000-12000nm, with hole 		Protected Gold@2000-12000nm38.150.8 2-3 Weeks $345.00
PAU-OAP-50.8-50.8-Y
Off Axis Parabolic Mirror, Focal Length=50.8mm, Ø=50.8mm, HR Coating: Protected Gold@2000-12000nm, with hole 		Protected Gold@2000-12000nm50.850.8 2-3 Weeks $306.00
PAU-OAP-76.2-50.8-Y
Off Axis Parabolic Mirror, Focal Length=76.2mm, Ø=50.8mm, HR Coating: Protected Gold@2000-12000nm, with hole 		Protected Gold@2000-12000nm76.250.8 2-3 Weeks $306.00
PAU-OAP-101.6-50.8-Y
Off Axis Parabolic Mirror, Focal Length=101.6mm, Ø=50.8mm, HR Coating: Protected Gold@2000-12000nm, with hole 		Protected Gold@2000-12000nm101.650.8 2-3 Weeks $345.00
PAU-OAP-152.4-50.8-Y
Off Axis Parabolic Mirror, Focal Length=152.4mm, Ø=50.8mm, HR Coating: Protected Gold@2000-12000nm, with hole 		Protected Gold@2000-12000nm152.450.8 2-3 Weeks $366.00
PAU-OAP-203.2-50.8-Y
Off Axis Parabolic Mirror, Focal Length=203.2mm, Ø=50.8mm, HR Coating: Protected Gold@2000-12000nm, with hole 		Protected Gold@2000-12000nm203.250.8 2-3 Weeks $428.00
PAU-OAP-254-50.8-Y
Off Axis Parabolic Mirror, Focal Length=254mm, Ø=50.8mm, HR Coating: Protected Gold@2000-12000nm, with hole 		Protected Gold@2000-12000nm25450.8 2-3 Weeks $428.00
UVE-OAP-12.7-25.4-Y
Off Axis Parabolic Mirror, Focal Length=12.7mm, Dia=25.4mm, HR Coating: UV-Enhanced Aluminum@250-450 nm, with Hole 		UV-Enhanced Aluminum@250-450 nm12.725.4 2-3 Weeks $292.00
UVE-OAP-25.4-25.4-Y
Off Axis Parabolic Mirror, Focal Length=25.4mm, Dia=25.4mm, HR Coating: UV-Enhanced Aluminum@250-450 nm, with Hole 		UV-Enhanced Aluminum@250-450 nm25.425.4 2-3 Weeks $169.00
UVE-OAP-38.1-25.4-Y
Off Axis Parabolic Mirror, Focal Length=38.1mm, Dia=25.4mm, HR Coating: UV-Enhanced Aluminum@250-450 nm, with Hole 		UV-Enhanced Aluminum@250-450 nm38.125.4 2-3 Weeks $148.00
UVE-OAP-50.8-25.4-Y
Off Axis Parabolic Mirror, Focal Length=50.8mm, Dia=25.4mm, HR Coating: UV-Enhanced Aluminum@250-450 nm, with Hole 		UV-Enhanced Aluminum@250-450 nm50.825.4 2-3 Weeks $130.00
UVE-OAP-76.2-25.4-Y
Off Axis Parabolic Mirror, Focal Length=76.2mm, Dia=25.4mm, HR Coating: UV-Enhanced Aluminum@250-450 nm, with Hole 		UV-Enhanced Aluminum@250-450 nm76.225.4 2-3 Weeks $130.00
UVE-OAP-101.6-25.4-Y
Off Axis Parabolic Mirror, Focal Length=101.6mm, Dia=25.4mm, HR Coating: UV-Enhanced Aluminum@250-450 nm, with Hole 		UV-Enhanced Aluminum@250-450 nm101.625.4 2-3 Weeks $130.00
UVE-OAP-152.4-25.4-Y
Off Axis Parabolic Mirror, Focal Length=152.4mm, Dia=25.4mm, HR Coating: UV-Enhanced Aluminum@250-450 nm, with Hole 		UV-Enhanced Aluminum@250-450 nm152.425.4 2-3 Weeks $169.00
UVE-OAP-203.2-25.4-Y
Off Axis Parabolic Mirror, Focal Length=203.2mm, Dia=25.4mm, HR Coating: UV-Enhanced Aluminum@250-450 nm, with Hole 		UV-Enhanced Aluminum@250-450 nm203.225.4 2-3 Weeks $169.00
UVE-OAP-25.4-50.8-Y
Off Axis Parabolic Mirror, Focal Length=25.4mm, Dia=50.8mm, HR Coating: UV-Enhanced Aluminum@250-450 nm, with Hole 		UV-Enhanced Aluminum@250-450 nm25.450.8 2-3 Weeks $424.00
UVE-OAP-38.1-50.8-Y
Off Axis Parabolic Mirror, Focal Length=38.1mm, Dia=50.8mm, HR Coating: UV-Enhanced Aluminum@250-450 nm, with Hole 		UV-Enhanced Aluminum@250-450 nm38.150.8 2-3 Weeks $382.00
UVE-OAP-50.8-50.8-Y
Off Axis Parabolic Mirror, Focal Length=50.8mm, Dia=50.8mm, HR Coating: UV-Enhanced Aluminum@250-450 nm, with Hole 		UV-Enhanced Aluminum@250-450 nm50.850.8 2-3 Weeks $301.00
UVE-OAP-76.2-50.8-Y
Off Axis Parabolic Mirror, Focal Length=76.2mm, Dia=50.8mm, HR Coating: UV-Enhanced Aluminum@250-450 nm, with Hole 		UV-Enhanced Aluminum@250-450 nm76.250.8 2-3 Weeks $259.00
UVE-OAP-101.6-50.8-Y
Off Axis Parabolic Mirror, Focal Length=101.6mm, Dia=50.8mm, HR Coating: UV-Enhanced Aluminum@250-450 nm, with Hole 		UV-Enhanced Aluminum@250-450 nm101.650.8 2-3 Weeks $241.00
UVE-OAP-152.4-50.8-Y
Off Axis Parabolic Mirror, Focal Length=152.4mm, Dia=50.8mm, HR Coating: UV-Enhanced Aluminum@250-450 nm, with Hole 		UV-Enhanced Aluminum@250-450 nm152.450.8 2-3 Weeks $292.00
UVE-OAP-203.2-50.8-Y
Off Axis Parabolic Mirror, Focal Length=203.2mm, Dia=50.8mm, HR Coating: UV-Enhanced Aluminum@250-450 nm, with Hole 		UV-Enhanced Aluminum@250-450 nm203.250.8 2-3 Weeks $313.00
UVE-OAP-254-25.4-Y
Off Axis Parabolic Mirror, Focal Length=254mm, Dia=50.8mm, HR Coating: UV-Enhanced Aluminum@250-450 nm, with Hole 		UV-Enhanced Aluminum@250-450 nm25450.8 2-3 Weeks $382.00

UVE-OAP-254-25.4-Y - Parameter

Coating
UV-Enhanced Aluminum@250-450 nm

Focal Length (mm)
254

Diameter (mm)
50.8

Clear Hole
Yes

UVE-OAP-203.2-50.8-Y - Parameter

Coating
UV-Enhanced Aluminum@250-450 nm

Focal Length (mm)
203.2

Diameter (mm)
50.8

Clear Hole
Yes

UVE-OAP-152.4-50.8-Y - Parameter

Coating
UV-Enhanced Aluminum@250-450 nm

Focal Length (mm)
152.4

Diameter (mm)
50.8

Clear Hole
Yes

UVE-OAP-101.6-50.8-Y - Parameter

Coating
UV-Enhanced Aluminum@250-450 nm

Focal Length (mm)
101.6

Diameter (mm)
50.8

Clear Hole
Yes

UVE-OAP-76.2-50.8-Y - Parameter

Coating
UV-Enhanced Aluminum@250-450 nm

Focal Length (mm)
76.2

Diameter (mm)
50.8

Clear Hole
Yes

UVE-OAP-50.8-50.8-Y - Parameter

Coating
UV-Enhanced Aluminum@250-450 nm

Focal Length (mm)
50.8

Diameter (mm)
50.8

Clear Hole
Yes

UVE-OAP-38.1-50.8-Y - Parameter

Coating
UV-Enhanced Aluminum@250-450 nm

Focal Length (mm)
38.1

Diameter (mm)
50.8

Clear Hole
Yes

UVE-OAP-25.4-50.8-Y - Parameter

Coating
UV-Enhanced Aluminum@250-450 nm

Focal Length (mm)
25.4

Diameter (mm)
50.8

Clear Hole
Yes

UVE-OAP-203.2-25.4-Y - Parameter

Coating
UV-Enhanced Aluminum@250-450 nm

Focal Length (mm)
203.2

Diameter (mm)
25.4

Clear Hole
Yes

UVE-OAP-152.4-25.4-Y - Parameter

Coating
UV-Enhanced Aluminum@250-450 nm

Focal Length (mm)
152.4

Diameter (mm)
25.4

Clear Hole
Yes

UVE-OAP-101.6-25.4-Y - Parameter

Coating
UV-Enhanced Aluminum@250-450 nm

Focal Length (mm)
101.6

Diameter (mm)
25.4

Clear Hole
Yes

UVE-OAP-76.2-25.4-Y - Parameter

Coating
UV-Enhanced Aluminum@250-450 nm

Focal Length (mm)
76.2

Diameter (mm)
25.4

Clear Hole
Yes

UVE-OAP-50.8-25.4-Y - Parameter

Coating
UV-Enhanced Aluminum@250-450 nm

Focal Length (mm)
50.8

Diameter (mm)
25.4

Clear Hole
Yes

UVE-OAP-38.1-25.4-Y - Parameter

Coating
UV-Enhanced Aluminum@250-450 nm

Focal Length (mm)
38.1

Diameter (mm)
25.4

Clear Hole
Yes

UVE-OAP-25.4-25.4-Y - Parameter

Coating
UV-Enhanced Aluminum@250-450 nm

Focal Length (mm)
25.4

Diameter (mm)
25.4

Clear Hole
Yes

UVE-OAP-12.7-25.4-Y - Parameter

Coating
UV-Enhanced Aluminum@250-450 nm

Focal Length (mm)
12.7

Diameter (mm)
25.4

Clear Hole
Yes

PAU-OAP-254-50.8-Y - Parameter

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
254

Diameter (mm)
50.8

Clear Hole
No

PAU-OAP-203.2-50.8-Y - Parameter

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
203.2

Diameter (mm)
50.8

Clear Hole
No

PAU-OAP-152.4-50.8-Y - Parameter

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
152.4

Diameter (mm)
50.8

Clear Hole
No

PAU-OAP-101.6-50.8-Y - Parameter

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
101.6

Diameter (mm)
50.8

Clear Hole
No

PAU-OAP-76.2-50.8-Y - Parameter

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
76.2

Diameter (mm)
50.8

Clear Hole
Yes

PAU-OAP-50.8-50.8-Y - Parameter

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
50.8

Diameter (mm)
50.8

Clear Hole
No

PAU-OAP-38.1-50.8-Y - Parameter

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
38.1

Diameter (mm)
50.8

Clear Hole
Yes

PAU-OAP-25.4-50.8-Y - Parameter

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
25.4

Diameter (mm)
50.8

Clear Hole
No

PAU-OAP-203.2-25.4-Y - Parameter

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
203.2

Diameter (mm)
25.4

Clear Hole
Yes

PAU-OAP-152.4-25.4-Y - Parameter

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
152.4

Diameter (mm)
25.4

Clear Hole
Yes

PAU-OAP-101.6-25.4-Y - Parameter

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
101.6

Diameter (mm)
25.4

Clear Hole
Yes

PAU-OAP-76.2-25.4-Y - Parameter

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
76.2

Diameter (mm)
25.4

Clear Hole
Yes

PAU-OAP-50.8-25.4-Y - Parameter

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
50.8

Diameter (mm)
25.4

Clear Hole
Yes

PAU-OAP-38.1-25.4-Y - Parameter

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
38.1

Diameter (mm)
25.4

Clear Hole
Yes

PAU-OAP-25.4-25.4-Y - Parameter

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
25.4

Diameter (mm)
25.4

Clear Hole
Yes

PAU-OAP-12.7-25.4-Y - Parameter

Coating
Protected Gold@2000-12000nm

Focal Length (mm)
12.7

Diameter (mm)
25.4

Clear Hole
Yes

PAL-OAP-254-50.8-Y - Parameter

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
254

Diameter (mm)
50.8

Clear Hole
Yes

PAL-OAP-203.2-50.8-Y - Parameter

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
203.2

Diameter (mm)
50.8

Clear Hole
Yes

PAL-OAP-152.4-50.8-Y - Parameter

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
152.4

Diameter (mm)
50.8

Clear Hole
Yes

PAL-OAP-101.6-50.8-Y - Parameter

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
101.6

Diameter (mm)
50.8

Clear Hole
Yes

PAL-OAP-76.2-50.8-Y - Parameter

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
76.2

Diameter (mm)
50.8

Clear Hole
Yes

PAL-OAP-50.8-50.8-Y - Parameter

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
50.8

Diameter (mm)
50.8

Clear Hole
Yes

PAL-OAP-38.1-50.8-Y - Parameter

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
38.1

Diameter (mm)
50.8

Clear Hole
Yes

PAL-OAP-25.4-50.8-Y - Parameter

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
25.4

Diameter (mm)
50.8

Clear Hole
Yes

PAL-OAP-203.2-25.4-Y - Parameter

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
203.2

Diameter (mm)
25.4

Clear Hole
Yes

PAL-OAP-152.4-25.4-Y - Parameter

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
152.4

Diameter (mm)
25.4

Clear Hole
Yes

PAL-OAP-101.6-25.4-Y - Parameter

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
101.6

Diameter (mm)
25.4

Clear Hole
Yes

PAL-OAP-76.2-25.4-Y - Parameter

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
76.2

Diameter (mm)
25.4

Clear Hole
Yes

PAL-OAP-50.8-25.4-Y - Parameter

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
50.8

Diameter (mm)
25.4

Clear Hole
Yes

PAL-OAP-38.1-25.4-Y - Parameter

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
38.1

Diameter (mm)
25.4

Clear Hole
Yes

PAL-OAP-25.4-25.4-Y - Parameter

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
25.4

Diameter (mm)
25.4

Clear Hole
Yes

PAL-OAP-12.7-25.4-Y - Parameter

Coating
Protected Aluminum @400-1200nm

Focal Length (mm)
12.7

Diameter (mm)
25.4

Clear Hole
Yes

PAG-OAP-254-50.8-Y - Parameter

Coating
Protected Silver@400-12000nm

Focal Length (mm)
254

Diameter (mm)
50.8

Clear Hole
Yes

PAG-OAP-203.2-50.8-Y - Parameter

Coating
Protected Silver@400-12000nm

Focal Length (mm)
203.2

Diameter (mm)
50.8

Clear Hole
Yes

PAG-OAP-152.4-50.8-Y - Parameter

Coating
Protected Silver@400-12000nm

Focal Length (mm)
152.4

Diameter (mm)
50.8

Clear Hole
Yes

PAG-OAP-101.6-50.8-Y - Parameter

Coating
Protected Silver@400-12000nm

Focal Length (mm)
101.6

Diameter (mm)
50.8

Clear Hole
Yes

PAG-OAP-76.2-50.8-Y - Parameter

Coating
Protected Silver@400-12000nm

Focal Length (mm)
76.2

Diameter (mm)
50.8

Clear Hole
Yes

PAG-OAP-50.8-50.8-Y - Parameter

Coating
Protected Silver@400-12000nm

Focal Length (mm)
50.8

Diameter (mm)
50.8

Clear Hole
Yes

PAG-OAP-38.1-50.8-Y - Parameter

Coating
Protected Silver@400-12000nm

Focal Length (mm)
38.1

Diameter (mm)
50.8

Clear Hole
Yes

PAG-OAP-25.4-50.8-Y - Parameter

Coating
Protected Silver@400-12000nm

Focal Length (mm)
25.4

Diameter (mm)
50.8

Clear Hole
Yes

PAG-OAP-203.2-25.4-Y - Parameter

Coating
Protected Silver@400-12000nm

Focal Length (mm)
203.2

Diameter (mm)
25.4

Clear Hole
Yes

PAG-OAP-152.4-25.4-Y - Parameter

Coating
Protected Silver@400-12000nm

Focal Length (mm)
152.4

Diameter (mm)
25.4

Clear Hole
Yes

PAG-OAP-101.6-25.4-Y - Parameter

Coating
Protected Silver@400-12000nm

Focal Length (mm)
101.6

Diameter (mm)
25.4

Clear Hole
Yes

PAG-OAP-76.2-25.4-Y - Parameter

Coating
Protected Silver@400-12000nm

Focal Length (mm)
76.2

Diameter (mm)
25.4

Clear Hole
Yes

PAG-OAP-50.8-25.4-Y - Parameter

Coating
Protected Silver@400-12000nm

Focal Length (mm)
50.8

Diameter (mm)
25.4

Clear Hole
Yes

PAG-OAP-38.1-25.4-Y - Parameter

Coating
Protected Silver@400-12000nm

Focal Length (mm)
38.1

Diameter (mm)
25.4

Clear Hole
Yes

PAG-OAP-25.4-25.4-Y - Parameter

Coating
Protected Silver@400-12000nm

Focal Length (mm)
25.4

Diameter (mm)
25.4

Clear Hole
Yes

PAG-OAP-12.7-25.4-Y - Parameter

Coating
Protected Silver@400-12000nm

Focal Length (mm)
12.7

Diameter (mm)
25.4

Clear Hole
Yes

UVE-OAP-254-25.4-Y - Download

UVE-OAP-203.2-50.8-Y - Download

Download

UVE-OAP-152.4-50.8-Y - Download

UVE-OAP-101.6-50.8-Y - Download

UVE-OAP-76.2-50.8-Y - Download

Download

UVE-OAP-50.8-50.8-Y - Download

Download

UVE-OAP-38.1-50.8-Y - Download

UVE-OAP-25.4-50.8-Y - Download

UVE-OAP-203.2-25.4-Y - Download

Download

UVE-OAP-152.4-25.4-Y - Download

Download

UVE-OAP-101.6-25.4-Y - Download

Download

UVE-OAP-76.2-25.4-Y - Download

Download

UVE-OAP-50.8-25.4-Y - Download

Download

UVE-OAP-38.1-25.4-Y - Download

Download

UVE-OAP-25.4-25.4-Y - Download

Download

UVE-OAP-12.7-25.4-Y - Download

Download

PAU-OAP-254-50.8-Y - Download

Download

PAU-OAP-203.2-50.8-Y - Download

PAU-OAP-152.4-50.8-Y - Download

PAU-OAP-101.6-50.8-Y - Download

PAU-OAP-76.2-50.8-Y - Download

Download

PAU-OAP-50.8-50.8-Y - Download

Download

PAU-OAP-38.1-50.8-Y - Download

Download

PAU-OAP-25.4-50.8-Y - Download

Download

PAU-OAP-203.2-25.4-Y - Download

Download

PAU-OAP-152.4-25.4-Y - Download

Download

PAU-OAP-101.6-25.4-Y - Download

Download

PAU-OAP-76.2-25.4-Y - Download

Download

PAU-OAP-50.8-25.4-Y - Download

Download

PAU-OAP-38.1-25.4-Y - Download

Download

PAU-OAP-25.4-25.4-Y - Download

Download

PAU-OAP-12.7-25.4-Y - Download

Download

PAL-OAP-254-50.8-Y - Download

Download

PAL-OAP-203.2-50.8-Y - Download

Download

PAL-OAP-152.4-50.8-Y - Download

PAL-OAP-101.6-50.8-Y - Download

PAL-OAP-76.2-50.8-Y - Download

Download

PAL-OAP-50.8-50.8-Y - Download

Download

PAL-OAP-38.1-50.8-Y - Download

Download

PAL-OAP-25.4-50.8-Y - Download

Download

PAL-OAP-203.2-25.4-Y - Download

Download

PAL-OAP-152.4-25.4-Y - Download

Download

PAL-OAP-101.6-25.4-Y - Download

Download

PAL-OAP-76.2-25.4-Y - Download

Download

PAL-OAP-50.8-25.4-Y - Download

Download

PAL-OAP-38.1-25.4-Y - Download

Download

PAL-OAP-25.4-25.4-Y - Download

Download

PAL-OAP-12.7-25.4-Y - Download

Download

PAG-OAP-254-50.8-Y - Download

PAG-OAP-203.2-50.8-Y - Download

Download

PAG-OAP-152.4-50.8-Y - Download

Download

PAG-OAP-101.6-50.8-Y - Download

Download

PAG-OAP-76.2-50.8-Y - Download

Download

PAG-OAP-50.8-50.8-Y - Download

Download

PAG-OAP-38.1-50.8-Y - Download

Download

PAG-OAP-25.4-50.8-Y - Download

PAG-OAP-203.2-25.4-Y - Download

Download

PAG-OAP-152.4-25.4-Y - Download

Download

PAG-OAP-101.6-25.4-Y - Download

Download

PAG-OAP-76.2-25.4-Y - Download

Download

PAG-OAP-50.8-25.4-Y - Download

Download

PAG-OAP-38.1-25.4-Y - Download

Download

PAG-OAP-25.4-25.4-Y - Download

Download

PAG-OAP-12.7-25.4-Y - Download

Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)

Sales Enquiry：13326430008       Email：info@simtrum.com

Address:广州市黄埔区中新智慧一街7号1001（邮编：510700）

Copyright © 2024 瑆创科技（广州）有限公司. All right reserved. 粤ICP备2024272506号
