974nm / 976nm连续波单模光纤泵激光器

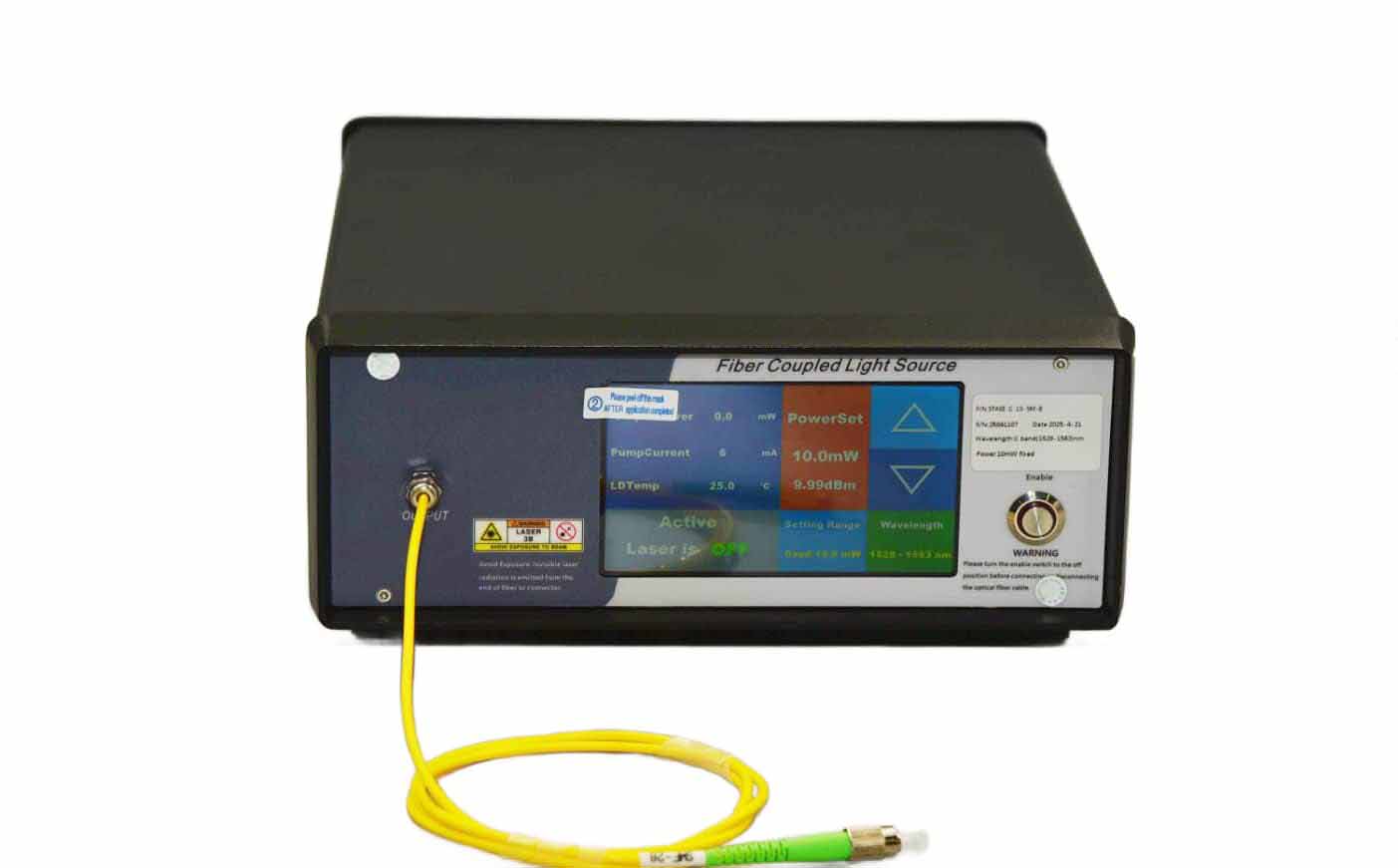

The SIMTRUM 974/976nm CW Single Mode Fiber Pump Laser is precision-engineered with a butterfly semiconductor chip and Fiber Bragg Grating (FBG) for stable wavelength locking. This ensures consistent performance with a secure operation, thanks to the professionally designed driver and robust temperature control circuits. It's an ideal pump source for fiber lasers and amplifiers, offering versatility with desktop or modular package options. Designed for reliability, this laser provides stable output power and a clean spectrum, tailored for excellence in optical amplification.

Features

  • Hight output power
  • Wavelength locking
  • Excellent stability of power

Applications

  • Fiber laser pump
  • Fiber amplifier pump
  • Optics components testing

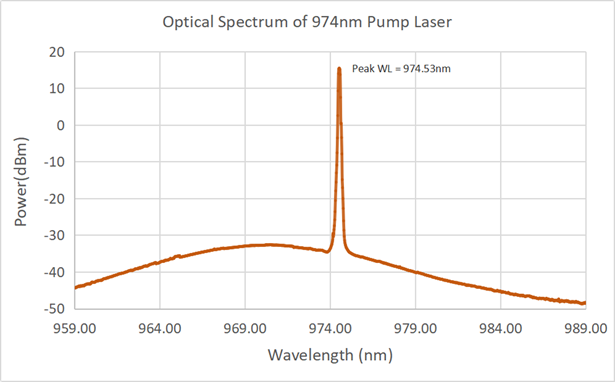

SIMTRUM_Optical_Spectrum_974nm_Pump_Laser



Product specifications and Brochures

Product Brochure Link:





Optical Parameters Unit Typical Value Remarks
Wavelength nm 974/976
Wavelength Accuracy nm ±1
Laser Mode - CW Continuous light
Output Power mW 200/400/600/1000
Accuracy Working - 10~100%
Instability(15min.in) dB ≤ ±0.02 Equivalent to ≤±0.5%
Instability(8 hr) dB ≤ ±0.05 Equivalent to ≤±1.2%
Polarization State - Random Linear polarization
Optical Fiber - Hi-1060 PM980
Fiber connector - FC/APC FC/APC
(slow axis alignment)








General Parameters Desktop Module
Control Function Keystroke / RS232 serial Communication RS232 serial Communication
Remote control Port DB9 Female DB9 Female
Power Supply AC100~240V, <20W DC5V, <15W
Dimensions 260(W)×280(D)×120(H)mm 125(W)×150(D)×20(H)mm
Operation Temperature -5~+35°C
Operation Humidity 0~70%





Ordering Information/ Product Code
Series Wavelength(nm) Output Power(mW) Fiber Packaging
STFL 974/976 200/400/600/1000 SM - HI 1060 M – Module
PM - PM 980 B - Desktop






Type Wavelength Wavelength Accuracy Spectral Linewidth Output Power
405-940 CW Single Mode Fiber Laser 405-940 nm ±5 nm - 5/10/20/100mW
793/808/915/976nm CW Multi Mode High Power Fiber Laser 793/ 808/ 915/ 976 nm ±3 nm / ±10 nm 3nm / 6nm 5/10/25W
974/976 CW Single Mode Fiber Pump Laser 974/ 976 nm ±1 nm - 200 - 1000mW
1030/1064 CW Single Mode Fiber Laser 1064 nm ±2 nm < 0.1nm 100mW - 10W
1120nm CW Single Mode Fiber Laser 1120±1 nm ≤ 0.1nm 1/2/5W
1310 CW Single Mode Fiber Laser 1310 nm ±2 nm ≤ 3nm 10/20/30/40mW
1450/1480 CW Single Mode Fiber Laser 1425/ 1435/ 1455/ 1465/ 1480 nm ±3 nm / ±10 nm - 200 - 800mW
1550 CW Single Mode Fiber Laser 1550 nm ±0.5 nm ≤ 3nm 10mW - 20W
1570 CW Single Mode Fiber Laser 1570 nm ±1 ±0.5 nm < 0.1nm 10/20/50/100/200/400/500 mW
30/33/35/37/40 dBm
2000 High Power CW Fiber Laser 1900-2050 nm - < 1nm  > 30 W




We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
STFL-976-400-SM-B
974 / 976nm Single Wavelength Fiber Laser, Wavelength 976 nm, Wavelength Accuracy ±1 nm, Output Power 400 mW
4-6 Weeks $1217.00
STFL-976-600-SM-B
974 / 976nm Single Wavelength Fiber Laser, Wavelength 976 nm, Wavelength Accuracy ±1 nm, Output Power 600 mW
4-6 Weeks $1481.00
STFL-976-1000-SM-B
974 / 976nm Single Wavelength Fiber Laser, Wavelength 976 nm, Wavelength Accuracy ±1 nm, Output Power 1000 mW
4-6 Weeks $3783.00
STFL-974-200-SM-B
974 / 976nm Single Wavelength Fiber Laser, Wavelength 974 nm, Wavelength Accuracy ±1 nm, Output Power 200 mW
4-6 Weeks $1085.00
STFL-974-300-SM-B
974 / 976nm Single Wavelength Fiber Laser, Wavelength 974 nm, Wavelength Accuracy ±1 nm, Output Power 300 mW
4-6 Weeks $1111.00
STFL-974-400-SM-B
974 / 976nm Single Wavelength Fiber Laser, Wavelength 974 nm, Wavelength Accuracy ±1 nm, Output Power 400 mW
4-6 Weeks $1217.00
STFL-974-500-SM-B
974 / 976nm Single Wavelength Fiber Laser, Wavelength 974 nm, Wavelength Accuracy ±1 nm, Output Power 500 mW
4-6 Weeks $1323.00
STFL-974-600-SM-B
974 / 976nm Single Wavelength Fiber Laser, Wavelength 974 nm, Wavelength Accuracy ±1 nm, Output Power 600 mW
4-6 Weeks $1481.00
STFL-974-680-SM-B
974 / 976nm Single Wavelength Fiber Laser, Wavelength 974 nm, Wavelength Accuracy ±1 nm, Output Power 680 mW
4-6 Weeks $2116.00
STFL-974-800-SM-B
974 / 976nm Single Wavelength Fiber Laser, Wavelength 974 nm, Wavelength Accuracy ±1 nm, Output Power 800 mW
4-6 Weeks $2910.00
STFL-974-1000-SM-B
974 / 976nm Single Wavelength Fiber Laser, Wavelength 974 nm, Wavelength Accuracy ±1 nm, Output Power 1000 mW
4-6 Weeks $3122.00
