光纤板(FOP)

Fiber Optic Plates- FOP

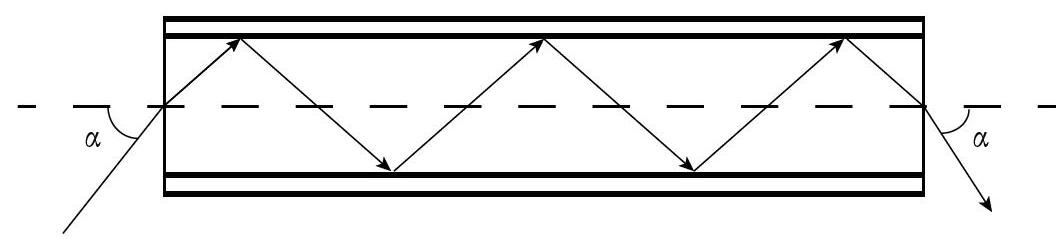

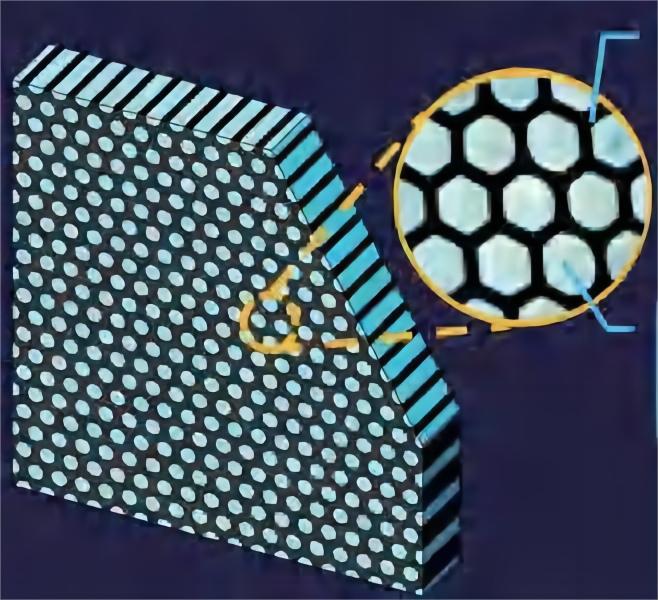

Fiber optic plates based on the principle of total reflection of light, which is composed of two or more specific optical fibers arranged in a angular way to transmit images from the input end face to the out end face.













Feature

Fiber Optic Plate

  • The size and direction of the images on the input and output surfaces remain unchanged



Fiber Optic Inverter

  • The size of the image on the input and output surfaces is unchanged and the direction is inverted



Fiber Optic Taper

  • The direction of the image on the input and output surfaces remains unchanged and the size changes

     Fiber Optic Plate







                                     Fiber Optic Inverter                   Fiber Optic Taper







Application

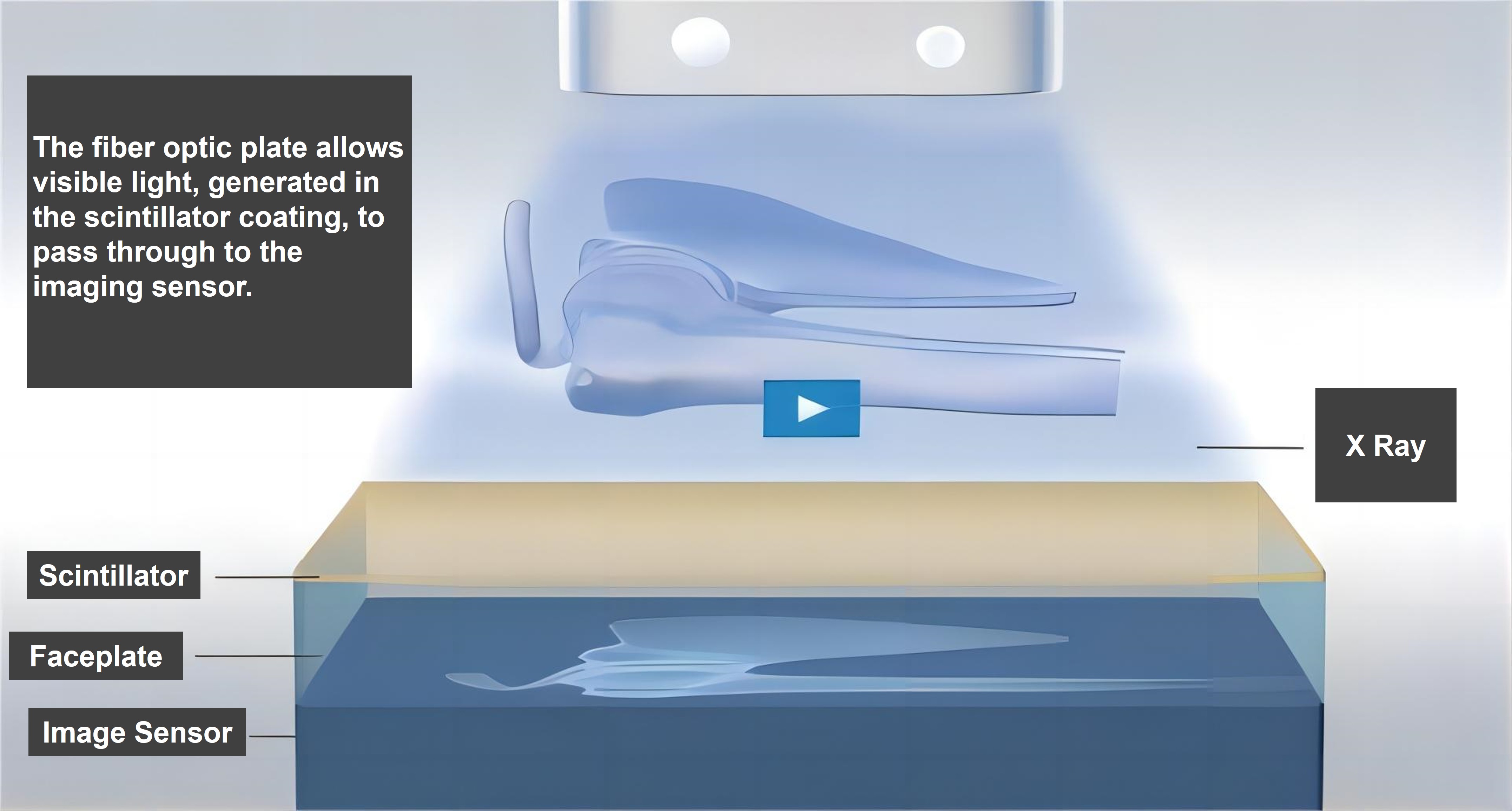

  • Military Equipment, Security Check, Communication, Aerospace Navigation, Medical treatment









Product Specifications and Brochures

Product Brochure Link:

Parameters Fiber Optic Plate Fiber Optic Inverter Fiber Optic Taper


Fiber Center Distance ≤4μm ≤4μm 4μm-100μm
Theoretical Numerical Aperture ≥1.0
Transmission Ration of
Collimating Light
≥65%
Lambert Transmittance ≥58% /
Coefficient of Linear Expansion ( 87 ± 2 )x107/  ( 87 ± 7 )x107/
Vacuum Tightness ≤2×10-12Pa·M3·S-1 /
Shear Distortion ≤30μm
Serpentine Distortion ≤20μm ≤40μm
As the Displacement ≤100μm ≤200μm ≤500μm
Other Shape:CircleSquarePlaneConcave /

Magnification Ration:

1.5:1 - 5:1


Micro-Channel Plate (MCP)

Product Parameter
 Micro-Channel Plate (MCP)  Effective Area: 10.5-100mm | 90-200° | ≥47mm×47mm;Channel Dia.:6-21μm; Thickness:0.325-1.2mm
 Micro-Channel Plate Assembly (MCP)  Diameter:25-50mm; Channel Dia.:6-12mm; Effective Area:18-44mm
 Fiber Optic Plates- FOP  Fiber Center Distance:≤4μm,4-100μm; Theoretical Numerical Aperture:≥1.0; Transmission Ration of Collimating Light:≥65%
 Micro Pore Optics  Aperture:10-100μm(Customizable); Boundary Dimension:≤50mm×50mm | Φ≤60mm; Thickness :1-3mm(Customizable)
 X-Ray Collimators  Aperture:10-100μm(Customizable); Thickness0.5-5mm(Customizable)





Photomultipliers Tube (PMT)

Model Spectral Response Range Peak Wavelength QE Typ. Effective Area(mm) Cathode Luminous Sensitivity Typ. Anode Sensitivity Typ.
 Photomultipliers Tube Head-On (Tube Only) 290 - 650nm 380 - 500nm 12% -,28% Φ10 - Φ58 40 - 100μA/lm 30 - 2000A/lm
 Photomultipliers Tube Side On(Tube Only) 160 - 900nm / / 8×24 40 - 250μA/lm 400 - 2500A/lm
 Photomultipliers Tube (Module) 160 - 900nm 400nm, 420nm / Φ22 - Φ25 | 8×24 60 - 250μA/lm /
 Microchannel Plate - Photomultiplier (MCP-PMT) 115 - 650nm 250nm, 380nm 30%@410nm, 15%@250nm / 70μA/lm 900A/lm
 Scintillator Probe / / / Φ25×25 - Φ75×75 / /
 β Detector / / / Φ10, Φ25 / /







Assemblies and Counting Unit



High Voltage Tube Socket High Voltage Tube Socket for Side Window Voltage Power Supply Counting Unit

We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
Fiber Optic Plate
Fiber Optic Plate, Fiber Center Distance ≤4μm, Theoretical Numerical Aperture ≥1.0, Transmission Ration of Collimating Light ≥65%, Lambert Transmittance ≥58%, Coefficient of Linear Expansion ( 87 ± 2 )x10^7/ ℃, Vacuum Tightness ≤2×10^-12Pa·M^3·S^-1, Shear Distortion ≤30μm, Serpentine Distortion ≤20μm, As the Displacement ≤100μm, Shape Circle, Square, Plane, Concave
6-8 weeks Request for quote
Fiber Optic Inverter
Fiber Optic Inverter, Fiber Center Distance ≤4μm, Theoretical Numerical Aperture ≥1.0, Transmission Ration of Collimating Light ≥65%, Lambert Transmittance ≥58%, Coefficient of Linear Expansion ( 87 ± 7 )x10^7/ ℃, Vacuum Tightness ≤2×10^-12Pa·M^3·S^-1, Shear Distortion ≤30μm, Serpentine Distortion ≤40μm, As the Displacement ≤200μm
6-8 weeks Request for quote
Fiber Optic Taper
Fiber Optic Taper, Fiber Center Distance 4μm-100μm, Theoretical Numerical Aperture ≥1.0, Transmission Ration of Collimating Light ≥65%, Coefficient of Linear Expansion ( 87 ± 7 )x10^7/ ℃, Shear Distortion ≤30μm, Serpentine Distortion ≤40μm, As the Displacement ≤500μm, Magnification Ration 1.5:1 - 5:1
6-8 weeks Request for quote

Fiber Optic Taper - Parameter

Fiber Optic Inverter - Parameter

Fiber Optic Plate - Parameter

Fiber Optic Taper - Download

Fiber Optic Inverter - Download

Fiber Optic Plate - Download
