1120nm连续波单模光纤激光器

Overview & Specifications Related Products Order Now!

The 1120nm CW Single Mode Fiber Laser features a semiconductor laser chip, expertly engineered drive circuit, and TEC control, ensuring safe laser operation, consistent output power, and spectral stability.

Ideal as a seed laser for high-power applications, it also serves well in production testing of optical fiber devices in the 1120nm range. Available in both benchtop and modular formats, this laser provides a narrow spectral width and exceptional long-term stability, essential for precision and reliability in high-accuracy applications.

Features

High Output Power
Power And Spectral Stability
Single Mode Or Biased Output

Applications

High Power Laser
Fiber Lasers
Optical Fiber Device Testing

Product Specifications and Brochures

Product Brochure Link:

Laser Parameters
Optical Parameters	Unit	Typical Value	Remarks

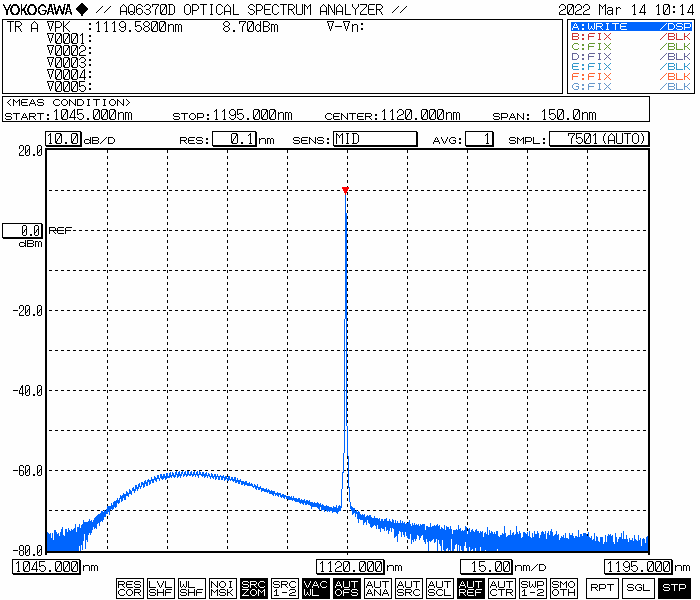

Wavelength	nm	1120±1

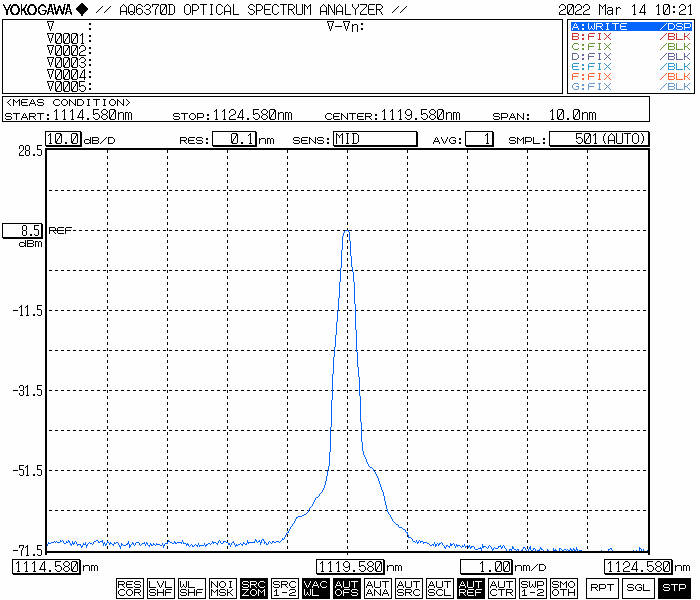

Spectral Width	nm	≤0.1	@3dB
Output Power	W	1/2/5

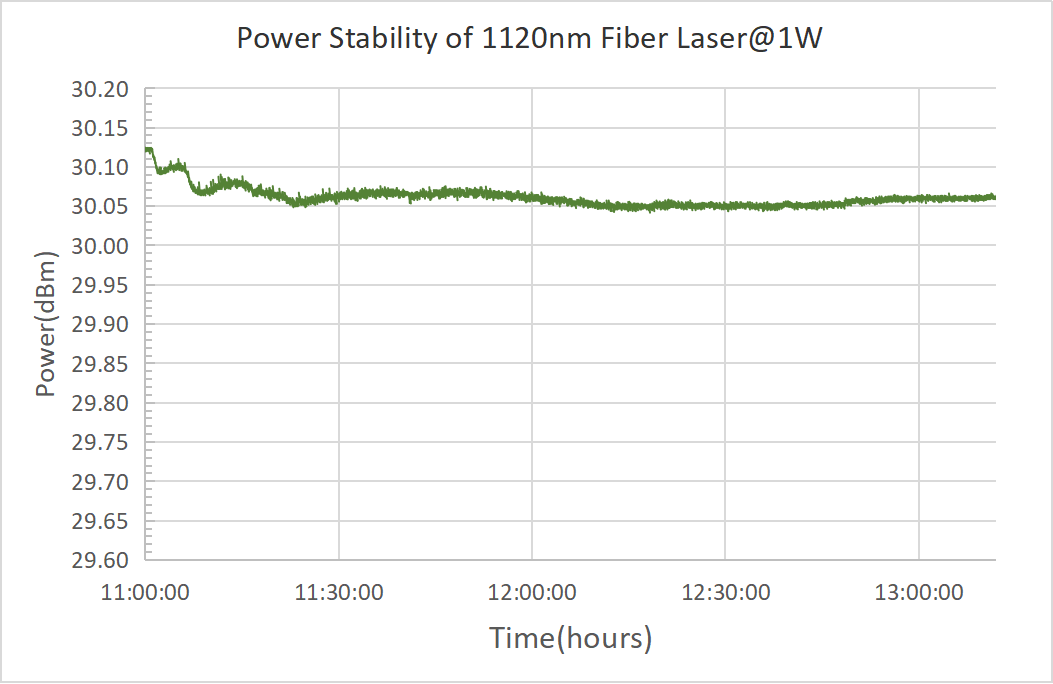

Short-term Stability (15 minutes)	dB	≤±0.02
Long-term Stability (8 hours)	dB	≤±0.05
Pigtail Type	—	Hi1060 Single Mode	PM980 Polarization-Maintaining Output Models Are Available
Pigtail Connector Type	—	FC/APC

Electrical and Environmental Parameters
	Table Model	Module
Control Mode	Keystroke	RS232 Serial Port Communication
Communication Interface	* Optional	DB9 Female
Power Supply	100~240V AC, <30W	5V DC, <15W
Size	260(W)×280(D)×120(H)mm	125(W)×150(D)×20(H)mm
Operating Temperature Range	-5~+55°C
Operating Humidity Range	0~70%

Ordering Information/Model Number
Series	Operating Wavelength (nm)	Output Power (W)	The PigtailType Is Displayed	Encapsulation Form
STFLH	1120	1/2/5	SM= HI 1060 Single-Mode Fiber	M=Module B=Table Model
			PM= PM 980 Polarization-Maintaining Fiber

Type	Wavelength	Wavelength Accuracy	Spectral Linewidth	Output Power
405-940 CW Single Mode Fiber Laser	405-940 nm	±5 nm	-	5/10/20/100mW
793/808/915/976nm CW Multi Mode High Power Fiber Laser	793/ 808/ 915/ 976 nm	±3 nm / ±10 nm	3nm / 6nm	5/10/25W
974/976 CW Single Mode Fiber Pump Laser	974/ 976 nm	±1 nm	-	200 - 1000mW
1030/1064 CW Single Mode Fiber Laser	1064 nm	±2 nm	< 0.1nm	100mW - 10W
1120nm CW Single Mode Fiber Laser	1120±1 nm	-	≤ 0.1nm	1/2/5W
1310 CW Single Mode Fiber Laser	1310 nm	±2 nm	≤ 3nm	10/20/30/40mW
1450/1480 CW Single Mode Fiber Laser	1425/ 1435/ 1455/ 1465/ 1480 nm	±3 nm / ±10 nm	-	200 - 800mW
1550 CW Single Mode Fiber Laser	1550 nm	±0.5 nm	≤ 3nm	10mW - 20W
1570 CW Single Mode Fiber Laser	1570 nm ±1	±0.5 nm	< 0.1nm	10/20/50/100/200/400/500 mW 30/33/35/37/40 dBm
2000 High Power CW Fiber Laser	1900-2050 nm	-	< 1nm	> 30 W
