1310nm 连续波单模光纤激光器
SIMTRUM's STFL Series 1310nm CW Fiber Laser features a DFB semiconductor laser chip for precise single-mode output. Enhanced with a professionally designed driver and temperature control circuits, this laser ensures safe and stable operation. Available in both desktop and modular formats, it offers versatile deployment options for various applications.
793/808/915/976nm_High_Power_Laser

Features

  • Narrow spectral linewidth
  • Excellent stability
  • Excellent stability of power

Applications

  • Fiber optic sensing
  • Fiber laser
  • Optics components testing

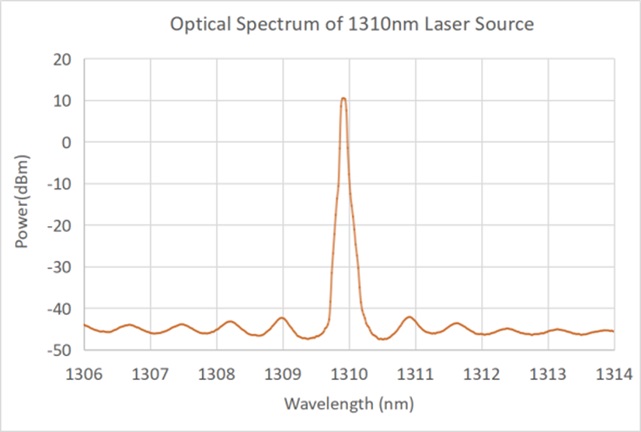

SIMTRUM_STFL_Optical_Spectrum



Product specifications and Brochures

Product Brochure Link: SIMTRUM_PDF





Optical Parameters Unit Typical Value Remarks
Wavelength nm 1310
Wavelength Accuracy nm ±2
Laser Operation Mode - CW Continuous light
Spectral Linewidth nm ≤ 3
Side Mode Suppression Ratio dB > 50
Output Power mW 10/20/30/40
Accuracy Working - 10~100%
Instability(15min.in) dB ≤ ±0.02 Equivalent to ≤±0.5%
Instability(8 hr) dB ≤ ±0.05 Equivalent to ≤±1.2%
Polarization State - Random Linear polarization
Optical Fiber - G657A PM1310
Fiber connector - FC/APC FC/APC
(slow axis alignment)




General Parameters Desktop Module
Control Function Keystroke / RS232 serial Communication RS232 serial Communication
Remote control Port DB9 Female DB9 Female
Power Supply AC100~240V, <30W DC5V, <15W
Dimensions 260(W)×280(D)×120(H)mm 125(W)×150(D)×20(H)mm
Operation Temperature -5~+35°C
Operation Humidity 0~70%



Ordering Information/Product Code
Series Wavelength (nm) Output Power (mW) Fiber Packaging
STFL 1310 10/20/30/40 SM = G657A M - Module
PM = PM1310 B - Desktop



Type Wavelength Wavelength Accuracy Spectral Linewidth Output Power
405-940 CW Single Mode Fiber Laser 405-940 nm ±5 nm - 5/10/20/100mW
793/808/915/976nm CW Multi Mode High Power Fiber Laser 793/ 808/ 915/ 976 nm ±3 nm / ±10 nm 3nm / 6nm 5/10/25W
974/976 CW Single Mode Fiber Pump Laser 974/ 976 nm ±1 nm - 200 - 1000mW
1030/1064 CW Single Mode Fiber Laser 1064 nm ±2 nm < 0.1nm 100mW - 10W
1120nm CW Single Mode Fiber Laser 1120±1 nm ≤ 0.1nm 1/2/5W
1310 CW Single Mode Fiber Laser 1310 nm ±2 nm ≤ 3nm 10/20/30/40mW
1450/1480 CW Single Mode Fiber Laser 1425/ 1435/ 1455/ 1465/ 1480 nm ±3 nm / ±10 nm - 200 - 800mW
1550 CW Single Mode Fiber Laser 1550 nm ±0.5 nm ≤ 3nm 10mW - 20W
1570 CW Single Mode Fiber Laser 1570 nm ±1 ±0.5 nm < 0.1nm 10/20/50/100/200/400/500 mW
30/33/35/37/40 dBm
2000 High Power CW Fiber Laser 1900-2050 nm - < 1nm  > 30 W




We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
STFL-1310-10-SM-B
1310nm Wavelength SM Fiber Coupled Laser, Wavelength 1310 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth ≤ 3 nm, Output Power 10 mW, G657A
4-6 Weeks $1270.00
STFL-1310-20-SM-B
1310nm Wavelength SM Fiber Coupled Laser, Wavelength 1310 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth ≤ 3 nm, Output Power 20 mW, G657A
4-6 Weeks $1397.00
STFL-1310-30-SM-B
1310nm Wavelength SM Fiber Coupled Laser, Wavelength 1310 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth ≤ 3 nm, Output Power 30 mW, G657A
4-6 Weeks $1799.00
STFL-1310-40-SM-B
1310nm Wavelength SM Fiber Coupled Laser, Wavelength 1310 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth ≤ 3 nm, Output Power 40 mW, G657A
4-6 Weeks $2011.00
STFL-1310-10-PM-B
1310nm Wavelength SM Fiber Coupled Laser, Wavelength 1310 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth ≤ 3 nm, Output Power 10 mW, PM1310
4-6 Weeks $1561.00
STFL-1310-20-PM-B
1310nm Wavelength SM Fiber Coupled Laser, Wavelength 1310 nm, Wavelength Accuracy ±2 nm, Spectral Linewidth ≤ 3 nm, Output Power 20 mW, PM1310
4-6 Weeks $1608.00
