微孔光学

Micro Pore Optics

Our micro pore optics includes micro pore optic with square and micro pore optic with sector.

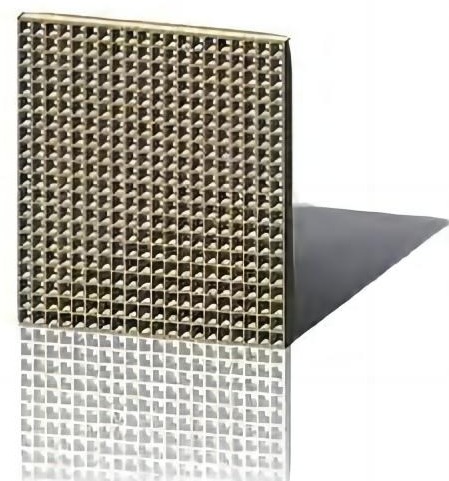

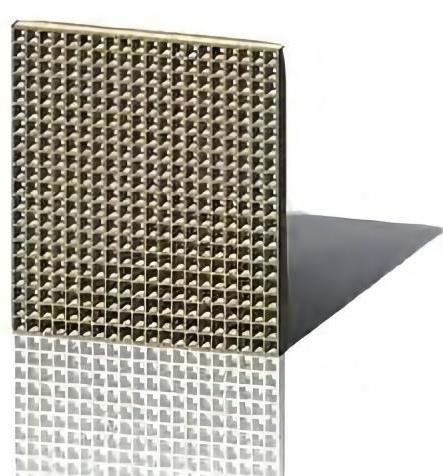

Micro Pore Optic with Square - MPO

Micro pore optic with square(MPO) is a kind of grazing incidence optical element, which can focus X-ray and ultraviolet light. MPO is a type of thin slice glass with porous structure and made up of millions of square shaped pores. The micro pore size is in micron scale and the surface of inner wall has very low roughness. The shape of MPO can be divided into two classes (plane and sphere).



The planar MPO can focus the divergent light, while the spherical MPO can focus the parallel light. In all known X-ray optics, MPO not only guarantee the large field of view and high resolution, but also have the smallest volume and lightest weight. In order to obtain the best focusing performance, the inner wall could be coated with increasing reflective film with different film materials for different application bands.

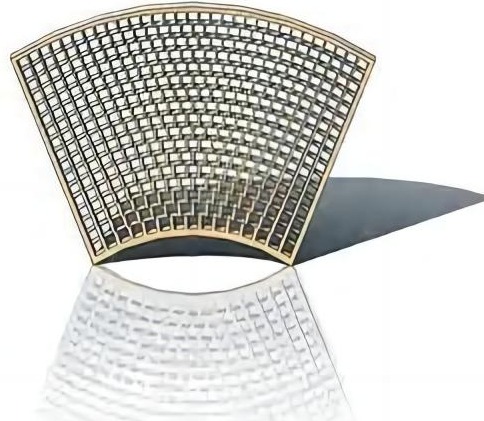

Micro Pore Optic with Sector - MPOS

Micro pore optic with Sector is a kind of grazing incidence optical element, which can focus X-ray and ultraviolet light. MPOS have several millions of square shape glass pore in micron scale and the square pores are stacked in radial geometry.



In order to obtain the best focusing performance, the inner wall could be coated with increasing reflective film with different film materials for different application bands. MPOS could be assembled to a conic optical system approximation to Wolter-l optics. This radially packing geometry has several advantages, such as larger effective versus geometry area ratios, light weight and working under higher energy than normal Wolter optics.





Selection Guide for Micro Pore Optics

Parameters    MPO
(Square)
MPOS
(Sector)
Pore Size (µm) 10 ,20 ,100 ,Customized
Packing Square Packed Radially Packed
Boundary Dimension 50mm×50mm Φ≤60mm
Open Area ratio ≥70%
Thickness (mm) 1,2 ,3 ,Customized
Shape Plane,Sphere
Radius of Curvature (mm) 700 ,750 ,4000 ,Customized
Film Materials Al,Ni,Ir,AU,Customized

Micro Pore Optic with Square - MPO

Micro pore optic with square (MPO) is a kind of grazing incidence optical element, which can focus X-ray and ultraviolet light. MPO is a type of thin slice glass with porous structure and made up of millions of square shaped pores. The micro pore size is in micron scale and the surface of inner wall has very low roughness. The shape of MPO can be divided into two classes (plane and sphere).







The planar MPO can focus the divergent light, while the spherical MPO can focus the parallel light. In all known X-ray optics, MPO not only guarantee the large field of view and high resolution, but also have the smallest volume and lightest weight. In order to obtain the best focusing performance, the inner wall could be coated with increasing reflective film with different film materials for different application bands







Features



Large Field of View

•  MPO could cover 4π field of view



Light Weight

•  MPO possess the minimum weight per unit area, which is 1000 times lighter       than traditional Wolter-I lens

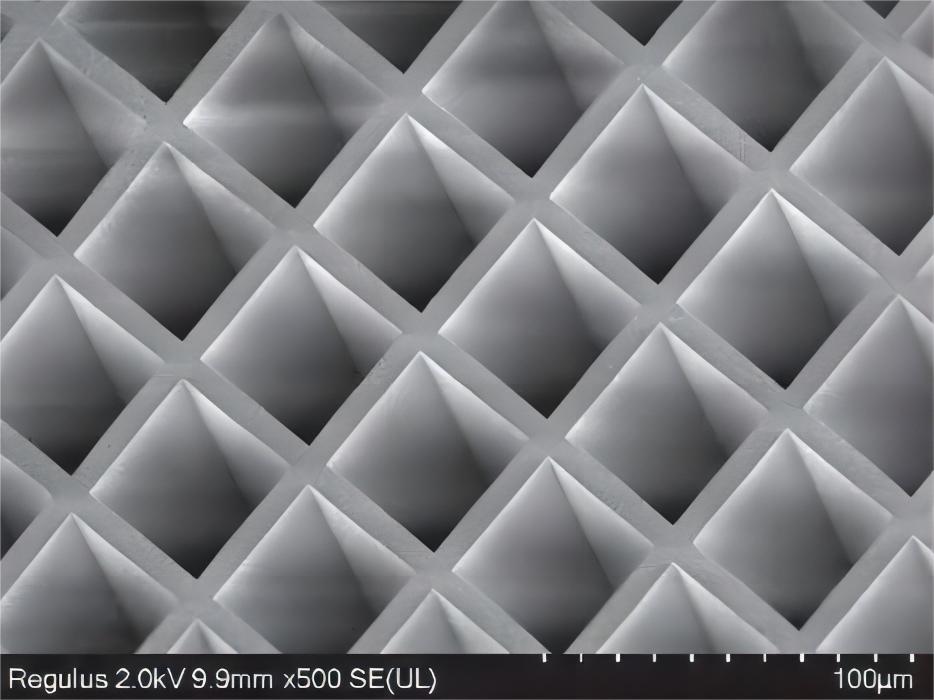

Microstructure of MPO

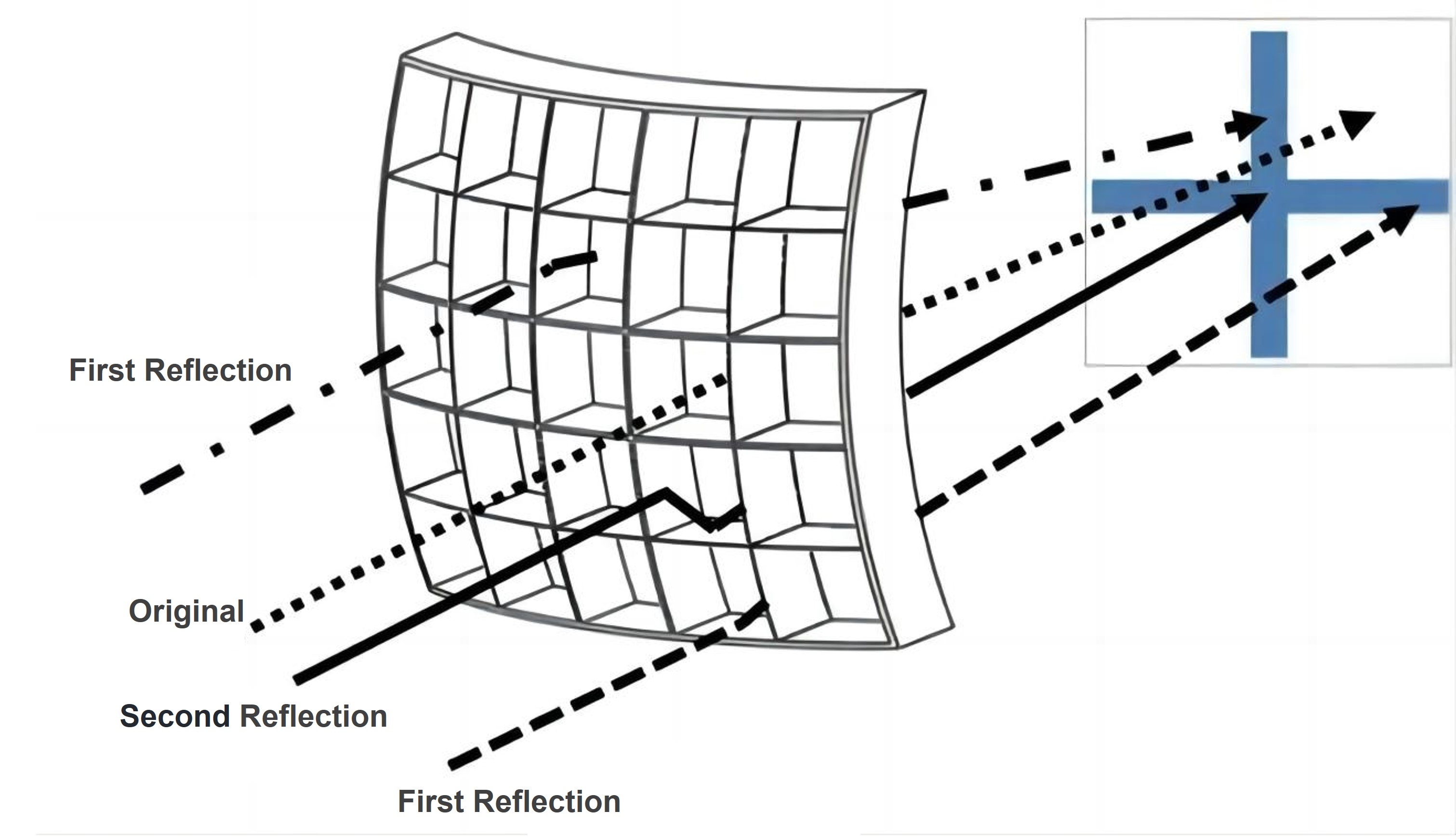

Focus Imaging Principle

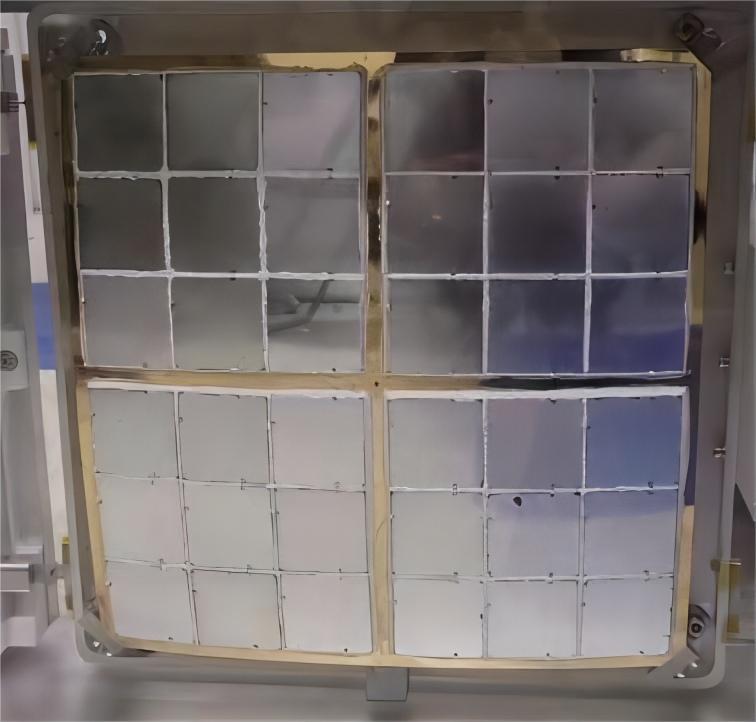

MPO  for EP







Application

  • X-ray Astronomy, Deep-space Exploration, Military Reconnaissance, Safety Inspection System, Medical Field









Product Specifications and Brochures

Product Brochure Link:

Parameters Description
Pore Size(Microns) 10 ,20 ,100 ,Customized
Packing Square Packed
Boundary Dimension ≤50mm×50mm
Open Area ratio ≥70%
Thickness(mm) 1,2 ,3 ,customized
Shape Plane,Sphere
Radius of Curvature(mm) 700 ,750 ,4000 ,Customized
Film Materials Al,Ni,Ir,AU,Customized

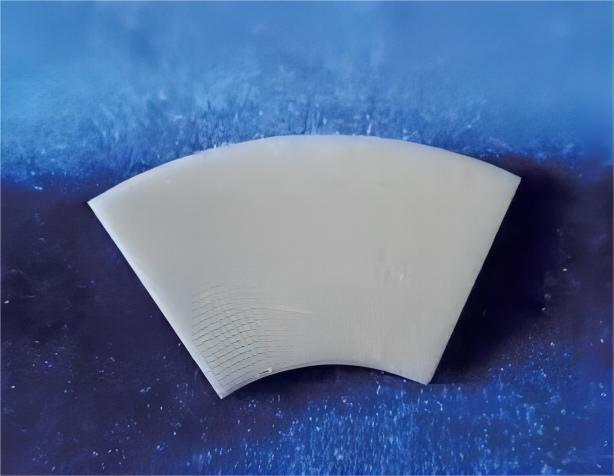

Micro Pore Optic with Sector - MPOS

Micro pore optic with sector is a kind of grazing incidence optical element, which can focus X-ray and ultraviolet light. MPOS have several millions of square shape glass pore in micron scale and the square pores are stacked in radial geometry.





In order to obtain the best focusing performance, the inner wall could be coated with increasing reflective film with different film materials for different application bands. MPOS could be assembled to a conic optical system approximation to Wolter-l optics. This radially packing geometry has several advantages, such as larger effective versus geometry area ratios, light weight and working under higher energy than normal Wolter optics.







Features

Larger Effective / Geometric Area Ratio

  • The effective/geometric area≥30%



Light Weight

  • MPOS possess the minimum weight per unit area, which is 1000 times lighter than traditional Wolter-I lens



Working Under Higher Energy

  • MPOS could be form a conic optic approximation to Wolter-l optic, working under higher energy than conventional Wolter optics

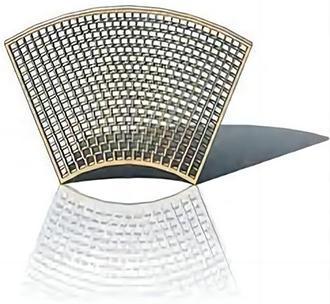

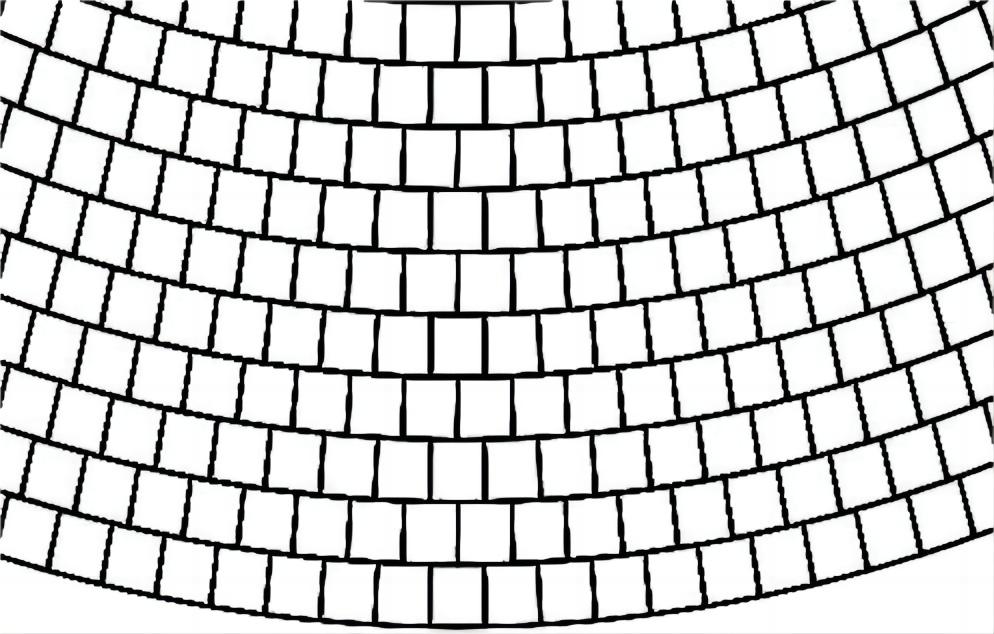

Microstructure of MPOS

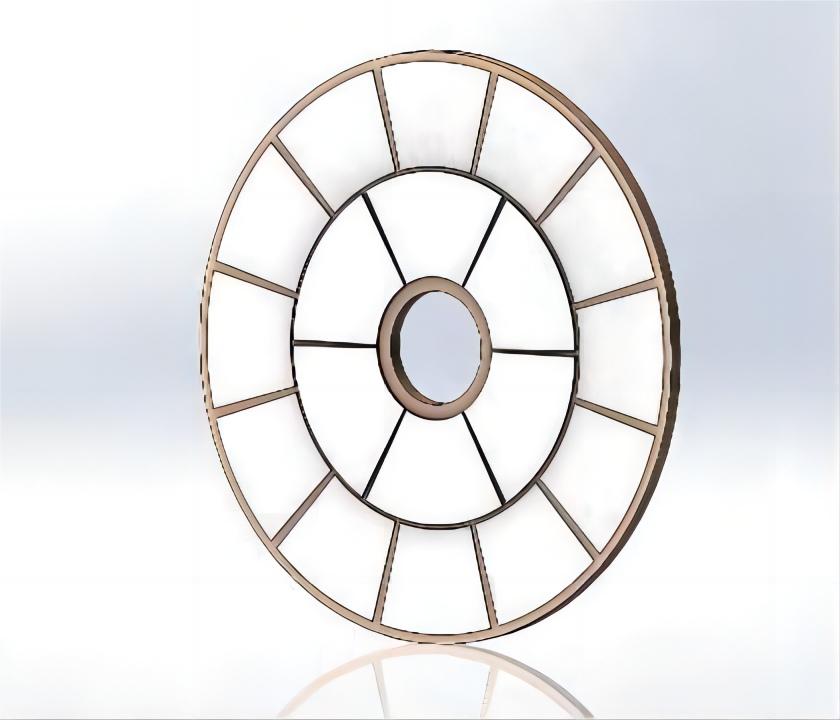

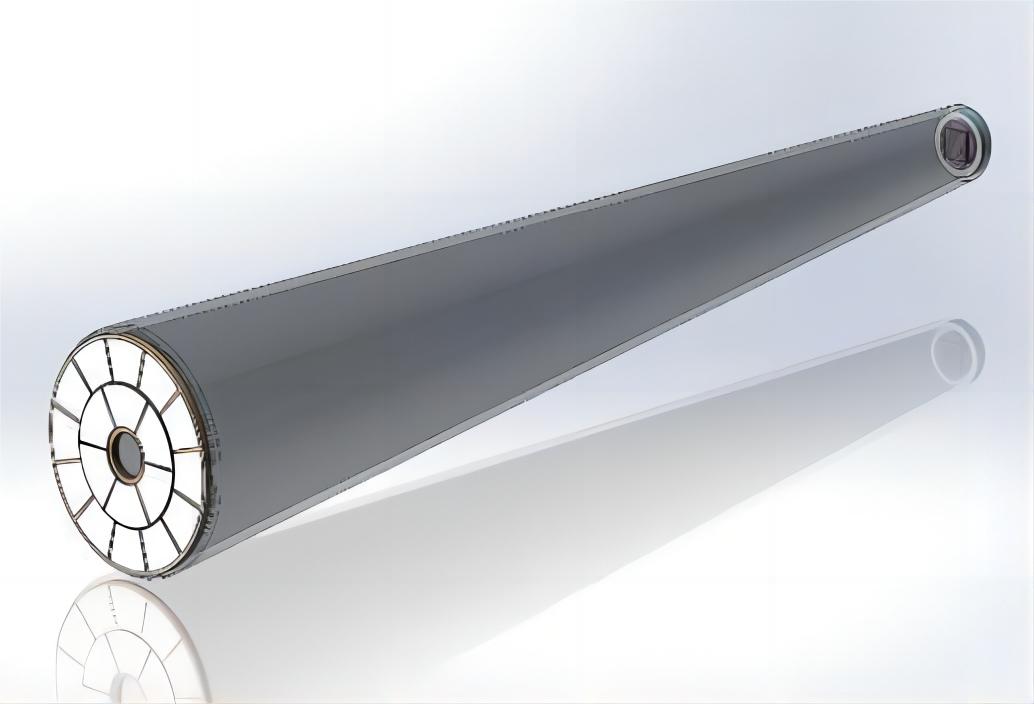

MPOS                      MPO  Focusing Lens







Application

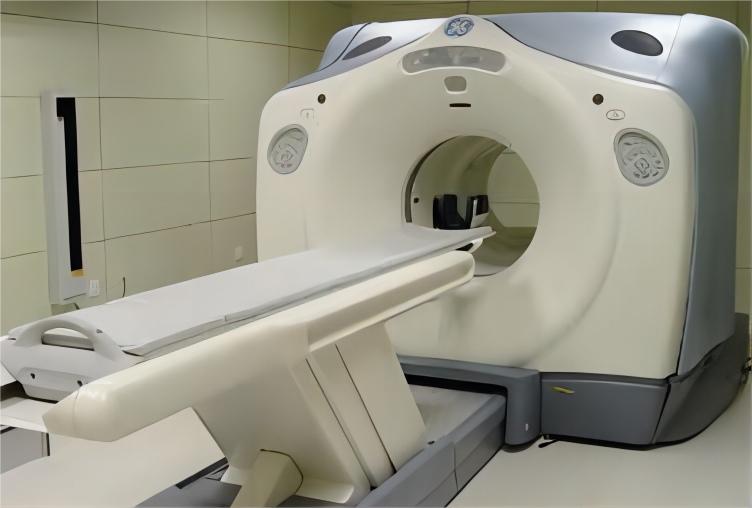

  • X-ray Astronomy, Deep-space Exploration, Military Reconnaissance, Safety Inspection System, Medical Field









Product Specifications and Brochures

Product Brochure Link:

Parameters Description
Pore Size(Microns) 10 ,20 ,100 ,Customized
Packing Radially Packed
Boundary Dimension Φ≤60mm
Open Area ratio ≥70%
Thickness(mm) 1,2 ,3 ,customized
Shape Plane,Sphere
Radius of Curvature(mm) 700 ,750 ,4000 ,Customized
Film Materials Al,Ni,Ir,AU,Customized

Micro-Channel Plate (MCP)

Product Parameter
 Micro-Channel Plate (MCP)  Effective Area: 10.5-100mm | 90-200° | ≥47mm×47mm;Channel Dia.:6-21μm; Thickness:0.325-1.2mm
 Micro-Channel Plate Assembly (MCP)  Diameter:25-50mm; Channel Dia.:6-12mm; Effective Area:18-44mm
 Fiber Optic Plates- FOP  Fiber Center Distance:≤4μm,4-100μm; Theoretical Numerical Aperture:≥1.0; Transmission Ration of Collimating Light:≥65%
 Micro Pore Optics  Aperture:10-100μm(Customizable); Boundary Dimension:≤50mm×50mm | Φ≤60mm; Thickness :1-3mm(Customizable)
 X-Ray Collimators  Aperture:10-100μm(Customizable); Thickness0.5-5mm(Customizable)





Photomultipliers Tube (PMT)

Model Spectral Response Range Peak Wavelength QE Typ. Effective Area(mm) Cathode Luminous Sensitivity Typ. Anode Sensitivity Typ.
 Photomultipliers Tube Head-On (Tube Only) 290 - 650nm 380 - 500nm 12% -,28% Φ10 - Φ58 40 - 100μA/lm 30 - 2000A/lm
 Photomultipliers Tube Side On(Tube Only) 160 - 900nm / / 8×24 40 - 250μA/lm 400 - 2500A/lm
 Photomultipliers Tube (Module) 160 - 900nm 400nm, 420nm / Φ22 - Φ25 | 8×24 60 - 250μA/lm /
 Microchannel Plate - Photomultiplier (MCP-PMT) 115 - 650nm 250nm, 380nm 30%@410nm, 15%@250nm / 70μA/lm 900A/lm
 Scintillator Probe / / / Φ25×25 - Φ75×75 / /
 β Detector / / / Φ10, Φ25 / /







Assemblies and Counting Unit



High Voltage Tube Socket High Voltage Tube Socket for Side Window Voltage Power Supply Counting Unit

We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
Micro Pore Optic with Square(MPO)
Micro Pore Optic with Square(MPO), Pore Size 1 µm,20µm,100µm,Customized, Packing Square Packed, Boundary Dimension ≤50mm×50mm, Open Area ratio ≥70%, Thickness 1mm, 2mm, 3mm, Customized, Shape Plane,Sphere, Radius of Curvature 700mm, 750mm, 4000mm, Customized, Film Materials Al, Ni Ir, AU, Customized
6-8 weeks Request for quote
Micro Pore Optic with Sector(MPOS)
Micro Pore Optic with Sector(MPOS), Pore Size 1 µm,20µm,100µm,Customized, Packing Radially Packed, Boundary Dimension Φ≤60mm, Open Area ratio ≥70%, Thickness 1mm, 2mm, 3mm, Customized, Shape Plane,Sphere, Radius of Curvature 700mm, 750mm, 4000mm, Customized, Film Materials Al, Ni Ir, AU, Customized
6-8 weeks Request for quote

Micro Pore Optic with Sector(MPOS) - Parameter

Micro Pore Optic with Square(MPO) - Parameter

Micro Pore Optic with Sector(MPOS) - Download

Micro Pore Optic with Square(MPO) - Download
