全帧CCD相机(UV VUS NIR) | 瑆创光学电子商店

全帧CCD相机(UV VUS NIR)

适用于紫外线、可见光、近红外 ( 160 nm -1100 nm)的科学级全画幅 CCD 相机

ELSEs 光谱学系列

ELSEi 成像系列

这些用于 UV、VIS、NIR 成像和光谱的科学全画幅 CCD 相机属于 ELSE 系列(包括 ELSEs 和 ELSEi)。适用于 160 nm -1100 nm 的波长范围。



ELSE 集成了尖端的低噪声电子元件和超深冷却技术,同时保持了紧凑的相机设计。可以选择多种读出速度,支持从 50 kHz 到 5 MHz 的像素速率。真正的 18 位 AD 转换允许利用 CCD 传感器的全部动态范围来实现最高的性能和 SNR。ELSE 非常适合检测非常弱的信号强度,其中低噪声基底至关重要。ELSE 为您未来的测量提供了前所未有的可能性。



相机常见特性





- 超深 TE 冷却至 -100 °C

  最低暗电流,实现更好的检测极限

- 真空密封

  低相机维护和传感器保护

- GigE 和 USB 3.0 数据接口

  本地或远程网络操作 – 您的选择

- 多种传感器选项

  适合不同传感器格式的 UV、VIS 或 NIR 涂层



- 超深 TE 冷却至 -100 °C

  最低暗电流,实现更好的检测极限

- 真空密封

  低相机维护和传感器保护

- GigE 和 USB 3.0 数据接口

  本地或远程网络操作 – 您的选择

- 多种传感器选项

  适合不同传感器格式的 UV、VIS 或 NIR 涂层



应用

 ELSEs 光谱系列   ELSEi 光谱系列
- 拉曼光谱

- 近红外光谱

- 荧光光谱法

- 吸收、传输,

- 反射光谱法



- 体内荧光生物成像

- 天文学

- LIBS 光谱

- 中子断层扫描

- EL/PL 成像

- 超冷量子研究

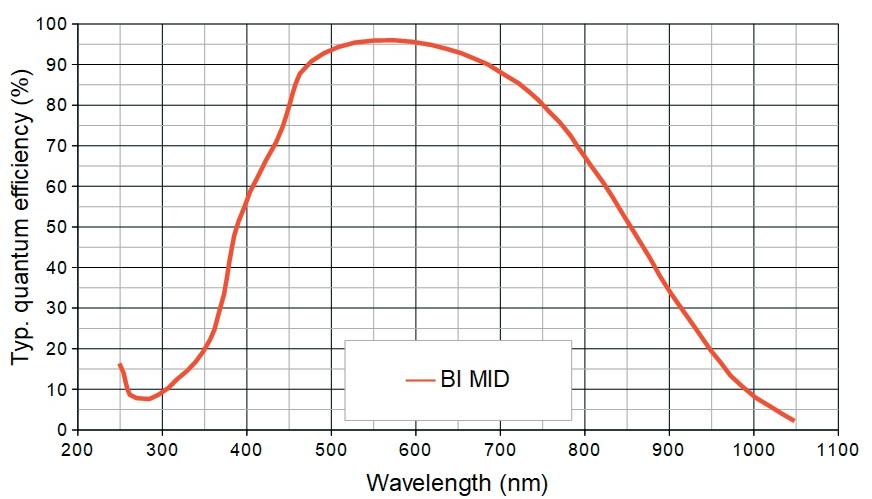

量子效率曲线



ELSEs 光谱系列

Back-illuminated CCD sensors for VIS range

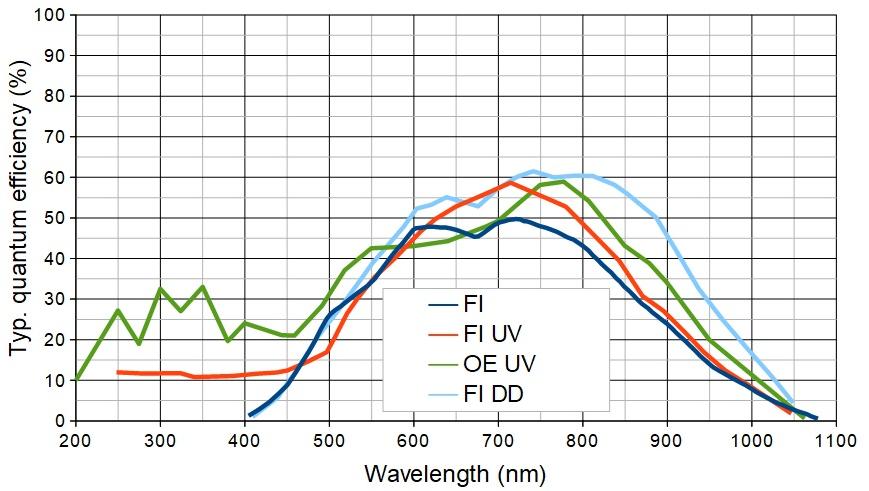

            Basic front-illuminated CCD sensors

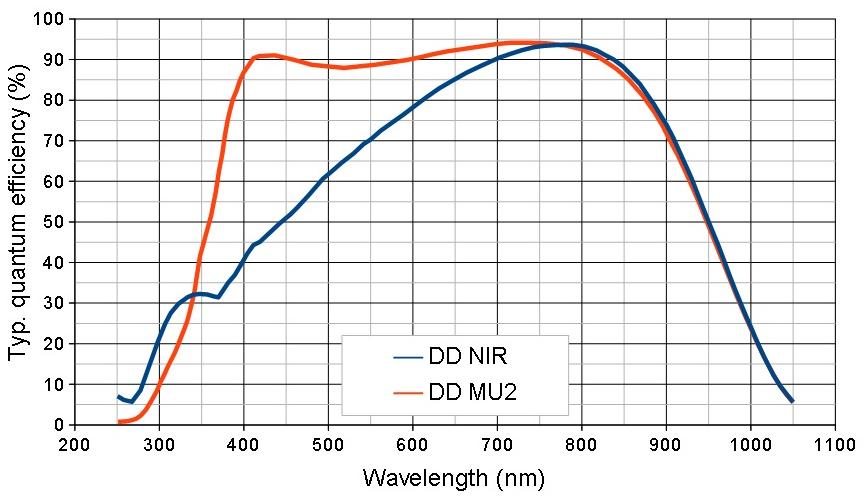

Deep-depletion, NIMO CCD sensors for

NIR range

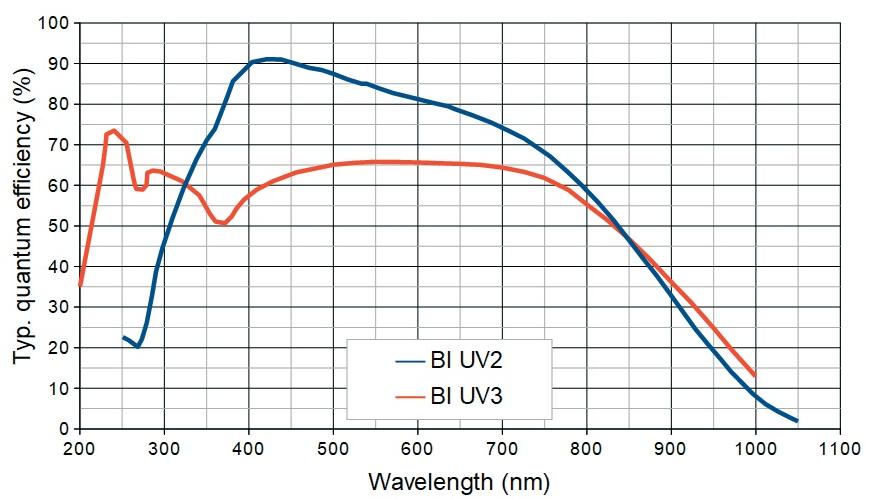

Enhanced back-illuminated CCD sensors for

UV range

ELSEi 成像系列

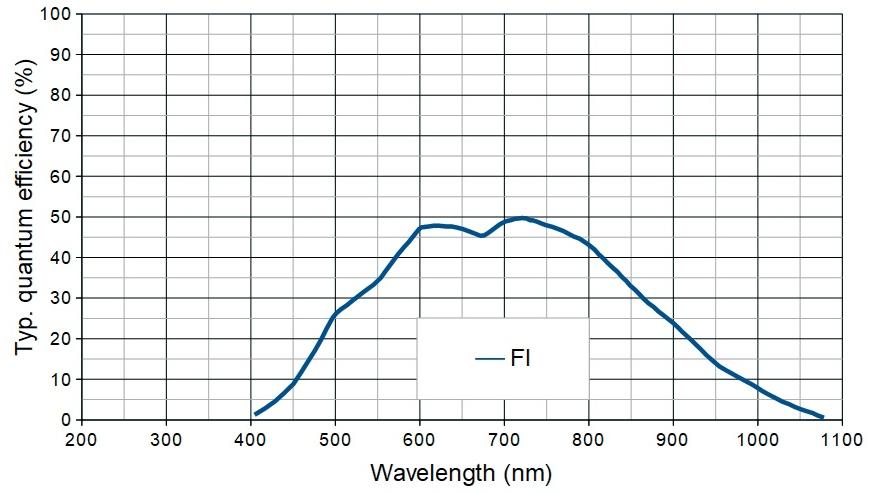

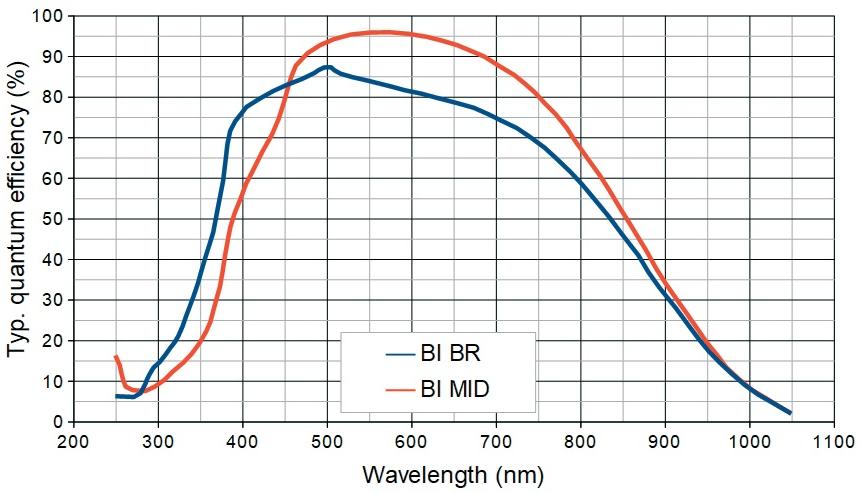

Back-illuminated CCD sensors for VIS range   Basic front-illuminated CCD sensors

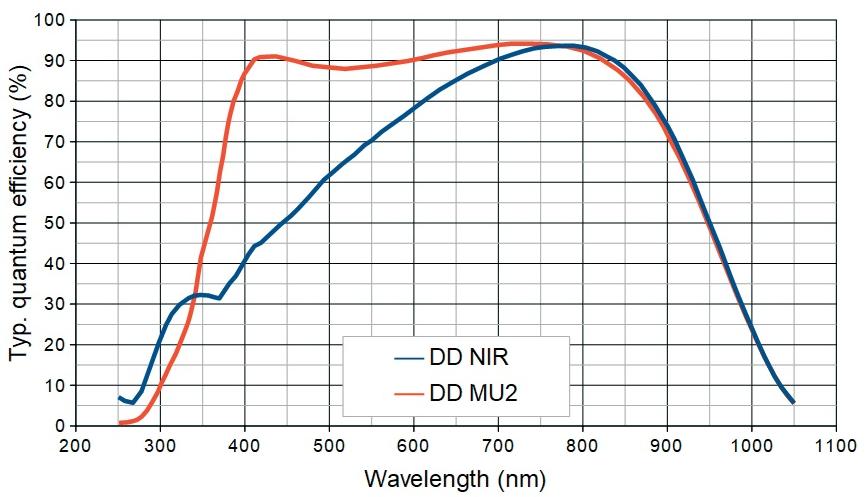

Deep-depletion, NIMO CCD sensors for

 NIR range

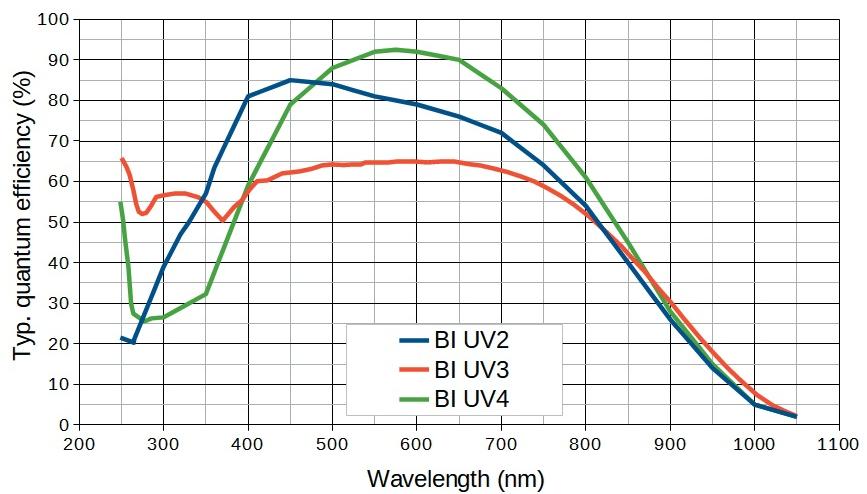

Enhanced back-illuminated CCD sensors for

 UV range





产品规格和手册

产品手册链接:

有关用于光谱的 ELSEs 系列和用于成像的 ELSEi 系列的更多信息 ,请参阅 选择指南 ELSEs 和 选择指南 ELSEi



参数 ELSEs 光谱系列 ELSEi 成像系列
像素读出频率

50 kHz、100 kHz、250 kHz、500 kHz、1 MHz、3 MHz

 (可视化模式为 5 MHz)

50 kHz、250 kHz、1 MHz、3 MHz

(可视化模式为 5 MHz;多输出时最高可达 20 MHz)

读出模式 / 2 个输出节点适用于 1k1k 和 2k2k 摄像机,
4 个输出节点适用于 2k2k plus 和 4k4k 摄像机
AD转换器分辨率 18 -bit
线性 优于 99%
窗户材质 MgF2 或 UVFS 用于对紫外线敏感的型号,否则为 BK7
法兰距焦平面 10.0 mm 10.0 mm(1k1k、2k2k plus 和 4k4k 摄像机);9 mm(2k2k 摄像机)
CCD传感器冷却 最低 -100°C 至 20°C,强制风冷或液冷

-100°C 至 20°C(1k1k 摄像机);

 -90°C 至 20 °C(2k2k、2k2k plus 和 4k4k 摄像头)

温度监控 CCD 传感器和热电冷却器(热侧)处的两个热敏电阻
数据链路 千兆以太网、USB 3.0
软件 适用于 Windows 7/10 的视觉软件
SDK 和驱动程序 Windows 的 DLL;LabVIEW、EPICS、Linux、Python、Tango 驱动程序(可选)
TTL接口信号 曝光输出、快门输出、2 个外部触发输入
工作条件 温度:0°C 至 35°C 环境温度,相对湿度 <80%(无凝结)
电源 80 - 240 VAC,47 Hz - 63 Hz
最大 1.1 A(230 VAC),1.9 A(115 VAC)
1k1k 和 2k2k:80-264 VAC(典型值 115/230),47-63 Hz(典型值 50/60)
 最大 1.1 A(230 V)/1.9 A(115 V)
2k2k plus 和 4k4k:85-264 VAC(典型值 115/230),47-63 Hz(典型值 50/60)
 最大 1.9 A(230 V)/3.8 A(115 V)
认证 CE
尺寸 8.3 cm (3.27 ʺ) × 10.0 cm (3.94 ʺ) × 13.1 cm (5.16 ʺ)(宽 × 高 × 长)

8.3 cm(3.27 ʺ)× 10.0 cm(3.94 ʺ)× 13.1 cm(5.16 ʺ)

 (宽 × 高 × 长,1k1k 和 2k2k 相机机身)

13.7 cm(5.39 ʺ)× 13.7 cm(5.39 ʺ)× 17.1 cm(6.71 ʺ)

(宽 × 高 × 长,2k2k plus 和 4k4k 摄像机机身)

重量 2.2 kg 2.2 kg(1k1k & 2k2k)
5.4 kg(2k2k plus & 4k4k)
瑕疵规格 传感器制造商指定的 0 级或 1 级(标准)





每台相机随附的物品



型号代码 说明 型号代码 说明
GE-VI01 Windows 视觉软件套件 GE-StoB2m 2m SMB 转 BNC 连接线 × 2
GE-SDK01 适用于 Windows 的 SDK(基于 C/C++) GE-POW01 带电缆的摄像机电源
GE-USB3m3 3米 USB 3.0 线缆 A 型转 C 型 GE-ManCam 相机使用说明书
GE-GigE10m 10米以太网电缆 / /

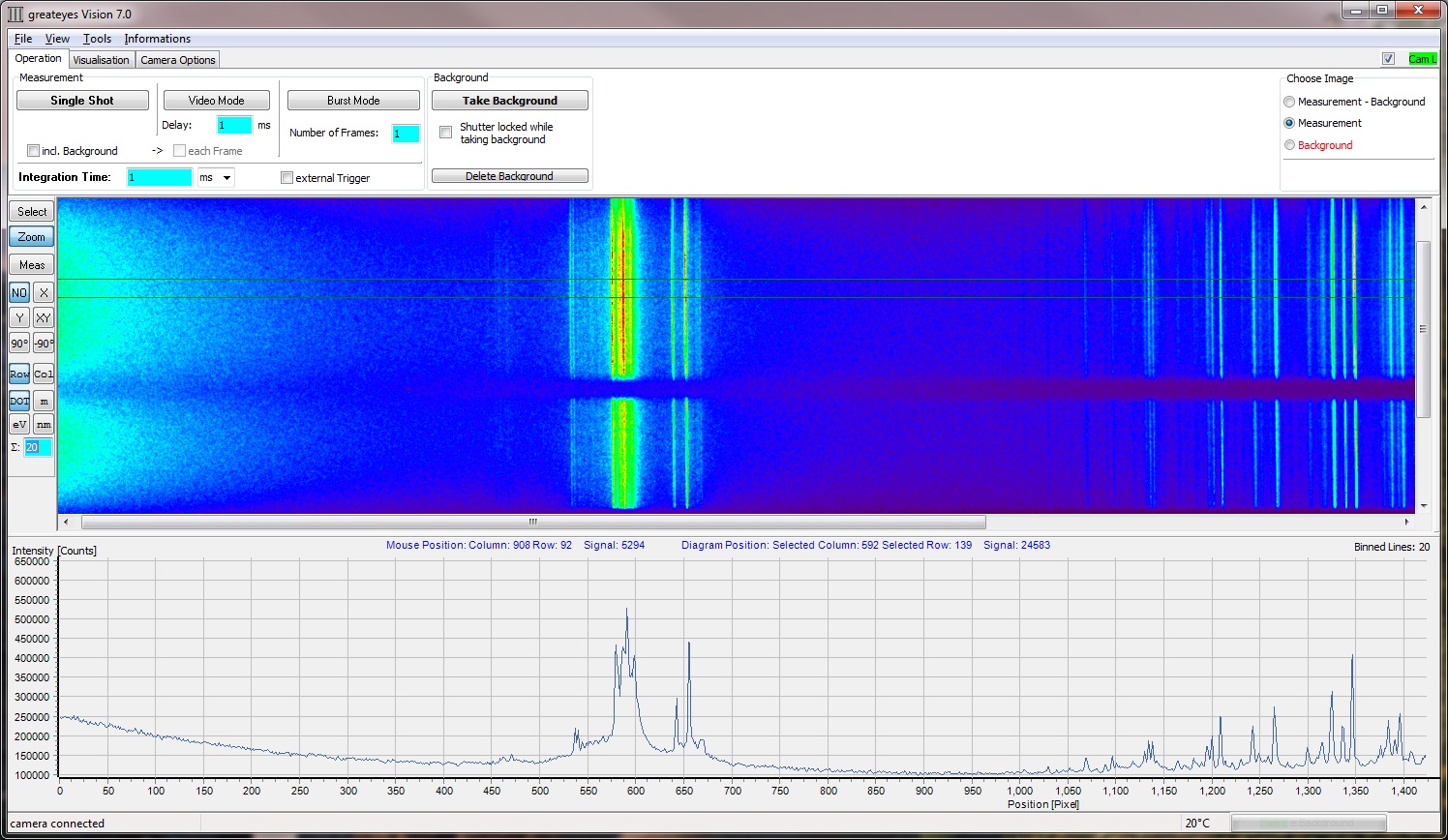

视觉软件

Vision 软件套件可访问所有相机功能。它包括全面的可视化、分析和存储选项,并支持波长和几何校准、裁剪和连拍模式以及各种文件格式等重要功能。该软件可在 32/64 位 Windows 系统上运行。为了集成到其他系统中,可以使用软件开发工具包和驱动程序。



软件功能





- 支持裁剪和突发读出模式,以实现更高的帧速率和精确的时间分辨率

- 多种文件格式:JPG、BMP、TXT、TIFF(16 位)、DAT 原始数据

- 全面的可视化和图像处理程序

- 支持灵活的水平和垂直合并



- 许多驱动程序可集成到其他系统

- 在 32/64 位 Windows 系统上运行

- 波长和几何校准

- 支持英语和德语






适用于 UV、VIS、NIR 光谱的科学级全画幅 CCD 相机 -  ELSEs 系列



选择您的相机型号
型号 图像面积( mm) 像素格式 像素尺寸(µm) 增益(计数/电子) CCD 传感器类型 传感器涂层 全井容量(ke-) 典型读取噪声(e¯) 暗电流
@ -100 °C
对准井(ke¯) 量子效率
标准模式 高容量
模式
@ 50 kHz @ 1 MHz @ 3 MHz

ELSE-s 1k128

ELSE-s 1k128 BI MID 26.6 × 3.3 1024 × 127 26  × 26 0.4 / BSI 中频带 AR 500 5.5 12.5 26 0.0004 e¯/pixel/s 1 000 Up to 95% VIS
ELSE-s 1k128 DD NIR 0.4 / BSI,深耗尽,
边缘抑制
NIR AR 700 5.5 12.5 26 0.005 e¯/pixel/s 1 400 Up to 95% NIR

ELSE-s 1k256

ELSE-s 1k256 OE UV 26.6 × 6.7 1024 × 255 26  × 26 0.4 / FSI, 开放式电极 / 300 / / / 0.0004 e¯/pixel/s 1 000 Up to 36% UV
ELSE-s 1k256 BI UV2 0.4 / BSI 宽带 UV AR 500 6 13.1 26 0.4 counts/e¯ 1 000 Up to 90%
ELSE-s 1k256 BI UV3 0.4 / BSI UV AR 500 6 13.1 26 0.4 counts/e¯ 1 000 Up to 60% UV
ELSE-s 1k256 FI 0.4 / FSI / 500 4.2 12 25 0.4 counts/e¯ 1 000 Up to 55% VIS
ELSE-s 1k256 BI MID 0.4 / BSI 中频带 AR 500 6 13.1 26 0.4 counts/e¯ 1 000 Up to 95% VIS
ELSE-s 1k256 FI DD 0.4 / FSI,  深耗尽 / 700 5.4 12.3 25 0.005 e¯/pixel/s 1 400 Up to 60%
ELSE-s 1k256 DD NIR 0.4 / BSI, 深耗尽,
边缘抑制
NIR AR 700 5.4 12.3 25 0.005 e¯/pixel/s 1 400 Up to 95% NIR
ELSE-s 1k256 DD MU2 0.4 / BSI, 深耗尽,
边缘抑制
多波段  AR 700 5.4 12.3 25 0.005 e¯/pixel/s 1 400 Up to 95%

ELSE-s 2k256

ELSE-s 2k256 FI 30.7 × 3.9 2048 × 264 15  × 15 1.5 / FSI / 75 3.7 7 12.1 0.0006 e¯/pixel/s 650 Up to 55% VIS
ELSE-s 2k256 DD NIR 1.5 / BSI, 深耗尽,
边缘抑制
NIR AR 75 3.7 7 12.1 0.0006 e¯/pixel/s 650 Up to 95% NIR

ELSE-s 2k512

ELSE-s 2k512 FI UV 27.6 × 6.9 2048 × 512 13.5  × 13.5 1 0.34 FSI Lumogen 100 3.5 6.8 10.7 0.00025 e¯/pixel/s 400 Up to 12% UV
ELSE-s 2k512 BI UV2 1 0.34 BSI 宽带 UV AR 100 3.5 6.8 10.7 0.00025 e¯/pixel/s 400 Up to 90%
ELSE-s 2k512 BI UV3 1 0.34 BSI UV AR 100 3.5 6.8 10.7 0.00025 e¯/pixel/s 400 Up to 60% UV
ELSE-s 2k512 FI 1 0.34 FSI / 100 3.5 6.8 10.7 0.00025 e¯/pixel/s 400 Up to 55% VIS
ELSE-s 2k512 BI MID 1 0.34 BSI 中频带 AR 100 3.5 6.8 10.7 0.00025 e¯/pixel/s 400 Up to 95% VIS

注:BSI=背面照明,FSI=正面照明,AR=防反射



1ms 曝光时间,5MHz 数字化,1 端口
传感器 传感器格式 全画幅 FVB Crop 32 lines Crop 16 lines

1k x 128 33.7 337.3 / /
1k x 256 17.1 221.8 624 709
2k x 512 2.7 98.6 456 511



选择您的配件和软件(可选)
订购代码 说明
A) 成像配件
GE-M4202 M42 镜头适配器(集成滤镜支架可选)
GE-FM02 F 接口镜头适配器(集成滤镜支架可选)
GE-SR35 35mm快门,含快门驱动模块
B) 增强冷却性能的配件
GE-CR01 紧凑型液体冷却,在室温下循环冷却剂,实现相机深度冷却
GE-CR02 循环水冷却器,PID 控制,温度范围为 -5°C 至 30°C,可实现超深度相机冷却
C) 软件开发工具包(SDK)和驱动程序
GE-LX01 Linux 版 SDK(基于 C/C++)
GE-PYT01 Python 驱动程序
GE-LAB01 LabVIEW 驱动程序
GE-EP EPICS 驱动程序
GE-TAN Tango 驱动程序






适用于 UV、VIS、NIR 成像应用的科学级 全画幅 CCD 相机 -  ELESi 系列



选择您的相机型号
模式 图像面积(mm ) 像素格式 像素尺寸(µm) 增益(计数/e-) CCD 传感器类型 传感器涂层 全井容量(k e-) 典型读取噪声(e¯) 暗电流( (e¯/pixel/s)) 对准井(ke¯)

输出

节点( ke¯)
量子效率
标准模式 高容量模式 @ 50 kHz @ 1 MHz @ 3 MHz @ -100 °C @ -90 °C

ELSE-i 1k1k

ELSE-i 1k1k BI UV3 13.3 × 13.3  1024x1024  13×13 1 / BSI UV AR 100 2.8 6.4 10.9 0.00015 / 400 / 高达 60% UV
ELSE-i 1k1k FI 1 / FSI / 100 2.8 6.4 10.9 0.00015 / 400 / 高达 55% VIS
ELSE-i 1k1k BI BR 1 / BSI 宽带 AR 100 2.8 6.4 10.9 0.00015 / 400 / 高达 85% VIS
ELSE-i 1k1k BI MID 1 / BSI 中频带 AR 100 2.8 6.4 10.9 0.00015 / 400 / 高达 95% VIS
ELSE-i 1k1k DD NIR 1 / BSI,深度耗竭,
条纹抑制
NIR AR 120 2.8 6.4 10.9 0.0005 / 400 / 高达 95% NIR
ELSE-i 1k1k DD MU2 1 / BSI,深度耗竭,
条纹抑制
多频段 AR 120 2.8 6.4 10.9 0.0005 / 400 / 高达 95%

ELSE-i 2k2k

ELSE-i 2k2k BI UV3 27.6 × 27.6  2048×2052  13.5×13.5 1 0.34 BSI UV AR 150 3.4 7.0  13.6 / 0.001 600 / 高达 60%
ELSE-i 2k2k FI 1 0.34 FSI / 100 3.4 7.0  13.6 / 0.0001 400 / 高达 55% VIS
ELSE-i 2k2k BI MID 1 0.34 BSI 中频带 AR 100 3.4 7.0  13.6 / 0.0001 400 / 高达 95% VIS
ELSE-i 2k2k DD NIR 1 0.34 BSI,深度耗竭,
条纹抑制
NIR AR 150 3.4 7.0  13.6 / 0.001 600 / 高达 95% NIR
ELSE-i 2k2k DD MU2 1 0.34 BSI,深度耗竭,
条纹抑制
Multi-2 AR 150 3.4 7.0  13.6 / 0.001 600 / 高达 95% VIS-NIR

ELSE-i 2k2k plus

ELSE-i 2k2k plus BI MID 30.7 × 30.7  2048×2064  15×15 0.6 0.2 BSI 中频带 AR 150 4.6 8.5 17 / 0.00008 850 900 高达 95% VIS



ELSE-i 4k4k

ELSE-i 4k4k BI UV2 61.4 × 61.4  4096×4112  15×15 1 0.34 BSI 天文宽带 AR 350 2.8 5.8 10.4 / 0.0006 / 600 高达 85%
ELSE-i 4k4k BI UV4 1 0.34 BSI 天文中频带 AR 350 2.8 5.8 10.4 / 0.0006 / 600 高达 95%
ELSE-i 4k4k FI 0.6 0.2 FSI / 150 4.6 8.5 17 / 0.00008 / 900 高达 55% VIS
ELSE-i 4k4k BI BR 0.6 0.2 BSI 宽带 AR 150 4.6 8.5 17 / 0.00008 / 900 高达 85% VIS
ELSE-i 4k4k BI MID 0.6 0.2 BSI 中频带 AR 150 4.6 8.5 17 / 0.00008 / 900 高达 95% VIS
ELSE-i 4k4k DD MU2 1 0.34 BSI,深度耗竭,
条纹抑制
多频段 AR 150 2.8 5.8 10.4 / 0.0006 / 600 高达 95%
注:BSI=背面照明,FSI=正面照明,AR=防反射



1ms 曝光时间,6MHz 数字化,2 端口
传感器
分箱 全画幅 1k x 1k 512 x 512 256 x 256



CCD 42-40 (2kx2k)

1 x 1 1 2.1 4.2 8.3
2 x 2 1.7 3.4 6.9 13.6
4 x 4 2.6 5.1 10 19.9
8 x 8 3.3 6.6 13.2 25.8
16 x 16 4 7.9 15.5 30.4



  1ms 曝光时间,10MHz 数字化,2 端口
传感器
分箱 全画幅 512k x 512k 256 x 256 128 x 128


CCD 47-10 (1kx1k)
1 x 1 8.5 16.9 33.1 63.6
2 x 2 16.3 32 62.1 116.1
4 x 4 30.1 58.3 110 195.3
8 x 8 52.1 98.5 177.5 296.4
16 x 16 81.9 150.1 257.3 399.9





选择您的配件和软件(可选)
订购代码 描述
A) 用于成像的附件
GE-CM02 用于 1k1k 相机的 C 接口镜头适配器
GE-M4202 M42 镜头适配器,适用于 1k1k、2k2k 和 2k2k plus 相机(可选配集成滤镜支架)
GE-FM02 用于 1k1k、2k2k 和 2k2k 以及相机的 F 接口镜头适配器(可选配集成滤镜支架)
GE-SR35 25mm快门,用于1K1K相机,包括快门驱动器模块
GE-SR45 45mm 快门,适用于 2K2K 和 2K2K Plus 相机,包括快门驱动器模块
B) 用于增强冷却性能的附件
GE-CR01 紧凑的液体冷却,冷却液在室温下循环,用于相机深度冷却
GE-CR02 循环水冷却器,PID 控制,温度从 -5°C 到 30°C,用于超深摄像机冷却
C) 软件开发工具包 (SDK) 和驱动程序
GE-LX01 适用于 Linux 的 SDK(基于 C/C++)
GE-PYT01 Python 驱动程序
GE-LAB01 LabVIEW 驱动 程序
GE-EP EPICS 驱动程序
GE-TAN Tango 驱动程序
