1550nm 连续波单模光纤激光器 | 瑆创光学电子商店

1550nm 连续波单模光纤激光器

SIMTRUM's STFL Series 1550nm CW Fiber Laser features a high-stability semiconductor chip and offers an output power range of 10-500mW. Designed with precision, the laser incorporates advanced drive and temperature control circuits for safe and reliable operation. Available in both desktop and modular formats, it is ideally suited for a variety of optical applications.

793/808/915/976nm_High_Power_Laser

Features

  • DFB cavity laser
  • Power and spectral stability
  • Output power is continuously adjustable

Applications

  • Fiber optic sensing
  • Optical experiments
  • Optical fiber communication

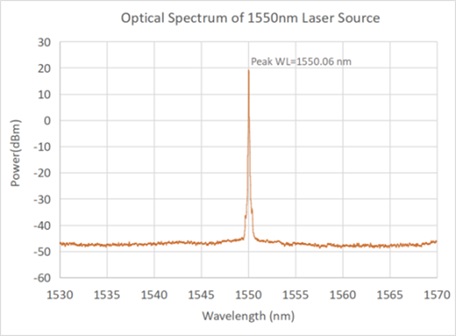

SIMTRUM_STFL1550_Optical_Spectrum



Product specifications and Brochures

Product Brochure Link: SIMTRUM_PDF





Optical Parameters Unit Typical Value Remarks
Wavelength nm 1550 1535 ~ 1565nm customizable
Wavelength Accuracy nm ±0.5
Laser Operation Mode - CW Continuous light
Spectral Linewidth nm ≤ 3
Side Mode Suppression Ratio dB > 50
Output Power mW 10/20/50/100/200/400/500
Accuracy Working - 10~100%
Instability(15min.in) dB ≤ ±0.02 Equivalent to ≤±0.5%
Instability(8 hr) dB ≤ ±0.05 Equivalent to ≤±1.2%
Polarization State - Random Linear polarization
Optical Fiber - SMF-28 PM1550
Fiber connector - FC/APC FC/APC
(slow axis alignment)






General Parameters Desktop Module
Control Function Keystroke / RS232 serial Communication RS232 serial Communication
Remote control Port DB9 Female DB9 Female
Power Supply AC100~240V, <30W DC5V, <15W
Dimensions 260(W)×280(D)×120(H)mm 125(W)×150(D)×20(H)mm
Operation Temperature -5~+35°C
Operation Humidity 0~70%



Ordering Information/Product Code
Series Wavelength (nm) Output Power (mW) Fiber Packaging
STFL 1550 10/20/50/100/200/400/500 SM = SMF-28 M - Module
PM = PM1550 B - Desktop




SIMTRUM's STFLH Series 1550nm CW Fiber Laser integrates a DFB seed laser with a high-power gain optical module to deliver high-power, single-wavelength laser transmission. This laser provides an output range of 1-20W and features expertly designed drive and temperature control circuits for safe, stable operation. Its stable spectrum and power output make it ideal for long-term use in labs. The desktop design is user-friendly, with a simple, intuitive control interface, perfect for scientific research applications.



793/808/915/976nm_High_Power_Laser

Features

  • DFB cavity laser
  • Power and spectral stability
  • Output power is continuously adjustable

Applications

  • Fiber optic sensing
  • Optical experiments
  • Optical fiber communication

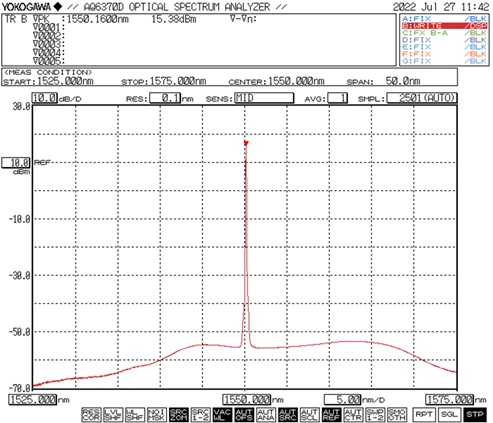

SIMTRUM_STFL1550_HP_Optical_Spectrum



Product specifications and Brochures

Product Brochure Link: SIMTRUM_PDF





Optical Parameters Unit Typical Value Remarks
Wavelength nm 1550 1535 ~ 1565nm customizable
Wavelength Accuracy nm ±0.5
Laser Operation Mode - CW Continuous light
Spectral Linewidth nm ≤ 3
Side Mode Suppression Ratio dB > 50
Output Power dBm 30/33/37/40/41/43
Accuracy Working - 10~100%
Instability(15min.in) dB ≤ ±0.02 Equivalent to ≤±0.5%
Instability(8 hr) dB ≤ ±0.05 Equivalent to ≤±1.2%
Polarization State - Random Linear polarization
Optical Fiber - SMF-28 PM1550
Fiber connector - FC/APC FC/APC
(slow axis alignment)






General Parameters Desktop Module (Power 1/2W) Module (Power 5/10W)
Control Function Keystroke / RS232 serial Communication RS232 serial Communication RS232 serial Communication
Remote control Port DB9 Female DB9 Female DB9 Female
Power Supply AC100~240V, <150W DC12V3A, 36W DC12V6A, ≤ 80W
Dimensions 300(W)×320(D)×120(H)mm 125(W)×150(D)×31.5(H)mm 139(W)×235(D)×70(H)mm
Operation Temperature -5~+35°C
Operation Humidity 0~70%





Ordering Information/Product Code
Series Wavelength (nm) Output Power (dBm) Fiber Packaging
STFLH 1550 30/33/37/40/41/43 SM = SMF-28 M - Module
PM = PM1550 B - Desktop






Type Wavelength Wavelength Accuracy Spectral Linewidth Output Power
405-940 CW Single Mode Fiber Laser 405-940 nm ±5 nm - 5/10/20/100mW
793/808/915/976nm CW Multi Mode High Power Fiber Laser 793/ 808/ 915/ 976 nm ±3 nm / ±10 nm 3nm / 6nm 5/10/25W
974/976 CW Single Mode Fiber Pump Laser 974/ 976 nm ±1 nm - 200 - 1000mW
1030/1064 CW Single Mode Fiber Laser 1064 nm ±2 nm < 0.1nm 100mW - 10W
1120nm CW Single Mode Fiber Laser 1120±1 nm ≤ 0.1nm 1/2/5W
1310 CW Single Mode Fiber Laser 1310 nm ±2 nm ≤ 3nm 10/20/30/40mW
1450/1480 CW Single Mode Fiber Laser 1425/ 1435/ 1455/ 1465/ 1480 nm ±3 nm / ±10 nm - 200 - 800mW
1550 CW Single Mode Fiber Laser 1550 nm ±0.5 nm ≤ 3nm 10mW - 20W
1570 CW Single Mode Fiber Laser 1570 nm ±1 ±0.5 nm < 0.1nm 10/20/50/100/200/400/500 mW
30/33/35/37/40 dBm
2000 High Power CW Fiber Laser 1900-2050 nm - < 1nm  > 30 W




We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
STFL-1550-10-SM-B
1550nm CW Single Mode Fiber Laser, Low Power, 10-500mW, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 10mW, SMF-28
4-6 Weeks $1270.00
STFL-1550-20-SM-B
1550nm CW Single Mode Fiber Laser, Low Power, 10-500mW, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 20mW, SMF-28
4-6 Weeks $1312.00
STFL-1550-50-SM-B
1550nm CW Single Mode Fiber Laser, Low Power, 10-500mW, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 50mW, SMF-28
4-6 Weeks $1735.00
STFL-1550-100-SM-B
1550nm CW Single Mode Fiber Laser, Low Power, 10-500mW, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 100mW, SMF-28
4-6 Weeks $2116.00
STFL-1550-200-SM-B
1550nm CW Single Mode Fiber Laser, Low Power, 10-500mW, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 200mW, SMF-28
4-6 Weeks $2328.00
STFL-1550-400-SM-B
1550nm CW Single Mode Fiber Laser, Low Power, 10-500mW, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 400mW, SMF-28
4-6 Weeks $2751.00
STFL-1550-500-SM-B
1550nm CW Single Mode Fiber Laser, Low Power, 10-500mW, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 500mW, SMF-28
4-6 Weeks $3429.00
STFL-1550-10-PM-B
1550nm CW Single Mode Fiber Laser, Low Power, 10-500mW, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 10mW, PM1550
4-6 Weeks $1429.00
STFL-1550-20-PM-B
1550nm CW Single Mode Fiber Laser, Low Power, 10-500mW, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 20mW, PM1550
4-6 Weeks $1508.00
STFL-1550-50-PM-B
1550nm CW Single Mode Fiber Laser, Low Power, 10-500mW, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 50mW, PM1550
4-6 Weeks $2116.00
STFL-1550-100-PM-B
1550nm CW Single Mode Fiber Laser, Low Power, 10-500mW, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 100mW, PM1550
4-6 Weeks $3386.00
STFL-1550-200-PM-B
1550nm CW Single Mode Fiber Laser, Low Power, 10-500mW, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 200mW, PM1550
4-6 Weeks $3810.00
STFL-1550-400-PM-B
1550nm CW Single Mode Fiber Laser, Low Power, 10-500mW, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 400mW, PM1550
4-6 Weeks $4444.00
STFL-1550-500-PM-B
1550nm CW Single Mode Fiber Laser, Low Power, 10-500mW, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 500mW, PM1550
4-6 Weeks $5079.00
STFLH-1550-30-SM-B
1550nm CW Single Mode Fiber Laser, High power 1-20W, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 30dBm, SMF-28
4-6 Weeks $3704.00
STFLH-1550-33-SM-B
1550nm CW Single Mode Fiber Laser, High power 1-20W, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 33dBm, SMF-28
4-6 Weeks $4233.00
STFLH-1550-35-SM-B
1550nm CW Single Mode Fiber Laser, High power 1-20W, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 35dBm, SMF-28
4-6 Weeks $4497.00
STFLH-1550-37-SM-B
1550nm CW Single Mode Fiber Laser, High power 1-20W, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 37dBm, SMF-28
4-6 Weeks $6085.00
STFLH-1550-40-SM-B
1550nm CW Single Mode Fiber Laser, High power 1-20W, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 40dBm, SMF-28
4-6 Weeks $9280.00
STFLH-1550-41-SM-B
1550nm CW Single Mode Fiber Laser, High power 1-20W, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 41dBm, SMF-28
4-6 Weeks $13187.00
STFLH-1550-43-SM-B
1550nm CW Single Mode Fiber Laser, High power 1-20W, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 43dBm, SMF-28
4-6 Weeks $19048.00
STFLH-1550-30-PM-B
1550nm CW Single Mode Fiber Laser, High power 1-20W, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 30dBm, PM1550
4-6 Weeks $5291.00
STFLH-1550-33-PM-B
1550nm CW Single Mode Fiber Laser, High power 1-20W, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 33dBm, PM1550
4-6 Weeks $5820.00
STFLH-1550-35-PM-B
1550nm CW Single Mode Fiber Laser, High power 1-20W, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 35dBm, PM1550
4-6 Weeks $6878.00
STFLH-1550-37-PM-B
1550nm CW Single Mode Fiber Laser, High power 1-20W, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 37dBm, PM1550
4-6 Weeks $8201.00
STFLH-1550-40-PM-B
1550nm CW Single Mode Fiber Laser, High power 1-20W, Wavelength 1550 nm, Wavelength Accuracy ±0.5 nm, Spectral Linewidth ≤3 nm, Output Power 40dBm, PM1550
4-6 Weeks $11233.00
