帧抓取器

Frame Grabber with Camera Link interface

Our frame grabber with camera link 2.0 interface are divided into three kinds-full, base and full pro.They mainly differ in parameters. Please check the details and find the one you need.


Feature


  4255533a9635fc532eef91bf2b6142b7_ST_sCL%20PE4_Full02.jpg  d0c5dc095350bd1a68c1cbbba561a930_ST_sCL%20PE4_Full01.jpg          64ab4736cc02f84719e69551e888bae4_ST_sCL%20PE4_DBase02.jpg2a52f6e27b42065ea100e50a21c74cc1_ST_sCL%20PE4_DBase01.jpgd7ab6b4e8617aa039f84a7f0103c5b8f_ST_sCL%20PE4_Full%20Pro02.jpg0be5368a0c13d066ee800cf0fff46e00_ST_sCL%20PE4_Full%20Pro01.jpg

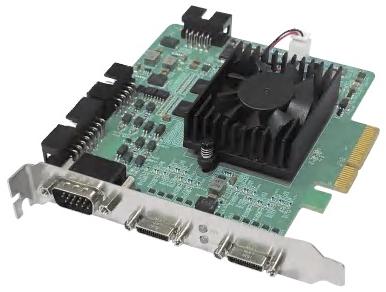

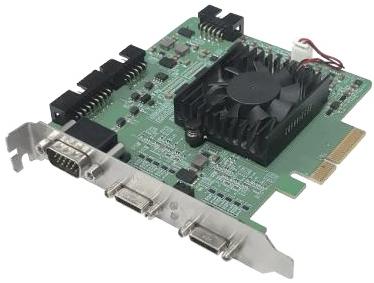

                           ST-sCLPE4Full                                                                  ST-sCLPE4DBase

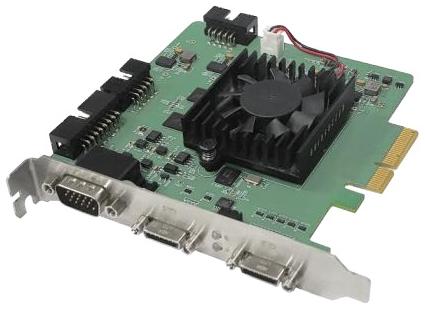

                        ST-sCLPE4 Full Pro

-Full/full+/base/medium(ST-sCLPE4Full only)

-Base/dual-base(ST-sCLPE4DBase only)

-Half-length substrate

-Support mono/bayer/color mode

-Support 8/10/12/14/16 bit multiple different pixel depths

-Maximum horizontal resolution 64k pixels

-PCle Gen2.0 and Camera Link 2.0(backward compatible)

-Support external trigger signal input,encoder

 signal input and flash signal  output

-Support multi-card synchronization,support

  firmware online upgrade

-Support Windows:10/7(64-Bit/32-Bit),Linux64-Bit,MacOS

-Rich secondary development library(C/C++/C#)

-Half-length substrate

-Full/full+/base/medium

-Support mono/bayer/color mode

-Support 8/10/12/14/16 bit multiple different pixel depths

-Support JPEG color/black and white compression (8bit)

-PCle Gen2.0 and Camera Link 2.0(backward compaible)

-Maximum horizontal resolution 64k pixels

-Support external trigger signal input,encoder

 signal input and flash signal  output

-Support multi-card synchronization,support

 firmware online upgrade

-Support Windows,Linux system, MACOS

-Rich secondary development library(C/C++/C#)





Product specifications and Brochures

Product Brochure Link:

ModelST-sCL PE4 FullST-sCL PE4 DBaseST-sCL PE4 Full Pro
Camera Link ModeFull/Full+/Base/MediumBase/Dual-BaseBase/Medium/Full/Full+
Interface StandardCamera Link 2.0Camera link 2.0Camera Link 2.0
Pixel Depth8/10/12/14/16 bit
Tap Arrangement1 Tap-8/10/12/14/16-bit Mono/Bayer;
1 Tap-8/10-bit RGB//RGBC/BGR/BGRC;
2 Taps-8/10/12/14/16-bit Mono/Bayer;
2 Taps-8/10-bit RGB/RGBC/BGR/BGRC;
3 Taps-8/10/12/14/16-bit Mono/Bayer;
3 Taps-8-bit RGB/BGR;
4 Taps--8/10/12-bit Mono/Bayer;
8 Taps-8/10-bit Mono/Bayer;
10 Taps-8-bit Mono/Bayer
1 Tap-8/10/12/14/16-bit Mono/Bayer
2 Taps-8/10/12/14/16-bit Mono/Bayer
1 Tap-8-bit RGB/BGR
1 Tap-8/10/12/14/16-bit Mono/Bayer
1 Tap-8/10-bit RGB/BGR/RGBC/BGRC
2 Taps-8/10/12/14/16-bit Mono/Bayer
2 Taps-8/10-bit RGB/BGR/RGBC/BGRC
3 Taps-8/10/12/14/16-bit Mono/Bayer
3 Taps-8-bit RGB/BGR
4 Taps-8/10/12-bit Mono/Bayer
8 Taps-8/10-bit Mono/Bayer
10 Taps-8-bit Mono/Bayer
Scan TypeArea scan/Line scan
Resolution SupportLevel(min/max):128 byte/64k bytes;Vertica(min/max): 1 line/(Area array 256M/horizontal resolution),(Line scan unlimited)
Pixel Clock20-85 MHz
Onboard Memory512 MB
Output Data Rate850 MB/s(max)
Communication MethodSupport cmputer serial communication;1200-921600bps
Trigger InputSupport 2 signals imputs(photoelectrc isolation);Maximum frequency 68kHz;Level standard supports RS422;TTL and differential imput(3.3-24V)
Encoder Input

Support 1 orthogonal AB phase input(photoelectric isolation);Maximum frequency 2MHz;Level standard supports RS422

;TTL and differential input (3.3-24V)

Inter-board SynchronizationSupport multi-card synchronization(up to 4 capture cards);The synchronization deay is less than 25ns
Flash ControlSupport 2 signal output(photoelectric isolation);Maximum frequency 40kHz
Operating Temperature0-65℃
Secondary DevelopmentComplete SDK packages;Supporting C/C++/C# language
System RequirementOperating Windows :10/7(64-Bit/32-Bit),Linux 64-Bit,Mac OS;Hardware: PCle 2.0×4 Slot
ConnectorSDR
Frame grabber power<8.5W<8.5W<6W



Drawings

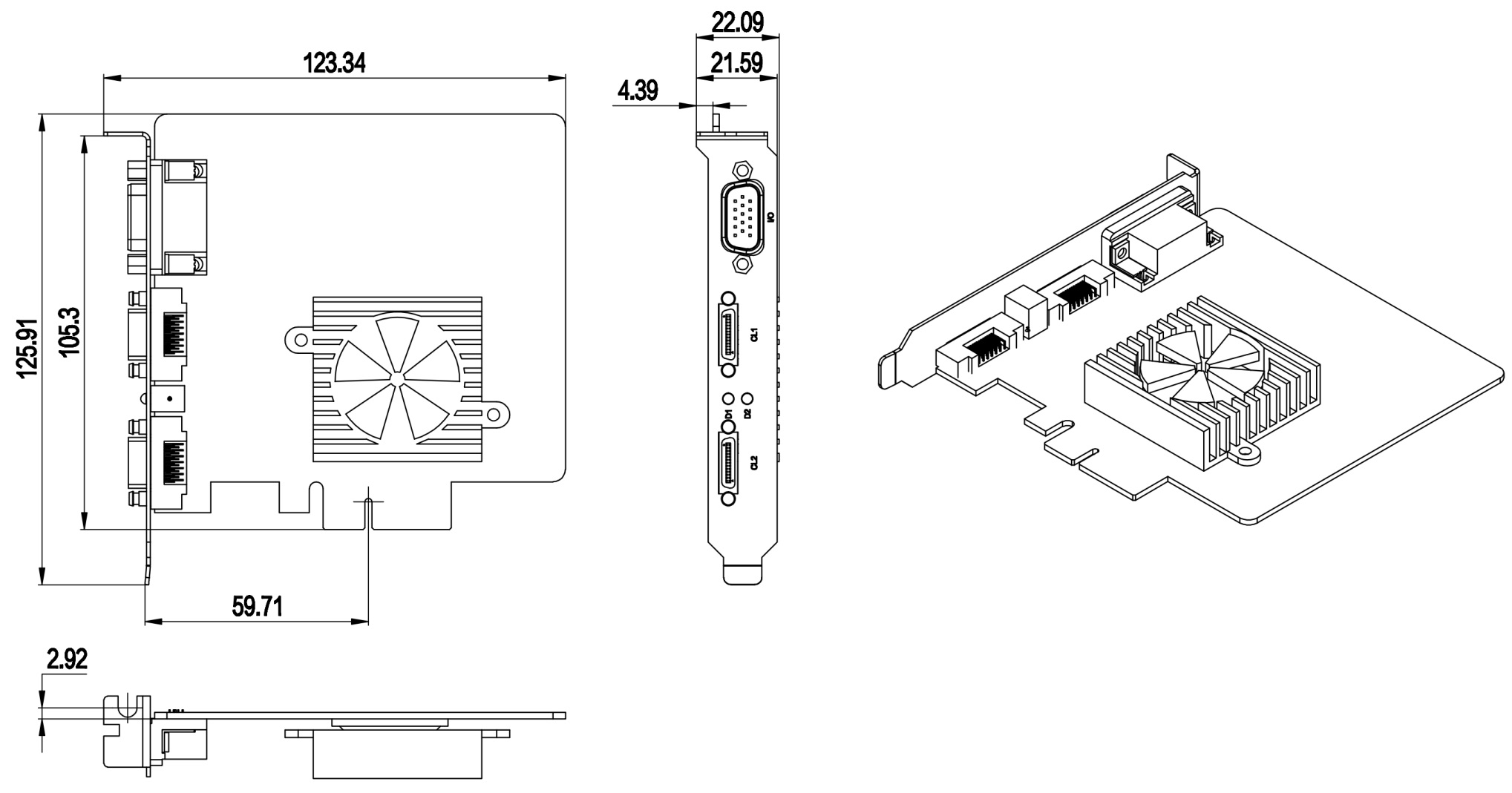

ST-sCLPE4DBase

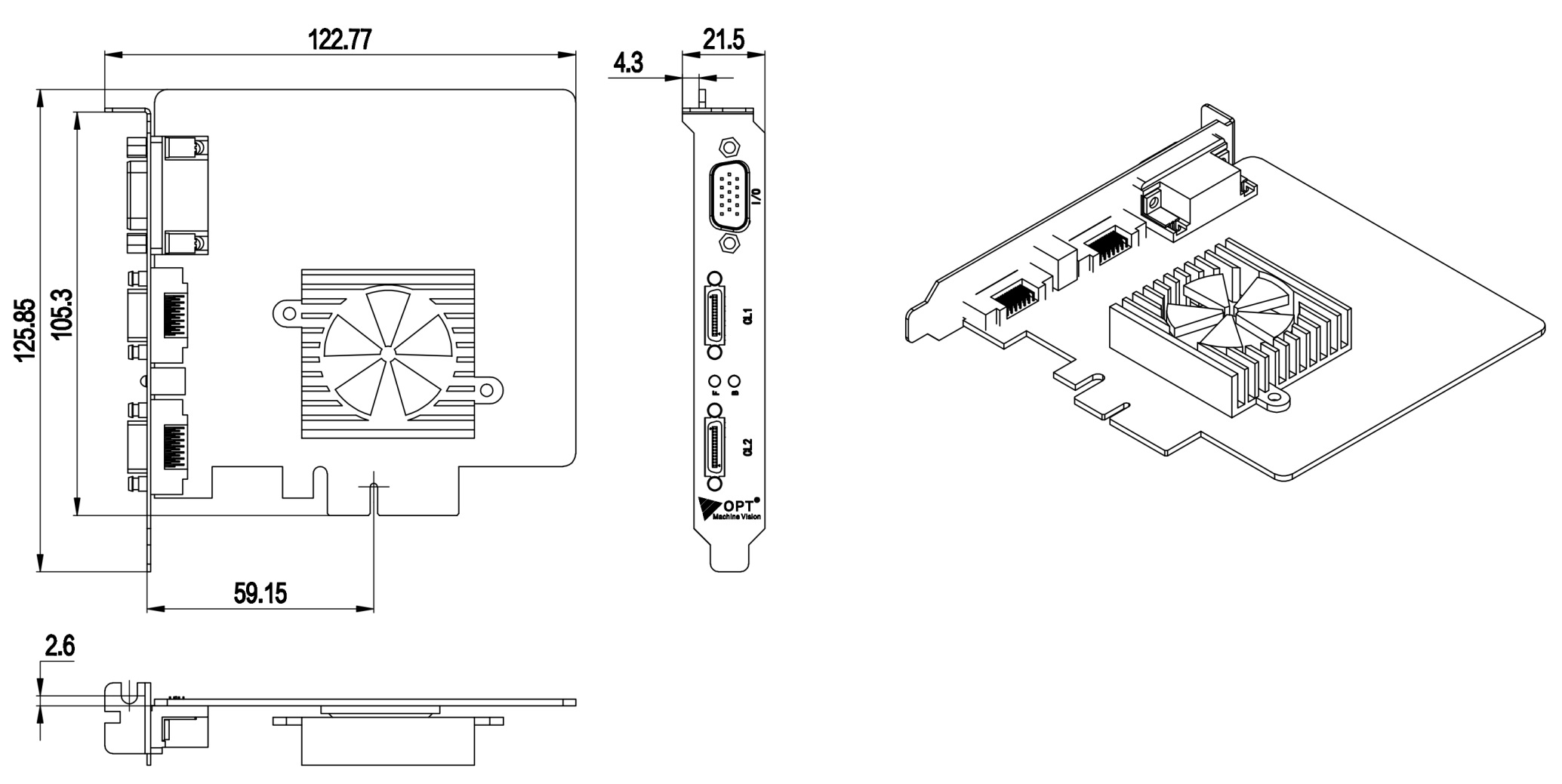

ST-sCLPE4Full



Frame Grabber With CoaXPress Interface

Our frame grabbers with CoaXPress interface differ in onboard memory,topology model , image interface ,protocol suppored and other parameters.Please check the details and find the one you need.


Feature

-Support CoaXPress camera power, controlling and triggering

-Monochrome, bayer, color cameras supporting line scan and area scan

-Compatible with GenCam standard and GenTL standard

-Flexible IO: 2 photoelectric solation input ,1 shaft encoder input, 2 photoelectric isolation output

-Fan speed automatically adjusts based on FPGA temperature for optimized thermal and noise performance

-Support Windows 10/7(64-Bit/32-Bit),Linux 64-Bit, Mac OS

-SDK development library supporting C,C++,C#

-GUI configuration tool


Frame Grabber Type

0bbc33d01092ede1b82eed5602d38198_ST_CXP601.jpgbec21e0c5fb70fbd6b636886a8e3e8e2_ST_CXP602.jpga0df534c6284864b03106c7ac838f35d_ST_CXP6_8_01.jpg03c34ea92f8fdd6a8781950e0bef1b18_ST_CXP6_8_02.jpg473be64741a576b417e69859c20abdd7_ST_CXP12_01.jpg4eb8a07ea73f99f3a708d59ad7b9d122_ST_CXP12_02.jpg

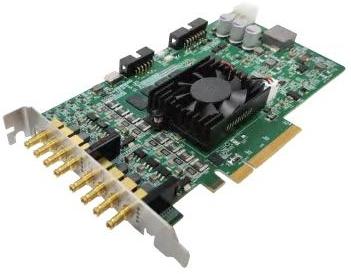

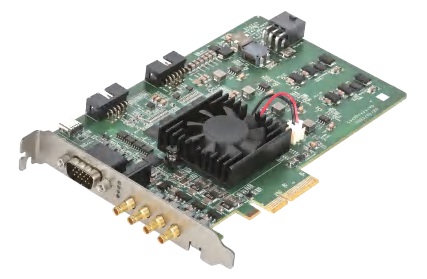

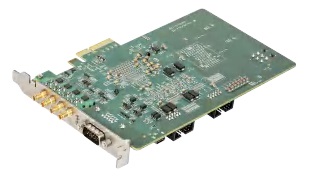

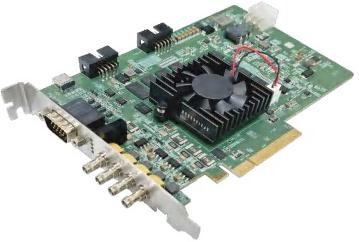

                            ST-CXP6                       ST-CXP6-8                         ST-CXP12

-PCle Gen3x4

-Support 1-4 channel CXP topological connection

-Compliant with CoaXPress1.1/1.1.1

-Support four-channel PoCXP,

 single-channel 24V/13W

-Support 1.25/2.5/3.125/5/6.25G high-speed link

-Onboard 2GB image cache

-Speed up to 25Gbps,each link up to 6.25Gbps

-DIN 1.0/2.3 interface and 4-way three-color

LED status indicator


-PCle Gen3x8

-Support Two groups of 1-4 CXP arbitrary

  topology connections

-Compliant with CoaXPress 1.1/1.1.1

-Support eight-channel PoCXP,

  single-channel 24V/13W

-Support 1.25/2.5/3.125/5/6.25G high-speed link

-Onboard 4GB image cache

-Speed up to 50Gbps,each link up to 6.25Gbps

-DIN1.0/2.3 interface and 8-way three-color

  LED status indicator

-PCIe Gen3x8

-Support 1-4 channel CXP topological connection

- Compliant with CoaXPress 2.0/2.1

-Support four-channel PoCXP,

 single-channel 24V/13W

-Support 1.25/2.5/3.125/5/6.25/10/12.5G

  high-speed link

- Onboard 4GB image cache

-Speeds up to 50Gbps,each link up to 12.5Gbps

- Micro BNC interface and 4-way t hree-color

  LED status indicator






Product specifications and Brochures

Product Brochure Link:

ModelST-CXP6ST-CXP6-8ST-CXP12
Bit Depth8/10/12/14/16 bit
Image ModeMono/Bayer/RGB/RGBA
Onboard Memory2 GB4 GB4 GB
Topology ModelSupport 1-4 channel CXP topological connectionTwo groups of 1-4 CoaXPress arbirary topology connectionsSupport 1-4 channel CXP topological connection
Image Interface4 channels DIN 1.0/2.3 CoaXPress with PoCXP8 channels DIN 1.0/2.3 CoaXPress with PoCXP4-channels Micro BNC CoaXPress with PoCXP
Transfer Rates(1.25/2.5/3.125/5/6.25G)x4(1.25/2.5/3.125/5/6.25G)x8(1.25/2.5/3.125/5/6.25/10/12.5G)x4
Protocol SupporedCoaXPress1.1/1.1.1;GenlCam;GenTLCoaXPress1.1/1.1.1;GenlCam;GenTLCoaXPress 2.0/2.1;GenCam; GenTL
Acquisitio Speed19.4 Gbps(max)38.8 Gbps(max)38 Gbps(max)
PCIE SpeedPCle 3.0x4PCle 3.0x8PCle 3.0x8
PCIE Effective Payload Size128/256bytes128/256 bytes128/256 bytes
Bus Bandwidth3450 MB/s6800MB/s6800 MB/s
Maximum Camera Number4 PCS8 PCS4 PCS
Scan ModeLine scan /Area scan
Trigger InputSupport 2 signals imputs(photoelectric isolation);Maximum frequency 30kHz;Level standard supports 3.3-24VSupport 2 signals inputs(photoelectric isolaton);Maximum frequency 100kHz;Level standard supports 3.3-24VSupport 2 signals imputs(photoelectric isolation);Maximum frequency 100kHz;Level standard supports 3.3-24V
Encoder InputSupport 1 orthogonal AB phase input (photoelectric isolation); Maximum frequency 1MHz;TTL and differential input(1-24V)Support l orthogonal AB phase input(photoelectric isolation);Maximum frequency 1MHz;TTL and differential input(1-24V)Support l orthogonal AB phase input (photoeectric isolation); Maximum frequency IMHz;Level standard Support 1-24V
Flash ControlSupport 2 signals output (photoelectric isolation);Maximum frequency 30kHzSupport 2 signals output (photoelectric isolation);Maximum frequency 100kHzSupport 2 signals output (photoelectric isoation); Maximum frequency 100kHz
Cooling MethodFan cooling
Operating Temperature0-55℃
Memory ManagementCircular buffering supported;Accumulate frame/line to single buffer;DMA buffer is directly flled into system memory
System RequirementsOperating System: Windows 10/7(64-Bit/32-Bit),Linux 64-Bit,Mac OS;Hardware: PCle 3.0×4 SlotOperating System: Windows 10/7(64-Bit/32-Bit),Linux 64-Bit, Mac OS;Hardware: PCle 3.0×8 SlotOperating System: Windows 10/7(64-Bit/32-Bit),Linux 64-Bit, Mac OS;Hardware: PCIe 3.0x8Slot
GUIMulti-camera display and configuration; Support image saving and loading



Drawings

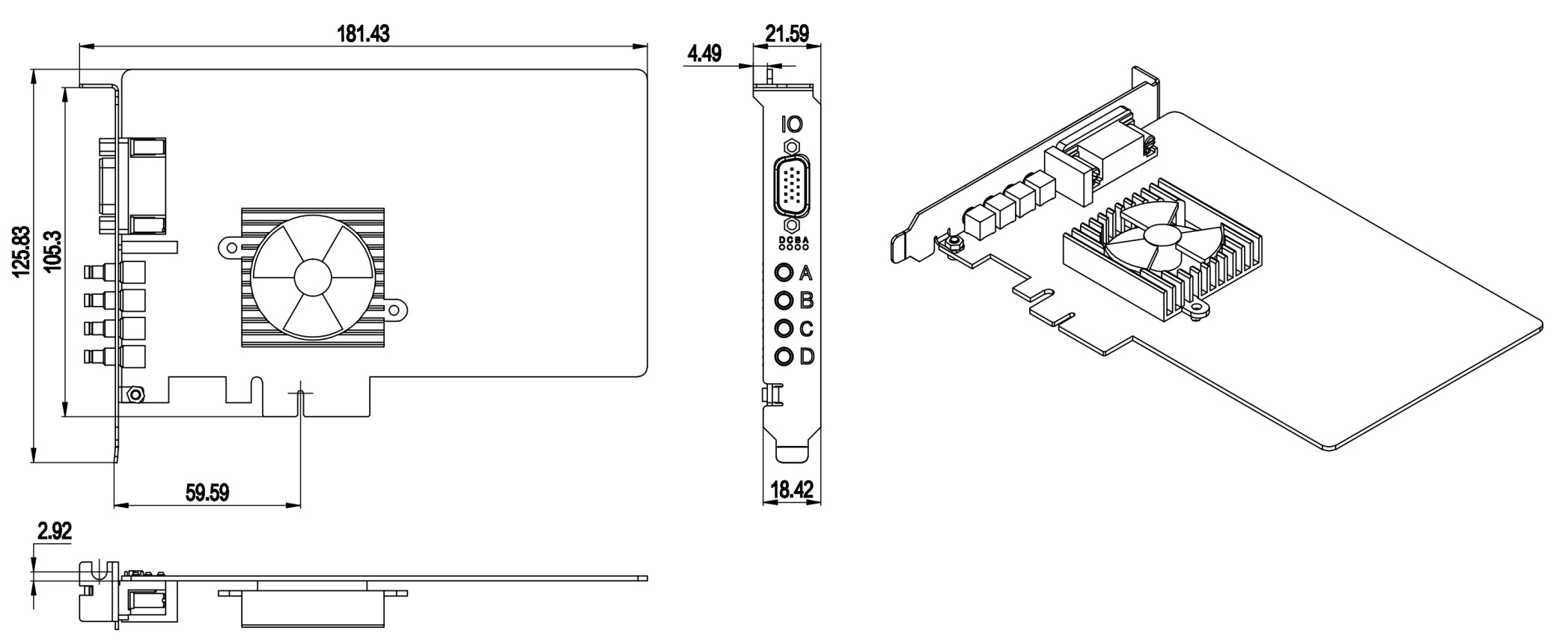

ST-CXP6

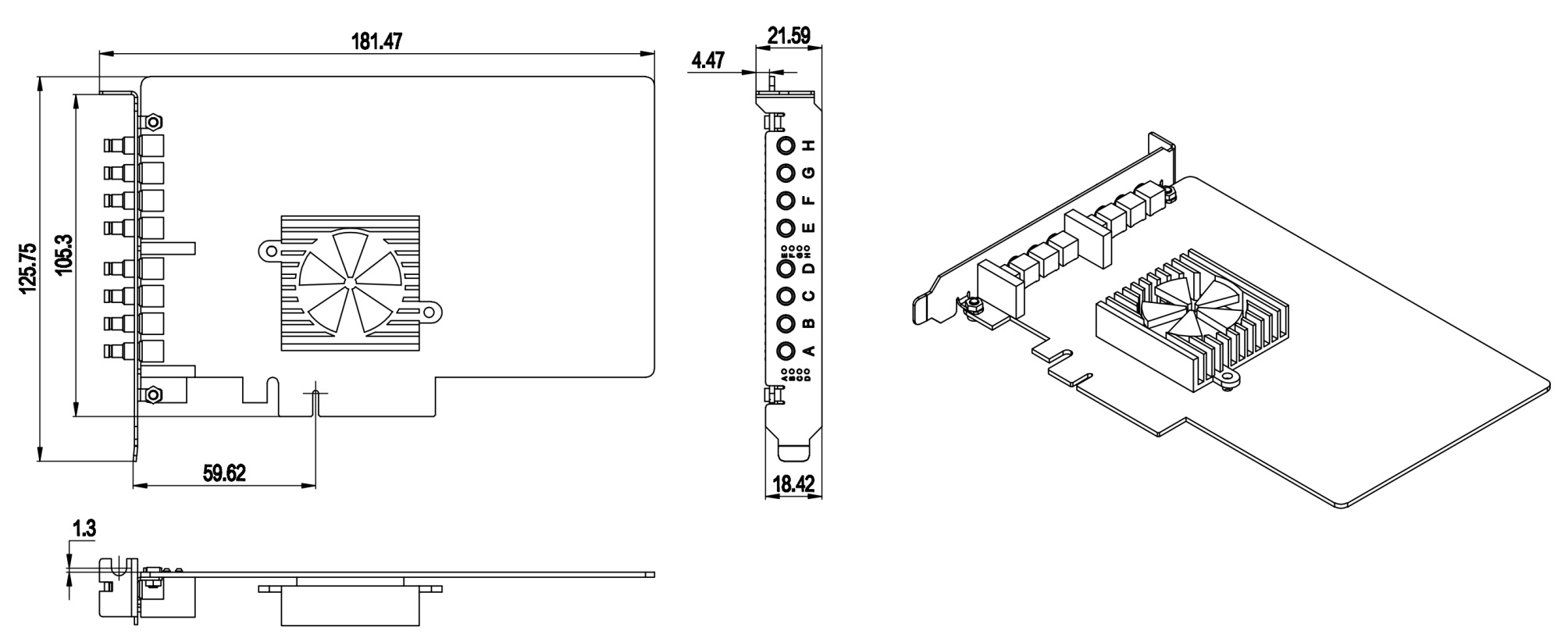

ST-CXP6-8

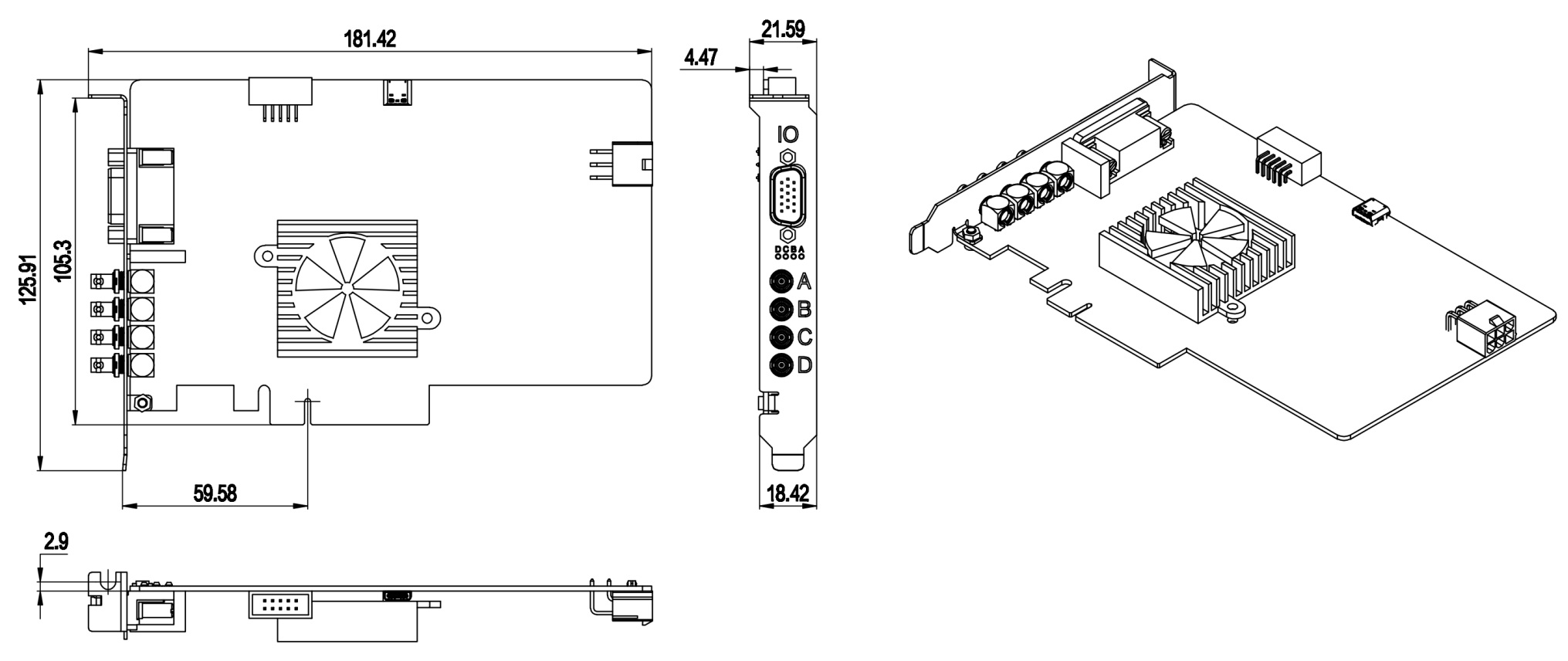

ST-CXP12



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Interface


Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
ST-sCL PE4 Full
Frame Grabber, Camera Link Mode Full/Full+/Base/Medium, Interface Standard Camera Link 2.0, Pixel Depth 8/10/12/14/16 Bit, Scan Type Area Scan/Line Scan, Pixel Clock 20-85 MHz, Onboard Memory 512 MB, Output Data Rate 850 MB/s(Max),Connector SDR
6-8 weeks Request for quote
ST-sCL PE4 DBase
Frame Grabber, Camera Link Mode Base/Dual-Base, Interface Standard Camera Link 2.0, Pixel Depth 8/10/12/14/16 bit, Scan Type Area Scan/Line Scan, Pixel Clock 20-85 MHz, Onboard Memory 512 MB, Output Data Rate 850 MB/s(Max), Connector SDR
6-8 weeks Request for quote
ST-sCL PE4 Full Pro
Frame Grabber, Camera Link Mode Base/Medium/Full/Full+, Interface Standard Camera Link 2.0, Pixel Depth 8/10/12/14/16 bit, Scan Type Area Scan/Line Scan, Pixel Clock 20-85 MHz, Onboard Memory 512 MB, Output Data Rate 850 MB/s(Max), Connector SDR
6-8 weeks Request for quote
ST-CXP6
Frame Grabber, Bit Depth 8/10/12/14/16 bit, Image Mode Mono/Bayer/RGB/RGBA, Onboard Memory 2 GB, Topology Model Support 1-4 Channel CXP Topological Connection, Image Interface 4 Channels DIN 1.0/2.3 CoaXPress With PoCXP, ,Acquisitio Speed 19.4 Gbps(Max), Transfer Rates (1.25/2.5/3.125/5/6.25G)x4, PCIE Speed PCle 3.0x4
6-8 weeks Request for quote
ST-CXP6-8
Frame Grabber, Bit Depth 8/10/12/14/16 Bit, Image Mode Mono/Bayer/RGB/RGBA, Onboard Memory 4 GB, Topology Model Two Groups of 1-4 CoaXPress Arbirary Topology Connections, Image Interface 8 Channels DIN 1.0/2.3 CoaXPress With PoCXP, Transfer Rates (1.25/2.5/3.125/5/6.25G)x8, Acquisitio Speed 38.8 Gbps(Max), PCIE Speed PCle 3.0x8, Maximum Camera Number 8 PCS
6-8 weeks Request for quote
ST-CXP12
Frame Grabber, Bit Depth 8/10/12/14/16 Bit, Image Mode Mono/Bayer/RGB/RGBA, Onboard Memory 4 GB, Topology Model Support 1-4 Channel CXP Topological Connection, Image Interface 4-Channels Micro BNC CoaXPress With PoCXP, Transfer Rates , Acquisitio Speed 38 Gbps(Max), (1.25/2.5/3.125/5/6.25/10/12.5G)x4, PCIE Speed PCle 3.0x8, Maximum Camera Number 4 PCS
6-8 weeks Request for quote
