计数单元

Overview Related Products Order Now!

Counting Unit – STM4011

SIMTRUM offers the STM4011 counting unit includes counting control circuit and upper computer acquisition software. The counting unit can be used directly in combination with a photon counting detector or scintillation detector as a counter. The counting software has a simple and easy user interface.

Feature

Count the positive logic TTL level pulses and input them to the computer through RS-232 interface
Gating time is adjustable
Built-in linear correction program (for use with photon counting detectors)
Serial port baud rate: 19200 (1 bit start bit, 8 bit data bit,1 bit stop bit, no check bit)

Product Specifications and Brochures

Product Brochure Link:

Parameter		Description
Input	Input Channel	Channel 1
	Input Signal Level	3.3VTTL（Compatible with 5VTTL levels）
	Signal Pulse Width	≥10ns
	Input Impedance	50Ω
Count	Count Mode	Gating
	Maximum Counting Rate	5×10⁷S^-1
	Maximum Counting Value	232
Gating	Gated Time Range	10~655350ms
Pulse Resolution Time⁽¹⁾	/	0~255ns
Input Voltage	/	+11.5~+12.5V
Interface	/	RS232
System	/	WindowsXP/7/10
Work Environment	Temperature	0~+40℃
Work Environment	Humidity	≤90%RH
Storage Environment	Temperature	-20~+50℃
Storage Environment	Humidity	≤93%RH

Note：(1) The pulse pair resolution time needs to be tested against the matched detector performance.

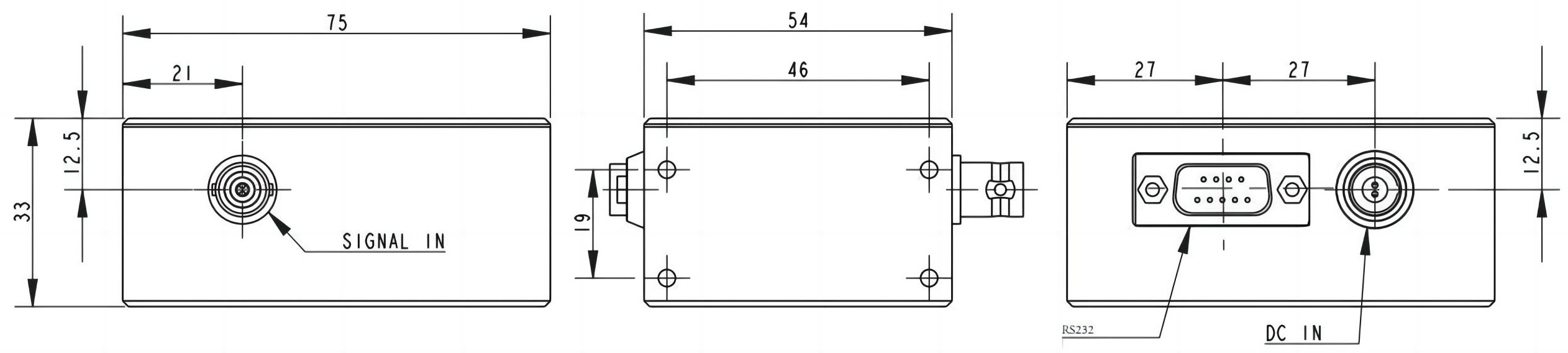

Dimension

Wiring Instructions
Interface Type	2-pin Interface	BNC Interface	DB9 Female
Interface Definition	+12V Input	Signal Input	Signal Output
Wiring	2-pin Connector Power Cable	/	/

Photomultipliers Tube (PMT)

Model	Spectral Response Range	Peak Wavelength	QE Typ.	Effective Area(mm)	Cathode Luminous Sensitivity Typ.	Anode Sensitivity Typ.
Photomultipliers Tube Head-On (Tube Only)	290 - 650nm	380 - 500nm	12% -,28%	Φ10 - Φ58	40 - 100μA/lm	30 - 2000A/lm
Photomultipliers Tube Side On(Tube Only)	160 - 900nm	/	/	8×24	40 - 250μA/lm	400 - 2500A/lm
Photomultipliers Tube (Module)	160 - 900nm	400nm, 420nm	/	Φ22 - Φ25 \| 8×24	60 - 250μA/lm	/
Microchannel Plate - Photomultiplier (MCP-PMT)	115 - 650nm	250nm, 380nm	30%@410nm, 15%@250nm	/	70μA/lm	900A/lm
Scintillator Probe	/	/	/	Φ25×25 - Φ75×75	/	/
β Detector	/	/	/	Φ10, Φ25	/	/

Assemblies and Counting Unit


High Voltage Tube Socket	High Voltage Tube Socket for Side Window	Voltage Power Supply	Counting Unit

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

Compare	Model		Drawings & Specs	Availability	Reference Price (USD)
		STM4011 Counting Unit, Input Channel Channel 1, Input Signal Level 3.3VTTL（Compatible with 5VTTL levels), Signal Pulse Width ≥10ns, Input Impedance 50Ω, Count Mode Gating, Maximum Counting Rate 5×10^7S^-1, Maximum Counting Value 232, Gated Time Range 10~655350ms, Pulse Resolution Time 0~255ns		6-8 weeks	Request for quote

STM4011 - Parameter

STM4011 - Download
