闪烁体探针

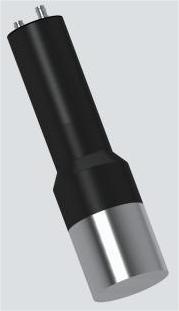

Scintillator Probe - STM3111/STM3112/STM3113

Scintillator probe (ncluding STM3111/STM3112/STM3113) is composed of NaI scintillator, photomultiplier tube. Due to its outstanding energy resolution, high optical yield, simple use and high reliability, it is widely used in industrial detection, radiology, X-ray fluorescence analysis, oil well detection and other fields.







Product Specifications and Brochures

Product Brochure Link:

 Model STM3111 STM3112 STM3113 Unit


/
 Application Voltage 0~+1250 V
 PMT Diameter
1 2 3 Inch
 Applicable to the PMT STN2013 STN4021 STN2032 /
 Effective Size of Scintillator Φ25×25 Φ50×50 Φ75×75 mm
 Interface Type BNCSHV /
 Energy Resolution(1) ≤8.5 %
Work Environment Temperature 0~+40
Humidity ≤90%RH /
Storage Environment Temperature -20~+50
Humidity ≤93%RH /
 Test Ambient Temperature 25 /

Note:(1)The output state of the detector is adjusted by using 137Cs radioactive source test.





Dimension

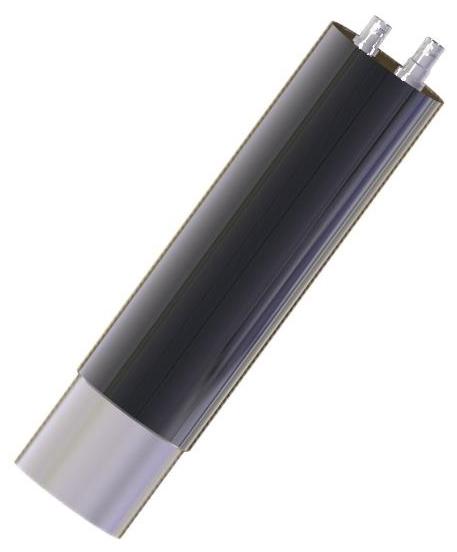

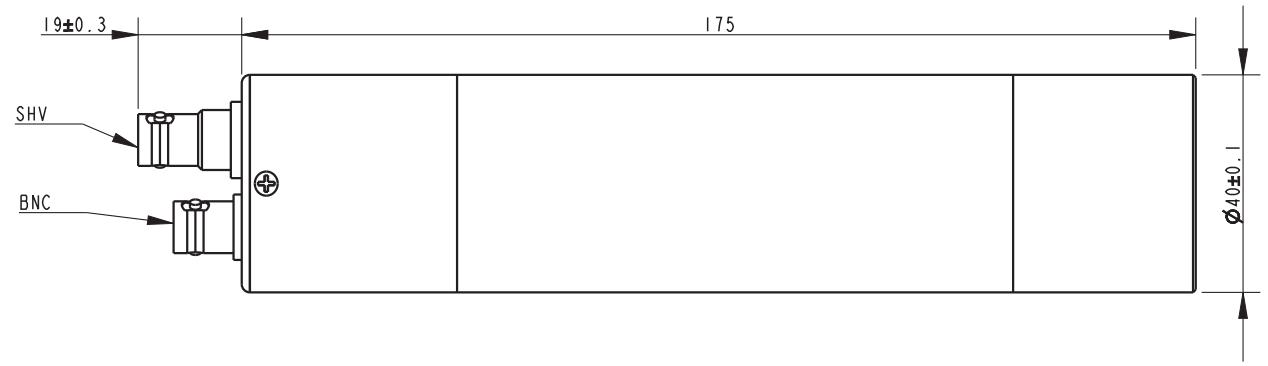

STM3111

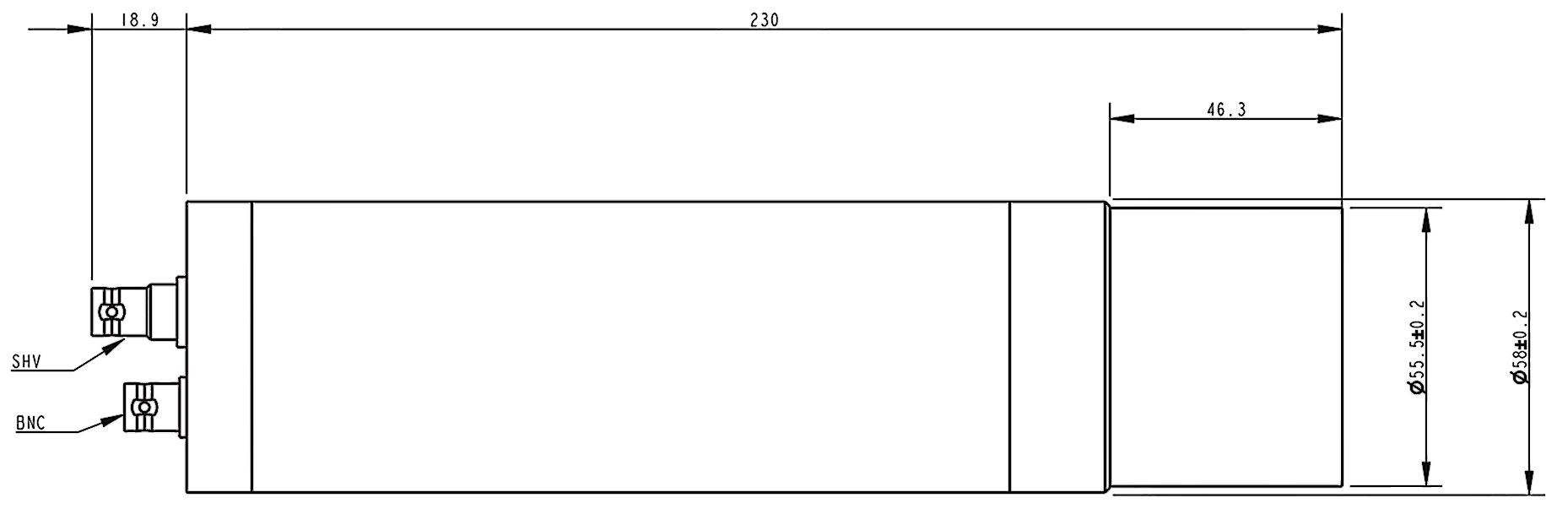

STM3112

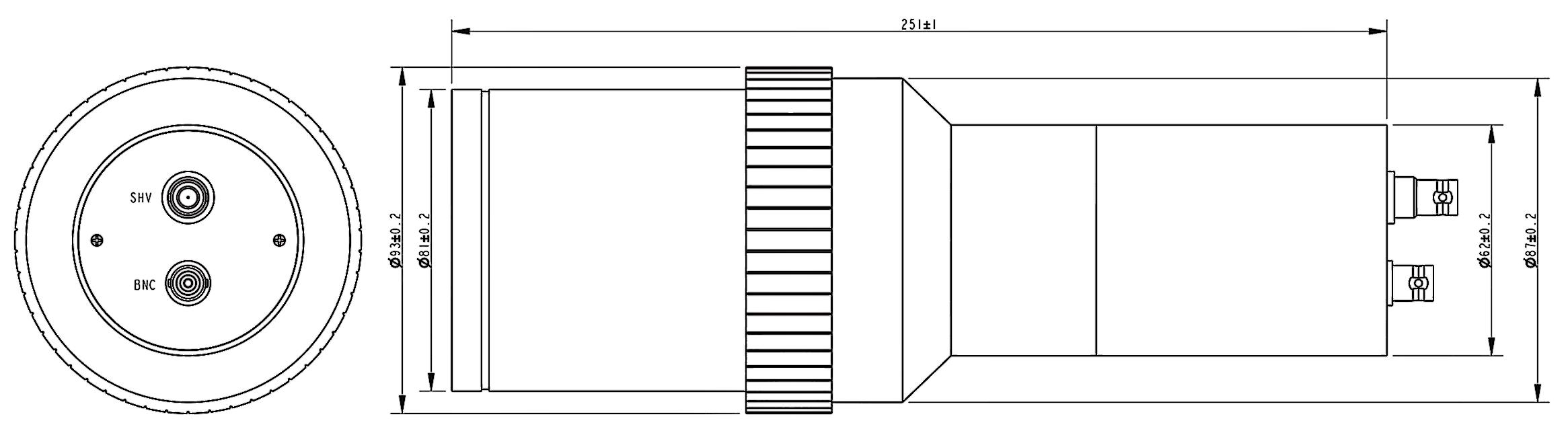

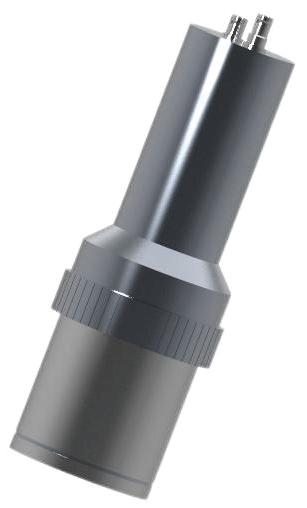

STM3113





Wiring Instructions
Interface Type SHV Interface BNC Interface
Interface Definition +12V Power Supply Signal Interface

Nal Scintillator Detector - STM3021/STM3022/STM3023

The NaI scintillator detector (including STM3021/STM3022/STM3023) is a highly integrated detector composed of NaI scintillator, photomultiplier tube, high voltage module, preamplifier and so on.



Because of its characteristics of good energy resolution, high light yield, simple use and high reliability, it is widely used in industrial detection, radiation medicine, X-ray fluorescence analysis, oil well detection and other fields .





Product Specifications and Brochures

Product Brochure Link:

Paramater STM3021 STM3022 STM3023 Unit


/
 Input Voltage +11.5~+12.5 V
 Max.Input Current 50 mA
 Effective Size of Scintillator Φ25×25 Φ50×50 Φ75×75 mm
 Output Signal Polarity Negative /
 Output Signal Amplitude(1) 1 V
 Output Signal Amplitude 6 V
 Energy Resolution ≤8.5 %
Work Environment Temperature 0~+40
Humidity ≤90%RH /
Storage Environment Temperature -20~+50
Humidity ≤93%RH /
 Test Ambient Temperature 25

Note:(1)The output state of the detector is adjusted by using 137Cs radioactive source test.





Dimension

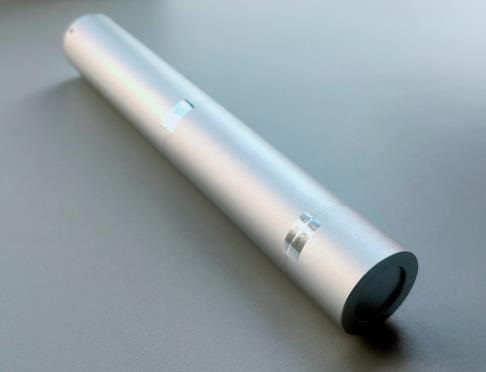

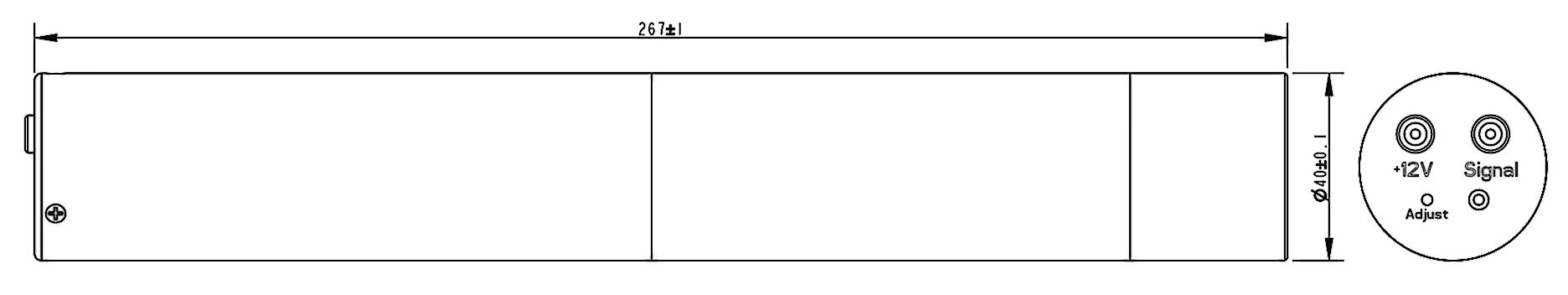

STM3021

Wiring Instructions
Interface Type LEMO Power Interface LEMO Signal Interface
Interface Definition +12V Input Signal Input
Wiring LEMO Interface Power Cable LEMO Interface Signal Cable

Note: The potentiometer adjustment interface is used to adjust the internal high voltage, adjust the high voltage clockwise to increase, and adjust the high voltage counterclockwise to decrease.

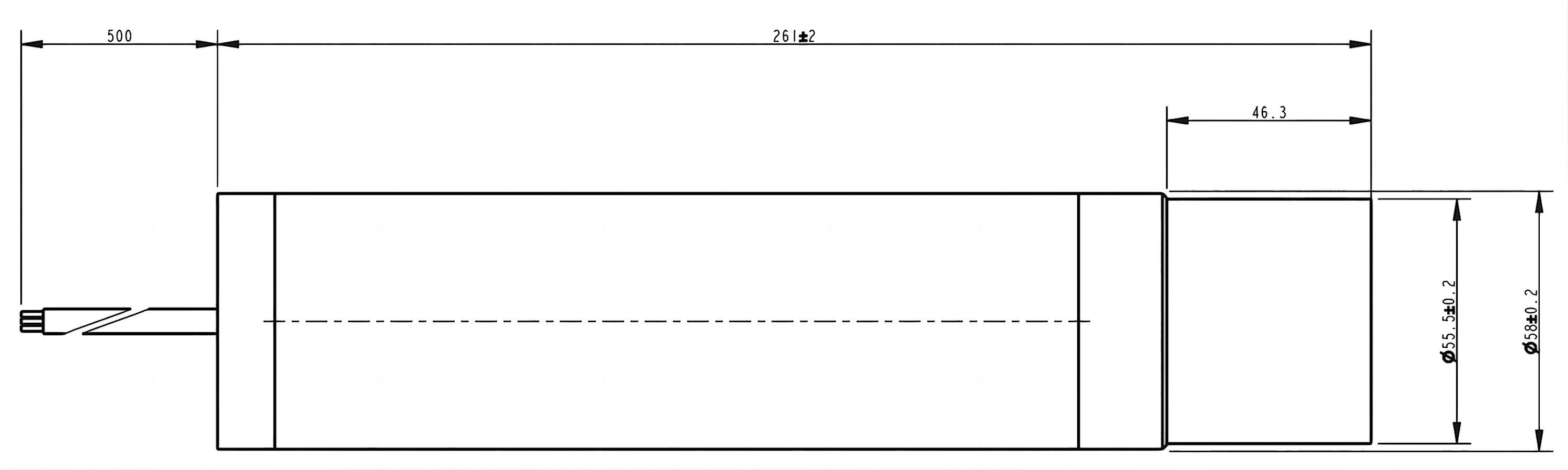

STM3022





Wiring Instructions
Cable Color Red Cable Black Cable Green Cable Yellow Cable Shielding
Wiring Definition +12V Input Power Ground Signal Ground Signal Output Grounding

Note: The potentiometer adjustment interface is used to adjust the internal high voltage, adjust the high voltage clockwise to increase, and adjust the high voltage counterclockwise to decrease.

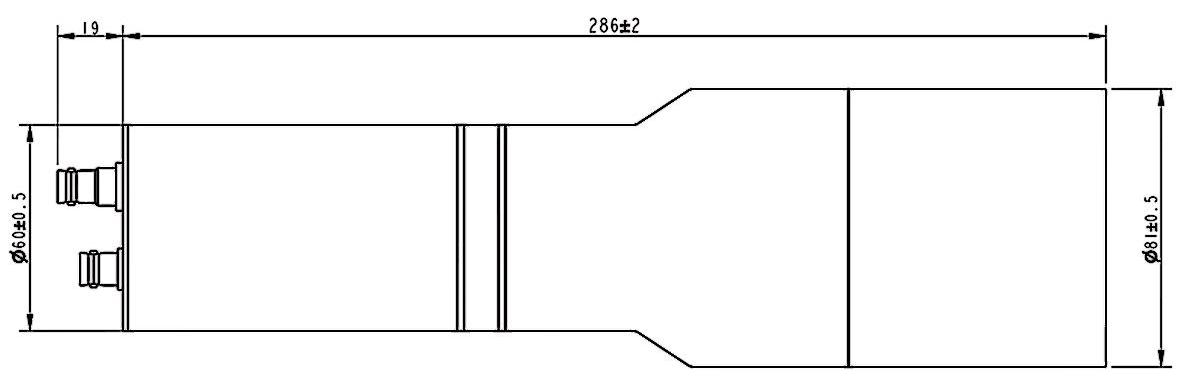

STM3023



Wiring Instructions
Interface Type 7-pin Interface BNC Interface
Interface Definition +12V Input Signal Input
Wiring 7-pin Connector Power Cable  BNC Connector Signal Cable

Note: The potentiometer adjustment interface is used to adjust the internal high voltage, adjust the high voltage clockwise to increase, and adjust the high voltage counterclockwise to decrease.


Photomultipliers Tube (PMT)

Model Spectral Response Range Peak Wavelength QE Typ. Effective Area(mm) Cathode Luminous Sensitivity Typ. Anode Sensitivity Typ.
 Photomultipliers Tube Head-On (Tube Only) 290 - 650nm 380 - 500nm 12% -,28% Φ10 - Φ58 40 - 100μA/lm 30 - 2000A/lm
 Photomultipliers Tube Side On(Tube Only) 160 - 900nm / / 8×24 40 - 250μA/lm 400 - 2500A/lm
 Photomultipliers Tube (Module) 160 - 900nm 400nm, 420nm / Φ22 - Φ25 | 8×24 60 - 250μA/lm /
 Microchannel Plate - Photomultiplier (MCP-PMT) 115 - 650nm 250nm, 380nm 30%@410nm, 15%@250nm / 70μA/lm 900A/lm
 Scintillator Probe / / / Φ25×25 - Φ75×75 / /
 β Detector / / / Φ10, Φ25 / /







Assemblies and Counting Unit



High Voltage Tube Socket High Voltage Tube Socket for Side Window Voltage Power Supply Counting Unit

We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Type


Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
STM3111
Scintillator Probe, Application Voltage 0~+1250V, PMT Diameter 1", Effective Size of Scintillator Φ25×25mm, Interface Type BNC SHV, Energy Resolution ≤8.5%,
6-8 weeks Request for quote
STM3112
Scintillator Probe, Application Voltage 0~+1250V, PMT Diameter 2", Effective Size of Scintillator Φ50×50mm, Interface Type BNC SHV, Energy Resolution ≤8.5%,
6-8 weeks Request for quote
STM3113
Scintillator Probe, Application Voltage 0~+1250V, PMT Diameter 3", Effective Size of Scintillator Φ75×75mm, Interface Type BNC SHV, Energy Resolution ≤8.5%,
6-8 weeks Request for quote
STM3021
Nal Scintillator Detector, Input Voltage +11.5~+12.5V, Max.Input Current 50mA, Effective Size of Scintillator Φ25×25mm, Output Signal Polarity Negative, Output Signal Amplitude 1V, Output Signal Amplitude 6V, Energy Resolution ≤8.5%
6-8 weeks Request for quote
STM3022
Nal Scintillator Detector, Input Voltage +11.5~+12.5V, Max.Input Current 50mA, Effective Size of Scintillator Φ50×50mm, Output Signal Polarity Negative, Output Signal Amplitude 1V, Output Signal Amplitude 6V, Energy Resolution ≤8.5%
6-8 weeks Request for quote
STM3023
Nal Scintillator Detector, Input Voltage +11.5~+12.5V, Max.Input Current 50mA, Effective Size of Scintillator Φ75×75mm, Output Signal Polarity Negative, Output Signal Amplitude 1V, Output Signal Amplitude 6V, Energy Resolution ≤8.5%
6-8 weeks Request for quote
