微通道板光电倍增管(MCP-PMT)（115-650nm）

Overview 011/014 012 015 021 082/201/203 相关产品联系下单！

Microchannel Plate –Photomultiplier(MCP-PMT)

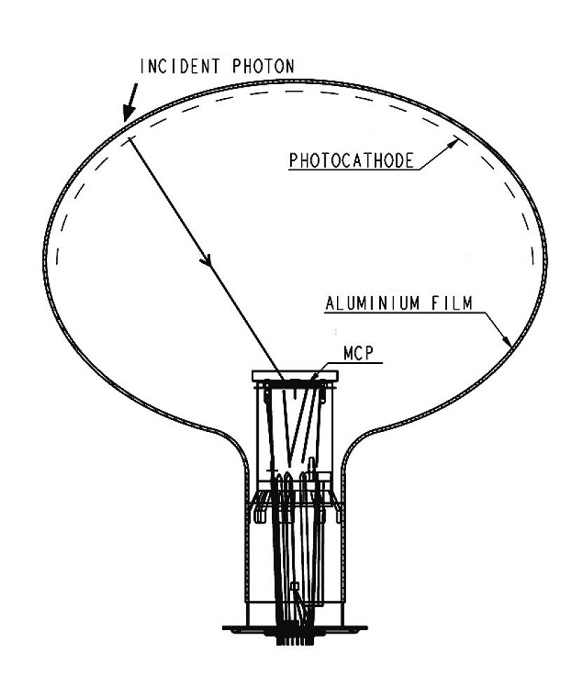

MCP-PMT mainly consists of a photocathode, a microchannel plate multiplication system and an anode. The multiplication system contains a single or multiple microchannel plates. When the weak light signal passes through the photocathode, it will excite the photoelectrons, which will be transported to MCP for multiplication under the proximity-focus electric field or the electrostatic focusing electric field. Finally, the amplified electronic signal will be received by the anode and output through the signal line, so as to realize the detection of single photon and other weak signals.

Large Area of MCP-PMT

Selection Guide for MCP-PMT

Item

Product Name

Shape

Outer Diameter

Inner Diameter

Spectral Range

Peak Wavelength Typ.

Photocathode Integral Luminious Typ.

QE Typ.

Gain Typ.

Anode Sensitivity Typ.

Dark Count Rate Typ.

Peak to Valley Ratio Typ.

Charge Resolution Typ.

Rise Time Typ.

STN6082

Large Area MCP-PMT

Round

Dia.203mm

290-650nm

380mm

90A/lm

30%@

410nm

1 × 10⁷

900A/lm

10 kHz

35%

4ns

STN6201

Large Area MCP-PMT

Round

Dia.508mm

290-650nm

380mm

90A/lm

30%@

410nm

1 × 10⁷

900A/lm

30 kHz

35%

1.4ns

STN6203

Large Area MCP-PMT

Round

Dia.508mm

290-650nm

380mm

90A/lm

30%@

410nm

1 × 10⁷

900A/lm

20 kHz

40%

1.4ns

STN6011

MCP-PMT

Round

Dia.36.6mm

Dia.18mm

(min)

115-320nm

250nm

15%@

250nm

1 × 10⁶

500Hz

35%

1.2ns

STN6012

MCP-PMT

Round

Dia.50mm

Dia.10mm

(min)

290-650nm

380mm

70A/lm

22%@

410nm

1 × 10⁶

1000Hz

@0.2pe

45%

180ps

STN6014

MCP-PMT

Round

Dia.36.6mm

Dia.18mm

(min)

290-650nm

380mm

70A/lm

22%@

410nm

1 × 10⁶

1000Hz

@0.2pe

30%

1.2ns

STN6015

MCP-PMT

Round

Dia.35.5mm

Dia.18mm

(min)

290-650nm

380mm

70A/lm

22%@

410nm

1 × 10⁶

1000Hz

@0.2pe

35%

250ps

STN6021

MCP-PMT

Square

SQ51mm

46mm

(min)

280-650nm

380mm

70A/lm

22%@

410nm

2 × 10⁶

500Hz

@0.2pe

35%

300ps

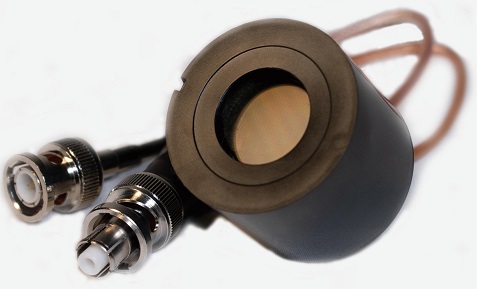

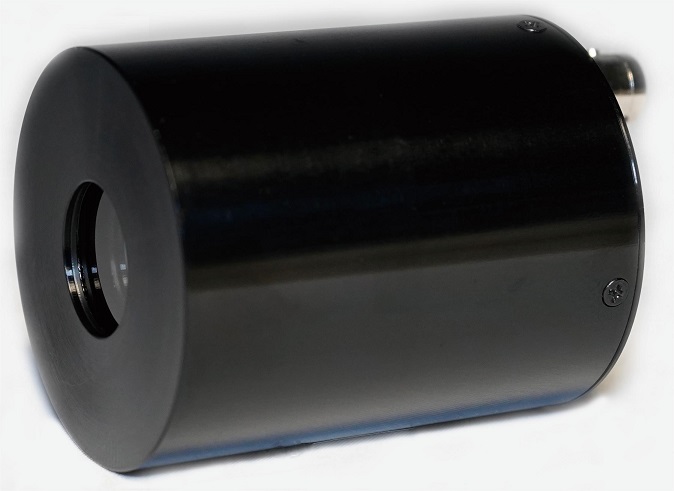

Microchannel Plate - Photomultiplier(MCP-PMT) - STN6011/STN6014

Our STN6011 and STN6014 are MCP-PMT with 1×10⁶gain and 1.2ns rise time. They are mainly used in ultraviolet communication , space exploration, molecular science , medical science biochemistry and material engineering.

Feature
STN6011 Fast response ,high sensitivity Large pulsed peak current	STN6014 High speed High gain ,low noise
Application
STN6011 Ultraviolet communication Space exploration	STN6014 Molecular science, medical science Biochemistry, material engineering

Product Specifications and Brochures

Parameter		Description
Window Material		MgF2 glass			AVG Glass
Photocathode Material		CsTe			Bialkali
Multiplier Structure		2 MCP			2 MCP
Model		STN6011			STN6014			Unit.
Model		Min.	Typ.	Max.	Min.	Typ.	Max.	Unit.
Cathode Parameters	Spectral Response	115-320			290-650			nm
	Quantum Efficiency Peak Wavelength	/	250	/	/	380	/	nm
	QE	/	15@250nm	/	/	22@410nm	/	%
	Luminous Sensitivity	/	/	/	/	70	/	μA/lm
	Radiant Sensitivity	/	30@250nm	/	/	72@410nm	/	mA/W
Anode Parameters	Supply Voltage	/	1800	2500	/	1800	2500	V
	Gain	/	1 × 10⁶	/	/	1 × 10⁶	/	/
	Dark Count Rate@0.2pe	/	500	2000	/	1000	5000	Hz
	Charge Resolution	/	35	/	/	30	/	%
	Peak to Valley Ratio	/	3	/	/	10	/	/
	Pulsed Peak Current	/	150	/	/	/	/	/
Time Response	Rise Time	/	1.2	/	/	1.2	/	ns
	Pulse Width	/	2	/	/	2	/	ns
	Fall Time	/	1.6	/	/	1.6	/	ns
	TTS@σ(SPE)	/	50	/	/	50	/	ps
	TTS@σ (MPE )	/	20	/	/	20	/	ps
Operating Ambient Temperature		-30~+50℃						℃
Storage Temperature		-50~+50℃						℃

Spectral Graph

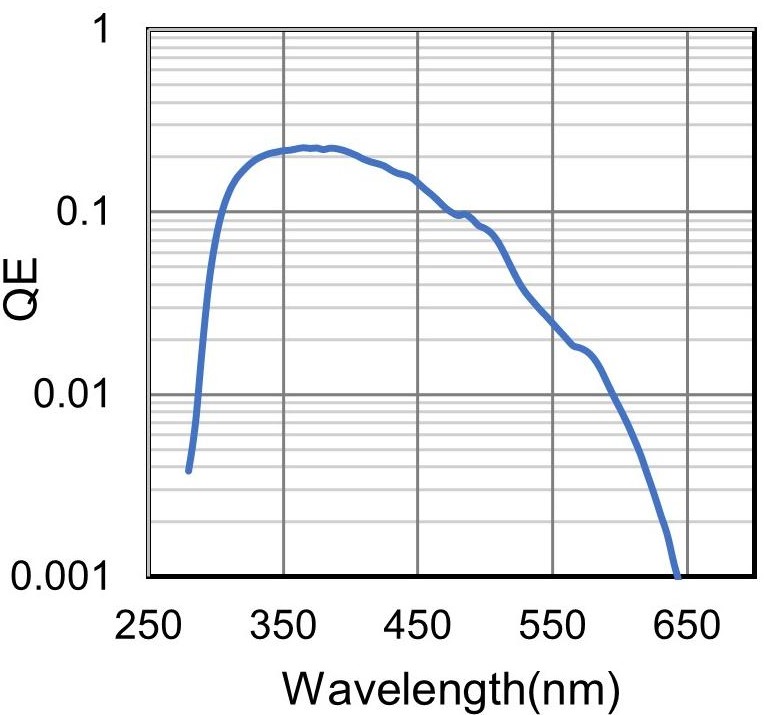

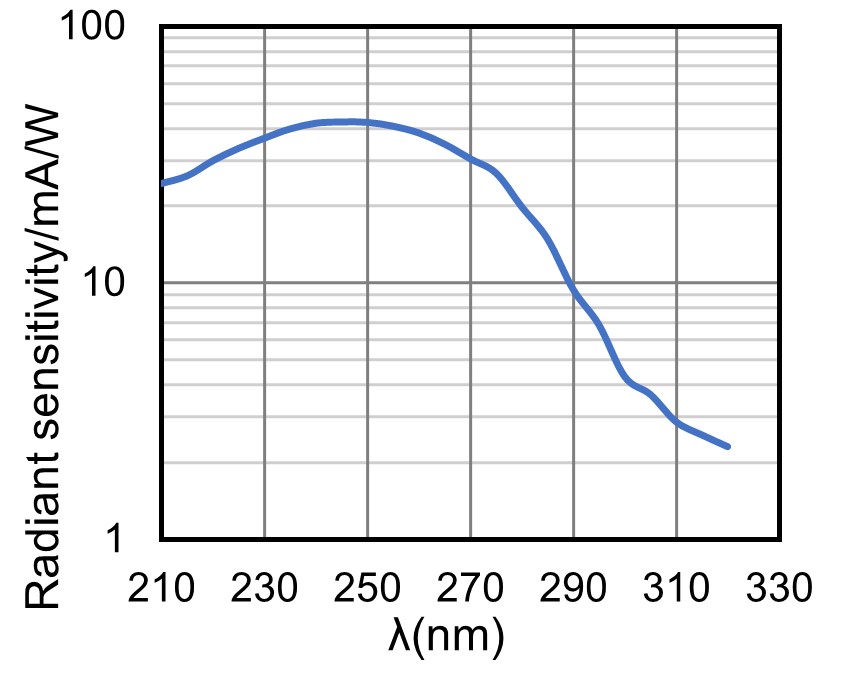

STN6011 Typical Spectral Response Curve	STN6014 Typical Spectral Response Curve

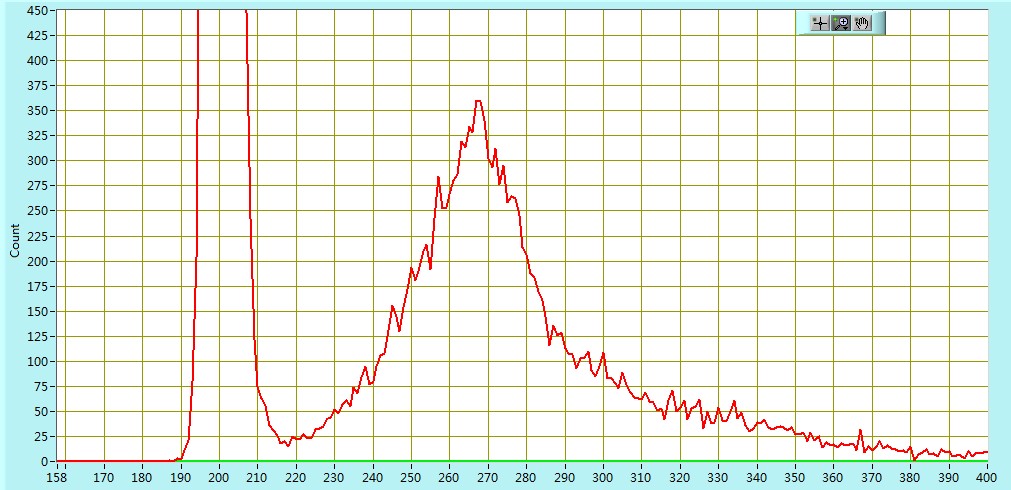

Typical Single Photoelectron Spectrum

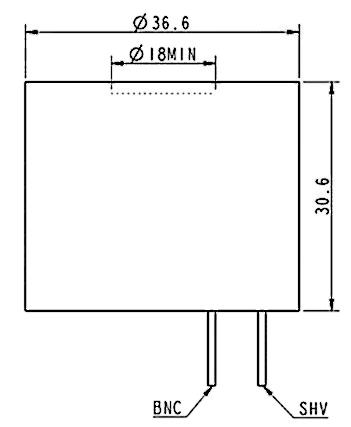

Dimension

Microchannel Plate - Photomultiplier(MCP-PMT) - STN6012

STN6012 is a MCP-PMT featuring fast response ,high gain ,low noise. It is mainly used in molecular science , medical science, biochemistry and material engineering.

Feature

Fast response
High gain ,low noise

Application

Molecular science ,medical science
Biochemistry ,material engineering

Product Specifications and Brochures

Parameter		Description
Window Material		AVG Glass
Photocathode Material		Bialkali
Multiplier Structure		2 MCP
STN6012		Min.	Typ.	Max.	Unit.
Cathode Parameters	Spectral Response	290-650			nm
	Quantum Efficiency Peak Wavelength	/	380	/	nm
	Luminous Sensitivity	/	70	/	μA/lm
	QE @410nm	/	22	/	%
	Radiant Sensitivity@410nm	/	72	/	mA/W
Anode Parameters	Supply Voltage	/	2500	3400	V
	Gain	/	1 × 10⁶	/	/
	Dark Count Rate@0.2pe	/	1000	5000	Hz
	Charge Resolution	/	45	/	%
	Peak to Valley Ratio	/	2	/	/
Time Response	Rise Time	/	180	/	ps
	Pulse Width	/	400	/	ps
	Fall Time	/	750	/	ps
	TTS@σ(SPE)	/	40	/	ps
	TTS@σ (MPE )	/	15	/	ps
Operating Ambient Temperature		-30~+50			℃
Storage Temperature		-50~+50			℃

Spectral Graph

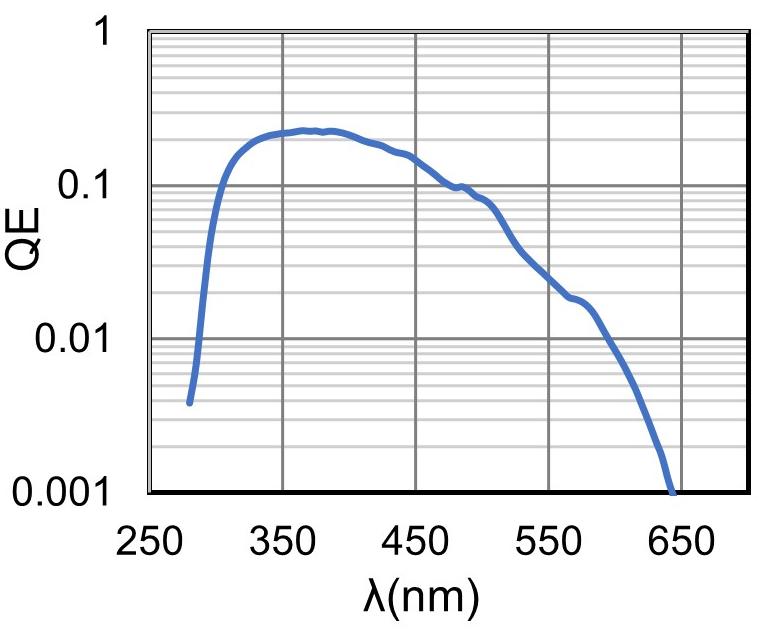

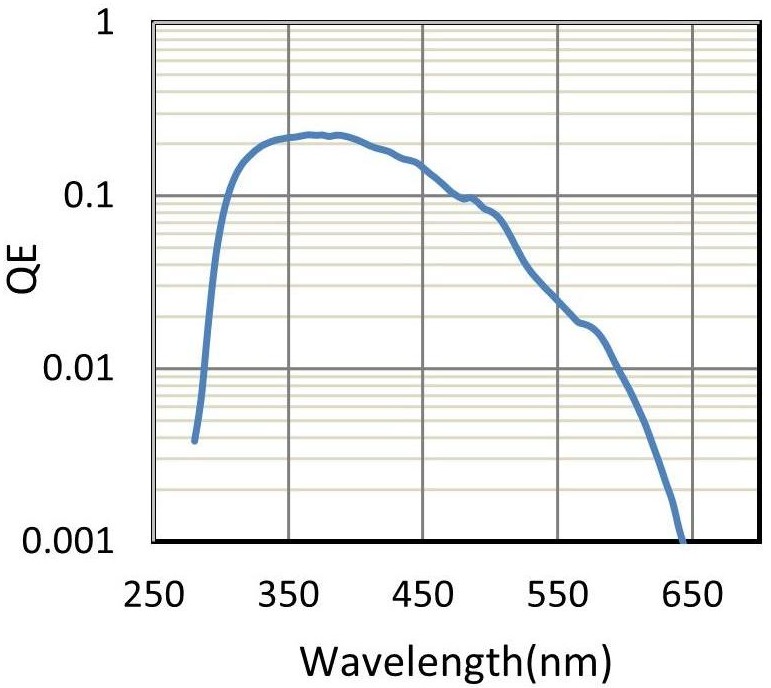

Typical Spectral Response Curve

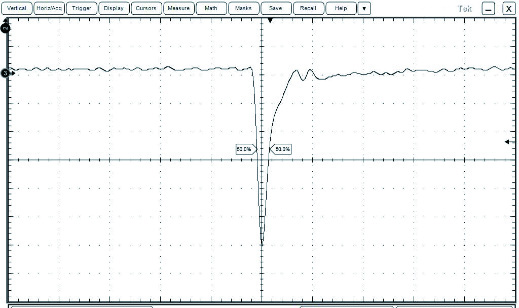

Typical Single Photoelectron Spectrum

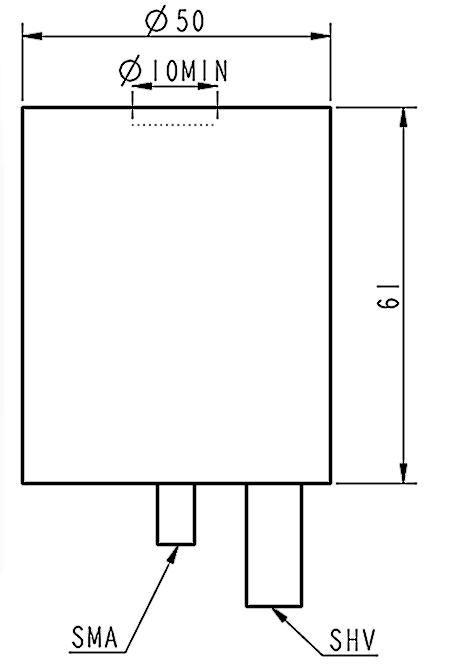

Dimension

Microchannel Plate - Photomultiplier(MCP-PMT) - STN6015

STN6015 is a MCP-PMT featuring high speed ,high gain ,low noise. It is mainly used in specialized medical imaging, cherenkov – RICH, TOF, TOP, DIRC, high energy physics and security.

Feature

High speed
High gain
Low noise

Application

Specialized medical imaging
Cherenkov – RICH, TOF, TOP, DIRC
High energy physics ,security

Product Specifications and Brochures

Parameter		Description
Window Material		AVG glass
Photocathode Material		Bialkali
Multiplier structure		2 MCP
Anode Structure		2×2
STN6015		Min.	Typ.	Max.	Unit.
Cathode Parameters	Spectral Response	290-650			nm
	Quantum Efficiency Peak Wavelength	/	380	/	nm
	Luminous Sensitivity	/	70	/	μA/lm
	QE @410nm	/	22	/	%
	Radiant Sensitivity@410nm	/	72	/	mA/W
Anode Parameters	Supply Voltage	/	1700	2500	V
	Gain	/	1×10⁶	/	/
	Dark Count Rate@0.2pe(Single Anode)	/	1000	5000	Hz
	Charge Resolution	/	35	/	%
	Peak to Valley Ratio	/	3	/	/
Time Response	Rise Time	/	250	/	ps
	Pulse Width	/	650	/	ps
	Fall Time	/	650	/	ps
	TTS@σ(SPE)	/	50	/	ps
	TTS@σ (MPE )	/	10	/	ps
Operating Ambient Temperature		-30~+50			℃
Storage Temperature		-50~+50			℃

Spectral Graph

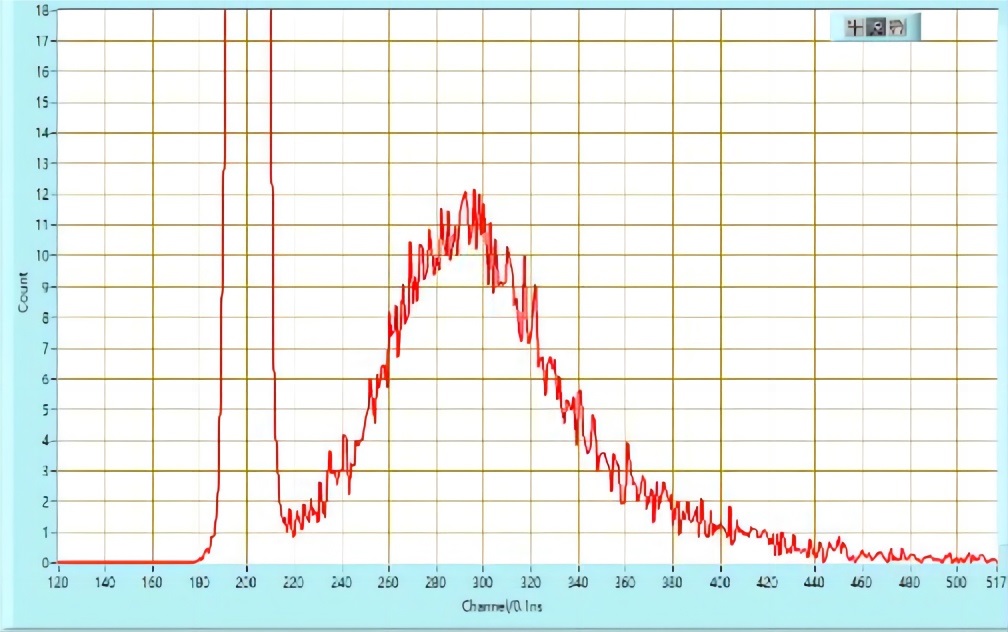

Typical Spectral Response Curve	Typical Single Photoelectron Spectrum

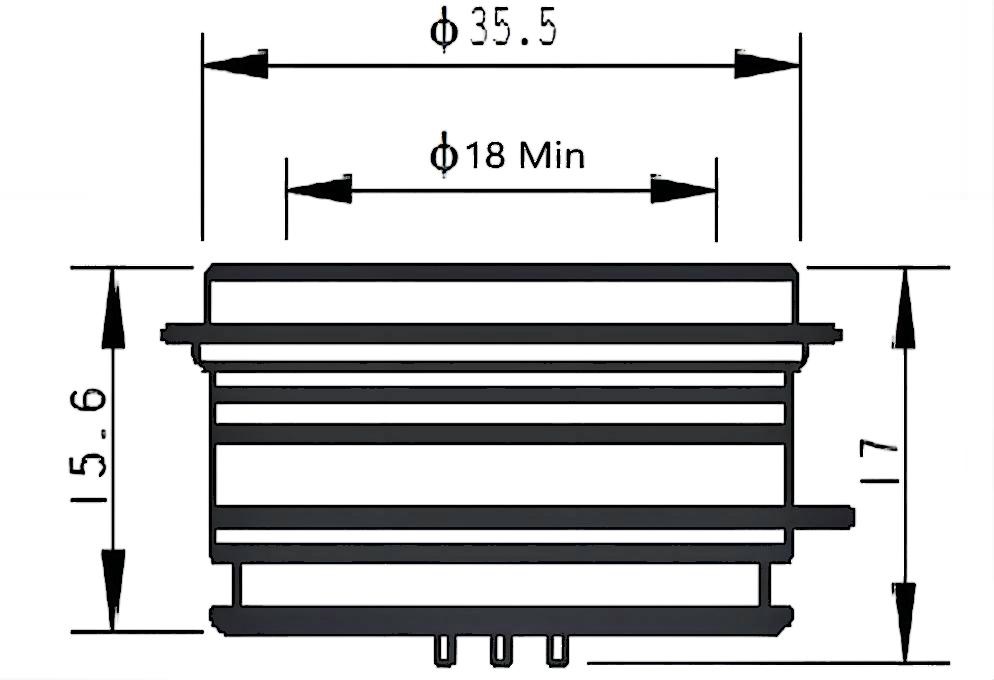

Dimension

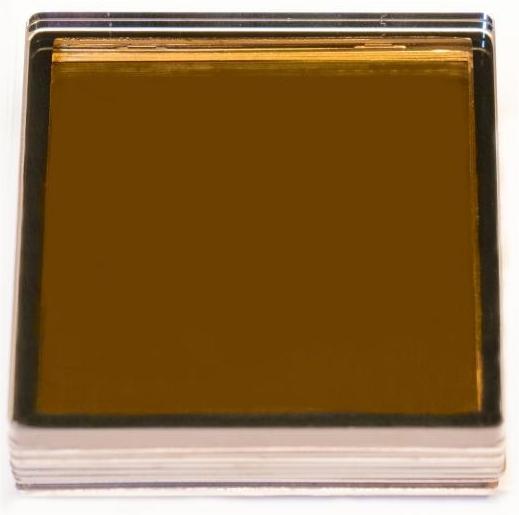

Microchannel Plate - Photomultiplier(MCP-PMT) - STN6021

STN6015 is a quare MCP-PMT featuring high speed ,high gain ,low noise. It is mainly used in specialized medical imaging, cherenkov – RICH, TOF, TOP, DIRC, high energy physics and security.

Feature

High speed
High gain
Low noise

Application

Specialized medical imaging
Cherenkov – RICH, TOF, TOP, DIRC
High energy physics ,security

Product Specifications and Brochures

Parameter		Description
Window Material		AVG Glass
Photocathode Material		Bialkali
Multiplier Structure		2 MCP
Anode Structure		8 ×8
STN6021		Min.	Typ.	Max.	Unit.
Cathode Parameters	Spectral Response	280-650			nm
	Quantum Efficiency Peak Wavelength	/	380	/	nm
	Luminous Sensitivity	/	70	/	μA/lm
	QE @410nm	/	22	/	%
	Radiant Sensitivity@410nm	/	72	/	mA/W
Anode Parameters	Supply Voltage	/	2500	3200	V
	Gain	/	2 × 10⁶	/	/
	Dark Count Rate@0.2pe(Single Anode)	/	500	5000	Hz
	Charge Resolution	/	35	/	%
	Peak to Valley Ratio	/	3	/	/
Time Response	Rise Time	/	300	/	ps
	Pulse Width	/	650	/	ps
	Fall Time	/	800	/	ps
	TTS@σ(SPE)	/	50	/	ps
	TTS@σ (MPE )	/	15	/	ps
Operating Ambient Temperature		-30~+50			℃
Storage Temperature		-50~+50			℃

Spectral Graph

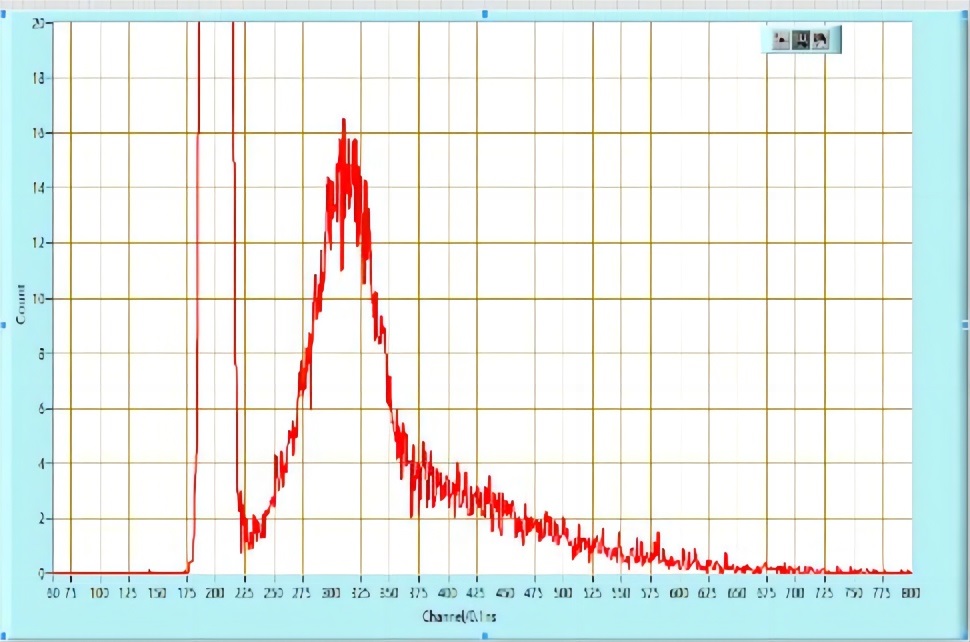

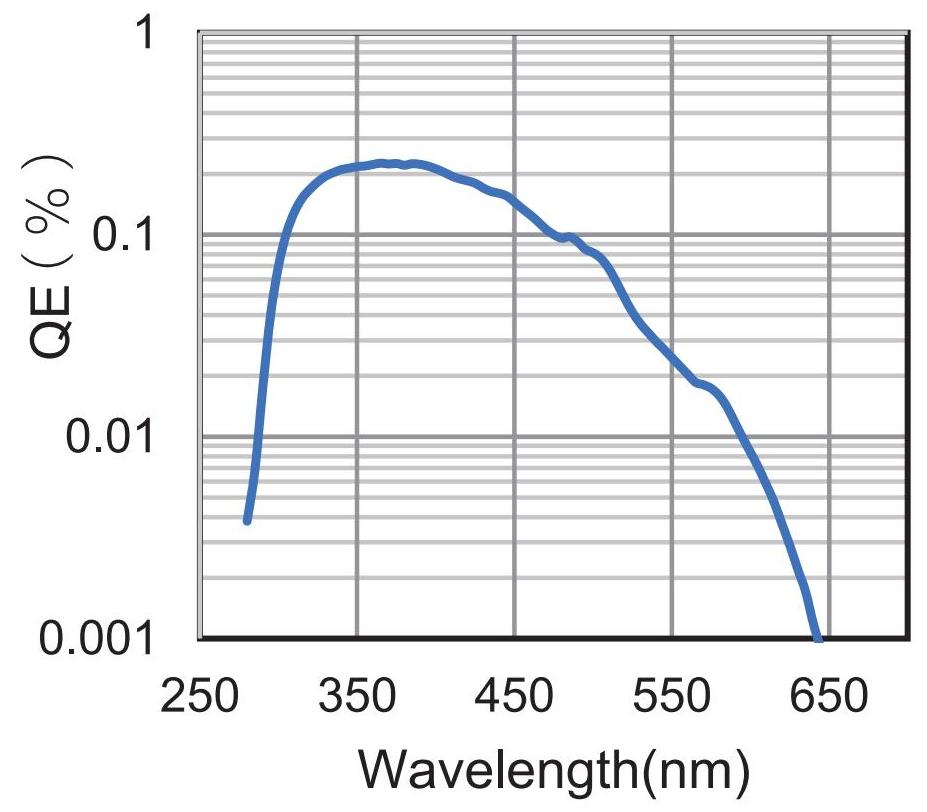

Typical Spectral Response Curve	Typical Single Photoelectron Spectrum

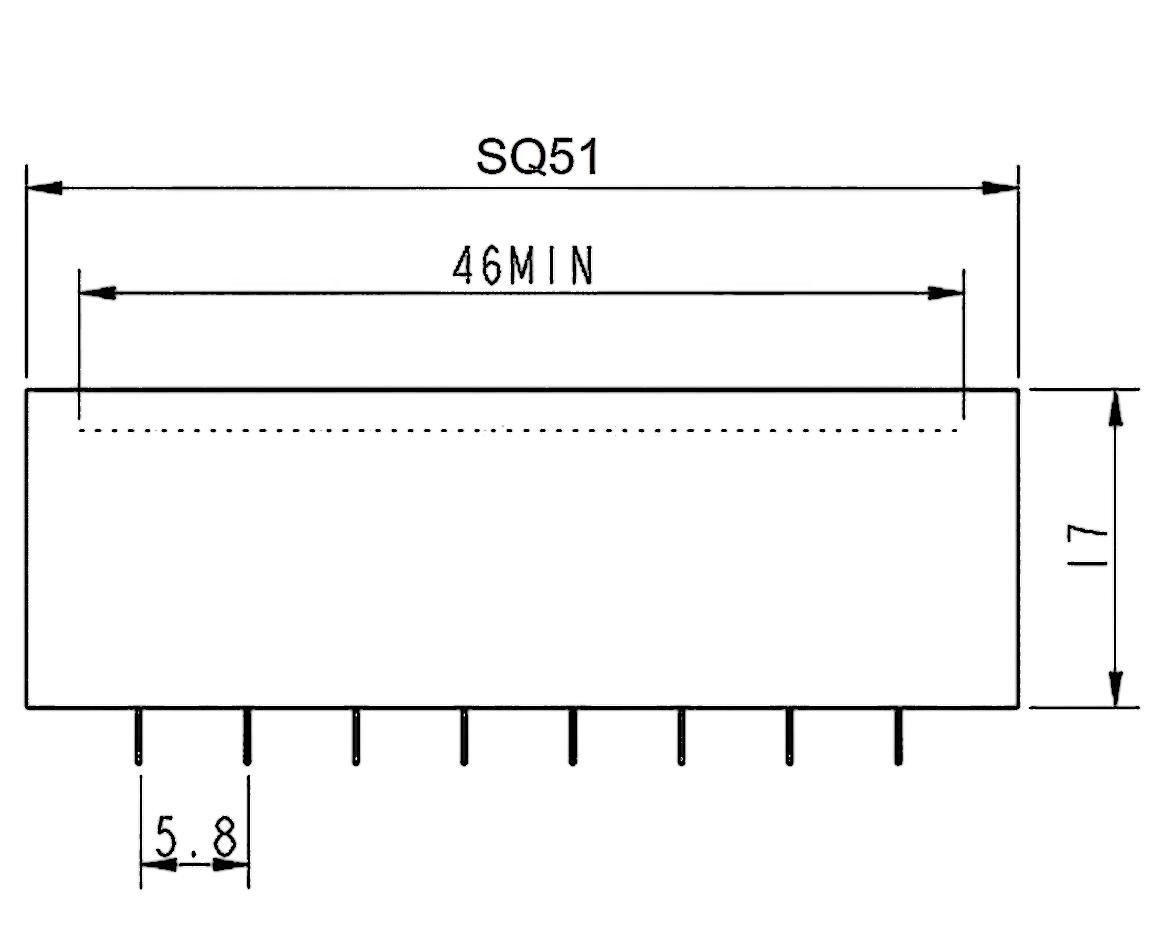

Dimension

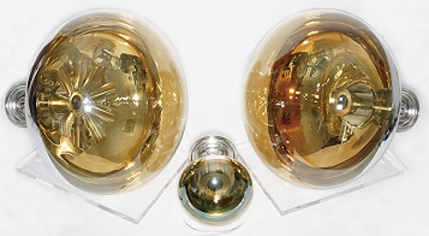

Microchannel Plate - Photomultiplier - STN6082/STN6201/STN6203

The large-area MCP-PMT(including STN6082/STN6201/STN6203) is a vacuum electronic device that converts extremely weak light signals into electrical signals. It is a large-area, high-detection efficiency electrostatic focusing photomultiplier tube with independent intellectual property rights.This product uses Sb-K-Cs cathode as a photoelectric conversion cathode, which has high quantum efficiency for photons in the 350-450nm wavelength; using a microchannel plate as an electron multiplier tube system, the superposition of two microchannel plates can achieve an electron gain of more than 107 . The multiplication distance of the microchannel plate is short, so it has superior time response

Product performance can be customized according to customer needs. At present, the main products are 8-inch and 20-inch MCP-PMT.

Feature

High gain ,low noise ,fast response
Good single photon peak-to-valley ratio

Application

• High energy physics

Product Specifications and Brochures

Parameter

Description

Window Material

Borosilicate glass

Photocathode Material

Sb-K-Cs

Multiplier structure

MCP

Operating Ambient Temperature

-30℃~+50℃

Storage Temperature

-50℃~+50℃

Model

STN6082

STN6201

STN6203

Unit

Diameter

Inch

Product Performance

Min.

Typ.

Max.

Min.

Typ.

Max.

Min.

Typ.

Max.

Cathode Parameters

Spectral Range

290-650

QE Peak Wavelength

380

Photocathode Integral Luminious

A/lm

@410nm/QE

Anode Parameters

Supply Voltage

1500

1750

2000

1500

1750

2000

1650

1900

2100

Gain

1 × 10⁷

Anode Sensitivity

900

A/lm

Dark Count Rate

100

kHz

Peak to Valley Ratio

2.5

Charge Resolution

Time
Response

Rise Time

1.4

TTS

1.6

After Pulse Ratio

Spectral Graph

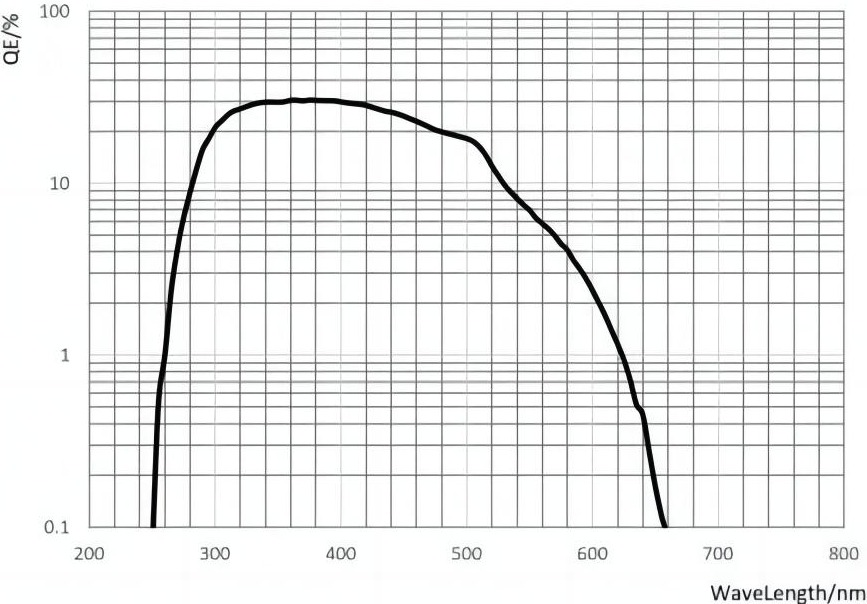

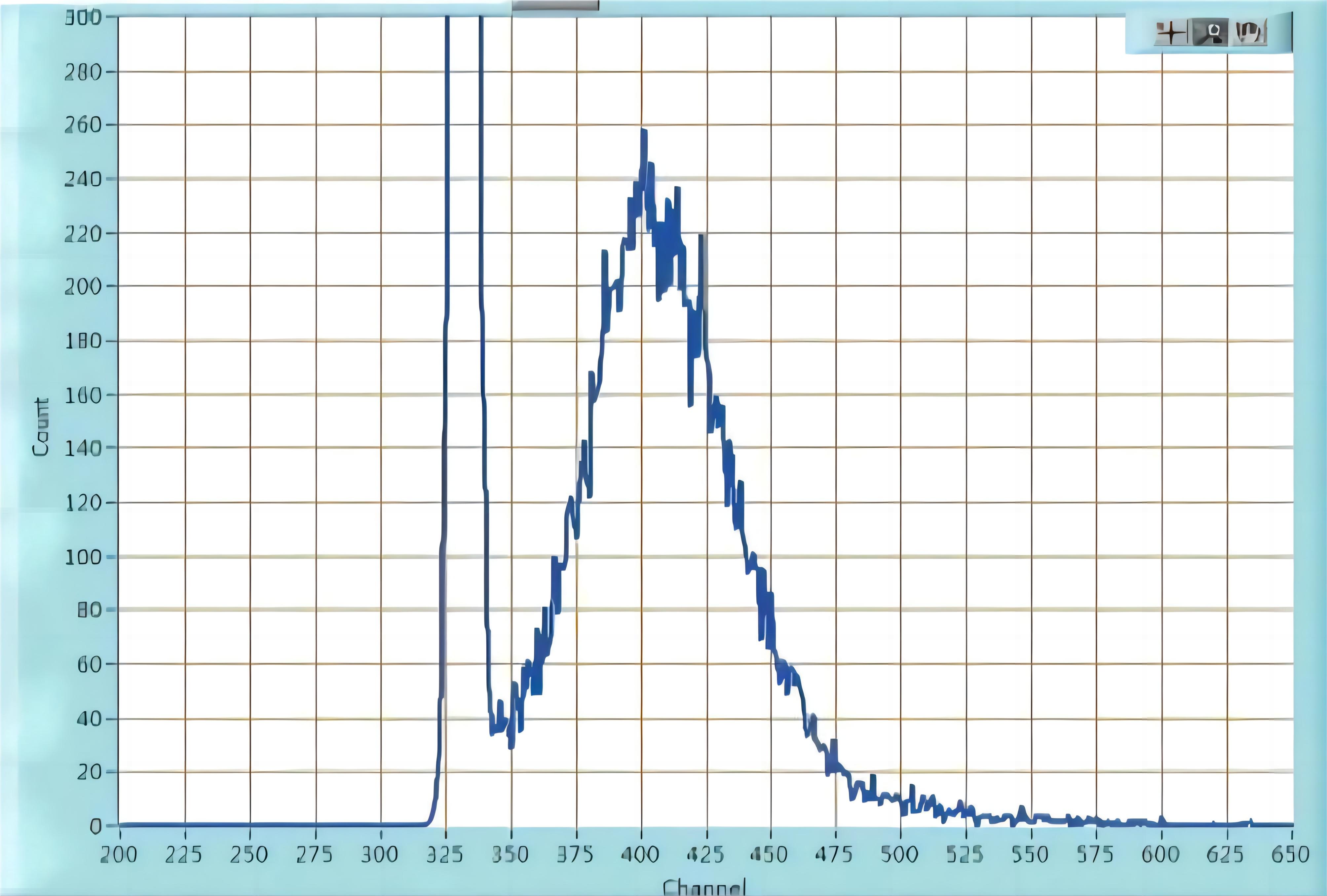

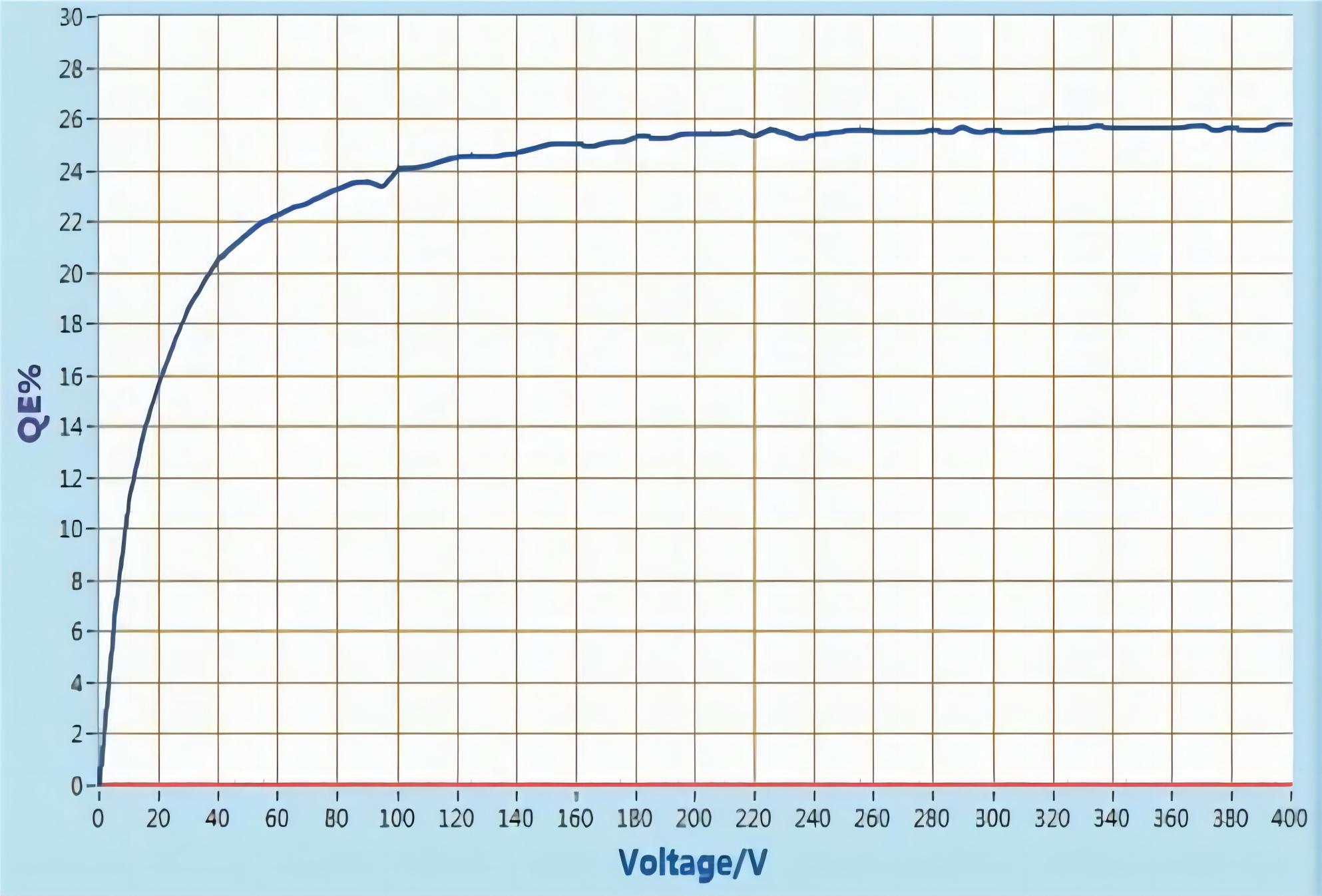

Typical Spectral Response Curve	Plateau Characteristics	Typical Single Photoelectron Spectrum

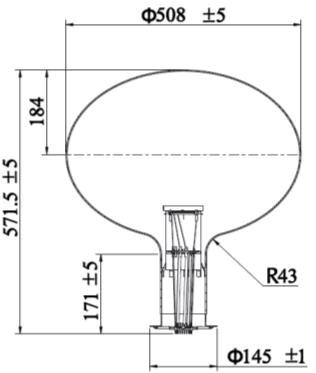

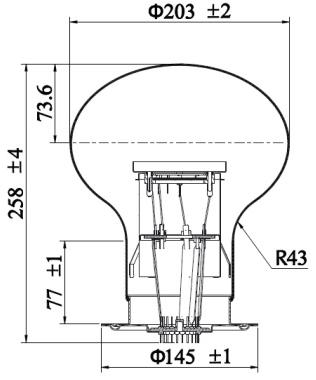

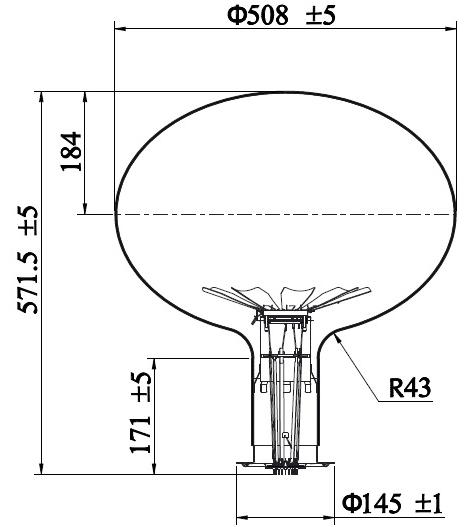

Dimension


STN6082	STN6201	STN6203
