光电倍增管头戴式(仅限管) | 瑆创光学电子商店

Products / 光学分析 /光电探测器 /光电倍增管 (PMTs) /光电倍增管头戴式(仅限管) /
光电倍增管头戴式(仅限管)
Overview Model Guide Spectral Graph Voltage&Dimension Related Products Order Now!

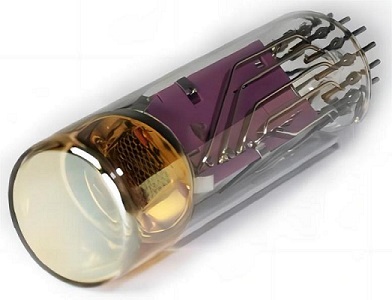

Photomultiplier Tube Head-on(Tube Only)

The photomultiplier tube is a photoelectric conversion device that can convert weak light signals into electrical signals. It can increase the incoming weak light signals by 105 to 108 times. Photomultiplier tubes can be divided into head-on type and side-on type according to the angle of incident light.







Structure of PMT





Photomultipliers Tube (Tube Only) - STN2002

This STN2002 is a head-on side photomultiplier tube with 0.5 " diameter and 10 stages



Feature

  • High gain, small size Linearization

Application

  • Environmental monitoring





Photomultipliers Tube (Tube Only) - STN2013

This STN2013(including STN2013-1,STN2013-2,STN2013-3) is a head-on side photomultiplier tube with 1 1/8" diameter and 11 stages.



Feature

  • Fast response
  • Low noise

Application

  • Scintillation counting
  • High energy physics







Photomultipliers Tube (Tube Only) - STN2014

This STN2014 (including STN2014-1,STN2014-2,STN2014-3) is a head-on side photomultiplier tube with 1" diameter and 10 stages.



Feature

  • Fast response
  • Compact structure

Application

  • Medical measurement
  • Radiation measurement





Photomultipliers Tube (Tube Only) - STN2016

This STN2016 is a head-on side photomultiplier tube with 1" diameter and 11 stages.



Feature

  •  High gain, good stability

Application

  • Radiation measurement



Photomultipliers Tube (Tube Only) - STN2017

This STN2017 is a head-on side photomultiplier tube with 1" diameter and 10 stages.



Feature

  • Compact structure

Application

  • Scintillation counting,radiation measurement





Photomultipliers Tube (Tube Only) – STN2018

This STN2018 is a head-on side photomultiplier tube with 1" diameter and 10 stages.



Feature

  • High temp, resistance
  • Ruggedize , low profile structure

Application

  • Oil well logging
  • Geological exploration







Photomultipliers Tube (Tube Only) – STN2021

This STN2021 is a head-on side photomultiplier tube with 2.5" diameter and 9 stages.



Feature

  • Fast response, high pulse linearity

Application

  • Radiation measurement





Photomultipliers Tube (Tube Only) – STN2031

This STN2031 is a head-on side photomultiplier tube with 3" diameter and 10 stages.



Feature

  • High quantum efficiency
  • Fast response, low noise

Application

•   High energy physics









Photomultipliers Tube (Tube Only) – STN2041

This STN2041 is a head-on side photomultiplier tube with 4" diameter and 10 stages.



Feature

  • High quantum efficiency
  • Fast response, low noise

Application

•   High energy physics









Photomultipliers Tube (Tube Only) – STN4021

This STN4021(including STN4021-1,STN4021-2,STN4021-3) is a head-on side photomultiplier tube with 2" diameter and 10 stages.



Feature

  • High gain
  • High collection efficiency

Application

  • Scintillation counting
  • Radiation measurement







Photomultipliers Tube (Tube Only) – STN4022

This STN4022 is a head-on side photomultiplier tube with 2" diameter and 8 stages.





Feature

  • High energy resolution
  • High collection efficiency

Application

  • Radiation measurement
  • Nuclear medical instrument







Photomultipliers Tube (Tube Only) – STN4031

This STN4031 is a head-on side photomultiplier tube with 3" diameter and 8 stages.





Feature

  • High energy resolution
  • High collection efficiency

Application

  • Radiation measurement
  • Nuclear medical instrument

Selection Guide for Photomultipliers Tube Head-On (Tube Only)

Product Brochure Link:

Paramater
 STN2002

STN2013

STN2014

 STN2016
 STN2017
 STN2018
 STN2021
 STN2031
 STN2041

STN4021

 STN4022
 STN4031

1

2

3

1

2

3

1

2

3


Type Head-on-Type
Diameter 0.5" 1 1/8" 1" 2.5" 3" 4" 2" 3"
Window Material Borosilicate Glass
Photocathode Material Bialkali High Temp. Bialkali Bialkali
Dynode Structure Linear Focused Box and Liinear Focused Circular and Linear Focused Box and Linear Focused Circular and Linear Focused Linear Focused Circular and Linear Focused Box-and-Grid Focused Box and Linear Focused
Stage 10 11 10 11 10 10 9 10 10 10 8 8
Cathode Parameters Cathode Effective Diameter(mm) 10 25 22 25 22 22 58 / / 46 / /
Spectral Response Range(nm) 290-650
Quantum Efficiency  Peak Wavelength(nm) 380 12%@380 18@300-500 28% @ 410 nm 380 420
Luminous Sensitivity(μA/lm) Min. 30 / / 60 / 20 @25℃ / / / 60 / /
Typ. 100 80 60 80 60 40 @25℃ 70 / / / / /
Max. / / / / / / / / / / / /
Blue Sensitivity(μA/lmf) Min. / 9 8 8 8 4@25℃ 8 / / 10.5 9 7 8 10
Typ. 8 11 9 11 10 6@25℃ 9 / / / 10 11.5
Anode Parameters Anode Sensitivity(A/lm) Min. 30 / / 50 / / / / / 1500 1000 100 3 3
Typ. 100 / / 200 / / 35 / / 2000 1250 400 30 30
Anode Blue/luminous Sensitivity(A/lmf) / 30 / /

8 - 20

@25℃

 / / / / /
 /
 / /
Supply Voltage(V) Min. / / / / / / 1500 900 / / /
 /
 / /
Typ. / / / 1000 1000 1500 1800 1250 1050 1250 1000 1000
Max. 1250 1150 1500 1150 1800 3000 1300 1350 1500 / /
Gain 6×106 7×106 7×106 4×106 7×106

5×105 @25℃

 5×105 1×107 5×106 2.5×107 1.6×107 1.6×106 2.73×105 2.73×105
Dark Count Rate(Hz) / 140 300 1000 100 500 / / / / / 1500 - 3000

1000 @0.2pe

/ /
 /
 / /
Anode Dark Current(nA) Typ. 1 2 3 @1000V 3 @1050V / 2 3 0.1 @25℃ 3 / / / /
 /
 2 2
Max. 15 10 5 @1000V 5 @1050V 20 @1100V 10 20

10 @25℃
1000@175℃

 5 / / 30 50 100 10 10
Others Rise Time(ns) 2.1 1.9 1.2 1.9 1.4 1.5 1.8 1.9 2.7 7 6 6
TTS(ns) / 3 1.5 3 1.5 15 / 1.4-1.8 2.5 - 3 / / /
Operating Ambient Temperature(℃) -30~+50 / / -30~+50

Spectral Graph





       STN2002 Typical Spectral Response Curve             STN2002 Typical Gain Curve









        STN2013 Typical Spectral Response Curve      STN2013 Typical Gain Curve







       STN2014 Typical Spectral Response Curve             STN2014 Typical Gain Curve







       STN2016 Typical Spectral Response Curve           STN2016 Typical Gain Curve







      STN2017 Typical Spectral Response Curve      STN2017 Typical Gain Curve







    STN2018 Typical Spectral Response Curve       STN2018 Typical Gain Curve





    STN2018 Typical Pulse Height Resolution

     as a Function of Temperature

    STN2018 Typical Pulse Height

   as a Function of Temperature







      STN2021 Typical Spectral Response Curve     STN2021 Typical Gain Curve





  STN2021 Typical Linear Current Characteristics







     STN2031 Typical Spectral Response Curve      STN2031 Typical Gain Curve







     STN2041 Typical Spectral Response Curve        STN2041 Typical Gain Curve







       STN4021 Typical Spectral Response Curve       STN4021 Typical Gain Curve







STN4022 / STN4031 Typical Spectral Response Curve    STN4022 / STN4031 Typical Gain Curve




Voltage and Dimension





STN2002 Voltage Distribution Ratio STN2002 Dimension











STN2013 Voltage Distribution Ratio STN2013 Dimension











STN2014 Voltage Distribution Ratio STN2014 Dimension











STN2016 Voltage Distribution Ratio STN2016 Dimension















STN2017 Voltage Distribution Ratio STN2017 Dimension













STN2018 Voltage Distribution Ratio STN2018 Dimension











STN2021 Voltage Distribution Ratio STN2021 Dimension













STN2031 Voltage Distribution Ratio STN2031 Dimension




















STN2041 Voltage Distribution Ratio STN2041 Dimension


















STN4021 Voltage Distribution Ratio STN4021 Dimension








STN4022 Voltage Distribution Ratio STN4022 Dimension








STN4031 Voltage Distribution Ratio STN4031 Dimension


Photomultipliers Tube (PMT)

Model Spectral Response Range Peak Wavelength QE Typ. Effective Area(mm) Cathode Luminous Sensitivity Typ. Anode Sensitivity Typ.
 Photomultipliers Tube Head-On (Tube Only) 290 - 650nm 380 - 500nm 12% -,28% Φ10 - Φ58 40 - 100μA/lm 30 - 2000A/lm
 Photomultipliers Tube Side On(Tube Only) 160 - 900nm / / 8×24 40 - 250μA/lm 400 - 2500A/lm
 Photomultipliers Tube (Module) 160 - 900nm 400nm, 420nm / Φ22 - Φ25 | 8×24 60 - 250μA/lm /
 Microchannel Plate - Photomultiplier (MCP-PMT) 115 - 650nm 250nm, 380nm 30%@410nm, 15%@250nm / 70μA/lm 900A/lm
 Scintillator Probe / / / Φ25×25 - Φ75×75 / /
 β Detector / / / Φ10, Φ25 / /





Assemblies and Counting Unit



High Voltage Tube Socket High Voltage Tube Socket for Side Window Voltage Power Supply Counting Unit

We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
STN2002
Photomultipliers Tube Head-On (Tube Only), Diameter 0.5", Cathode Effective Diameter 10mm, Spectral Response Range 290-650 nm, Quantum Efficiency Peak Wavelength 380nm, Cathode Luminous Sensitivity Typ. 100μA/lm, Cathode Blue Sensitivity Typ. 8 μA/lmf, Anode Sensitivity Typ 100 A/lm, Gain 6×10^6, Anode Dark Current Typ. 1nA, Rise Time 2.1ns 		6-8 weeks Request for quote
STN2013-1
Photomultipliers Tube Head-On (Tube Only), Diameter 1 1/8", Cathode Effective Diameter Min. 25mm, Spectral Response Rang 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Typ. 80μA/lm, Cathode Blue Sensitivity Typ. 11μA/lmf, Anode Blue Sensitivity Typ. 30A/lmf, Gain Typ. 7×10^6, Dark Count Rate Max. 140Hz, Rise Time Typ. 1.9ns 		6-8 weeks Request for quote
STN2013-2
Photomultipliers Tube Head-On (Tube Only), Diameter 1 1/8", Cathode Effective Diameter Min. 25mm, Spectral Response Rang 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Typ. 80μA/lm, Cathode Blue Sensitivity Typ. 11μA/lmf, Anode Blue Sensitivity Typ. 30A/lmf, Gain Typ. 7×10^6, Dark Count Rate Max. 300Hz, Rise Time Typ. 1.9ns 		6-8 weeks Request for quote
STN2013-3
Photomultipliers Tube Head-On (Tube Only), Diameter 1 1/8", Cathode Effective Diameter Min. 25mm, Spectral Response Rang 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Typ. 80μA/lm, Cathode Blue Sensitivity Typ. 11μA/lmf, Anode Blue Sensitivity Typ. 30A/lmf, Gain Typ. 7×10^6, Dark Count Rate Max. 1000Hz, Rise Time Typ. 1.9ns 		6-8 weeks Request for quote
STN2014-1
Photomultipliers Tube Head-On (Tube Only), Diameter 1", Cathode Effective Diameter Min. 22mm, Spectral Response Range 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Typ. 60μA/lm, Cathode Blue Sensitivity Typ. 9μA/lm, Anode Blue Sensitivity Typ. 30A/lm, Gain Typ. 7×10^6, Anode Dark Current @1000V Typ. 3nA, Dark Count Rate Max. 100Hz, Rise Time 1.2ns 		6-8 weeks Request for quote
STN2014-2
Photomultipliers Tube Head-On (Tube Only), Diameter 1", Cathode Effective Diameter Min. 22mm, Spectral Response Range 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Typ. 60μA/lm, Cathode Blue Sensitivity Typ. 9μA/lm, Anode Blue Sensitivity Typ. 30A/lm, Gain Typ. 7×10^6, Anode Dark Current @1050V Typ. 3nA, Dark Count Rate Max. 500Hz, Rise Time 1.2ns 		6-8 weeks Request for quote
STN2014-3
Photomultipliers Tube Head-On (Tube Only), Diameter 1", Cathode Effective Diameter Min. 22mm, Spectral Response Range 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Typ. 60μA/lm, Cathode Blue Sensitivity Typ. 9μA/lm, Anode Blue Sensitivity Typ. 30A/lm, Gain Typ. 7×10^6, Anode Dark Current @1100V Max. 20nA, Rise Time 1.2ns 		6-8 weeks Request for quote
STN2016
Photomultipliers Tube Head-On (Tube Only), Diameter 1", Cathode Effective Diameter Min. 25mm, Spectral Response Range 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Typ. 80μA/lm, Cathode Blue Sensitivity Typ. 11μA/lm, Anode Sensitivity Typ. 200A/lmf, Gain Typ. 4×10^6, Rise Time 1.9ns 		6-8 weeks Request for quote
STN2017
Photomultipliers Tube Head-On (Tube Only), Diameter 1", Cathode Effective Diameter Min. 22mm, Spectral Response Range 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Typ. 60μA/lm, Cathode Blue Sensitivity Typ. 10μA/lm, Gain Typ. 7×10^6, Rise Time 1.4ns 		6-8 weeks Request for quote
STN2018
Photomultipliers Tube Head-On (Tube Only), Diameter 1", Cathode Effective Diameter Min. 22mm, Spectral Response Range 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Quantum Efficiency 12%, Cathode Luminous Sensitivity @25℃ Typ. 40μA/lm, Cathode Blue Sensitivity @25℃ Typ. 6μA/lm, Anode luminous sensitivity@25℃ Typ. 20A/lm, Gain@25℃ Typ. 5×10^5, Rise Time 1.5ns 		6-8 weeks Request for quote
STN2021
Photomultipliers Tube Head-On (Tube Only), Diameter 2.5", Cathode Effective Diameter Min. 58mm, Spectral Response Range 290-650nm, Quantum Efficiency 18%, Cathode Luminous Sensitivity Typ. 70μA/lm, Cathode Blue Sensitivity Typ. 9μA/lmf, Anode Sensitivity Typ. 35A/lm, Gain Typ. 5×10^5, Rise Time 1.8ns 		6-8 weeks Request for quote
STN2031
Photomultipliers Tube Head-On (Tube Only), Diameter 3", Spectral Response Range 290-650nm, Quantum Efficiency@410nm Typ.28%, Quantum Efficiency@450nm Typ. 24%, Gain Typ. 1×10^7, Rise Time 1.9ns 		6-8 weeks Request for quote
STN2041
Photomultipliers Tube Head-On (Tube Only), Diameter 4", Spectral Response Range 290-650nm, Quantum Efficiency@410nm Typ.28%, Top Detection Efficiency Typ. 24%, Top Collection Efficiency 90%, Gain Typ. 5×10^6, Dark Count Rate@0.2pe at Room Temperature Max. 1000Hz, Anode Pulse Rise Time Typ. 2.7ns 		6-8 weeks Request for quote
STN4021-1
Photomultipliers Tube Head-On (Tube Only), Diameter 2", Cathode Effective Diameter Min. 46mm, Spectral Response Range 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Min. 60μA/lm, Cathode Blue Sensitivity Min. 10.5μA/lmf, Anode Sensitivity Typ. 2000A/lm, Gain Typ. 2.5×10^7, Rise Time Min. 7ns 		6-8 weeks Request for quote
STN4021-2
Photomultipliers Tube Head-On (Tube Only), Diameter 2", Cathode Effective Diameter Min. 46mm, Spectral Response Range 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Min. 60μA/lm, Cathode Blue Sensitivity Min. 9μA/lmf, Anode Sensitivity Typ. 1250A/lm, Gain Typ. 1.6×10^7, Rise Time Min. 7ns 		6-8 weeks Request for quote
STN4021-3
Photomultipliers Tube Head-On (Tube Only), Diameter 2", Cathode Effective Diameter Min. 46mm, Spectral Response Range 290-650nm, Quantum Efficiency Peak Wavelength Typ. 380nm, Cathode Luminous Sensitivity Min. 60μA/lm, Cathode Blue Sensitivity Min. 7μA/lmf, Anode Sensitivity Typ. 400A/lm, Gain Typ. 1.6×10^6, Rise Time Min. 7ns 		6-8 weeks Request for quote
STN4022
Photomultipliers Tube Head-On (Tube Only), Diameter 2", Spectral Response Range 290-650nm, Peak Wavelength of Radiant Sensitivity Typ. 420nm, Cathode Blue Sensitivity Typ.10μA/lmf, Anode Sensitivity Typ. 30A/lm, Gain Typ. 2.73×10^5 Rise Time Typ. 6ns 		6-8 weeks Request for quote
STN4031
Photomultipliers Tube Head-On (Tube Only), Diameter 3", Spectral Response Range 290-650nm, Peak Wavelength of Radiant Sensitivity Typ. 420nm, Cathode Blue Sensitivity Typ.11.5μA/lmf, Anode Sensitivity Typ. 30A/lm, Gain Typ. 2.73×10^5 Rise Time Typ. 6ns 		6-8 weeks Request for quote
