光电倍增管配件

STD317-11 STD701A-14 STD454 Related Products Order Now!

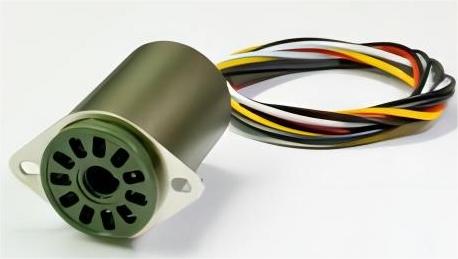

High Voltage Tube Socket for Side Window - STD317-11

The high voltage tube socket uses ±15V voltage input, 50kΩ potentiometer or 0-5V voltage control, easy to use and convenient. The main feature is that the built-in voltage divider adopts active voltage divider design, which can make the photomultiplier tube have high DC output linearity.

This product is suitable for side-on photomultiplier tube, which has the advantages of high linear DC output, wide output voltage range, fast response speed, low ripple noise and so on.

Product Specifications and Brochures

Product Brochure Link:

Paramater	Description	Unit
Suitable Photomultiplier Tube	Side-on PMT	/
Input Voltage	+15±1	V
Input Current⁽¹⁾	80(Max)	mA
Output Voltage	0~-1250	V
Voltage Control Mode	0~+5V or 50KΩ Potentiometers	/
Reference Voltage	5.33	V
The PMT Outputs A Linear Current Value⁽¹⁾（-1000V）	180(Typ)	µA
Input Regulation	0.01(Typ)	%
On-off Transient Response Rise Time⁽²⁾	80(Typ)	ms
Temperature Coefficient	0.03(Typ)	%/℃
Anodic Output Ripple (Peak-to-Peak)⁽³⁾	2	mV
Operating Temperature	0~+40	℃
Operating Humidity	≤70%	/

Note:(1)Linear current variation is less than 2%. (2)High voltage change 0~99%. (3)Test bandwidth 20MHz, load resistance 1MΩ

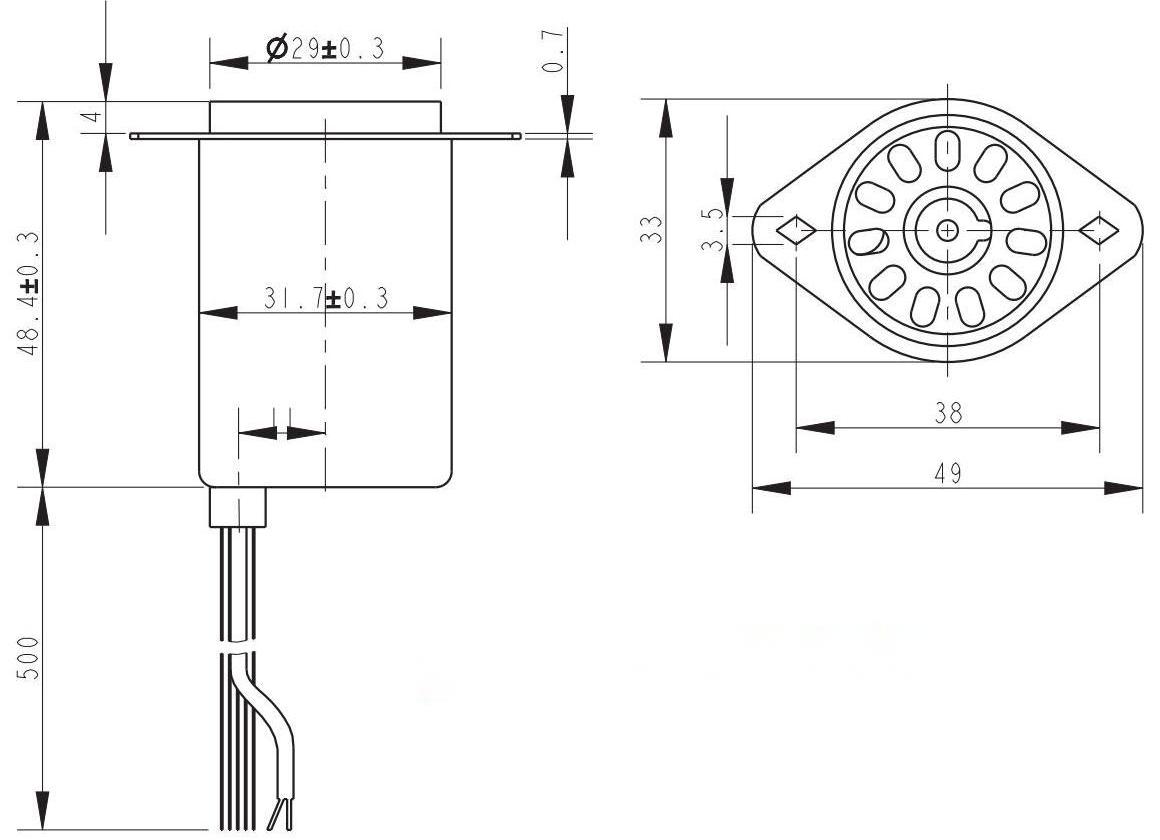

Dimension

(unit: mm, line length can be customized)

Wiring

Cable	Voltage Control	Resistance Control
Red Line	+15V Input	+15V input
Yellow Line	0~5V Control Voltage	Potentiometer Center Tap
White Line	Vacant	Potentiometer End
Black Line	Ground	Ground
Black Line	Ground	Ground
Shielded Wire	Signal Output

High Voltage Tube Socket - STD701A-14

The STD701A-14 high voltage tube socket uses ±15V voltage input, 50kΩ potentiometer or 0-6V voltage control, easy to use and convenient.

The main feature is that the built-in voltage divider adopts active voltage divider design, which can make the photomultiplier tube have high DC output linearity. This product is suitable for N2013 photomultiplier tube, which has the advantages of high linear DC output, wide output voltage range, fast response speed, low ripple noise and so on.

Product Specifications and Brochures

Product Brochure Link:

Paramater			Description	Unit
Suitable Photomultiplier Tube			Φ28mm End Window Type	/
Input Voltage			±15	V
Input Current⁽¹⁾		Max.	VCC：85，VEE：20	mA
Amplifier	-3dBbandwidth	Typ.	8	MHz
	Gain	Typ.	0.3（Load Impedance1 MΩ)	V/μA
	Output Signal Bias	Typ.	10	mV
	Output Signal Noise/Ripple	Max.	10	mV
	Output Pulse Polarity		Positive Polarity	/
High-voltage Power Supply	Output Voltage Range		0~-1500	V
	Oouput Voltage Referenced		5.33	V
	Output Relation		Vo=-250×Vadj	/

Note：(1) Without PMT

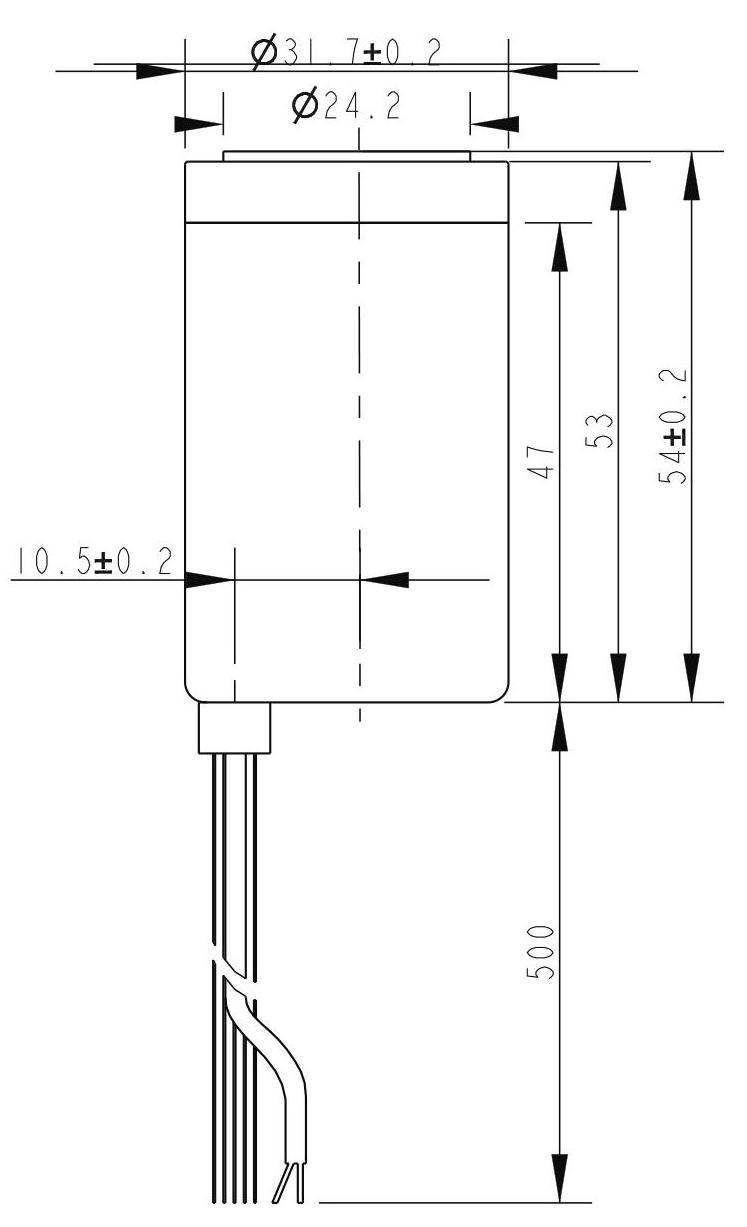

Dimension

(unit: mm, line length can be customized)

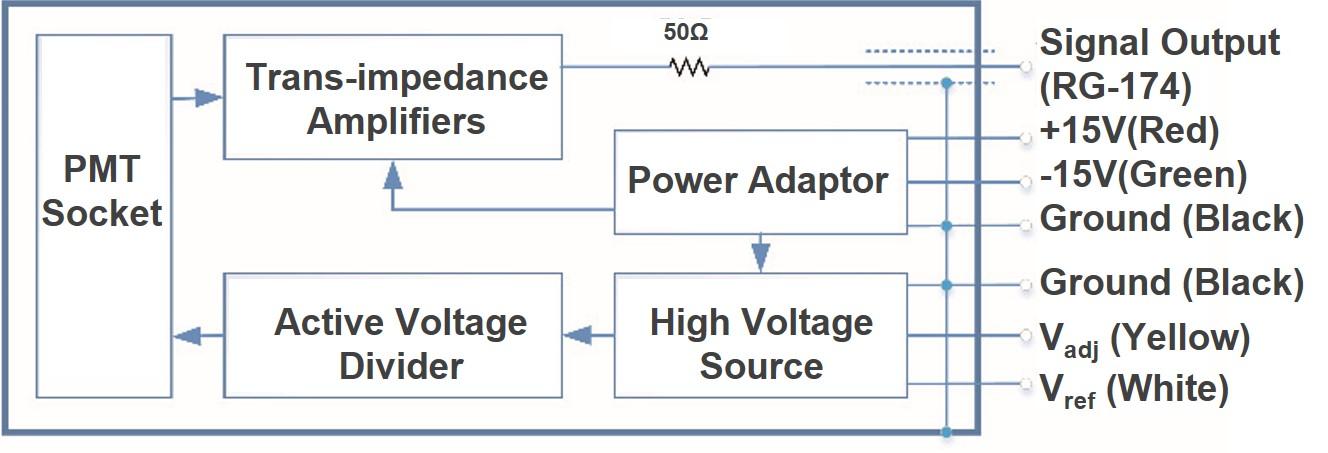

Wiring

Cable	Voltage Control	Resistance Control
Red Line	+15V Input	+15V Input
Green Line	-15V Input	-15V Input
Yellow Line	0~6V Control Voltage	Potentiometer Center Tap
White Line	Vacant	Potentiometer End
Black Line	Ground	Ground
Black Line	Ground	Ground
Shielded Wire	Signal Output

Voltage Power Supply – STD454

STD454 high voltage power supply is a small and compact high voltage module.It is specially designed for photomultiplier tubes, with stable performance and strong self-protection function.

Product Specifications and Brochures

Product Brochure Link:

Model		STD454-01	STD454-02	Unit
Input Voltage Range		+11.5~+12.5	+11.5~12.5	V_DC
Input Current⁽¹⁾	No-load	16	16	mA(Typ)
Output Voltage Range		0~-1250	0~+1250	V_DC
Ensure Output Voltage Range		-200~-1250	200~+1250	V_DC
Current Output ⁽²⁾		0.5		mA(Max)
Input Regulation⁽²⁾		0.01		%(Max)
Load Regulation⁽¹⁾		0.01		%(Typ)
Ripple (Peak-To-Peak)⁽¹⁾		30		mV(Typ)
Output Stability (8 Hours)		0.01		%(Typ)
Output Voltage Control Mode		Applied Control Voltage（0~+5V）		/
		Applied Control Resistor（50kΩ±2.5kΩ)
Control Terminal Input Impedance		80		kΩ
Reference Voltage		+5.15 (When a 50kΩ potentiometer is applied）		V（Typ）
Output Voltage Calculation		（Control Voltage×250）±0.5%		V(Typ)
On-Off Transient Response Rise Time2)		250		ms(Max)
Temperature Coefficient ⁽²⁾		0.01		%/℃（Typ）
Operating Temperature ⁽²⁾		0~+40		℃
Operating Humidity⁽²⁾		≤85%		/
Storage Temperature		-20~+70		℃
Size Dimension		45.6×25×12.3		mm
Weight		33±1		g
Protect Function		Protection is generated when the input voltage or control voltage is reversed,overloaded, and the output is short-circuited		/

Note:(1)At the maximum output voltage. (2)At the maximum output voltage and the maximum output current. (3)Test conditions: Load resistance is greater than 2.5MΩ, it should be avoided to use in strong magnetic field and acid-base environment

Output Voltage Control Chart

Note: The above control curves are taken as examples of positive high pressure(the negative high pressure curve is the same as the positive high pressure curve)

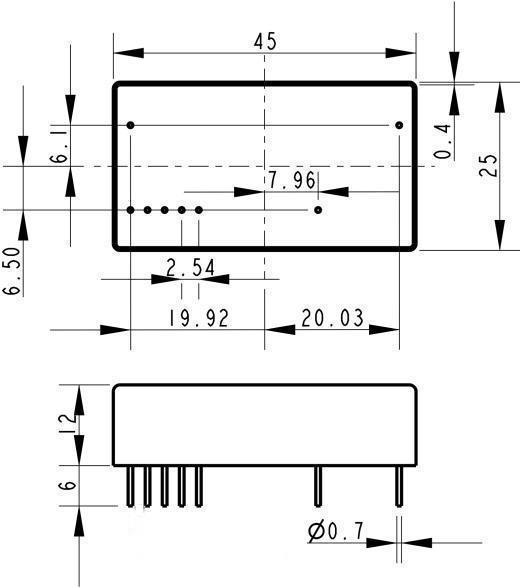

Dimension

(unit: mm, line length can be customized)

Photomultipliers Tube (PMT)

Model	Spectral Response Range	Peak Wavelength	QE Typ.	Effective Area(mm)	Cathode Luminous Sensitivity Typ.	Anode Sensitivity Typ.
Photomultipliers Tube Head-On (Tube Only)	290 - 650nm	380 - 500nm	12% -,28%	Φ10 - Φ58	40 - 100μA/lm	30 - 2000A/lm
Photomultipliers Tube Side On(Tube Only)	160 - 900nm	/	/	8×24	40 - 250μA/lm	400 - 2500A/lm
Photomultipliers Tube (Module)	160 - 900nm	400nm, 420nm	/	Φ22 - Φ25 \| 8×24	60 - 250μA/lm	/
Microchannel Plate - Photomultiplier (MCP-PMT)	115 - 650nm	250nm, 380nm	30%@410nm, 15%@250nm	/	70μA/lm	900A/lm
Scintillator Probe	/	/	/	Φ25×25 - Φ75×75	/	/
β Detector	/	/	/	Φ10, Φ25	/	/

Assemblies and Counting Unit


High Voltage Tube Socket	High Voltage Tube Socket for Side Window	Voltage Power Supply	Counting Unit

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

	Availability	Reference Price (USD)
STD317-11 Photomultiplier Tube Accessories - High Voltage Tube Socket for Side Window, Suitable Photomultiplier Tube Side-on PMT, Input Voltage +15±1V, Input Current 80(Max)mA, Output Voltage 0~-1250V, Voltage Control Mode 0~+5V or 50KΩ Potentiometers, Reference Voltage 5.33V, The PMT Outputs A Linear Current Value 180µA(Typ) @-1000V	6-8 weeks	Request for quote
STD701A-14 Photomultiplier Tube Accessories - High Voltage Tube Socket, Suitable Photomultiplier Tube Φ28mm End Window Type, Input Voltage ±15V, Input Current Max. VCC 85，VEE 20, -3dBbandwidth Typ. 8MHz, Gain Typ. 0.3V/μA（Load Impedance1 MΩ), Output Signal Bias Typ. 10mV, Output Signal Noise/Ripple Max. 10mV	6-8 weeks	Request for quote
STD454-01 Photomultiplier Tube Accessories - Voltage Power Supply, Input Voltage Range +11.5~+12.5V, Input Current 16mA(Typ), Output Voltage Range 0~-1250V, Ensure Output Voltage Range -200~-1250V, Current Output 0.5mA(Max), Input Regulation 0.01%(Max), Load Regulation 0.01%(Typ)	6-8 weeks	Request for quote
STD454-02 Photomultiplier Tube Accessories - Voltage Power Supply, Input Voltage Range +11.5~12.5V, Input Current 16mA(Typ), Output Voltage Range 0~+1250V, Ensure Output Voltage Range 200~+1250V, Current Output 0.5mA(Max), Input Regulation 0.01%(Max), Load Regulation 0.01%(Typ)	6-8 weeks	Request for quote
