4/3" 机器视觉透镜
10MP 4/3" 12MP 4/3" Related Product Order Now!

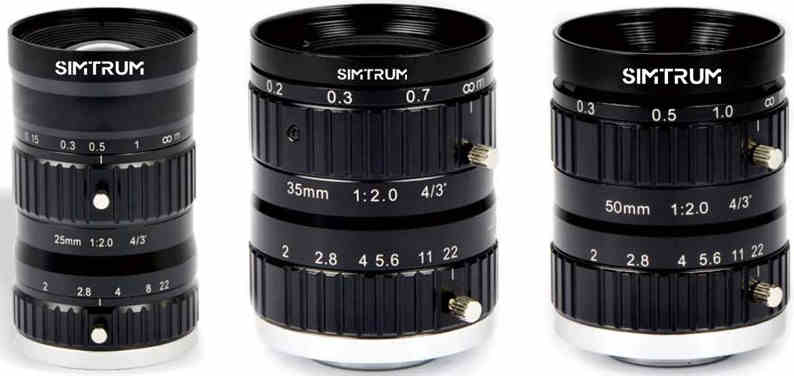

SIMTRUM’s 10 Mega Pixels 4/3” FA/Machine Vision Lens is designed to support a 10 MP 4/3” camera, with a focus and iris locking screw ensuring stable focusing.

It delivers low distortion, sharp images, and has a compact structure, providing excellent optical performance.

Feature

  • Support 10 MP 4/3" camera
  • Focus and iris locking, screw to ensure stable focusing
  •       Low imaging distortion
  • Compact structure, excellent optical performance

Application

  • Machine Vision
  • Automatic Production
  • Electronic Communication Field



Product specifications and Brochures



Paramete STPM-25XC10M STPM-35XC10M STPM-50XC10M
Resolution 10 MP;160lp/mm (center) 100lp/mm (corner)
Focal Length (mm) 25 35 50
lris Range F2.0-F22
Max.Sensor Size 4/3"(17.6mmX13.2mm   Ø22mm)

Field of View

( Diagonal X Horizontal X Verticle)

 4/3" 49.7°x40.6°x31.0° 36.6°x29.6°x22.4° 25.9°x20.9°x15.7°
1” 35.7°x28.8°x21.8° 25.9°x20.8°x15.7° 18.2°x14.6°x11.0°
2/3" 24.9°x20.0°x15.1° 17.9°x14.4°x10.8° 12.6°x10.1°x7.6°
Control FocuS Manual
lris Manual
Distortion (mm) 4/3" -0.66%@y=11.0 -0.56%@y=11.0 -0.14%@y=11.0
1” -0.50%@y=8.0 -0.43%@y=8.0 -0.05%@y=8.0
2/3" -0.28%@y=5.5 -0.23%@y=5.5 -0.02%@y=5.5
Effective lmage Dimensions (mm) 22
Back Focal length(in air) mm 22.43 18.65 20.29
Mount C-mount
Filter Thread M46.0x0.75mm M40.5x0.5mm M40.5x0.5mm
Working Temperature -10℃~+50℃

SIMTRUM’s 12 Mega Pixels 4/3” FA/Machine Vision Lens is designed to support a 12 MP 4/3” camera, offering high resolution, multi-layer coating with high transmittance for effective suppression of stray light.

Its compact structure and small shape make it more suitable for integrated applications, while also providing a lower distortion rate to meet various application requirements.

Feature

  • High resolution
  • Multi layer coating, high transmittance, effective suppression of stray light
  • Large target area and wide field of vision
  • Anti vibration and anti impact function

Application

  • Machine Vision
  • Automatic Production
  • Other Industries



Product specifications and Brochures



Parameter STPM-12XC12M STPM-16XC12M STPM-25XC12M STPM-35XC12M STPM-50XC12M
Resolution 12MP
Wavelength 420-1000nm
Focal Length (mm) 12 16 25 35 50
lris Range F2.0-F22
Max.Sensor Size 4/3"(23mm)
Field of View ( Diagonal X Horizontal X Verticle) 4/3" 89.1°x75.6°x61.2° 73.0°x61.0°x47.3° 49.8°x40.6°x31.1 36.8°x29.7°x22.5 26.0°x21.0°x15.8
1” 69.0°x57.36°x44.3° 54.2°x44.3°x33.6° 35.8°x28.9°x21.8 26.0°x20.8°x15.8 18.3°x14.7°x11.1°
2/3" 　 　 　 　 　
1/2" 37.4°x30.2°x22.7° 28.3°x22.7°x17.1° 18.3°x14.6°x11.1° 13.2°x10.6°x7.9 9.2°x7.3°x5.6
Control FocuS Manual
lris Manual
Distortion (mm) 4/3" -2.05%@y=11.5  -1.93%@y=11.5  -0.64%@y=11.5  -0.52%@y=11.5  -0.13%@y=11.5
1” -1.73%@y=8.0  -1.82%@y=8.0  -0.48%@y=8.0  -0.42%@y=8.0  -0.05%@y=8.0
1/2" -1.01%@y=4.0  -0.55%@y=4.0  -0.15%@y=4.0  -0.12%@y=4.0  -0.01%@y=4.0
Object Size(At theclosest focusingdistance) 4/3" 319.4x262.7x204.4  195.5x145.5x107.3  157.8x125.7x94.0  121.0x96.7x72.4  118.9x95.1x71.3
1” 235.5x189.9x143.2  125.5x99.3x73.9  109.2x87.2x65.3  84.0x67.2x50.3  82.7x66.1x49.6
1/2" 119.8x95.9x72.0  61.3x48.9x36.6  54.4x43.5x32.6  42.0x33.5x25.1  41.4x33.1x24.9
Focus Range 0.15m~∞ 0.1m~∞ 0.15m~∞ 0.2m~∞ 0.3m~∞
Back Focal length(in air)mm 18.8 21 22 18 20
Mount C-mount
Filter Thread M77.0xP0.75 M58.0xP0.75 M46.0xP0.75 M46.0xP0.75 M46.0xP0.75
Working Temperature -20℃-+60°C
Weight 438g 339g 248g 207g 219g



Model WorkingDistance Magnification FOV Model WorkingDistance Magnification FOV
4/3" 1" 2/3" 4/3" 1" 2/3"
   H    (18mm) V (13.5mm) H (8.8mm) V (6.6mm) H (6.4mm) V (4.8mm) H (18mm) V (13.5mm) H (8.8mm) V (6.6mm) H (6.4mm) V (4.8mm)
STPM-12XC12M 150mm -0.0692X 285.7808 214.3356 139.72 104.79 101.61 76.21 STPM-25XC12M 350mm -0.06758X 272.2848 204.2136 133.12 99.84 72.61 72.61
200mm -0.0537X 367.9024 275.9268 179.86 134.9 130.81 98.11 400mm -0.05952X 309.1328 231.8496 151.13 113.35 82.44 82.44
250mm -0.0438X 450.0256 337.5192 220.01 165.01 160.01 120.01 450mm -0.05318X 346.008 259.506 169.16 126.87 92.27 92.27
300mm -0.0370X 532.1472 399.1104 260.16 195.12 189.21 141.91 500mm -0.04806X 382.8528 287.1396 187.17 140.38 102.09 102.09
350mm -0.0321X 614.2704 460.7028 300.31 225.23 218.41 163.81 550mm -0.04384X 419.688 314.766 205.18 153.89 111.92 111.92
400mm -0.0283X 696.392 522.294 340.46 255.34 247.61 185.7 600mm -0.0403X 456.52 342.39 223.19 167.39 121.74 121.74
450mm -0.0253X 778.5152 583.8864 380.61 285.46 276.81 207.6 STPM-35XC12M 200mm -0.19139X 96.56 72.42 47.2 35.4 34.33 25.75
500mm -0.0229X 860.6368 645.4776 420.76 315.57 306 229.5 250mm -0.15031X 122.95 92.21 60.11 45.08 43.71 32.79
550mm -0.0209X 942.7584 707.0688 460.9 345.68 335.2 251.4 300mm -0.12375X 149.34 112 73.01 54.76 53.1 39.82
600mm -0.0192X 1024.8816 768.6612 501.05 375.79 364.4 273.3 350mm -0.10516X 175.73 131.8 85.91 64.43 62.48 46.86
STPM-16XC12M 100mm -0.13187X 141.9568 106.4676 69.4 52.05 37.86 37.86 400mm -0.09143X 202.12 151.59 98.81 74.11 71.86 53.9
150mm -0.09332X 200.6016 150.4512 98.07 73.55 53.49 53.49 450mm 0.08087X 228.51 171.39 111.72 83.79 81.25 60.94
200mm -0.07224X 259.1536 194.3652 126.7 95.02 69.11 69.11 500mm 0.0725X 254.91 191.18 124.62 93.47 90.63 67.97
250mm -0.05893X 317.6752 238.2564 155.31 116.48 84.71 84.71 550mm -0.0657X 281.3 210.97 137.52 103.14 100.02 75.01
300mm -0.04976X 376.1744 282.1308 183.91 137.93 100.31 100.31 600mm -0.06006X 307.7 230.78 150.43 112.82 109.41 82.05
350mm -0.04307X 434.6608 325.9956 212.5 159.38 115.91 115.91 STPM-50XC12M 300mm -0.194X 95.1632 71.3724 46.52 34.89 33.84 25.38
400mm -0.03796X 493.1632 369.8724 241.1 180.83 131.51 131.51 350mm -0.163X 113.6352 85.2264 55.55 41.67 40.4 30.3
450mm -0.03394X 551.6016 413.7012 269.67 202.25 147.09 147.09 400mm -0.140X 132.1136 99.0852 64.59 48.44 46.97 35.23
500mm -0.03068X 610.1024 457.5768 298.27 223.7 162.69 162.69 450mm -0.123X 150.5904 112.9428 73.62 55.22 53.54 40.16
550mm -0.028X 668.6352 501.4764 326.89 245.17 178.3 178.3 500mm -0.109X 169.0832 126.8124 82.66 62 60.12 45.09
600mm -0.02575X 727.1264 545.3448 355.48 266.61 193.9 193.9 550mm -0.099X 187.5472 140.6604 91.69 68.77 66.68 50.01
STPM-25XC12M
　　　		 150mm -0.1479X 124.4128 93.3096 60.82 45.62 33.18 33.18 600mm -0.090X 206.0272 154.5204 100.72 75.54 73.25 54.94
200mm -0.11394X 161.4944 121.1208 78.95 59.21 43.07 43.07 650mm -0.082X 224.5056 168.3792 109.76 82.32 79.82 59.87
250mm -0.09271X 198.472 148.854 97.03 72.77 52.93 52.93 700mm -0.076X 242.984 182.238 118.79 89.09 86.39 64.8
300mm -0.07817X 235.3824 176.5368 115.08 86.31 62.77 62.77

Product Code Resolution (MP) Sensor (inch)  FocalLength (mm) lris Range Back Focal Length (mm)
2/3" Machine Vision FA Lens MC 1.5/5/10  2/3 12-75  F1.4/1.8/2.0/2.8-C/F22/16 8.43-18.93
1" Machine Vision FA Lens LC 5/8 1 12-50   F1.4/1.6/1.8/2.0-F22/close      11.2-21.35
1.1" Machine Vision FA Lens UC 20/20M-H 1.1 12-50  F2.8/F2.8-F22 10.6-21.3
4/3" Machine Vision FA Lens XC 10/12 4/3 12-50  F2.0-F22 18-22.43
1/1.8" Machine Vision FA Lens JC 10/10-H  1/1.8 4.5-35  F2.8-16 8.4-13

We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.
