1“机器视觉FA透镜 |瑆创光学电子商店

1“机器视觉FA透镜

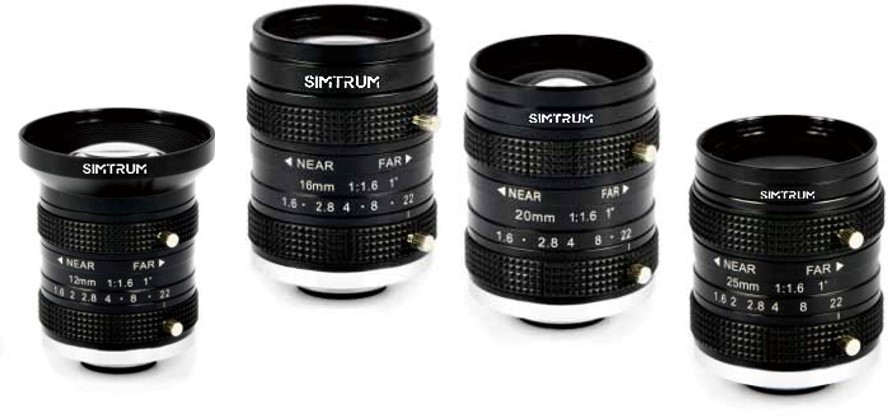

SIMTRUM’s 5 Mega Pixels 1” FA/Machine Vision Lens is designed to support a 5 MP 1" camera, with a focus and iris locking screw ensuring stable focusing.

It delivers low distortion, sharp images, and has a compact structure, providing excellent optical performance.

Feature

  • Support 5 MP 1" camera
  • Focus and iris locking, screw to ensure stable focusing
  • Low distortion sharp image
  • Compact structure, excellent optical performance

Application

  • Machine Vision
  • Automatic Production
  • Electronic Communication Field



Product specifications and Brochures

Product Brochure Link:



Parameter STPM-12LC5M STPM-16LC5M STPM-20LC5M STPM-25LC5M
Resolution 5 MP;160 lp/mm (center) 100 lp/mm (corner)
Focal Length (mm) 12 16 20 25
lris Range F1.6-F22
Max.Sensor Size 1"(12.8mmX9.6mm Ø16mm)
Field of View (Diagonal x Horizontal x Verticle) 1" 68.8°x 57.1°x44.1° 54.3°x 44.2°x33.5° 44.4°x 35.8°x27.2° 36.2°x29.0°x21.8°
2/3” 50.0°x 40.6°x30.9° 38.3°x 30.8°x23.2° 31.0°x 25.0°x18.8° 25.0°x20.0*x15.0°
Control FocuS Manual
lris Manual
Distortion(mm) 1" -2.88%@y=8.0 -3.73%@y=8.0 -1.82%@y=8.0 -2.06%@y=8.0
2/3” -1.79%@y=5.5 -1.98%@y=5.5 -0.79%@y=5.5 0.98%@y=5.5
Effective lmage Dimension 16mm
 Back Focal Length(in air)  mm 13.54 12.17 13.08 12.69
Mount C-mount
Filter Threadmm) M52.0x0.75 M37.5x0.5
Working Temperature -10~+50

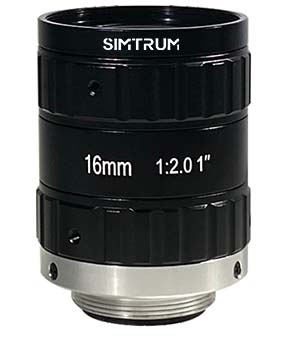

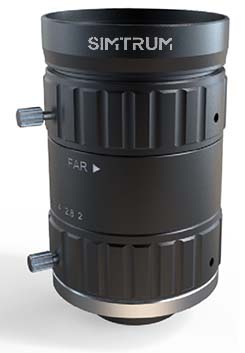

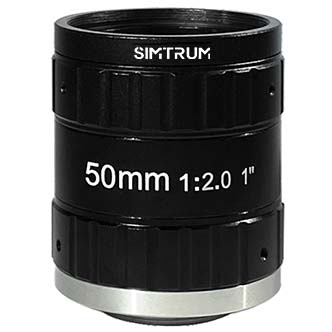

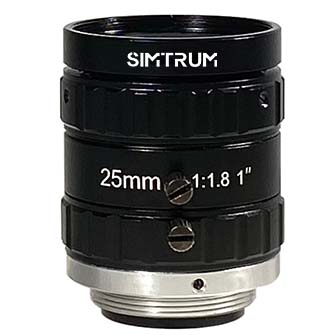

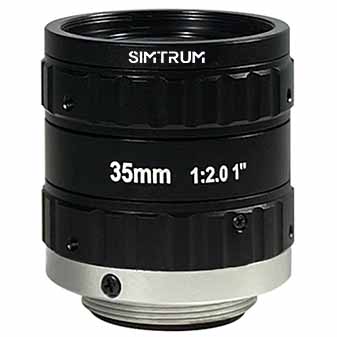

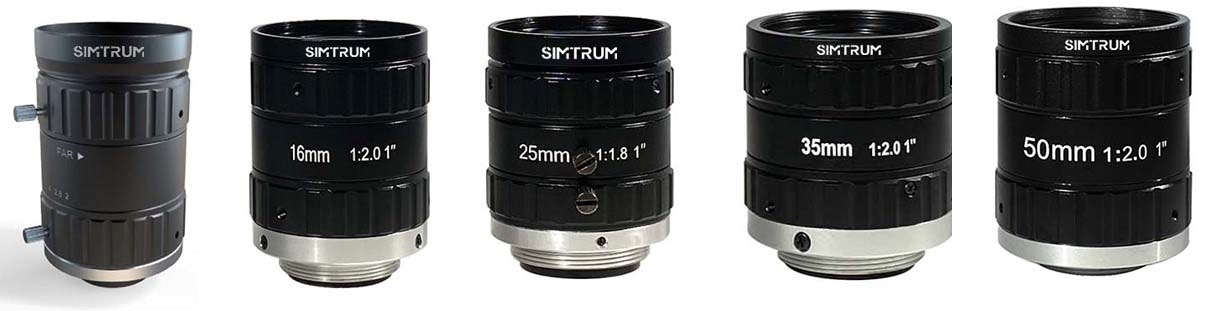

SIMTRUM’s 8 Mega Pixels 1” FA/Machine Vision Lens is designed to support a 8 MP 1" camera, with a focus and iris locking screw ensuring stable focusing.

It delivers low distortion, sharp images, and has a compact structure, providing excellent optical performance.

Feature

  • Support 8 MP 1" camera
  • Focus and iris locking, screw to ensure stable focusing
  • Low distortion sharp image
  • Compact structure, excellent optical performance

Application

  • Machine Vision
  • Automatic Production
  • Other Industries



Product specifications and Brochures

Product Brochure Link:

Parameter STPM-12LC8M STPM-16LC8M STPM-25LC8M STPM-35LC8M STPM-50LC8M
Resolution 8MP
Focal Length (mm) 12 16 25 35 50
Corresponding Wavelength   420-1000nm
lris Range F2.0-C F2.0-close F1.8-close F2.0-close F2.0-close
Max.Sensor Size 1"(16mm)
 Imaging Range   0.1m~ 0.1m~ 0.15m~ 0.2m~ 0.25m~
Field of View (Diagonal x Horizontal x Verticle) 1" 69.63°×60.71°×40.33° 53.94°x43.92°x33.45° 36.21°x29.08°x21.86° 26.10°x20.83°x15.72 18.38°x14.70°x10.98°
1/2'' 37.32°×30.11°×22.74° 28.23°x22.62°x16.97° 18.45°x14.72°x11.08° 13.28°x10.65°x7.94° 9.34°x7.42°x5.5°
1/3'' -  21.24°x16.98°x12.94° 13.81°x11.08°x8.34° 9.92”x7.92°x6.00° 6.96°x5.53x4.16°
Control Focus Manual
lris Manual M-lris
Object Size (mm) 1" 155.01×130.05×90.3  112.75x89.28x66.33  92.4x73.3x54.6  81.10x64.88x48.66  72.50x57.94x43.34
1/2'' 74.93×59.76×44.73  55.09x43.96x32.82  45.5x36.4x27.2  40.52x32.42x24.31  36.18x28.76x21.66
1/3''   41.19x33.32x24.58  34.2x27.3x20.5  30.42x24.34x18.25  27.26x21.74x16.34
Distortion (mm) 1"  -1.27%@y=4.0  -2.02%@y=8  -1.41%@y=8  0.28%@y=8  -0.013%@y=8.0
1/2'' -4.1%@y=8  -0.68%@y=4.0  -0.32%@y=4.0  0.07%@y=4.0  0.010%@y=4.0
1/3''   -0.39%@y=3.0  -0.18%@y=3.0  0.04%@y=3.0  0.04%@y=3.0
Effective lmage Dimension 16 -  -   - -

 Back Focal Length(in air) mm

15.07 11.20 12.68 12.96 21.35
Mount C-mount
Filter Thread (mm) M35.5×0.5  M34x0.5  M30.5x0.5  M30.5x0.5  M37x0.5
Working Temperature  -20+60
Weight -  101.25g 73.65g 70.35g 105.25g

Product Code Resolution (MP) Sensor (inch)  FocalLength (mm) lris Range Back Focal Length (mm)
2/3" Machine Vision FA Lens MC 1.5/5/10  2/3 12-75  F1.4/1.8/2.0/2.8-C/F22/16 8.43-18.93
1" Machine Vision FA Lens LC 5/8 1 12-50   F1.4/1.6/1.8/2.0-F22/close      11.2-21.35
1.1" Machine Vision FA Lens UC 20/20M-H 1.1 12-50  F2.8/F2.8-F22 10.6-21.3
4/3" Machine Vision FA Lens XC 10/12 4/3 12-50  F2.0-F22 18-22.43
1/1.8" Machine Vision FA Lens JC 10/10-H  1/1.8 4.5-35  F2.8-16 8.4-13
