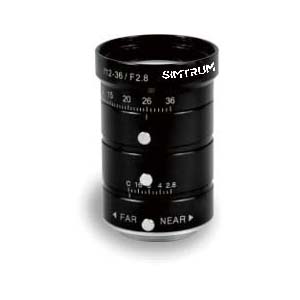

2/3“机器视觉FA透镜

SIMTRUM’s 1.5 Mega Pixels 2/3” FA/Machine Vision Lens is designed to support a 1.5 MP 2/3" camera, with a focus and iris locking screw ensuring stable focusing. It delivers low distortion, sharp images, and has a compact structure, providing excellent optical performance.

Feature

  • Support 1.5 MP 2/3" camera
  • Focus and iris locking, screw to ensure stable focusing
  • Low distortion sharp image
  • Compact structure, excellent optical performance

Application

  • Machine Vision
  • Automatic Production
  • Electronic Communication Field



Product specifications and Brochures

Product Brochure Link:

Parameter STPM-12MC STPM-16MC STPM-25MC STPM-35MC STPM-50MC STPM-75MC STPM-1236MC
Resolution 1.5 MP;125 lp/mm (center) 100 lp/mm (corner)
Focal Length (mm) 12.3 16.33 25 35 50 75 12-36
lris Range F1.4-C F1.8-C F2.8-C F2.8-C
Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)

Field of View (H x V)

2/3" 40.0°x30.2° 30.4°x22.9° 19.9°x15.0° 13.8°x10.4° 9.2°x7.6° 6.7°x5.0° 41.4°x31.2°(wide)
13.8°x10.4°(tele)
1/2” 29.2°x22.0° 22.3°x16.7° 14.5°x11.0° 10.1°x7.5° 7.5°x5.5° 4.9°x3.7° 30.1°x22.8°(wide)
10.1°*x7.6°(tele)
Focus Range 0.15m-∞ 0.30m-∞ 0.25m-∞ 0.30m-∞ 0.50m-∞ 1.10m-∞ 0.15m-∞(wide)
0.5m -∞(tele)
Object Dimensions(at the nearest focusing distance) cm 2/3" 12.0 (H)x8.8 (V) 16.10 (H)x12.80 (V) 8.80 (H)x6.60 (V) 7.40 (H)x5.60 (V) 8.10 (H)x6.04 (V) 11.26 (H)x8.45 (V) 6.6 (H)x4.8 (V)213"(wide)
6.7 (H)x5.0 (V) 2/3"(tele)
Control Focus Manual
lris Manual
Distortion 2/3” -1.80%@y=5.5 -1.00%@y=5.5 -0.32%@y=5.5  -0.33%@y=5.5  -0.11%@y=5.5  0.34%@y=5.5  3.5%@y=5.5 (wide)
2.3%@y=5.5 (tele)
1/2” -1.25%@y=4.0 -0.64%@y=4.0 -0.13%@y=4.0  -0.17%@y=4.0  -0.04%@y=4.0  0.19%@y=4.0  2.4%@y=3.0 (wide)
1.3%@y=3.0 (tele)
Optical Back Focal Length (in air) mm 12.7 12.67 13.6 14.7 12.94 14.35 12.6 (wide)15.2 (tele)
Mount C-Mount
Filter Thread M30.5x0.5mm
Working Temperature -10℃~+50℃



Working Distance And Magnification After Using A Close-up Attachment



Model W.D. Optical Magnification Close-up Attachment Model W.D. Optical Magnification Close-up Attachment
STPM-12MC 150mm 0.071X STPM-50MC 250mm 0.240X 7.0mm
100mm 0.100X 0.5mm 200mm 0.315X 11.0mm
STPM-16MC 300mm 0.052X 150mm 0.460X 18.0mm
250mm 0.062X 0.5mm 100mm 0.852X 38.0mm
200mm 0.077X 0.5mm STPM-75MC 1100mm 0.078X
150mm 0.100X 1.0mm 1000mm 0.087X 1.5mm
100mm 0.145X 1.0mm 900mm 0.099X 2.0mm
STPM-25MC 250mm 0.100X 800mm 0.114X 3.0mm
200mm 0.130X 0.5mm 700mm 0.134X 4.5mm
150mm 0.170X 1.0mm 600mm 0.164X 7.0mm
100mm 0.250X 2.0mm 500mm 0.209X 10.0mm
STPM-35MC 300mm 0.126X 400mm 0.291X 16.0mm
250mm 0.155X 1.0mm 300mm 0.475X 30.0mm
200mm 0.200X 2.5mm STPM-1236MC 1100mm 0.078X
150mm 0.285X 4.5mm 1000mm 0.087X 1.5mm
100mm 0.544X 8.9mm 900mm 0.099x 2.0mm
STPM-50MC

500mm 0.109X 800mm 0.114X 3.0mm
450mm 0.122X 1.0mm 700mm 0.134X 4.5mm
400mm 0.140X 2.0mm 600mm 0.164X 7.0mm
350mm 0.162X 3.0mm 500mm 0.209x 10.0mm
300mm 0.193X 5.0mm 400mm 0.291X 16.0mm
300mm 0.475X 30.0mm

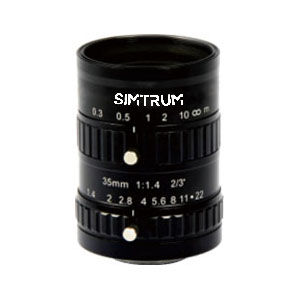

SIMTRUM’s 5 Mega Pixels 2/3” FA/Machine Vision Lens is designed to support a 5 MP 2/3" camera, with a focus and iris locking screw ensuring stable focusing.

It delivers low distortion, sharp images, and has a compact structure, providing excellent optical performance.

Feature

  • Support 5 MP 2/3" camera
  • Focus and iris locking, screw to ensure stable focusing
  • Low distortion sharp image
  • Compact structure, excellent optical performance

Application

  • Machine Vision
  • Automatic Production
  • Electronic Communication Field

Product specifications and Brochures

Product Brochure Link:

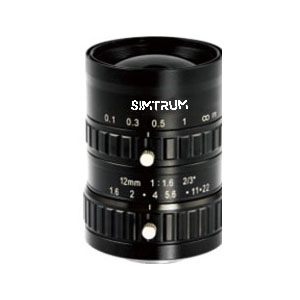

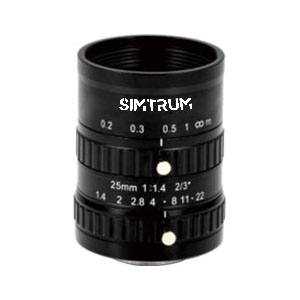

Parameter STPM-12MC5M STPM-16MC5M STPM-25MC5M STPM-35MC5M STPM-50MC5M STPM-75MC5M STPM-1236MC5M
Resolution 5 MP;160lpmm (center)125lp/mm (corner)
Focal Length 12mm 16mm 25mm 35mm 50mm 75mm 12-36mm
lris Range F1.6-F22 F1.6-F22 F1.4-F22 F1.4-F22 F1.8-F22 F2.0-F22 F2.8-F16
Max.Sensor Size 2/3"(8.8mmX6.6mm Ø11mm)
Field of View (H x V) 2/3" 48.6°x39.8°x30.4° 38.0°~x30.8°x23.4° 24.8°x20.0°x15.0° 17.9°x14.3°x10.8° 12. 5°x 10.1°x7.6° 8.4°x6.7°x5.0 50.8°x41.2°x31.2°(wide)             17.2°x13.8°x10.4°(tele)
1/2” 36.4°x29.5°x22.3° 28.1°x 22.6°x17.1° 18.1°x14.5°x10.9° 13.0°x10.4°x7.8° 9.1°x 7.4°x5.5° 6. 1°x4.9°x3.7 37.7°x 30.3°x22.8° (wide)            12.6°x10.1°x 7.6°(tele)
Focus Range 0.1m- 0.2m- 0.2m- 0.3m- 0.4m- 0.9m- 0.15m-co(wide)0,45m-0o(tele)
Object Dimensions(at the nearest focusing distance) 102.4 X 82.0 X61.4 145.6 X 116.4 X 87.3 43.5X34.8X26.1 90.1X72.2X54.1 83.8 X67.0X 50.2 1/3.2X98.5X73.9 163.4X130.7X98.0(wide) 152.0X121.6X107.4(tele)
Control FocuS Manual
lris Manual
Distortion 2/3” -0.53%@y=5.5 0.07%@y=5.5 -0.19%@y=5.5 -0.07%@y=5.5 0.03%@y=5.5 0.04%@y=5.5 -3.4%@y=5.5(wide)  1.4%@y=5.5(tele)
1/2” -0.35%@y=4.0 -0.06%@y=4.0 -0.17%@y=4.0 0.06%@y=4.0 0.02%@y=4.0 0.02%@y=4.0 -2.2%@y=4.0(wide)    0.9%@y=4.0(tele)
Optical Back Focal Length(in air) 12.42 12.36 12.78 12.82 13.63 13.76 18.93(wide)18.87(tele)
Mount C-mount
Filter Thread M37.5x0.5mm M40.5x0.5mm M40.5x0.5mm
Working Temperature -10~+50
Weight 178.0g 181.0g 148.0g 156.0g 173.0g 223.0g 188. 0g

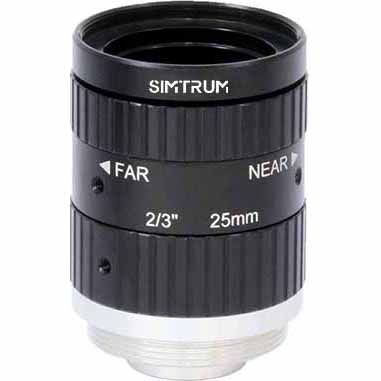

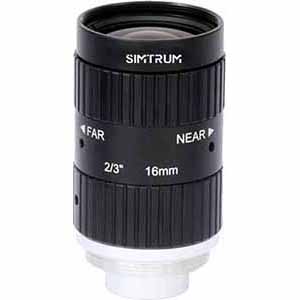

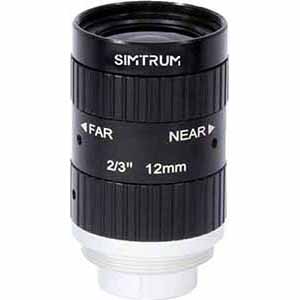

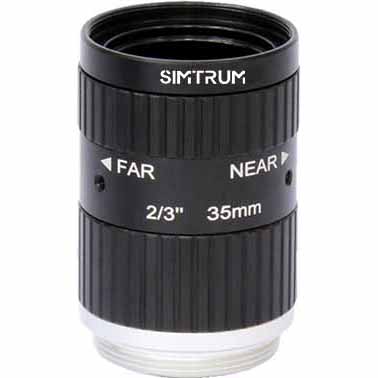

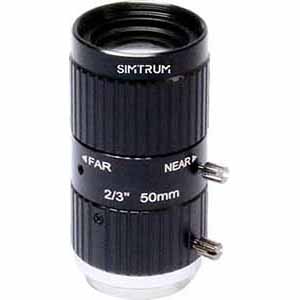

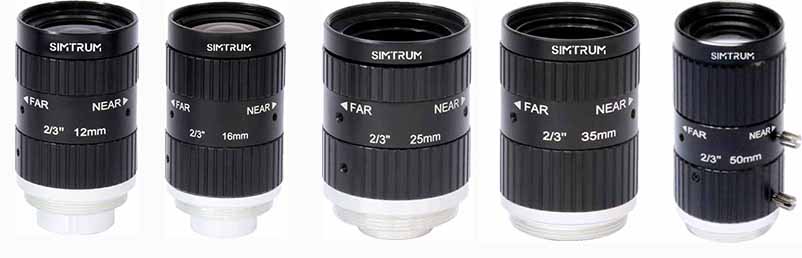

SIMTRUM’s 10 Mega Pixels 2/3” FA/Machine Vision Lens features high resolution, multi-layer coating for high transmittance and effective suppression of stray light.

Its compact structure and small shape make it more suitable for integrated applications, with anti-vibration and anti-impact functions.

Feature

  • Support  10 MP 2/3“ camera and high resolution
  • Multi layer coating, high transmittance, effective suppression of stray light
  • Compact structure, small shape, more suitable for integrated application
  • Anti vibration and anti impact function

Application

  • Machine Vision
  • Automatic Production
  • Other industries

Product specifications and Brochures

Product Brochure Link:

Parameter STPM-12MC10M STPM-16MC10M STPM-25MC10M STPM-35MC10M STPM-50MC10M
Resolution 10MP
Wavelength 420~1000nm
Focal Length 12mm 16mm 25mm 35mm 50mm
lris Range F2.8-16
Max.Sensor Size 2/3"(11mm)
Field of View (H x V) 2/3" 49.2°x40.3°x30.8° 37.9°x30.7°x23.3° 24.78°x19.94°x15.0 18.39°x14.8°x11.1 12.57°x10,08°x7.57
1/2” 36.9°x29.9°x22.7° 28.1°x22.6°x17.1° 18.16°x14.57°x11.0° 13.4°x10.8°x8.1° 9.16°x7.34°x5.51°
1/3" 28.1°x22.7°x17.1° 21.2°x17.0°x12.8° 13.67°x10.9°x8.2 10.1°x8.1°x6.1° 6.89°x5.51°x4.13
Focus Range 0.15m~ 0.15m~ 0.15m~ 0.20m~ 0.30m~
Object Dimensions  (at the nearest focusing distance) 2/3" 140.5x112.4x84.3  107.9x86.3x64.7  58.9x47.1x35.3  54.1x43.3x32.5  54.1x43,3x32.5
1/2" 101.7x81.4x61.0  78.1x62.5x46.9  42.8x34.3x25.7  39.3x31.5x23.6  43.4x34.7x26.0
1/3" 76.1x60.9x45.7  65.8x52.6x39.5  32.1x25.68x19.3  29.5x23.6x17.7  32.5x26.0x19.5
Control Focus Manual
lris Manual
Distortion 2/3” 0.037%@y=5.5  0.29%@y=5.5  -0.016%@y=5.5  -0.172%@y=5.5  0.094%@y=5.5
1/2” -0.17%@y=4.0  0.15%@y=4.0  -0.019%@y=4.0  -0.077%@y=4.0  0.055%@y=4.0
1/3" -0.15%@y=3.0  0.08%@y=3.0  -0.013%@y=3.0  -0.045%@y=3.0  0.025%@y=3.0
Optical Back Focal Length(in air) 8.43 8.63 10.31 13.63 14.24
Mount C-Mount
Filter Thread M27xP0.5
Working Temperature -20~+60°C



Model ExtensionRing (mm) WorkingDistance Magnification FOV Model ExtensionRing (mm) WorkingDistance Magnification FOV
2/3" 1/2" 2/3" 1/2"
H (8.45mm) V (7.07mm) H (6.22mm) V (4.67mm) H (8.45mm) V (7.07mm) H (6.22mm) V (4.67mm)
STPM-12MC10M 0 1000mm -0.01198X 708.14 588.59 515.01 428.06 STPM-25MC10M 0 600mm -0.04285X 197.68 164.31 143.77 119.5
950mm -0.01261X 672.94 559.33 489.41 406.78 550mm -0.04685X 180.77 150.25 131.47 109.27
900mm -0.01331X 637.65 529.99 463.74 385.45 500mm -0.05169X 163.85 136.18 119.16 99.04
850mm -0.01409X 602.33 500.63 438.06 364.1 450mm -0.05764X 146.94 122.13 106.87 88.82
800mm -0.01497X 566.98 471.25 412.35 342.73 400mm -0.06515X 130.01 108.06 94.55 78.59
750mm -0.01596X 517.93 441.96 376.67 321.43 350mm -0.07490X 113.08 93.99 82.24 68.35
700mm -0.01709X 496.55 412.72 361.13 300.16 300mm -0.08808X 96.17 79.93 69.94 58.13
650mm -0.01840X 461.2 383.34 335.42 278.79 250mm -0.10688X 79.25 65.87 57.64 47.9
600mm -0.01993X 425.81 353.92 309.68 257.4 200mm -0.13592X 62.31 51.79 45.32 37.67
550mm -0.02172X 390.63 324.68 284.09 236.13 150mm -0.18666X 45.38 37.72 33 27.43
500mm -0.02389X 355.22 295.25 258.34 214.73 3 100mm -0.29000X 29.26 24.32 21.28 17.69
450mm -0.02651X 320.03 266 232.75 193.46 STPM-35MC10M 0 1000mm -0.03513X 241.13 200.42 175.36 145.76
400mm -0.02980X 284.64 236.58 207.01 172.06 950mm -0.03704X 228.65 190.05 166.29 138.22
350mm -0.03405X 249.22 207.14 181.25 150.65 900mm -0.03918X 216.19 179.69 157.23 130.68
300mm -0.03964X 214.05 177.91 155.68 129.39 850mm -0.04158X 203.73 169.33 148.16 123.15
250mm -0.04749X 178.67 148.5 129.94 108 800mm -0.04429X 191.26 158.97 139.1 115.61
200mm -0.05914X 143.47 119.25 104.34 86.73 750mm -0.04737X 178.8 148.61 130.04 108.08
150mm -0.07844X 108.18 89.91 78.68 65.39 700mm -0.05092X 166.33 138.25 120.97 100.54
0.5 100mm -0.11104X 76.42 63.51 55.58 46.19 650mm -0.05505X 153.86 127.88 111.9 93.01
STPM-16MC10M 0 1000mm -0.01591X 532.24 442.39 387.09 321.74 600mm -0.05991X 141.39 117.52 102.83 85.47
950mm -0.01675X 505.68 420.3 367.77 305.68 550mm -0.06569X 128.93 107.16 93.77 77.94
900mm -0.01768X 479.18 398.28 348.5 289.66 500mm -0.07273X 116.45 96.79 84.69 70.39
850mm -0.01870X 453.04 376.56 329.48 273.86 450mm -0.08145X 103.99 86.44 75.63 62.86
800mm -0.01986X 426.58 354.56 310.24 257.86 400mm -0.09255X 91.53 76.07 66.57 55.32
750mm -0.02116X 400.27 332.69 291.1 241.96 350mm -0.10714X 79.06 65.69 57.5 47.78
700mm -0.02266X 373.82 310.71 271.87 225.97 300mm -0.12720X 66.59 55.34 48.43 40.25
650mm -0.02439X 347.33 288.69 252.61 209.96 250mm -0.15650X 54.12 44.98 39.36 32.72
600mm -0.02639X 320.91 266.73 233.39 193.99 200mm -0.20333X 41.66 34.62 30.29 25.18
550mm -0.02877X 294.38 244.68 214.1 177.95 3 150mm -0.28202X 30.03 24.96 21.84 18.15
500mm -0.03160X 268.08 222.82 194.96 162.05 STPM-50MC10M 0 1000mm -0.0515 164.78 136.96 119.84 99.61
450mm -0.03504X 241.71 200.9 175.79 146.11 950mm -0.05429 156.29 129.9 113.66 94.47
400mm -0.03935X 215.24 178.9 156.53 130.11 900mm -0.0574 147.82 122.86 107.5 89.35
350mm -0.04486X 188.83 156.95 137.33 114.14 850mm -0.06091 139.32 115.8 101.32 84.21
300mm -0.05216X 162.39 134.97 118.1 98.16 800mm -0.06485 130.84 108.75 95.16 79.09
250mm -0.06227X 136.03 113.06 98.93 82.23 750mm -0.06935 122.36 101.7 88.99 73.96
200mm -0.07734X 109.52 91.03 79.65 66.21 700mm -0.07452 113.87 94.65 82.82 68.84
150mm -0.10195X 83.08 9.05 60.42 50.22 650mm -0.08051 105.39 87.6 76.65 63.71
0.5 100mm -0.14288X 59.28 49.27 43.11 35.83 600mm -0.08756 96.9 80.54 70.48 58.58
STPM-25MC10M 0 1000mm -0.02543X 333.01 276.79 242.19 201.3 550mm -0.09606 88.42 73.49 64.3 53.45
950mm -0.02678X 316.24 262.85 229.99 191.16 500mm -0.10635 79.93 64.44 58.13 46.86
900mm -0.02831X 299.19 248.67 217.59 180.85 450mm -0.11898 71.45 59.38 51.96 43.19
850mm -0.03001X 282.26 234.6 205.28 170.62 400mm -0.13503 62.96 52.33 45.79 38.06
800mm -0.03192X 265.35 220.55 192.98 160.4 350mm -0.15608 54.46 45.27 39.61 32.92
750mm -0.03410X 248.42 206.48 180.67 150.17 300mm -0.18542 45.97 38.21 33.43 27.79
700mm -0.03659X 231.49 192.41 168.36 139.93 2 250mm -0.22768 37.47 31.14 27.25 22.65
650mm -0.03947X 214.59 178.36 156.06 129.71 5 200mm -0.29512 28.96 24.07 21.06 17.51
600mm -0.04285X 197.68 164.31 143.77 119.5

Product Code Resolution (MP) Sensor (inch)  FocalLength (mm) lris Range Back Focal Length (mm)
2/3" Machine Vision FA Lens MC 1.5/5/10  2/3 12-75  F1.4/1.8/2.0/2.8-C/F22/16 8.43-18.93
1" Machine Vision FA Lens LC 5/8 1 12-50   F1.4/1.6/1.8/2.0-F22/close      11.2-21.35
1.1" Machine Vision FA Lens UC 20/20M-H 1.1 12-50  F2.8/F2.8-F22 10.6-21.3
4/3" Machine Vision FA Lens XC 10/12 4/3 12-50  F2.0-F22 18-22.43
1/1.8" Machine Vision FA Lens JC 10/10-H  1/1.8 4.5-35  F2.8-16 8.4-13
