可见光单光子探测器(峰值QE~800nm)

The ID120 series consists of compact and affordable single-photon detector modules based on a reliable silicon avalanche photodiode sensitive in the visible spectral range.


Spectral coverage for the visible red spectrum

Up to now, the ID100 series was limited to detectors with high efficiency values in the green region (around 500 nm). The new detector of the ID120 series has high efficiency values in the red region of the visible spectrum and a ultra high active area. This new detector comes as free-space module, passive quenching, maximal efficiency value around 800 nm. This detection module is highly versatile thanks to an USB connection and a Labview interface allowing the user to change the bias voltage and the temperature of the diode.


The modules are available in three dark count grades

The grades are educational (EDU), standard (STD) and ultra-low-noise (ULN), matching your budget to the perfromance required.


The module is equipped with a dual universal output signal port which can be set through the software interface. The module is compatible with C-mount, SM1 and cage technologies from Thorlabs. This allows an easy coupling of the light beam onto the active area of the detectors.

*check specifications for supplied accessories


Key Features

• 60% quantum efficiency at 650 nm

• 80% quantum efficiency at 800 nm

• Tunable quantum efficiency

• Tunable temperature of the diode

• Adjustable deadtime


• Universal dual output

• Labview interface

• C-mount, SM1, cage compatible

• Integrated electronic counter



Please download the specification sheet found here: ID120

For technical queries, please contact us at info@simtrum.com


General Specifications

Parameter

Min

Typical

Max

Units

Wavelength Range

350


1000

nm

Active Area

500



um

Single-photon detection   probability (SPDE)

at 650 nm (at max. excess bias)



60

%

at 800 nm (at   max. excess bias)



80

%

Dark Count Rate (at -40°C, Vbias   =Vbreakdown +30V)

ULN



<300

Hz

STD



<1000

Hz

EDU



<3000

Hz

Timing resolution (at max.   excess bias)

200

400

1000

ps

Deadtime


1


Us

Output pulse


NIM   &LVTTL



Output pulse width


25


ns

Storage Temperature

-40


70

C

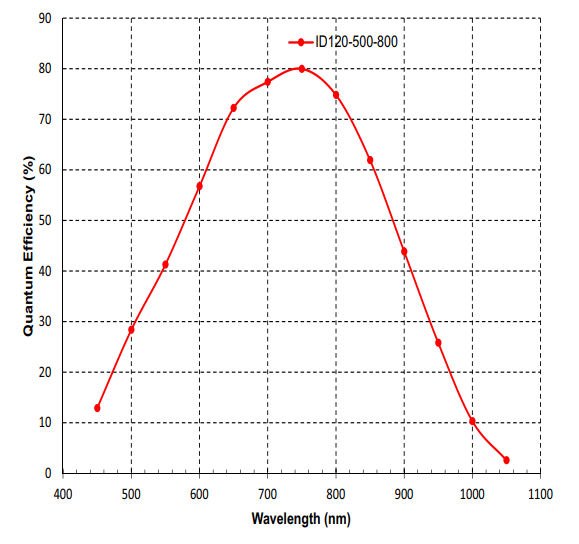

Quantum Efficiency


Supplied Accessories

Free space: Detector system, Operating Guide, power supply transformer w/cable.




The ID120 is an adapt device which can be used for a wide range of research and industrial processes. Consult our technical experts at info@simtrum.com or click the links below to access our subject matter guide.


Simtrum Application Note

Articles:

General Time Correlated Single Photon Counting(TCSPC) Guide

There are several techniques for studying photoluminescence lifetime. Among them,Time-Correlated Single Photon Counting (TCSPC) is the most common technique for fluorescence lifetime measurements. It allows to measures fluorescence   decay time from 10sps to a few hundred nanoseconds producing a wealth of   information of the sample. This application note will discuss the basics of   luminescence, its application in the spectroscopy and microscopy, TCSPC setup   and necessary components in detail.


Fluorescence and luminescence detection

Fluorescence Lifetime Imaging microscopy (FILM) is an   imaging technique which is based on the differences in the exponential decay   rate of the fluorophore from a sample. This technique has been widely used to   quantify froster resonance energy transfer (FRET) in cells and to acquire   information about populations of interacting molecules. FILM is a highly   sensitive technique for recording very weak signals with picosecond   resolution with high precision. It is independent of fluorophore   concentration, excitation intensity and noise.


Dynamic Light Scattering (DLS)

DLS is a non invasive technique and it is well established for measuring the size of molecules and particles in the submicron region. It can measure particle sizes of 1nm to 1/10 of the wavelength of the light with ± 1% precision ± by taking only 1-2 minutes to get the results. It allows for low sample volumes (as low as 2 uL) and straightforward sample preparation at modest development cost. An overview of the DLS experiment is by measuring the auto-correlation measurements and plotting an intensity correlation function(ICF) with time.


Articles Coming Soon:

Single molecule detection, DNA sequencing

Fluorescence correlation spectroscopy

Flow cytometry, spectrophotometry

Quantum cryptography, quantum optics

Laser scanning microscope

Adaptive optics Particle physics

Dynamic light scattering   (DLS)



Visible Single Photon Detector(SPD)

Model Wavelength Range Timing Resolution QE  Dark Count Rate
Silicon APD Detection Module
200 -1060nm   65%@700nm,2%@200nm <200cps to <500cps
Visible SPD (Peak QE~500nm) 350 - 1000nm <40ps 35%@500nm, 25%@600nm <7Hz  to <250Hz
Visible SPD (Peak QE~800nm) 350 - 1000nm <200ps
60%@640nm, 80%@800nm <300Hz to <1000Hz
Visible Photon Counter OEM
350 - 900nm 40 -60ps 35%@500nm,4%@900nm <30Hz to <300Hz



Timing Tagging Devices

Ultra-fast Pulse Generator for TCSPC

Time-Correlated Single-Photon Counting System
ID1000 Timing Controller




We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).
