高功率准直LED 365-980nm

High-Power 365-980nm Collimated LED Sources

High-Power LED Collimator Sources

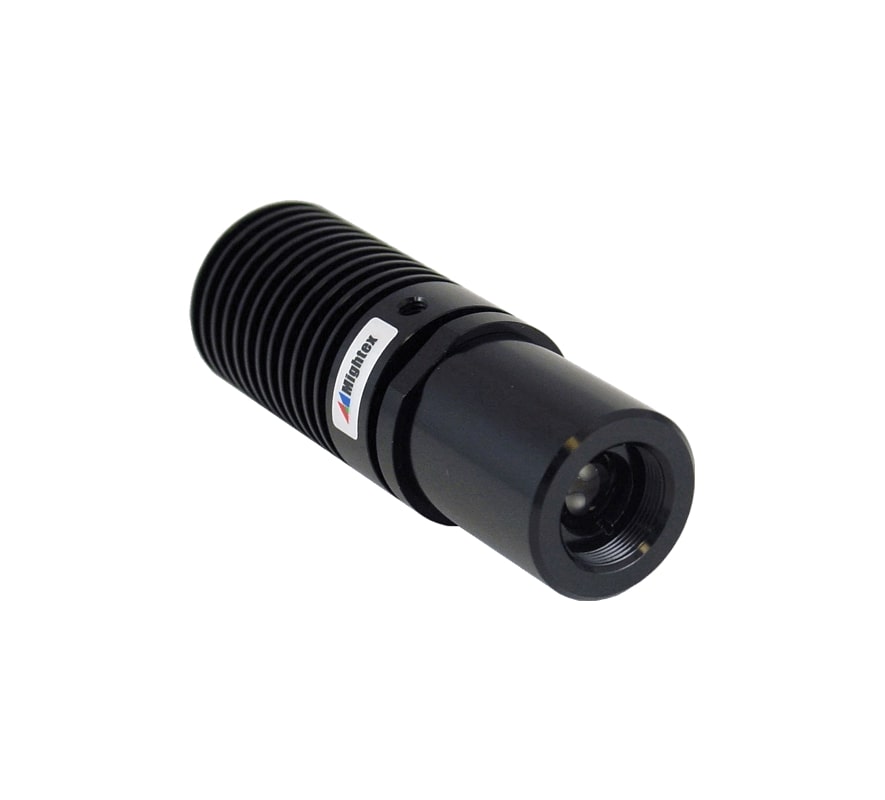

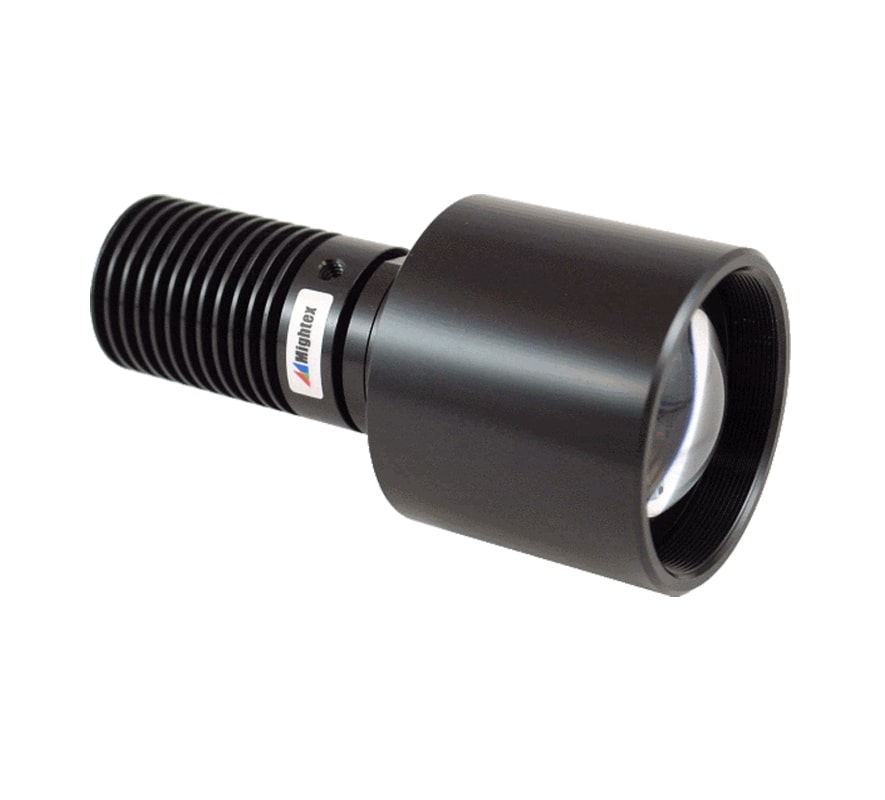

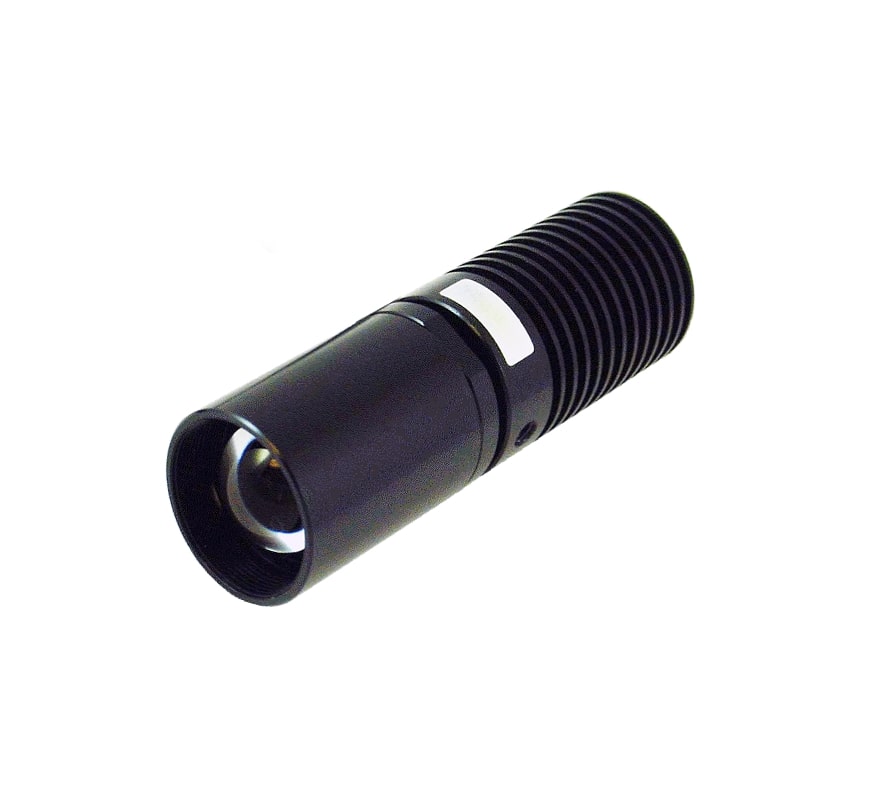

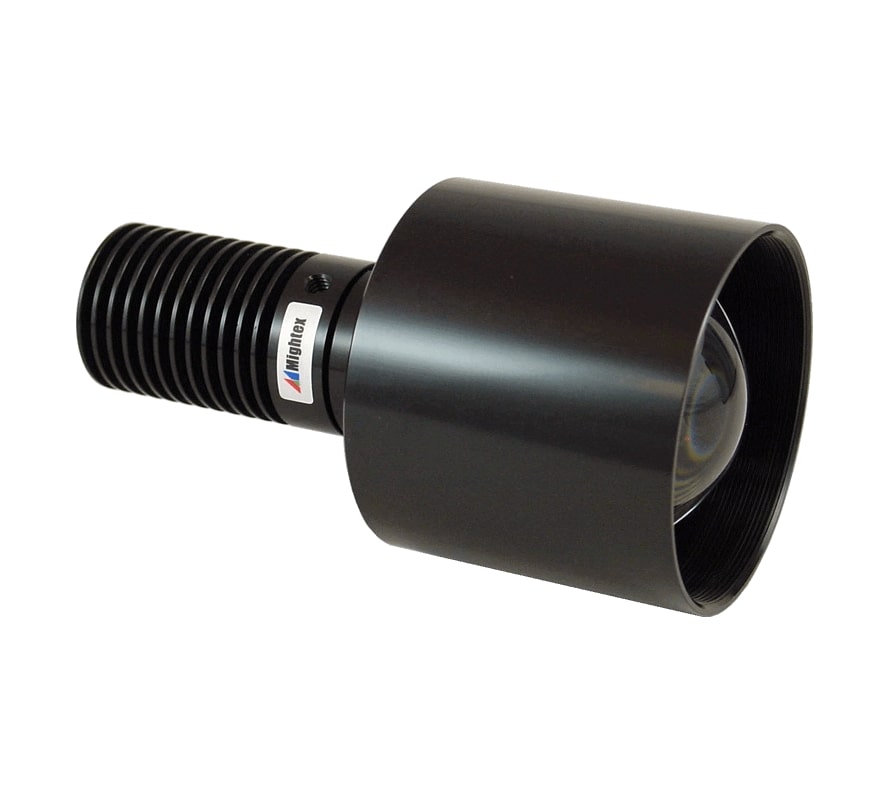

φ 11mmφ 22mmφ 38mmφ 48mm













An LED collimator consists of a collimating lens and an LED emitter.  The LED emitter is placed at the focal plane of the collimating lens. The collimating lens thus images the LED emitter into infinity. Mightex LED collimators employ a high-NA aspherical collimating lens for precision collimation and high light throughput.


LED collimators can be used as the light source in an illumination system. For example LED collimators can replace the standard lamp assembly in a microscope to provide stable, intense, and fast-modulated illumination. Typically the rest of the illumination optics will image the LED emitter onto the pupil of the imaging optics whereas the lens aperture on the collimator where intensity is uniform will be projected onto the object. In other illumination applications similar arrangement should be made to produce uniform and efficient illumination.

The LED emitters are mounted directly onto the metal base of the collimator which also features an integrated heat sink. This configuration minimizes thermal resistance between the LED emitter and the heat sink resulting in better heat dissipation. The collimating lens can be adjusted if needed for precise collimation. A locking ring fixes the lens position after adjustment. The collimators have been pre-adjusted in the factory.


Multi-chip LED emitters have been added to the product portfolio (Type-B). Some of these 7W to 15W LEDs have total optical power exceeding 1W, quadrupling the power of a single-chip LED. Models with higher powers (7W and higher) feature a cooling fan, and have a different formfactor compared to other models. Please examine the installation drawings carefully. Power supply for the cooling fan is included in the price of the LED collimator sources.

The LED collimators include a 1.5-meter cable with two bare-wire terminals at the end. The light sources can be driven by Mightex LED controllers or other LED controllers and current sources. An optional focusing module can be mounted on the front of the LED collimator to focus light into a tight spot which is an image of the LED emitter. One of the applications with the focusing module is coupling LED light into a fiber or a light guide.


An optional light guide adaptor is also available to couple the LED light into a lightguide, as shown in the photo below.


Additional interchangeable collimating lenses are available to produce different beam sizes with the same light source.

IMPORTANT :

(1) LED’s can ONLY be driven by a constant-current source, and NOT a voltage source (e.g. a battery, or a AC/DC power supply etc.);

(2) Please always verify LED’s current rating first before applying current to the LED, and please always make sure NOT to apply current that is above the LED's current rating.


Features:

 - Interchangeable aspherical collimating lens

 - High numerical aperture (NA)

 - High power (up to 50W)

 - Wide range of available wavelengths

 - Adjustable focus

 - Optional focusing module

 - Optional lightguide adapter

 - Multiple mounting features for lab and OEM applications

 - Integrated heat sink

 - Cooling fan for >7W models

Applications:

 - Microscope illuminator

 - General purpose light source

 - Fiber coupling (with optional focusing module)



Please check the table below for individual specifications tied to individual products.

                                                                              Product Brochure Links: High-Power LED Collimator Sources

Performance Specifications

Type-A LCS (passively cooled with no cooling fan)
Type-B LCS (with a cooling fan)

Part NumberType 2 (A or B)Wavelength (nm)Half Diverging Angle(deg.)Iop(mA)Vop(V)Typical Output Power (mW)3
φ 11mm 1φ   22mm 1φ   38mm 1φ   48mm 1
LCS-0365-04-xxA3656.83.421.510003.65350
LCS-0365-13-xxB3656.83.421.535003.851200
LCS-0385-04-xxA3856.83.421.510003.65500
LCS-0385-07-xxB3856.83.421.550015500
LCS-0385-11-xxB3856.83.421.570015.5625
LCS-0385-13-xxB3856.83.421.535003.751500
LCS-0395-03-xxA3953.41.710.7510003.1270
LCS-0395-12-xxB3956.83.421.5100012.4810
LCS-0400-01-xxA40052.51.51.13503.5100
LCS-0400-03-xxA4003.41.710.7510003.1265
LCS-0400-04-xxA4003.41.710.7510003.5750
LCS-0400-12-xxB4006.83.421.5100012.4795
LCS-0400-17-xxB40010532.2100016.5810
LCS-0405-03-xxA4053.41.710.7510003325
LCS-0405-12-xxB4056.83.421.5100012975
LCS-0410-03-xxA4103.41.710.7510003315
LCS-0410-12-xxB4106.83.421.5100012945
LCS-0415-03-xxA4153.41.710.7510003310
LCS-0415-12-xxB4156.83.421.5100012930
LCS-0430-02-xxA4303.41.710.755003.8190
LCS-0455-03-xxA4553.41.710.7510003500
LCS-0470-03-xxA4703.41.710.7510003.9200
LCS-0470-15-xxB4706.83.421.5100015600
LCS-0470-14-xxB4703.41.710.7530004.6500
LCS-0471-02-xxA4713.41.710.753503140
LCS-0490-01-xxA4903.41.710.753503.5140
LCS-0505-03-xxA5053.41.710.7510003.9135
LCS-0505-12-xxB5056.83.421.5100012.2250
LCS-0530-03-xxA5303.41.710.7510002.85200
LCS-0530-12-xxB5302.81.40.850.6524004.9290
LCS-0530-15-xxB5306.83.421.5100015300
LCS-0540-14-xxB540 broadband4.42.21.3130004.6500
LCS-0560-03-xxA560 broadband4.42.21.3110002.9240
LCS-0585-03-xxA585 broadband4.42.21.317002.982
LCS-0590-03-xxA5903.41.710.7510003.965
LCS-0590-05-xxB59010532.25009.5190
LCS-0617-03-xxA6173.41.710.7510003.9150
LCS-0617-10-xxB6176.83.421.5100010.8250
LCS-0625-03-xxA6253.41.710.7510003.9180
LCS-0625-07-xxB6256.83.421.57009.6300
LCS-0656-03-xxA6563.41.710.7510003.1280
LCS-0656-07-xxB6568.84.42.627009.6800
LCS-0680-02-xxA6803.41.710.756002.775
LCS-0700-01-xxA7003.41.710.755002.151
LCS-0720-01-xxA7203.41.710.756002.273
LCS-0740-03-xxA74052.51.51.110002.5200
LCS-0740-10-xxB74010532.210009.5600
LCS-0780-02-xxA7803.41.710.758002.5110
LCS-0810-02-xxA8103.41.710.758002.2120
LCS-0850-02-xxA8503.41.710.7510002.1240
LCS-0850-03-xxA8503.41.710.7510003430
LCS-0870-01-xxA8703.41.710.757001.9110
LCS-0910-02-xxA9103.41.710.7510001.9120
LCS-0940-02-xxA9403.41.710.7510001.8200
LCS-0980-01-xxA9803.41.710.755001.430
LCS-6500-03-xxAglacier white 6,500K3.41.710.7510003.6180
LCS-6500-15-xxBglacier white 6,500K6.83.421.5100015540
LCS-5500-03-xxAcool white 5,500K3.41.710.7510003.9170
LCS-5500-12-xxBcool white 5,500K6.83.421.5100012540
LCS-4000-03-xxAwarm white 4,000K3.41.710.7510003.9180
LCS-3000-03-xxAwarm white 3,000K3.41.710.7510002.8150
LCS-3000-12-xxBwarm white 3,000K6.83.421.5100012430

1. Clear aperture diameter. Use these two-digit numbers to replace xx in the part number; and

2. Type-A and Type-B collimator sources have different installation drawings. Type-A does not include a cooling fan, whereas Type-B does. When ordering an LED controller for a Type-B LED, please make sure to upgrade the AC/DC power adapter from the ‘standard’ 12V to 24V. For certain LED controllers, it is not recommended to mix Type-A and Type-B LEDs on the same controller. Please check controller specification to confirm.

3. Due to variations in the manufacturing process and operating parameters such as temperature and current, the actual output of any given LED may vary. Specifications are intended to be used as a guideline.


Type-J LCS (high power, passively cooled with no cooling fan)

Part NumberTypeWavelength (nm)Half Diverging Angle(deg.)Iop(mA)Vop(V)Typical Output Power (mW)2
φ 11mm 1φ   22mm 1φ   38mm 1φ   48mm 1
LCS-0470-14-22-JJ470NA1.7NANA30004.6500
LCS-0530-12-22-JJ530NA1.4NANA24004.9290
LCS-0540-14-22-JJ540NA2.2NANA30004.6500
LCS-0625-07-22-JJ625NA1.4NANA24002.9260









1. Clear aperture diameter. Use these two-digit numbers to replace xx in the part number.

2. Maximum CW output achievable with a BLS-3000-2 BioLED control module.

3. Due to variations in the manufacturing process and operating parameters such as temperature and current, the actual output of any given LED may vary. Specifications are intended to be used as a guideline.


Type-H LCS (high current, with a cooling fan)

Part NumberTypeWavelength (nm)Half Diverging Angle(deg.)Iop(A)Vop(V)Typical Output Power (mW)2
φ 11mm 1φ   22mm 1φ   38mm 1φ   48mm1
LCS-0365-76-xxH36510532.2184.210000
LCS-0405-65-xxH40510532.2183.68300
LCS-0470-50-xxH47010532.2133.83300
LCS-0525-60-xxH52510532.2134.61300
LCS-0560-68-xxH560 broadband10532.2183.83500
LCS-0625-38-xxH62510532.2132.91100
LCS-0730-77-xxH73010532.2185.93500
LCS-6500-33-xxHglacier white, 6,500K10532.293.72000
LCS-6500-65-xxHglacier white, 6,500K10532.2183.73500


1. Clear aperture diameter. Use these two-digit numbers to replace xx in the part number.

2. Maximum CW output achievable with a matching BLS-13000-1 or a BLS-18000-1 BioLED control module.

3. Due to variations in the manufacturing process and operating parameters such as temperature and current, the actual output of any given LED may vary. Specifications are intended to be used as a guideline.

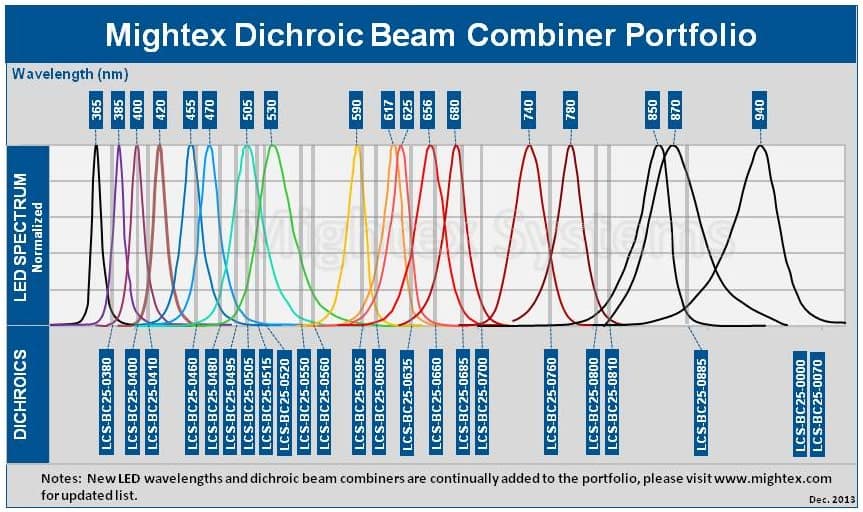

High-Power LED Collimator Sources LED Wavelength Portfolio



Product Drawings

Product ModelsDrawing 1Drawing 2Drawing 3Drawing 4
High-Power LED Collimator Sources φ 11mm-
High-Power LED Collimator Sources φ 22mm
High-Power LED Collimator Sources φ 38mm-
High-Power LED Collimator Sources φ 48mm-



Multi-Wavelength Beam Combiners

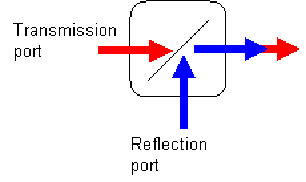

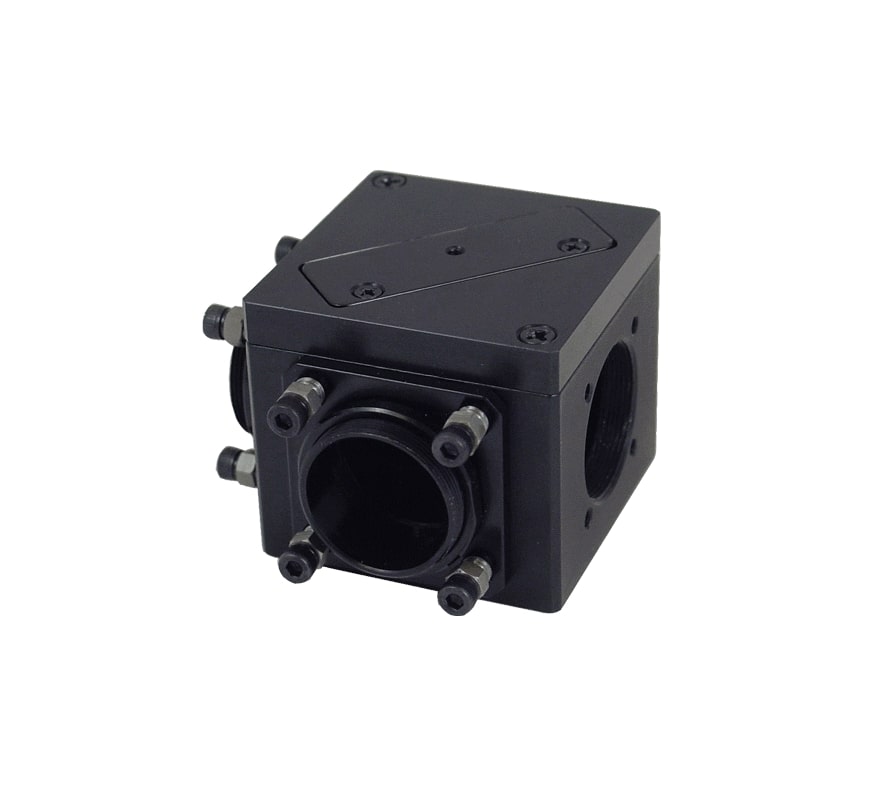

Mightex Multi-Wavelength beam combiners combine two LED collimators of different wavelengths into a single collimated beam. Multiple combiners can be cascaded to combine more than two LED collimator sources. At the heart of the beam combiner is a high-performance dichroic beam splitter that combines two wavelengths with >95% efficiency. A neutral beam splitter is also available as a lower-cost solution for applications where maximum light throughput is not required. Beam combiners are characterized by the edge wavelengths of their dichroic beam splitters. Please use the following diagram and check the Specification table to select the correct beam combiner for intended LED collimator source.
















The beam combiner includes multiple mounting holes and threads so that it can be easily integrated into a system. Each input port features a fine 2-axis tilt adjustment to allow precise alignment of the LED collimator sources relative to system optical axis. A robust locking mechanism is also provided to maintain alignment over time. Additionally, adapters are also available for coupling to major brands of microscopes.


FEATURES:

 - Combines two LED collimator sources into a single collimated beam

 - Cascadable for more than two sources

 - Precision locking tilt adjustment on each port

 - High-efficiency dichroic beam splitters

 - Low-cost neutral beam splitters available

 - Integrated filter well for each beam

 - Wide range of available wavelengths

 - Multiple mounting features for lab and OEM applications

 - Microscope adapters available


APPLICATIONS:

 - Illumination for photonics applications

 - Fiber coupling w/ optional focusing module

 - Microscope illuminator

 - General purpose beam combiner or splitter


Adding optical filters to the input ports

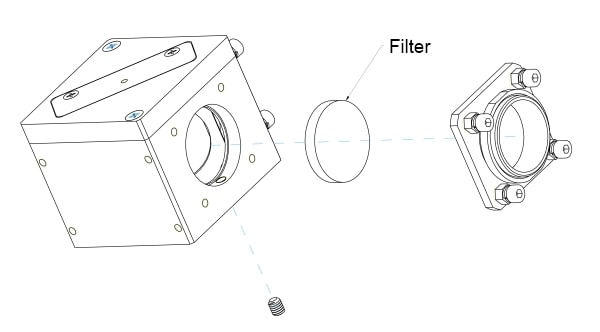

A filter well (see diagram below) is integrated into each input port so that a φ1” or φ25mm optical filter can be inserted in between the LED source and the beam splitter. Narrow band filters and polarizers may be used to clean up LED spectrum or change the polarization state of the output beam. Here are the dimension requirement for the dichroic/beamsplitters to be fit into the beam combiner cubes:
○ Length: 34~36mm
○ Width: 25~26.5mm
○ Thickness: 1mm recommended, 1.5mm max.

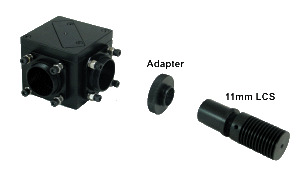

Connecting 11-mm aperture collimated LED sources

Currently, Mightex’s multi-wavelength beam combiners can only be used to DIRECTLY combine 22mm-diameter Collimated LED Sources. For 11mm-diameter collimated LED sources, (as shown below) a mechanical adapter (P/N: ACC-BC25-011) can be used to attach the LED sources to the beam combiners, before the 11-mm diameter collimated LED sources can be combined. We don’t yet have beam combiners for 38mm- and 48mm-diameter collimated LED sources.









































Please check the table below for individual specifications tied to individual products.

Product Brochure Link: Multi-Wavelength Beam Combiners


Specifications

Clear Aperture: 25mm diameter, Weight: 190g

Part NumberReflection Port (LED center wavelength)%RTransmission Port
    (LED center wavelength)
%T
LCS-BC25-0350255 - 325nm>95365 - 780nm>95
LCS-BC25-0365255 - 340nm>95380 - 505nm>95
LCS-BC25-0379365>95385 - 425nm>95
LCS-BC25-0390365 - 375nm>95400 - 500nm>95
LCS-BC25-0400340 - 385nm>95455 - 940nm>95
LCS-BC25-0409340 - 400nm>95415 - 940nm>95
LCS-BC25-0410365 - 400nm>95420 - 850nm>95
LCS-BC25-0425365 - 415nm>95455 - 850nm>95
LCS-BC25-0435325 - 425nm>95455 - 850nm>95
LCS-BC25-0440365 - 425nm>95470 - 740nm>95
LCS-BC25-0460400 - 425nm>95470 - 657nm>95
LCS-BC25-0480340 - 470nm>95505 - 850nm>95
LCS-BC25-0495400 - 470nm>95530 - 657nm>95
LCS-BC25-0505420 - 470nm>95530 - 740nm>95
LCS-BC25-0506340 - 490nm>95530 - 940nm>95
LCS-BC25-0515365 - 505nm>95530 - 850nm>95
LCS-BC25-0520455 - 505nm>95590 - 740nm>95
LCS-BC25-0550365 - 530nm>95590 - 850nm>95
LCS-BC25-0560470 - 530nm>95590 - 740nm>95
LCS-BC25-0595505 - 530nm>95617 - 850nm>95
LCS-BC25-0605365 - 590nm>95617 - 850nm>95
LCS-BC25-0635470 - 625nm>95657 - 940nm>95
LCS-BC25-0660590 - 630nm>95680 - 850nm>95
LCS-BC25-0685590 - 657nm>95700 - 850nm>95
LCS-BC25-0700530 - 680nm>95720 - 810nm>95
LCS-BC25-0760455 - 740nm>95780 - 980nm>95
LCS-BC25-0800455 - 780nm>95850 - 980nm>95
LCS-BC25-0810740, 780nm>95850, 940, 980nm>95
LCS-BC25-0875350-850   nm>95940 - 1600 nm>95
LCS-BC25-0000400 - 657nm, white~50400 - 657nm, white~50
LCS-BC25-0001340 - 940nm, white~50340 - 940nm, white~50
LCS-BC25-0070400 - 657nm, white~30400 - 657nm, white~70
LCS-BC25-9999Mechanical holder only.
    No dichroic beam splitter.
N/AMechanical holder only.
    No dichroic beam splitter.
N/A
