532/1064 双输出皮秒激光器

Overview & Specifications Related Products Order Now!

532/1064 nm Dual Output Picosecond Laser – STR1064D

STR1064D features a dual-port design and may provide high-power output at both 1064nm and 532nm simultaneously. It gives customers the ultimate flexibilities in constructing multi-purpose photonic systems. The proportion of 1064 and 532 output power can be customized upon user request. The laser is an easy-to-use turn-key system and can also be computer controlled.

STR1064D is ideal for materials research such as TCSPC, SHG/THG imaging, pump-probe spectroscopy, and other nonlinear optical applications. It can meet a broad range of R&D requirements of the photonics and materials research community.

Features

- Double wavelength output

- High peak power

- Linear polarization

- Diffraction-limited beam

Applications

- SHG imaging

- Two-photon Polymerization

- Multiphoton imaging

- Time-resolved fluorescence

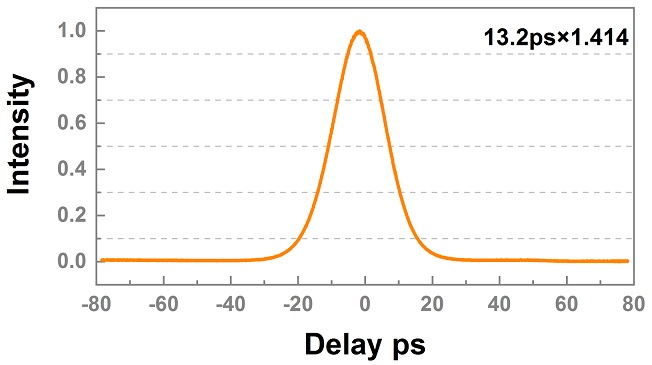

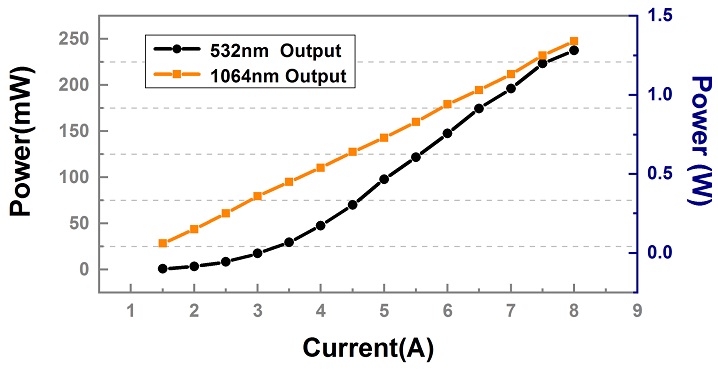

Output Spectrum	Output Power

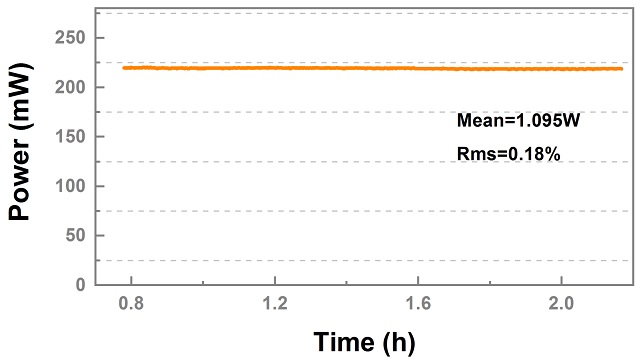

Power Stability	Beam Quality

Product specifications and Brochures

Laser Parameters
Operating Wavelength	nm	1030 -1064 nm	515 - 532 nm
Pulse Width (FWHM)	ps	< 15 ps
Polarization Extinction Ratio	dB	> 20 dB
Repetition Rate	MHz	20 - 50 MHz
Average Power	W, mW	1 W	700 mW
Average Power Stability	% RMS	< 0.5 %RMS (12h@25°C)
Beam Quality		M 2<1.1	TEM 00
Output Type		With collimator, spot diameter < 2 mm
Electrical, Environmental and Mechanical Parameters
Supply Voltage	VAC, VDC	100-240 VAC	12 VDC
Operational Temperature Range	°C	15-35
Operational Humidity Range	°C	20-80 (non-condensing)
Weight	kg	17	8
Dimensions	mm (LxWxH)	387 x 298 x 115 mm	436 x 186 x 135.5 mm
Cooling		Air Cooling

* For Quotation Please let us know required Pulsed Width(Duration) , Repetion Rate and Power Level

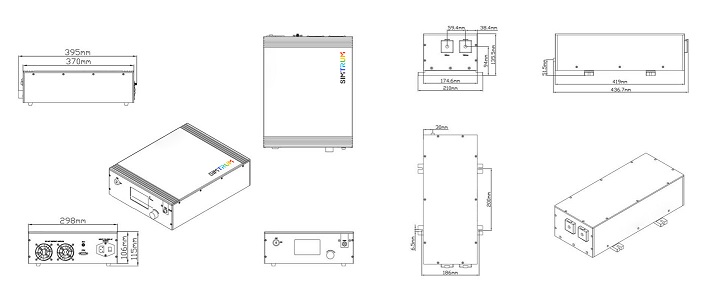

Machine Drawings

Type	Average Power	Pulse Energy	Pulse wdith	Rep Rate
515/532nm Picosecond Pulse Laser (<200mW)	1-200mW	<20nj	10-100ps	15-100Mhz
532/1064 Duel Output Picosecond laser (<1W)	<1W		<15ps	20-50Mhz
532/1064nm High Power Picosecond Laser (>2W)	>2W / >5W	>60uJ	<10ps	1Mhz
1030/1064 Picosecond Pulse Laser (<1W)	10-2000mW	>1 nJ	10-100ps	15-100Mhz
1035nm High Power Picosecond Laser (>10W)	>30W / >10W	>375nJ	<10ps	80Mhz
1550nm High Speed Ps laser (Pulse & CW)	Pulse 1.5mW CW -48 to -13dBm		30ps	1 - 1250Mhz 10Mhz
1560nm Picosecond Pulse Laser	1-120mW	>1nJ	1-100ps	80Mhz
2000nm Picosecond Laser	>15mW	>0.18nJ	<10ps	80Mhz
DFB/FP Picosecond Laser (370-1550nm)	>0.5mW		<50ps	0-40Mhz

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

Compare	Model		Drawings & Specs	Availability	Reference Price (USD)
		STR1064D 532/1064 nm Dual Output Picosecond Laser, Operating wavelength 1030 -1064 nm/515 - 532 nm, Pulse Width (FWHM) <15ps, Polarization Extinction Ratio >20dB, Average Power 1 W/700 mW		4-6 Weeks	Request for quote

STR1064D - Parameter

STR1064D - Download
