红外线高温计 (–40 °C - 2500 °C) | 瑆创光学电子商店

Products / 成像 /红外温度探测器/成像仪 /红外高温计(-40-3000C) /红外高温计系列 4x /
红外高温计系列 4x
产品概述 规格和型号指南 相关产品 联系下单!

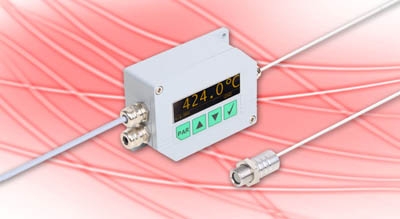

PYROSPOT系列4高温计，带小型独立传感器头

4系列数字高温计PYROSPOT在德国开发和制造，适用于工业连续运行。典型的应用领域包括金属和玻璃工业、造纸和食品生产。系列 4 器件是 OEM 使用的理想选择。典型的应用领域是金属和玻璃工业、造纸和食品生产。系列 4 器件是 OEM 使用的理想选择。

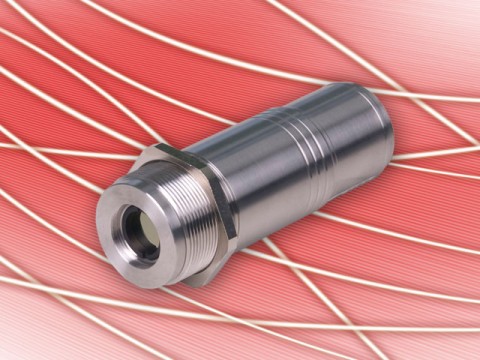

PYROSPOT 系列 40 - 全能适用 2 线高温计，带 USB 接口

40系列数字高温计PYROSPOT在德国开发和制造，适用于工业连续运行。它们专门用于工业和研究中的非接触式温度测量。提供不同的温度和光谱范围。可随时提供包括硬件和软件调整在内的定制系统解决方案。

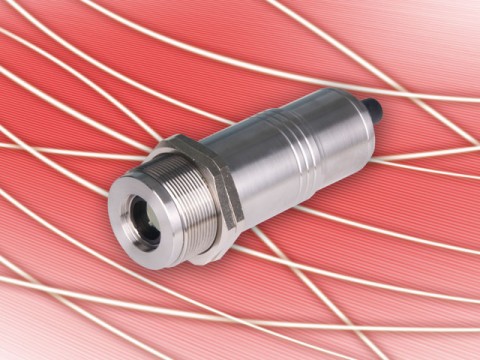

PYROSPOT系列42-2线系列，发射率调节，适合初次使用的用户

42系列数字高温计PYROSPOT在德国开发和制造，适用于工业连续运行。提供不同的温度和光谱范围。可随时提供包括硬件和软件调整在内的定制系统解决方案。

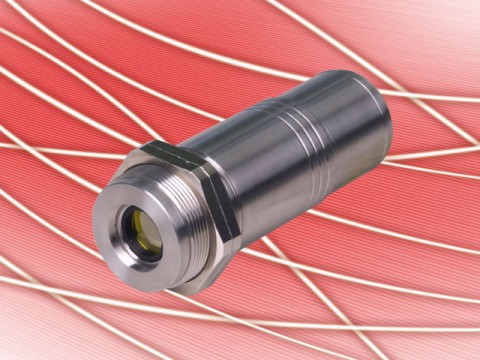

带RS-485接口的PYROSPOT系列44高温计

44系列数字高温计PYROSPOT在德国开发和制造，适用于工业连续运行。带RS-485接口的数字高温计特别适用于自动化解决方案。提供不同的温度和光谱范围。可随时提供包括硬件和软件调整在内的定制系统解决方案。

带以太网接口的 PYROSPOT 系列 47 高温计

47系列PYROSPOT数字高温计在德国开发和制造，适用于工业连续运行。带以太网接口的数字高温计特别适用于自动化解决方案。提供不同的温度和光谱范围。可随时提供包括硬件和软件调整在内的定制系统解决方案。

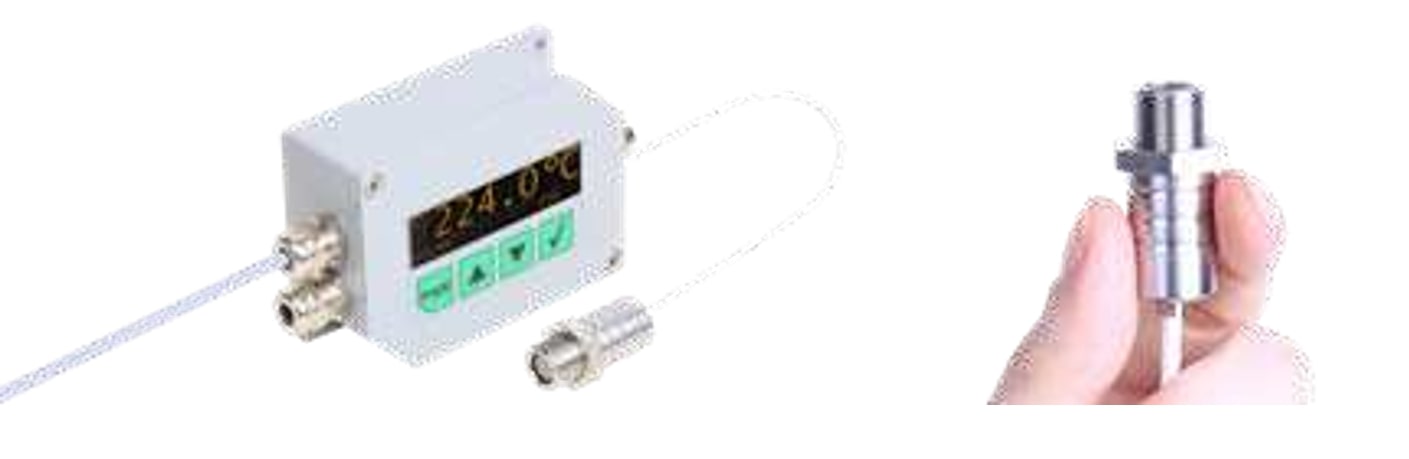

PYROSPOT系列4的特性：

- 非常小、坚固的传感器头，带有独立的电子元件

- 易于读取的大尺寸OLED显示屏和可编程按键

- OEM设备的最佳性价比

- 温度测量范围在 –40 °C 至 2500 °C 之间

- 所有参数，例如发射率，都可以直接在设备上调整

- 明亮易读的显示屏

- 通过RS-485（Modbus）在现有测量和控制系统中无故障实施





PYROSPOT系列40的特性：



- 带USB接口的创新2线高温计

- 坚固紧凑

- 集成激光或LED瞄准灯

- 带测量区域的固定光学或光纤型号直径从 0.7 mm 起

- 温度范围在 von –40 °C 和 2500 °C 之间





PYROSPOT系列42的特性：

 - 带发射率调节功能的固定式数字高温计

- 外壳紧凑，易于安装

- 非常好的性价比

- 温度范围在 –40 °C 至 2500 °C 之间

- 集成或可选激光瞄准灯

PYROSPOT系列44的特性：

- 紧凑型高温计，具有总线兼容的RS-485接口

- 数字信号转换，实现高测量精度

- 工业应用的不同温度和光谱范围

- 温度范围在 –40 °C 至 2500 °C 之间

- 不锈钢外壳 IP65

- 可选：ATEX 防爆外壳



PYROSPOT系列47的特性：

- 带以太网接口的紧凑型高温计

- 温度测量范围为 –40°C 至 2500°C

- 快速响应时间从 5 ms 起

- 集成网络服务器，Modbus-TCP协议

- 温度线性输出 0/4 mA 至 20 mA

- 最大/最小值存储

- 可选LED指示灯或激光指示灯适配器



- 不锈钢输出IP65















































































外壳变体

  圆形外壳 紧凑型外壳 独立电子盒 便携式
系列 25 40, 42, 44, 47, 48 54, 55, 56 10 4, 11, 302), 342) 80
尺寸 M25×1，
长度 98 mm		 M40×1.5，
长度125mm		 Æ 50 mm，
长度 105-140 mm

54 × 54 × 170 mm³

（H × W × L）

80 × 110 × 40 mm³

（H × W × D）

230 × 135 × 85 mm³

（H × W × L）
材料 不锈钢 （IP65） 不锈钢 （IP65） 不锈钢 （IP65） 铝 （IP65） 铝，不锈钢 （IP65） 铝，塑料 （IP50）




产品规格和手册

产品手册链接： SIMTRUM_PDF

系列 4 – 带有小型传感器头和独立电子元件的高温计


- 大型OLED显示屏和按键
- 直接在设备上进行参数设置 - OEM的最佳性价比 - 防护等级IP65
设备类型 光谱范围 温度范围 距离比 吨95 接口 瞄准/瞄准辅助
DS 4N 0.8 μm 至 1.1 μm 600 °C 至 2500 °C 32 ： 1 至 64 ： 1 10 ms RS-485 没有
DG 4N 1.5 μm至 1.8 μm 250 °C 至 1800 °C 32 ： 1 至 64 ： 1 10 ms RS-485 没有
DA 4P 约 3.43 μm 50 °C 至 400 °C 15 : 1 40 ms RS-485 没有
DT 4G 约 5.0 μm 200 °C 至 1800 °C 20 : 1 100 ms RS-485 没有
DT 4L 8 μm 至 14 μm –40 °C 至 1000 °C 20 : 1 100 ms RS-485 没有







40 系列 – 带 USB 接口的全能适用 2 线高温计


- 不同的固定和可变光学元件，

非常小目标尺寸，0.7 mm

- 激光或 LED 瞄准灯
- 提供带光纤的高温计- 紧凑型不锈钢外壳 IP65
设备类型 光谱范围 温度范围 距离比 吨95 接口 瞄准/瞄准辅助
DS 40N 0.8 μm 至 1.1 μm 600 °C 至 2500 °C 100 : 1 至 200 ： 1 10 ms USB 激光或 LED 瞄准灯
DG 40N 1.5 μm 至 1.8 μm 250 °C 至 2000 °C 100 : 1 至 200 ： 1 10 ms USB 激光或 LED 瞄准灯
DT 40F 约 3.9 μm 300 °C 至 2500 °C 50 : 1 60 ms USB 激光瞄准灯适配器或LED瞄准灯
DT 40C 约 4.5 μm 500 °C 至 1800 °C 50 : 1 60 ms USB 没有
DT 40G 约 5.0 μm 100 °C 至 2500 °C 50 : 1 60 ms USB 激光瞄准灯适配器或LED瞄准灯
DT 40U 约 7.7 μm 300 °C 至 1100 °C 50 : 1 60 ms USB 没有
DT 40L 8 μm 至 14 μm –40 °C 至 1000 °C 50 : 1 60 ms USB 激光瞄准灯适配器或LED瞄准灯
带光纤的高温计
DSF 40N 0.8 μm 至 1.1 μm 600 °C 至 2500 °C 50 : 1 至 150 ： 1 10 ms USB 激光或 LED 瞄准灯
DGF 40N 1.5 μm 至 1.8 μm 250 °C 至 2000 °C 50 : 1 至 150 ： 1 10 ms USB 激光或 LED 瞄准灯



42 系列 – 2 线初学者系列，带发射率调节


- 提供不同的固定光学器件 - 非常好的性价比
- 不锈钢外壳IP65

- 广泛的配件，例如冷却夹套、空气吹扫装置
设备类型 光谱范围 温度范围 距离比 吨95 接口 瞄准/瞄准辅助
DS 42N 0.8 μm 至 1.1 μm 600 °C 至 2500 °C 100 : 1 至 200 : 1 10 ms 没有 激光瞄准灯
DG 42N 1.5 μm 至 1.8 μm 250 °C 至 1800 °C 100 : 1 至 200 : 1 10 ms 没有 激光瞄准灯
DT 42G 约 5.0 μm 100 °C 至 2500 °C 50 : 1 100 ms 没有 激光瞄准灯适配器
DT 42L 8 μm 至 14 μm –40 °C 至 1000 °C 50 : 1 100 ms 没有 激光瞄准灯适配器



44 系列 – 带 RS-485 接口的总线兼容高温计


- 不同的固定和可变光学元件，

非常小目标尺寸，0.7 mm

-比 高温计和带光纤的设备光学

- 坚固的不锈钢外壳 IP65
设备类型 光谱范围 温度范围 距离比 吨95 接口 瞄准/瞄准辅助
DS 44N 0.8 μm 至 1.1 μm 600 °C 至 2500 °C 100 : 1 至 200 ： 1 5 ms RS-485 激光或 LED 瞄准灯
DG 44N 1.5 μm 至 1.8 μm 250 °C 至 2000 °C 100 : 1 至 200 ： 1 5 ms RS-485 激光或 LED 瞄准灯
DGE 44N 2.0 μm 至 2.6 μm 75 °C 至 1200 °C 80 : 1 至 200 ： 1 5 ms RS-485 激光瞄准灯
DA 44M 3.0 μm 至 5.0 μm 20 °C 至 1000 °C 50 : 1 5 ms RS-485 激光瞄准灯适配器或LED瞄准灯
DA 44MF 3.5 μm 至 4.0 μm 50 °C 至 1000 °C 50 : 1 5 ms RS-485 激光瞄准灯适配器或LED瞄准灯
DA 44F 约 3.9 μm 100 °C 至 2500 °C 50 : 1 5 ms RS-485 激光瞄准灯适配器或LED瞄准灯
DA 44G 约 5.0 μm 50 °C 至 2500 °C 50 : 1 5 ms RS-485 激光瞄准灯适配器或LED瞄准灯
DT 44L 8 μm 至 14 μm –40 °C 至 1000 °C 50 : 1 10 ms1） RS-485 激光瞄准灯适配器或LED瞄准灯
比率高温计
DSR 44N 0.7 μm 至 1.1 μm 600 °C 至 2500 °C 50 ： 1 至 200 ： 1 5 ms RS-485 激光瞄准灯
带光纤的高温计
DSF 44N 0.8 μm 至 1.1 μm 600 °C 至 2500 °C 50 ： 1 至 150 ： 1 5 ms RS-485 激光或 LED 瞄准灯
DGF 44N 1.5 μm 至 1.8 μm 250 °C 至 2000 °C 50 ： 1 至 150 ： 1 5 ms RS-485 激光或 LED 瞄准灯
带光纤的比率高温计
DSRF 44N 0.7 μm 至 1.1 μm 700 °C 至 1800 °C 40 : 1 5 ms RS-485 激光瞄准灯



47 系列 – 带以太网接口的高温计


- 带以太网接口
的紧凑型高温计

- 集成网络服务器，Modbus-TCP

协议

- 坚固的不锈钢外壳 IP65
设备类型 光谱范围 温度范围 距离比 吨95 接口 瞄准/瞄准辅助
DA 47M 3.0 μm 至 5.0 μm 20 °C 至 1000 °C 50 : 1 5 ms 以太网 激光瞄准灯适配器或LED瞄准灯
DA 47MF 3.5 μm 至 4.0 μm 50 °C 至 1000 °C 50 : 1 5 ms 以太网 激光瞄准灯适配器或LED瞄准灯
DA 47F 约 3.9 μm 100 °C 至 2500 °C 50 : 1 5 ms 以太网 激光瞄准灯适配器或LED瞄准灯
DA 47G 约 5.0 μm 50 °C 至 2500 °C 50 : 1 5 ms 以太网 激光瞄准灯适配器或LED瞄准灯
DT 47L 8 μm 至 14 μm –40 °C 至 1000 °C 50 : 1 10 ms1） 以太网 激光瞄准灯适配器或LED瞄准灯





设备名称是什么意思？

我们的高温计根据特殊方案进行标记，可帮助您识别红外传感器类型、仪器系列、光谱范围和一些特殊功能。

例如：热点DA 10GV

带半导体光电二极管红外传感器的高温计，系列10，宗距“G”和视频模块



焦点 D _ _ _ _ _ _ _ _ _
迪亚斯
红外探测器
S、G、A、GE、GA – 半导体光电二极管

P， PE – 半导体光敏电阻，

T – 热电堆，Y – 热释电探测器
R – 比率高温计
F – 光纤
设备系列 4， 10， 11， 25， 30， 34， 40， 42， 44， 47， 48， 54， 55， 56， 80
光谱范围
N， M， P， F， C， G， U， L（请参阅概述）
附加名称：F – 火焰，G – 玻璃，T – 钨，V – 摄像机



















为每种材料和测量温度范围找到合适的设备

材料 测量温度范围 光谱范围 设备名称
非金属 –40°C 至 1000°C 8 μm 至 14 μm “L”
超薄玻璃 300°C 至 1100°C 约 7.7 μm “U”
玻璃表面 50°C 至 2500°C 约 5.0 μm “G”
热二氧化碳2 500°C 至 2000°C 约 4.5 μm/4.6 μm “C”
通过火焰测量 100°C 至 2500°C 约 3.9 μm “F”
半导体，金属 50°C 至 1800°C 3.5 μm 至 4.0 μm “MF”
塑料薄膜 50°C 至 400°C 约 3.43 μm “P”
陶瓷、金属 20°C 至 1000°C 3 μm 至 5 μm “M”
金属、陶瓷 50°C 至 2200°C 2.0 μm 至 2.8 μm “N”
金属、陶瓷、石墨 200°C 至 2500°C 1.5 μm 至 1.8 μm “N”
钨 500°C 至 2500°C 约 1.25 μm “NT”
硅、金属 400°C 至 2500°C 约 0.88 μm “N”
金属、玻璃熔体 500°C 至 3000°C 0.8 μm 至 1.1 μm “N”
液态金属 1000°C 至 2500°C 约 0.55 μm “N”




























红外高温计系列 温度范围 光谱范围 接口 瞄准和定向援助
系列 1x 0 °C 至 3000 °C 0.7 μm 至 14 μm RS-485 LED或激光瞄准灯适配器，通过镜头瞄准，
彩色摄像机
系列 2x 和 3x 系列 2x：–20 °C 至 700 °C，
系列 3x：600 °C 至 1800 °C		 系列 2x：8 μm 至 14 μm，
系列 3x：0.8 μm 至 1.1 μm		 参数接口 激光瞄准灯适配器
系列 4x –40 °C 至 2500 °C 0.7 μm 至 14 μm USB， RS-485， 以太网

激光瞄准灯适配器，LED瞄准灯
系列 5x –40 °C 至 3000 °C 0.7 μm 至 2.6 μm RS-485

通过镜头瞄准， 激光， 视频
8x 系列 200 °C 至 3000 °C 0.7 μm 至 1.8 μm USB TFT 彩色显示屏，激光








我们在这里为您服务！





给我们发电子邮件 info@simtrum.com 以获得今天最优惠的价格。   想要更多的技术信息?点击这里 获取专业定制系统/解决方案。




没有时间逐个搜索产品?不用担心。您可以下载全系列的瑆创产品线卡，现在点击它。



想要更接近市场动态和技术发展吗?只需花5秒钟作为会员登录，我们将为您带来最新的新闻。​(屏幕右上方的登录按钮)


Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
DT 4L
 4-6 Weeks Request for quote
DT 4G
 4-6 Weeks Request for quote
DG 4N
 4-6 Weeks Request for quote
DS 4N
 4-6 Weeks Request for quote
DT 40L
 4-6 Weeks Request for quote
DG 40N
 4-6 Weeks Request for quote
DSF 40N
 4-6 Weeks Request for quote
DS 40N
 4-6 Weeks Request for quote
DGF 40N
 4-6 Weeks Request for quote
DT 40F
 4-6 Weeks Request for quote
DT 40G
 4-6 Weeks Request for quote
DT 40U
 4-6 Weeks Request for quote
DT 42L
 4-6 Weeks Request for quote
DT 42G
 4-6 Weeks Request for quote
DS 42N
 4-6 Weeks Request for quote
DG 42N
 4-6 Weeks Request for quote
DSRF 44N
 4-6 Weeks Request for quote
DSR 44N
 4-6 Weeks Request for quote
DS 44N
 4-6 Weeks Request for quote
DGF 44N
 4-6 Weeks Request for quote
DG 44N
 4-6 Weeks Request for quote
DGE 44N
 4-6 Weeks Request for quote
DA 44M
 4-6 Weeks Request for quote
DA 44MF
 4-6 Weeks Request for quote
DA 44F
 4-6 Weeks Request for quote
DA 44G
 4-6 Weeks Request for quote
DT 44L
 4-6 Weeks Request for quote
DSF 44N
 4-6 Weeks Request for quote
DA 47M
 4-6 Weeks Request for quote
DA 47MF
 4-6 Weeks Request for quote
DA 47F
 4-6 Weeks Request for quote
DA 47G
 4-6 Weeks Request for quote
DT 47L
 4-6 Weeks Request for quote

DT 47L - Parameter

Weight (g)
450

Operating Temperature (°C)
0 to 70

Housing
stainless steel with plug connector

Measurement Uncertainty
0.6% or 1 K

Spectral range (µm)

Distance ratio
50:1

Reproducibility
0.3% or 0.5 K

Temperature Range (°C)

NETD (k)
0.1

Adjustable Response Time

Adjustable Emissivity ε

Dimensions
Thread M40 x 1.5 Length 124mm

DA 47G - Parameter

Weight (g)
450

Operating Temperature (°C)
0 to 70

Housing
stainless steel with plug connector

Measurement Uncertainty
0.6% or 1 K

Spectral range (µm)
5

Distance ratio
50:1

Reproducibility
0.3% or 0.5 K

Temperature Range (°C)
50 to 1300 | 100 to 1800 | 500 to 2500

NETD (k)
0.1

Adjustable Response Time
5ms to 100s via RS-485 interface

Adjustable Emissivity ε
0.050 - 1.00

Dimensions
Thread M40 x 1.5 Length 124mm

DA 47F - Parameter

Weight (g)
450

Operating Temperature (°C)
0 to 70

Housing
stainless steel with plug connector

Measurement Uncertainty
0.6% or 1 K

Spectral range (µm)
3.9

Distance ratio
50:1

Reproducibility
0.3% or 0.5 K

Temperature Range (°C)

NETD (k)
0.1

Adjustable Response Time
5ms to 100s via RS-485 interface

Adjustable Emissivity ε
0.050 - 1.00

Dimensions
Thread M40 x 1.5 Length 124mm

DA 47MF - Parameter

Weight (g)
450

Operating Temperature (°C)
0 to 70

Housing
stainless steel with plug connector

Measurement Uncertainty
0.6% or 1 K

Spectral range (µm)
3.5 to 4.0

Distance ratio
50:1

Reproducibility
0.3% or 0.5 K

Temperature Range (°C)
50 to 1000

NETD (k)
0.1

Adjustable Response Time
5ms to 100s via RS-485 interface

Adjustable Emissivity ε
0.050 - 1.00

Dimensions
Thread M40 x 1.5 Length 124mm

DA 47M - Parameter

Weight (g)
450

Operating Temperature (°C)
0 to 70

Housing
stainless steel with plug connector

Measurement Uncertainty
0.6% or 1 K

Spectral range (µm)

Distance ratio
50:1

Reproducibility
0.3% or 0.5 K

Temperature Range (°C)
20 to 850 | 30 to 1000

NETD (k)
0.1

Adjustable Response Time
5ms to 100s via RS-485 interface

Adjustable Emissivity ε
0.050 - 1.00

Dimensions
Thread M40 x 1.5 Length 124mm

DSF 44N - Parameter

Weight (g)
450

Operating Temperature (°C)
0 to 70 (Pyrometer) | 0 to 250 (fibre cable with optical head) | 0 to 150 (fibre cable with 90° curve)

Housing
stainless steel housing with plug connector

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
0.8 to 1.1 | 1.5 to 1.8

Distance ratio
50:1

Reproducibility
0.1% + 0.5 K

Temperature Range (°C)
600 to 1800 | 800 to 2500 | 250 to 1300 | 250 to 2000 | 350 to 1800

NETD (k)
0.1

Adjustable Response Time
5ms to 100s via RS-485 interface

Adjustable Emissivity ε
0.05 - 1.00 via RS-485 interface

Dimensions
Thread M40 × 1.5 length 125 mm

DT 44L - Parameter

Weight (g)
450

Operating Temperature (°C)
0 to 70

Housing
stainless steel housing with plug connector

Measurement Uncertainty
0.6% or 1 K

Spectral range (µm)
8 to 14

Distance ratio
50:1

Reproducibility
0.3% or 0.5 K

Temperature Range (°C)
–40 to 1000 | 0 to 1000

NETD (k)

Adjustable Response Time

Adjustable Emissivity ε
0.200 - 1.000 via RS-485 interface

Dimensions
Thread M40 × 1.5 length 125 mm

DA 44G - Parameter

Weight (g)
450

Operating Temperature (°C)
0 to 70

Housing
stainless steel housing with plug connector

Measurement Uncertainty
0.6% or 1 K

Spectral range (µm)
5

Distance ratio
50:1

Reproducibility
0.3% or 0.5 K

Temperature Range (°C)
50 to 1300 | 100 to 1800 | 500 to 2500

NETD (k)
0.1

Adjustable Response Time

Adjustable Emissivity ε
0.050 - 1.000 via RS-485 interface

Dimensions
Thread M40 × 1.5 length 126 mm

DA 44F - Parameter

Weight (g)
450

Operating Temperature (°C)
0 to 70

Housing
stainless steel housing with plug connector

Measurement Uncertainty
0.6% or 1 K

Spectral range (µm)
3.9

Distance ratio
50:1

Reproducibility
0.3% or 0.5 K

Temperature Range (°C)
100 to 1400 | 500 to 2500

NETD (k)
0.1

Adjustable Response Time

Adjustable Emissivity ε
0.050 - 1.000 via RS-485 interface

Dimensions
Thread M40 × 1.5 length 126 mm

DA 44MF - Parameter

Weight (g)
450

Operating Temperature (°C)
0 to 70

Housing
stainless steel housing with plug connector

Measurement Uncertainty
0.6% or 1 K

Spectral range (µm)
3.5 to 4.0

Distance ratio
50:1

Reproducibility
0.3% or 0.5 K

Temperature Range (°C)
50 to 1000

NETD (k)
0.1

Adjustable Response Time

Adjustable Emissivity ε
0.050 - 1.000 via RS-485 interface

Dimensions
Thread M40 × 1.5 length 126 mm

DA 44M - Parameter

Weight (g)
450

Operating Temperature (°C)
0 to 70

Housing
stainless steel housing with plug connector

Measurement Uncertainty
0.6% or 1 K

Spectral range (µm)
3 to 5

Distance ratio
50:1

Reproducibility
0.3% or 0.5 K

Temperature Range (°C)
20 to 850 | 30 to 1000

NETD (k)
0.1

Adjustable Response Time

Adjustable Emissivity ε
0.050 - 1.000 via RS-485 interface

Dimensions
Thread M40 × 1.5 length 126 mm

DGE 44N - Parameter

Weight (g)
455

Operating Temperature (°C)
0 to 70

Housing
stainless steel housing with plug connector

Measurement Uncertainty
0.5% + 2 K

Spectral range (µm)
2.0 to 2.6

Distance ratio

Reproducibility
0.3% + 1 K

Temperature Range (°C)

NETD (k)
0.5

Adjustable Response Time
5ms to 100s via RS-485 interface

Adjustable Emissivity ε
0.05 - 1.00 via RS-485 interface

Dimensions
Thread M40 × 1.5 length 125 mm

DG 44N - Parameter

Weight (g)
455

Operating Temperature (°C)
0 to 70

Housing
stainless steel housing with plug connector

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
0.8 to 1.1 | 1.5 to 1.8

Distance ratio

Reproducibility
0.1% + 0.5 K

Temperature Range (°C)
600 to 1800 | 800 to 2500 | 250 to 1300 | 250 to 2000 | 350 to 1800

NETD (k)
0.1

Adjustable Response Time
5ms to 100s via RS-485 interface

Adjustable Emissivity ε
0.05 - 1.00 via RS-485 interface

Dimensions
Thread M40 × 1.5 length 125 mm

DGF 44N - Parameter

Weight (g)
450

Operating Temperature (°C)
0 to 70 (Pyrometer) | 0 to 250 (fibre cable with optical head) | 0 to 150 (fibre cable with 90° curve)

Housing
stainless steel housing with plug connector

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
0.8 to 1.1 | 1.5 to 1.8

Distance ratio
50:1

Reproducibility

Temperature Range (°C)
600 to 1800 | 800 to 2500 | 250 to 1300 | 250 to 2000 | 350 to 1800

NETD (k)
0.1

Adjustable Response Time
5ms to 100s via RS-485 interface

Adjustable Emissivity ε
0.05 - 1.00 via RS-485 interface

Dimensions
Thread M40 × 1.5 length 125 mm

DS 44N - Parameter

Weight (g)
455

Operating Temperature (°C)
0 to 70

Housing
stainless steel housing with plug connector

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
0.8 to 1.1 | 1.5 to 1.8

Distance ratio

Reproducibility
0.1% + 0.5 K

Temperature Range (°C)
600 to 1800 | 800 to 2500 | 250 to 1300 | 250 to 2000 | 350 to 1800

NETD (k)
0.1

Adjustable Response Time
5ms to 100s via RS-485 interface

Adjustable Emissivity ε
0.05 - 1.00 via RS-485 interface

Dimensions
Thread M40 × 1.5 length 125 mm

DSR 44N - Parameter

Weight (g)
455

Operating Temperature (°C)
0 to 70

Housing
stainless steel housing with plug connector

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
0.7 to 1.1

Distance ratio

Reproducibility
0.2% + 0.5 K

Temperature Range (°C)

NETD (k)
0.1

Adjustable Response Time
5ms to 100s via RS-485 interface

Adjustable Emissivity ε
0.05 - 1.00 via RS-485 interface

Dimensions
Thread M40 × 1.5 length 125 mm

DSRF 44N - Parameter

Weight (g)
450

Operating Temperature (°C)
0 to 70 (pyrometer) | 0 to 250 (fibre cable and optical head)

Housing
stainless steel housing with plug connector

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
0.7 to 1.1

Distance ratio

Reproducibility
0.2% + 0.5 K

Temperature Range (°C)

NETD (k)
0.1

Adjustable Response Time
5ms to 100s via RS-485 interface

Adjustable Emissivity ε
0.050 - 1.000 via RS-485 interface

Dimensions
Thread M40 × 1.5 length 125 mm

DG 42N - Parameter

Weight (g)
450

Operating Temperature (°C)
0 to 70

Housing
stainless steel with plug connector

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
0.8 to 1.1 | 1.5 to 1.8

Distance ratio
50:1

Reproducibility
0.1% + 0.5 K

Temperature Range (°C)
600 to 1800 | 800 to 2500 | 250 to 1300 | 350 to 1800

NETD (k)
0.1

Adjustable Response Time

Adjustable Emissivity ε
0.050 - 1.00

Dimensions
Thread M40 × 1,5 length 125 mm

DS 42N - Parameter

Weight (g)
450

Operating Temperature (°C)
0 to 70

Housing
stainless steel with plug connector

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
0.8 to 1.1 | 1.5 to 1.8

Distance ratio
50:1

Reproducibility
0.1% + 0.5 K

Temperature Range (°C)
600 to 1800 | 800 to 2500 | 250 to 1300 | 350 to 1800

NETD (k)
0.1

Adjustable Response Time

Adjustable Emissivity ε
0.050 - 1.00

Dimensions
Thread M40 × 1,5 length 125 mm

DT 42G - Parameter

Weight (g)
450

Operating Temperature (°C)
0 to 70

Housing
stainless steel with plug connector

Measurement Uncertainty
1.0% or 1 K

Spectral range (µm)
5

Distance ratio
50:1

Reproducibility
0.5% or 0.5 K

Temperature Range (°C)
100 to 1300 | 500 to 2500

NETD (k)
0.1

Adjustable Response Time

Adjustable Emissivity ε

Dimensions
Thread M40 × 1,5 length 125 mm

DT 42L - Parameter

Weight (g)
450

Operating Temperature (°C)
0 to 70

Housing
stainless steel with plug connector

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
8 to 14

Distance ratio
50:1

Reproducibility
0.5% or 0.5 K

Temperature Range (°C)
–40 to 1000

NETD (k)
0.1

Adjustable Response Time

Adjustable Emissivity ε

Dimensions
Thread M40 × 1,5 length 125 mm

DT 40U - Parameter

Weight (g)
450

Operating Temperature (°C)
0 to 70

Housing
stainless steel with plug connector

Measurement Uncertainty
1.0% or 1 K

Spectral range (µm)

Distance ratio
50:1

Reproducibility
0.5% or 0.5 K

Temperature Range (°C)
300 to 1100

NETD (k)
0.1

Adjustable Response Time
60ms to 100s via USB interface

Adjustable Emissivity ε
0.200 - 1.000 via USB interface

Dimensions

DT 40G - Parameter

Weight (g)
450

Operating Temperature (°C)
0 to 70

Housing
stainless steel with plug connector

Measurement Uncertainty
1.0% or 1 K

Spectral range (µm)
5

Distance ratio
50:1

Reproducibility
0.5% or 0.5 K

Temperature Range (°C)
100 to 1300 | 200 to 1400 | 500 to 2500

NETD (k)

Adjustable Response Time
60ms to 100s via USB interface

Adjustable Emissivity ε
0.200 - 1.000 via USB interface

Dimensions
Thread M40 × 1.5 length 125 mm

DT 40F - Parameter

Weight (g)
450

Operating Temperature (°C)
0 to 70

Housing
stainless steel with plug connector

Measurement Uncertainty
1.0% or 1 K

Spectral range (µm)
3.9

Distance ratio
50:1

Reproducibility
0.5% or 0.5 K

Temperature Range (°C)
300 to 1300 | 400 to 1400 500 to 2500

NETD (k)
0.1

Adjustable Response Time
60ms to 100s via USB interface

Adjustable Emissivity ε
0.200 - 1.000 via USB interface

Dimensions
Thread M40 × 1.5 length 125 mm

DGF 40N - Parameter

Weight (g)
450

Operating Temperature (°C)
0 to 70 (pyrometer) | 0 to 250 (fibre cable and optical head) | 0 to 150 (fibre cable with 90° curve)

Housing
stainless steel with plug connector and protection window

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
0.8 to 1.1 | 1.5 to 1.8

Distance ratio
50:1

Reproducibility
0.1% + 0.5 K

Temperature Range (°C)
600 to 1800 | 800 to 2500 | 250 to 1300 | 250 to 2000 | 350 bis 1800

NETD (k)
0.1

Adjustable Response Time
10ms to 100s via USB interface

Adjustable Emissivity ε
0.05 - 1.00 via USB interface

Dimensions
Thread M40 × 1.5 length 125 mm

DS 40N - Parameter

Weight (g)
450

Operating Temperature (°C)
0 to 70

Housing
stainless steel with plug connector and protection window

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
0.8 to 1.1 | 1.5 to 1.8

Distance ratio
200:1

Reproducibility
0.1% + 0.5 K

Temperature Range (°C)
600 to 1800 | 800 to 2500 | 250 to 1300 | 350 to 1800 | 250 to 2000

NETD (k)
0.1

Adjustable Response Time
10ms to 100s via USB interface

Adjustable Emissivity ε
0.05 - 1.00 via USB interface

Dimensions
Thread M40 × 1.5 length 125 mm

DSF 40N - Parameter

Weight (g)
450

Operating Temperature (°C)
0 to 70 (pyrometer) | 0 to 250 (fibre cable and optical head) | 0 to 150 (fibre cable with 90° curve)

Housing
stainless steel with plug connector and protection window

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
0.8 to 1.1 | 1.5 to 1.8

Distance ratio
50:1

Reproducibility
0.1% + 0.5 K

Temperature Range (°C)
600 to 1800 | 800 to 2500 | 250 to 1300 | 250 to 2000 | 350 bis 1800

NETD (k)
0.1

Adjustable Response Time
10ms to 100s via USB interface

Adjustable Emissivity ε
0.05 - 1.00 via USB interface

Dimensions
Thread M40 × 1.5 length 125 mm

DG 40N - Parameter

Weight (g)
450

Operating Temperature (°C)
0 to 70

Housing
stainless steel with plug connector and protection window

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
0.8 to 1.1 | 1.5 to 1.8

Distance ratio
200:1

Reproducibility
0.1% + 0.5 K

Temperature Range (°C)
600 to 1800 | 0 to 2500 | 250 to 1300 | 350 to 1800 | 250 to 2000

NETD (k)
0.1

Adjustable Response Time
10ms to 100s via USB interface

Adjustable Emissivity ε
0.05 - 1.00 via USB interface

Dimensions
Thread M40 × 1.5 length 125 mm

DT 40L - Parameter

Weight (g)
450

Operating Temperature (°C)
0 to 70

Housing
stainless steel with plug connector

Measurement Uncertainty

Spectral range (µm)
8 to 14

Distance ratio
50:1

Reproducibility

Temperature Range (°C)
–40 to 1000 | 0 to 1000

NETD (k)
0.1

Adjustable Response Time
60ms to 100s via USB interface

Adjustable Emissivity ε
0.200 - 1.000 via USB interface

Dimensions

DS 4N - Parameter

Weight (g)
500

Operating Temperature (°C)
sensor head: 0 to 125 | electronics box: 0 to 70

Housing
stainless steel housing with plug connector

Measurement Uncertainty
1.0% + 1 K

Spectral range (µm)
0.8 to 1.1 | 1.5 to 1.8

Distance ratio
50:1

Reproducibility

Temperature Range (°C)
600 to 1800 | 800 to 2500 | 250 to 1300 | 350 to 1800

NETD (k)
0.1

Adjustable Response Time

Adjustable Emissivity ε

Dimensions
110 mm × 80 mm × 40 mm (electronics box)

DG 4N - Parameter

Weight (g)
500

Operating Temperature (°C)
sensor head: 0 to 125 | electronics box: 0 to 70

Housing
stainless steel housing with plug connector

Measurement Uncertainty
1.0% + 1 K

Spectral range (µm)
0.8 to 1.1 | 1.5 to 1.8

Distance ratio
50:1

Reproducibility

Temperature Range (°C)
600 to 1800 | 800 to 2500 | 250 to 1300 | 350 to 1800

NETD (k)
0.1

Adjustable Response Time

Adjustable Emissivity ε

Dimensions
110 mm × 80 mm × 40 mm (electronics box)

DT 4G - Parameter

Weight (g)
500

Operating Temperature (°C)
head: 0 to 125 | electronics box: 0 to 70

Housing
stainless steel housing with plug connector

Measurement Uncertainty
1.0% or 1 K

Spectral range (µm)
5

Distance ratio
50:1

Reproducibility
0.5% or 0.5 K

Temperature Range (°C)

NETD (k)

Adjustable Response Time

Adjustable Emissivity ε

Dimensions
110 mm × 80 mm × 40 mm (electronics box)

DT 4L - Parameter

Weight (g)
500

Operating Temperature (°C)
head: 0 to 125 | electronics box: 0 to 70 | head: 0 to 180

Housing
stainless steel housing with plug connector

Measurement Uncertainty
1.0% or 1 K

Spectral range (µm)
8 to 14

Distance ratio
50:1

Reproducibility
0.5% or 0.5 K

Temperature Range (°C)

NETD (k)

Adjustable Response Time

Adjustable Emissivity ε

Dimensions
110 mm × 80 mm × 40 mm (electronics box)

DT 47L - Download

DA 47G - Download

DA 47F - Download

DA 47MF - Download

DA 47M - Download

DSF 44N - Download

Download

DT 44L - Download

Download

DA 44G - Download

Download

DA 44F - Download

Download

DA 44MF - Download

Download

DA 44M - Download

Download

DGE 44N - Download

Download

DG 44N - Download

Download

DGF 44N - Download

Download

DS 44N - Download

Download

DSR 44N - Download

Download

DSRF 44N - Download

Download

DG 42N - Download

Download

DS 42N - Download

Download

DT 42G - Download

Download

DT 42L - Download

Download

DT 40U - Download

Download

DT 40G - Download

DT 40F - Download

Download

DGF 40N - Download

Download

DS 40N - Download

Download

DSF 40N - Download

Download

DG 40N - Download

DT 40L - Download

Download

DS 4N - Download

Download

DG 4N - Download

Download

DT 4G - Download

Download

DT 4L - Download

Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)

Sales Enquiry：13326430008       Email：info@simtrum.com

Address:广州市黄埔区中新智慧一街7号1001

Copyright © 2024 瑆创科技（广州）有限公司. All right reserved. 粤ICP备2024272506号
