Products / 光电器件 /声光器件 /声光偏转器 (AODF) /

声光偏转器 (AODF)

产品概述规格与型号指南 Order Now!

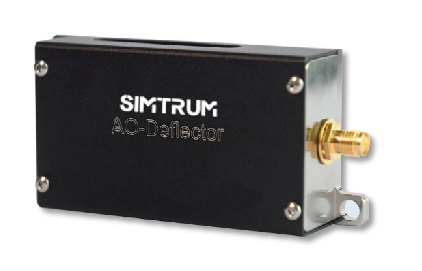

声光偏转器

一种高速、高精度空间控制扫描光束的装置

声光偏转器（AODF）可以通过改变射频驱动频率来实现激光束扫描。扫描位置可以实现随机位置、连续线扫描和顺序点偏转，这取决于晶体，以及nRad的精确位置控制。 AODF的最佳效率通常在于光束，布拉格角的不匹配是由于AODF只能在一个驱动频率下进行光学对准。一般来说，这会导致效率降低。

SIMTRUM 提供的 AODF 可设计为一维和二维扫描，配备专门开发的射频驱动器，能够实现频率扫描、啁啾和其他控制方法，方便客户快速实现多种功能。

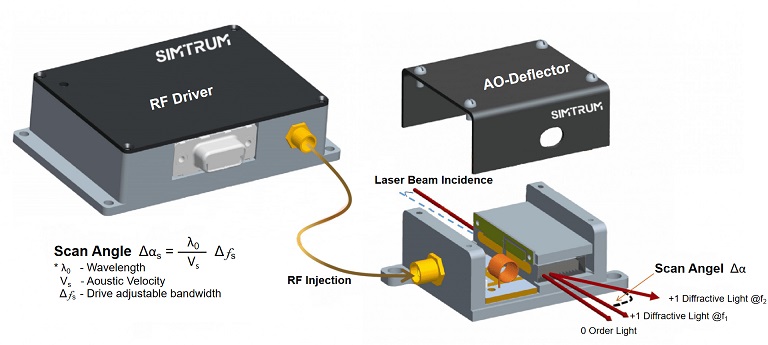

工作原理

应用

- 激光直写

- 精密电路板钻孔

- 半导体测试

- 激光轧辊制造

-激光打印

-单元格排序

-全息成像

-快速变焦系统

产品规格及说明书

产品简介链接：

通用规范
作用材料	水晶石英/二氧化碲
声学模式	纵向/剪切（风量616米/秒）
工作波长	266 / 355 / 364 / 405 / 488 / 515 / 532 / 561 / 813 / 1064 / 1083 nm
极化	线性的，垂直于底
传输	> 90% ~ 99%
有效孔径	参考产品信息
中心频率 (Fc)	75 ~ 230 MHz
射频带宽 (RB)	10 ~ 110 MHz
衍射效率 @RB	> 40 ~ 50%
射频功率	3.5 ~ 22 W (Max)
输入阻抗	50Ω Nominal
VSWR @Fc	< 2.1:1 / < 3:1
射频连接器	SMA-F
制冷	传导冷却 / 水冷
外壳材料	铝合金6063

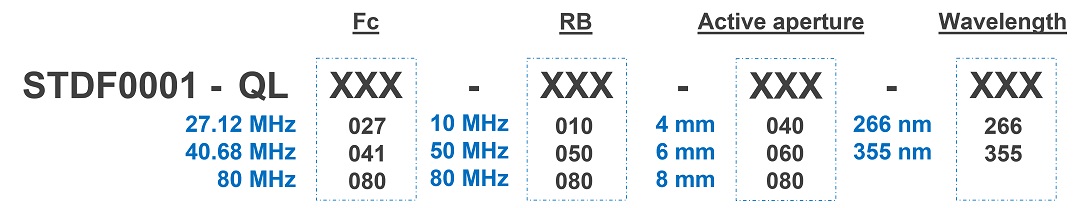

订购信息

型号	波长	有效孔径	中心频率	带宽	扫描角	光学材料
STDF0003-QL230_110-020-266	266 nm	2.0 x 26.5 mm	230 MHz	110 MHz	5.1 mrad	石英晶体
STDF0005-QL230_110-020-266	266 nm	2.0 x 2.0 mm	230 MHz	110 MHz	5.1 mrad	石英晶体
STDF2005-QL200_100-020-266	266 nm	2.0 x 26.5 mm	200 MHz	100 MHz	4.6 mrad	石英晶体
STDF2008-QL200_100-040-266	266 nm	4.0 x 4.0 mm	200 MHz	100 MHz	4.6 mrad	石英晶体
STDF2001-QL170_070-070-355	355 nm	7.0 mm	170 MHz	70 MHz	4.3 mrad	石英晶体
STDF2002-QL170_030-070-355	355 nm	7.0 mm	170 MHz	30 MHz	1.9 mrad	石英晶体
STDF0006-QL110_16-060-364	364 nm	6.0 mm	110 MHz	16 MHz	1 mrad	石英晶体
STDF2006-TS100_050-035-364	364 nm	3.5 mm	100 MHz	50 MHz	29.6 mrad	二氧化碲
STDF2007-TS100_050-080-364	364 nm	8.0 mm	100 MHz	50 MHz	29.6 mrad	二氧化碲
STDF0007-TS075_10-040-405	405 nm	4.0 mm	75 MHz	10 MHz	6.6 mrad	二氧化碲
STDF0008-TS100_36-010-488	488 nm	1.0 mm	100 MHz	36 MHz	27.1 mrad	二氧化碲
ST2DF2003-TS088_44-100-515	515 nm	10 x 10 mm	88 MHz	44 MHz	34.9 x 34.9 mrad	二氧化碲
ST2DF2001-TS085_40-100-532	532 nm	10.0 mm	85 MHz	40 MHz	32.4 x 32.4 mrad	二氧化碲
STDF0009-TS100_36-010-561	561 nm	1.0 mm	100 MHz	36 MHz	30.04 mrad	二氧化碲
ST2DF2002-TS100_42-075-813	813 nm	7.5 x 7.5mm	100 MHz	42 MHz	52.5 x 52.5 mrad	二氧化碲
STDF0010-TS090_30-025-1064	1064 nm	2.5 mm	90 MHz	30 MHz	48.2 mrad	二氧化碲
STDF2003-TL075_32-025-1083	1083 nm	2.5 mm	75 MHz	32 MHz	8.3 mrad	二氧化碲

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

	Availability	Reference Price (USD)
STDF0003-QL230_110-020-266 Acousto-Optic Deflector (AODF), wavelength 266nm, active aperture 2.0x26.5mm, center frequency 230MHz, bandwidth 110MHz, scan angle 5.1mrad, crystal quartz, provide AOM-matched RF driver	6 -8 Weeks	Request for quote
STDF0005-QL230_110-020-266 Acousto-Optic Deflector (AODF), wavelength 266nm, active aperture 2.0x2.0mm, center frequency 230MHz, bandwidth 110MHz, scan angle 5.1mrad, crystal quartz, provide AOM-matched RF driver	6 -8 Weeks	Request for quote
STDF2005-QL200_100-020-266 Acousto-Optic Deflector (AODF), wavelength 266nm, active aperture 2.0x26.5mm, center frequency 200MHz, bandwidth 100MHz, scan angle 4.6mrad, crystal quartz, provide AOM-matched RF driver	6 -8 Weeks	Request for quote
STDF2008-QL200_100-040-266 Acousto-Optic Deflector (AODF), wavelength 266nm, active aperture 4.0x4.0mm, center frequency 200MHz, bandwidth 100MHz, scan angle 4.6mrad, crystal quartz, provide AOM-matched RF driver	6 -8 Weeks	Request for quote
STDF2001-QL170_070-070-355 Acousto-Optic Deflector (AODF), wavelength 355nm, active aperture 7.0mm, center frequency 170MHz, bandwidth 70MHz, scan angle 4.3mrad, crystal quartz, provide AOM-matched RF driver	6 -8 Weeks	Request for quote
STDF2002-QL170_030-070-355 Acousto-Optic Deflector (AODF), wavelength 355nm, active aperture 7.0mm, center frequency 170MHz, bandwidth 30MHz, scan angle 1.9mrad, crystal quartz, provide AOM-matched RF driver	6 -8 Weeks	Request for quote
STDF0006-QL110_16-060-364 Acousto-Optic Deflector (AODF), wavelength 364nm, active aperture 6.0mm, center frequency 110MHz, bandwidth 16MHz, scan angle 1mrad, crystal quartz, provide AOM-matched RF driver	6 -8 Weeks	Request for quote
STDF2006-TS100_050-035-364 Acousto-Optic Deflector (AODF), wavelength 364nm, active aperture 3.5mm, center frequency 100MHz, bandwidth 50MHz, scan angle 29.6mrad, Tellurium dioxide, provide AOM-matched RF driver	6 -8 Weeks	Request for quote
STDF2007-TS100_050-080-364 Acousto-Optic Deflector (AODF), wavelength 364nm, active aperture 8.0mm, center frequency 100MHz, bandwidth 50MHz, scan angle 29.6mrad, Tellurium dioxide, provide AOM-matched RF driver	6 -8 Weeks	Request for quote
STDF0007-TS075_10-040-405 Acousto-Optic Deflector (AODF), wavelength 405nm, active aperture 4.0mm, center frequency 75MHz, bandwidth 10MHz, scan angle 6.6mrad, Tellurium dioxide, provide AOM-matched RF driver	6 -8 Weeks	Request for quote
STDF0008-TS100_36-010-488 Acousto-Optic Deflector (AODF), wavelength 488nm, active aperture 1.0mm, center frequency 100MHz, bandwidth 36MHz, scan angle 27.1mrad, Tellurium dioxide, provide AOM-matched RF driver	6 -8 Weeks	Request for quote
ST2DF2003-TS088_44-100-515 Acousto-Optic Deflector (AODF), wavelength 515nm, active aperture 10x10mm, center frequency 88MHz, bandwidth 44MHz, scan angle 34.9x34.9mrad, Tellurium dioxide, provide AOM-matched RF driver	6 -8 Weeks	Request for quote
ST2DF2001-TS085_40-100-532 Acousto-Optic Deflector (AODF), wavelength 532nm, active aperture 10.0mm, center frequency 85MHz, bandwidth 40MHz, scan angle 32.4x32.4mrad, Tellurium dioxide, provide AOM-matched RF driver	6 -8 Weeks	Request for quote
STDF0009-TS100_36-010-561 Acousto-Optic Deflector (AODF), wavelength 561nm, active aperture 1.0mm, center frequency 100MHz, bandwidth 36MHz, scan angle 30.4mrad, Tellurium dioxide, provide AOM-matched RF driver	6 -8 Weeks	Request for quote
ST2DF2002-TS100_42-075-813 Acousto-Optic Deflector (AODF), wavelength 813nm, active aperture 7.5x7.5mm, center frequency 100MHz, bandwidth 42MHz, scan angle 52.5x52.5mrad, Tellurium dioxide, provide AOM-matched RF driver	6 -8 Weeks	Request for quote
STDF0010-TS090_30-025-1064 Acousto-Optic Deflector (AODF), wavelength 1064nm, active aperture 2.5mm, center frequency 90MHz, bandwidth 30MHz, scan angle 48.2mrad, Tellurium dioxide, provide AOM-matched RF driver	6 -8 Weeks	Request for quote
STDF2003-TL075_32-025-1083 Acousto-Optic Deflector (AODF), wavelength 1083nm, active aperture 2.5mm, center frequency 75MHz, bandwidth 32MHz, scan angle 8.3mrad, Tellurium dioxide, provide AOM-matched RF driver	6 -8 Weeks	Request for quote

STDF2003-TL075_32-025-1083 - Parameter

STDF0010-TS090_30-025-1064 - Parameter

ST2DF2002-TS100_42-075-813 - Parameter

STDF0009-TS100_36-010-561 - Parameter

ST2DF2001-TS085_40-100-532 - Parameter

ST2DF2003-TS088_44-100-515 - Parameter

STDF0008-TS100_36-010-488 - Parameter

STDF0007-TS075_10-040-405 - Parameter

STDF2007-TS100_050-080-364 - Parameter

STDF2006-TS100_050-035-364 - Parameter

STDF0006-QL110_16-060-364 - Parameter

STDF2002-QL170_030-070-355 - Parameter

STDF2001-QL170_070-070-355 - Parameter

STDF2008-QL200_100-040-266 - Parameter

STDF2005-QL200_100-020-266 - Parameter

STDF0005-QL230_110-020-266 - Parameter

STDF0003-QL230_110-020-266 - Parameter

STDF2003-TL075_32-025-1083 - Download

STDF0010-TS090_30-025-1064 - Download

ST2DF2002-TS100_42-075-813 - Download

STDF0009-TS100_36-010-561 - Download

ST2DF2001-TS085_40-100-532 - Download

ST2DF2003-TS088_44-100-515 - Download

STDF0008-TS100_36-010-488 - Download

STDF0007-TS075_10-040-405 - Download

STDF2007-TS100_050-080-364 - Download

STDF2006-TS100_050-035-364 - Download

STDF0006-QL110_16-060-364 - Download

STDF2002-QL170_030-070-355 - Download

STDF2001-QL170_070-070-355 - Download

STDF2008-QL200_100-040-266 - Download

STDF2005-QL200_100-020-266 - Download

STDF0005-QL230_110-020-266 - Download

STDF0003-QL230_110-020-266 - Download

Accessories

Compare	Model		Drawings & Specs	Availability	Reference Price (USD)
