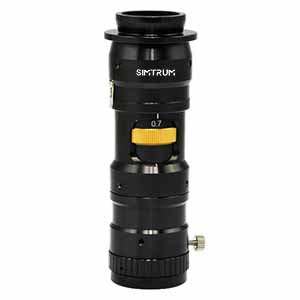

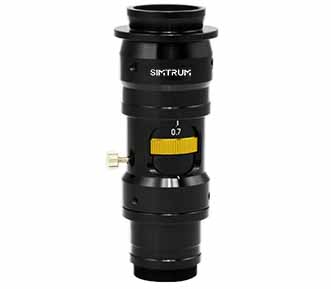

Simtrum's Z65C Series is a 6.5X coaxial illumination zoom lens, featuring advanced optical design and a magnification range of 0.7x to 7.5x, providing a versatile and high-quality imaging solution for various applications.With its coaxial illumination and infinity parallel incident light, this lens ensures shadow-free and uniform illumination, resulting in high-contrast and vivid color images for superior image quality.

It is particularly well-suited for observing reflective surfaces, such as water-polished samples and deep holes.  Designed for use with a 2/3" camera, the lens supports wide field of view applications, while its compact structure facilitates easy assembly and installation.  This makes it an ideal choice for professional environments requiring precise and detailed visual inspection.

Feature

• Telecentric optical design. Magnification range: 0.7x-4.5xmaghification ratio is 6.5:1
• Field of view:2.444-15.714mm(based on 2/3"CCD)
• Excellent performance, with high resolution, low distortionand super big N.A
• Compact design,easy assemblly and installation

Application

• Industry inspection
• Automation
• Electronic communication
• Semiconductor
• Scientific research

Fine-focus Device

• Seamless combination, for large rangeinternalfocusing:3-12mm
• Precision mechancial structure Move smoothly
• Excellent sharp image

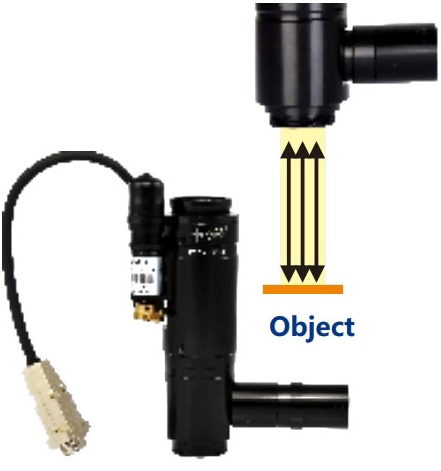

Coaxial lllumination

• Infinity parallel incident light, with shadow-free and uniform illumination
• High contract and vivid color image, for better image quality
• Applied for reflective surface observation: waters，polishing samples, deep holes, etc

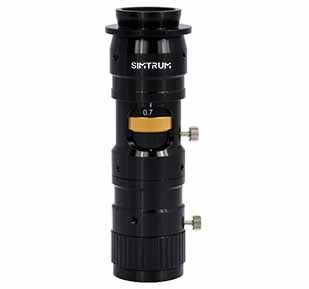

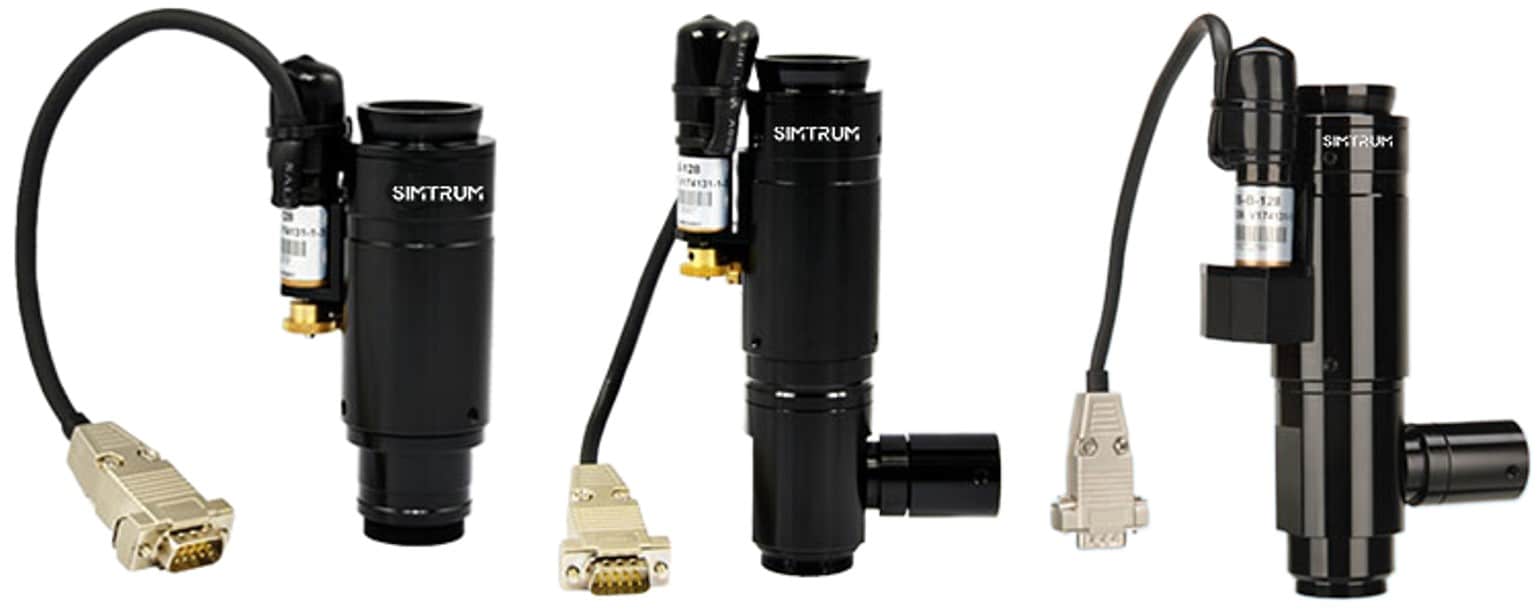

Simtrum's Z65M Series is a 6.5X motorized zoom lens specifically engineered for precision and reliability in demanding applications.  It features a motorized fine-focus, providing unparalleled control and accuracy.  The telecentric optical design ensures consistent magnification and minimal perspective distortion, making it ideal for machine vision and metrology.  With a magnification range of 0.7x to 4.5x and a magnification ratio of 6.5:1, it offers versatility for various imaging needs.

The lens boasts a field of view from 2.444mm to 15.714mm, optimized for 2/3" CCD sensors, delivering high resolution, low distortion, and superb numerical aperture performance even in harsh vibrating environment.

Feature

• STPM-Z65M-CH12M is Motorized,motorized fine-focus 12mm
• Telecentric optical design. Magnification range: 0.7x-4.5xmaghification ratio is 6.5:1
• Field of view:2.444-15.714mm(based on 2/3"CCD)
• Excellent performance, with high resolution, low distortionand super big N.A
• Compact design,easy assemblly and installation

Application

• Industry inspection
• Automation
• Electronic communication
• Semiconductor
• Scientific research

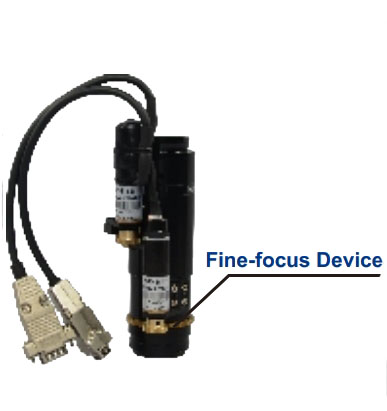

Fine-focus Device

• Seamless combination, for large rangeinternalfocusing:12mm
• Precision mechancial structure Move smoothly
• Excellent sharp image

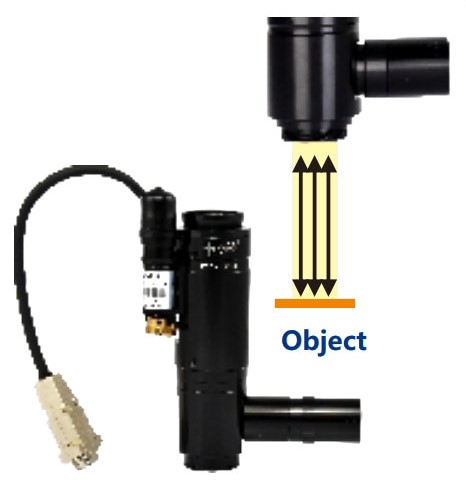

Coaxial lllumination

• Infinity parallel incident light, with shadow-free and uniform illumination
• High contract and vivid color image, for better image quality
• Applied for reflective surface observation: waters，polishing samples, deep holes, etc

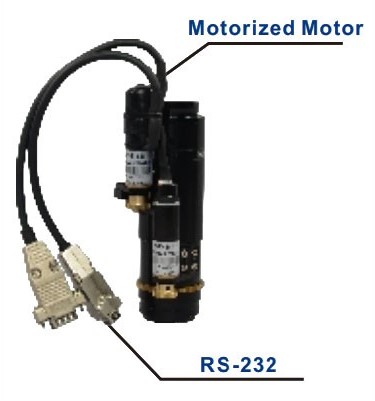

 Motorized Zoom

• High speed in zoom and focus and high accuracy in repetitive positioning
• Imported DC servo motor, closed-loop control
• Stable quality even in the strong vibration environment

 Motorized Controller

• The integrated motorized control systems are available for all the SIMTRUM'S zoom lenses
• Motorized controlling system can control singleor dual channels via RS232 or USB:
• Underlying sourcing code will be provided

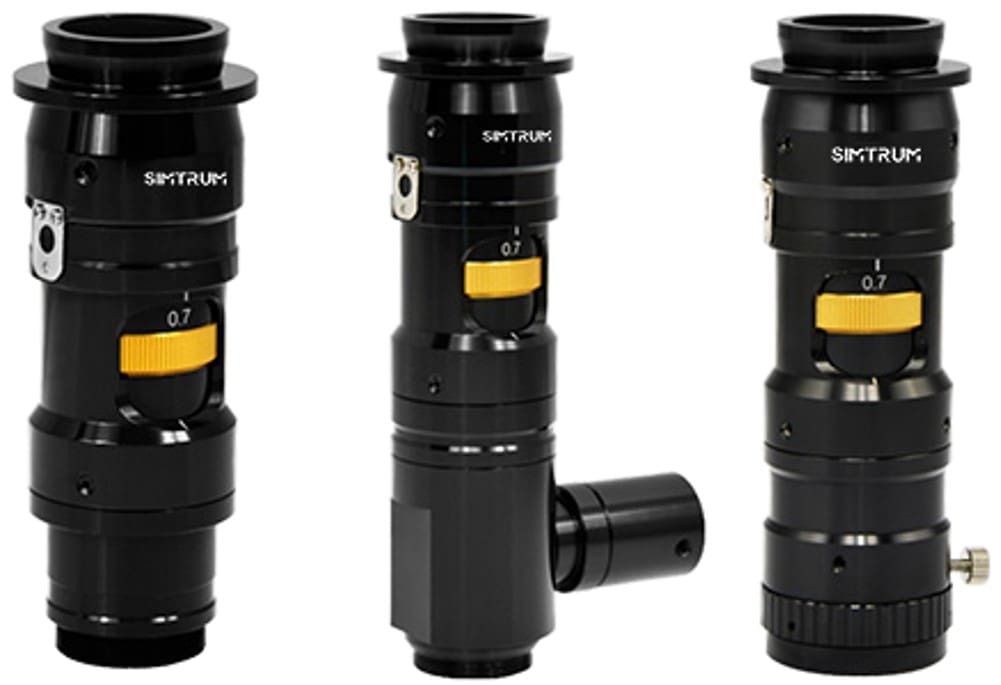

Simtrum's Z65D Series zoom lens is a masterpiece of optical engineering designed for high-precision imaging applications.  With options for 6 or 9 divided points for mechanical positioning, this lens guarantees precise and reliable performance.

Featuring a telecentric optical design, it ensures consistent magnification and minimal perspective distortion across its versatile magnification range of 0.7x to 4.5x, with a magnification ratio of 6.5:1.  The Z65D Series provides a field of view from 2.444mm to 15.714mm, optimized for 2/3" CCD sensors, delivering exceptional performance with high resolution, low distortion, and a superior numerical aperture.

Its compact design allows for easy assembly and installation, while the detented zoom mechanism ensures high accuracy in zoom and repetitive positioning.  Constructed from high hardness alloy material and featuring a precision mechanical structure, the Z65D Series is built for durability and long-lasting use, making it an ideal choice for demanding industrial and scientific applications.

Feature

• Telecentric optical design. Magnification range: 0.7x-4.5xmagnification ratio is 6.5:1
• Field of view: 444-15.714mm(based on 2/3"CCD)
• Excellent performance, with high resolution, low distortionand super big N.A.
• Compact design,easy assemblly and installation.

Application

• Industry inspection
• Automation
• Electronic communication
• Semiconductor
• Scientific research

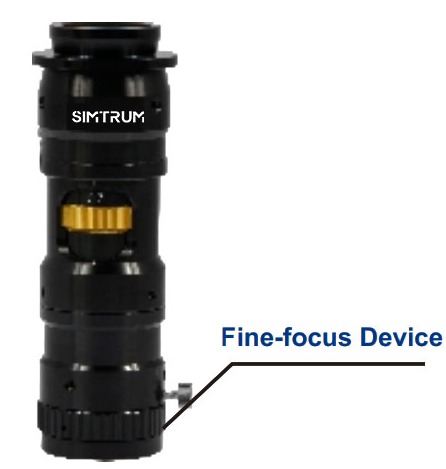

Fine-focus Device

• Seamless combination, for large rangeinternalfocusing:3 -12mm
• Precision mechancial structure Move smoothly
• Excellent sharp image

Coaxial lllumination

• Infinity parallel incident light, with shadow-free and uniform illumination
• High contract and vivid color image, for better image quality
• Applied for reflective surface observation: waters，polishing samples, deep holes, etc

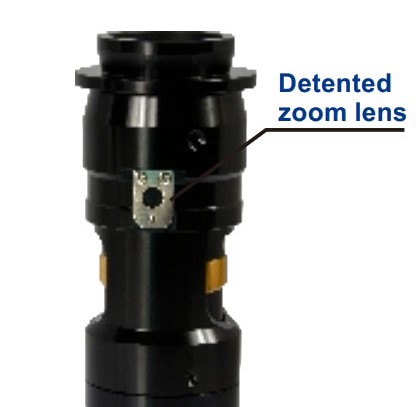

 Detented Zoom Lens

• High accuracy in zoom and repetitiv positioning
• 6 divided points or 9 divided points for mechanical positioning
• High hardness alloy material, for a long lifespan; Precision mechanical structure

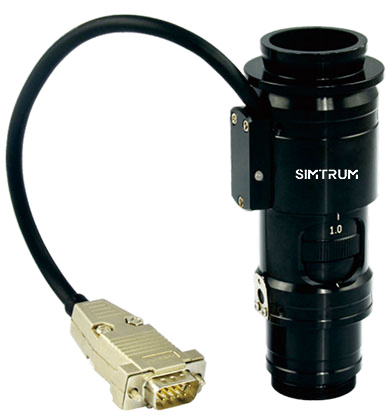

Simtrum's Z65F-RS with professional optical design, the perfect combination of high resolution and big magnification ratio, the most universal zoom lens is widely used in various industry application.This 6.5X Detented  Zoom Lens with Magnification Output, 6.5:1,  0.7X-4.5X, Max. sensor size 2/3", WD 87±2mm.

Feature

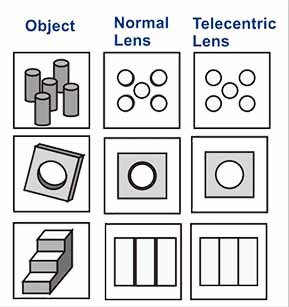

Telecentric Optical Design

Detented Zoom Lens

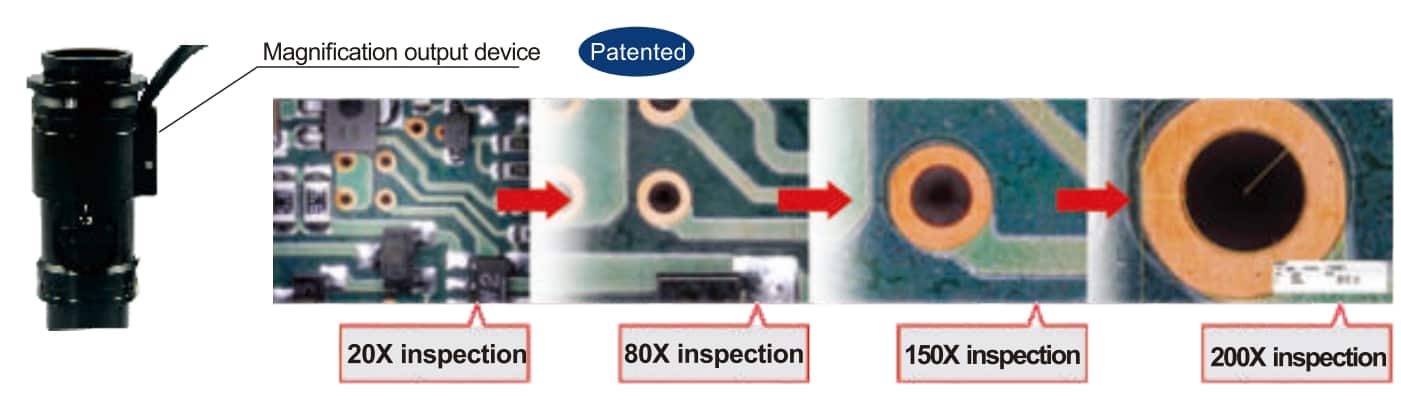

RS232 Electronic Magnifications Output

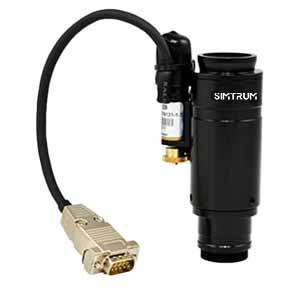

Simtrum's Z65M-C(A) With professional optical design, the perfect combination of high resolution and big magnification ratio, the most universal zoom lens is widely used in various industry application.This 6.5X Motorized Zoom Lens with Coaxial Illumination 6.5:1,  0.7X-4.5X, Max. sensor size 2/3", WD 87±2mm.

Feature

Motorized Zoom

• High speed in zoom and focus and high accuracy in repetitive positioning
• Imported DC servo motor, closed-loop control
• Stable quality even in the strong vibration environment

Coaxial lllumination

• Infinity parallel incident light, with shadow-free and uniform illumination
• High contract and vivid color image, for better image quality
• Applied for reflective surface observation: waters，polishing samples, deep holes, etc

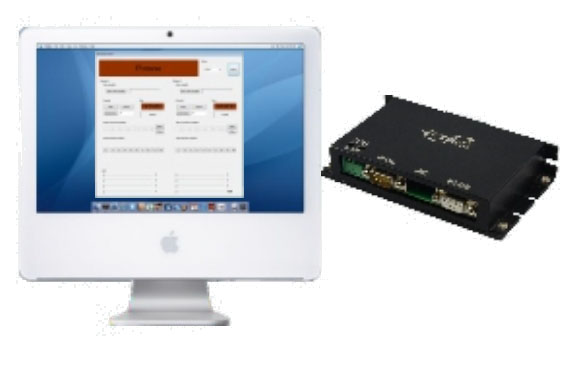

Motorized Controller

• The integrated motorized control systems are available for all the SIMTRUM'S zoom lenses
• Motorized controlling system can control singleor dual channels via RS232 or USB:
• Underlying sourcing code will be provided.
