Dear Valued Customer,
It’s an honour to have your continuous support. We're pleased to inform you about the latest additions to our trusted laser product range at SIMTRUM. These new products continue our tradition of delivering consistent performance and quality. Please refer to the details below.
Our foremost introduction is the Multi-Line CW Single-Mode Laser. This four-in-one laser includes four different wavelengths (405nm / 488nm / 532nm / 640nm or 405nm / 488nm / 561nm / 640nm), integrating laser diodes, laser cavities, fiber-coupled optics, laser power supply and LD current into one unit. It is designed for laser scanning confocal microscopy system.
The advantage of the four-in-one laser system lies in its ability to provide multiple wavelengths of laser light sources, enabling simultaneous excitation of multiple fluorescent dyes or markers, obtaining more comprehensive information in a single experiment. This is of great significance for multi-color fluorescence imaging, co-localization, and co-expression studies of cells and tissues.
 |

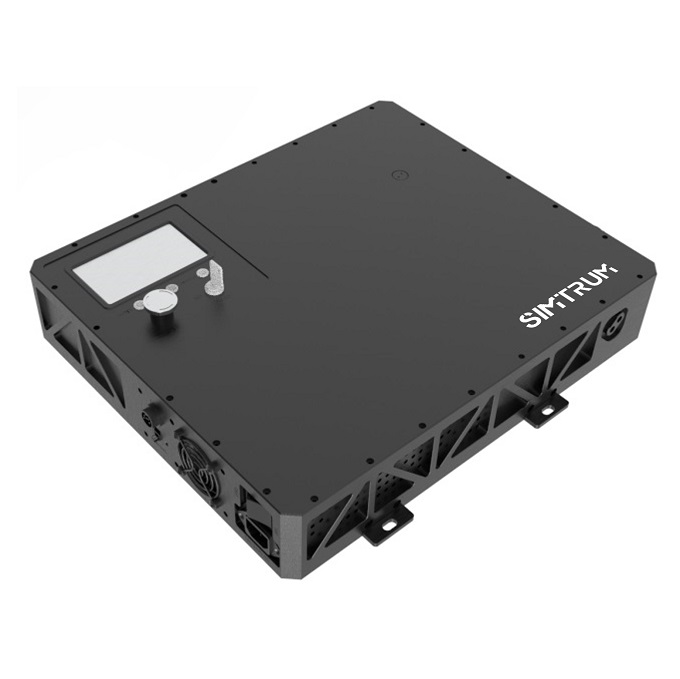

Multi-Line CW Single-Mode Laser (Four-in-One Laser)
Wavelength: 405nm/488nm/532nm/640nm or 405nm/488nm/ 561nm/640nm
Fiber Length: 1Meter, Core
Diameter: 4-6 Micrometers, Customization is vailable.
Output Power: >20mW
Power Stability (rms, over 4 hours) : <1%
Laser Noise: <4%
Spectral Linewidth: <3nm
Click Here for more information.
|
While the spotlight is on the Multi-line CW Single-mode Laser, we also have a couple of other noteworthy introductions: The Quantum Cascade Lasers.
The Mid Infrared Wide Spectrum Tunable Laser – SuperTune QCL is a wide spectrum continuous tunable laser customized for infrared spectrum and infrared optical instrument applications. Ultra-high stability optomechanical design, combined with unique 3-12μm wide spectrum coverage and wide spectrum tuning capability make it the most cost-effective semiconductor infrared tunable light source in the market.
 |
Mid Infrared Wide Spectrum Tunable Laser – SuperTune QCL
Operating Wavelength: 4-5 μm (3-12 μm customizable)
Output Bandwidth: < 0.1 nm
Average Power: > 1 mW
Tuning Range: >200 nm@4.55 μm
Beam Quality: M 2 < 1.5
Output Mode: Free space output
Supply Voltage: 100 - 240VAC
Click Here for more information.
|
The CW LWIR Quantum Cascade Lasers (10-17µm) stand out with their exceptional pulsed-operation characteristics. Customers can seamlessly adjust the emission wavelength—thanks to the Peltier element embedded within the laser package that regulates the chip's operating temperature. This adjustment is achieved without mode hopping, ensuring consistent longitudinal single-mode operation. These DFB Quantum Cascade Lasers (QCL) are designed to emit Continuous Wave (CW) infrared light at room temperature, spanning wavelengths from 10 to 17 microns. We offer these lasers in three configurations: HHL Packaged, Laser + Driver Modules, and a Plug & Play Desktop Turnkey System. Please click the image for more details below.
|
HHL Packaged
|
Laser + Driver Modules
|
Plug & Play Desktop Turnkey System
|
|
Mode of Operation: CW or pulsed
Typical Optical Power:
5-10mW typical for avelength under 15 microns
1-5mW typical for wavelength above 15 microns
Up to 20mW with a Fabry-Pérot laser Full Accessible
Wavelength Range: ~3 cm-1 typically
Continuous Tuning ange: >1 cm-1 typically
Side Mode Suppression Ratio: SMSR > 25 dB
Linewidth (FWHM): < 100 Mhz
(free running with suitable electronics for CW lasers)
|
Functionalities:
Laser safety, Laser driver (ON/OFF)
Laser temperature and TEC control
Frequency modulation, external TTL
Physical Interface: USB, RS485
Input Power: 24V DC
Dimension: 4.45cm x 11cm x 2.5cm
|
Functionalities
Laser safety, Laser driver (ON/OFF)
Laser temperature and TEC control
Frequency modulation, external TTL
Physical Interface:
USB interface for PC connection (USB cable upplied)
TTL trig IN connector for TTL external signal.
TTL trig OUT connector for synchronization.
Software: A user-friendly Windows software is supplied
Input Power: 24V DC (an AC/DC power transformer is supplied)
Dimension:
Laser head: 20cm x 15cm x 6cm ,
Driver: 25cm x 15cm x 6cm Laser
Head Cooling: Air cooled
|
In addition, we have an update for a wide range of lasers, please refer to the details below of from our latest PLC (Product Line Card).
Choosing the optimal laser hinges on the unique demands of your experiments. We're confident that our diverse range of lasers offers the ideal solution tailored to your needs. Furthermore, our new additions are designed to deliver dependable solutions across a variety of applications. Drop us an email at info@simtrum.com to get the Best Price today!
We have custom solutions available for Microscopy solutions | Spectroscopy solutions, to learn more about SIMTRUM's own products, click Here.
Please feel free to Contact Us for any requirements or inquiries.
SIMTRUM Marketing
