780/1560 双输出飞秒激光器

Overview Related Products Order Now!

780/1560 nm Dual Output Femtosecond Laser – STR1550D

STR1550D features a dual-port design and may provide high-power output at both 1550nm and 780nm simultaneously. It gives customers the ultimate flexibilities in constructing multi-purpose photonic systems. The proportion of 1550 and 780 output power can be customized upon user request. The laser is an easy-to-use turn-key system and can also be computer controlled.

STR1550D is well-suited for scientific uses such as THz-TDS (time-domain terahertz generation), SHG/THG imaging, pump-probe spectroscopy and multi-photon imaging. It can meet a broad range of R&D requirements of the scientific community.

Features

- Double wavelength output

- High peak power

- Linear polarization

- Diffraction-limited beam

Applications

- SHG imaging

- Two-photon Polymerization

- Multiphoton imaging

- Time-resolved fluorescence

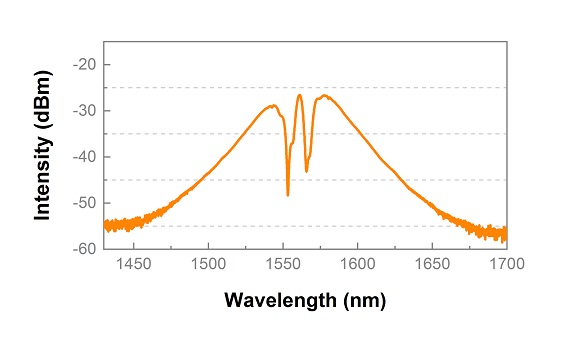

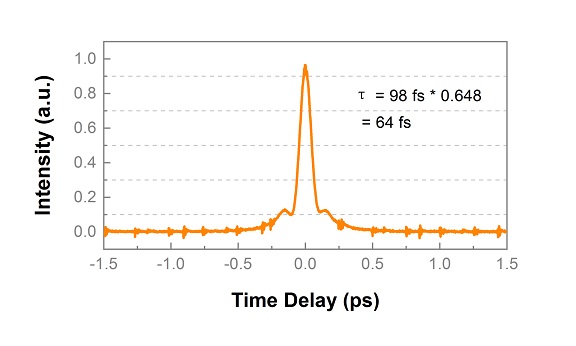

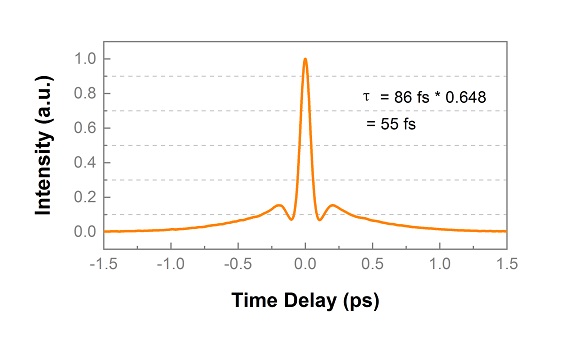

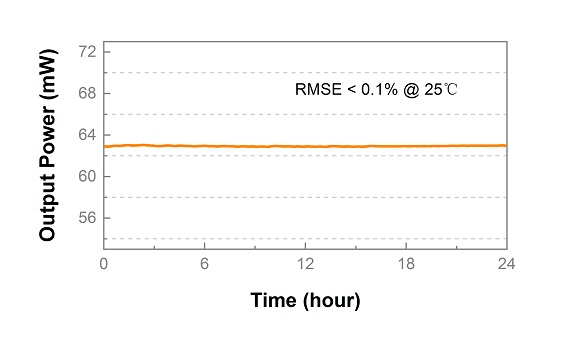

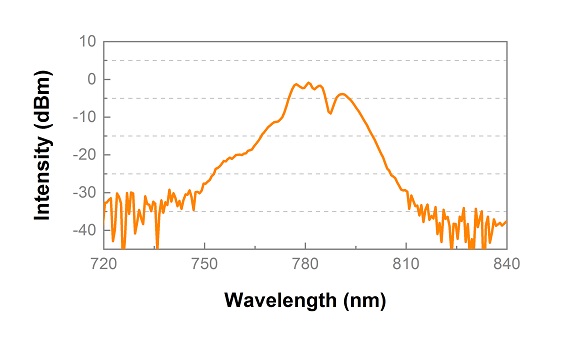

Typical Autocorrelation Trace	Output Spectrum	Power Stability


Typical Autocorrelation Trace	Output Spectrum	Power Stability

Product specifications and Brochures

Product Brochure Link:

Laser Parameters
Operating Wavelength	nm	1560 ± 10 nm	780 ± 10 nm
Pulse Width (FWHM)	fs	< 80 fs	< 100 fs
Polarization Extinction Ratio	dB	> 20 dB
Repetition Rate	MHz	80 MHz
Average Power	mW	>100 mW	> 60 mW (up to 90mW)
Average Power Stability	% RMS	< 0.5 %RMS (12h@25°C)
Pulse Energy	nJ	> 1.25 nJ	> 0.75 nJ
Output Type		PM1550 fiber, FC/APC connector	Spatial collimation output
Electrical, Environmental and Mechanical Parameters
Supply Voltage	VAC	100-240 VAC
Operational Temperature Range	°C	15-35
Operational Humidity Range	°C	20-80 (non-condensing)
Weight	kg	17
Dimensions	mm (LxWxH)	395 x 348 x 126 mm
Cooling		Air Cooling

* For Quotation Please let us know required Pulsed Width(Duration) , Repetion Rate and Power Level

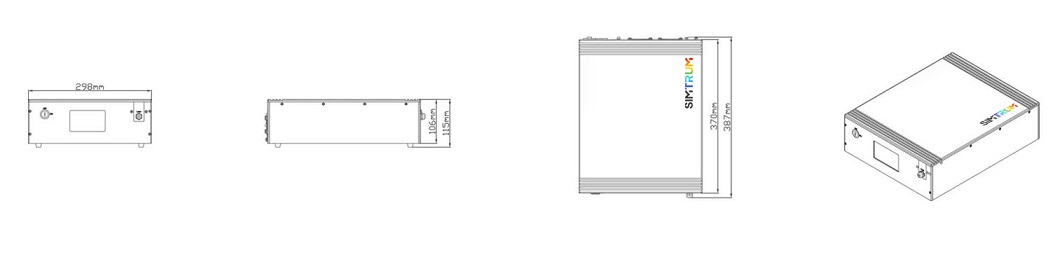

Machine Drawings

Product	Wavelength Range	Pulse Width	Average Power	Rep Rate	Pulse Energy
780nm Femtosecond Laser	780±10 nm	<100 fs	>30 mW	80 MHz	>0.4 nJ
780/1560nm Dual Output FS Laser	780/1560±10 nm	<100 fs	>100mW	80 Mhz	>1.25 nJ
1030nm Femtosecond Laser	1030±5 nm	>200 fs	>60 mW	25 MHz	>4 nJ
1040/50nm Femtosecond Laser	1040/50nm	<150 fs	5 - 10 W	80 Mhz	>80 nJ
1560nm Femtosecond Laser	1560±10 nm	50 - 500 fs	1 mW - 1 W	80 Mhz - 200 MHz	>10 nJ
2000nm Femtosecond Laser	1970±10 nm	200 fs	200 mW	80 MHz	>2.5 nJ
