1040/50 高功率飞秒脉冲激光器

Overview Related Products Order Now!

1040/50nm High Power Ultrafast Femtosecond Laser – STR10X0HP

STR10X0HP is our new generation of “wavelength versatile” high power fiber laser that features unparalleled output parameters. The laser adopts an innovative new cavity design that allows setting of the central wavelength within 1030-1060 nm. As with other SIMTRUM mode-locked products, the STR10X0HP laser is produced using our proprietary ‘Smart-Lock’ processes to ensure long-term stability and reliability. It has an average output power exceeding 5-10 W and a pulse width under 150 fs. A frequency-doubling module can be used to enable W-level 532nm (Green) femtosecond output.

STR10X0HP is well suited for applications such as OPO/OPA pumping, fluorescence microscopy, two-photon polymerization, seeding high-power amplifiers and other advanced photonic experiments.

Features

- Long-term stable operation

- High pulse energy

- Reliable mode-locking

- All-PM solution

Applications

- Harmonic imaging

- Two-photon polymerization

- Two-photon fluorescence imaging

- High precision laser ranging

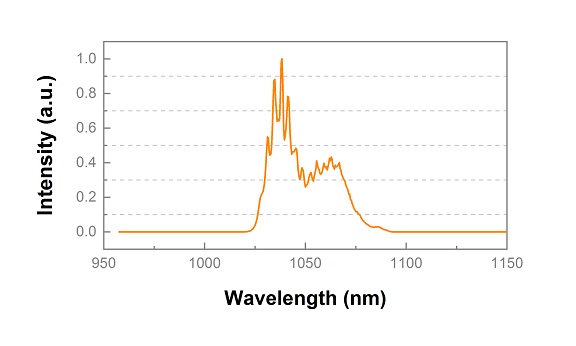

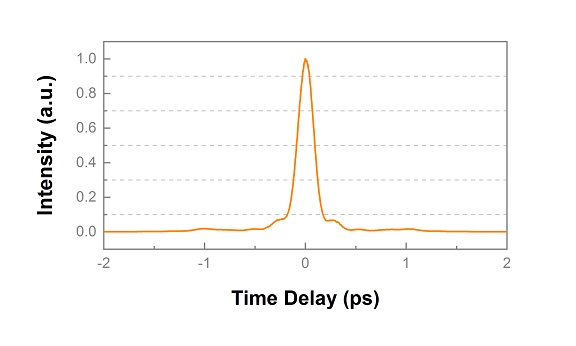

Autocorrelation Trace	Output Spectrum

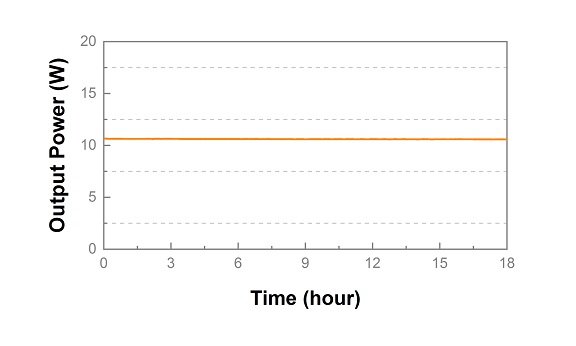

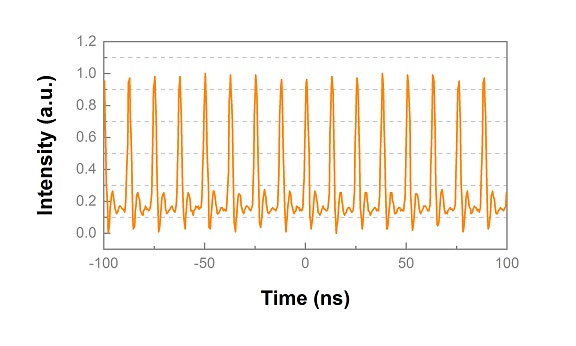

Pulse Energy	Power Stability

Product specifications and Brochures

Product Brochure Link:

Laser Parameters
Operating Wavelength	nm	1040/1050 nm (1030/1060 Optional)
Pulse Width (FWHM)	fs	< 150 fs, < 200 fs (for 8W)
Polarization Extinction Ratio	dB	> 20 dB
Repetition Rate	MHz	80 MHz
Average Power	W	5 - 10 W
Average Power Stability	% RMS	< 0.5 %RMS (12h@25°C)
Pulse Energy	nJ	> 80 nJ
Output Fiber		Spatially collimated output
Electrical, Environmental and Mechanical Parameters
Supply Voltage	VAC	100-240
Operational Temperature Range	°C	15-35
Operational Humidity Range	°C	20-80 (non-condensing)
Weight	kg	20
Dimensions	mm (LxWxH)	445 x 300 x 134 , 390 x 445 x 94
Cooling		Air Cooling

* For Quotation Please let us know required Pulsed Width(Duration) , Repetion Rate and Power Level

Machine Drawings

Product	Wavelength Range	Pulse Width	Average Power	Rep Rate	Pulse Energy
780nm Femtosecond Laser	780±10 nm	<100 fs	>30 mW	80 MHz	>0.4 nJ
780/1560nm Dual Output FS Laser	780/1560±10 nm	<100 fs	>100mW	80 Mhz	>1.25 nJ
1030nm Femtosecond Laser	1030±5 nm	>200 fs	>60 mW	25 MHz	>4 nJ
1040/50nm Femtosecond Laser	1040/50nm	<150 fs	5 - 10 W	80 Mhz	>80 nJ
1560nm Femtosecond Laser	1560±10 nm	50 - 500 fs	1 mW - 1 W	80 Mhz - 200 MHz	>10 nJ
2000nm Femtosecond Laser	1970±10 nm	200 fs	200 mW	80 MHz	>2.5 nJ
