强大的光源

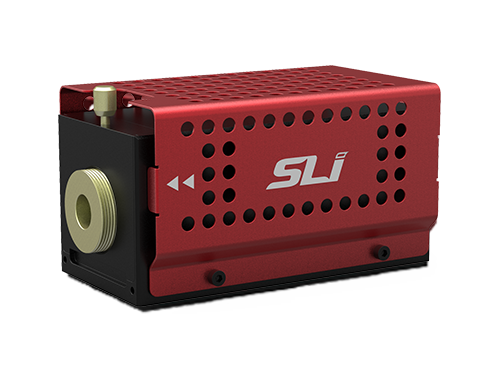

The Mighty Light is a compact white light source that is ideal for microscopy, spectroscopy, machine vision, and spectral imaging applications. The Mighty Light integrates a tungsten halogen bulb and power supply with a control board that delivers uniquely low-noise output. A series of pre-aligned bolt-on accessories allow the broadband output to be coupled into a fibre or light guide, homogenized and collimated, directly coupled into a microscope, or integrated with our unique wavelength selector devices to create a tunable, monochromatic beam.



Product specifications and Brochures

Product Brochure Link:


ProductMighty LightMighty Light Plus
Type of LampTungsten HalogenTungsten Halogen
Lamp Power Output~ 2 W~ 7 W (10 mm light guide)
Power Stability± 0.5 %± 0.5 %
Bulb Lifetime~ 1000 hours~ 500 hours
Color Temperature2900 K3400 K
Dimensions125 mm x 75 mm x 70 mm340 x 160 x 140 mm
Power Supply9V DC at 2A24 V DC at 13 A



Features

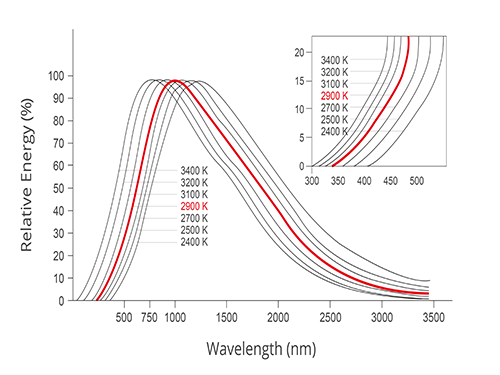

The Mighty Light tungsten-halogen lamp is operated at a color temperature of 2900K. This temperature delivers output from ~350 nm while also providing usable power beyond 2500 nm.

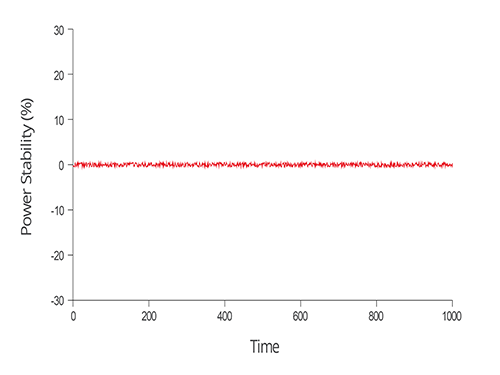

The Mighty Light power supply is operated closed loop by a custom control board.This tight current control results in very low output noise (< 0.5%).




The Mighty Light is a compact package (125 mm x 75 mm x 70 mm) integrating the

lamp and the controller.

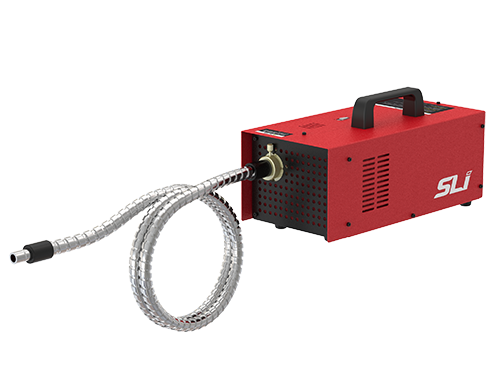

The Mighty Light Plus (MLP) is a broadband light source that provides 10X higher spatial brightness than competitive sources: delivering up to 7 watts of collimated output from a 10 mm diameter flexible light guide. Useful output spans 350 nm to >2500 nm and the low-noise output power is smoothly adjustable from 0 - 100 %. Applications include microscopy, white light interferometry, machine vision, and precision inspection.




Product specifications and Brochures

Product Brochure Link:



ProductMighty LightMighty Light Plus
Type of LampTungsten HalogenTungsten Halogen
Lamp Power Output~ 2 W~ 7 W (10 mm light guide)
Power Stability± 0.5 %± 0.5 %
Bulb Lifetime~ 1000 hours~ 500 hours
Color Temperature2900 K3400 K
Dimensions125 mm x 75 mm x 70 mm340 x 160 x 140 mm
Power Supply9V DC at 2A24 V DC at 13 A


Features


The Mighty Light tungsten- halogen lamp is operated at a color temperature of 3400 K.  This temperature delivers output from ~350 nm while also providing usable power beyond 2500 nm.

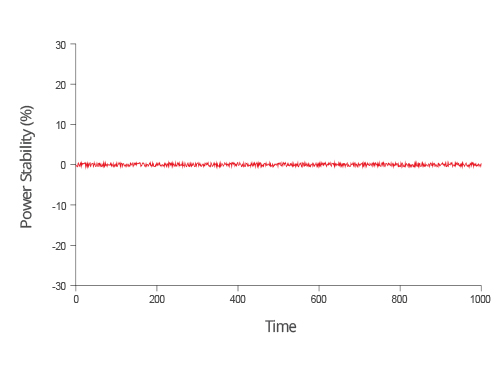

The Mighty Light Plus power supply is operated closed loop by a custom control board. This tight current control results in very low output noise (< 0.5%).

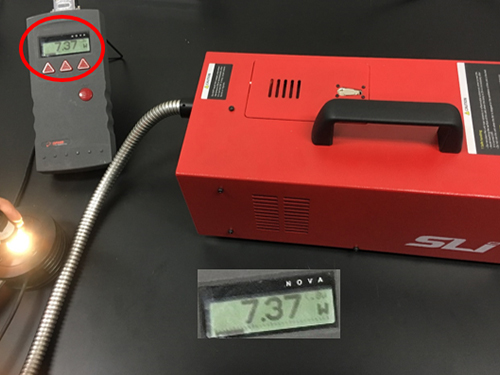

Uniquely efficient collection optics mean the MLP offers the industry’s highest spatial brightness with over 7 watts from a 10 mm diameter light guide and collimator.





SpectroLight Wavelength
Selector
Product Matrix
Wavelength RangeWavelength AdjustmentBandwidth AdjustmentCenter Wavelength
 Accuracy
FWHM AccuracyAperture
Flexible Wavelength
 Auto
FWS Poly255 - 1700 nmSoftware Control
 -50 nm  to -500 nm
Software Control (3-16 nm)± 0.5 nm± 0.5 nm5 nm
FWS Mono255 - 1700 nmSoftware Control
 -100 nm
Software Control (3-16 nm)± 0.5 nm± 0.5 nm5 nm
Flexible Wavelength
 Manual
FWS Basic255 - 1700 nmManual Control
 -50 nm to -400 nm
Manual Control 3 nm to 16 nm± 0.5 nm± 0.5 nm5 nm
FWS Centerline255 - 1700 nmManual Control
 -50 nm to -200 nm
Manual Control Fixed 16 nm± 0.5 nm2nm - 16nmup to 10   mm
FWS High Resolution255 - 1700 nmManual Control
 -50 nm to -200 nm
Manual Control up to 1.5 nm± 0.5 nm2nm - 16nmup to 10 mm



Accessories

Product

Type of Lamp

Lamp Power Output

Power Stability

Bulb Lifetime

Color
Temperature

Dimensions

Power Supply

Mighty Light

Tungsten Halogen

~ 2 W

± 0.5 %

~ 1000 hours

2900 K

125 x 75 x 70 mm

9V DC at 2A

Mighty Light Plus

Tungsten Halogen

~ 7 W (10mm light guide)

± 0.5 %

~ 500 hours

3400 K

340 x 160 x 140 mm

24 V DC at 13 A



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards, click it now.

Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).




Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)

Mighty Light - Parameter

Mighty Light - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)
Mighty Light
Mighty Light Sources, Tungsten Halogen, Output power -2W, Bulb lifetime -1000 hrs, Color Temperature 2900K
In Stock Request for quote
