DPSS纳秒脉冲激光器

Overview 266/351/355 Model 527/532 Model 1064 Model 3.4um Model Order Now!

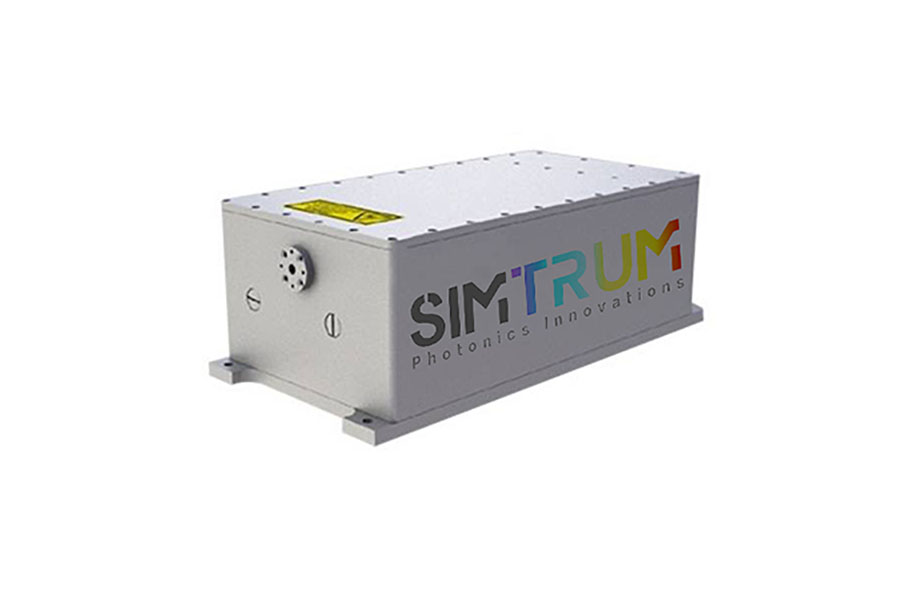

SIMTRUM design and manufacture 4 Models of diode pump solid state Nanosecond pulsed laser (DPSS ns laser), Covering the wavelength on 266nm, 351nm, 355nm, 527nm, 532nm, 1064nm and 3400nm. The specification of the laser is customizable

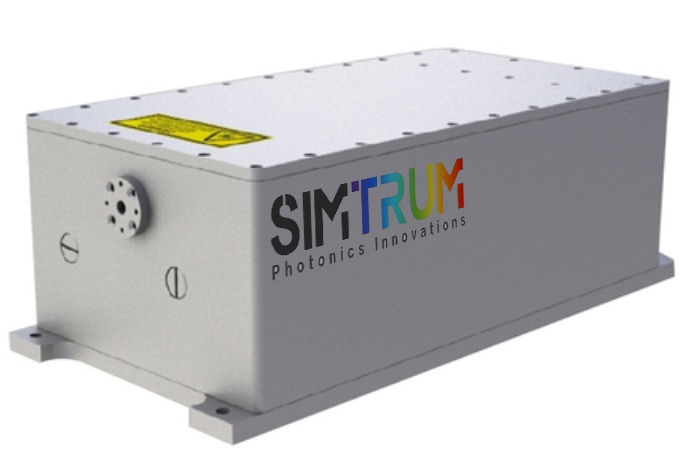

Ultraviolet Nanosecond Lasers (Lancer Series 266nm, 351nm, 355nm)

It mantain a maximum output of 40W. The standard product has a pulse width of 12ns and a 7-day power instability (2 x RMS) <= 1.4%, meeting 365*7*24 hours of of high-intensity use.

Defining Features

• All solid state end pumped

• Intracavity frequency doubling

• Frequency laser system

• Unique optical cavity design to ensure high beam quality

Applications

• PCB/Camera chip/FPC module cutting

• Glass fiber cloth & Epoxy resin cutting

• Ferrite/carbon fiber/graphene cutting

• Tungsten sheet/aluminum film/coper film

cutting/resistance cutting

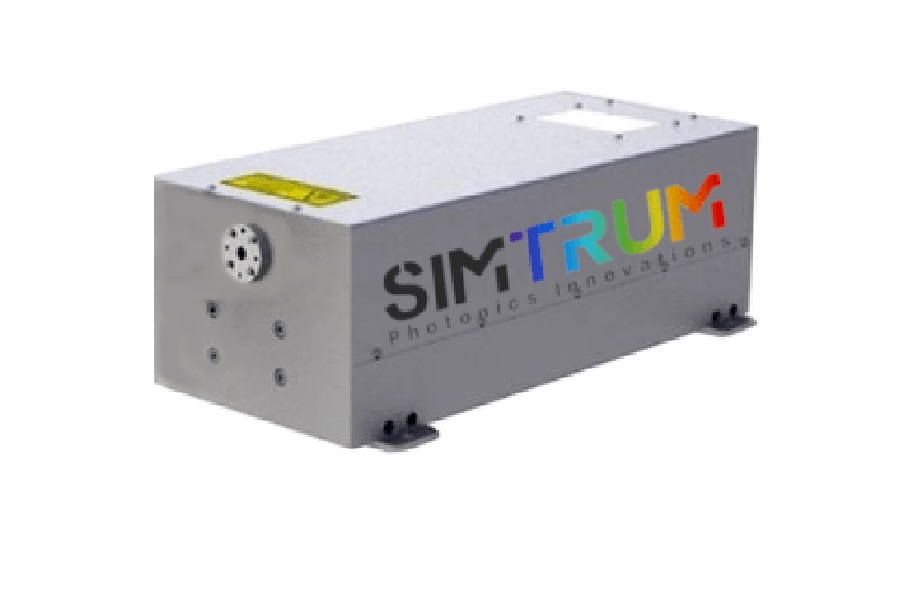

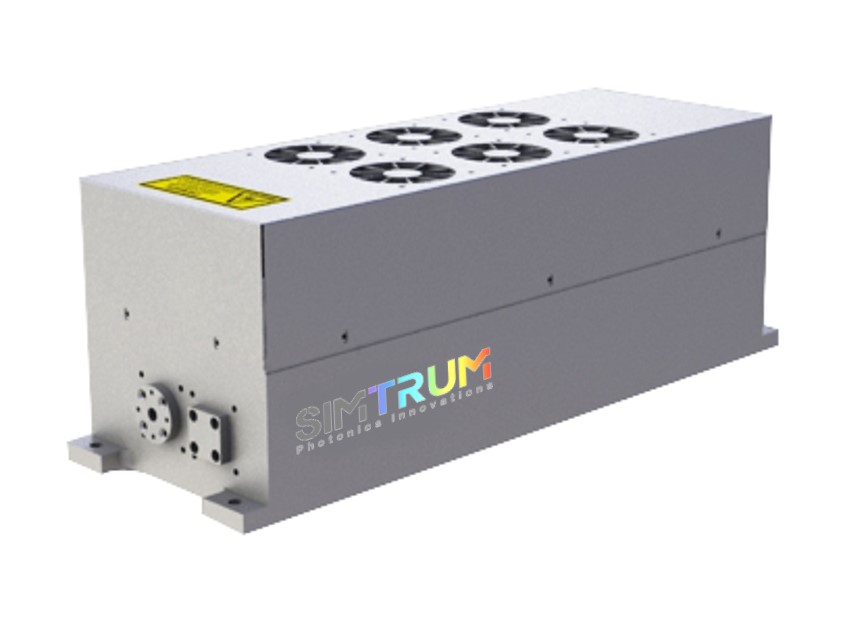

Green Nanosecond Lasers (Galver Series 527nm, 532nm)

It mantain a maximum output of 50W. The standard product has a pulse width of 10ns to 20ns and a 7-day power instability (2 x RMS) <= 1.4%, meeting 365*7*24 hours of of high-intensity use.

Defining Features

• All solid state end pumped

• OPO laser system

• Light weight

• Compact optical design to ensure high stability

Applications

• Military detectors

• Medical fields

• Gas composition analysis

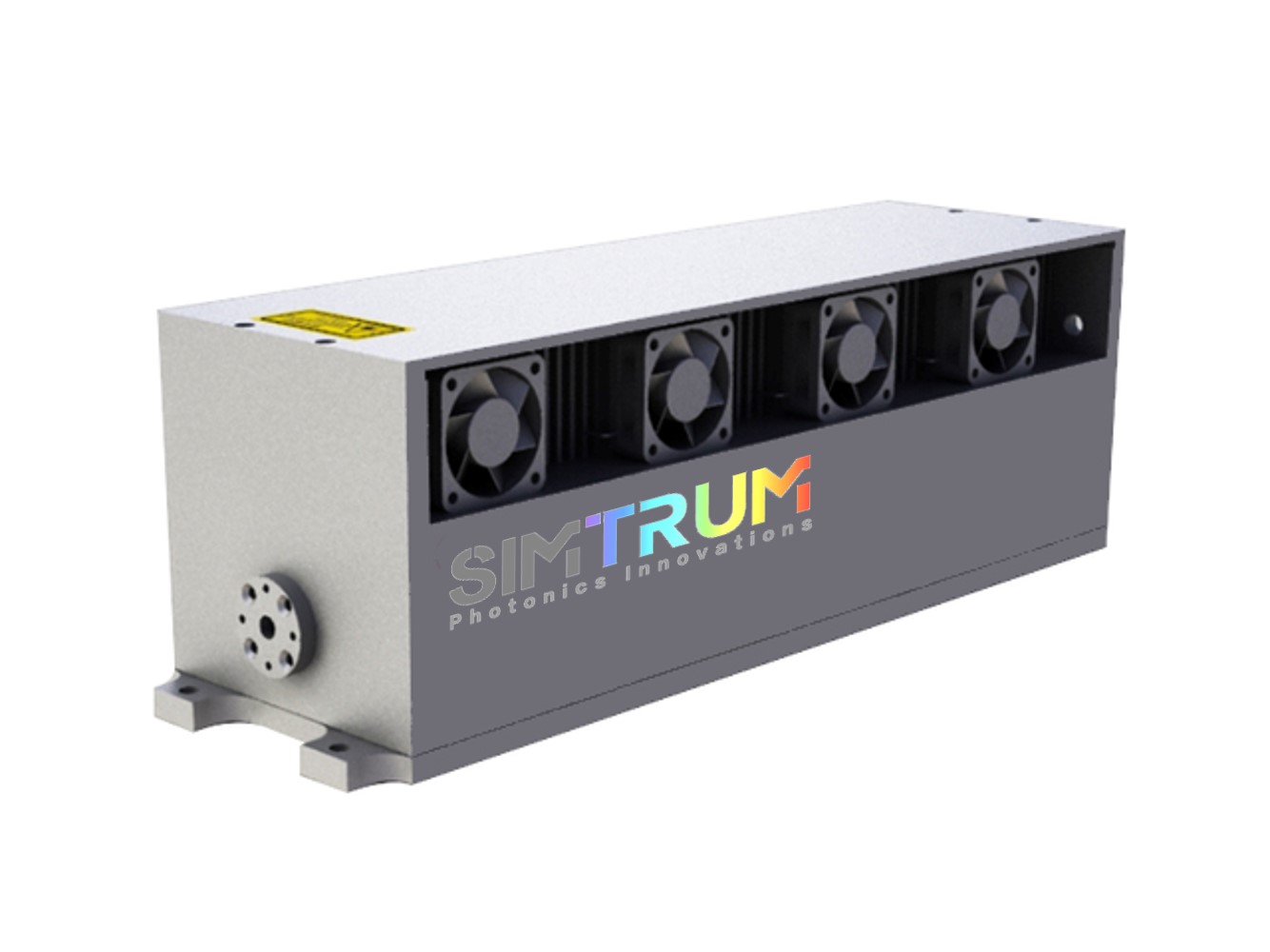

Infrared Nanosecond Lasers (Ladder Series 1064 NG:YAG or NG:YVO4)

It is developed to provide high power and high energy. The product has a 7-day power instability (2 x RMS) <= 1.4%, meeting 365*7*24 hours of high-intensity use.

Defining Features

• All solid state end pumped

• Stable cavity shape

• Long lifetime

• Compact optical design to make the product extremely stable

Applications

• Laser marking

• Laser scribing

• Laser welding

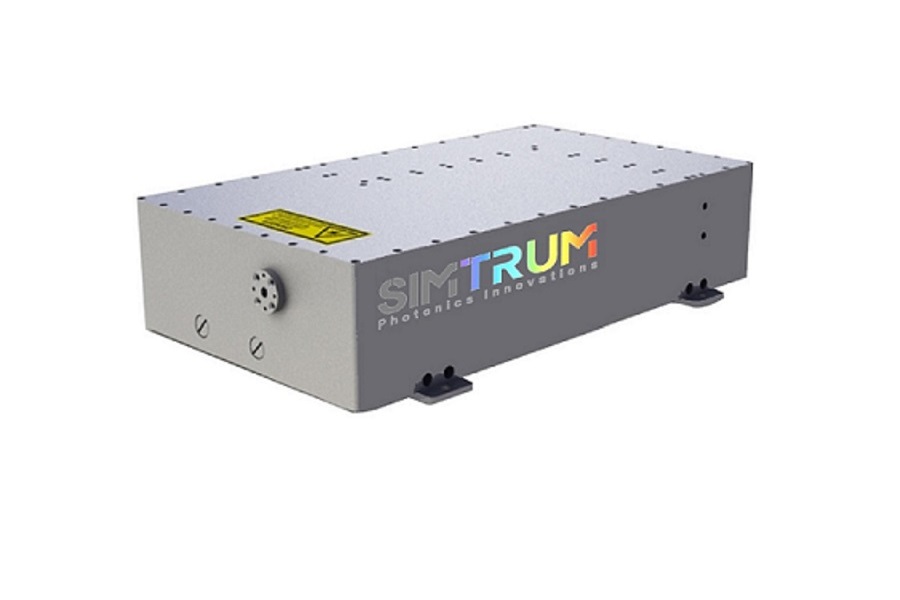

Mid-Infrared Nanosecond Lasers（RIver Series 3.4um)

It was developed in line with the requirements of military customers. They are safe, stable and compact allowing for easy installation in small tactical platforms. The product meets 365*7*24 hours of high-intensity use.

Defining Features

• All solid state end pumped

• Intracavity frequency doubling

• Frequency laser system

• Unique optical cavity design to ensure high beam

quality

Applications

• Radar detection

• Glass cutting and punching

• Metal coil cutting

Product Brochure Industrial DPSS Laser

General Specifications

MODEL NO.	Lancer-266SP	Lancer-351SP	Lancer-355HP	Lancer-355SP
Parameter
Wavelength	266nm	351nm	355nm	355nm
Power	≥1W	1W@1kHz	≥35W	3-30W
Repeat frequency	0-200kHz	1-4kHz	0-200kHz	0-200kHz
Pulse energy	50μJ（20kHz）125uJ（1kHz）	＞1mJ@1kHz	1000μJ (30-40kHz)	75-1000μJ（30-40kHz）
Pulse energy	50μJ（20kHz）125uJ（1kHz）	＞1mJ@1kHz	1000μJ (30-40kHz)	75-1000μJ（30-40kHz）
Pulse width	12ns	<50ns@1kHz	<40ns	<20ns
Beam characteristics
Spot mode	TEM00	TEM00	TEM00
M2 factor	＜1.5	＜1.2	＜1.3	＜1.3
Polarization state	Elliptical polarization optional	＞100:1 Horizontal polarization	＞100:1 Horizontal polarization
Beam divergence angle	＜2 mrad	＜2 mrad	＜2 mrad
Pointing stability	＜±25 μrad/℃	＜±25 μrad/℃	＜±25 μrad/℃
Power stability	＜1.5% rms	＜1% rms	＜1% rms	＜1% rms
Working environment
Preheat time	＜10 min	＜10 min	＜10 min
Temperature range	10-35℃	10-35℃	10-35℃
Humidity range	5%-95%	5%-95%	5%-95%
Temperature setting	22℃±0.1℃	22℃±0.1℃	22℃±0.1℃
Physical parameter
Laser head size (L×W×H）	(435×279×102mm）	(632.5×210×141mm）	(435×279×102mm）
Laser head weight	12.5KG	12.5KG	15.5KG	12KG
Controller size (L×W×H）	(438×420×145mm）	Can be integrated	15W and below can be integrated with laser head

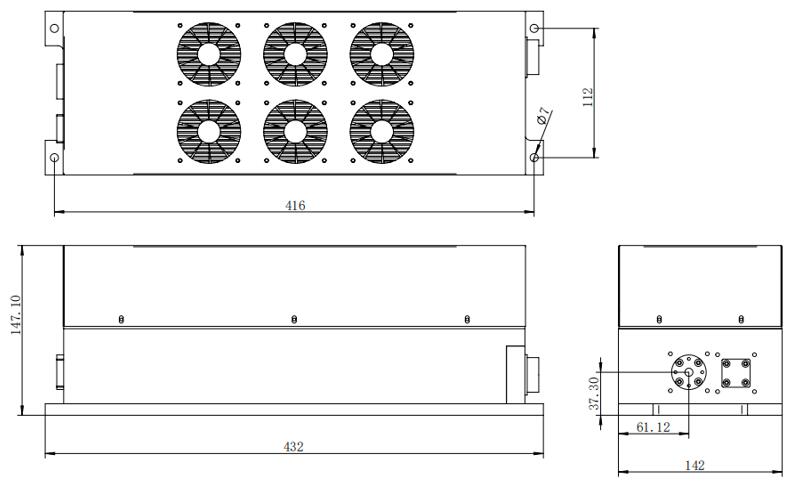

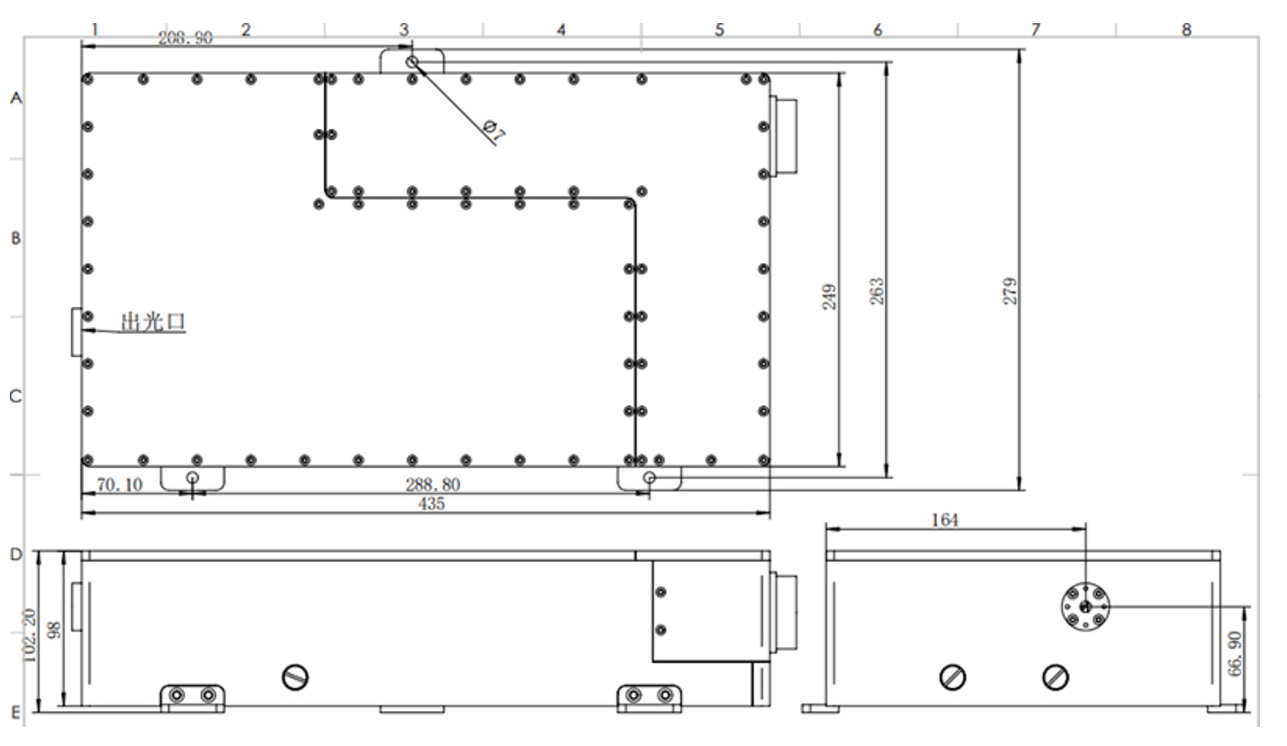

Technical Drawings

1-15W UV

30W UV

Product Brochure Industrial DPSS Laser

General Specifications

MODEL NO.	Galver-527	Galver-532	Galver-532SP	Galver-532HP
Parameter
Wavelength	527nm	532nm	532nm	532nm
Power	>3W@3kHz	>8W@50kHz	>3W@20kHz	>50W@50kHz
Repeat frequency	1-10kHz	0-200kHz	0-200kHz	20-200kHz
Pulse energy	>2000μJ @1kHz	>160μJ@50kHz	>150μJ（20kHz）	1mJ@50kHz
Pulse width	60ns	10ns	5ns	20ns
Beam characteristics
Spot mode	TEM00	TEM00
M2 factor	＜1.2	＜1.2	＜1.3
Polarization state	＞100:1 Vertical polarization	＞100:1Vertical polarization
Beam divergence angle	＜2 mrad	＜2 mrad
Pointing stability	＜±25 μrad/℃	＜±25 μrad/℃
Power stability	＜1% rms	＜1% rms	＜1.5% rms
Working environment
Cooling method	Air cooling/water cooling	Air cooling/water cooling	Water cooling
Preheat time	＜10 min	＜10 min	＜10 min
Temperature range	10-35℃	10-35℃	10-35℃
Humidity range	5%-95%	5%-95%	5%-95%
Temperature setting	23℃±0.1℃	23℃±0.1℃	22℃±0.1℃
Physical parameter

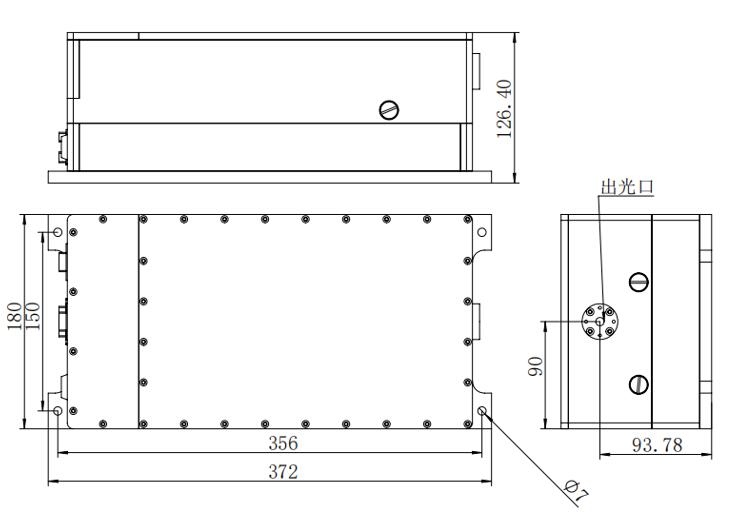

Laser head size (L×W×H）	(432×142×147mm）	(372×180×127mm）/（432×112×147mm）		(435×279×102mm）
Laser head weight	13KG	12KG	12KG	20KG
Controller size	(438×420×145mm）	Can be integrated with laser head

Product Brochure Industrial DPSS Laser

General Specifications

MODEL NO.	10-1064	15-1064	20-1064	30-1064		40-1064	50-1064	60-1064
Parameter
Laser Medium	Nd:YVO₄	Nd:YVO₄	Nd:YVO₄	Nd:YVO₄		Nd:YVO₄	Nd:YVO₄	Nd:YVO₄
Wavelength	1064 nm	1064 nm	1064 nm	1064 nm		1064 nm	1064 nm	1064 nm
Nominal Power @40Khz	10W	15W	20W	30W		40W	50W	60W
Repetition Rate	10 - 150 KHz
Pulse Width	<30 ns @ 40 kHz
Pulse Energy	250uJ @ 40 kHz	375uJ @ 40 kHz	500uJ @ 40 kHz		750uJ @ 40 kHz	1000uJ @ 40 kHz	1250uJ @ 40 kHz	1500uJ @ 40 KHz
Peak Power	>8.33kW @ 40 kHz	>12.5kW @ 40 kHz	>16.67kW @ 40 kHz		>25kW @ 40 kHz	>33.3kW @ 40 kHz	>41.67kW @ 40 kHz	>50kW @ 40 kHz
Beam Characteristic
Pulse - to - Pulse Stability	<2% @ 40 kHz
Power Stability (rms, 8h)	<2%
Spatial Mode	M²<1.3, TEM₀₀
Nominal Beam Diameter (at waist)	<1 mm
Nominal Waist Location (from output)	<1 mm
Beam Divergence (full angle)	≤2 mrad
Nominal Beam Diameter (at output)	<1.1 mm
Polarization	Horizontal, >100:1
Circularity	>90 %
Working environment
Warm - up Time	<15 min
Operating Voltage OEM P / S (standard)	24 VDC
Operating Voltage 19″ P / S (optional)	AC 220 V or AC 110 V, 50 Hz / 60 Hz
Laser Power Consumption	<350 W
Cooling	Air		Water
Ambient Temperature	15 - 35 ℃
External Temperature	RS232
Physical parameter
Dimensions Laser Head (L × W × H)	<440 × 120 × 95 mm					<450 × 230 × 95 mm
Weight Laser Head	<12 Kg					<20Kg

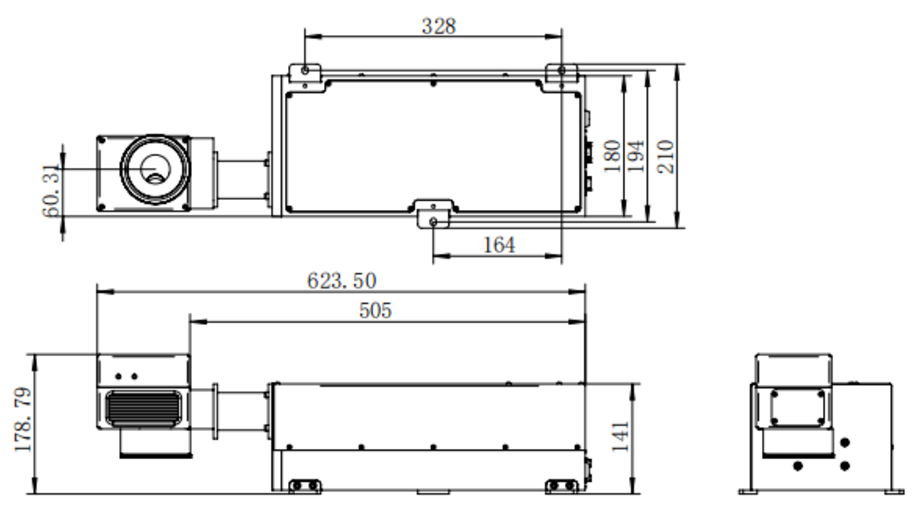

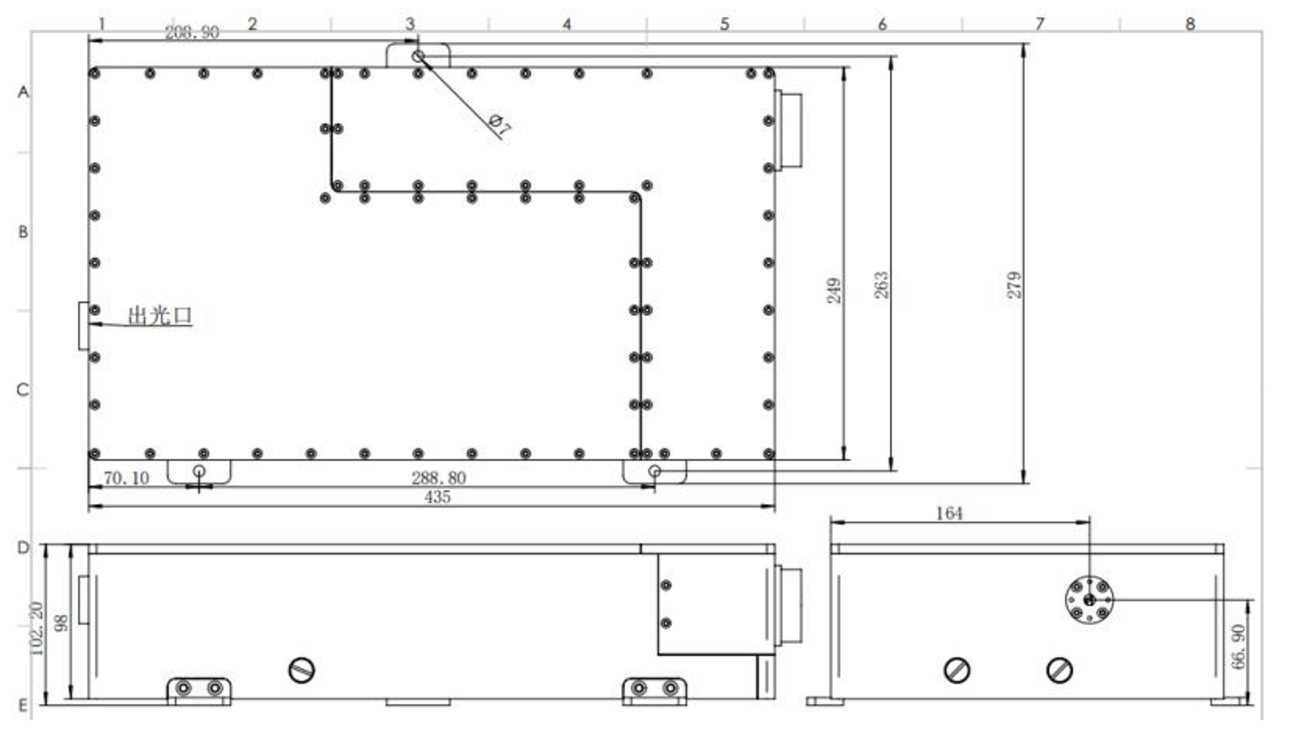

Technical Drawings

Product Brochure Industrial DPSS Laser

General Specifications

MODEL NO.	River-3.4
Parameter
Wavelength	3.4μm
Power	>1W@40kHz
Repeat frequency	20-100kHz
Pulse energy	>25μJ@40kHz
Pulse width	10ns
Beam characteristics
Polarization state	＞100:1 Horizontal polarization
Pointing stability	＜±25 μrad/℃
Power stability	＜2% rms
Working environment
Cooling method	Wind cooling
Preheat time	＜10 min
Temperature range	10-35℃
Humidity range	5%-95%
Physical parameter
Laser head size (L×W×H）	(380×110×120mm）
Laser head weight	<5KG
Controller size	customizable

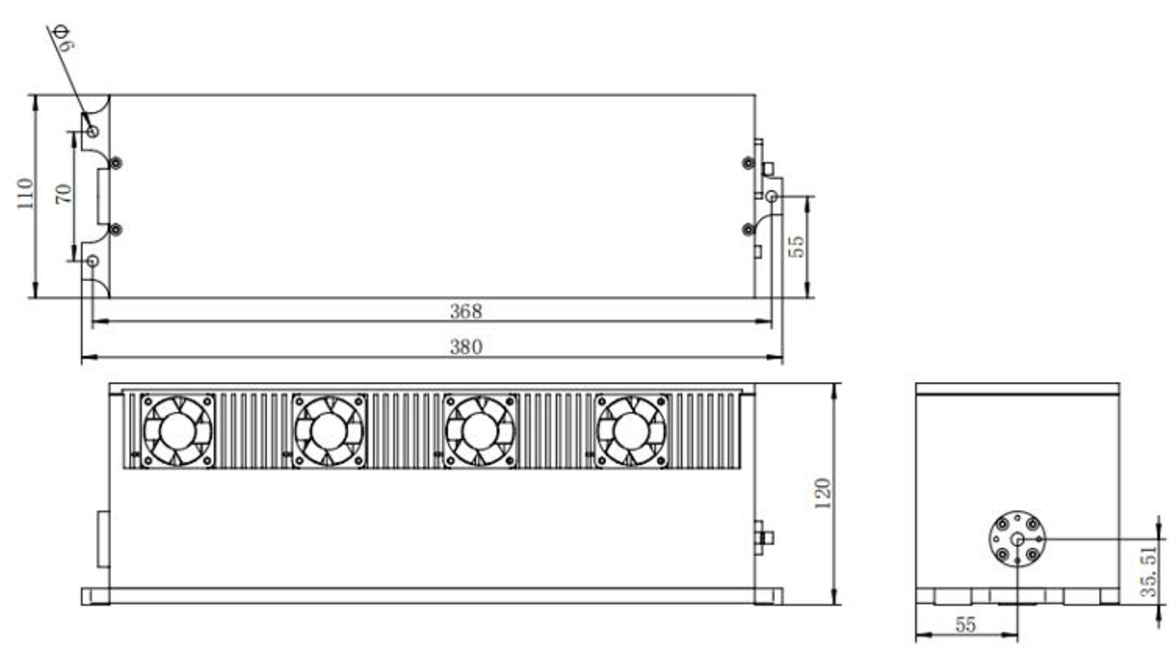

Technical Drawings

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Wavelength (nm)

Search Reset

	Wavelength (nm)	Availability	Reference Price (USD)
Lancer-266SP Ultraviolet Nanosecond Lasers 266nm		4-6 Weeks	Request for quote
Lancer-351SP Ultraviolet Nanosecond Lasers 351nm		4-6 Weeks	Request for quote
Lancer-355SP Ultraviolet Nanosecond Lasers 355nm	355	4-6 Weeks	Request for quote
Lancer-355HP Ultraviolet Nanosecond Lasers 355nm	355	4-6 Weeks	Request for quote
Galver-527 Green Nanosecond Lasers 527nm		4-6 Weeks	Request for quote
Galver-532 Green Nanosecond Lasers 532nm	532	4-6 Weeks	Request for quote
Galver-532SP Green Nanosecond Lasers 532nm	532	4-6 Weeks	Request for quote
Galver-532HP Green Nanosecond Lasers 532nm	532	4-6 Weeks	Request for quote
Ladder-1064 Infrared Nanosecond Lasers 1064 NG:YAG or NG:YVO4	1064	4-6 Weeks	Request for quote
River-3.4 Mid-Infrared Nanosecond Lasers 3.4um		4-6 Weeks	Request for quote
