灵活的波长自动选择器

FWS Auto I Poly FWS Auto II Mono Application & Software Related Products Order Now!

Flexible Wavelength Selector – Auto Poly (FWS-Poly)

The Flexible Wavelength Wavelength Selector is a unique wavelength selection device that employs TwinFilm™ technology to deliver the tunability and adjustable bandwidth of a grating monochromator, together with the imaging advantages of a circular aperture filter. Auto Poly models feature complete software control of wavelength and bandwidth via a USB link and simple software interface.

Product specifications and Brochures

Product Brochure Link:

Optical Specifications
	Poly	Mono
Transmission	> 75% (in proportion to an input light power / FWHM > 5nm)
Spectral Range (nominal)	255~1700 nm
Center Wavelength Accuracy (nominal)	± 0.5 nm
FWHM accuracy (nominal)	± 0.5 nm
Wavelength Adjustment	Software Control -50 nm to -400 nm	Software Control -100 nm
Cut-on Transition Width	2%-3% (from blocking to transmission)
Cut-off Transition Width	2%-3% (from transmission to blocking)
General Specifications
Dimensions	170 x 129 x 200 mm	48 x 92 x 64 mm
Aperture Size	5 mm
Input Power	12V , 4A	12V , 2A
Data Interface	USB

Flexible Wavelength Selector Auto Poly
Spectral Range	Item Number
255 ~ 400 nm	FWS-Poly-UV
350 ~ 900 nm	FWS-Poly-VIS
620 ~ 900 nm	FWS-Poly-NIR
1010 ~ 1700 nm	FWS-Poly-SWIR
620 ~ 1700 nm	FWS-Poly-IR Plus
Custom Range	FWS-Poly-Custom

Model Guide
Product Number	Product Size	Spectral Range	FWHM Range	Aperture Size	Transmission
FWS-Poly-UV	Medium (170x129x200 mm)	255 ~ 390 nm	3 ~ 16 nm	5 mm	> 75 %
FWS-Poly-VIS	Medium (170x129x200 mm)	353 ~ 890 nm	3 ~ 15 nm	5 mm	> 75 %
FWS-Poly-NIR	Medium (170x129x200 mm)	615 ~ 1015 nm	3 ~ 15 nm	5 mm	> 75 %
FWS-Poly-SWIR	Medium (170x129x200 mm)	1005 ~ 1650 nm	5 ~ 15 nm	5 mm	> 75 %
FWS-Poly-IR-Plus	Medium (170x129x200 mm)	615 ~ 1650 nm	3 ~ 15 nm	5 mm	> 75 %
FWS-Poly-Custom	Medium (170x129x200 mm)	~ User Defined nm	3 ~ 16 nm	5 mm	> 75 %

Flexible Wavelength Selector – Auto Mono (FWS-Mono)

The Flexible Wavelength Wavelength Selector is a unique wavelength selection device that employs TwinFilm™ technology to deliver the tunability and adjustable bandwidth of a grating monochromator, together with the imaging advantages of a circular aperture filter. Auto Mono models feature complete software control of wavelength and bandwidth via a USB link and simple software interface.

Product specifications and Brochures

Product Brochure Link:

Optical Specifications
	Poly	Mono
Transmission	> 75% (in proportion to an input light power / FWHM > 5nm)
Spectral Range (nominal)	255~1700 nm
Center Wavelength Accuracy (nominal)	± 0.5 nm
FWHM accuracy (nominal)	± 0.5 nm

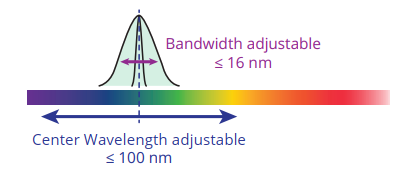

Wavelength Adjustment	Software Control -50 nm to -400 nm	Software Control -100 nm
Cut-on Transition Width	2%-3% (from blocking to transmission)
Cut-off Transition Width	2%-3% (from transmission to blocking)
General Specifications
Dimensions	170 x 129 x 200 mm	48 x 92 x 64 mm
Aperture Size	5 mm
Input Power	12V , 4A	12V , 2A
Data Interface	USB

Flexible Wavelength Selector Auto Mono
Spectral Range	Item Number
255 ~ 1700 nm	FWS-Mono

Product Selection Guide
Product Number	Product Size	Center Wavelength	Spectral Range	FWHM Range	Aperture Size	Transmission
FWS-Mono-F00	Medium (48x92x64 mm)	272 nm	253 ~ 290 nm	3 ~ 16 nm	5 mm	> 75 %
FWS-Mono-F01	Medium (48x92x64 mm)	299 nm	278 ~ 320 nm	3 ~ 16 nm	5 mm	> 75 %
FWS-Mono-F02	Medium (48x92x64 mm)	334 nm	310 ~ 358 nm	3 ~ 16 nm	5 mm	> 75 %
FWS-Mono-F03	Medium (48x92x64 mm)	372 nm	353 ~ 390 nm	3 ~ 15 nm	5 mm	> 75 %
FWS-Mono-F04	Medium (48x92x64 mm)	410 nm	385 ~ 435 nm	3 ~ 15 nm	5 mm	> 75 %
FWS-Mono-F05	Medium (48x92x64 mm)	460 nm	430 ~ 490 nm	3 ~ 15 nm	5 mm	> 75 %
FWS-Mono-F06	Medium (48x92x64 mm)	518 nm	485 ~ 550 nm	3 ~ 15 nm	5 mm	> 75 %
FWS-Mono-F07	Medium (48x92x64 mm)	583 nm	545 ~ 620 nm	3 ~ 15 nm	5 mm	> 75 %
FWS-Mono-F08	Medium (48x92x64 mm)	658 nm	615 ~ 700 nm	3 ~ 15 nm	5 mm	> 75 %
FWS-Mono-F09	Medium (48x92x64 mm)	740 nm	690 ~ 790 nm	3 ~ 15 nm	5 mm	> 75 %
FWS-Mono-F10	Medium (48x92x64 mm)	833 nm	775 ~ 890 nm	3 ~ 15 nm	5 mm	> 75 %
FWS-Mono-F11	Medium (48x92x64 mm)	945 nm	880 ~ 1015 nm	5 ~ 15 nm	5 mm	> 75 %
FWS-Mono-F12	Medium (48x92x64 mm)	1083 nm	1005 ~ 1160 nm	5 ~ 15 nm	5 mm	> 75 %
FWS-Mono-F13	Medium (48x92x64 mm)	1233 nm	1145 ~ 1320 nm	5 ~ 15 nm	5 mm	> 75 %
FWS-Mono-F14	Medium (48x92x64 mm)	1403 nm	1300 ~ 1505 nm	5 ~ 15 nm	5 mm	> 75 %
FWS-Mono-F15	Medium (48x92x64 mm)	1563 nm	1475 ~ 1650 nm	7 ~ 13 nm	5 mm	> 14 %

Applications

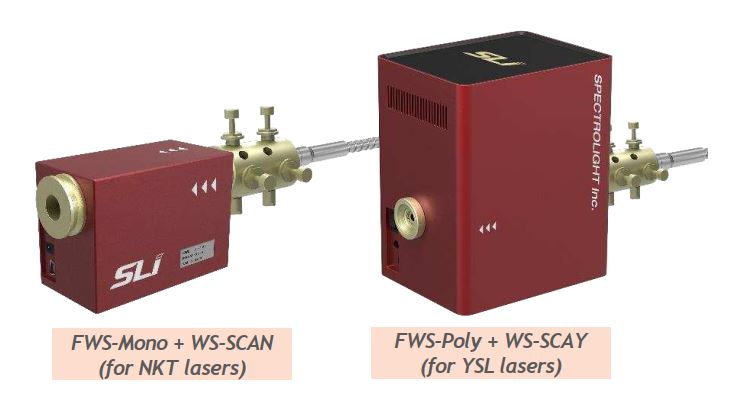

Tunable Light Generation
The Flexible Wavelength Wavelength Selector(FWS) can be applied with various types of Light sources, such as plasma light, supercontinuum laser, LED, Xenon lamp and so on.FWS can provide the tenability on the light sources used in a user's system. Applications with various light sources - NKT, LEUKOS, YSL Supercontinuum lasers - Energetiq, ISTEQ Laser-Driven Light Source - LED, Xenon and other lamp types

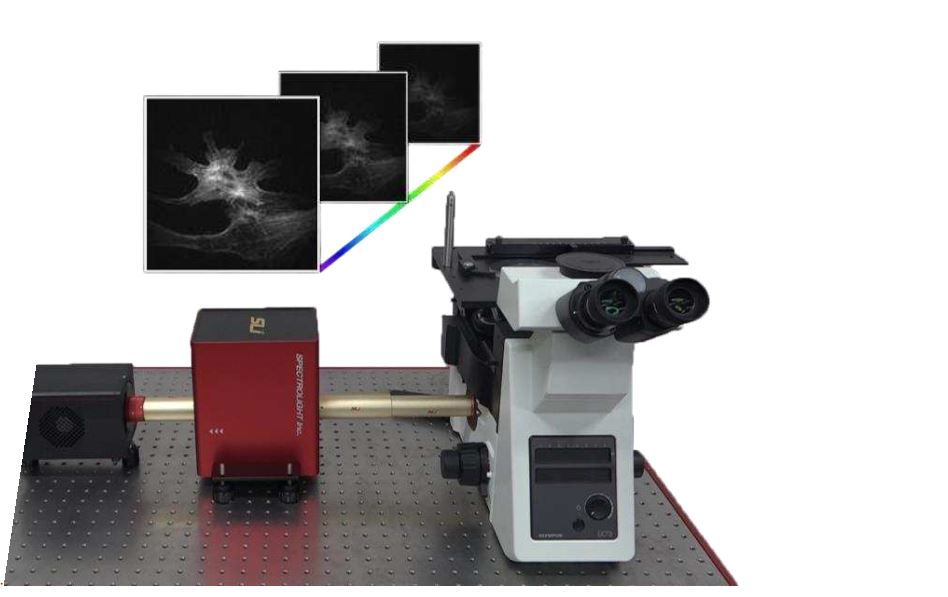

Imaging Detection

It is possible to convert a commercial fluorescence microscope into a hyperspectral imaging microscope by applying our FWS on the emission port of the microscope. Emission intensity and wide-field spectral images can be checked during the hyperspectral imaging process.

Applications using 4f Relay System
- Hyperspectral Imaging
- Global Raman Imaging
- Fluorescent Imaging

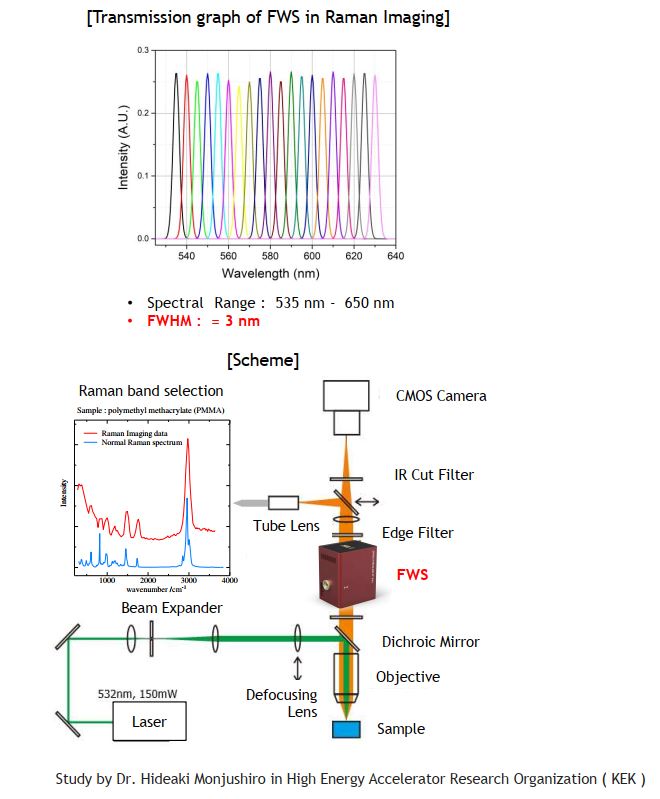

Global Raman Imaging

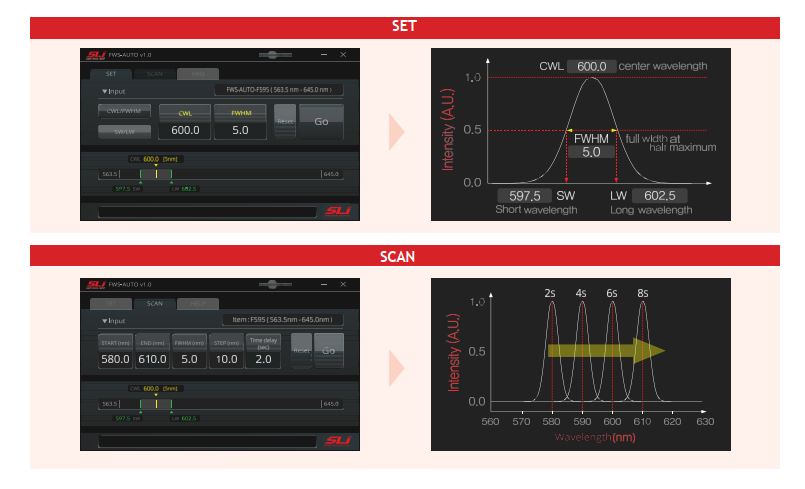

Software Features

SpectroLight Wavelength Selector Product Matrix		Wavelength Range	Wavelength Adjustment	Bandwidth Adjustment	Center Wavelength Accuracy	FWHM Accuracy	Aperture
Flexible Wavelength Auto	FWS Poly	255 - 1700 nm	Software Control -50 nm to -500 nm	Software Control (3-16 nm)	± 0.5 nm	± 0.5 nm	5 nm
Flexible Wavelength Auto	FWS Mono	255 - 1700 nm	Software Control -100 nm	Software Control (3-16 nm)	± 0.5 nm	± 0.5 nm	5 nm
Flexible Wavelength Manual	FWS Basic	255 - 1700 nm	Manual Control -50 nm to -400 nm	Manual Control 3 nm to 16 nm	± 0.5 nm	± 0.5 nm	5 nm
	FWS Centerline	255 - 1700 nm	Manual Control -50 nm to -200 nm	Manual Control Fixed 16 nm	± 0.5 nm	2nm - 16nm	up to 10 mm
	FWS High Resolution	255 - 1700 nm	Manual Control -50 nm to -200 nm	Manual Control up to 1.5 nm	± 0.5 nm	2nm - 16nm	up to 10 mm

Accessories
Product	Type of Lamp	Lamp Power Output	Power Stability	Bulb Lifetime	Color Temperature	Dimensions	Power Supply
Mighty Light	Tungsten Halogen	~ 2 W	± 0.5 %	~ 1000 hours	2900 K	125 x 75 x 70 mm	9V DC at 2A
Mighty Light Plus	Tungsten Halogen	~ 7 W (10mm light guide)	± 0.5 %	~ 500 hours	3400 K	340 x 160 x 140 mm	24 V DC at 13 A

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

Compare	Model		Drawings & Specs	Availability	Reference Price (USD)
		FWS-Poly Flexible Wavelength Selector Auto, Spectral Range 255-1700nm, software control -50 nm to -400nm		4-6 Weeks	Request for quote
		FWS-Mono Flexible Wavelength Selector Auto, Spectral Range 255-1700 nm, Software control -100 nm		4-6 Weeks	Request for quote
