红外线高温计(可调焦距) | 瑆创光学电子商店

Products / 成像 /红外温度探测器/成像仪 /红外高温计(-40-3000C) /红外高温计系列5x (可调焦距) /
红外高温计系列5x (可调焦距)
产品概述 规格和型号指南 相关产品 联系下单!

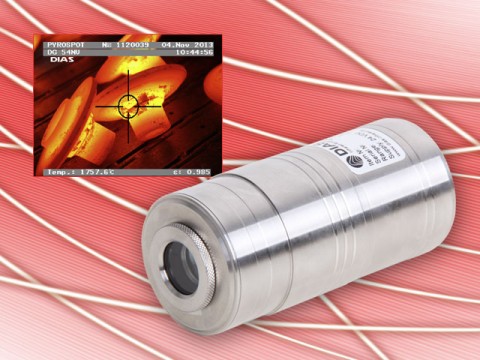

PYROSPOT系列54-功能强大的高温计，具有非常好的性价比

54系列数字高温计PYROSPOT在德国开发和制造，适用于工业和研究领域的连续运行。提供不同的温度和光谱范围。可随时提供包括硬件和软件调整在内的定制系统解决方案。

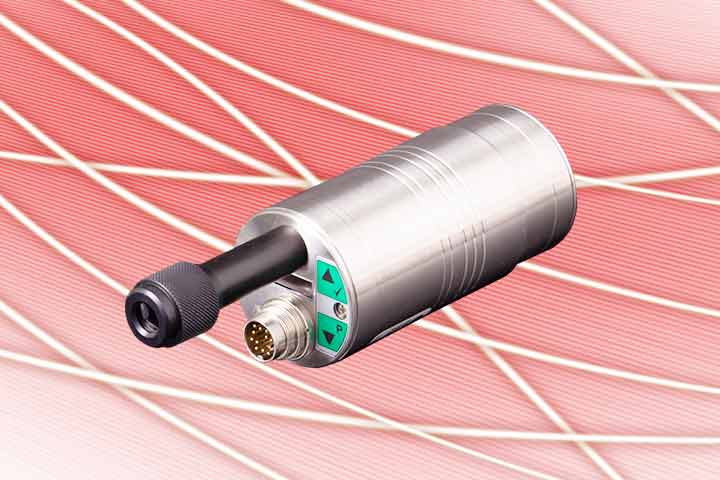

PYROSPOT系列55-舒适的高温计，带固定光学元件或电动聚焦可变光学元件

55系列数字高温计PYROSPOT在德国开发和制造，用于工业连续运行。提供不同的温度和光谱范围。例如，高温计适用于钢铁和金属工业、熔炉设施、焊接和焊接设备以及陶瓷工业。可随时提供包括硬件和软件修改在内的定制系统解决方案。

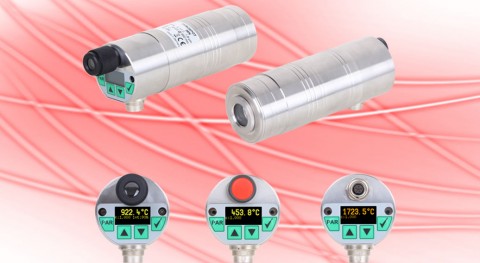

PYROSPOT 系列 56 - 功能强大的高温计，带显示和参数设置键

56系列PYROSPOT数字高温计在德国开发和制造，适用于工业连续运行。它们专门用于工业和研究中的非接触式温度测量。提供不同的温度和光谱范围。可随时提供包括硬件和软件调整在内的定制系统解决方案。



















PYROSPOT系列54的特性：

- 温度测量范围在 –40 °C 至 3000 °C 之间

- 快速响应时间从 2 ms

- 多个固定光学元件，测量场直径从 0.7 mm 起

- 激光瞄准灯，集成彩色摄像机或通过镜头瞄准

- 比率高温计，用于几乎独立于发射率的测量以及特殊测量用于燃烧设备的高温计

- 紧凑、坚固的不锈钢外壳 IP65

- 0/4 至 20 mA 接口

- 电气隔离RS-485接口（Modbus RTU），用于集成到现有的测量系统和舒适的

数据评估

- 最小/最大值存储

- 电气隔离开关输出

PYROSPOT系列55的特性：

- 测量温度范围为 75 °C 至 3000 °C

- 快速响应时间从 2 ms

- 不同的固定光学元件或带电机焦点的可变光学元件（可调节

八步，无外部活动部件）

- 设备背面的显示和参数化按钮

- 激光瞄准灯、集成摄像机或光学透视镜

目击

- 比率高温计，用于几乎独立于发射率的测量

- 紧凑、坚固的不锈钢外壳，IP65，带显示屏和

控制按钮

- 0/4 至 20 mA 接口

- 电气隔离RS-485接口（Modbus RTU），用于集成到现有的

测量系统，舒适的数据评估和参数设置

- 最大/最小值存储

- 电气隔离开关输出

PYROSPOT系列56的特性：



- 温度测量范围为 –40 °C 至 3000 °C

- 快速响应时间从 2 ms

- 多个固定光学元件，测量区域非常小，最小 0.7 mm

- 设备背面的显示和参数化按钮

- 选择性激光瞄准灯，集成摄像机或光学透视镜头目击

- 比率高温计，用于几乎独立于发射率的测量

- 紧凑、坚固的不锈钢外壳 IP65

- 0/4 至 20 mA 接口

- 电气隔离RS-485接口（Modbus RTU），用于集成到现有的测量系统和舒适的

数据评估

- 最大/最小值存储

- 电气隔离开关输出









































































外壳变体

  圆形外壳 紧凑型外壳 独立电子盒 便携式
系列 25 40, 42, 44, 47, 48 54, 55, 56 10 4， 11， 30 2）， 342） 80
尺寸 M25×1，
长度 98 mm		 M40×1.5，
长度125mm		 Æ 50 mm，
长度 105-140 mm		 54 × 54 × 170 mm³（H × W × L）

80 × 110 × 40 mm³

（H × W × D）

230 × 135 × 85 mm³

（H × W × L）
材料 不锈钢 （IP65） 不锈钢 （IP65） 不锈钢 （IP65） 铝 （IP65） 铝，不锈钢 （IP65） 铝，塑料 （IP50）



1） 热释开关系列 48

2） 没有显示和用户控制


产品规格和手册

产品手册链接： SIMTRUM_PDF



54 系列 – 紧凑型高温计，性价比极佳


- 通过RS-485接口进行参数设置

- 激光瞄准灯，彩色摄像机或通过镜头瞄准

- 用于测量的特殊高温计燃烧室

- 坚固的不锈钢外壳 IP65
设备类型 光谱范围 温度范围 距离比 吨95 接口 瞄准/瞄准辅助
DS 54N 0.8 μm 至 1.1 μm 550 °C 至 3000 °C 200 : 1 至 300 ： 1 2 ms RS-485 激光、视频、通过镜头瞄准
DG 54N 1.5 μm 至 1.8 μm 200 °C 至 2500 °C 200 : 1 至 300 ： 1 2 ms RS-485 激光、视频、通过镜头瞄准
比率高温计
DSR 54N 0.7 μm 至 1.1 μm 500 °C 至 3000 °C 50 ： 1 至 300 ： 1 5 ms RS-485 激光、视频、通过镜头瞄准
燃烧室专用高温计
DSR 54NF 0.7 μm 至 1.1 μm 700 °C 至 2500 °C 200 : 1 5 ms RS-485 激光、视频



55 系列 – 易于操作的高温计，带固定光学元件或电动聚焦可变光学元件


- 不同的固定光学元件或可变光学元件电机对焦（8级可调，无需外部运动部件）

- 显示和按键用于发射率/电机对焦
设备类型 光谱范围 温度范围 距离比 吨95 接口 瞄准/瞄准辅助
DS 55N 0.8 μm 至 1.1 μm 550 °C 至 3000 °C 160 : 1 至 300 ： 1 2 ms RS-485 激光、视频、通过镜头瞄准
DG 55N 1.5 μm 至 1.8 μm 200 °C 至 2500 °C 160 : 1 至 300 ： 1 2 ms RS-485 激光、视频、通过镜头瞄准
DGE 55N 2.0 μm 至 2.6 μm 75 °C 至 2200 °C 80 : 1 至 200 ： 1 2 ms RS-485 激光，通过镜头瞄准
比率高温计
DSR 55N 0.7 μm 至 1.1 μm 500 °C 至 3000 °C 40 : 1 至 300 ： 1 5 ms RS-485 激光、视频、通过镜头瞄准



56 系列 – 功能强大的高温计，带显示和参数设置键


- 具有非常小的目标尺寸的不同固定光学器件从 0.7 毫米

- 激光瞄准灯，彩色摄像机或通过镜头瞄准

- 不锈钢外壳 IP65
设备类型 光谱范围 温度范围 距离比 t95 接口 瞄准/瞄准辅助
DS 56N 0.8 μm 至 1.1 μm 550 °C 至 3000 °C 200 : 1 至 300 ： 1 2 ms RS-485 激光、视频、通过镜头瞄准
DG 56N 1.5 μm 至 1.8 μm 200 °C 至 2500 °C 200 : 1 至 300 ： 1 2 ms RS-485 激光、视频、通过镜头瞄准
DGE 56N 2.0 μm 至 2.6 μm 75 °C 至 2200 °C 80 : 1 至 200 ： 1 2 ms RS-485 激光，通过镜头瞄准
比率高温计
DSR 56N 0.7 μm 至 1.1 μm 500 °C 至 3000 °C 50 : 1 至 300 ： 1 5 ms RS-485 激光、视频、通过镜头瞄准



设备名称是什么意思？

我们的高温计根据特殊方案进行标记，可帮助您识别红外传感器类型、仪器系列、光谱范围和一些特殊功能。

例如：热点DA 10GV

带半导体光电二极管红外传感器的高温计，系列10，宗距“G”和视频模块



焦点 D _ _ _ _ _ _ _ _ _
迪亚斯
红外探测器
S、G、A、GE、GA – 半导体光电二极管

P， PE – 半导体光敏电阻，

T – 热电堆，Y – 热释电探测器
R – 比率高温计
F – 光纤
设备系列 4， 10， 11， 25， 30， 34， 40， 42， 44， 47， 48， 54， 55， 56， 80
光谱范围
N， M， P， F， C， G， U， L（请参阅概述）
附加名称：F – 火焰，G – 玻璃，T – 钨，V – 摄像机



















为每种材料和测量温度范围找到合适的设备

材料 测量温度范围 光谱范围 设备名称
非金属 –40°C 至 1000°C 8 μm 至 14 μm “L”
超薄玻璃 300°C 至 1100°C 约 7.7 μm “U”
玻璃表面 50°C 至 2500°C 约 5.0 μm “G”
热二氧化碳2 500°C 至 2000°C 约 4.5 μm/4.6 μm “C”
通过火焰测量 100°C 至 2500°C 约 3.9 μm “F”
半导体，金属 50°C 至 1800°C 3.5 μm 至 4.0 μm “MF”
塑料薄膜 50°C 至 400°C 约 3.43 μm “P”
陶瓷、金属 20°C 至 1000°C 3 μm 至 5 μm “M”
金属、陶瓷 50°C 至 2200°C 2.0 μm 至 2.8 μm “N”
金属、陶瓷、石墨 200°C 至 2500°C 1.5 μm 至 1.8 μm “N”
钨 500°C 至 2500°C 约 1.25 μm “NT”
硅、金属 400°C 至 2500°C 约 0.88 μm “N”
金属、玻璃熔体 500°C 至 3000°C 0.8 μm 至 1.1 μm “N”
液态金属 1000°C 至 2500°C 约 0.55 μm “N”




























红外高温计系列 温度范围 光谱范围 接口 瞄准和定向援助
系列 1x 0 °C 至 3000 °C 0.7 μm 至 14 μm RS-485 LED或激光瞄准灯适配器，通过镜头瞄准，
彩色摄像机
系列 2x 和 3x 系列 2x：–20 °C 至 700 °C，
系列 3x：600 °C 至 1800 °C		 系列 2x：8 μm 至 14 μm，
系列 3x：0.8 μm 至 1.1 μm		 参数接口 激光瞄准灯适配器
系列 4x –40 °C 至 2500 °C 0.7 μm 至 14 μm USB， RS-485， 以太网

激光瞄准灯适配器，LED瞄准灯
系列 5x –40 °C 至 3000 °C 0.7 μm 至 2.6 μm RS-485

通过镜头瞄准， 激光， 视频
8x 系列 200 °C 至 3000 °C 0.7 μm 至 1.8 μm USB TFT 彩色显示屏，激光








我们在这里为您服务！





给我们发电子邮件 info@simtrum.com 以获得今天最优惠的价格。   想要更多的技术信息?点击这里 获取专业定制系统/解决方案。




没有时间逐个搜索产品?不用担心。您可以下载全系列的瑆创产品线卡，现在点击它。



想要更接近市场动态和技术发展吗?只需花5秒钟作为会员登录，我们将为您带来最新的新闻。​(屏幕右上方的登录按钮)


Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
DSR 54NFV
 4-6 Weeks Request for quote
DSR 54NF
 4-6 Weeks Request for quote
DSR 54NV
 4-6 Weeks Request for quote
DSR 54N
 4-6 Weeks Request for quote
DT 54L
 4-6 Weeks Request for quote
DT 54U
 4-6 Weeks Request for quote
DT 54G
 4-6 Weeks Request for quote
DG 54NV
 4-6 Weeks Request for quote
DG 54N
 4-6 Weeks Request for quote
DS 54NV
 4-6 Weeks Request for quote
DS 54N
 4-6 Weeks Request for quote
DSR 55NV
 4-6 Weeks Request for quote
DSR 55N
 4-6 Weeks Request for quote
DGE 55N
 4-6 Weeks Request for quote
DG 55NV
 4-6 Weeks Request for quote
DG 55N
 4-6 Weeks Request for quote
DS 55NV
 4-6 Weeks Request for quote
DS 55N
 4-6 Weeks Request for quote
DSR 56NV
 4-6 Weeks Request for quote
DSR 56N
 4-6 Weeks Request for quote
DT 56L
 4-6 Weeks Request for quote
DT 56G
 4-6 Weeks Request for quote
DGE 56N
 4-6 Weeks Request for quote
DG 56NV
 4-6 Weeks Request for quote
DG 56N
 4-6 Weeks Request for quote
DS 56NV
 4-6 Weeks Request for quote
DS 56N
 4-6 Weeks Request for quote

DS 56N - Parameter

Weight (g)
750

Operating Temperature (°C)
0 to 70

Housing
Stainless steel round housing with plug connector, length: approx. 140 mm (without through-lens sighting), ∅ 50 mm

Measurement Uncertainty
0.5 % + 1 K

Spectral range (µm)
0.8 to 1.1

Distance ratio
200:1 | 300:1

Reproducibility
0.1 % + 0.5 K

Temperature Range (°C)
–40 to 1000 | 0 to 1000

NETD (k)
0.1

Adjustable Response Time
2ms to 100s

Adjustable Emissivity ε
0.050 - 1.000

Dimensions
54 mm × 54 mm, length 170 mm

DS 56NV - Parameter

Weight (g)
750

Operating Temperature (°C)
0 to 70

Housing
Stainless steel round housing with plug connector, length: approx. 140 mm (without through-lens sighting), ∅ 50 mm

Measurement Uncertainty
0.5 % + 1 K

Spectral range (µm)
0.8 to 1.1

Distance ratio
200:1 | 300:1

Reproducibility
0.1 % + 0.5 K

Temperature Range (°C)
300 to 1100

NETD (k)
0.1

Adjustable Response Time
2ms to 100s

Adjustable Emissivity ε
0.050 - 1.000

Dimensions
54 mm × 54 mm, length 170 mm

DG 56N - Parameter

Weight (g)
750

Operating Temperature (°C)
0 to 70

Housing
Stainless steel round housing with plug connector, length: approx. 140 mm (without through-lens sighting), ∅ 50 mm

Measurement Uncertainty
0.5 % + 1 K

Spectral range (µm)
1.5 to 1.8

Distance ratio
200:1 | 300:1

Reproducibility
0.1 % + 0.5 K

Temperature Range (°C)
100 to 1300 | 200 to 1400 | 500 to 2500

NETD (k)
0.1

Adjustable Response Time
2ms to 100s

Adjustable Emissivity ε
0.050 - 1.000

Dimensions
54 mm × 54 mm, length 170 mm

DG 56NV - Parameter

Weight (g)
750

Operating Temperature (°C)
0 to 70

Housing
Stainless steel round housing with plug connector, length: approx. 140 mm (without through-lens sighting), ∅ 50 mm

Measurement Uncertainty
0.5 % + 1 K

Spectral range (µm)
1.5 to 1.8

Distance ratio
200:1 | 300:1

Reproducibility
0.1 % + 0.5 K

Temperature Range (°C)
300 to 1300 | 400 to 1400 500 to 2500

NETD (k)
0.1

Adjustable Response Time
2ms to 100s

Adjustable Emissivity ε
0.050 - 1.000

Dimensions

DGE 56N - Parameter

Weight (g)
750

Operating Temperature (°C)
0 to 70

Housing
Stainless steel round housing with plug connector, length: approx. 140 mm (without through-lens sighting), ∅ 50 mm

Measurement Uncertainty
0.5 % + 2 K

Spectral range (µm)
2.0 to 2.6

Distance ratio

Reproducibility
0.3 % + 1 K

Temperature Range (°C)
600 to 1800 | 0 to 2500 | 250 to 1300 | 350 to 1800 | 250 to 2000

NETD (k)
0.5

Adjustable Response Time
2ms to 100s

Adjustable Emissivity ε
0.050 - 1.000

Dimensions
54 mm × 54 mm, length 170 mm

DT 56G - Parameter

Weight (g)
750

Housing
Stainless steel round housing with plug connector, length: approx. 140 mm (without through-lens sighting), ∅ 50 mm

Measurement Uncertainty
0.6 % or 1 K

Spectral range (µm)
5

Distance ratio
75:1 | 100:1

Reproducibility
0.3 % or 0.5 K

Temperature Range (°C)
600 to 1800 | 800 to 2500 | 250 to 1300 | 250 to 2000 | 350 bis 1800

NETD (k)

Adjustable Response Time
2ms to 100s

Adjustable Emissivity ε
0.050 - 1.00

Dimensions
54 mm × 54 mm, length 170 mm

DT 56L - Parameter

Weight (g)
750

Housing
Stainless steel round housing with plug connector, length: approx. 140 mm (without through-lens sighting), ∅ 50 mm

Measurement Uncertainty
0.6 % or 1 K

Spectral range (µm)
8 to 14

Distance ratio
75:1 | 100:1

Reproducibility
0.3% or 0.5 K

Temperature Range (°C)
600 to 1800 | 800 to 2500 | 250 to 1300 | 350 to 1800 | 250 to 2000

NETD (k)

Adjustable Response Time
2ms to 100s

Adjustable Emissivity ε
0.200 - 1.000

Dimensions
54 mm × 54 mm, length 170 mm

DSR 56N - Parameter

Weight (g)
750

Operating Temperature (°C)
0 to 70

Housing
Stainless steel round housing with plug connector, length: approx. 140 mm (without through-lens sighting), ∅ 50 mm

Measurement Uncertainty
0.5 % + 1 K

Spectral range (µm)
0.7 to 1.1

Distance ratio

Reproducibility
0.2 % + 0.5 K

Temperature Range (°C)
600 to 1800 | 800 to 2500 | 250 to 1300 | 250 to 2000 | 350 bis 1800

NETD (k)
0.1

Adjustable Response Time
5ms to 100s

Adjustable Emissivity ε
0.050 - 1.000

Dimensions

DSR 56NV - Parameter

Weight (g)
750

Operating Temperature (°C)
0 to 70

Housing
Stainless steel round housing with plug connector, length: approx. 140 mm (without through-lens sighting), ∅ 50 mm

Measurement Uncertainty
0.5 % + 1 K

Spectral range (µm)
0.7 to 1.1

Distance ratio

Reproducibility
0.2 % + 0.5 K

Temperature Range (°C)
–40 to 1000

NETD (k)
0.1

Adjustable Response Time
5ms to 100s

Adjustable Emissivity ε
0.050 - 1.000

Dimensions
54 mm × 54 mm, length 170 mm

DS 55N - Parameter

Weight (g)
600

Operating Temperature (°C)
0 to 70

Housing
Stainless Steel round housing with plug connector length: 105 mm (without through-lens sighting) ∅ 50 mm

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
0.8 to 1.1

Reproducibility
0.1% + 0.5 K

Temperature Range (°C)
600 to 1800 | 800 to 2500 | 250 to 1300 | 350 to 1800

NETD (k)
0.1

Adjustable Response Time
2ms to 100s

Adjustable Emissivity ε
0.050 - 1.000

DS 55NV - Parameter

Weight (g)
600

Operating Temperature (°C)
0 to 70

Housing
Stainless Steel round housing with plug connector length: 105 mm (without through-lens sighting) ∅ 50 mm

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
0.8 to 1.1

Reproducibility
0.1% + 0.5 K

Temperature Range (°C)
–40 to 1000 | 0 to 1000

NETD (k)
0.1

Adjustable Response Time
2ms to 100s

Adjustable Emissivity ε
0.050 - 1.000

DG 55N - Parameter

Weight (g)
600

Operating Temperature (°C)
0 to 70

Housing
Stainless Steel round housing with plug connector length: 105 mm (without through-lens sighting) ∅ 50 mm

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
1.5 to 1.8

Reproducibility
0.1% + 0.5 K

Temperature Range (°C)
50 to 1300 | 100 to 1800 | 500 to 2500

NETD (k)
0.1

Adjustable Response Time
2ms to 100s

Adjustable Emissivity ε
0.050 - 1.000

DG 55NV - Parameter

Weight (g)
600

Operating Temperature (°C)
0 to 70

Housing
Stainless Steel round housing with plug connector length: 105 mm (without through-lens sighting) ∅ 50 mm

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
1.5 to 1.8

Reproducibility
0.1% + 0.5 K

Temperature Range (°C)
100 to 1400 | 500 to 2500

NETD (k)
0.1

Adjustable Response Time
2ms to 100s

Adjustable Emissivity ε
0.050 - 1.000

DGE 55N - Parameter

Weight (g)
600

Operating Temperature (°C)
0 to 70

Housing
Stainless Steel round housing with plug connector length: 105 mm (without through-lens sighting) ∅ 50 mm

Measurement Uncertainty
0.5% + 2 K

Spectral range (µm)
2.0 to 2.6

Reproducibility
0.3% + 1 K

Temperature Range (°C)
50 to 1000

NETD (k)
0.5

Adjustable Response Time
2ms to 100s

Adjustable Emissivity ε
0.050 - 1.000

DSR 55N - Parameter

Weight (g)
600

Operating Temperature (°C)
0 to 70

Housing
Stainless Steel round housing with plug connector length: 105 mm (without through-lens sighting) ∅ 50 mm

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
0.7 to 1.1

Reproducibility
0.2% + 0.5 K

Temperature Range (°C)
20 to 850 | 30 to 1000

NETD (k)
0.1

Adjustable Response Time
5ms to 100s

Adjustable Emissivity ε
0.050 - 1.000 (1-channel mode)

DSR 55NV - Parameter

Weight (g)
600

Operating Temperature (°C)
0 to 70

Housing
Stainless Steel round housing with plug connector length: 105 mm (without through-lens sighting) ∅ 50 mm

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
0.7 to 1.1

Reproducibility
0.2% + 0.5 K

Temperature Range (°C)

NETD (k)
0.1

Adjustable Response Time
5ms to 100s

Adjustable Emissivity ε
0.050 - 1.000 (1-channel mode)

DS 54N - Parameter

Weight (g)
600

Operating Temperature (°C)
0 to 70

Housing
Stainless Steel round housing with plug connector length: 105 mm (without through-lens sighting) ∅ 50 mm

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
0.8 to 1.1

Distance ratio
200:1 | 300:1

Reproducibility
0.1% + 0.5 K

Temperature Range (°C)
–40 to 1000 | 0 to 1000

NETD (k)
0.1

Adjustable Response Time
2ms to 100s

Adjustable Emissivity ε
0.050 - 1.000

DS 54NV - Parameter

Weight (g)
600

Operating Temperature (°C)
0 to 70

Housing
Stainless Steel round housing with plug connector length: 105 mm (without through-lens sighting) ∅ 50 mm

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
0.8 to 1.1

Distance ratio
200:1 | 300:1

Reproducibility
0.1% + 0.5 K

Temperature Range (°C)
300 to 1100

NETD (k)
0.1

Adjustable Response Time
2ms to 100s

Adjustable Emissivity ε
0.050 - 1.000

DG 54N - Parameter

Weight (g)
600

Operating Temperature (°C)
0 to 70

Housing
Stainless Steel round housing with plug connector length: 105 mm (without through-lens sighting) ∅ 50 mm

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
1.5 to 1.8

Distance ratio
200:1 | 300:1

Reproducibility
0.1% + 0.5 K

Temperature Range (°C)
100 to 1300 | 200 to 1400 | 500 to 2500

NETD (k)
0.1

Adjustable Response Time
2ms to 100s

Adjustable Emissivity ε
0.050 - 1.000

DG 54NV - Parameter

Weight (g)
600

Operating Temperature (°C)
0 to 70

Housing
Stainless Steel round housing with plug connector length: 105 mm (without through-lens sighting) ∅ 50 mm

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
1.5 to 1.8

Distance ratio
200:1 | 300:1

Reproducibility
0.1% + 0.5 K

Temperature Range (°C)
300 to 1300 | 400 to 1400 500 to 2500

NETD (k)
0.1

Adjustable Response Time
2ms to 100s

Adjustable Emissivity ε
0.050 - 1.000

DT 54G - Parameter

Weight (g)
600

Operating Temperature (°C)
0 to 70

Housing
Stainless Steel round housing with plug connector length: 105 mm diameter ∅ 50 mm

Measurement Uncertainty
0.6% or 1 K

Spectral range (µm)
5

Distance ratio

Reproducibility
0.3% or 0.5 K

Temperature Range (°C)
600 to 1800 | 0 to 2500 | 250 to 1300 | 350 to 1800 | 250 to 2000

NETD (k)
< 0.15

Adjustable Response Time

Adjustable Emissivity ε
0.200 - 1.000 via RS-485 interface

DT 54U - Parameter

Weight (g)
600

Operating Temperature (°C)
0 to 70

Housing
Stainless Steel round housing with plug connector length: 105 mm diameter ∅ 50 mm

Measurement Uncertainty
0.6% or 1 K

Spectral range (µm)

Distance ratio

Reproducibility
0.3% or 0.5 K

Temperature Range (°C)
600 to 1800 | 800 to 2500 | 250 to 1300 | 250 to 2000 | 350 bis 1800

NETD (k)
0.1

Adjustable Response Time
2ms to 100s

Adjustable Emissivity ε
0.050 - 1.000

DT 54L - Parameter

Weight (g)
600

Operating Temperature (°C)
0 to 70

Housing
Stainless Steel round housing with plug connector length: 105 mm diameter ∅ 50 mm

Measurement Uncertainty
0.6% or 1 K

Spectral range (µm)
8 to 14

Distance ratio
75:1 | 100:1

Reproducibility
0.3% or 0.5 K

Temperature Range (°C)
600 to 1800 | 800 to 2500 | 250 to 1300 | 350 to 1800 | 250 to 2000

NETD (k)
< 0.15

Adjustable Response Time

Adjustable Emissivity ε
0.200 - 1.000 via RS-485 interface

DSR 54N - Parameter

Weight (g)
600

Operating Temperature (°C)
0 to 70

Housing
Stainless Steel round housing with plug connector length: 105 mm (without through-lens sighting) ∅ 50 mm

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
0.7 to 1.1

Reproducibility
0.2% + 0.5 K

Temperature Range (°C)
600 to 1800 | 800 to 2500 | 250 to 1300 | 250 to 2000 | 350 bis 1800

NETD (k)
0.1

Adjustable Response Time
5ms to 100s

Adjustable Emissivity ε
0.050 - 1.000

DSR 54NV - Parameter

Weight (g)
600

Operating Temperature (°C)
0 to 70

Housing
Stainless Steel round housing with plug connector length: 105 mm (without through-lens sighting) ∅ 50 mm

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
0.7 to 1.1

Reproducibility
0.2% + 0.5 K

Temperature Range (°C)
–40 to 1000

NETD (k)
0.1

Adjustable Response Time
5ms to 100s

Adjustable Emissivity ε
0.050 - 1.000

DSR 54NF - Parameter

Weight (g)
600

Operating Temperature (°C)
0 to 70

Housing
Stainless Steel round housing with plug connector length: 105 mm diameter ∅ 50 mm

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
0.7 to 1.1

Reproducibility
0.2% + 0.5 K

Temperature Range (°C)
100 to 1300 | 500 to 2500

NETD (k)
0.1

Adjustable Response Time
5ms to 100s

Adjustable Emissivity ε
0.050 - 1.000

DSR 54NFV - Parameter

Weight (g)
600

Operating Temperature (°C)
0 to 70

Housing
Stainless Steel round housing with plug connector length: 105 mm diameter ∅ 50 mm

Measurement Uncertainty
0.5% + 1 K

Spectral range (µm)
0.7 to 1.1

Reproducibility
0.2% + 0.5 K

Temperature Range (°C)
600 to 1800 | 800 to 2500 | 250 to 1300 | 350 to 1800

NETD (k)
0.1

Adjustable Response Time
5ms to 100s

Adjustable Emissivity ε
0.050 - 1.000

DS 56N - Download

Download

DS 56NV - Download

Download

DG 56N - Download

Download

DG 56NV - Download

Download

DGE 56N - Download

Download

DT 56G - Download

Download

DT 56L - Download

Download

DSR 56N - Download

Download

DSR 56NV - Download

Download

DS 55N - Download

Download

DS 55NV - Download

Download

DG 55N - Download

Download

DG 55NV - Download

Download

DGE 55N - Download

Download

DSR 55N - Download

Download

DSR 55NV - Download

Download

DS 54N - Download

Download

DS 54NV - Download

Download

DG 54N - Download

Download

DG 54NV - Download

DT 54G - Download

Download

DT 54U - Download

Download

DT 54L - Download

Download

DSR 54N - Download

Download

DSR 54NV - Download

Download

DSR 54NF - Download

Download

DSR 54NFV - Download

Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)

Sales Enquiry：13326430008       Email：info@simtrum.com

Address:广州市黄埔区中新智慧一街7号1001

Copyright © 2024 瑆创科技（广州）有限公司. All right reserved. 粤ICP备2024272506号
