手动测角台
产品概述 相关产品 选型指南 技术图纸 联系下单！





• 围绕与载物台对齐的固定点进行纯旋转运动

• 产品根据水平或垂直旋转轴进行分类








光学旋转支架Optic Rotation Mounts.jpg

运动反射镜支架

Kinematic Mirror Mounts.jpg

云台镜架

Gimbal Mirror Mounts.jpg




测角仪，水平旋转轴



Simtrum 零件编号 角度(°) 孔类型 平台尺寸(mm) 最大负载(N) 材料 最小读数(arcsec) 从顶面到旋转点的距离 (mm) 旋转轴 驱动方向
GNHL5045 ±4.5

顶部： M3，M4

底部：M4 帽螺钉的沉孔孔

 60x60 49 铝 33 50 水平 左
GNHR5045 ±4.5

顶部： M3，M4

底部：M4 帽螺钉的沉孔孔

 60x60 49 铝 33 50 水平 右
GNHL7545 ±4.5

顶部： M3，M4

底部：M4 帽螺钉的沉孔孔

 60x60 49 铝 24 75 水平 左
GNHR7545 ±4.5

顶部： M3，M4

底部：M4 帽螺钉的沉孔孔

 60x60 49 铝 24 75 水平 右



上图中的信息是为您的运动设置选择合适的手动测角平台的一般指南。

如需帮助，请随时致电 +65-6996 0391 联系 Simtrum Pte Ltd 或发送电子邮件至 info@simtrum.com。我们的产品团队将很乐意帮助您做出正确的产品选择。







测角仪，垂直旋转轴



Simtrum 零件编号 角度(°) 孔类型 平台尺寸(mm) 最大负载(N) 材料 最小读数(arcsec) 旋转轴
GNV605 ±5

顶部：M4、M3

底部：M4 帽螺钉的沉孔

 60x60 29.4 铝 55 垂直
GNV805 ±5

T顶部：M4

底部：M4 帽螺钉的沉孔

 80x80 39.2 铝 45 垂直
GNV1005 ±5

顶部：M4

底部：M4 帽螺钉的沉孔

 100x100 39.2 铝 45 垂直
GNV1255 ±5

顶部：M4

底部：M4 帽螺钉的沉孔

 125x125 49 铝 32 垂直
上图中的信息是为您的运动设置选择合适的手动测角平台的一般指南。

如需帮助，请随时致电 +65-6996 0391 联系 Simtrum Pte Ltd 或发送电子邮件至 info@simtrum.com。我们的产品团队将很乐意帮助您做出正确的产品选择。










测角仪，水平旋转轴

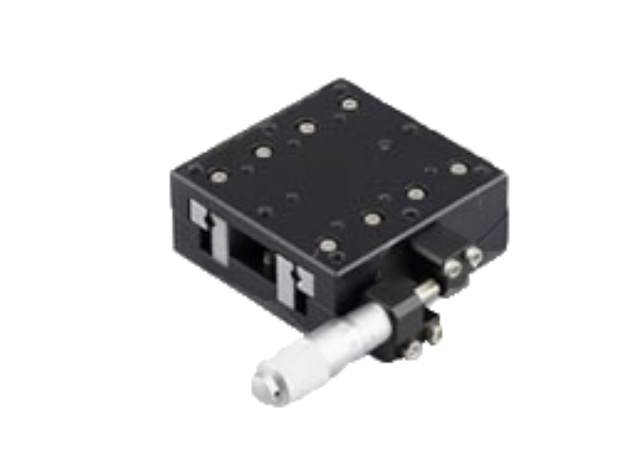

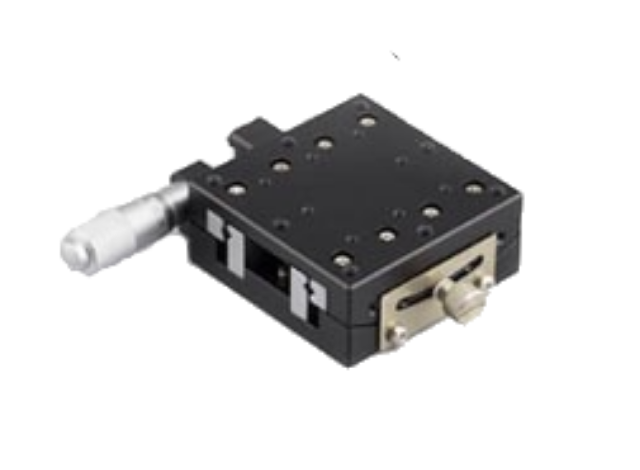

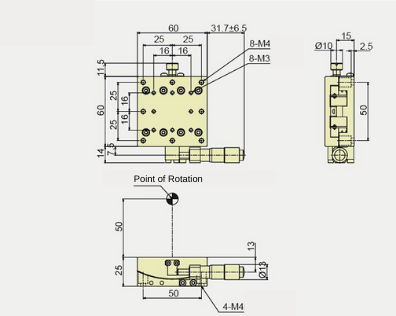

GNHL5045

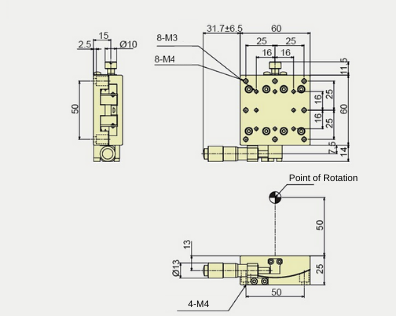

GNHR5045

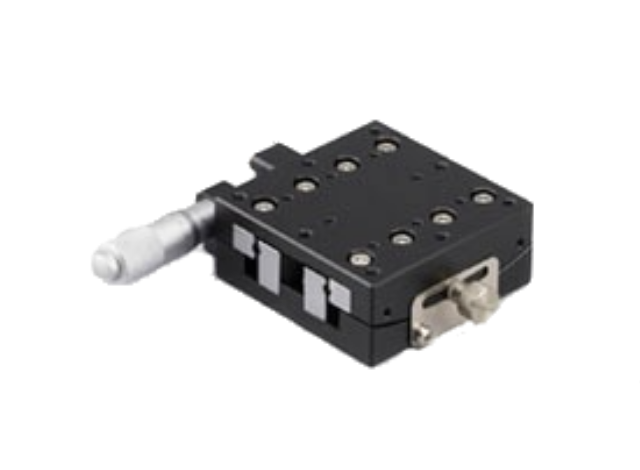

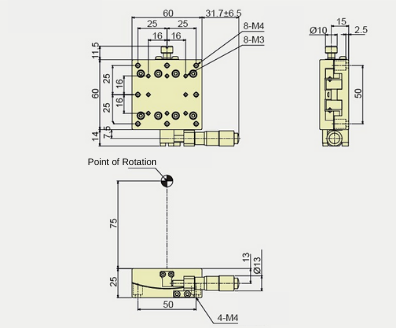

GNHL7545



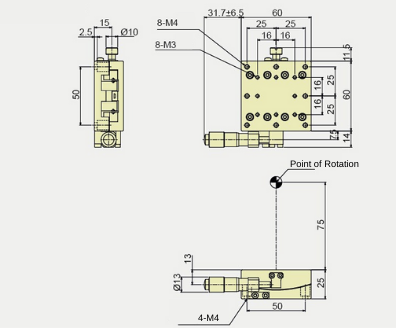

GNHR7545

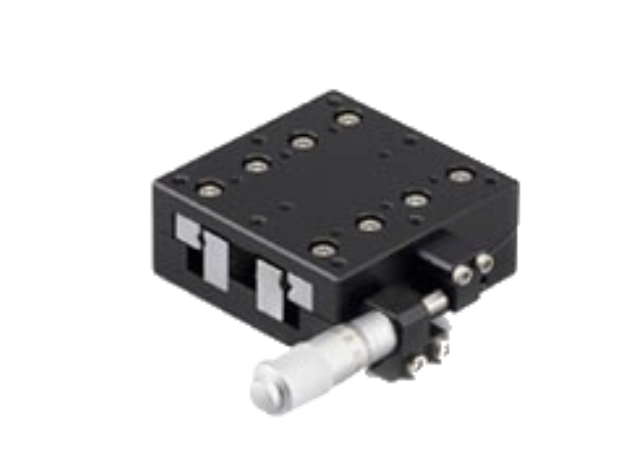

 Goniometer 7545 right.png







Goniometer, Vertical Axis Of Rotation



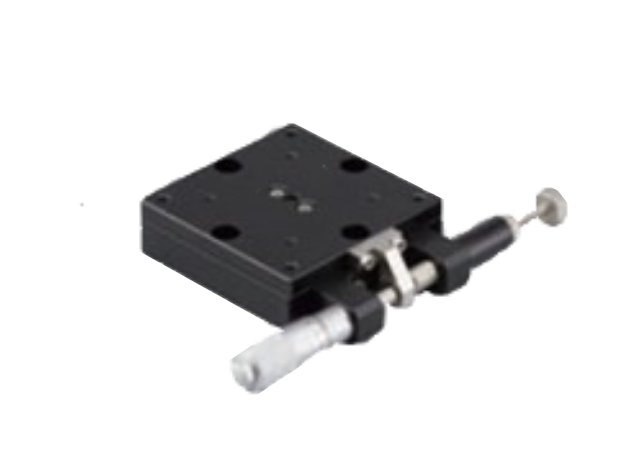

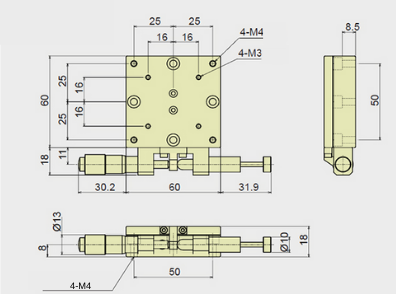

GNV605

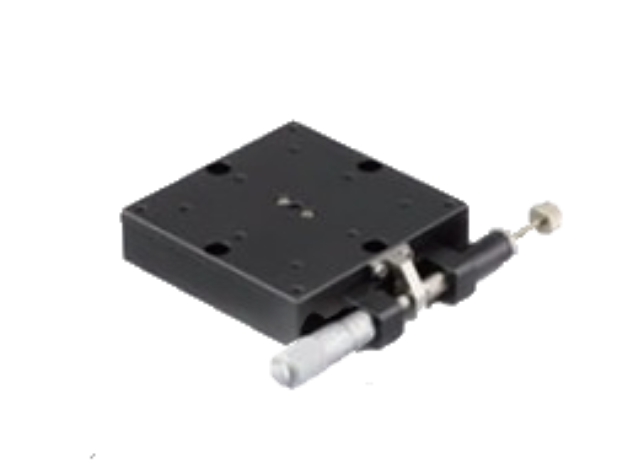

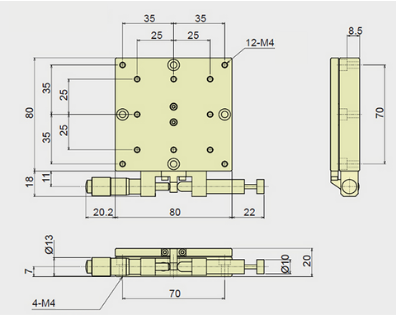

GNV805

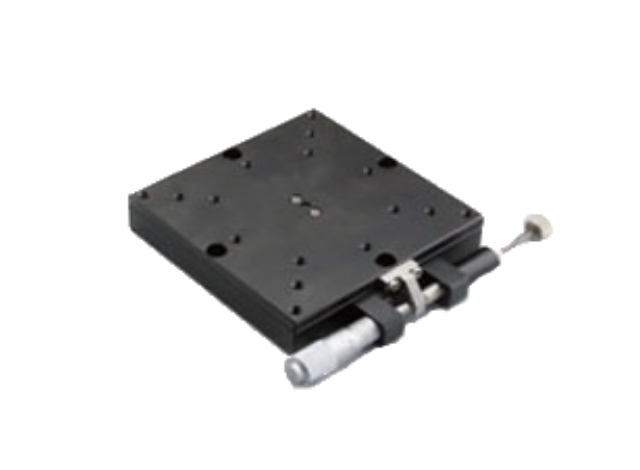

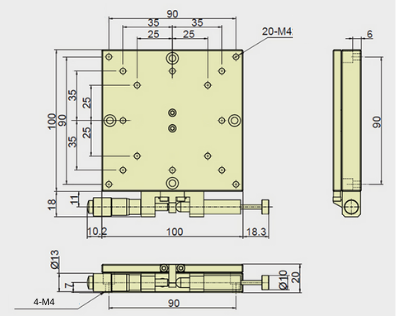

GNV1005

 Goniometer vertical 100.png

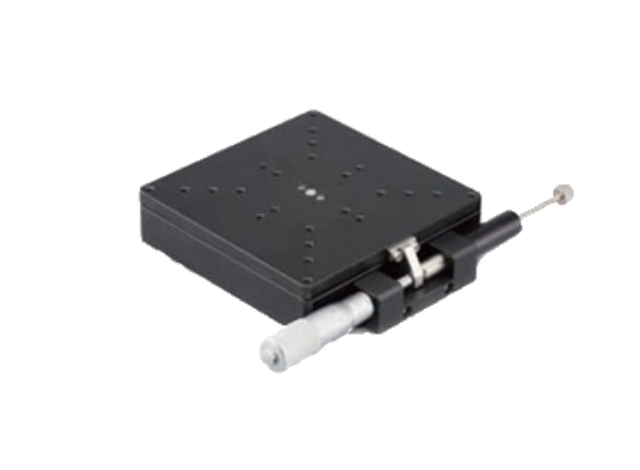

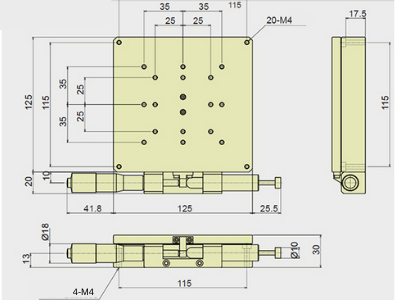

GNV1255




我们在这里为您服务！





给我们发电子邮件 info@simtrum.com 以获得今天最优惠的价格。   想要更多的技术信息?点击这里 获取专业定制系统/解决方案。




没有时间逐个搜索产品?不用担心。您可以下载全系列的瑆创产品线卡，现在点击它。



想要更接近市场动态和技术发展吗?只需花5秒钟作为会员登录，我们将为您带来最新的新闻。​(屏幕右上方的登录按钮)

Travel (°)

Platform dimensions (mm)


Search Reset
Compare Model Drawings & Specs Platform dimensions (mm) Travel (°) Maximum Load (N) Availability Reference Price
(USD)
GNV605
Goniometer, Vertical Axis of Rotation, Platform dimensions=60x60mm, Minimum reading=55 arcsec 		60x60 ±5 4-6 Weeks $116.09
GNV805
Goniometer, Vertical Axis of Rotation, Platform dimensions=80x80mm, Minimum reading=45 arcsec 		80x80 ±539.2 4-6 Weeks $142.29
GNV1005
Goniometer, Vertical Axis of Rotation, Platform dimensions=100x100mm, Minimum reading=45 arcsec 		100x100 ±539.2 4-6 Weeks $179.10
GNV1255
Goniometer, Vertical Axis of Rotation, Platform dimensions=125x125mm, Minimum reading=32 arcsec 		125x125 ±549 4-6 Weeks $180.10
GNHL5045
Goniometer, Horizontal Axis of Rotation, 50mm Distance to Point of Rotation, ±4.5º, Left Side Drive 		60x60±4.549 4-6 Weeks $175.62
GNHR5045
Goniometer, Horizontal Axis of Rotation, 50mm Distance to Point of Rotation, ±4.5º, Right Side Drive 		60x60±4.549 4-6 Weeks $175.62
GNHL7545
Goniometer, Horizontal Axis of Rotation, 75mm Distance to Point of Rotation, ±4.5º, Left Side Drive 		60x60±4.549 4-6 Weeks $175.62
GNHR7545
Goniometer, Horizontal Axis of Rotation, 75mm Distance to Point of Rotation, ±4.5º, Right Side Drive 		60x60±4.549 4-6 Weeks $175.62

GNHR7545 - Parameter

Material
Aluminium, black anodized treatment

Platform dimensions (mm)
60x60

Hole Type
Top: M3,M4 Bottom:Counterbore holes for M4 Cap Screws

Drive Direction
Right

Travel (°)
±4.5

Maximum Load (N)
49

Minimum reading (arcsec)

Axis of Rotation
Horizontal

GNHL7545 - Parameter

Material
Aluminium, black anodized treatment

Platform dimensions (mm)
60x60

Hole Type
Top: M3,M4 Bottom:Counterbore holes for M4 Cap Screws

Drive Direction
Left

Travel (°)
±4.5

Maximum Load (N)
49

Minimum reading (arcsec)

Axis of Rotation
Horizontal

GNHR5045 - Parameter

Material
Aluminium, black anodized treatment

Platform dimensions (mm)
60x60

Hole Type
Top: M3,M4 Bottom:Counterbore holes for M4 Cap Screws

Drive Direction
Right

Travel (°)
±4.5

Maximum Load (N)
49

Minimum reading (arcsec)

Axis of Rotation
Horizontal

GNHL5045 - Parameter

Material
Aluminium, black anodized treatment

Platform dimensions (mm)
60x60

Hole Type
Top: M3,M4 Bottom:Counterbore holes for M4 Cap Screws

Drive Direction
Left

Travel (°)
±4.5

Maximum Load (N)
49

Minimum reading (arcsec)

Axis of Rotation
Horizontal

GNV1255 - Parameter

Material
Aluminium

Platform dimensions (mm)
125x125

Hole Type
Top: M4 Bottom: Counterbore holes for M4 cap screws

Travel (°)
±5

Maximum Load (N)
49

Minimum reading (arcsec)

Axis of Rotation
Vertical

GNV1005 - Parameter

Material
Aluminium

Platform dimensions (mm)
100x100

Hole Type
Top: M4 Bottom: Counterbore holes for M4 cap screws

Travel (°)
±5

Maximum Load (N)
39.2

Minimum reading (arcsec)
45

Axis of Rotation
Vertical

GNV805 - Parameter

Material
Aluminium

Platform dimensions (mm)
80x80

Hole Type
Top: M4 Bottom: Counterbore holes for M4 cap screws

Travel (°)
±5

Maximum Load (N)
39.2

Minimum reading (arcsec)
45

Axis of Rotation
Vertical

GNV605 - Parameter

Material
Aluminium

Platform dimensions (mm)
60x60

Hole Type
Top: M4, M3 Bottom:Counterbore holes for M4 Cap screws

Travel (°)
±5

Maximum Load (N)

Minimum reading (arcsec)

Axis of Rotation
Vertical

GNHR7545 - Download

GNHL7545 - Download

GNHR5045 - Download

GNHL5045 - Download

GNV1255 - Download

GNV1005 - Download

GNV805 - Download

GNV605 - Download
