圆形连续ND滤波器

BK7 安装式 B270 Quartz 涂层图表联系下单！

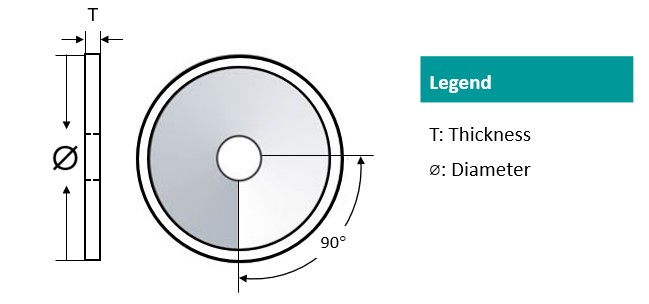

BK7 在一般可见光和近红外波长中具有出色的透射率，因此使其成为用于 Neautral 密度滤光片的理想选择。BK7 圆形连续 ND 滤光片可以通过沿其中心轴旋转来调整要传输的入射光束的强度。通过的光谱将继续保持其中性光谱能量分布。该滤光片通常用于激光和医疗应用。通过组合两个滤波器，可以在更大区域内获得固定密度衰减效果。我们滤光片的光谱范围为250-2500nm。

衰减水平由滤光片的光密度（OD）指定。

OD 定义为传输系数以 10 为底的对数为负数，

该方程式可以表示为：

OD= - Log₁₀ （T/100），

其中 T 是以百分比表示的传输。

例如，T= 1% 的中性密度滤光片的 OD 为 2。

一般规格
材料	BK7型
类型	圆形连续 ND 滤镜
光谱范围（nm）	400-700
金属镀膜角度（°）	360
孔径公差（mm）	± 0.25
厚度公差（mm）	± 0.2
通光孔径	>90%
平行度（arcmin）	<5
槽	<0.5mmx45°
损伤阈值（脉冲）	7.5 J/cm² (10ns/10Hz)

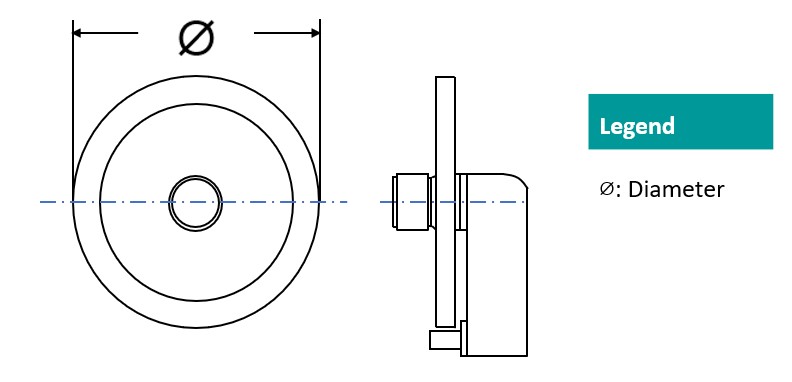

BK7 是通用可见光和近红外应用的理想选择，因为它在波长范围内具有出色的透射率，因此它被用于安装式圆形 ND 滤光片。50mm OD 滤光片可安装。耐用的阳极氧化铝支架有一个指示箭头，可准确识别滤光片的角度位置，以提高可重复性。铝制安装块中有一个方便的 M6 螺丝孔，允许各种安装配置。

衰减水平由滤光片的光密度（OD）指定。

OD 定义为传输系数的以 10 为底的对数的负数，

该方程式可以表示为：

OD= - Log₁₀ （T/100），

其中 T 是以百分比表示的传输。

例如，T= 1% 的中性密度滤光片的 OD 为 2。

一般规格
类型	安装式圆形 ND 滤镜
光谱范围（nm）	400-700
孔径公差（mm）	±0.1
表面质量	40/20
通光孔径	85%
并行度（arcsec）	<30
金属涂层面积角度（度）	270

B270 对可见光和近红外光具有高透明度，因此使其成为中性密度滤光片的理想选择。B270 圆形连续 ND 滤光片可以通过沿其中心轴旋转来调整要传输的入射光束的强度。通过的光谱将继续保持其中性光谱能量分布。该滤光片通常用于激光和医疗应用。通过组合两个滤波器，可以在更大区域内获得固定密度衰减效果。我们滤光片的光谱范围为250-2500nm。

衰减水平由滤光片的光密度（OD）指定。

OD 定义为传输系数以 10 为底的对数为负数。

该方程式可以表示为：

OD= - Log10 （T/100），

其中 T 是以百分比表示的传输。

例如，T= 1% 的中性密度滤光片的 OD 为 2。

一般规格
材料	B270型
类型	圆形连续 ND 滤镜
光谱范围（nm）	380-2100
金属镀膜角度（°）	0-270
孔径公差（mm）	± 0.25
厚度公差（mm）	± 0.2
通光孔径	>80%
平行度（arcmin）	<30
槽	<0.5mmx45°
损伤阈值（脉冲）	7.5 J/cm² (10ns/10Hz)

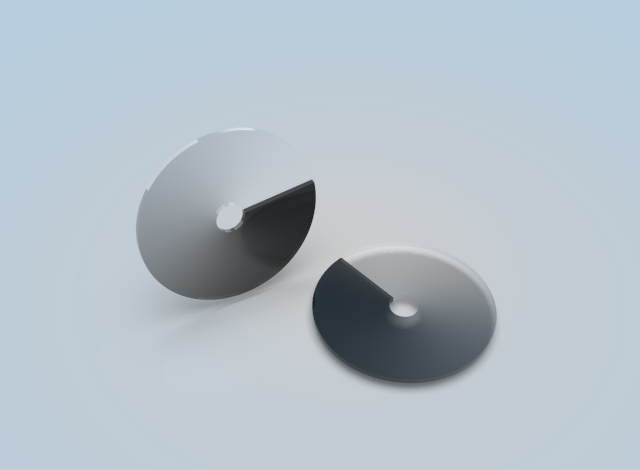

石英在紫外、可见光和近红外波长范围内具有高透射率，并表现出圆形双制冷效应，允许普通和特殊光束传播，因此它是中性密度滤光片的理想选择。石英圆形连续 ND 滤光片可以通过沿其中心轴旋转来调整要传输的入射光束的强度。通过的光谱将继续保持其中性光谱能量分布。该滤光片通常用于激光和医疗应用。通过组合两个滤波器，可以在更大区域内获得固定密度衰减效果。我们滤光片的光谱范围为250-2500nm。

衰减水平由滤光片的光密度（OD）指定。

OD 定义为传输系数以 10 为底的对数为负数。

该方程式可以表示为：

OD= - Log10 （T/100），

其中 T 是以百分比表示的传输。

例如，T= 1% 的中性密度滤光片的 OD 为 2。

一般规格
材料	石英
类型	圆形连续 ND 滤镜
光谱范围（nm）	250-2500
金属涂层面积角度（度）	0-270
孔径公差（mm）	+0.25/-0
外径公差（mm）	+0/-0.25
厚度公差（mm）	±0.25
表面质量	40-20
通光孔径	>80%
平行度（arcmin）	±3
槽	<0.5mmx45°
损伤阈值（脉冲）	7.5J/cm² (10ns/10Hz)

我们在这里为您服务！


给我们发电子邮件 info@simtrum.com 以获得今天最优惠的价格。		想要更多的技术信息?点击这里获取专业定制系统/解决方案。


没有时间逐个搜索产品?不用担心。您可以下载全系列的瑆创产品线卡，现在点击它。		想要更接近市场动态和技术发展吗?只需花5秒钟作为会员登录，我们将为您带来最新的新闻。(屏幕右上方的登录按钮)

Outside Diameter (mm)

Optical Density Range

Search Reset

	Spectral Range (nm)	Hole Diameter (mm)	Optical Density Range	Outside Diameter (mm)	Availability	Reference Price (USD)
BK7-MNDF-50-0-0.1 BK7, Mounted Circular Neutral Density Filter-v3, Ø=50mm, OD Range:0-0.1, Spectral Range: 400-700nm	400-700	12		50	2-3 Weeks	Request for quote
BK7-MNDF-50-0-1.5 BK7, Mounted Circular Neutral Density Filter-v3, Ø=50mm, OD Range:0-1.5, Spectral Range: 400-700nm	400-700	12		50	2-3 Weeks	Request for quote
BK7-MNDF-50-0-2 BK7, Mounted Circular Neutral Density Filter-v3, Ø=50mm, OD Range:0-2, Spectral Range: 400-700nm	400-700	12		50	2-3 Weeks	Request for quote
BK7-MNDF-50-0-3 BK7, Mounted Circular Neutral Density Filter-v3, Ø=50mm, OD Range:0-3, Spectral Range: 400-700nm	400-700	12		50	2-3 Weeks	Request for quote
BK7-RNDF-50-0.0-1.0 BK7, Circular Continuous ND Filters, Ø=50mm, OD Range:0.0-1.0, Spectral Range: 400-700nm	400-700	8		50	2-3 Weeks	Request for quote
BK7-RNDF-50-0.0-1.5 BK7, Circular Continuous ND Filters, Ø=50mm, OD Range:0.0-1.5, Spectral Range: 400-700nm	400-700	8		50	2-3 Weeks	Request for quote
BK7-RNDF-50-0.0-2.0 BK7, Circular Continuous ND Filters, Ø=50mm, OD Range:0.0-2.0, Spectral Range: 400-700nm	400-700	8		50	2-3 Weeks	Request for quote
BK7-RNDF-50-0.0-3.0 BK7, Circular Continuous ND Filters, Ø=50mm, OD Range:0.0-3.0, Spectral Range: 400-700nm	400-700	8		50	2-3 Weeks	Request for quote
B270-CCNDF-40-0.04-1.0 B270,Circular Continuous Density Filters, Ø = 40mm, OD Range: 0.04-1.0	380-2100	7.5	0.04-1.0	40	2-3 Weeks	Request for quote
B270-CCNDF-40-0.04-1.5 B270,Circular Continuous Density Filters, Ø = 40mm, OD Range: 0.04-1.5	380-2100	7.5	0.04-1.5	40	2-3 Weeks	Request for quote
B270-CCNDF-40-0.04-2.0 B270,Circular Continuous Density Filters, Ø = 40mm, OD Range: 0.04-2.0	380-2100	7.5	0.04-2.0	40	2-3 Weeks	Request for quote
B270-CCNDF-40-0.04-3.0 B270,Circular Continuous Density Filters, Ø = 40mm, OD Range: 0.04-3.0	380-2100	7.5	0.04-3.0	40	2-3 Weeks	Request for quote
B270-CCNDF-40-0.04-4.0 B270,Circular Continuous Density Filters, Ø = 40mm, OD Range: 0.04-4.0	380-2100	7.5	0.04-4.0	40	2-3 Weeks	Request for quote
B270-CCNDF-45-0.04-1.0 B270,Circular Continuous Density Filters, Ø = 45mm, OD Range: 0.04-1.0	380-2100	7.5	0.04-1.0	45	2-3 Weeks	Request for quote
B270-CCNDF-45-0.04-1.5 B270,Circular Continuous Density Filters, Ø = 45mm, OD Range: 0.04-1.5	380-2100	7.5	0.04-1.5	45	2-3 Weeks	Request for quote
B270-CCNDF-45-0.04-2.0 B270,Circular Continuous Density Filters, Ø = 45mm, OD Range: 0.04-2.0	380-2100	7.5	0.04-2.0	45	2-3 Weeks	Request for quote
B270-CCNDF-45-0.04-3.0 B270,Circular Continuous Density Filters, Ø = 45mm, OD Range: 0.04-3.0	380-2100	7.5	0.04-3.0	45	2-3 Weeks	Request for quote
B270-CCNDF-45-0.04-4.0 B270,Circular Continuous Density Filters, Ø = 45mm, OD Range: 0.04-4.0	380-2100	7.5	0.04-4.0	45	2-3 Weeks	Request for quote
B270-CCNDF-50-0.04-1.0 B270,Circular Continuous Density Filters, Ø = 50mm, OD Range: 0.04-1.0	380-2100	7.5	0.04-1.0	50	2-3 Weeks	Request for quote
B270-CCNDF-50-0.04-1.5 B270,Circular Continuous Density Filters, Ø = 50mm, OD Range: 0.04-1.5	380-2100	7.5	0.04-1.5	50	2-3 Weeks	Request for quote
B270-CCNDF-50-0.04-2.0 B270,Circular Continuous Density Filters, Ø = 50mm, OD Range: 0.04-2.0	380-2100	7.5	0.04-2.0	50	2-3 Weeks	Request for quote
B270-CCNDF-50-0.04-3.0 B270,Circular Continuous Density Filters, Ø = 50mm, OD Range: 0.04-3.0	380-2100	7.5	0.04-3.0	50	2-3 Weeks	Request for quote
B270-CCNDF-50-0.04-4.0 B270,Circular Continuous Density Filters, Ø = 50mm, OD Range: 0.04-4.0	380-2100	7.5	0.04-4.0	50	2-3 Weeks	Request for quote
B270-CCNDF-60-0.04-1.0 B270,Circular Continuous Density Filters, Ø = 60mm, OD Range: 0.04-1.0	380-2100	7.5	0.04-1.0	60	2-3 Weeks	Request for quote
B270-CCNDF-60-0.04-1.5 B270,Circular Continuous Density Filters, Ø = 60mm, OD Range: 0.04-1.5	380-2100	7.5	0.04-1.5	60	2-3 Weeks	Request for quote
B270-CCNDF-60-0.04-2.0 B270,Circular Continuous Density Filters, Ø = 60mm, OD Range: 0.04-2.0	380-2100	7.5	0.04-2.0	60	2-3 Weeks	Request for quote
B270-CCNDF-60-0.04-3.0 B270,Circular Continuous Density Filters, Ø = 60mm, OD Range: 0.04-3.0	380-2100	7.5	0.04-3.0	60	2-3 Weeks	Request for quote
B270-CCNDF-60-0.04-4.0 B270,Circular Continuous Density Filters, Ø = 60mm, OD Range: 0.04-4.0	380-2100	7.5	0.04-4.0	60	2-3 Weeks	Request for quote
Q-CCNDF-40-0.04-1.0 Quartz ,Circular Continuous Density Filters, Ø = 40mm, OD Range: 0.04-1.0	250-2500	7.5	0.04-1.0	40	2-3 Weeks	Request for quote
Q-CCNDF-40-0.04-1.5 Quartz ,Circular Continuous Density Filters, Ø = 40mm, OD Range: 0.04-1.5	250-2500	7.5	0.04-1.5	40	2-3 Weeks	Request for quote
Q-CCNDF-40-0.04-2.0 Quartz ,Circular Continuous Density Filters, Ø = 40mm, OD Range: 0.04-2.0	250-2500	7.5	0.04-2.0	40	2-3 Weeks	Request for quote
Q-CCNDF-40-0.04-3.0 Quartz ,Circular Continuous Density Filters, Ø = 40mm, OD Range: 0.04-3.0	250-2500	7.5	0.04-3.0	40	2-3 Weeks	Request for quote
Q-CCNDF-40-0.04-4.0 Quartz ,Circular Continuous Density Filters, Ø = 40mm, OD Range: 0.04-4.0	250-2500	7.5	0.04-4.0	40	2-3 Weeks	Request for quote
Q-CCNDF-45-0.04-1.0 Quartz ,Circular Continuous Density Filters, Ø = 45mm, OD Range: 0.04-1.0	250-2500	7.5	0.04-1.0	45	2-3 Weeks	Request for quote
Q-CCNDF-45-0.04-1.5 Quartz ,Circular Continuous Density Filters, Ø = 45mm, OD Range: 0.04-1.5	250-2500	7.5	0.04-1.5	45	2-3 Weeks	Request for quote
Q-CCNDF-45-0.04-2.0 Quartz ,Circular Continuous Density Filters, Ø = 45mm, OD Range: 0.04-2.0	250-2500	7.5	0.04-2.0	45	2-3 Weeks	Request for quote
Q-CCNDF-45-0.04-3.0 Quartz ,Circular Continuous Density Filters, Ø = 45mm, OD Range: 0.04-3.0	250-2500	7.5	0.04-3.0	45	2-3 Weeks	Request for quote
Q-CCNDF-45-0.04-4.0 Quartz ,Circular Continuous Density Filters, Ø = 45mm, OD Range: 0.04-4.0	250-2500	7.5	0.04-4.0	45	2-3 Weeks	Request for quote
Q-CCNDF-50-0.04-1.0 Quartz ,Circular Continuous Density Filters, Ø = 50mm, OD Range: 0.04-1.0	250-2500	7.5	0.04-1.0	50	2-3 Weeks	Request for quote
Q-CCNDF-50-0.04-1.5 Quartz ,Circular Continuous Density Filters, Ø = 50mm, OD Range: 0.04-1.5	250-2500	7.5	0.04-1.5	50	2-3 Weeks	Request for quote
Q-CCNDF-50-0.04-2.0 Quartz ,Circular Continuous Density Filters, Ø = 50mm, OD Range: 0.04-2.0	250-2500	7.5	0.04-2.0	50	2-3 Weeks	Request for quote
Q-CCNDF-50-0.04-3.0 Quartz ,Circular Continuous Density Filters, Ø = 50mm, OD Range: 0.04-3.0	250-2500	7.5	0.04-3.0	50	2-3 Weeks	Request for quote
Q-CCNDF-50-0.04-4.0 Quartz ,Circular Continuous Density Filters, Ø = 50mm, OD Range: 0.04-4.0	250-2500	7.5	0.04-4.0	50	2-3 Weeks	Request for quote
Q-CCNDF-60-0.04-1.0 Quartz ,Circular Continuous Density Filters, Ø = 60mm, OD Range: 0.04-1.0	250-2500	7.5	0.04-1.0	60	2-3 Weeks	Request for quote
Q-CCNDF-60-0.04-1.5 Quartz ,Circular Continuous Density Filters, Ø = 60mm, OD Range: 0.04-1.5	250-2500	7.5	0.04-1.5	60	2-3 Weeks	Request for quote
Q-CCNDF-60-0.04-2.0 Quartz ,Circular Continuous Density Filters, Ø = 60mm, OD Range: 0.04-2.0	250-2500	7.5	0.04-2.0	60	2-3 Weeks	Request for quote
Q-CCNDF-60-0.04-3.0 Quartz ,Circular Continuous Density Filters, Ø = 60mm, OD Range: 0.04-3.0	250-2500	7.5	0.04-3.0	60	2-3 Weeks	Request for quote
Q-CCNDF-60-0.04-4.0 Quartz ,Circular Continuous Density Filters, Ø = 60mm, OD Range: 0.04-4.0	250-2500	7.5	0.04-4.0	60	2-3 Weeks	Request for quote

Q-CCNDF-60-0.04-4.0 - Parameter

Type

Circular Continuous ND Filters

Material

Quartz

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

Spectral Range (nm)

250-2500

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-4.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

Q-CCNDF-60-0.04-3.0 - Parameter

Type

Circular Continuous ND Filters

Material

Quartz

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

Spectral Range (nm)

250-2500

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-3.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

Q-CCNDF-60-0.04-2.0 - Parameter

Type

Circular Continuous ND Filters

Material

Quartz

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

Spectral Range (nm)

250-2500

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-2.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

Q-CCNDF-60-0.04-1.5 - Parameter

Type

Circular Continuous ND Filters

Material

Quartz

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

Spectral Range (nm)

250-2500

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-1.5

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

Q-CCNDF-60-0.04-1.0 - Parameter

Type

Circular Continuous ND Filters

Material

Quartz

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

Spectral Range (nm)

250-2500

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-1.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

Q-CCNDF-50-0.04-4.0 - Parameter

Type

Circular Continuous ND Filters

Material

Quartz

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

Spectral Range (nm)

250-2500

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-4.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

Q-CCNDF-50-0.04-3.0 - Parameter

Type

Circular Continuous ND Filters

Material

Quartz

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

Spectral Range (nm)

250-2500

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-3.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

Q-CCNDF-50-0.04-2.0 - Parameter

Type

Circular Continuous ND Filters

Material

Quartz

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

Spectral Range (nm)

250-2500

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-2.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

Q-CCNDF-50-0.04-1.5 - Parameter

Type

Circular Continuous ND Filters

Material

Quartz

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

Spectral Range (nm)

250-2500

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-1.5

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

Q-CCNDF-50-0.04-1.0 - Parameter

Type

Circular Continuous ND Filters

Material

Quartz

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

Spectral Range (nm)

250-2500

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-1.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

Q-CCNDF-45-0.04-4.0 - Parameter

Type

Circular Continuous ND Filters

Material

Quartz

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

Spectral Range (nm)

250-2500

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-4.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

Q-CCNDF-45-0.04-3.0 - Parameter

Type

Circular Continuous ND Filters

Material

Quartz

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

Spectral Range (nm)

250-2500

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-3.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

Q-CCNDF-45-0.04-2.0 - Parameter

Type

Circular Continuous ND Filters

Material

Quartz

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

Spectral Range (nm)

250-2500

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-2.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

Q-CCNDF-45-0.04-1.5 - Parameter

Type

Circular Continuous ND Filters

Material

Quartz

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

Spectral Range (nm)

250-2500

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-1.5

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

Q-CCNDF-45-0.04-1.0 - Parameter

Type

Circular Continuous ND Filters

Material

Quartz

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

Spectral Range (nm)

250-2500

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-1.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

Q-CCNDF-40-0.04-4.0 - Parameter

Type

Circular Continuous ND Filters

Material

Quartz

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

Spectral Range (nm)

250-2500

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-4.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

Q-CCNDF-40-0.04-3.0 - Parameter

Type

Circular Continuous ND Filters

Material

Quartz

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

Spectral Range (nm)

250-2500

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-3.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

Q-CCNDF-40-0.04-2.0 - Parameter

Type

Circular Continuous ND Filters

Material

Quartz

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

Spectral Range (nm)

250-2500

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-2.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

Q-CCNDF-40-0.04-1.5 - Parameter

Type

Circular Continuous ND Filters

Material

Quartz

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

Spectral Range (nm)

250-2500

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-1.5

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

Q-CCNDF-40-0.04-1.0 - Parameter

Type

Circular Continuous ND Filters

Material

Quartz

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

Spectral Range (nm)

250-2500

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-1.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

B270-CCNDF-60-0.04-4.0 - Parameter

Type

Circular Continuous ND Filters

Material

B270

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

±3

Spectral Range (nm)

380-2100

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-4.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

B270-CCNDF-60-0.04-3.0 - Parameter

Type

Circular Continuous ND Filters

Material

B270

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

±3

Spectral Range (nm)

380-2100

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-3.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

B270-CCNDF-60-0.04-2.0 - Parameter

Type

Circular Continuous ND Filters

Material

B270

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

±3

Spectral Range (nm)

380-2100

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-2.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

B270-CCNDF-60-0.04-1.5 - Parameter

Type

Circular Continuous ND Filters

Material

B270

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

±3

Spectral Range (nm)

380-2100

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-1.5

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

B270-CCNDF-60-0.04-1.0 - Parameter

Type

Circular Continuous ND Filters

Material

B270

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

±3

Spectral Range (nm)

380-2100

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-1.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

B270-CCNDF-50-0.04-4.0 - Parameter

Type

Circular Continuous ND Filters

Material

B270

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

±3

Spectral Range (nm)

380-2100

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-4.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

B270-CCNDF-50-0.04-3.0 - Parameter

Type

Circular Continuous ND Filters

Material

B270

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

±3

Spectral Range (nm)

380-2100

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-3.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

B270-CCNDF-50-0.04-2.0 - Parameter

Type

Circular Continuous ND Filters

Material

B270

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

±3

Spectral Range (nm)

380-2100

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-2.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

B270-CCNDF-50-0.04-1.5 - Parameter

Type

Circular Continuous ND Filters

Material

B270

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

±3

Spectral Range (nm)

380-2100

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-1.5

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

B270-CCNDF-50-0.04-1.0 - Parameter

Type

Circular Continuous ND Filters

Material

B270

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

±3

Spectral Range (nm)

380-2100

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-1.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

B270-CCNDF-45-0.04-4.0 - Parameter

Type

Circular Continuous ND Filters

Material

B270

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

±3

Spectral Range (nm)

380-2100

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-4.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

B270-CCNDF-45-0.04-3.0 - Parameter

Type

Circular Continuous ND Filters

Material

B270

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

±3

Spectral Range (nm)

380-2100

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-3.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

B270-CCNDF-45-0.04-2.0 - Parameter

Type

Circular Continuous ND Filters

Material

B270

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

±3

Spectral Range (nm)

380-2100

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-2.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

B270-CCNDF-45-0.04-1.5 - Parameter

Type

Circular Continuous ND Filters

Material

B270

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

±3

Spectral Range (nm)

380-2100

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-1.5

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

B270-CCNDF-45-0.04-1.0 - Parameter

Type

Circular Continuous ND Filters

Material

B270

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

±3

Spectral Range (nm)

380-2100

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-1.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

B270-CCNDF-40-0.04-4.0 - Parameter

Type

Circular Continuous ND Filters

Material

B270

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

±3

Spectral Range (nm)

380-2100

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-4.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

B270-CCNDF-40-0.04-3.0 - Parameter

Type

Circular Continuous ND Filters

Material

B270

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

±3

Spectral Range (nm)

380-2100

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-3.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

B270-CCNDF-40-0.04-2.0 - Parameter

Type

Circular Continuous ND Filters

Material

B270

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

±3

Spectral Range (nm)

380-2100

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-2.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

B270-CCNDF-40-0.04-1.5 - Parameter

Type

Circular Continuous ND Filters

Material

B270

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

±3

Spectral Range (nm)

380-2100

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-1.5

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

B270-CCNDF-40-0.04-1.0 - Parameter

Type

Circular Continuous ND Filters

Material

B270

Thickness Tolerance (mm)

±0.25

Surface Quality

40-20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

±3

Spectral Range (nm)

380-2100

Metallic Coating Area Angle (degree)

0° - 270°

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

+0.25/-0

Hole Diameter (mm)

7.5

Optical Density Range

0.04-1.0

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

+0/-0.25

Standard Linearity

±5%

Standard Deviation

±5%

BK7-RNDF-50-0.0-3.0 - Parameter

Type

Circular Continuous ND Filters

Material

BK7

Thickness Tolerance (mm)

± 0.2

Surface Quality

40/20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

Spectral Range (nm)

400-700

Metallic Coating Area Angle (degree)

360

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

±0.25

Hole Diameter (mm)

Optical Density Range

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

±0.25

Standard Linearity

±5%

Standard Deviation

±5%

BK7-RNDF-50-0.0-2.0 - Parameter

Type

Circular Continuous ND Filters

Material

BK7

Thickness Tolerance (mm)

± 0.2

Surface Quality

40/20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

Spectral Range (nm)

400-700

Metallic Coating Area Angle (degree)

360

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

±0.25

Hole Diameter (mm)

Optical Density Range

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

±0.25

Standard Linearity

±5%

Standard Deviation

±5%

BK7-RNDF-50-0.0-1.5 - Parameter

Type

Circular Continuous ND Filters

Material

BK7

Thickness Tolerance (mm)

± 0.2

Surface Quality

40/20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

Spectral Range (nm)

400-700

Metallic Coating Area Angle (degree)

360

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

±0.25

Hole Diameter (mm)

Optical Density Range

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

±0.25

Standard Linearity

±5%

Standard Deviation

±5%

BK7-RNDF-50-0.0-1.0 - Parameter

Type

Circular Continuous ND Filters

Material

BK7

Thickness Tolerance (mm)

± 0.2

Surface Quality

40/20

Clear Aperture

>80%

Chamfer

<0.5mmx45°

Damage Threshold (pulsed)

7.5 J/cm2 (10ns/10Hz)

Thickness (mm)

1.5

Parallelism (arcmin)

Spectral Range (nm)

400-700

Metallic Coating Area Angle (degree)

360

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

±0.25

Hole Diameter (mm)

Optical Density Range

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

±0.25

Standard Linearity

±5%

Standard Deviation

±5%

BK7-MNDF-50-0-3 - Parameter

Type

Material

BK7

Surface Quality

40-20

Clear Aperture

85%

Spectral Range (nm)

400-700

Metallic Coating Area Angle (degree)

270

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

± 0.1

Hole Diameter (mm)

Coating on Surface A

No-Cr-Fe

Coating on Surface B

Broadband AR coated Rave<0.5%@430-700nm

Optical Density Range

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

± 0.1

BK7-MNDF-50-0-2 - Parameter

Type

Material

BK7

Surface Quality

40-20

Clear Aperture

85%

Spectral Range (nm)

400-700

Metallic Coating Area Angle (degree)

270

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

± 0.1

Hole Diameter (mm)

Coating on Surface A

No-Cr-Fe

Coating on Surface B

Broadband AR coated Rave<0.5%@430-700nm

Optical Density Range

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

± 0.1

BK7-MNDF-50-0-1.5 - Parameter

Type

Material

BK7

Surface Quality

40-20

Clear Aperture

85%

Spectral Range (nm)

400-700

Metallic Coating Area Angle (degree)

270

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

± 0.1

Hole Diameter (mm)

Coating on Surface A

No-Cr-Fe

Coating on Surface B

Broadband AR coated Rave<0.5%@430-700nm

Optical Density Range

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

± 0.1

BK7-MNDF-50-0-0.1 - Parameter

Type

Material

BK7

Surface Quality

40-20

Clear Aperture

85%

Spectral Range (nm)

400-700

Metallic Coating Area Angle (degree)

270

Parallelism (arcsec)

<30

Hole Diameter Tolerance (mm)

± 0.1

Hole Diameter (mm)

Coating on Surface A

No-Cr-Fe

Coating on Surface B

Broadband AR coated Rave<0.5%@430-700nm

Optical Density Range

Outside Diameter (mm)

Outside Diameter Tolerance (mm)

± 0.1

Q-CCNDF-60-0.04-4.0 - Download

Q-CCNDF-60-0.04-3.0 - Download

Q-CCNDF-60-0.04-2.0 - Download

Q-CCNDF-60-0.04-1.5 - Download

Q-CCNDF-60-0.04-1.0 - Download

Q-CCNDF-50-0.04-4.0 - Download

Q-CCNDF-50-0.04-3.0 - Download

Q-CCNDF-50-0.04-2.0 - Download

Q-CCNDF-50-0.04-1.5 - Download

Q-CCNDF-50-0.04-1.0 - Download

Q-CCNDF-45-0.04-4.0 - Download

Q-CCNDF-45-0.04-3.0 - Download

Q-CCNDF-45-0.04-2.0 - Download

Q-CCNDF-45-0.04-1.5 - Download

Q-CCNDF-45-0.04-1.0 - Download

Q-CCNDF-40-0.04-4.0 - Download

Q-CCNDF-40-0.04-3.0 - Download

Q-CCNDF-40-0.04-2.0 - Download

Q-CCNDF-40-0.04-1.5 - Download

Q-CCNDF-40-0.04-1.0 - Download

B270-CCNDF-60-0.04-4.0 - Download

B270-CCNDF-60-0.04-3.0 - Download

B270-CCNDF-60-0.04-2.0 - Download

B270-CCNDF-60-0.04-1.5 - Download

B270-CCNDF-60-0.04-1.0 - Download

B270-CCNDF-50-0.04-4.0 - Download

B270-CCNDF-50-0.04-3.0 - Download

B270-CCNDF-50-0.04-2.0 - Download

B270-CCNDF-50-0.04-1.5 - Download

B270-CCNDF-50-0.04-1.0 - Download

B270-CCNDF-45-0.04-4.0 - Download

B270-CCNDF-45-0.04-3.0 - Download

B270-CCNDF-45-0.04-2.0 - Download

B270-CCNDF-45-0.04-1.5 - Download

B270-CCNDF-45-0.04-1.0 - Download

B270-CCNDF-40-0.04-4.0 - Download

B270-CCNDF-40-0.04-3.0 - Download

B270-CCNDF-40-0.04-2.0 - Download

B270-CCNDF-40-0.04-1.5 - Download

B270-CCNDF-40-0.04-1.0 - Download

BK7-RNDF-50-0.0-3.0 - Download

Download

BK7-RNDF-50-0.0-2.0 - Download

Download

BK7-RNDF-50-0.0-1.5 - Download

Download

BK7-RNDF-50-0.0-1.0 - Download

Download

BK7-MNDF-50-0-3 - Download

Download

BK7-MNDF-50-0-2 - Download

Download

BK7-MNDF-50-0-1.5 - Download

Download

BK7-MNDF-50-0-0.1 - Download

Download

Accessories

Compare	Model		Drawings & Specs	Availability	Reference Price (USD)
