YVO4 布鲁斯特窗口
Overview Specifications and Graphs Order Now!

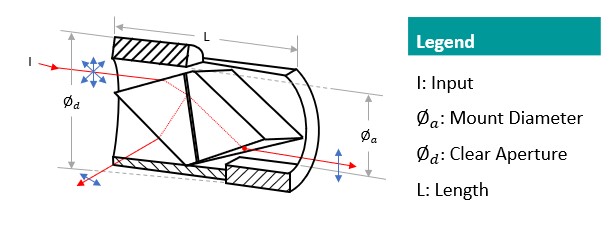

Brewster Windows are designed such that at Brewster’s angle (55.57°) , s-polarized light will be partially reflected, whereas loss of p-polarised light is minimised. When placed within laser cavities, Brewster windows will cause the laser output to product linearly p-polarised light.


Nd:YVO4 is an efficient material used for laser crystals and diode lasers or solid-state lasers. Due to its high stability and high-power tolerance, it has a high damage threshold and optical properties. It can substitute Calcite crystals in many applications with its wide transparency range and birefringence properties.


General Specifications

Type

Brewster Polarizer

Material

YV04

Mount Material

Black Anodized Aluminium

Diameter Tolerance (mm)

+0/-0.2

Length Tolerance(mm)

±0.5

Extinction Ratio

<5x10-5

Beam Deviation(arcmin)

<3

Clear Aperture

>80%

Surface Quality

20/10

Transmitted Wavefront Distortion

<λ/4@633nm

Damage Threshold(pulsed)

>1000MW/cm²



Update Coming soon!

As our website is in Soft Launch, we are currently updating our website to reflect our full capability.

This product line’s information/specification will be updated soon. The information is available upon request.

Apologies for the inconvenience caused.

Contact Us



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Mount Diameter (mm)

Clear Aperture


Search Reset
Compare Model Drawings & Specs Design Wavelength (nm) Clear Aperture Mount Diameter (mm) Availability Reference Price
(USD)
YVO4-BP-10-500-4000
YVO4, Brewster Polarizer, Clear Aperture= 10mmmm, Design Wavelength= 500-4000nm 		500-400010mm32 2-3 Weeks Request for quote
YVO4-BP-5-500-4000
YVO4, Brewster Polarizer, Clear Aperture= 5mmmm, Design Wavelength= 500-4000nm 		500-40005mm 2-3 Weeks Request for quote

YVO4-BP-5-500-4000 - Parameter

Type
Brewster Polarizer

Material
YVO4

Coating
No Coating, Typical Tp>98%@1064nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
500-4000

Surface Quality
20/10

Clear Aperture
5mm

Damage Threshold (pulsed)
>1000MW/cm²

Length Tolerance (mm)
±0.5

Extinction Ratio
<5x10-5

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)

Beam Deviation (arcmin)
<3

Mount Length (mm)
21

YVO4-BP-10-500-4000 - Parameter

Type
Brewster Polarizer

Material
YVO4

Coating
No Coating, Typical Tp>98%@1064nm

Diameter Tolerance (mm)
+0.0/-0.2

Design Wavelength (nm)
500-4000

Surface Quality
20/10

Clear Aperture
10mm

Damage Threshold (pulsed)
>1000MW/cm²

Length Tolerance (mm)
±0.5

Extinction Ratio
<5x10-5

Transmitted Wavefront Distortion
<λ/4@633nm

Mount Material
Black Anodized Aluminum

Mount Diameter (mm)
32

Beam Deviation (arcmin)
<3

Mount Length (mm)
40

YVO4-BP-5-500-4000 - Download

YVO4-BP-10-500-4000 - Download
